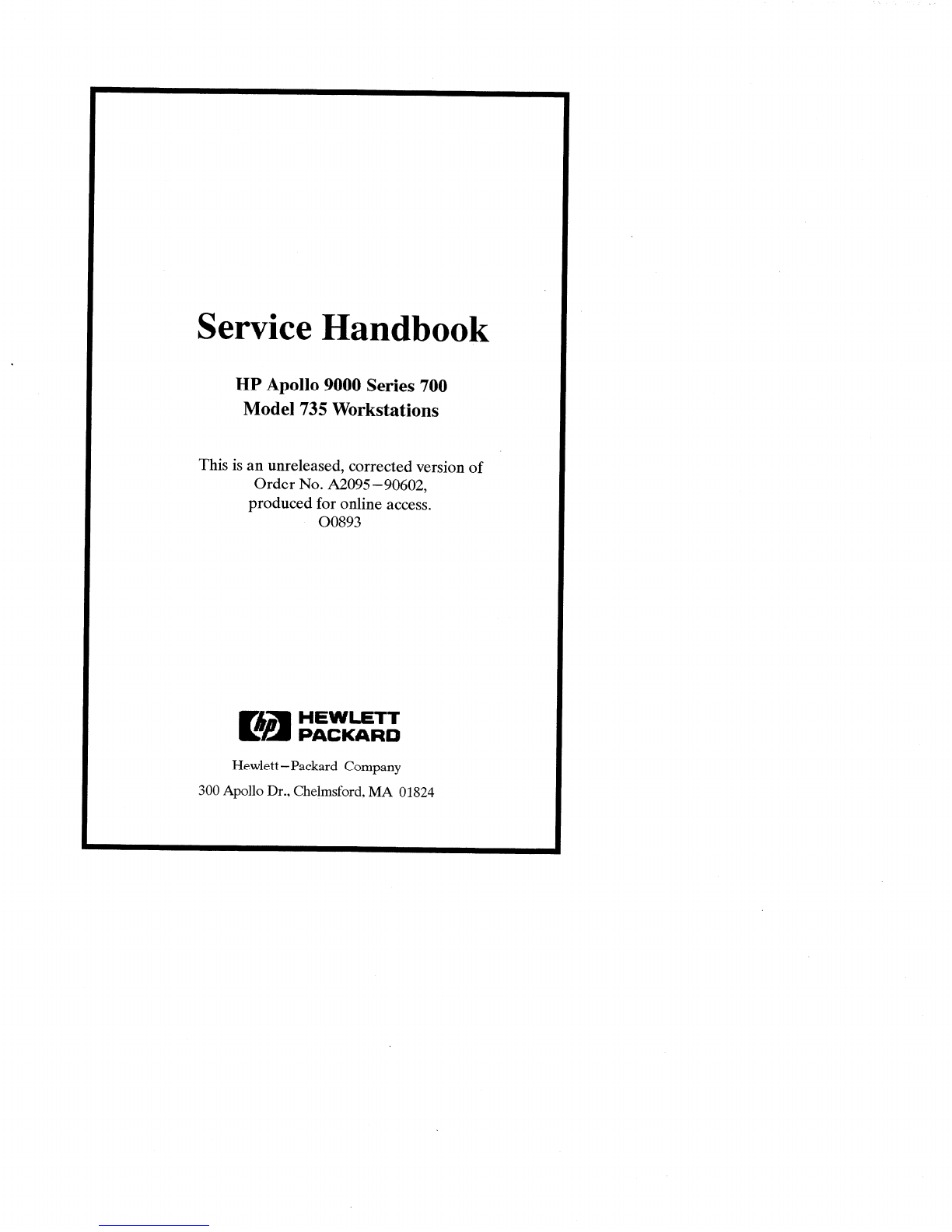

HP Model 735 - Workstation User manual

ServiceHandbook
HPApollo9000Series700
Model735Workstations
Thisisanunreleased,correctedversionof
OrderNo.A2095–90602,
producedforonlineaccess.
00893
P!l HEWLETT
PACKARD
Click to go to the Table of Contents
300ApolloDr.,Chelmsford.MA01824

NOTICE
The information contained in this document is subject to change without notice
HEWLETT-PACKARD MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MANUAL, lNCLUD-
ING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, Hewlett-Packard shall not be liable for errors contained herein or direct, indi-
rect, special, incidental or consequential damages in connection with the furnishing performance or use of
this material,
WARRANTY
Acopy of the specific warranty terms applicable to your Hewlett –Packard product and replacement parts
can be obtained from vour local Sales and Service Office.
Copyright @Hewlett –Packard Company 1992
This document contains information which is protected by copyright. All ri:g,ts are reserved. Reproduction, adaptation,
or translation without prior written permission is prohibited, except as allowed under the copyright laws.
Restricted RiL@t Legend
Use, duplication or disclosure by the U.S. Government Department of Defense is subject to restrictions as set forth in
paragraph (b)~3j(ii) of the Ri@ts in Technical Data and Software clause in FM 52.227–7013.
Copyright @AT &~Inc. 1980,1984
Copyright @The Regents of the University of California 1979,1980,1983
This software and documentation is based in part on the Fourth Berkeley Software Distribution under licence from the
Regents of the University of California.
ii

Printing History
New Editions of thismanual incorporate all material updated since the previous
edition. Update packages may be issued between editions and contain replace-
ment and additional pages to be merged into the manual by the user.
The manual printing date and part number indicate its current edition. The print-
ing date changes when anew edition is printed. (Minor corrections and updates
which are incorporated at reprint do not cause the date to change.) The manual
part number changeswhen extensive technical changes are incorporated.
Edition 1Original service handbook for Model 735
●mm
111

Emissions Regulations
Federal Communications Commission (FCC)
The Federal Communications Commission of the U.S. government regulates the
radio frequency energy emanated by computing devices through pubhshed regula-
tions. These regulations specify the limits of radio frequency emission to protect
radio and television reception. All HP Apollo nodes and peripherals have been
tested and comply with these limits. The FCC regulations also require that com-
putin~ devices used in the U.S. display the agency’s label and that the related docu-
ment~tion include the following statement:
WARNING: This equipment has been tested and found to comply with the
limits for aClass Adigital device, pursuant to part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is
operated in acommercial environment. This equipment
generates, uses, and can radiate radio frequency enerb~and, if
not installed and used in accordance with the instruction
manual, may cause harmful interference to radio
communications. Operation of this equipment in aresidential
area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own
expense.
Compliance to these regulations requires the use of shielded cables.
Canadian Department of Communications (DOC)
This digital apparatus does not exceed the Class Alimits for radio noise emissions
from d;gital apparatus as set out in the Radio Interference Requirements of the
Canadian Department of Communications.
Compliance to these regulations requires the use of shielded cables.
Emissions Regulations Compliance
Any third–party 1/0 device installed in HP Apollo system(s) must be in accor-
dance with the requirements set forth in the preceding Emissions Regulations
statements. In the event that athird–party noncompliant 1/0 device is installed,
the customer assumes all responsibility and liability arisingtherefrom.
Compliance to these regulations requires the use of shielded cables.
iv

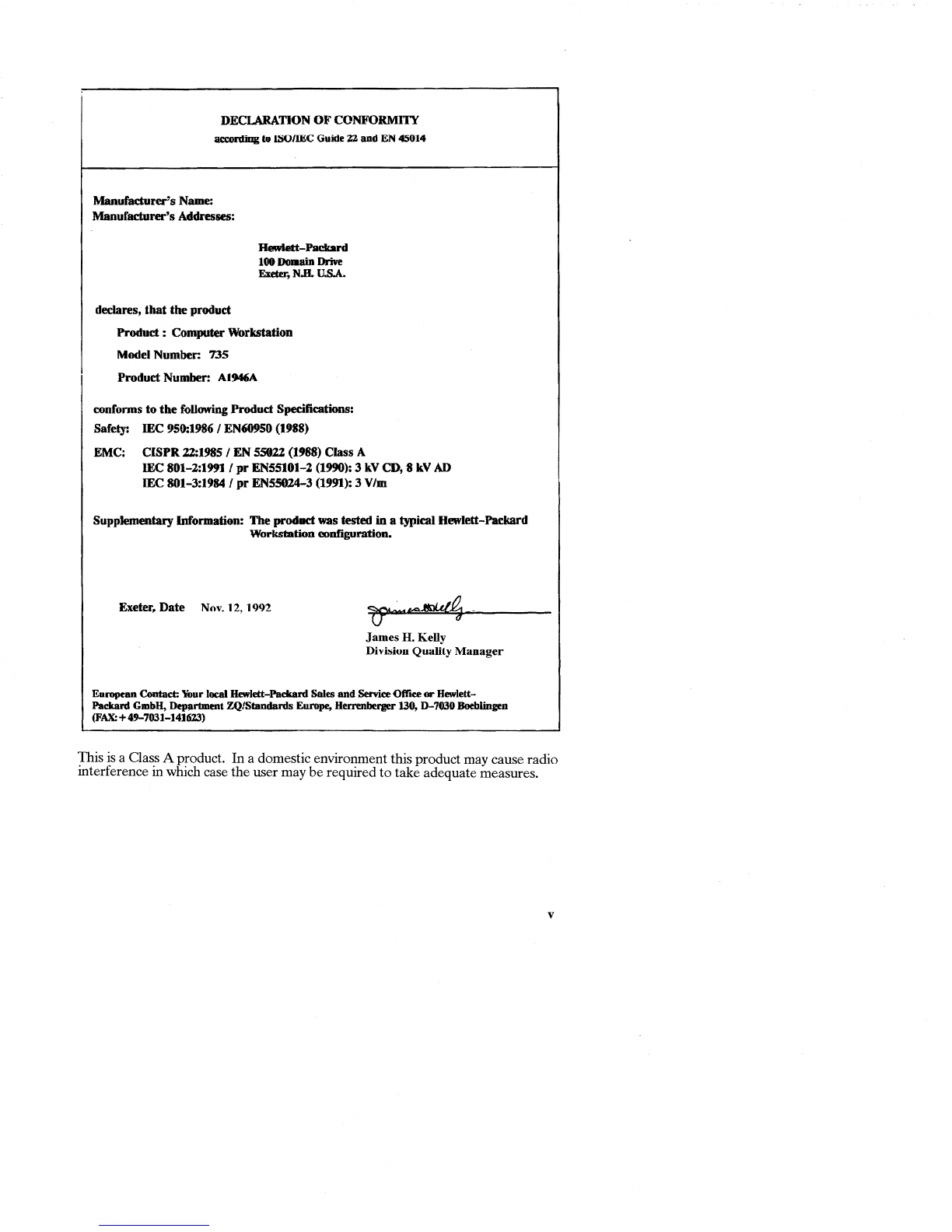

DECURATION OF CONFORMITY
according toEWIEC Guide22and EN 45014
Manufacturer’s Name:
Hewlett-Packard
100 DomainDrive
IMe@r,
NW U.S.A.
declares, that the product
Product: ComputerWorkstation
Model Numbe~ 735
Product Number: A1946A
conforms to the folluwing Product Specifications:
Safety IEC 9S&1986/EN60950 (1988)
EMC: CISPR 221985/EN 55022 (1988) Chss A
lEC 801-2:1991 /pr EN55101-2 (1990): 3kV CD, 8kVAD
IEC 801-31984/ pr EN554)24-3(1991~ 3V/m
Supplementary Information: The prodwt was tested in atypical Hewlett-Packard
Workstationmnfiguration.
Zxeter, Date Nov. 12,1992
James H. Kelly
Division Quality Manager
European Comtac& lbur heal Hewlet-Packard Saks and Service OffIce or Hewlett-
Packard GmbH, Department ZQKMm@wds EUIWW Hernmberger X)0, D-7030 Boeblingen
(FAX+ 49-7031-141623)
This is aClass Aproduct. In adomestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.
v

I
Electrostatic Discharge (ESD) Precautions
Electrostatic charges can damage the integrated circuits on printed circuit boards.
TO prevent such damage from ckxming, &bservethe following precautions when
unpacking and installing the board.
●Stand on astatic–free mat.
●Wear astaticstrap to ensure that any accumulated electrostatic charge dis-
charges from your body to ground.
●Connect all equipment together, including the static–free mat, staticstraps,
routing nodes, and peripheral units.
.Keep uninstalled printed circuit boards in their protective antistaticbags.
●Once you have removed the printed circuit boards from their protective an-
tistatic bags, handle them by their edges.

Table of Contents
Product Information 1
Product Description ................................ 1–2
System Unit Controls ............................OO. 1–3
Power Switch ..................................... 1–4
Power LED ...................................... 1–4
TOCSwitch ...................................... 1–4
Service/NormalModeSwitch... .................... 1–4
UnderstandingtheL Ems...... ...................... 1–5
System Unit Rear Panel Connectors ................... 1–7
SystemI/OConnectors ............................ 1–8
HP–HIL connector ............................... 1–8
HPParallelI/Oconnector .......................... 1–8
Network connectors ............................... 1–8
RS–232SerialInput/Outputconnectors .............. 1–9
Audio connectors ................................ 1–10
SCSII/OConnectors ............................. 1–11
GraphicI/OConnector ........................... 1–12
EISAI/OConnector ............................. 1–12
Monitor Controls, Connectors, and Indicators ......... 1–13
Environmental/Installation/PM 2
Environmental Specifications ........................ 2–1
Regulatory Requirements ............................ 2–2
Installation ........................................ 2–2
Preventive Maintenance ............................. 2–2
Configuration 3
Workstation and System Unit Configurations ........... 3–1
FRU Configurations ................................ 3–1
Mass Storage Configurations.. ....................... 3–1
InstallingAdditonal Memory... ..................... 3–12
vii

.’

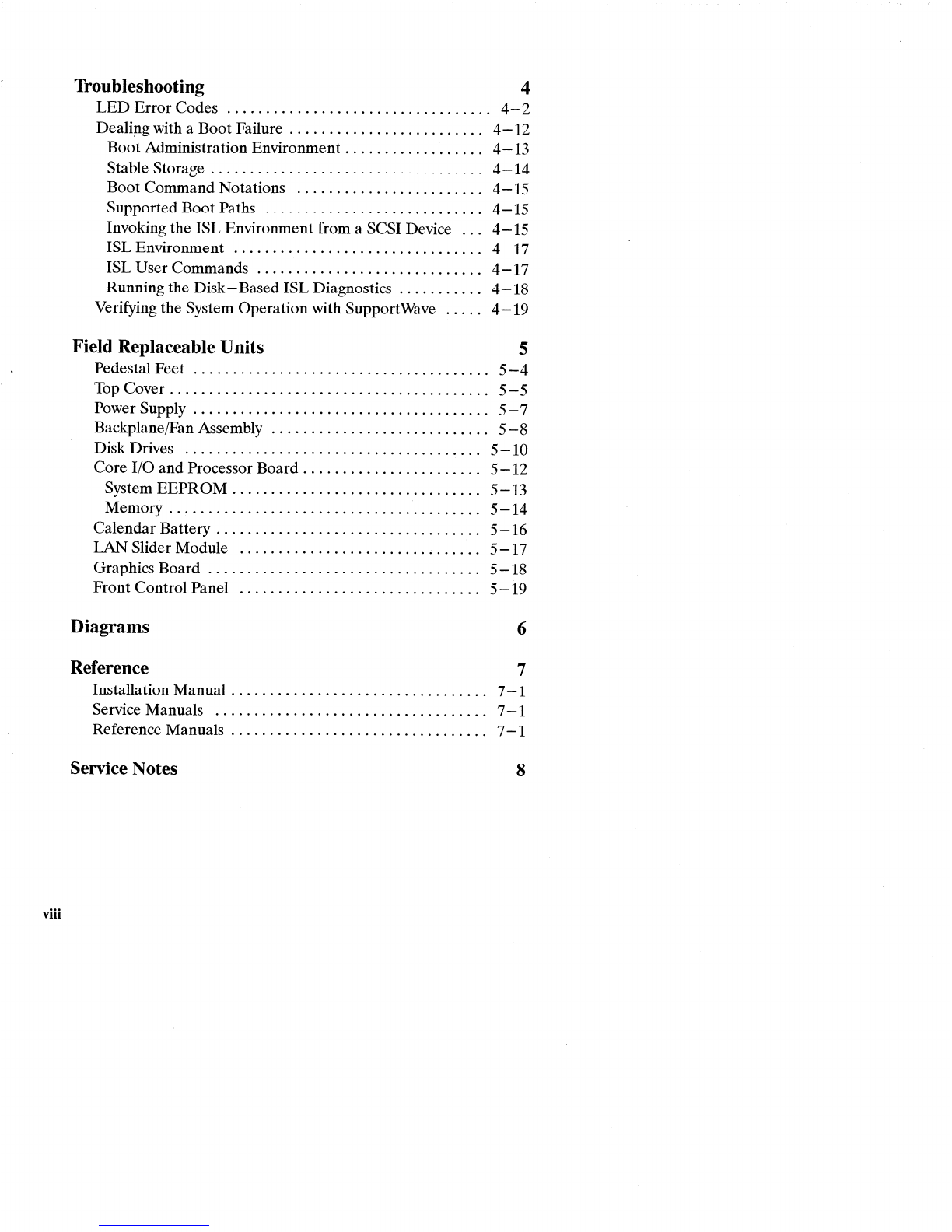

‘lloubleshooting 4
LED Error Codes .............. ................... 4–2
Dealingwith aBoot Failure ......................... 4–12
Boot Administration Environment .................. 4–13
Stable Storage ................................... 4–14
Boot Command Notations ........................ 4–15
Supported Foot paths ............................4–15
Invoking the ISLEnvironment froma SCSI Device . . . 4–15
ISLEnvironment ................................ 4–17
ISLUser Commands ............................. 4–17
Running the Disk–BasedISL Diagnostics ........... 4–18
Verifying the System Operation with SupportWave ..... 4–19
Field Replaceable Units 5
Pedestal Feet ...................................... 5–4
Top Cover ......................................... 5–5
Power Supply ........ o...... ....................... 5–7
Backplane/FanAssembly ............................ 5–8
Disk Drives ...................................... 5–10
CoreI/OandProcessorBoard.. ..................... 5–12
System EEPROM ................................ 5–13
Memory ........................................ 5–14
Calendar Battery .................................. 5–16
LANSliderModule ............................... 5–17
Graphics Board ................................... 5–18
FrontControlPanel ............................... 5–19
Diagrams 6
Reference 7
Installation Manual ................................. 7–1
Service Manuals ................................... 7–1
Reference Manuals ................................. 7–1
Service Notes 8
●00
Vm

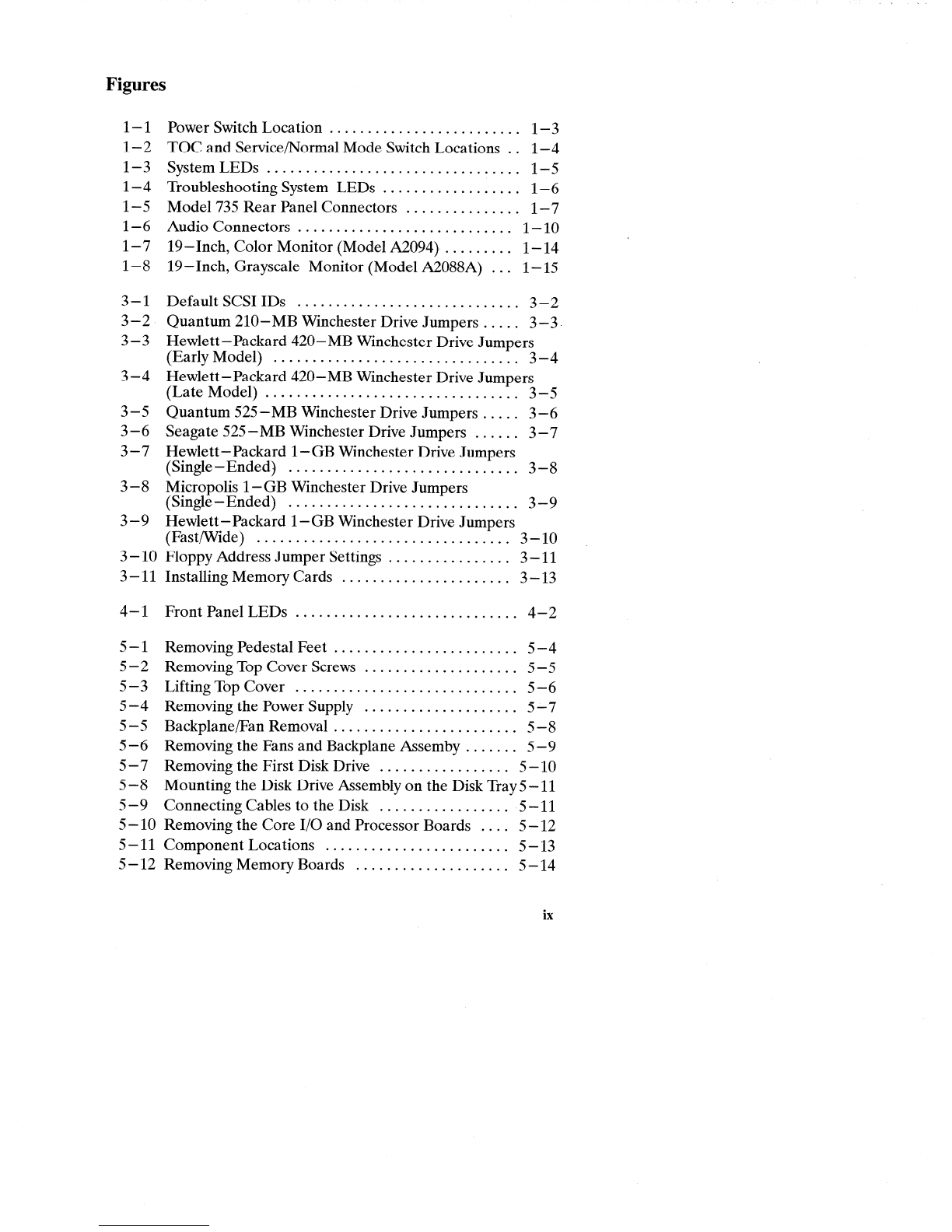

Figures
. .
1–1
1–2
1–3
1–4
1–5
1–6
1–7
1–8
3–1
3–2
3–3
3–4
3–5
3–6
3–7
3–8
3–9
3–lo
3–11
4–1
5–1
5–2
5–3
5–4
5–5
5–6
5–7
5–8
5–9
5–lo
5–11
5–12
Power Switch Location ......................... 1–3
TOC and Service/Normal Mode Switch Locations . . 1–4
System LEDs ................................. 1–5
Troubleshooting System LEDs .................. 1–6
Mode1735Rear Panel Connectors ............... 1–7
Audio Connectors ............................ 1–10
19–Inch, Color Monitor (ModelA2094) ......... 1–14
19–Inch, Grayscale Monitor (ModelA2088A) . . . 1–15
DefaultSCSIIDs ............................. 3–2
Quantum 210–MB Winchester Drive Jumpers ..... 3–3
Hewlett–Packard 420–MBWinchester Drive Jumpers
(Early Model) ................................ 3-4
Hewlett –Packard 420–MB Winchester Drive Jumpers
(Late Model) ................................. 3–5
Quantum 525–MB Winchester Drive Jumpers ..... 3–6
Seagate 525–MB Winchester Drive Jumpers ...... 3–7
Hewlett –Packard 1– GB Winchester Drive Jumpers
(Single–Ended) .............................. 3-8
Micropolis 1– GB Winchester Drive Jumpers
(Single–Ended) .............................. 3–9
Hewlett –Packard 1– GB Winchester Drive Jumpers
(Fast/Wide) ................................. s–10
Floppy Address Jumper Settings ................ 3–11
Installing Memory Cards ...................... 3–13
Front Panel LEDs ............................. 4–2
Removing Pedestal Feet ........................ 5–4
Removing Top Cover Screws .................... 5–5
Lifting Top Cover .............................5–6
Removing the Power Supply .................... 5–7
Backplane/Fan Removal ........................ 5–8
Removing the Fans and Backplane Assemby ....... 5–9
Removing the First Disk Drive ................. 5–10
Mounting the Disk Drive Assembly on the Disk Tray5– 11
Connecting Cables tothe Disk ................. 5–11
Removing the Core I/Oand Processor Boards .... 5–12
Component Locations ........................ 5–13
Removing Memory Boards .................... 5–14
ix

5–13 Removing the Calendar Battery ................ 5–16
5–14 LAN Slider Module Removal .................. 5–17
5–15 Removing the Front Control Panel .............. 5–19
6– 1 System Unit Functional Block Diagram ........... 6–2
Tables
1– 1 LED Display During Normal System Activity ...... 1–6
l–~ Serial I/O Pins eeo. oo. eo. oo. oeoao . .. O.O.OOO...O 1–9
2– 1 Environmental Specifications for Model 735 SPU . . 2– 1
4–1 Selftest LED Codes ........................... 4–3
4–2 PDCLEDCodes coooe. oo. ..e. ..e . . .. O. . . . .. O.. 4–7
4–3 ISLLED Codes ............................... 4–9
4–4 HP–UXKernel LED Codes ................... 4–11
5–1 FRUList .................................... 5–2
❑n
❑o
x

Product Information
This chapter introduces the HP Apollo 9000 Series 700 Model 735 workstation.
Its purpose is to familiarize you with the workstation and itscontrols and indica-
tors. Included in this chapter are the following topics:
o
0
●
●
●
Product description
Systemunit controls
Understanding the LEDs
Systemunit rear panel connectors
Monitor controls, connectors, and indicators
1
Product Information 1-1

Product Description
The Model 735 is ahigh–performance, PA–RISC–based workstation that is de-
si~g+edto run the HP– UX operating system.
The Model 735 workstation houses up to two internal mass storage devices con-
nected to one of two internal SCSI interfaces: single-ended orfasthvide. With the
single–ended interface, the workstations have their firsthard disk drive bay fitted
witheither a 525–MB or 1– GB hard disk drive. The second disk bay maybe
fitted with either a3.5–inch floppy drive or a 525 –MB or 1–GB hard disk drive.
With the fast/wide interface, the workstations have their hard disk drive bays fitted
witheither one or two 1– GB hard disk drives. Hard disk drives are pre–for-
matted. (The 1– GB drives are not interchangeable between single–ended and
fast/wide interfaces.)
The Model 735 workstation contain the following key features:
●Operating Systems
.Compatibility
●Graphics Options
@Main Memory
●Mass Storage,
single ended SCSI
G;ss Storage,
fast/wide SCSI
●Network
●1/0
Native HP–UX
Source and binary code compatible with
Series 700 product family
19–inch 1280 x1024 8–plane color
19–inch 1280 x1024 24–plane color
Dual 19–inch 1280 x1024 24–plane color
19–inch 1280 x1024 24–plane Z-buffered color
19–inch 1280 x1024 48–plane Z–buffered color
19–inch 1280 x1024 8–bit grayscale
32 MB (16 MB on–board CPU; non–removable)
Up to 400 MB: removable memory cards
3.5—inch SCSI hard disk drive
Optional second hard disk drive or
Optional 3.5–inch flexible disk drive
3.5—inch SCSI hard disk drive
Optional second hard disk drive
Thin LAN. or
LAN AUI, or
FDDI
Two 9–pin RS– 232 ports
One 25–pin HP parallel port
8–bit. single–ended SCSI–2 interface
16–bit. fast, wide. SCSI–2 interface
HP–HIL port for HP–UX keyboards and other
HP-HIL devices
CD –quality audio and speaker output
CD–quality microphone and audio input
l-~ Product Information

System Unit Controls
Before powering on the system,you should become familiar with the systemunit
controls.
This chapter introduces the HP Apollo 9000 Series 700 Model 735 workstations.
Its purpose is to familiarize you with the workstation and its controls and indica-
tors. Included in this chapter are the following topics:
●Product description
●System unit controls
●Understanding the LEDs
●System unit rear panel connectors
cMonitor controls, connectors, and indicators
Figure 1– 1 shows the power switch and the Power LED.
Front \\
I
Power
LED
~ower.vvitch
Figure 1–1. Power SwitchLocation
Figure 1– 2 shows the location of the TOC (Transfer Of Control) and Service/Nor-
mal Mode switches. These switches are located behind ahinged cover on the front
of the system unit.
Product Information 1–3

\
Power
LED
Hinged
TO Front
Cover
)
Front (Hinged Cover Opened)
Figure1–2. TOC and Service/Nomal Mode SwitchLocations
Power Switch
Use the power switchto power the systemunit on and off.
Power LED
The power LED lights green when the system unit itpowered on.
TOC Switch
Use the TOC switchto reset the operating system. Do not push the TOC switch
unless you have first shutdown the system.
Service/Normal Mode Switch
The Service/Normal mode switch is by default in the Normal position. Service
mode is used only during manufacturing.
1-4 Product Information

Understanding the LEDs
There are 9light–Emittinq Diodes (LEDs) on the system.Five are visible from
the front of the system uni~when the hinged door is closed, as shown in Figure
Figure 1– 3. The green LED on the far right is the Power LED. It lights when the
systemunit power is on. The remaining four amber LEDs show thatthe systemis
running the operating system and communicating over the network.
\
V4 System
Status LEDs
J!!l-\43*3.$.==
mull k
Power
LED
(Hinged Door Closed)
Figure 1–3. SystemLEDs
If you open the hin~ed door, there are four additional amber LEDs as shown in
bFi~ure 1– 4). Thes~LEDs help you to troubleshoot the workstation ycoming on
in~ertain patterns during systemfailures (see Chapter 6).
Product Information 1-5

System
Status LED
Power
LED
(8 through 1) -)
Front (Hinged Door Opened)
Figure 1–4. TroubleshootingSystem LEDs
Table 1– 1 listshow the four systemLEDs report during normal HP–UX system
activity. The green Power LED remains lit while the system is powered on.
Table 1–1. LED Displa}’ Duting Normal System Activitv
d
LED Display
S7654321
IHHIUHNHI
UHHH191HI
UHHHHllo
UHHHHHll
Symbol
Q
Q
>
w
o@’E
n
0+: ❑
l-!
=LED On or Flashing
/
Meaning
Operating System Running
Disk Access In Progress
Network Receive In Progress
Network Transmit In Progress
1-6 Product Information

.!
System Unit Rear Panel Connectors
This section describes the four main 1/0 subsystems on the system unit’s rear
panel:
●System 1/0 Connectors
●Graphic 1/0 Connectors
●Disk 1/0 Connectors
●EISA 1/0 Connectors
Figure 1–5shows the location of the connectors as well as the ac power connector
on”the system’s rear panel.
NOTICE: To maintain FCC/EMI compliance, verify
that all cables are fully seated and properly
fastened.
Figure 1–5. Model 735 Rear Panel Connectors
Product Information 1-7

System 1/0 Connectors
●HP —HIL connector
●HP parallel 1/0 connector
●802.3 network connectors
.RS —232 serial input/output connectors
HP-HIL connector
The onboard Hewlett–Packard Human Interface Link (HP–Hil) port provides
support for 2standard and 5optional HP-Hil devices. The (two– dot) HP–HIL
connector on the bulkhead supports the standardHP– HIL keyboard. The key-
board provides an HP–HIL connector for the standard HP–HIL 3–button
mouse. Consult the documentation that accompanies each input device for specific
information concerning itsuse.
HP Parallel 1/0 connector
The 25 –pin HP Parallel 1/0 interface port isprovided for use with peripheral de-
vices using the Centronics interface protocols such as printers and plotters. Con-
sultthe documentation that accompanies each peripheral device for specific infor-
mation concerning itsuse.
Network connectors
The system provides aconnector for LAN through aremovable daughter card of
the system 1/0 board. Three LAN options are available: aBNC connector for a
ThinLAN IEEE 802.5 network. an AUI externalconnector for aMAU to an IEEE
802.3 network. or aconnector for an FDDI network.
1-8 Product Information

RS-232 Serial Input/Output connectors
You can attach avariety of peripheral devices to the two RS–232 Serial Input/
Output (S10) ports on the workstation. These peripheral devices include printers,
plotters, modems. and scanners. Consult the documentation that accompanies
each peripheral device for specific information concerning itsuse.
Both S10 ports are programmable. You can set functions such as bit rate, character
length, parity, and stop bits. S10 Ports 1and 2are used as interfaces for serial
asynchronous devices to the CPU. Both ports operate at up to a19.2K baud rate.
The interface to S101 and 2is by way of RS –232 drivers and receivers.
Table Table 1–2shows the S10 connector pin listings.The serial connectors are
9–pin D–sub connectors. Signalnames are those specified in the EIA RS–252
standard;
Pin No.
1
~
3
4
5
6
7
8
9
Table 1–2. Serial1/0Pins
Signal
DCD
RXD
TXD
DTR
GND
DSR
RTS
CTS
RI
Description
Data Carrier Detect
Receive Data
Transmit Data
Data Terminal Ready
Ground
Data Set Ready
Request To Send
Clear To Send
Ring Indicator
Product Information 1– 9

Audio connectors
The workstation has audio input and output capability through externalinput and
output connectors and an internal speaker. Amicrophone for audio input is not
supplied with the workstation. The audio connectors are standard audio mini—
jacks. Hewlett–Packard recommends that for best quality recording and playback
of audio through the externalconnectors, that you use gold–plated plugs available
through audio retailers. For more information on the audio capability of the work-
station see theAudio Users Guide manual. Figure 1– 6 shows the audio connectrs
on the rear of the workstation.
Mono Speaker Earphones
r
Figure 1–6. Audio Connectors
1-1o Product Information
