This guide is for experienced technicians who have
already completed the HP Vectra PC family training
course. It is a self-paced training guide designed to train
you to repair the PC. It contains information specific only
to the repair of these PCs. For information on the
installation of accessories, see the User’s Guide and the
Online documents that are supplied with the PC.
1book.bk : 1bookf.fb4 Page i Monday, January 19, 1998 5:12 PM

ii
Notice
The information contained in this document is subject to change without notice.
Hewlett-Packard makes no warranty of any kind with regard to this
material, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose.
Hewlett-Packard shall not be liable for errors contained herein or for incidental
or consequential damages in connection with the furnishing, performance, or use
of this material.
Hewlett-Packard assumes no responsibility for the use or reliability of its
software on equipment that is not furnished by Hewlett-Packard.
This document contains proprietary information that is protected by copyright.
All rights are reserved. No part of this document may be photocopied,
reproduced, or translated to another language without the prior written consent
of Hewlett-Packard Company.
Centronics® is a registered trademark of Centronics Data Computer
Corporation.
Microsoft®, Windows® and MS-DOS® are registered trademarks of the
Microsoft Corporation.
Pentium® is a registered trademark of the Intel Corporation.
SoundBlasterTM is a trademark of Creative Technology Limited.
Hewlett-Packard France
Commercial Desktop Computing Division
38053 Grenoble Cedex 9
France
1997 Hewlett-Packard Company
1book.bk : 1bookf.fb4 Page ii Monday, January 19, 1998 5:12 PM

iii
Electrostatic Discharge Warning
Electrostatic Discharge (ESD) can damage processors, memory, disks, accessory
boards and other components.
Before installing or replacing a component:
1Do not take the new component out of its ESD package before connecting your
wrist strap and ESD mat to a suitably earthed point.
2Do not forget to use the ESD package provided with the new part to return the
old part. The ESD package is conductive and is easy to recognize from its label.
ESD Label
1book.bk : 1bookf.fb4 Page iii Monday, January 19, 1998 5:12 PM

iv
Care of Hard Disk Drives
HP hard disk drives are delicate and are very sensitive to shocks or vibration.
When installing a hard disk accessory, be careful not to drop or knock the drive.
Any shock may damage the drive and prevent it from functioning correctly.
Hard disk drives already installed in HP Vectra PCs are also sensitive to shocks. If
the PC’s system unit is knocked or dropped accidentally, this may cause damage to
installed hard disk drives.
Avoid striking the
computer
Don’t move PC
when powered on
Do not knock the hard
disk during installation
1book.bk : 1bookf.fb4 Page iv Monday, January 19, 1998 5:12 PM

Contents
v
Electrostatic Discharge Warning. . . . . . . . . . . . . . . . . . . . . . . . . . . . . iii
Care of Hard Disk Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . iv
Vectra Product Hardware Comparison . . . . . . . . . . . . . . . . . . . . . . . . 1
Vectra Products Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Where to find information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Desktop Models Package. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Minitower Package . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
System Board and Backplanes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
System Board Switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Key Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Support Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Replacing the System Board. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Flashing the Latest Version of the System BIOS . . . . . . . . . . . . . . . . . . . 13
Crisis Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Accessing the HP Setup Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Multi boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Complete the Questionnaire to Check Your Understanding . . . . . . 16
Answers and Explanations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
1book.bk : 1book.toc Page v Monday, January 19, 1998 5:12 PM

Contents
vi
1book.bk : 1book.toc Page vi Monday, January 19, 1998 5:12 PM

1
Vectra Product Hardware Comparison
Vectra Product Hardware Comparison
Component HP Vectra VL 6/xxx PC HP Vectra VL 7/xxx PC
Microprocessor Pentium II,
233 MHz, 266 MHz, or 300 MHz
32 KB of level-1 cache memory,
512 KB of level-2 cache memory
Pentium II,
233 MHz, 266 MHz, 300 MHz,
or 333 MHz
32 KB of level-1 cache memory,
512 KB of level-2 cache memory
Chipset Intel 440FX AGPset Intel 440LX AGPset
Memory Up to 384 MB EDO RAM Up to 384 MB SDRAM
Hard Disks 2.5, 4.0, 6.4 GB EIDE 3.2, 4.3, 6.4 GB Ultra ATA
Flexible disk drive Standard version without bezel Standard version without bezel
(desktop)
Standard version with bezel
(mintower)
CD-ROM
(selected models)
24✕MAX ATAPI 24✕MAX ATAPI
Sound Card
(selected models)
SoundBlaster Pro-compatible
(Aztech)
SoundBlaster Pro-compatible
(Aztech)
LAN board
(selected models)
10/100Base-T PCI Bus Master LAN
board, RPO on 10Base-T LAN board
10/100Base-T LAN board with RPO/
RWU (Remote Power On/Remote
Wake Up) and WOL (Wake On LAN)
capability
Graphics (integrated) Cirrus Logic 5446 PCI,
2MB
Cirrus Logic Laguna3DA AGP,
2 or 4 MB
Graphics (high-end) Matrox Millenium II PCI card,
4 or 8 MB
Matrox Millenium II PCI card,
8 MB
1book.bk : 1ch01.fb4 Page 1 Monday, January 19, 1998 5:12 PM

2
Vectra Product Hardware Comparison
Operating Systems Windows NT (Service Pack 3 or
higher recommended)
Windows 95 (OSR 2.1 or higher
recommended)
Windows NT (Service Pack 3 or
higher recommended)
Windows 95 (OSR 2.1 or higher
recommended)
Connectors 2 Serial, 1 Parallel, Keyboard, Mouse,
2 stacked USB, 15-pin VGA, VESA
1 Serial, 1 Parallel, Keyboard, Mouse,
2 stacked USB, 15-pin VGA, VESA
Expandibility
(desktop)
Shelves: 4 or 5 (3 front-accessible)
Accessory Slots: 5 or 4
2 PCI,
2 combination PCI/ISA,
(1 ISA)
Shelves: 4 or 5 (3 front-accessible)
Accessory Slots: 5 or 4
1 PCI,
1 ISA,
2 combination PCI/ISA,
(1 PCI)
Expandibility
(minitower)
Shelves: 6 (4 front-accessible)
Accessory Slots: 6
2 PCI,
2 ISA,
2 combination PCI/ISA
Shelves: 6 (4 front-accessible)
Accessory Slots: 6
2 PCI,
2 ISA,
2 combination PCI/ISA
Component HP Vectra VL 6/xxx PC HP Vectra VL 7/xxx PC
1book.bk : 1ch01.fb4 Page 2 Monday, January 19, 1998 5:12 PM

3
Vectra Products Overview
Vectra Products Overview
Component HP Vectra VL 7/xxx PC HP Vectra VL 7/xxx MT PC
Microprocessor Pentium II, 233 MHz, 266 MHz, 300 MHz, or 333 MHz
Chipset Features Intel 440LX AGPset
● AGP-enabled (Accelerated Graphics Port) for enhanced graphics
performance in Pentium II -based systems
● ACPI (Advanced Configuration and Power Interface)
● Ultra DMA-33 support (for hard disks on Primary IDE channel ONLY)
● SDRAM support for faster data streaming between the Pentium II, the
graphics accelerator and PCI devices
BIOS and System
Management
Features
● New Multiple-Boot capability.
User can choose the boot device when the PC is powered-on.
● System Management Bus for transmission of system health alerts.
(For example, chassis intrusion detection or memory module failure.)
● Chassis Intrusion Detection. An alert is generated on the System
Management Bus when the cover of the PC is removed during operation. If
the cover is removed when the PC is switched off, the alert will be generated
when the PC is next switched on. This alert can be monitored with HP
TopTOOLS.
● Memory Module failure detection using Serial Presence Detect technology.
Information on memory modules (module type, HP part number, ECC errors,
etc.) is stored in a Serial EEPROM on the memory module itself. A memory
failure will generate a detailed alert on the System Management Bus. This
alert can be monitored with HP TopTOOLS.
Main memory 32 MB (standard) or 64 MB, 384 MB (maximum), 60 ns SDRAM,
three DIMM sockets
Support of Serial Presence Detect for detection and identification of defective
memory modules
1book.bk : 1ch01.fb4 Page 3 Monday, January 19, 1998 5:12 PM

4
Vectra Products Overview
1Manually switched power supply to be introduced approximately 2 months
after product launch.
Where to find information
For more information, refer to the Hewlett-Packard MIS Kit for this product,
available at the HP World Wide Web site:
http://www.hp.com/go/vectrasupport/
The MIS kit for this PC includes:
• User’s Guide — Setting up information for the PC.
• Exploring Your PC — describes the basic parts of the PC and how to op-
timize performance.
• Upgrade and Maintenance Guide — describes in detail how to open the
package and install accessories. It also has detailed troubleshooting infor-
mation.
• Network Administrator’s Guide — network driver installation information
for network administrators.
• Service Handbook Chapters — information on upgrade and replacement
parts, including HP part numbers. Beep codes are explained in an Appen-
dix of the HP Vectra Service Handbook (12th Edition).
Communication ports 2 ✕USB connectors, 1 ✕serial port, 1 ✕parallel port, keyboard, mouse
Mass storage 3.2 GB IDE or 4.3 GB IDE
5 shelves (3 front access, 2 internal)
4.3 GB IDE or 6.4 GB IDE
6 shelves (4 front access, 2 internal)
Flexible disk drive Standard version without bezel Standard version with bezel
Power supply Auto-ranging 100/240 VAC or
Manually switched 115/230 VAC1,
170 W input, 120 W output
Auto-ranging 100/240 VAC or
Manually switched 115/230 VAC1,
220 W input, 150 W output
Component HP Vectra VL 7/xxx PC HP Vectra VL 7/xxx MT PC
1book.bk : 1ch01.fb4 Page 4 Monday, January 19, 1998 5:12 PM

5
Desktop Models Package
Desktop Models Package
Front view
(Multimedia models only)
activity light
status light
System board switches
Processor
Main memory
CD-ROM drive
Flexible disk drive
Matrox Millenium II board
(some models only)
Front view with cover
removed
Retaining brackets
Security lock hole
USB Serial Parallel Keyboard Display
Rear view
Rear connectors
1book.bk : 1ch01.fb4 Page 5 Monday, January 19, 1998 5:12 PM

6
Minitower Package
Minitower Package
System board switches
Processor
Main memory
Matrox Millenium II board
(some models only)
Front view with cover
removed
Voltage selection switch
USB
Serial
Parallel
Mouse
Keyboard
Display
Rear view Rear connectors
1book.bk : 1ch01.fb4 Page 6 Monday, January 19, 1998 5:12 PM

7

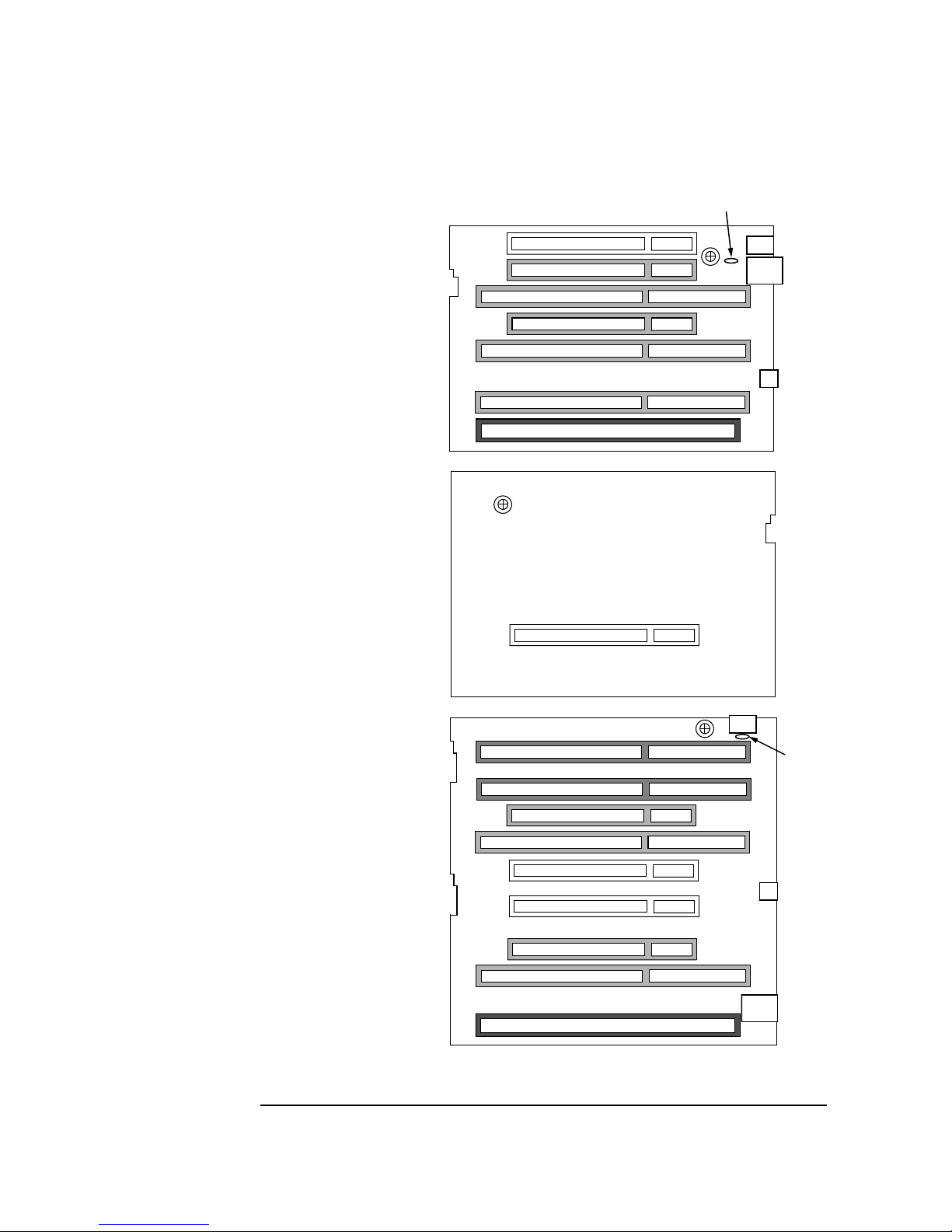

System Board and Backplanes
System Board and Backplanes
Some desktop and minitower models are supplied with a Matrox graphics
controller on a PCI board, and do not have the integrated graphics controller
installed on the system board.
A
B C
Memory Slots
Flexible Disk Connector
Secondary IDE Connector
Primary IDE Connector
Power Connector
Status Panel
Processor Slot
System Board Switches
(Items shown in grey are
Parallel Port Serial PortDisplay Kbd Mou
VESA Connector
Graphics
Controller
Chip
present only on models with
integrated graphics controller)
Remote Power On
Wake on Lan Connector
Internal Speaker
External Battery Connector
3.3 V Connector
2✕
USB
Gold Capacitor
Chassis Intrusion Detector Connector
Remote Wake Up Connector
PCI WakeUp Connector — cable already connected to backplane
(for third-party LAN adapters)
(for HP LAN adapters only)
1book.bk : 1ch01.fb4 Page 7 Monday, January 19, 1998 5:12 PM

8
System Board and Backplanes
Desktop (front view)1 ✕PCI slot (shown in white)
2 ✕ISA/PCI combination slots
(shown in light gray)
1 ✕ISA slot (shown in gray)
1 ✕system board slot (shown in
dark gray)
Fan
Connector
PSU
Connector
PCI
Wake-Up
Connector
Desktop (rear view)
1 ✕PCI slot (shown in white)
Minitower (top view)
2 ✕ISA slot (shown in gray)
1✕ISA/PCI combination slot
(shown in light gray)
2 ✕PCI slot (shown in white)
1✕ISA/PCI combination slot
(shown in light gray)
1 ✕system board slot (shown
in dark gray)
PCI
Wake-Up
Connector
PSU
Connector
Thermistor
Fan Connector
Thermistor
1book.bk : 1ch01.fb4 Page 8 Monday, January 19, 1998 5:12 PM

9
System Board and Backplanes
System Board Switches
Switch Function Default
1—RESERVED — Do Not Use —
2-5 — Processor frequency, see the following table —
6Open Normal operation Open
Closed Clears CMOS (to reload the Setup program defaults)
7Open Normal operation Open
Closed Clears User and Administrator passwords
8Open Disables keyboard power-on Closed
Closed Normal operation
9 — Boot Block —
10 — RESERVED — Do Not Use —
Processor
Frequency
Switch
2345
200 MHz Open Open Closed Open
233 MHz Open Open Closed Closed
266 MHz Open Closed Open Open
300 MHz Open Closed Open Closed
333 MHz Open Closed Closed Open
366 MHz Open Closed Open Closed
1book.bk : 1ch01.fb4 Page 9 Monday, January 19, 1998 5:12 PM

10
Key Features
Key Features
Ultra ATA The Ultra ATA interface enables the Ultra DMA/33 protocol to increase the
burst data transfer rate to 33 megabytes per second. Additionally, Ultra ATA
provides new data verification checks to ensure the integrity of transferred
data. Ultra ATA maintains backward compatibility with the existing ATA
standard for IDE devices. This means devices which transfer data at differ-
ent speeds may be connected to the same Ultra ATA data cable; the system
will detect and use the correct speed for each device. Note that Ultra ATA
drives and IDE devices can be connected to either the Primary IDE connec-
tor or to the Secondary IDE connector. However, use of a non-Ultra ATA IDE
cable on either connector is not supported for Ultra ATA drives (the perfor-
mance of an Ultra ATA drive with a non-Ultra ATA cable could be unpredict-
able and lead to data loss).
Multi Boot With the Multi Boot feature, the order in which your PC will boot from a
device is no longer determined by the physical connection of the device. The
user can connect IDE devices to the Ultra ATA cable in any order and then
select the boot order for all bootable drives (including floppy drive, CD-ROM
drive, and SCSI drives) with the HP Setup program.
Intel 440LX AGPset
Features
This Intel chipset is optimized for Pentium II processor-based systems. It
provides support for ACPI to permit increased manageability across the cor-
porate network. It is AGP-enabled for enhanced graphics performance. The
chipset also provides support for Ultra DMA/33.
Advanced Configuration
and Power Interface
ACPI is an open standard for enabling the operating system to control power
management in a PC. It enables a PC to switch on instantly when the user
needs it and remain available for remote management when switched off.
Accelerated Graphics
Port and RAMBUS
AGP technology accelerates the flow of data between the Pentium II proces-
sor, the video graphics controller, and system memory. It also allows the
transfer of graphics tasks off the PCI bus, freeing PCI bandwidth for other I/
O-intensive applications. The integrated Cirrus Logic Laguna3D graphics
accelerator supports AGP and also uses the RAMBUS memory architecture
which supports data transfers at up to 540 MHz between the graphics accel-
erator and the RAMBUS memory.
1book.bk : 1ch01.fb4 Page 10 Monday, January 19, 1998 5:12 PM

11
Key Features
Universal Serial Bus Users can connect USB accessories to the PC without any need to remove
the cover or restart the operating system, reducing support costs. Note that
USB is not supported by all operating systems.
Remote Power On and
Remote Wake Up
Connector
This connector is provided for HP LAN adapters only, which support
Remote Power On (RPO) and Remote Wake Up (RWU). RPO and RWU can
be used by certain network management applications to remotely power on
the PC across the network to perform management tasks.
Wake on LAN Connector This connector is provided for third-party LAN adapters which support the
Wake on LAN (WOL) feature. Like RPO/RWU, WOL can be used by certain
network management applications to switch on the PC to perform
management tasks.
PCI Wake Up Connector The PCI Wake Up connector provides additional signal lines between the
system board and the PCI backplane. These additional signal lines provide
support for Remote Wake Up over the PCI bus. This feature is only
supported by ACPI-compliant LAN adapters and operating systems (for
example, Windows 98 and Windows NT 5.5 will support this feature when
available).
1book.bk : 1ch01.fb4 Page 11 Monday, January 19, 1998 5:12 PM

12
Support Features
Support Features
Replacing the System Board
Before Replacing the
System Board
Before replacing the system board:
• Verify that the latest driver versions have been installed
• Check that the latest BIOS version has been installed
• Ensure that the problem isn’t described in the product bug list
• Make sure that you are electrostatically grounded.
Replacing the System
Board
The system board is secured in place by the familiar system board handle
mechanism.
Once the replacement system board has been installed, insert the back end
of the left-hand bottom panel into its slots in the back panel of the
computer, and then push the front end until it clips into place.
1book.bk : 1ch01.fb4 Page 12 Monday, January 19, 1998 5:12 PM

13
Support Features
Flashing the Latest Version of the System BIOS
BIOS upgrades can be downloaded, on to flexible diskette, from the
HP World Wide Web site: http://www.hp.com/go/vectrasupport/
Following the instructions which you are given, you will obtain the flash
utility programs, FLASH.BAT, AUTOEXEC.BAT and PHLASH.EXE programs,
the BIOS file, <bios file>.FUL, and the platform file <platform file>.bin, on
a bootable flexible diskette.
Insert the flexible diskette into drive A. Re-boot the system. Enter the
command FLASH <bios file>.FUL .
Crisis Recovery
Although the BIOS flash process is very well protected, there is always a
possibility of a failure (for example, due to a power failure during the BIOS
flash). To avoid replacing the motherboard due to corrupted EEPROM, a
crisis recovery function has been created to restore the contents.
1Create a bootable flexible disk and copy phlash.exe , the platform file and
your bios image file to the disk.
2Create a new autoexec.bat with the following line in it:
phlash /V /mode=3 /b=<platform file>.bin /exit <bios file>.ful
3Toggle motherboard switch 9 to the CLOSED position.
4Insert the flexible disk.
5Power on the system and hear it flash (no image is shown!). The last long
beep indicates the end of the flashing.
6Power off the system.
7Toggle back switch 9 to the OPEN position, then remove the flexible disk.
The BIOS is now recovered and updated.
NOTE • The power button is not protected in recovery flashing mode. However,
since /pf=b option is not used, we don't flash the bootblock, thus shutting
down during the phlash update is not critical.
• Flashing in recovery mode is blind (no video is displayed), except if you
install an external ISA video card.
1book.bk : 1ch01.fb4 Page 13 Monday, January 19, 1998 5:12 PM

14
Support Features
Accessing the HP Setup Program
The diagram below shows how you can access the HP Setup program when
the PC is powered-on and the ‘splash screen’ appears:
Splash screen
Vectra
F2 Setup
F8 F2 ESC
Boot menu Setup program Summary screen
Use the Boot menu to select
the device you wish the PC
to start from.
Use the Setup program to
configure the PC, change
passwords, and set hard-
ware security options.
Use the Summary screen to
preview the hardware
configuration of the PC.
1book.bk : 1ch01.fb4 Page 14 Monday, January 19, 1998 5:12 PM
