contents
This chapter provides:
❒Product model numbers
❒Supported Accessories
❒System Board, BIOS, and memory information
❒Part numbers.
replacement and exchange parts
The difference between a replacement and an exchange part is that when using
an exchange part you should return the replaced part to HP.
Replacement and exchange parts listed in this manual are subject to change.
However, updated part numbers are automatically cross-referenced to the old
number. This means that you will receive the correct part using the numbers
listed in this manual (even if the part’s actual number has been updated).
ordering parts
Contact your local HP Customer Care Center or an HP Authorized support
provider to get parts. Diagnostic is required in both cases, prior to any shipments.
For HP Customer Care Centers:
www.hp.com/go/vectrasupport and select contact hp.

microtower vectras hp vectra xe320 pc 1-1
1
1
hp vectra xe320 pc
models and accessories
product
number
hard drive graphics
controller
std. RAM optical drives OS1
Vectra xe320 PC
Models with Intel Pentium 4 Processor,
400MHz Bus Speed, 133MHz Data Bus Speed, and 256KB L2 Cache Memory
HP Vectra xe320 1.6GHz (CPL: 02/2002 )
P7302A 20 GB IDE,
5400 rpm
nVIDIA TNT2
Vanta 16 MB
128 MB
SDRAM
48✕max IDE
CD-ROM
XP Pro
P7336B 20 GB IDE,
5400 rpm
ATI Rage 128 Ultra
32 MB
128 MB
SDRAM
16✕40✕IDE
DVD-ROM
XP HE
P7337A 40 GB IDE,
5400 rpm
ATI Rage 128 Ultra
32 MB
128 MB
SDRAM
48✕max IDE
CD-ROM
XP Pro
P7338B 40 GB IDE,
5400 rpm
ATI Rage 128 Ultra
32 MB
128 MB
SDRAM
48✕max IDE
CD-ROM
XP HE
P7922B 40 GB IDE,
5400 rpm
nVIDIA TNT2
Vanta 16 MB
128 MB
SDRAM
48✕max IDE
CD-ROM
XP HE
P7923B 40 GB IDE,
5400 rpm
ATI Rage 128 Pro
16 MB
128 MB
SDRAM
48✕max IDE
CD-ROM
XP HE
HP Vectra xe320 PC 1.7GHz (CPL: 02/2002 )
P7297A 20 GB IDE,
5400 rpm
ATI Rage 128 Ultra
32 MB
128 MB
SDRAM
48✕max IDE
CD-ROM
XP Pro
P7297B 20 GB IDE,
5400 rpm
nVIDIA TNT2
Vanta 16 MB
128 MB
SDRAM
16✕40✕IDE
DVD-ROM
XP HE
P7303A 20 GB IDE,
5400 rpm
nVIDIA TNT2
Vanta 16 MB
128 MB
SDRAM
none Linux
P7304A 20 GB IDE,
5400 rpm
nVIDIA TNT2
Vanta 16 MB
128 MB
SDRAM
48✕max IDE
CD-ROM
Linux
P7305B 20 GB IDE,
5400 rpm
nVIDIA TNT2
Vanta 16 MB
128 MB
SDRAM
48✕max IDE
CD-ROM
XP HE
P7917B 40 GB IDE,
5400 rpm
nVIDIA TNT2
Vanta 16 MB
128 MB
SDRAM
48✕max IDE
CD-ROM
XP Pro

hp vectra xe320 pc
1-2 hp vectra xe320 pc microtower vectras
1
note
All models have:
❒Integrated Analog Devices AD1885 AC’97 stereo audio codec.
❒Integrated Intel Pro/100 VE network controller.
P7918B 40 GB IDE,
5400 rpm
nVIDIA TNT2
Vanta 16 MB
128 MB
SDRAM
48✕max IDE
CD-ROM
XP HE
P7920B 40 GB IDE,
5400 rpm
ATI Rage 128 Ultra
32 MB
128 MB
SDRAM
48✕max IDE
CD-ROM
XP Pro
P7921B 40 GB IDE,
5400 rpm
ATI Rage 128 Ultra
32 MB
128 MB
SDRAM
48✕max IDE
CD-ROM
XP HE
P8792A 20 GB IDE,
5400 rpm
nVIDIA TNT2
Vanta 16 MB
128 MB
SDRAM
48✕max IDE
CD-ROM
XP HE
HP Vectra xe320 PC 1.8GHz (CPL: 02/2002 )
P7298A 20 GB IDE,
5400 rpm
nVIDIA TNT2
Vanta 16 MB
128 MB
SDRAM
48✕max IDE
CD-ROM
XP Pro
P7299A/B 40 GB IDE,
5400 rpm
ATI Rage 128 Ultra
32 MB
128 MB
SDRAM
48✕max IDE
CD-ROM
XP HE
P7306A 20 GB IDE,
5400 rpm
ATI Rage 128 Ultra
32 MB
128 MB
SDRAM
48✕max IDE
CD-ROM
XP Pro
P7919B 40 GB IDE,
5400 rpm
ATI Rage 128 Ultra
32 MB
256 MB
SDRAM
24✕10✕40✕max
IDE CD-RW
XP HE
HP Vectra xe320 PC 2.0GHz (CPL: 02/2002 )
P7300A 20 GB IDE,
5400 rpm
nVIDIA TNT2
Vanta 16 MB
128 MB
SDRAM
48✕max IDE
CD-ROM
XP HE
P7301A 40 GB IDE,
5400 rpm
ATI Rage 128 Ultra
32 MB
128 MB
SDRAM
48✕max IDE
CD-ROM
XP Pro
P7301B 40 GB IDE,
5400 rpm
ATI Rage 128 Ultra
32 MB
128 MB
SDRAM
24✕10✕40✕max
IDE CD-RW
XP HE
1. Indicates operating system preloaded. XP Pro = Windows XP Professional,
XP HE = Windows XP Home Edition.
product
number
hard drive graphics
controller
std. RAM optical drives OS1

hp vectra xe320 pc
microtower vectras hp vectra xe320 pc 1-3
1
supported accessories
Memory
128 MB SDRAM, non-ECC PC133 main memory module P1537A
128 MB SDRAM, non-ECC PC133 main memory module – pack of 10 P5101A
256 MB SDRAM, non-ECC PC133 main memory module P1538A
256 MB SDRAM, non-ECC PC133 main memory module – pack of 10 P1502A
512 MB SDRAM, non-ECC PC133 main memory module P5090A
Input Devices
HP PS2 Windows Keyboard C4735B
HP USB Enhanced Internet Keyboard C4768A
HP PS2 Scrolling Mouse C4736B
HP USB Optical Scrolling Mouse C4766A
HP Cordless keyboard and mouse kit
(US, France, Germany, UK and Euro English only)
P5911A
Monitors
All current HP Monitors (see the HP Monitors Service Handbook)
Hard Disk Drives
40 GB 7200 rpm IDE Ultra ATA/100 hard disk drive P2813A
80 GB 7200 rpm IDE Ultra ATA/100 hard disk drive P1542A
Optical and Removable Storage
48✕max-speed IDE CD-ROM drive D9444A
16✕max-speed IDE DVD-ROM drive P1544A
24✕10✕40✕max-speed IDE CD-RW drive P1543A
Multimedia
HP Multimedia Monitor Base P1535A
HP Amplified External Speaker 9.6WRMS P1534A
HP Headset with Microphone P1968A
Data Communications and LAN Adapter Boards
HP PCI Modem (US only) P5091A
HP External USB Modem P1979A

hp vectra xe320 pc
1-4 hp vectra xe320 pc microtower vectras
1

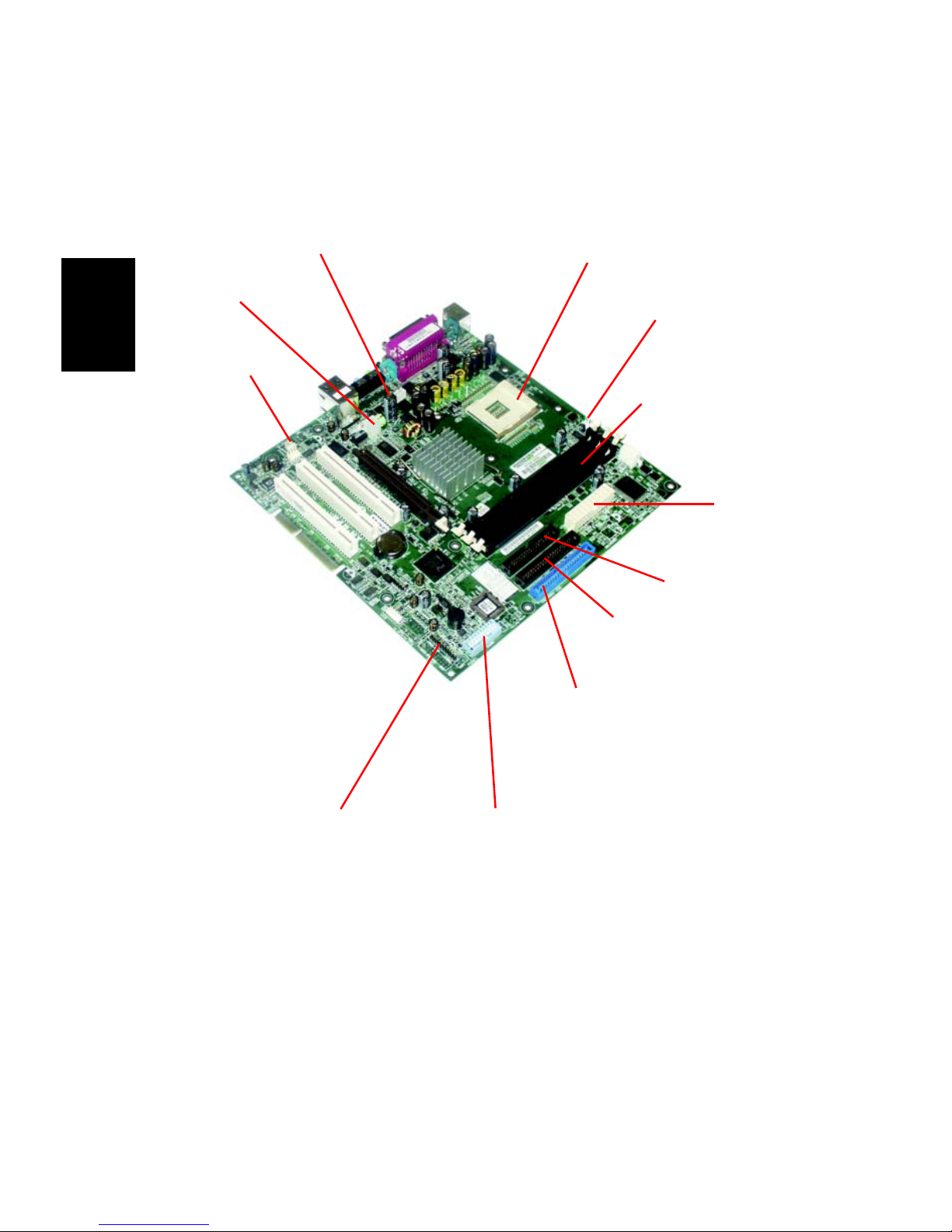

system board, BIOS, and memory
System Board Switches:
See the table on the next page.
Processor:
Intel Pentium 4 with
socket N.
Main Memory:
3 DIMM sockets
Maximum 1.5 GB.
128, 256 or 512 MB
SDRAM modules.
Main Power
connector
Primary IDE connector for
Hard drive(s)
Processor fan
CD-ROM, DVD,
CD-RW, Tape or Zip
drive
Floppy drive
CD audio connector
Auxilary power
connector
Chassis fan
Status panel

hp vectra xe320 pc
microtower vectras hp vectra xe320 pc 1-5
1
system board switches
BIOS history
For the latest BIOS, the flasher utility program, and the BIOS history refer to the
HP’s Web site.
pre-boot diagnostic beep codes
Switch Function Default
1-4 On Reserved Off
Off Reserved – Normal operation
5
On Clears CMOS and passwords
(to reload the Setup program defaults) Off
Off Normal operation
6On Clears User and Administrator passwords Off
Off Normal operation
7
On BIOS recovery mode: forces booting in the BIOS boot
block area Off
Off Normal operation
8On Not used Off
Off Not Used - Normal operation
9On Normal operation (Software boot block protection) On
Off Hardware boot block protection
10 On Not used Off
Off Not Used - Normal operation
http://www.hp.com/go/vectrasupport/
Number
of Beeps
Meaning
0 System OK
1 Processor absent, not correctly connected or ZIF (Zero Insertion Force)
socket not closed
2 Power supply is in protected mode
3 No memory, bad memory modules, incompatible memory module
4 Graphics card problem
5 PnP/PCI initialization problem
6 Corrupted BIOS. You need to activate crisis recovery procedure (refer to
release note provided with BIOS).
7 Defective system board

hp vectra xe320 pc
1-6 hp vectra xe320 pc microtower vectras
1
part numbers
6
7
8
4
3
2
5
10
1
9
11
14
12
13
15

hp vectra xe320 pc
microtower vectras hp vectra xe320 pc 1-7
1
parts list
Item Description Repl.
Part Number
Exchange
Part Number
1 Chassis barebone15065-7334
2 Plastic parts kit25065-8935 —
3 Floppy disk drive (bezel-less) P4680-63012 —
4 Power supply P8758-63021
5 Cable Kit (including FDD, CD-ROM, HDD
and CD audio connector cables)
P6901-63041 —
6 Internal PCI modem (US only) P4680-63041 —
748
✕IDE CD-ROM drive
24✕10✕40✕IDE CD-RW drive
24✕10✕40✕IDE CD-RW drive
16✕40✕IDE DVD-ROM drive
D4389-60052
—
—
—
—
D4398-69053
D4398-69091
P4388-69018
8 Telephone Cable for3:
#AB0, #AB1, #AB2, #AB4, #AB6, #ABA,
#ABB, #ABC, #ABM, #ABT, #ABV, #AC8,
#AKB, #AKL, #AKR, #AKV, #AR6, #ARL
5182-5432 —
#ABE 5182-5434 —
#ABD 5182-5435 —
#ABF 5182-5436 —
#ABH 5182-5437 —
#AB5, #ABU, #ACJ 5182-5438 —
#ABG 5182-5438
5184-3806
—
—
#ABS 5182-5439 —
#AB9, #ABY 5182-5441 —
#ABZ 5182-5442 —
#ABN, #ABX 5183-9453 —
#ABW 5184-1599 —
#AB7 5184-2043
5182-5432
—
—
#AB8 5184-3803 —
#ABJ 5184-3805 —
9 External USB e- Modem3
#AB0, #AB1, #AB2, #AB4, #AB5, #ABA,
#ABC, #ABJ, #ABM, #AC4, #AC8, #ACJ,
#AKL, #AKV, #AR6
5065-2590 —
AB6, #AB7, #AB8, #AB9, #ABB, #ABD,
#ABE, #ABF, #ABG, #ABH, #ABN, #ABS,
#ABT, #ABU, #ABV, #ABW, #ABX, #ABY,
#ABZ, #AKB, #AKC, #AKR, #ARL
5065-2591 —

hp vectra xe320 pc
1-8 hp vectra xe320 pc microtower vectras
1
10 IDE hard disk drives:4
20 GB 5400 rpm WD WL40
20 GB 5400 rpm Seagate U6
40 GB 5400 rpm WD VL40
40 GB 5400 rpm Seagate U6
—
—
—
—
P4449-69001
P6868-69001
P4450-69001
P6869-69001
11 PS/2 scrolling mouse C4737-60001 —
12 AGP graphics cards:
ATI Rage 128 Ultra 32 MB
ATI Rage 128 Pro 16 MB (Brazil only)
nVidia TNT2 Vanta 16MB
P6197-63501
—
P5760-63501
—
P1650-69501
—
13 System board See PC’s system board parts list
14 Rear panel I/O gasket 5002-6287 —
15 System fan 5065-4254 —
not
shown
Standard keyboard (not shown) C4739-601xx —
Power Cord (not shown) 812x-xxxx —
Headphones 5183-9500 —
Battery 1420-0356 —
On-Off LED Cable Assembly (not shown) P4680-63031 —
1. Includes chassis frame, side covers, front bezel, top cover, foot, airflow guide, floppy drive,
floppy and hard drive bay, I/O plate, 5.25 inch fillers, PSU, FDD, CD cables.
2. Includes front bezel, foot, top cover and two 5.25 inch fillers.
3. See localization option codes table below.
4. For optional disk drive information, see the Accessory Service Handbook.
parts list
Item Description Repl.
Part Number
Exchange
Part Number

hp vectra xe320 pc
microtower vectras hp vectra xe320 pc 1-9
1
localization option codes
Loc. Country/Region Loc. Country/Region
#AB0 Taiwan #ABS Sweden
#AB1 Korea #ABT Hebrew
#AB2 China #ABU UK/English
#AB4 Singapore/Malaysia #ABV Arabia/English
#AB5 Hong Kong #ABW Belgium/Flemish
#AB6 Arabia/French #ABX Finland
#AB7 Greece #ABY Denmark
#AB8 Turkey #ABZ Italy
#AB9 Portugal #AC4 Brazil
#ABA USA/English #AC8 Argentina/Spanish
#ABB Europe/English #ACB Russia
#ABC Canada/French #ACJ India/English
#ABD Germany #ACQ South Africa
#ABE Spain #AKB Czech Republic
#ABF France #AKC Hungary
#ABG Australia #AKD Poland
#ABH Netherlands #AKL Thailand
#ABJ Japan #AKN Slovenia
#ABM Latin America/Spanish #AKR Slovakia
#ABN Norway #AKV South America/Spanish
#ABP Switzerland/German #AR6 Indonesia/English
#ABQ Switzerland/French #ARL Baltic States
system board parts list
Description Repl.
Part Number
Exchange
Part Number
System board:
Vectra XE320 system board — P8758-69001
Processors FC-PGA2 package, socket N:
Intel Pentium 4, 1.6GHz/400 – 256 KB cache — P5717-69001
Intel Pentium 4, 1.7GHz/400 – 256 KB cache — P5664-69001
Intel Pentium 4, 1.8GHz/400 – 256 KB cache — P5718-69001
Intel Pentium 4, 1.9GHz/400 – 256 KB cache — P5719-69001
Intel Pentium 4, 2.0GHz/400 – 256 KB cache — P5665-69001
Intel Pentium 4, 2.0GHz/400 – 512 KB cache — P6234-69001
Active heatsink PGA478 P8758-63061 —
Thermal interface material P2136-65001 —
Main memory modules:
1 ✕128-MB non-ECC PC133 SDRAM P1537-63010 —
1 ✕256-MB non-ECC PC133 SDRAM P1538-63010 —
1 ✕512-MB non-ECC PC133 SDRAM P1539-63001 —

hp vectra xe320 pc
1-10 hp vectra xe320 pc microtower vectras
1
software recovery CD-ROMs
Image Creation & Recovery CD-ROM
— for Windows XP Home
5970-0541-xx1
Image Creation & Recovery CD-ROM
— for Windows XP Professional and Windows 2000 SP1
5970-0550-xx1
Image Library & Diagnostics CD-ROM
— for Windows XP Professional, Windows XP Home and
Windows 2000
5970-4840
1. Where “xx” is the code for your language. CH=Chinese, DK=Danish, DU=Dutch,
EN=English, FI=Finnish, FR=French, GR=German, IT=Italian, JP=Japanese,
NO=Norwegian, PO=Portuguese, SP=Spanish, SW=Swedish
manuals and documentation for hpvectra xe320 pc
Quick User’s Guide 5970-5270-xx1
1. Where “xx” is the code for your language.
Technical Reference Manual (in 3 parts) web source2
2. Electronic files available on www.hp.com/go/vectrasupport.
Upgrade Guide web source2
Troubleshooting Guide web source2
