HP 396853-001 User manual

Notebook Tour
Document Part Number: 396853-001
March 2006
This guide explains the computer hardware features.

Notebook Tour ii
Contents
1 Components
Top components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
Pointing devices. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–4
Buttons and switches . . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–8
Hotkey quick reference . . . . . . . . . . . . . . . . . . . . . . 1–10
Front components. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–11
Rear components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–13
Right-side components. . . . . . . . . . . . . . . . . . . . . . . . . . 1–14
Left-side components . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–15
Bottom components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–17
Wireless antennae. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–19
Additional hardware components . . . . . . . . . . . . . . . . . 1–20
Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–21
2 Specifications
Operating environment. . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Rated input power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2
Index

Notebook Tour 1–1
1
Components
This chapter explains the hardware features of the computer.
To see a list of hardware installed in the computer:
1. Select Start > My Computer.
2. In the left pane of the System Tasks window, select View
system information.
3. Select Hardware tab > Device Manager.
You can also add hardware or modify your device configurations
using Device Manager.
✎Components included with the computer may vary by region
and by model. The illustrations in this guide identify the
standard external features included in most computer models.

1–2 Notebook Tour
Components
Top components
Lights
✎Your computer may look slightly different from the
illustrations in this chapter.
Component Description
1Power lights* On: The computer is on.
Blinking: The computer is in standby.
Blinking rapidly: An AC adapter with a
higher power rating should be
connected.
Off: The computer is off or in
hibernation.
2Wireless lights†(2) On: An integrated wireless device,
such as a wireless local area network
(LAN) device and/or a Bluetooth®
device is turned on.
(Continued)

Components
Notebook Tour 1–3
3Light sensor Detects available light
4Caps lock light On: Caps lock is on.
5Num lock light On: Num lock is on.
6Volume mute light On: System sound is turned off.
7IDE (Integrated Drive
Electronics) drive light
Blinking: The hard drive or optical drive
is being accessed.
8Battery light Amber: A battery pack is charging.
Green: A battery pack is close to full
charge capacity.
Blinking amber: A battery pack that is
the only available power source has
reached a low-battery condition.
When the battery reaches a
critical
low-battery condition, the battery light
begins blinking more quickly.
Off: If the computer is plugged into an
external power source, the light is
turned off when all batteries in the
computer are fully charged. If the
computer is not plugged into an
external power source, the light is
turned off until the battery reaches a
low-battery condition.
*There are 2 power lights. Both display the same information. The light on
the power button is visible only when the computer is open; the other power
light is always visible on the front of the computer.
†There are 2 wireless lights. Both display the same information. The light
on the wireless button is visible only when the computer is open; the other
wireless light is always visible on the front of the computer.
Component Description

1–4 Notebook Tour
Components
Pointing devices
✎Your computer may look slightly different from the
illustrations in this chapter.
The pointing stick (select models only) and TouchPad controls
can be used interchangeably. The following illustration and table
describe the computer pointing devices, which vary by model.
Component Description
1Fingerprint reader
(select models only)*
Allows a fingerprint logon to
Microsoft® Windows® instead of a
password logon. On select models, a
center button replaces the fingerprint
reader.
2Left pointing stick button
(select models only)
Functions like the left button on an
external mouse.
3Pointing stick
(select models only)
Moves the pointer and selects or
activates items on the screen.
(Continued)

Components
Notebook Tour 1–5
4Center pointing stick button
(select models only)
Functions like the center button on an
external mouse.
5Right pointing stick button
(select models only)
Functions like the right button on an
external mouse.
6TouchPad scroll zone* Scrolls up or down.
7Right TouchPad button Functions like the right button on an
external mouse.
8Center TouchPad button
(select models only)
Functions like the center button on an
external mouse. On select models, a
fingerprint reader replaces the center
button.
9Left TouchPad button* Functions like the left button on an
external mouse.
-TouchPad* Moves the pointer and selects or
activates items on the screen. Can be
set to perform other mouse functions,
such as scrolling, selecting, and
double-clicking.
*This table describes default settings.To view and change TouchPad
preferences, select Start > Control Panel > Printers and Other
Hardware > Mouse.
Component Description

1–6 Notebook Tour
Components
Buttons and switches
Component Description
1Power button* When the computer is
■Off, press to turn on the computer.
■In standby, briefly press to exit
standby.
■In hibernation, briefly press to exit
hibernation.
If the computer has stopped
responding and Windows shutdown
procedures cannot be used, press
and hold the power button for at least
5 seconds to turn off the computer.
(Continued)

Components
Notebook Tour 1–7
2Info Center button Launches Info Center, which enables
you to open the following software
solutions: Altiris Local Recovery,
Contact HP, Help and Support,
Accessories Product Tour (Options
Demo), ProtectTools Security
Manager, Software Setup, System
Information, and Wireless Assistant.
3Wireless button* Turns the wireless feature on or off,
but does not create a wireless
connection.
✎To establish a wireless
connection, a wireless network
must already be set up.
4Presentation button Starts the Presentation feature.
5Volume mute button Mutes system sound.
6Volume down button Decreases system volume.
7Volume up button Increases system volume.
8Calculator button Turns on Windows calculator function.
*This table describes default settings. For information about changing
default settings, refer to the user guides located in the Help and Support
Center.
Component Description

1–8 Notebook Tour
Components

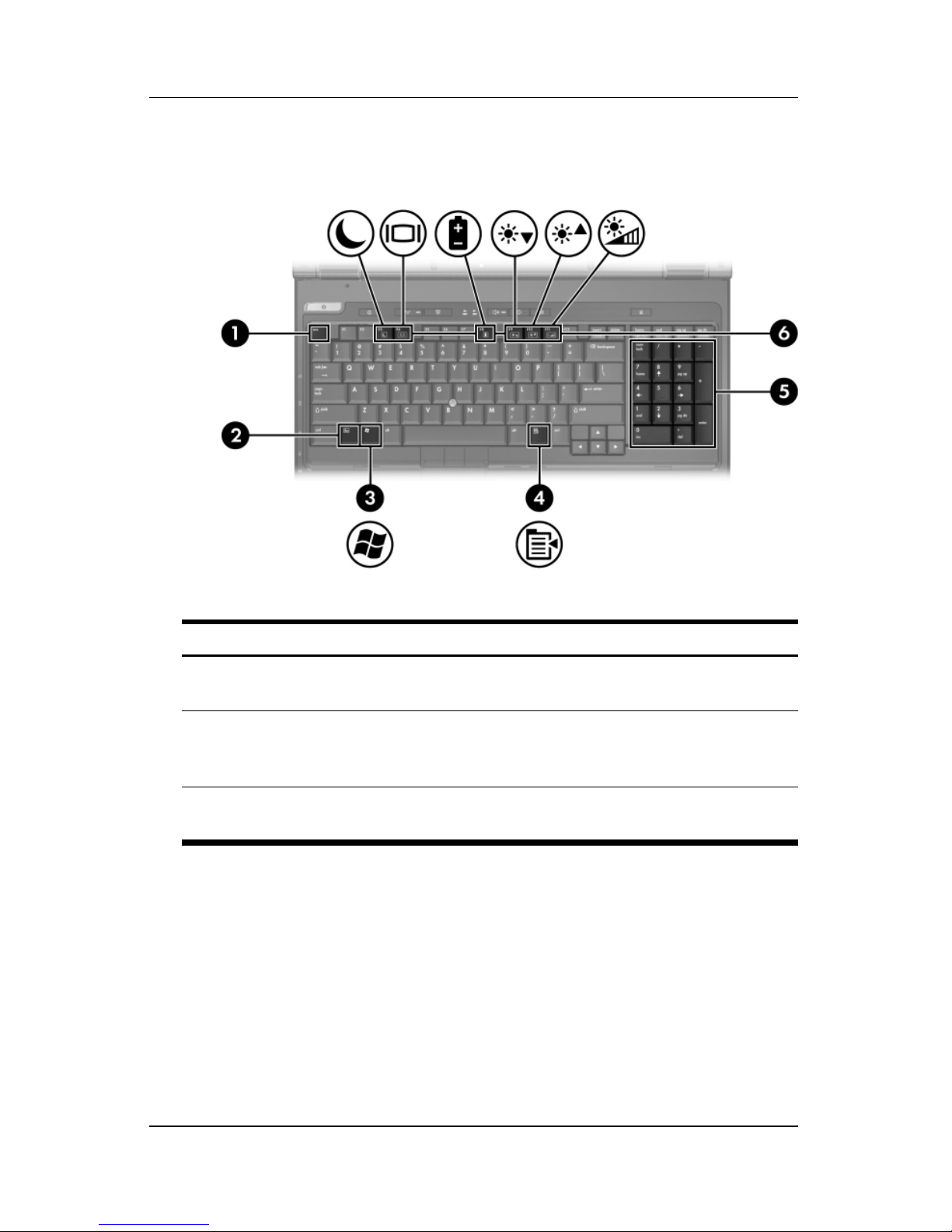

Keys
Component Description
1esc key Displays system information when
pressed in combination with the fn key.
2fn key Executes frequently used system
functions when pressed in combination
with a function key or the esc key.
3Windows logo key Displays the Microsoft Windows
Start menu.
(Continued)

Components
Notebook Tour 1–9
4Windows applications key Displays a shortcut menu for items
beneath the pointer.
5Integrated numeric keypad Can be used like the keys on an
external numeric keypad.
6Function keys Execute frequently used system
functions when pressed in
combination with the fn key.
✎Refer to the table in “Hotkey
quick reference” for a
description of each hotkey.
Component Description

1–10 Notebook Tour
Components
Hotkey quick reference
To perform this function Press
Display system information fn+esc
Clear system information esc or enter
Initiate standby fn+f3
Resume from standby Power button
Alternate between computer
display and external display
fn+f4
View battery information fn+f8
Clear battery information fn+f8
Decrease screen brightness fn+f9
Increase screen brightness fn+f10
Turn on and off light sensor fn+f11

Components
Notebook Tour 1–11

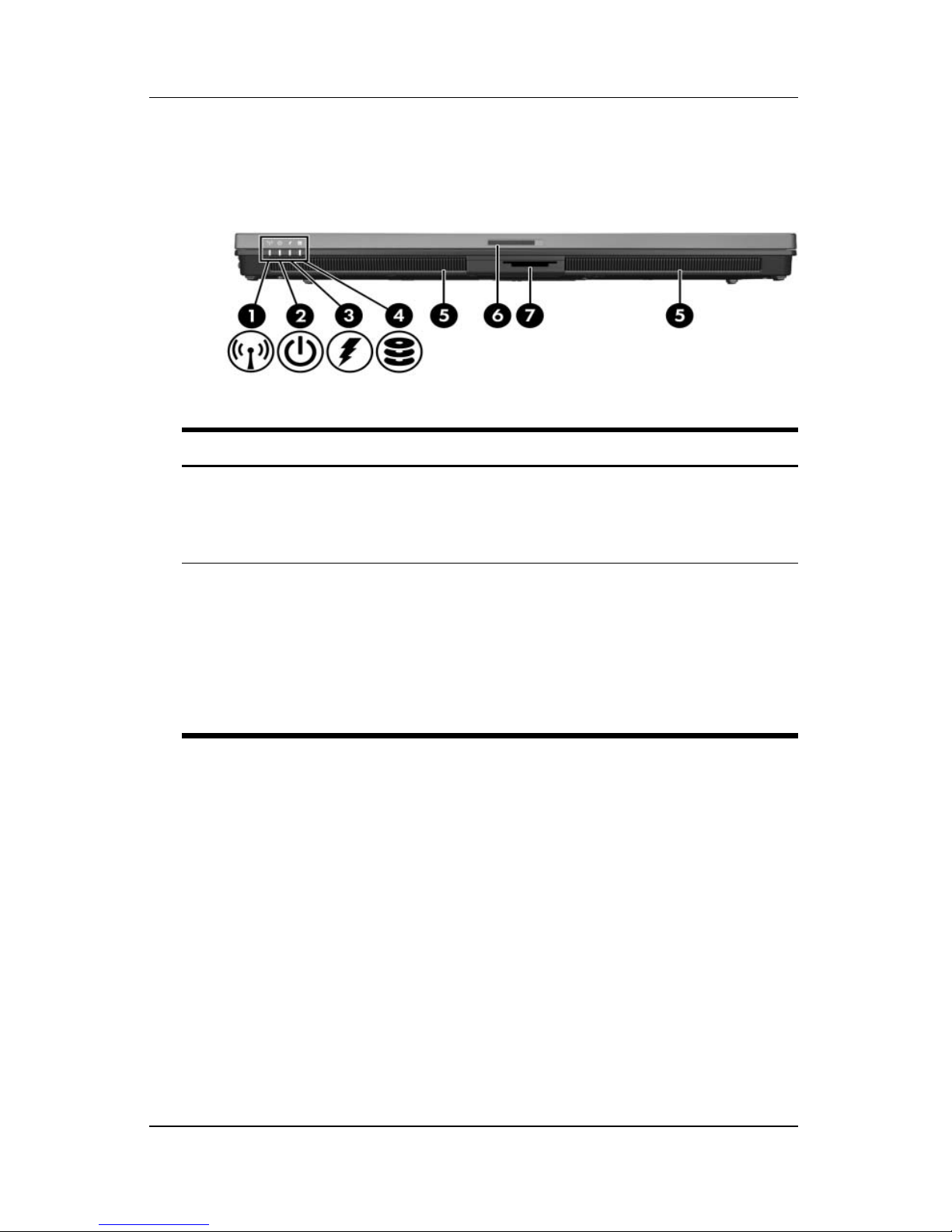

Front components
Component Description
1Wireless light On: An integrated wireless device,
such as a wireless local area network
(LAN) device and/or a Bluetooth®
device is turned on.
2Power light On: The computer is on.
Blinking: The computer is in standby.
Blinking rapidly: An AC adapter with a
higher power rating should be
connected.
Off: The computer is off or
in hibernation.
(Continued)

1–12 Notebook Tour
Components
3Battery light Amber: A battery pack is charging.
Green: A battery pack is close to full
charge capacity.
Blinking amber: A battery pack that is
the only available power source has
reached a low-battery condition.
When the battery reaches a
critical
low-battery condition, the battery light
begins blinking more quickly.
Off: If the computer is plugged into an
external power source, the light is
turned off when all batteries in the
computer are fully charged. If the
computer is not plugged into an
external power source, the light is
turned off until the battery reaches a
low-battery condition.
4IDE (Integrated Drive
Electronics) drive light
Blinking: The hard drive or optical drive
is being accessed.
5Speakers (2) Produce system sound.
6Display release latch Opens the computer.
7Digital Media Slot Supports 7 optional digital card
formats: Secure Digital (SD) Memory
Card, MultiMediaCard, Memory Stick,
Memory Stick Pro, Memory Stick Duo
(with adapter), SmartMedia card, and
xD-Picture Card.
Component Description

Components
Notebook Tour 1–13

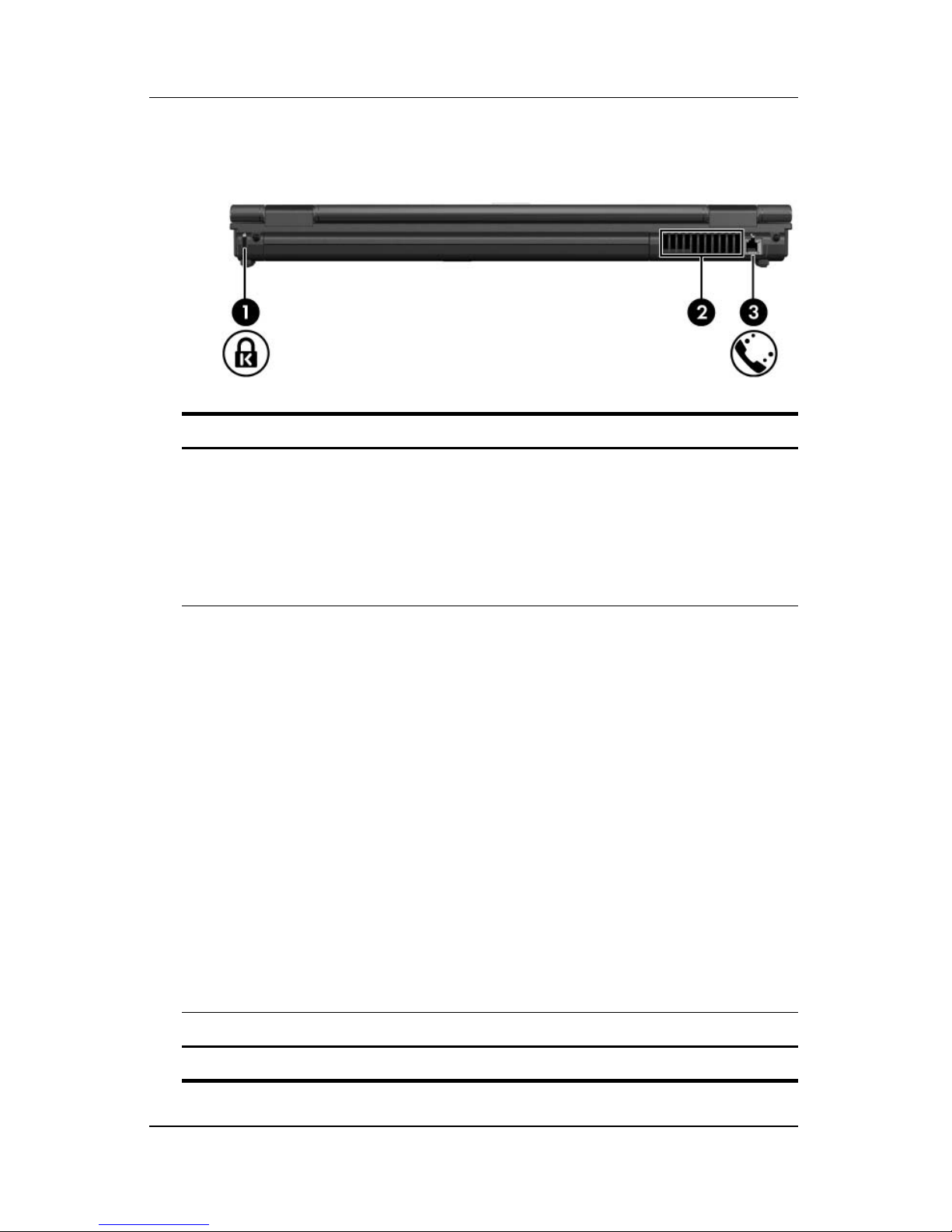

Rear components
Component Description
1Security cable slot Attaches an optional security cable
to the computer.
ÄThe security cable is designed
to act as a deterrent, but may
not prevent the computer from
being mishandled or stolen.
2Vent* Provides airflow to cool internal
components.
ÄTo prevent overheating, do
not obstruct vents. Use the
computer only on a hard, flat
surface. Do not allow another
hard surface, such as an
adjoining optional printer, or a
soft surface, such as pillows or
thick rugs or clothing, to block
airflow.
✎The computer fan starts up
automatically to cool internal
components and prevent
overheating. It is normal for the
internal fan to cycle on and off
during routine operation
3RJ-11 (modem) jack Connects a modem cable.
*Depending on computer model, vents vary in number and location.

1–14 Notebook Tour
Components
Right-side components
Component Description
1Audio-out (headphone) jack Produces system stereo sound when
connected to optional powered stereo
speakers, headphones, ear buds, a
headset, or television audio.
2Audio-in (microphone) jack Connects an optional headset or
microphone.
3USB ports (2) Connect USB 1.1- and 2.0-compliant
devices to the computer using a
standard USB cable. Either port can
also connect an optional External
MultiBay II to the computer. The
MultiBay II must be plugged into
an external power source.
4Optical drive Reads an optical disc.
5Optical drive button Releases the media tray.
6RJ-45 (network) jack Connects a network cable.

Components
Notebook Tour 1–15
Left-side components
Component Description
1Vent* Provides airflow to cool internal
components.
ÄTo prevent overheating, do
not obstruct vents. Use the
computer only on a hard, flat
surface. Do not allow another
hard surface, such as an
adjoining optional printer, or a
soft surface, such as pillows or
thick rugs or clothing, to block
airflow.
✎The computer fan starts up
automatically to cool internal
components and prevent
overheating. It is normal for the
internal fan to cycle on and off
during routine operation.
2Power connector Connects an AC adapter or an
optional power adapter.
3External monitor port Connects an external monitor.
(Continued)

1–16 Notebook Tour
Components
4S-Video-out jack Connects an optional S-Video
device such as a television, VCR,
camcorder, overhead projector, or
video capture card.
5USB ports (2) Connect USB 1.1- and 2.0-compliant
devices to the computer using a
standard USB cable. Either port can
also connect an optional External
MultiBay II to the computer. The
MultiBay II must be plugged into
an external power source.
61394 port Connects an optional IEEE 1394
device, such as a camcorder.
7PC Card slot Supports optional Type I and Type II
32-bit (CardBus) or 16-bit PC Cards.
8Smart card slot Supports optional smart cards.
9PC Card eject button Ejects the PC Card from the
PC Card slot.
*Depending on computer model, vents vary in number and location.
Component Description

Components
Notebook Tour 1–17
Bottom components
Component Description
1Hard drive bay Holds the hard drive.
2Expansion memory module
and Mini Card compartment
Contains the expansion memory
module slot. and a wireless LAN
device.
ÄTo prevent an unresponsive
system and the display of a
warning message, replace
with only a Mini Card device
authorized for use in the
computer by the governmental
agency that regulates wireless
devices in your country. If you
replace a a device and then
receive a warning messsage,
remove the device torestore
computer functionality. Then
contact Customer Care.
(Continued)

1–18 Notebook Tour
Components
3Accessory battery connector Connects an optional accessory
battery.
4Primary battery pack release
latches (2)
Release the primary battery pack from
the battery bay.
5Primary battery bay Holds the primary battery pack.
6Docking connector Connect the computer to an optional
docking device.
7Vents* Provide airflow to cool internal
components.
ÄTo prevent overheating, do
not obstruct vents. Use the
computer only on a hard, flat
surface. Do not allow another
hard surface, such as an
adjoining optional printer, or a
soft surface, such as pillows or
thick rugs or clothing, to block
airflow.
✎The computer fan starts up
automatically to cool internal
components and prevent
overheating. It is normal for the
internal fan to cycle on and off
during routine operation.
*Depending on computer model, vents vary in number and location.
Component Description
