Compaq Presario V2600 Notebook PC
Document Part Number: 408525-001
March 2006
This guide is a troubleshooting reference used for maintaining
and servicing the computer. It provides comprehensive
information on identifying computer features, components, and
spare parts; troubleshooting computer problems; and performing
computer disassembly procedures.

© Copyright 2006 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are U.S. registered trademarks of Microsoft
Corporation. Intel is a trademark or registered trademark of Intel
Corporation or its subsidiaries in the United States and other countries.
Bluetooth is a trademark owned by its proprietor and used by
Hewlett-Packard Company under license. SD Logo is a trademark of its
proprietor.
The information contained herein is subject to change without notice. The
only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
Maintenance and Service Guide
Compaq Presario V2600 Notebook PC
First Edition: March 2006
Document Part Number: 408525-001

Maintenance and Service Guide iii
Contents
1 Product Description
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
1.2 Resetting the Computer. . . . . . . . . . . . . . . . . . . . . . . 1–4
1.3 Power Management. . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
1.4 External Components . . . . . . . . . . . . . . . . . . . . . . . . 1–6
1.5 Design Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 1–20
2 Troubleshooting
2.1 Computer Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Accessing Computer Setup . . . . . . . . . . . . . . . . . . . . 2–2
Computer Setup Defaults . . . . . . . . . . . . . . . . . . . . . 2–2
Selecting from the File Menu . . . . . . . . . . . . . . . . . . 2–3
Selecting from the Security Menu . . . . . . . . . . . . . . 2–4
Selecting from the Tools Menu. . . . . . . . . . . . . . . . . 2–5
Selecting from the Advanced Menu . . . . . . . . . . . . . 2–6
2.2 Troubleshooting Flowcharts . . . . . . . . . . . . . . . . . . . 2–7

iv Maintenance and Service Guide
Contents
3 Illustrated Parts Catalog
3.1 Serial Number Location . . . . . . . . . . . . . . . . . . . . . . 3–1
3.2 Computer Major Components. . . . . . . . . . . . . . . . . . 3–2
3.3 Display Assembly Components . . . . . . . . . . . . . . . 3–12
3.4 Mass Storage Devices . . . . . . . . . . . . . . . . . . . . . . . 3–14
3.5 Plastics Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–16
3.6 Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–17
3.7 Sequential Part Number Listing . . . . . . . . . . . . . . . 3–19
4 Removal and Replacement Preliminaries
4.1 Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
4.2 Service Considerations . . . . . . . . . . . . . . . . . . . . . . . 4–1
Plastic Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . 4–2
4.3 Preventing Damage to Removable Drives . . . . . . . . 4–3
4.4 Preventing Electrostatic Damage . . . . . . . . . . . . . . . 4–4
4.5 Packaging and Transporting Precautions . . . . . . . . . 4–5
4.6 Workstation Precautions . . . . . . . . . . . . . . . . . . . . . . 4–6
4.7 Grounding Equipment and Methods . . . . . . . . . . . . . 4–7

Contents
Maintenance and Service Guide v
5 Removal and Replacement Procedures
5.1 Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2
5.2 Disassembly Sequence Chart . . . . . . . . . . . . . . . . . . 5–3
5.3 Preparing the Computer for Disassembly . . . . . . . . . 5–4
5.4 Hard Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6
5.5 Computer Feet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–10
5.6 Memory Module . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–10
5.7 Mini Card Module. . . . . . . . . . . . . . . . . . . . . . . . . . 5–13
5.8 Optical Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–17
5.9 Switch Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–20
5.10 Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–23
5.11 Display Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 5–26
5.12 Base Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–37
5.13 USB/S-Video Board . . . . . . . . . . . . . . . . . . . . . . . 5–40
5.14 Bluetooth Module . . . . . . . . . . . . . . . . . . . . . . . . . 5–42
5.15 Speaker Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 5–44
5.16 RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–46
5.17 Fan/Heat Sink Assembly. . . . . . . . . . . . . . . . . . . . 5–48
5.18 Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–50
5.19 System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–52
5.20 LED Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–58
5.21 ExpressCard Assembly . . . . . . . . . . . . . . . . . . . . . 5–60

vi Maintenance and Service Guide
Contents
6 Specifications
A Connector Pin Assignments
B Power Cord Set Requirements
C Screw Listing
D Display Component Recycling
Index

Maintenance and Service Guide 1–1
1
Product Description
The Compaq Presario V2600 Notebook PC offers advanced
modularity, Intel® Core Duo and Core Solo processors, and
extensive multimedia support.
Compaq Presario V2600 Notebook PC

1–2 Maintenance and Service Guide
Product Description
1.1 Features
■The following processors are available, varying by
computer model:
❏Intel Core Duo T2500 (2.00-GHz)
❏Intel Core Duo T2400 (1.83-GHz)
❏Intel Core Duo T2300 (1.66-GHz)
❏Intel Core Solo T1300 (1.66-GHz)
■14.0-inch WXGA (1280 × 768) TFT display with over
16.7 million colors, varying by computer model
■100-, 80-, 60-, or 40-GB high-capacity hard drive, varying by
computer model
■256-MB DDR synchronous DRAM (SDRAM) at 533 MHz,
expandable to 2.0 GB on models with Intel Core Duo
processors and 1.0 GB on models with Intel Core Solo
processors
■Microsoft® Windows® XP Home Edition or Windows XP
Professional, or Free DOS, varying by computer model
■Full-size Windows keyboard with embedded numeric keypad
■TouchPad pointing device with on/off button and dedicated
two-way scroll region
■Integrated 10/100 BASE-T Ethernet local area network
(LAN) network interface card (NIC) with RJ-45 jack
■Integrated high-speed 56K modem with RJ-11 jack
■Integrated wireless support for Mini Card IEEE 802.11b and
802.11b/g WLAN device

Product Description
Maintenance and Service Guide 1–3
■Support for ExpressCards
■External 65-watt AC adapter with 3-wire power cord
■6-cell or 12-cell Li-Ion battery pack
■Stereo speakers with volume up and down buttons
■Support for the following optical drives:
❏8X Max DVD+RW/R and CD-RW Combo Drive
❏4X Max DVD+RW/R and CD-RW Combo Drive
❏8X Max DVD-ROM Drive
❏24X Max DVD/CD-RW Combo Drive
■Connectors:
❏External monitor
❏Universal Serial Bus (USB) v. 2.0
❏RJ-11 (modem)
❏RJ-45 (network)
❏Audio-out (headphone)
❏Audio-in (microphone)
❏Power
❏IEEE 1394 digital (select models only)
❏S-Video-out (select models only)
❏Parallel
❏Serial
❏Docking (select models only)
❏Memory Reader (select models only)

1–4 Maintenance and Service Guide
Product Description
1.2 Resetting the Computer
If the computer you are servicing has an unknown password,
follow these steps to clear the password. These steps also
clear CMOS:
1. Prepare the computer for disassembly (refer to Section 5.3,
“Preparing the Computer for Disassembly,” for more
information).
2. Remove the real-time clock (RTC) battery (refer to
Section 5.16, “RTC Battery,” for more information).
3. Wait approximately 5 minutes.
4. Replace the RTC battery and reassemble the computer.
5. Connect AC power to the computer. Do not reinsert any
battery packs at this time.
6. Turn on the computer.
All passwords and all CMOS settings have been cleared.

Product Description
Maintenance and Service Guide 1–5
1.3 Power Management
The computer comes with power management features that
extend battery operating time and conserve power. The
computer supports the following power management features:
■Standby
■Hibernation
■Setting customization by the user
■Hotkeys for setting the level of performance
■Battery calibration
■Lid switch standby/resume
■Power/standby button
■Advanced Configuration and Power Management (ACPM)
compliance

1–6 Maintenance and Service Guide
Product Description
1.4 External Components

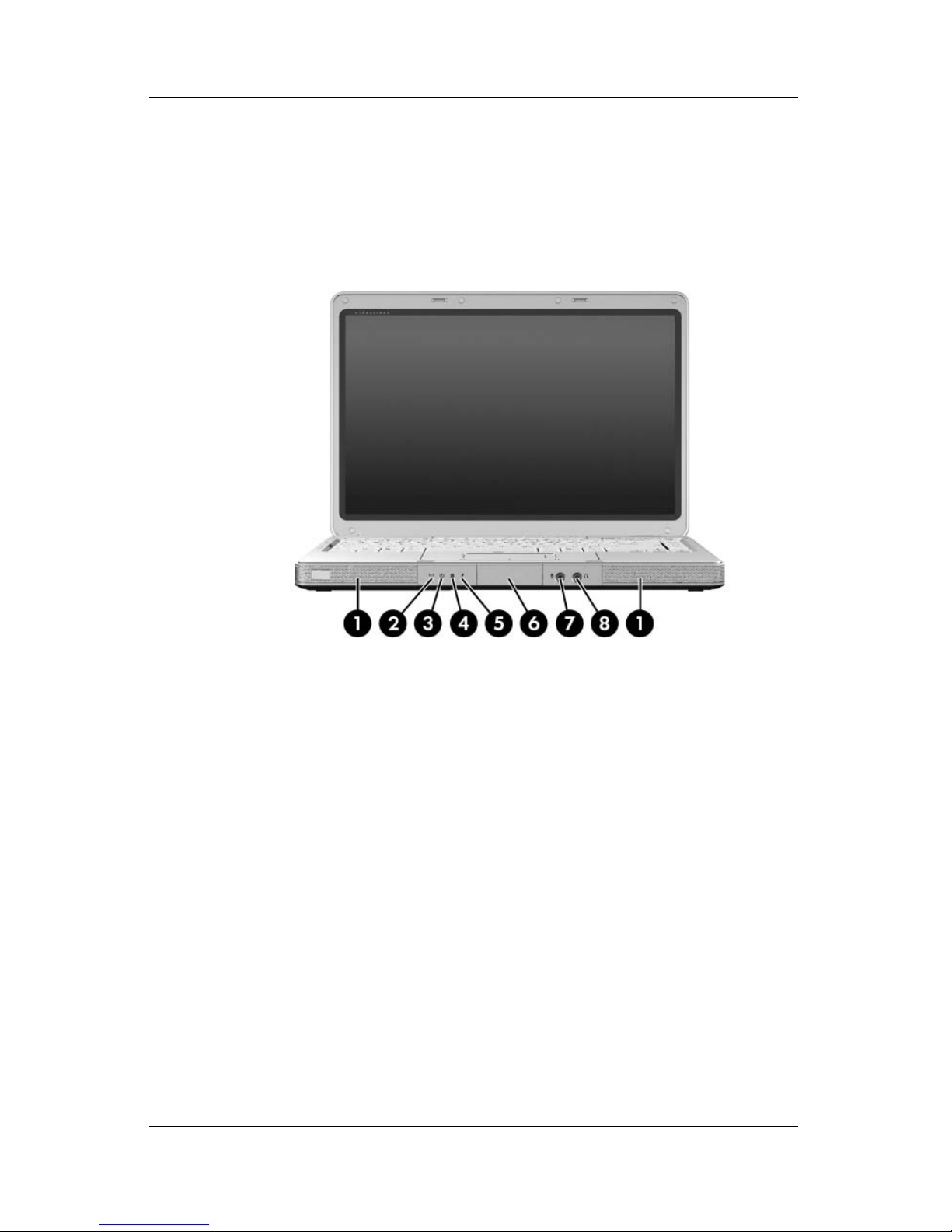

The external components on the front of the computer are shown
below and described in Table 1-1.
Front Components

Product Description
Maintenance and Service Guide 1–7
Table 1-1
Front Components
Item Component Function
1 Speakers (2) Produce stereo sound.
2 Wireless light
(select models only)
On: An integrated wireless device is
hardware enabled.
3Powerlight ■On: Computer is turned on.
■Blinking: Computer is in standby.
■Off: Computer is off.
4 Drive light On or blinking: The internal hard drive or an
optical drive is being accessed.
5 Battery light ■Amber: The battery pack is charging.
■Green: The battery pack is fully charged.
■Off: The battery pack is discharging
or not inserted.
6 Display release button Opens the computer.
7Audio-in
(microphone) jack
Connects an optional monaural (single
sound channel) microphone.
8Audio-out
(headphone) jack
Connect optional headphones or powered
stereo speakers. Also connect the audio
function of an audio/video device such as
a television or VCR.

1–8 Maintenance and Service Guide
Product Description
The external components on the right side of the computer
are shown below and described in Table 1-2.
Right-Side Components

Product Description
Maintenance and Service Guide 1–9
Table 1-2
Right-Side Components
Item Component Function
1 USB connectors (2) Connect an optional USB device.
2 Memory Reader
(select models only)
In Windows, supports digital cards.
3 1394 port
(select models only)
Connects an optional 1394 device such
as a scanner, digital camera, or digital
camcorder.
4 Memory Reader light
(select models only)
On: A digital card is being accessed.
5 Optical drive Supports an optical disc.
6S-Video-outjack
(select models only)
Connects an optional S-Video device, such
as a television, VCR, camcorder, projector,
or video capture card.

1–10 Maintenance and Service Guide
Product Description

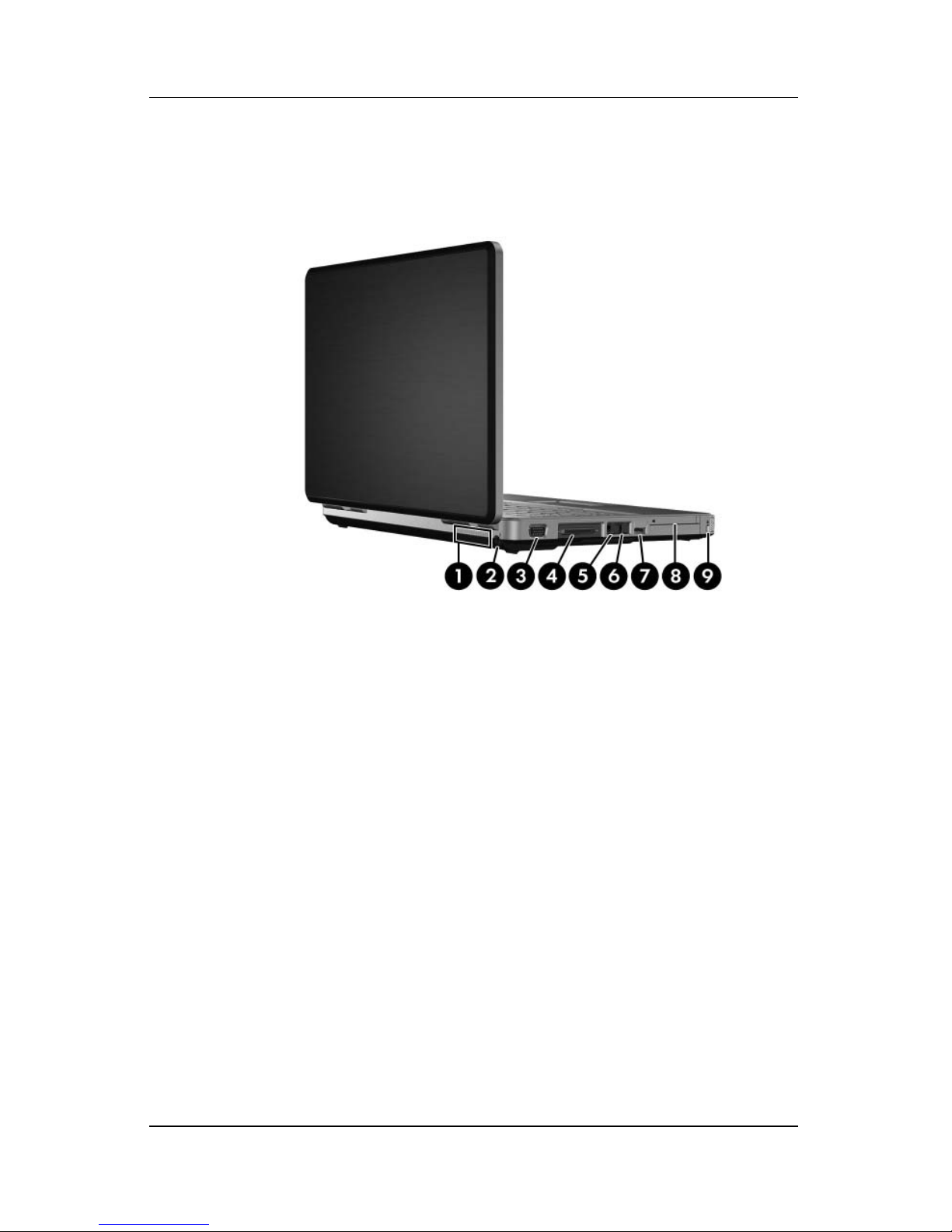

The external components on the rear and left side of the computer
are shown below and described in Table 1-3.
Rear and Left-Side Components

Product Description
Maintenance and Service Guide 1–11
Table 1-3
Rear and Left-Side Components
Item Component Function
1 Exhaust vent Provide airflow to cool internal components.
ÄTo prevent overheating, do not
obstruct vents. User the computer
only on a flat, hard surface. Do not
allow a hard surface, such as a
printer, or a soft surface, such as
pillows, thick rugs or clothing, to block
airflow.
2 Power connector Connects an AC adapter cable.
3 External monitor port Connects an optional VGA external monitor
or projector.
4 Expansion port 2 Connects the computer to an optional
expansion product or docking device.
5 RJ-45 (network) jack Connects an optional network cable.
6 RJ-11 (modem) jack Connects the modem cable.
7 USB connector Connects an optional USB device.
8 ExpressCard slot Supports an optional ExpressCard device.
9 Security cable slot Attaches an optional security cable to the
computer.

1–12 Maintenance and Service Guide
Product Description
The computer keyboard components on the computer are shown
below and described in Table 1-4.
Keyboard Components

Product Description
Maintenance and Service Guide 1–13
Table 1-4
Keyboard Components
Item Component Function
1fn key Combines with other keys to perform
system tasks. For example, pressing
fn+f7 decreases screen brightness.
2caps lock key Enables caps lock and turns on the caps
lock light.
3f1 to f12 keys (12) Perform system and application tasks.
When combined with the fn key, several
keys and buttons perform additional tasks
as hotkeys.
4num lock key Enables numeric lock, turns on the
embedded numeric keypad, and turns
on the num lock light.
5 Keypad keys (15) In Windows, can be used like the keys
on an external numeric keypad.
6 Arrows keys Move the cursor around the screen.
7Windows
applications key
In Windows, displays a shortcut menu
for items beneath the pointer.
8 Windows logo key In Windows, displays the Windows
Start menu.

1–14 Maintenance and Service Guide
Product Description
The computer top components on the computer are shown below
and described in Table 1-5.
Top Components, Part 1
Table 1-5
Top Components, Part 1
Item Component Function
1 Caps lock light On: Caps lock is on.
2 Display switch If the computer is closed while on, turns off
the display.
