HP Compaq Presario User manual

Compaq Notebook Series
Getting Started
271247-001
compaq.com
N1000/1500

b
Getting Started
Compaq Notebook Series
Document Part Number: 271247-001
June 2002
This guide explains how to set up your hardware and software,
begin using the notebook, troubleshoot problems, and contact
Compaq if you need assistance. The last chapter introduces you
to the exterior features of the notebook.
271247-001.book Page i Wednesday, April 17, 2002 2:55 PM

© 2002 Compaq Information Technologies Group, L.P.
Compaq, the Compaq logo, Evo, and Presario are trademarks of Compaq
Information Technologies Group, L.P. in the U.S. and/or other countries.
Microsoft and Windows are trademarks of Microsoft Corporation in the U.S.
and/or other countries. All other product names mentioned herein may be
trademarks of their respective companies.
Compaq shall not be liable for technical or editorial errors or omissions
contained herein. The information is provided “as is” without warranty of any
kind and is subject to change without notice. The warranties for Compaq
products are set forth in the express limited warranty statements accompanying
such products. Nothing herein should be construed as constituting an additional
warranty.
Getting Started
First Edition June 2002
Reference Number: N1000/1500
Document Part Number: 271247-001
271247-001.book Page ii Wednesday, April 17, 2002 2:55 PM

Getting Started iii
Using This Guide
This preface explains how to interpret the symbols, text styles,
and paths in your notebook documentation.
Warnings, Cautions and Notes
Warnings and cautions contain important information that can
protect you, your work, and your system.
Notes contain additional information about a topic. Some notes
provide basic information for inexperienced users. Others provide
technical information for advanced users.
The following icons identify warnings, cautions, and notes.
ÅWARNING: The information in a warning protects against bodily
harm or loss of life.
ÄCAUTION: The information in a caution protects against damage to
your work, your notebook, or an optional external device.
✎The information in a note provides supplementary information
for inexperienced or advanced users.
271247-001.book Page iii Wednesday, April 17, 2002 2:55 PM

iv Getting Started
Using This Guide
Text Styles
Some text in your notebook documentation is styled
typographically to help you interpret the information it contains.
For example, keyboard keys are styled like this: shift key. Buttons
that display on the screen are styled like this: Next button.
The following table identifies and explains the text styles used in
your notebook documentation.
Style Explanation
keys Identifies a key, such as the enter key, on the
notebook keyboard or on an optional external
keyboard.
A plus sign (+) between 2 or more keys indicates
that they are a key combination. To use most key
combinations:
■Briefly press the first key, then briefly press
each succeeding key.
or
■Press and hold the first key, press and hold
each succeeding key, then release all the keys
simultaneously.
Unless you are instructed to do so, do not press the
keys in a key combination simultaneously.
commands Identifies characters you are asked to type. For
example, to visit the Compaq Web site, you would
type http://www.compaq.com into the address field
on your Web browser.
Initial Capital
Letters
Identifies words that appear on the screen. For
example, in a procedure for displaying an icon on
the taskbar, you might be asked to select a Show
Icon On The Taskbar check box.
271247-001.book Page iv Wednesday, April 17, 2002 2:55 PM

Using This Guide
Getting Started v
Paths
Following a Path
Many instructions in documentation direct you to locations
within the operating system, an application, or a utility where you
can select settings. The greater than symbol (>) is used to direct
you from destination to destination along the path to the settings.
As you follow paths, do nothing at each destination along the way
except select the next destination. The paths in your notebook
documentation:
■Explain whether to look for an icon, a tab, or a button on the
screen. Tabs are displayed along the top edge of individual
windows.
■Are based on the notebook pointing device functions set at
the factory:
❏To select, press the left TouchPad button 1once.
❏To double-click, press the left TouchPad button twice.
❏To right-click, press the right TouchPad button 2once.
Most paths to Windows destinations begin with “Start >.” To
select Start (and display the Windows Start menu), select the Start
button in the lower left corner of your screen or press either of the
Microsoft logo keys 3on the keyboard.

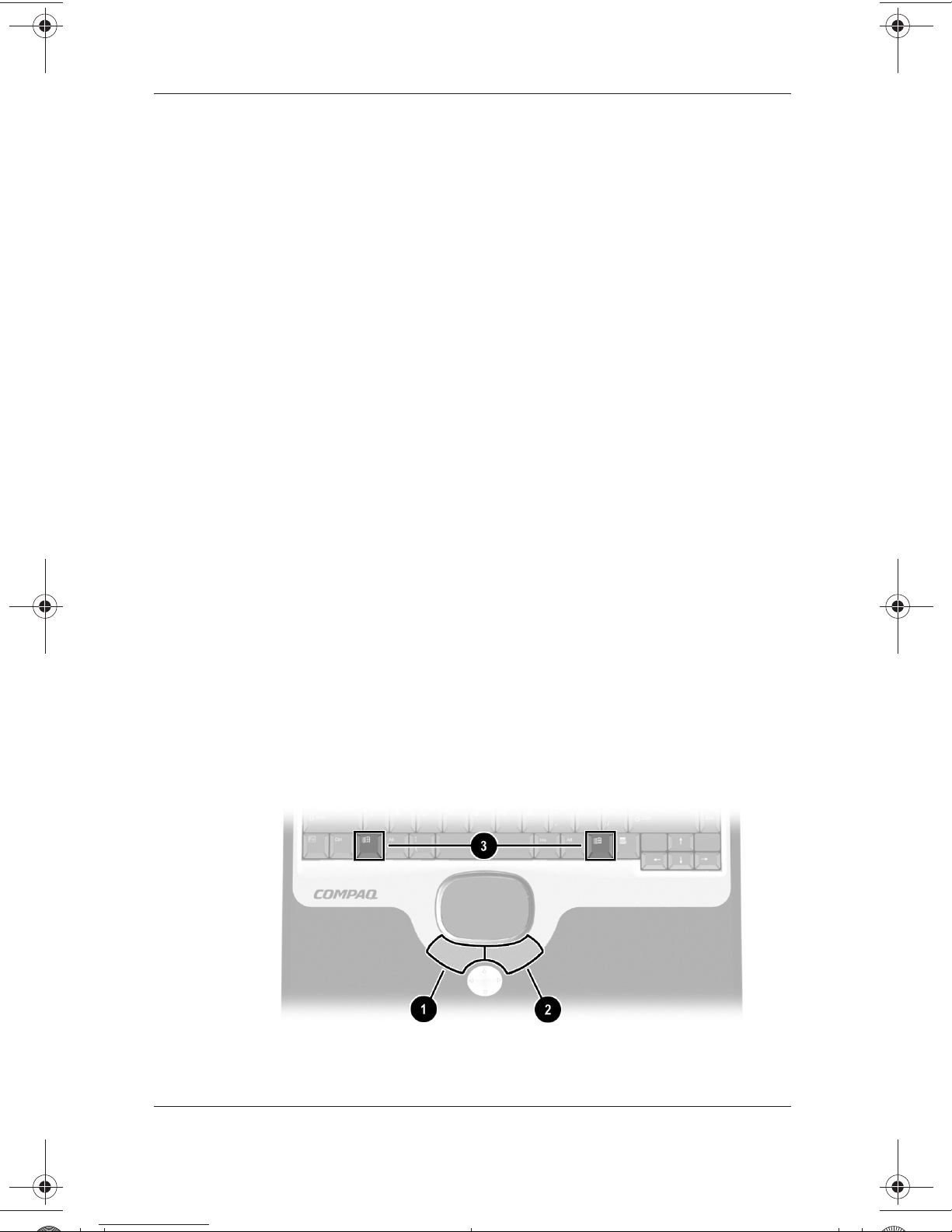

Identifying TouchPad buttons and the Microsoft logo keys
271247-001.book Page v Wednesday, April 17, 2002 2:55 PM

vi Getting Started
Using This Guide
Choosing a Path
Your notebook documentation provides paths for 3 operating
systems.
■Follow the Windows 2000 Professional paths if:
❏The notebook is running Windows 2000 Professional.
or
❏The notebook is running Windows XP Home or
Windows XP Professional in Classic view.
■Follow the Windows XP Home or Windows XP Professional
paths if the notebook is running Windows XP Home or
Windows XP Professional in Category view.
As installed, Windows XP Home and Windows XP Professional
run in Category view. To compare Category view with Classic
view or to select either view:
1. Right-click the Start button > Properties > Start Menu tab.
2. Select the Classic or Category radio button. (The views are
displayed in the illustration on the Start Menu tab.)
3. Follow the instructions on the screen.
271247-001.book Page vi Wednesday, April 17, 2002 2:55 PM

Getting Started vii
Contents
Using This Guide
1 Setting Up the Notebook
Setting Up the Hardware . . . . . . . . . . . . . . . . . . . . . . . . . 1–1
Installing the Battery Pack. . . . . . . . . . . . . . . . . . . . . 1–2
Connecting the Notebook to External Power . . . . . . 1–3

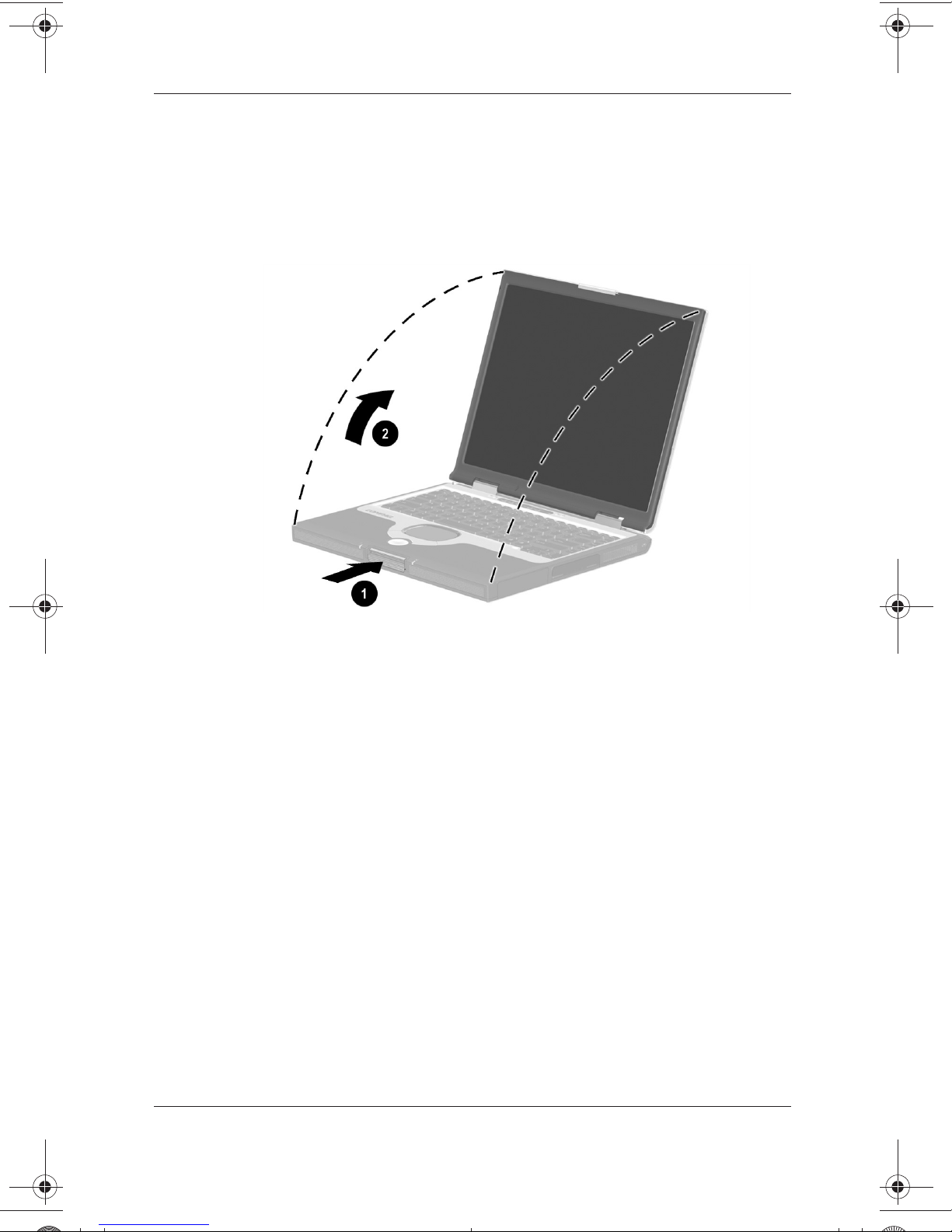

Opening the Notebook. . . . . . . . . . . . . . . . . . . . . . . . 1–4

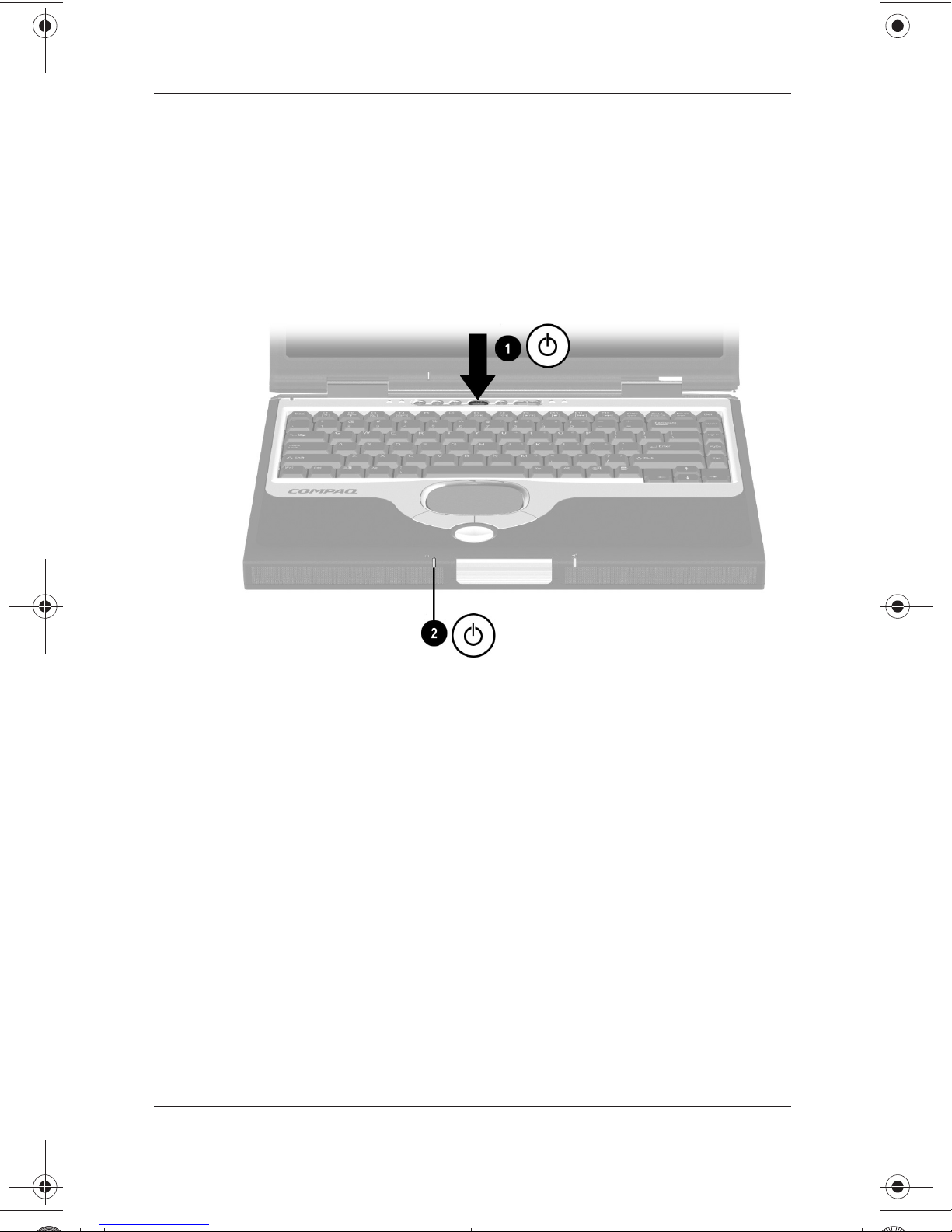

Turning On the Notebook . . . . . . . . . . . . . . . . . . . . . 1–5
Setting Up the Software . . . . . . . . . . . . . . . . . . . . . . . . . . 1–6
Turning Off the Notebook . . . . . . . . . . . . . . . . . . . . . . . . 1–7
Using the Notebook Safely . . . . . . . . . . . . . . . . . . . . . . . 1–8
2 Beginning to Use the Notebook
Selecting Regional Settings . . . . . . . . . . . . . . . . . . . . . . . 2–1
Selecting Screen Settings . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Protecting the Notebook Against Viruses . . . . . . . . . . . . 2–2
Installing Optional Software . . . . . . . . . . . . . . . . . . . . . . 2–3
Accessing Notebook Documentation. . . . . . . . . . . . . . . . 2–5
Opening the Documentation Library CD . . . . . . . . . 2–6
Using the Documentation Library CD . . . . . . . . . . . . . . . 2–7
Selecting a Guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–7
Finding a Topic Within a Guide . . . . . . . . . . . . . . . . 2–8
271247-001.book Page vii Wednesday, April 17, 2002 2:55 PM

viii Getting Started
Contents
3 Troubleshooting
Quick Solutions Checklist . . . . . . . . . . . . . . . . . . . . . . . . 3–2
Is the Notebook Receiving Power? . . . . . . . . . . . . . . 3–2
Is the Notebook Turned On? . . . . . . . . . . . . . . . . . . . 3–3
Is the Notebook in Standby or Hibernation? . . . . . . . 3–3
Is the Notebook Overheated? . . . . . . . . . . . . . . . . . . 3–4
Is the System Unresponsive?. . . . . . . . . . . . . . . . . . . 3–4
Is an External Device Not Working?. . . . . . . . . . . . . 3–5
Are You Using All Available Documentation?. . . . . 3–5
Is Software Functioning Abnormally? . . . . . . . . . . . 3–6
Contacting Compaq . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–7
Preparing to Call Technical Support . . . . . . . . . . . . . 3–7
Taking the Notebook to a Service Provider. . . . . . . . 3–8
4 Identifying External Hardware
Display Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
Pointing Device Components. . . . . . . . . . . . . . . . . . . . . . 4–2
TouchPad Models . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
Dual Device Models . . . . . . . . . . . . . . . . . . . . . . . . . 4–3
Top Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4
Power Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4
Keyboard and Drive Lights . . . . . . . . . . . . . . . . . . . . 4–5
Power and Volume Controls . . . . . . . . . . . . . . . . . . . 4–6
Easy Access Buttons and Keyboard Keys. . . . . . . . . 4–7
Function and Keypad Keys . . . . . . . . . . . . . . . . . . . . 4–8
Front Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . 4–9
Rear Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . 4–10
Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–10
Vents and Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–11
Left Side Components . . . . . . . . . . . . . . . . . . . . . . . . . . 4–12
Right Side Components . . . . . . . . . . . . . . . . . . . . . . . . . 4–13
271247-001.book Page viii Wednesday, April 17, 2002 2:55 PM

Contents
Getting Started ix
Underside Components . . . . . . . . . . . . . . . . . . . . . . . . . 4–14
Memory and Mini PCI Compartments . . . . . . . . . . 4–14
Docking Components . . . . . . . . . . . . . . . . . . . . . . . 4–15
Labels. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–16
Additional Standard Components . . . . . . . . . . . . . . . . . 4–17
Documentation and Restore CDs . . . . . . . . . . . . . . 4–17
Cord and Cables. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–18
Adapters and Accessories . . . . . . . . . . . . . . . . . . . . 4–19
Index
271247-001.book Page ix Wednesday, April 17, 2002 2:55 PM

Getting Started 1–1
1
Setting Up the Notebook
Setting Up the Hardware
To set up the notebook for the first time, you will need the
notebook, the AC Adapter 1, the power cord 2, and the battery
pack 3. During the hardware setup, you will: install the
battery pack, connect the computer to external power, open the
display, and turn on the notebook.
Identifying the AC Adapter, the power cord, and the battery
pack (AC Adapters and power cords vary by region.)
271247-001.book Page 1 Wednesday, April 17, 2002 2:55 PM

1–2 Getting Started
Setting Up the Notebook
Installing the Battery Pack
To install the battery pack:
1. Place the notebook upside down on a flat surface, preferably
on top of a clean cloth.
2. Slide the battery pack 1into the battery compartment until it
clicks into place. The battery will install only one way.
Installing the battery pack
271247-001.book Page 2 Wednesday, April 17, 2002 2:55 PM

Setting Up the Notebook
Getting Started 1–3
Connecting the Notebook to External Power
ÄCAUTION: To prevent file corruption and to be sure that the correct
drivers load, do not turn on the notebook for the first time while it is
docked in an optional port replicator.
To connect the notebook to external power:
1. Place the notebook on a flat surface near an electrical outlet.
2. Plug the AC Adapter cable into the DC power connector 1.
3. Plug the power cord into the AC Adapter 2and into an
electrical outlet 3.
When the notebook receives AC power, the AC Adapter light 4
turns on.
Connecting the notebook to external power (AC Adapters,
power cords, and electrical outlets vary by region.)
271247-001.book Page 3 Wednesday, April 17, 2002 2:55 PM

1–4 Getting Started
Setting Up the Notebook
Opening the Notebook
To open the notebook, briefly press the display release latch 1as
you raise the display 2.
Opening the notebook
271247-001.book Page 4 Wednesday, April 17, 2002 2:55 PM

Setting Up the Notebook
Getting Started 1–5
Turning On the Notebook
To turn on the notebook, briefly press the power button 1. When
the notebook is on, the power/standby light 2turns on, and you
are prompted to begin software setup.
If the notebook does not turn on, refer in this guide to Chapter 3.
Turning on the notebook
271247-001.book Page 5 Wednesday, April 17, 2002 2:55 PM

1–6 Getting Started
Setting Up the Notebook
Setting Up the Software
A prompt to set up the software is displayed on the screen when
the notebook is turned on for the first time.
Before responding to the prompt and proceeding through the
online instructions, read the following caution and other
installation information.
ÄCAUTION: To prevent file corruption and be sure that the correct device
drivers install, during software setup:
■Do not unplug the notebook from the electrical outlet.
■Do not shut down the notebook.
■Do not remove or insert a drive.
■Once you begin the software setup, you must complete the
entire process without interruption. Setup time varies.
■If you are prompted to select a language, choose carefully.
The languages that you do not choose are deleted from the
system and cannot be restored during the installation.
■When you are prompted to accept the End User License
Agreement, you must choose Accept to continue the software
setup.
271247-001.book Page 6 Wednesday, April 17, 2002 2:55 PM

Setting Up the Notebook
Getting Started 1–7
Turning Off the Notebook
Whenever possible, shut down the notebook by following the
Windows shut down procedure provided below for your operating
system. For information about using these procedures, see the
section to “Paths” in the introduction “Using This Guide.”
To shut down the notebook using a Windows shutdown
procedure:
■In Windows 2000 Professional:
1. Select Start > Shut Down.
2. Select and hold the down arrow beside the What Do You
Want the Computer To Do drop-down list until Shut
Down is displayed.
3. Select the OK button.
■In Windows XP Home or Windows XP Professional,
select Start > Turn Off Computer button > Turn Off button.
If the notebook does not respond to a Windows shutdown
procedure, see Chapter 3, “Troubleshooting,” in this guide, in the
section “Is the System Unresponsive?”
271247-001.book Page 7 Wednesday, April 17, 2002 2:55 PM

1–8 Getting Started
Setting Up the Notebook
Using the Notebook Safely
To protect the notebook from the power surges that may be
caused by an uncertain power supply or an electrical storm:
■Plug the notebook power cord into an optional, high-quality
surge protector.
■Provide surge protection on the cable that connects the
modem to the telephone line.
■During an electrical storm, run the notebook on battery power
or shut down the notebook and disconnect the power cord.
Surge protectors are available from most computer or electronics
retailers.
To learn more about protecting yourself, your work, and your
notebook from electrical and other risks:
■Read the following warning.
■Read the ergonomic and safety information included with the
notebook.
ÅWARNING: This is a Class B digital device, pursuant to Part 15 of the
FCC Rules. For more Class B information, refer on the
Documentation
Library CD to Regulatory and Safety Notices. To reduce the risk of
personal injury, electric shock, fire, or damage to the equipment:
■Do not disable the power cord grounding plug. It is an important
safety feature.
■Plug the equipment into a grounded (earthed) electrical outlet
that is easily accessible at all times.
■Disconnect power from the equipment by unplugging the power
cord from the electrical outlet.
■Do not place anything on power cords or cables. Arrange them
so that no one may accidentally step on or trip over them.
■Do not pull on a cord or cable. When unplugging a cord from an
electrical outlet, grasp the cord by the plug.
■Disconnect the modem from a telephone line when you are not
using it, and do not use the modem during an electrical storm.
271247-001.book Page 8 Wednesday, April 17, 2002 2:55 PM

Getting Started 2–1
2
Beginning to Use the Notebook
Selecting Regional Settings
Keyboard language and other regional preferences, such as time,
date, and currency format, are set in the operating system.
To access regional settings:
■In Windows 2000 Professional, select Start > Settings >
Control Panel > Regional Options.
■In Windows XP Home or Windows XP Professional,
select Start > Control Panel > Date, Time, Language and
Regional Options.
For information about selecting regional settings, open the
Regional Options window, then use context-sensitive Help.
To use context-sensitive Help, select the question mark button
in the upper right corner of the window, then select an item. A
definition, explanation, or procedure is displayed.
Selecting Screen Settings
If you would like to see more items on your screen or to see the
items on your screen displayed larger, change the screen
resolution setting in your operating system.
To access the screen resolution setting:
■In Windows 2000 Professional, select Start > Settings >
Control Panel > Display > Settings tab.
■In Windows XP Home or Windows XP Professional,
select Start > Control Panel > Appearance and Themes icon >
Change The Screen Resolution task > Settings tab.
271247-001.book Page 1 Wednesday, April 17, 2002 2:55 PM

2–2 Getting Started
Beginning to Use the Notebook
To change the screen resolution setting, which is called the screen
area setting in Windows 2000 Professional:
1. Press and hold down the left TouchPad button as you move
the slider on the Settings tab. The image on the monitor
illustrated above the slide bar changes as you move the
slide bar.
2. When the image on the illustrated monitor is the image you
would like to use on the notebook, select the OK button, then
follow the instructions on the screen.
For information about setting other screen preferences in the
Display Properties window, use context-sensitive Help. To
use context-sensitive Help, select the question mark button in
the upper right corner of the window, then select an item. A
definition, explanation, or procedure is displayed.
Protecting the Notebook Against Viruses
When you use the notebook for email, network, or Internet
access, you expose the notebook to computer viruses. Computer
viruses can disable the operating system, your applications, or
your utilities or cause them to function abnormally.
Antivirus software can detect most viruses, destroy them, and, in
most cases, repair any damage they have caused.
Compaq strongly recommends that you install optional antivirus
software before using the modem or a network connection.
Antivirus software is available from most computer or electronics
retailers.
271247-001.book Page 2 Wednesday, April 17, 2002 2:55 PM
