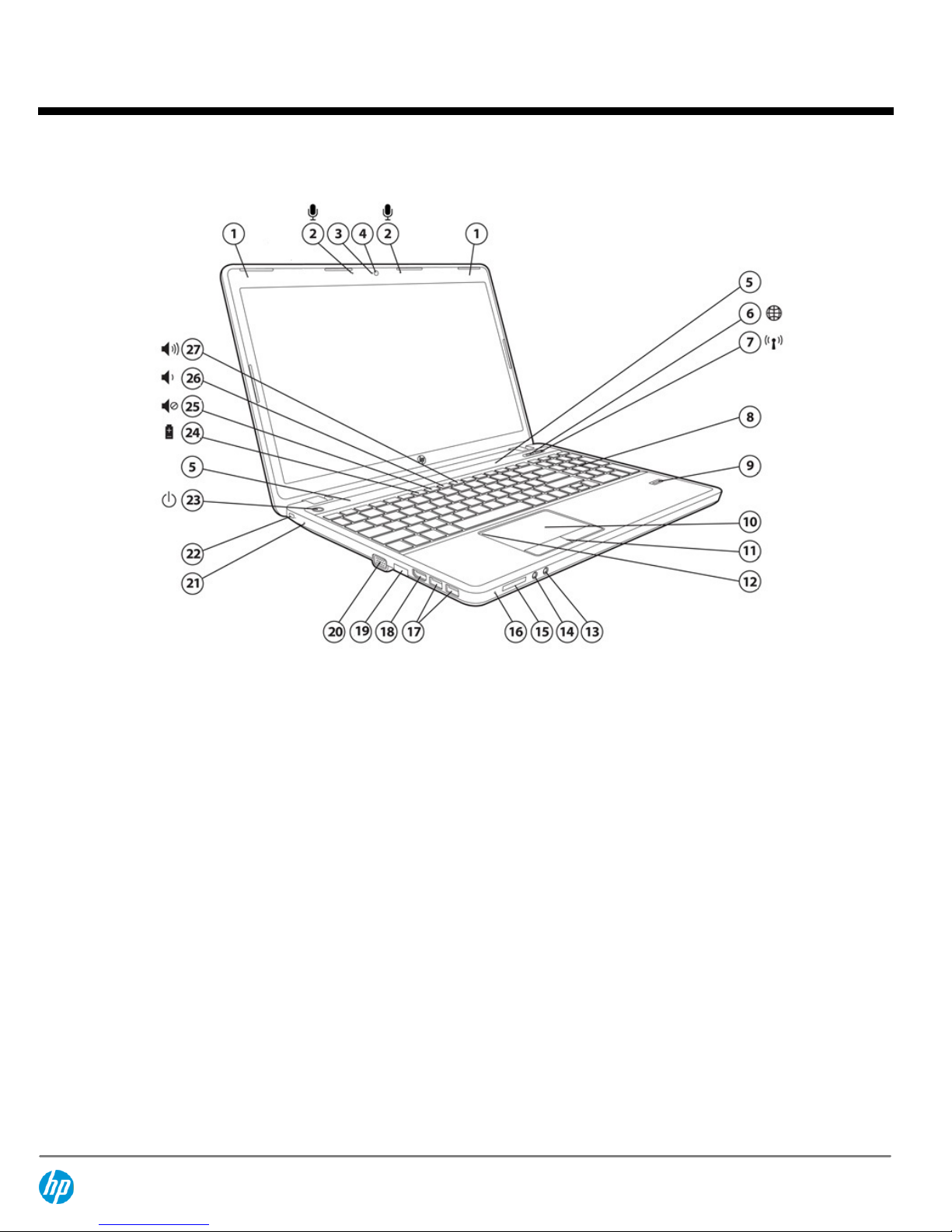

1. WLAN antennas 15. Media Card Reader
2. Dual-microphone array* 16. Hard drive activity LED indicator
3. Webcam LED indicator (with optional webcam) 17. 2 USB 3.0 ports
4. Optional 720p HD webcam 18. HDMI 1.4a port
5. Stereo speakers 19 RJ-45/Ethernet port
6. HP WebBrowser button with LED indicator 20. VGA/external monitor connector
7. Wireless on/off button with LED indicator 21. AC Adapter/battery light
8. Numeric keypad 22. Security cable slot
9. HP Fingerprint Sensor 23. Power button with LED indicator
10. Touchpad 24. HP Power Assistant function key
11. Touchpad pick buttons 25. Volume mute function key
12. Touchpad on/off button with LED indicator 26. Volume down function key
13. Stereo microphone in 27. Volume up function key
14. Stereo headphone/line out
* Models without optional webcam have single integrated microphone on left side of display panel.
QuickSpecs
HP ProBook 4545s Notebook PC
Overview
DA - 14307 North America — Version 4 — April 25, 2013 Page 1

1. 2 USB 2.0 ports 2. Optical drive (select models)
1. Battery and service door release latches 4. Vents
2. Battery bay 5. Hard drive bay (inside the service door)
3. Power connector
QuickSpecs
HP ProBook 4545s Notebook PC
Overview
DA - 14307 North America — Version 4 — April 25, 2013 Page 2

At A Glance
Windows 8 versions, Windows 7 versions, SUSE Linux Enterprise Desktop 11, or FreeDOS
Thin, lightweight design with metallic gray brushed aluminum finish for durability and style; wear-resistant HP DuraFinish
Full-sized spill-resistant keyboard; full separate numeric keypad
HP 3D DriveGuard to protect hard drive against impact, bumps or drops
Larger Touchpad with gestures support, on/off button with LED indicator
Enhanced security features including HP ProtectTools, HP Face Recognition, HP Fingerprint Sensor
SRS Premium Sound optimized for high fidelity audio
HDMI port for connecting to high-resolution displays
ArcSoft TotalMedia Suite for playing, creating, and editing video and audio files
Optional HD webcam with dual-microphone array for video conferencing
Widescreen LED-backlit HD display with 16:9 aspect ratio
15.6-inch diagonal HD anti-glare
Accelerated Processing Unit and graphics powered by VISION Pro Technology from AMD
Models with integrated graphics
AMD Radeon™ Dual Graphics to automatically manage how the graphics processor in the AMD APU and the AMD Radeon™
discrete graphics processor are used
HP WebBrowser for convenient online access without the standard boot-up time
Flexible wireless connectivity options:
Integrated 802.11 b/g/n (1x1) wireless LAN module
Integrated 802.11 b/g/n (1x1) with Bluetooth 4.0 High Speed (HS) combo card*
HP Power Assistant to conserve power, increase battery run-time, monitor power needs, report workforce power consumption
Low Halogen**, ENERGY STAR® qualified and EPEAT TBD registered in the U.S. EPEAT status varies by country- please see
epeat.net .
* Available only on select models.
** Meeting the industry definition of 'Low Halogen' per the iNEMI Position Statement on "Low Halogen" Electronics. Plastic parts
incorporated into the chassis generally contain < 1000 ppm (0.1%) of bromine or chlorine. Printed circuit board and substrate
laminates generally contain < 1500 ppm (0.15%) of total bromine and chlorine. Service parts after purchase may not be Low Halogen.
External accessories, including power supplies, power cords, and peripherals as well as the following customer-configurable internal
components: ATT SIM card are not Low Halogen.
QuickSpecs
HP ProBook 4545s Notebook PC
Overview
DA - 14307 North America — Version 4 — April 25, 2013 Page 3

OPERATING SYSTEM
Preinstalled Windows 8 Pro 64*
Windows 7 Professional (available through downgrade rights from Windows 8 Pro)**
Windows 8 64*
Windows 7 Professional 64***
Windows 7 Home Premium 64***
Windows 7 Home Basic 64***
SUSE Linux Enterprise Desktop 11
FreeDOS
Supported Windows 8 Pro 32*
Windows 8 32*
Windows 8 Enterprise 32*
Windows 8 Enterprise 64*
Windows 7 Professional 32***
Windows 7 Home Premium 32***
Windows 7 Home Basic 32***
Windows XP Professional 32
Certified Microsoft WHQL
SUSE Linux
* Not all features are available in all editions of Windows 8. Systems may require upgraded and/or separately purchased
hardware, drivers and/or software to take full advantage of Windows 8 functionality. See http://www.microsoft.com for details.
** This system is preinstalled with Windows® 7 Pro software and also comes with a license and media for Windows 8 Pro software.
You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one
version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating
systems to avoid loss of your data.
*** Not all features are available in all editions of Windows 7. This system may require upgraded and/or separately purchased
hardware to take full advantage of Windows 7 functionality. See http ://www.microsoft.com/windows/windows-7/ for details.
ACCELERATED PROCESSING UNIT*
AMD Quad-Core A8-4500M APU with Radeon™ HD 7640G Graphics (2.8 GHz/1.9 GHz, 4 MB L2 cache, 4 cores)
AMD Dual-Core A6-4400M APU with Radeon™ HD 7520G Graphics (3.2 GHz/2.7 GHz, 1 MB L2 cache, 2 cores)
AMD Dual-Core A4-4300M APU with Radeon™ HD 7420G Graphics (3.0 GHz/2.5 GHz, 1 MB L2 cache, 2 cores)
* This system requires a separately purchased 64-bit operating system and 64-bit software products to take advantage of the 64-
bit processing capabilities of AMD technology. Multi-core processing with AMD technology is designed to improve performance of
this system. Given the wide range of SW applications available, performance will vary. AMD's numbering is not a measurement of
clock speed.
NOTE: APU speed denotes maximum performance mode; APUs will run at lower speeds in battery optimization mode.
AMD CONTROLLER HUB (CHIPSET)
AMD A70M FCH
QuickSpecs
HP ProBook 4545s Notebook PC
Features
DA - 14307 North America — Version 4 — April 25, 2013 Page 4

GRAPHICS INCLUDED WITH ACCELERATED PROCESSING UNIT (APU)
Integrated graphics
AMD Radeon™ HD 7640G Graphics (with AMD Quad-Core A8-4500M APU)
AMD Radeon™ HD 7520G Graphics (with AMD Dual-Core A6-4400M APU)
AMD Radeon™ HD 7420G Graphics (with AMD Dual-Core A4-4300M APU)
DISPLAY
Internal
15.6" diagonal LED-backlit HD anti-glare (1366 x 768 resolution)
External
Up to 32-bit per pixel color depth
VGA
Port supports resolutions up to 2048 x 1536 external resolution @75 Hz
HDMI
1.4 port supports up to 1080p, 1920 x 1080 at 60Hz
NOTE: Resolutions are dependent upon monitor capability, and resolution and color depth settings.
STORAGE AND DRIVES
Primary Storage Bay
Hard Drives
320/500/750 GB 7200 rpm SMART SATA II
3D DriveGuard (Windows only)
The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive
NOTE: Up to 19 GB is reserved for the system recovery software.
OPTICAL DRIVES
Fixed 12.7 mm SATA optical drive
Blu-ray ROM DVD+/-RW SuperMulti DL Drive
DVD+/-RW SuperMulti DL Drive
Weight saver
QuickSpecs
HP ProBook 4545s Notebook PC
Features
DA - 14307 North America — Version 4 — April 25, 2013 Page 5

MEMORY
Standard
DDR3 PC3-10600 SDRAM (1600 MHz)*
Two SODIMM slots supporting dual-channel memory
2 GB and 4 GB SODIMMs
Maximum
Upgradeable to 8192 MB with optional 4096 MB SODIMMs in slots 1 and 2
Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory slots.
NOTE: Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to
ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed. With Windows Starter 32-
bit operating systems, the amount of usable memory is dependent upon your configuration, so that above 3 GB all memory may
not be available due to system resource requirements.
NETWORKING/COMMUNICATIONS
Wireless
Support for a broad range of secure, integrated wireless LAN options featuring support for the latest industry standards..
Integrated Bluetooth is also available (factory configurable only) and can be combined with any of the supported wireless.
All 802.11 integrated wireless LAN options
802.11b/g/n (1x1)
802.11b/g/n (1x1) with Bluetooth® v4.0 combo
Communications
Integrated Realtek 10/100/1000 Ethernet Controller*
* The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and does
not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network
infrastructure is required.
AUDIO/MULTIMEDIA
Audio
SRS Premium Sound™
Integrated stereo speakers
Integrated microphone (dual-microphone array when equipped with optional webcam)
Function keys for volume mute, volume up, volume down; play, rewind, and fast-forward of video and audio files
Stereo headphone/line out
Webcam
Optional 720p HD webcam
HD format (widescreen)
Supports videoconferencing and still image capture
High quality fixed focus lens
Video capture at various resolutions up to 1280x720 resolution (720p) and up to 30fps
M-JPEG compression supports higher frame rates for video capture and videoconferencing
Improved low light sensitivity
Improved dynamic range
QuickSpecs
HP ProBook 4545s Notebook PC
Features
DA - 14307 North America — Version 4 — April 25, 2013 Page 6

KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS
Keyboard
The HP spill-resistant keyboard is designed using a thin layer of Mylar film under the keyboard and a drain system that funnels
fluid through a hole in the bottom of the notebook. This minimizes the risk of damage to sensitive components underneath. The
101/102-key compatible keyboard features a full-pitch key layout with desktop keyboard features, such as editing keys, both left
and right control and alt keys, and function keys. US and International key layouts are available. The HP ProBook 4545s includes a
separate numeric keypad.
Pointing Devices
Touchpad with gestures support, on/off button with LED indicator, two-way scroll, two pick buttons
Buttons and Function Keys
Separate launch buttons provide easy access to wireless on/off and HP WebBrowser. Function keys provide control of features
including: standby mode, display brightness, external display, HP Power Assistant, volume mute, volume down, volume up, and
media control.
SOFTWARE AND SECURITY
Preinstalled Software with Windows Operating System
HP Recovery Manager
HP Support Assistant
HP Hotkey Support
HP WebBrowser
HP Power Assistant
HP Connection Manager
ArcSoft Total Media Suite
Buy Office
WinZip
NOTE: HP Recovery Manager enables fast recovery of the factory preinstalled image if the system becomes corrupted or if
important system files are accidentally deleted. Up to 19 GB of the hard drive is reserved for the system recovery software.
Support in Windows Operating System only.
Security
Standard
HP ProtectTools
Drive Encryption for HP ProtectTools
HP ProtectTools Security Manager
HP Spare Key
File Sanitizer for HP ProtectTools
HP Face Recognition
HP File Sanitizer
HP Fingerprint Sensor
Security Lock slot
Optional
Security Lock
NOTE: Computrace agent is shipped turned off, and must be activated by customers when they purchase a subscription.
Subscriptions can be purchased for terms ranging from one to five years. Service is limited, check with Absolute for availability
outside the U.S.
QuickSpecs
HP ProBook 4545s Notebook PC
Features
DA - 14307 North America — Version 4 — April 25, 2013 Page 7

For more information on HP security solutions refer to: http://www.hp.com/go/security .
POWER
Power Supply
External 65-watt Smart AC adapter (integrated graphics)
Power cord included is 6-foot (1.8 meter).
Total length including external AC adapter is 12 feet (3.66 meter).
HP Fast Charge (6-Cell only)
Primary Battery
HP 9-cell Lithium-Ion Battery (93 WHr)
HP 6-cell Lithium-Ion Battery (47 WHr)
Battery Life
Battery life up to TBD hours*
System Standby Time
Up to 1 week
*Battery life will vary depending on the product model, configuration, loaded applications, features, use, wireless functionality
and power management settings. The maximum capacity of the battery will naturally decrease with time and usage. See
MobileMark07 battery benchmark http://www.bapco.com/products/mobilemark2007 for additional details.
NOTE: Fast Charge recharges your battery up to 90% within 90 minutes when the system is off. Please note that Fast Charge is
only available on 9-cell batteries.
Power Conservation
Supports enhanced Intel SpeedStep technology (allows Battery Optimized Mode, Maximum Performance Mode, or Automatic
mode)
ATI PowerPlay technology
Hibernation
Standby
ACPI compliance
ENVIRONMENTAL
ENERGY STAR
IT ECO Declaration
EPEAT Gold where HP registers commercial notebook products. See http://www.epeat.net for registration status in your country.
NOTE: This product has received or is in the process of being certified to the following approvals and may be labeled with one or
more of these marks.
QuickSpecs
HP ProBook 4545s Notebook PC
Features
DA - 14307 North America — Version 4 — April 25, 2013 Page 8

WEIGHTS & DIMENSIONS
Weight
Starting at 5.14 lb (2.33 kg) without optical drive
Starting at 5.45 lb (2.47 kg) with optical drive
Dimensions (w x d x h)
14.76 x 10.09 x 1.4 in (at front)
37.5 x 25.6 x 3.5 cm (at front)
NOTE: Height varies depending upon where on the notebook the measurement is made. Weight varies by configuration and
components. Weight includes 6-cell battery, hard drive, 1 GB memory, and optical drive. Weight varies by configuration and
components.
PORTS/SLOTS
Ports
VGA - One
USB 3.0- Two
USB 2.0 - Two
HDMI 1.4a - One
Stereo microphone in - One
Stereo headphone/line out - One
Power Connector - One
RJ-45 (Ethernet) - One
Digital Media Slots
1 Multi-media Reader Slot supporting SD, SDHC, SDXC, Memory Stick
SERVICE AND SUPPORT
HP Services offers limited 3-year, 1-year and 90-day warranty options depending on country. Warranty upgrades are also
available. HP Care Pack Services extend service contracts beyond the standard warranties. To choose the right level of service for
your HP product, use the HP Care Pack Services Lookup Tool at: http://www.hp.com/go/lookuptool . Additional HP Care Pack
Services information by product is available at: http://www.hp.com/services/carepack .
NOTE: Certain restrictions and exclusions apply. Consult the HP Customer Support Center for details.
http://h20000.www2.hp.com/bizsupport/TechSupport/ProductRoot.jsphttp://h20000.www2.hp.com/
bizsupport/TechSupport/ProductRoot.jsp
QuickSpecs
HP ProBook 4545s Notebook PC
Features
DA - 14307 North America — Version 4 — April 25, 2013 Page 9

SYSTEM UNIT
Stand-Alone Power
Requirements (AC Power)
Nominal Operating
Voltage
18.5 V
Average Operating Power Integrated graphics: TBD W
Max Operating Power < 65W
Temperature Operating 32° to 95° F (0° to 35° C) (not writing optical)
41° to 95° F (5° to 35° C) (writing optical)
Non-operating -4° to 140° F (-20° to 60° C)
Relative Humidity Operating 10% to 90%, non-condensing
Non-operating 5% to 95%, 101.6° F (38.7° C) maximum wet bulb temperature
Shock Operating 40 G, 2 ms, half-sine
Non-operating 200 G, 2 ms, half-sine
Random Vibration Operating 0.75 grms
Non-operating 1.50 grms
Altitude (unpressurized) Operating -50 to 10,000 ft (-15.24 to 3,048 m)
Non-operating -50 to 40,000 ft (-15.24 to 12,192 m)
Planned Industry
Standard
Certifications
UL Yes
CSA Yes
FCC Compliance Yes
ENERGY STAR® Select models*
EPEAT Registered TBD in United States**
ICES Yes
Australia /
NZ A-Tick Compliance
Yes
CCC Yes
Japan VCCI Compliance Yes
KC Yes
BSMI Yes
CE Marking Compliance Yes
BNCI or BELUS Yes
CIT Yes
GOST Yes
Saudi Arabian Compliance
(ICCP)
Yes
SABS Yes
UKRSERTCOMPUTER Yes
QuickSpecs
HP ProBook 4545s Notebook PC
Technical Specifications
DA - 14307 North America — Version 4 — April 25, 2013 Page 10

* Configurations of the HP ProBook 4545s that are ENERGY STAR qualified are identified as HP ProBook 4545 ENERGY STAR on HP
websites and on www.energystar.gov .
** EPEAT registration varies by country. See www.epeat.net for registration status by country.
EPEAT status listed above applies to U.S.
For accessibility information on HP products, please visit: http://www.hp.com/accessibility .
DISPLAY
15.6-inch LED HD (1366 x
768)
anti-glare
Dimensions (W x H) 13.54 x 7.59 in (34.4 x 19.4 cm)
Diagonal Size 15.6 in (39.6cm)
Surface Treatment Anti-glare
Contrast Ratio 400:1 (min)
Refresh Rate 60 Hz
Brightness 210 nit (typical)
Pixel Resolution Pitch 0.252 mm
Format 1366 x 768
Configuration RGB Stripe
Backlight LED
PPI 101 ppi
Viewing Angle ±30° Horizontal, ±10° Vertical (minimum)
30/30/20/10 (Left/Right/Down/Up) (minimum) or
45/45/35/25 (Left/Right/Down/Up) (typical)
STORAGE AND DRIVES
Internal Storage
QuickSpecs
HP ProBook 4545s Notebook PC
Technical Specifications
DA - 14307 North America — Version 4 — April 25, 2013 Page 11

750 GB 7200 rpm SATA
Hard Drive
Drive Weight 0.25 lbs (115g)
Capacity 750 GB
Height 0.37 in (9.5 mm)
Width 2.75 in (70 mm)
Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate Synchronous (maximum) 300 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track 1.5 ms
Average 11 ms
Maximum 22 ms
Rotational Speed 7200 rpm
Logical Blocks 1,465,149,168
Operating Temperature 32° to 140° F (0° to 60° C) [case temp]
Features ATA Security
500 GB 7200 rpm SATA
Hard Drive
Drive Weight 0.25 lbs (115g)
Capacity 500 GB
Height 0.37 in (9.5 mm)
Width 2.75 in (70 mm)
Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate Synchronous (maximum) 300 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track 1.5 ms
Average 11 ms
Maximum 22 ms
Rotational Speed 7200 rpm
Logical Blocks 976,773,168
Operating Temperature 32° to 140° F (0° to 60° C) [case temp]
Features ATA Security
QuickSpecs
HP ProBook 4545s Notebook PC
Technical Specifications
DA - 14307 North America — Version 4 — April 25, 2013 Page 12

320 GB 7200 rpm SATA
Hard Drive
Drive Weight 0.25 lbs (115 g)
Capacity 320 GB
Height 0.37 in (9.5 mm)
Width 2.75 in (70 mm)
Interface ATA-8, SATA 2.6, 3.0 Gb/s, NCQ
Transfer Rate Synchronous (maximum) 300 MB/s (Drive Capability)
Seek Time
(typical reads, including
settling)
Single Track 1.5 ms
Average 11 ms
Maximum 22 ms
Rotational Speed 7200 rpm
Logical Blocks 625,142,448
Operating Temperature 32° to 140° F (0° to 60° C) [case temp]
Features ATA Security
Optical Drives
DVD+/-RW SuperMulti DL
Drive
Access Times Random <140ms CD (typical)
< 160 ms DVD (typical)
Max Data Transfer Rate 24X CD-ROM
8X DVD
24X CD-R
24X CD-RW
8X DVD+R
8X DVD+RW
8X DVD-R
6X DVD-RW
6X - DVD+R Dual Layer
6X - DVD-R Dual Layer
5X DVD-RAM
Transfer Mode UDMA Mode 5
Interface Gen 1 SATA
Supported Media (read) CD-DA, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge
(Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R,
CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R,
DVD-RW, DVD+R, DVD+RW, DVD-RAM
Supported Media (write) CD-R, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RW, DVD-RAM, DVD+R DL, DVD-R
DL
Max Media Capacity (read) 8.5 GB
Max Media Capacity
(write)
8.5 GB
Transport Tray Loading
QuickSpecs
HP ProBook 4545s Notebook PC
Technical Specifications
DA - 14307 North America — Version 4 — April 25, 2013 Page 13

Blu-ray ROM DVD+/-RW
SuperMulti DL Drive
Access Times Random <190 ms CD-ROM (typical)
< 180ms DVD-ROM (typical)
<230 ms BD-ROM (typical)
Max Data Transfer Rate 24X CD-ROM
8X DVD-ROM
24X CD-R
16X CD-RW
8X DVD+R
8X DVD+RW
8X DVD-R
6X DVD-RW
4X - DVD+R Dual Layer
4X - DVD-R Dual Layer
5X DVD-RAM
6X BD-ROM
Transfer Mode UDMA Mode 5
Interface Gen 1 SATA
Supported Media (read) CD-DA, , CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge
(Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R,
CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R,
DVD-RW, DVD+R, DVD+RW. DVD-RAM, BD-ROM, BD-R, BD-RE
Supported Media (write) CD-R, CD-RW, DVD+R, DVD+R DL, DVD+RW, DVD-R, DVD-R DL, DVD-RW, DVD-
RAM
Max Media Capacity (read) 50.0 GB
Max Media Capacity
(write)
8.5GB
Transport Tray Loading
SECURITY
QuickSpecs
HP ProBook 4545s Notebook PC
Technical Specifications
DA - 14307 North America — Version 4 — April 25, 2013 Page 14

HP Fingerprint Sensor Mobile Voltage Operation 3.0V-3.6V Single Supply
Operating Temperature 32° - 158°F (0° - 70°C)
Current Consumption @
3.3V
Less than 70 mA peak imaging and scrolling
Less than 25 mA hardware finger detection
Advanced Power Management
High-Rate Image Capture Up to 240 image frames /sec
ESD Resistance IEC 61000-4-2 Level 4 (±15KV)
Detection Matrix 192 x 16 Pixels
9.7 mm x 0.81 mm
500 ppi High-Resolution Images
NETWORKING/COMMUNICATIONS
Integrated Realtek
RTL8151FH-CG
10/100/1000 NIC
Ethernet Features 10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30)
1000 Mbit/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023 clauses 40)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100
Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.1q VLAN support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
IEEE 802.3az EEE (Energy Efficient Ethernet)
Jumbo Frame 9K
Auto MDI/MDIX Crossover cable detection
Power Management
Support
ACPI compliant - multiple power modes
Situation-sensitive features reduce power consumption
Advanced link down power saving for reducing link down power consumption
Performance
Features
TCP/IP/UDP Checksum Offload (configurable)
Protocol Offload (ARP & NS)
Large send offload and Giant send offload
Receiving Side Scaling
Manageability Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft
Wake-Up Frame); Wake-on-LAN from off (Magic Packet only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x,
clause 30))
Comprehensive diagnostic and configuration software suite
Virtual Cable Doctor for Ethernet cable status
Interface PCI Express 1.1 x1 to fully support ASPM L0s/L1 and CLKREQ
NIC Device Driver Name Realtek PCIe GBE Ethernet Family Controller
802.11 b/g/n WiFi Adapter
(1x1)
Wireless LAN Standards IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
QuickSpecs
HP ProBook 4545s Notebook PC
Technical Specifications
DA - 14307 North America — Version 4 — April 25, 2013 Page 15

Interoperability Wi-Fi certified
Frequency Band 2.4 GHz
Data Rates 802.11b: 1, 2, 5.5, 11 Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n: many possible data rates, ranging from 6 Mbps to 300 Mbps,
depending on the combination of Bandwidth, Modulation Coding Scheme, and
Guard Interval used, as defined in IEEE 802.11n specification
Modulation Direct Sequence Spread Spectrum
DBPSK, DQPSK, CCK, OFDM, BPSK, QPSK, 16-QAM, 64-QAM
Security
1
Supports 64- and 128-bit WEP, WPA, WPA2, hardware-accelerated AES,
802.1x authentication types EAP-TLS, EAP-TTLS, PEAP-GTC, PEAP-MSCHAPv2,
LEAP, EAP-FAST.
Sub-channels Multinational support with frequency bands and channels compliant to local
regulations.
Media Access Protocol CSMA/CA (Collision Avoidance) with ACK
Network Architecture
Models
Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)
Roaming IEEE 802.11 compliant roaming between access points
Output 2 13.5 dBm, nominal
Power Consumption Transmit: 2.0 W (max)
Receive: 1.6 W (max)
Associated to Access Point, Idle: 250 mW nominal
Wireless Button Off: 100 mW nominal
Radio disabled: 75 mW nominal
Power Management ACPI compliant power management
802.11 compliant power saving mode
Receiver Sensitivity
3
72.2 Mbps: -70 dbm, 54 Mbps: -74 dBm, 11 Mbps: -88 dBm , 1 Mbps: -95 dBm
Antenna Connections High efficiency antenna with spatial diversity, mounted in the display
enclosure
Form Factor PCI-Express Half-MiniCard 1.2
Weight 0.013 lb (6 g)
Dimensions 0.19 x 1.06 x 1.18 in (4.75 x 26.8 x 30 mm)
Operating Voltage 3.3v +/- 9%
Temperature Operating
Non-operating
14° to 158° F (-10° to 70° C)
-40° to 176° F (-40° to 80° C)
Humidity Operating
Non-operating
10% to 90% (non-condensing)
5% to 95% (non-condensing)
Altitude Operating
Non-operating
0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)
LED Activity LED Off - Radio OFF; Solid LED On - Radio ON
1. Check latest software/driver release for updates on supported security features.
2. Maximum output power may vary by country according to local regulations.
3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet
error rate of 10% for 802.11a/g (OFDM modulation).
QuickSpecs
HP ProBook 4545s Notebook PC
Technical Specifications
DA - 14307 North America — Version 4 — April 25, 2013 Page 16

AUDIO/MULTIMEDIA
Hardware Implementation IDT 92HD87 High Definition CODEC
Function Key Volume
Controls
Volume up, volume down, and mute
Full Duplex Yes
Microphone In Stereo
Headphone/Line Out Stereo
Integrated Microphone Yes, dual digital microphone array when equipped with optional webcam
Audio Output Quality Frequency Response 20 Hz - 20 kHz
Signal to Noise Ratio >85 dB
Total Harmonic Distortion 0.01%
Noise Floor -110 dB
Play/Record Sampling
Rate (s)
8 kHz - 48kHz
DAC 16, 20 or 24-bit
ADC 16 or 20-bit
Internal Stereo Speaker Power Rating 2 Watts
Impedance 4 ohms
POWER
QuickSpecs
HP ProBook 4545s Notebook PC
Technical Specifications
DA - 14307 North America — Version 4 — April 25, 2013 Page 17

HP 65W Smart AC Adapter Dimensions 4.17 x 1.85 x 1.1 in (10.6 x 4.7 x 2.8 cm)
Weight 0.62 lb (280 g)
Input 100 to 240 VAC
Input Efficiency 87% min at 115 VAC
Input frequency range 47 to 63 Hz
Input AC current 1.7 A at 90 VAC, 0.85 A at 180 VAC
Output Output power 65W
DC output 18.5V
Hold-up time 5 msec at 115 VAC input
Output current limit <11A, Over voltage protection- 29V max
automatic shutdown
Connector 3 pin/grounded, mates with interchangeable cords
Environmental Design Operating
temperature
32° to 104° F (0° to 40° C)
Non-operating (storage)
temperature
-4° to 149° F (-20° to 65° C)
Altitude 0 to 10,000 ft (0 to 3,048 m)
Humidity 20% to 80%
Storage Humidity 10% to 90%
EMI and Safety
Certifications
CE Mark - full compliance with LVD and EMC directives; Worldwide safety
standards - IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals -
C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class B,
CCC, NOM-1 NYCE; MTBF - over 200,000 hours at 25°C ambient condition.
9-Cell (93 WHr) Lithium-
Ion battery
Dimensions (H x W x L) 0.8 x 2.9 x 8.3 in (2.0 x 7.3 x 21.0 cm)
Weight (max) 1.07 lb (0.488 kg)
Cells/Type 9-cell Lithium-Ion
Energy Watt-hour capacity 93 WHr
Temperature Operating (Charging) 32° to 113° F (0° to 45° C)
Operating (Discharging) 14° to 140° F (-10° to 60° C)
Non-operating -4° to 140° F (-20° to 60° C)
Battery Re-Charge Time System in OFF or Standby
Mode
3 to 4 hours
System ON 4 to 6 hours (depending on system power
consumption)
QuickSpecs
HP ProBook 4545s Notebook PC
Technical Specifications
DA - 14307 North America — Version 4 — April 25, 2013 Page 18

6-Cell (47 WHr) Lithium-
Ion battery
Dimensions (H x W x L) 0.8 x 1.8 x 10.4 in (2 x 4.5 x 26.5cm)
Weight (max) .70lb, (.312kg)
Cells/Type Lithium-Ion
Energy Voltage 10.8V
Amp-hour capacity 4.4Ah
Watt-hour capacity 47Wh
Temperature Operating (Charging) 32° to 113° F (0° to 45° C)
Operating (Discharging) 14° to 122° F(-10° to 50° C)
Non-operating -4° to 122° F (-20° to 50° C)
Battery Re-Charge Time System in OFF or Standby
Mode
2.5 hours
System ON 3 to 5 hours
Fuel Gauge LED No
Warranty 1 year
Compatible with optional
Travel Battery
No
ENVIRONMENTAL
Environmental Data
Eco-Label Certifications This product has received or is in the process of being certified to the following
approvals and may be labeled with one or more of these marks:
US Energy Star ®
IT ECO declaration
EPEAT Gold where HP registers commercial desktop products. See
http://www.epeat.net for registration status in your country US Federal
Energy Management Program (FEMP)
System Configuration The configuration used for the Energy Consumption and Declared Noise
Emissions data is based on a "Typically Configured Notebook"
Energy Consumption 115 VAC 230 VAC 100 VAC
Normal Operation 6.95 W 7.57 W 7.1W
Sleep (Energy Star low
power mode)
0.93 W 1.14W 0.88 W
Off 0.46 W 0.61 W 0.44W
Heat Dissipation * 115 VAC 230 VAC 100 VAC
Normal Operation 24 BTU/hr 26 BTU/hr 24 BTU/hr
Sleep 3 BTU/hr 4 BTU/hr 3 BTU/hr
Off 2 BTU/hr 2 BTU/hr 2 BTU/hr
QuickSpecs
HP ProBook 4545s Notebook PC
Technical Specifications
DA - 14307 North America — Version 4 — April 25, 2013 Page 19

*NOTE : Heat dissipation is calculated based on the measured watts, assuming
the service level is attained for one hour.
Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)
System Fan Off Sound Power
(LWAd, bels)
Sound Pressure
(LpAm, decibels
Idle 3.2 29
Fixed Disk
(random writes)
3.3 29
System fan is usually off except when charging the battery
Batteries This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain:
Mercury greater the 5ppm by weight
Cadmium greater than 10ppm by weight
The battery type and chemistry used in the product is:
CR2032 (coin cell), Li-ion
6-cell high capacity Lithium-Ion battery (optional 8 cell available)
Additional
information
This product is in compliance with the Restrictions of Hazardous Substances
(RoHS) directive - 2002/95/EC.
This HP product is designed to comply with the Waste Electrical and Electronic
Equipment (WEEE) Directive - 2002/96/EC.
This product is in compliance with California Proposition 65 (State of
California; Safe Drinking Water and Toxic Enforcement Act of 1986).
This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold
level, see www.epeat.net
Plastics parts weighing over 25 grams used in the product are marked per ISO
11469 and ISO1043.
This product contains 0% post-consumer recycled plastic (by wt.)
This product is greater than 96.4% recycle-able when properly disposed of at
end of life.
Packaging Materials
External:
PAPER/Cardboard & misc 411 g
PAPER/Corrugated 51 g
Internal:
PLASTIC/Polyethylene low density 25 g
PLASTIC/EPE-Expanded Polyethylene 60 g
PLASTIC/PET 3 g
QuickSpecs
HP ProBook 4545s Notebook PC
Technical Specifications
DA - 14307 North America — Version 4 — April 25, 2013 Page 20
