HP L1755 User manual

User Guide
HP L1755 17” & L1955 19”
Flat Panel Monitors
Document Part Number: 370798-003
June 2005
This guide provides information on setting up the monitor,
installing drivers, using the on-screen display menu,
troubleshooting and technical specifications.
Enhanced for Accessibility

© Copyright 2005 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
Microsoft, MS-DOS, Windows, and Windows NT are trademarks of
Microsoft Corporation in the U.S. and other countries.
Intel, Pentium, Intel Inside, and Celeron are trademarks of Intel
Corporation in the U.S. and other countries.
Adobe, Acrobat, and Acrobat Reader are trademarks or registered
trademarks of Adobe Systems Incorporated.
The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services.
Nothing herein should be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or omissions
contained herein.
This document contains proprietary information that is protected by
copyright. No part of this document may be photocopied, reproduced, or
translated to another language without the prior written consent of
Hewlett-Packard Company.
ÅWARNING: Text set off in this manner indicates that failure to
follow directions could result in bodily harm or loss of life.
ÄCAUTION: Text set off in this manner indicates that failure to follow
directions could result in damage to equipment or loss of information.
User Guide
HP L1755 17" & L1955 19" Flat Panel Monitor
Third Edition (June 2005)
Document Part Number: 370798-003

Contents
1 Product Features
2 Safety and Maintenance Guidelines
Important Safety Information. . . . . . . . . . . . . . . . . . . . . . 2–1
Maintenance Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . 2–2
Cleaning the Monitor. . . . . . . . . . . . . . . . . . . . . . . . . 2–3
Shipping the Monitor. . . . . . . . . . . . . . . . . . . . . . . . . 2–3
3 Setting Up the Monitor
Installing the Monitor Base . . . . . . . . . . . . . . . . . . . . . . . 3–1

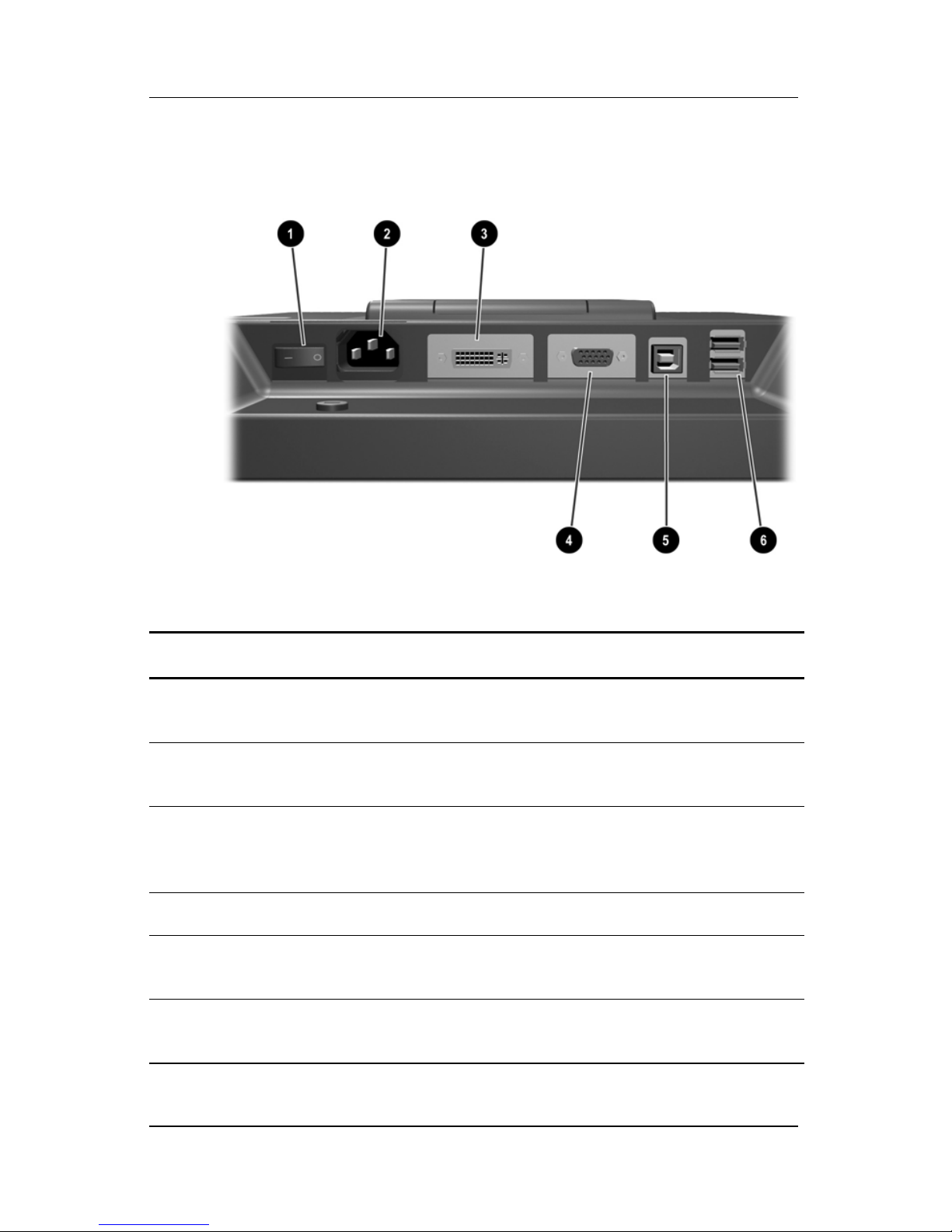

Rear Panel Components . . . . . . . . . . . . . . . . . . . . . . . . . . 3–3
Selecting the Signal Connectors and Cables . . . . . . . 3–4
Connecting the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4
Removing the Monitor Base . . . . . . . . . . . . . . . . . . 3–14
Mounting the Monitor . . . . . . . . . . . . . . . . . . . . . . . 3–15
Locating the Rating Label . . . . . . . . . . . . . . . . . . . . 3–17
4 Operating the Monitor
Software and Utilities. . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
The Information File . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
The Image Color Matching File . . . . . . . . . . . . . . . . 4–2
Installing the .INF and .ICM Files . . . . . . . . . . . . . . . . . . 4–2
Installing from the CD. . . . . . . . . . . . . . . . . . . . . . . . 4–2
Downloading from the Worldwide Web . . . . . . . . . . 4–3
Front Panel Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4
Adjusting Monitor Settings . . . . . . . . . . . . . . . . . . . . . . . 4–5
User Guide iii

Contents
Using the Sync-on-Green Format . . . . . . . . . . . . . . . 4–6
Using the On-Screen Display . . . . . . . . . . . . . . . . . . 4–7
Adjusting Screen Quality. . . . . . . . . . . . . . . . . . . . . 4–10
Optimizing Analog Video . . . . . . . . . . . . . . . . . . . . 4–10
Identifying Monitor Conditions . . . . . . . . . . . . . . . . . . . 4–11
Sleep Timer Mode . . . . . . . . . . . . . . . . . . . . . . . . . . 4–12
sRGB Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–13
Changing the Color Temperature . . . . . . . . . . . . . . 4–14
Installing the sRGB ICM File for Microsoft Windows
2000 and Windows XP . . . . . . . . . . . . . . . . . . . . . . 4–14
A Troubleshooting
Solving Common Problems . . . . . . . . . . . . . . . . . . . . . . . A–1
Using the Worldwide Web. . . . . . . . . . . . . . . . . . . . . . . . A–3
Preparing to call Technical Support. . . . . . . . . . . . . . . . . A–3
B Technical Specifications
L1755 17” Flat Panel Monitor . . . . . . . . . . . . . . . . . . . . . B–1
L1955 19” Flat Panel Monitor . . . . . . . . . . . . . . . . . . . . . B–3
Recognizing Preset Display Resolutions . . . . . . . . . . . . . B–4
Entering User Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–5
Energy Saver Feature . . . . . . . . . . . . . . . . . . . . . . . . . . . . B–6
C Agency Regulatory Notices
Federal Communications Commission Notice. . . . . . . . . C–1
Modifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–2
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–2
Declaration of Conformity for Products Marked with the FCC
Logo (United States Only) . . . . . . . . . . . . . . . . . . . . . . . . C–2
Materials Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3
Canadian Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3
Avis Canadien . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–3
European Union Regulatory Notice . . . . . . . . . . . . . . . . . C–3
Disposal of Waste Equipment by Users in Private Household
User Guideiv

Contents
in the European Union . . . . . . . . . . . . . . . . . . . . . . . . . . . C–4
Japanese Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–5
Korean Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . C–5
ENERGY STAR Compliance . . . . . . . . . . . . . . . . . . . . . C–5
Power Cord Set Requirements . . . . . . . . . . . . . . . . . . . . . C–5
Japanese Power Cord Requirements . . . . . . . . . . . . . C–6
D LCD Monitor Quality
and Pixel Policy
User Guide v

Contents
User Guidevi

1
Product Features
The Flat Panel Display has an active matrix, thin-film transistor
(TFT), liquid crystal display (LCD). The monitor features
include:
■ HP L1755 model, 17-inch (43.2 cm) viewable area display,
with narrow bezels.
■ HP L1955 model, 19-inch (48.3 cm) viewable area display,
with narrow bezels.
■ 1280 × 1024 native resolution, plus full-screen support for
lower resolutions.
■ Wide viewing angle to allow viewing from a sitting or
standing position, or moving side-to-side.
■ Tilt, swivel, and height adjustment capabilities.
■ Easily removable base for flexible mounting solutions.
■ Multiple video inputs supported:
❏ VGA Analog
❏ DVI-I supports either Analog or Digital signal input
(available on select models)
■ VGA analog, DVI-Digital, and VGA to DVI-I signal cables
included.
■ USB 2.0 hub with one upstream (connects to the computer)
and four downstream (connects to USB devices) ports.
User Guide 1–1

Product Features
■ USB cable included to connect the monitor’s USB hub to the
USB connector on the computer.
■ Mounting feature on bottom of monitor to accept an optional
Speaker Bar accessory kit.
■ Plug and play capability if supported by your system.
■ On-Screen Display (OSD) adjustments in English, French,
German, Italian, Japanese, Simplified Chinese, and Spanish
for ease of set-up and screen optimization.
■ Software and documentation CD includes an information file
(INF), Image Color Matching file (ICM), and product
documentation.
■ Energy Saver feature for Energy Star compliance.
■ AssetControl
■ Compliant with the following regulated specifications:
❏ EPA ENERGY STAR
❏ European Union CE Directives
❏ Swedish MPR II 1990
❏ Swedish TCO
1–2 User Guide

2
Safety and Maintenance
Guidelines
Important Safety Information
A power cord is included with your monitor. If another cord is
used, use only a power source and connection appropriate for this
monitor. For information on the correct power cord set to use with
your monitor, refer to the “Power Cord Set Requirements” section
in Appendix C.
ÅWARNING: To reduce the risk of electric shock or damage to your
equipment, do not disable the power cord grounding feature. This
equipment is designed to be connected to a grounded (earthed)
power outlet that is easily accessible to the operator. The grounding
plug is an important safety feature.
ÅWARNING: For your safety, be sure that the power outlet you plug
the power cord into is easily accessible and located as close to the
equipment as possible. When you need to disconnect the power to
the equipment, unplug the power cord from the power outlet by
grasping the plug firmly. Never pull on the cord.
User Guide 2–1

Safety and Maintenance Guidelines
ÄCAUTION: For the protection of your monitor, as well as your
computer, connect all power cords for your computer and its
peripheral devices (such as a monitor, printer, scanner) to some form
of surge protection device such as a power strip or Uninterruptible
Power Supply (UPS). Not all power strips provide surge protection;
the power strips must be specifically labeled as having this ability.
Use a power strip whose manufacturer offers a Damage Replacement
Policy so you can replace your equipment if surge protection fails.
Maintenance Guidelines
To enhance the performance and extend the life of your monitor:
■ Do not open your monitor cabinet or attempt to service this
product yourself. Adjust only those controls that are covered
in the operating instructions. If your monitor is not operating
properly or has been dropped or damaged, contact your HP
authorized dealer, reseller, or service provider.
■ Use only a power source and connection appropriate for this
monitor, as indicated on the label/back plate of the monitor.
■ Be sure the total ampere rating of the products connected to
the outlet does not exceed the current rating of the electrical
outlet, and the total ampere rating of the products connected
to the cord does not exceed the rating of the cord. Look on the
power label to determine the ampere rating (AMPS or A) for
each device.
■ Install your monitor near an outlet that you can easily reach.
Disconnect the monitor by grasping the plug firmly and
pulling it from the outlet. Never disconnect the monitor by
pulling the cord.
■ Turn your monitor off when not in use. You can substantially
increase the life expectancy of your monitor by using a screen
saver program and turning off the monitor when not in use.
2–2 User Guide

Safety and Maintenance Guidelines
■ Slots and openings in the cabinet are provided for ventilation.
These openings must not be blocked or covered. Never push
objects of any kind into cabinet slots or other openings.
■ Do not drop your monitor or place it on an unstable surface.
■ Do not allow anything to rest on the power cord. Do not walk
on the cord.
■ Keep your monitor in a well-ventilated area, away from
excessive light, heat or moisture.
■ When removing the monitor base, you must lay the monitor
face down on a soft area to prevent it from getting scratched,
defaced, or broken.
Cleaning the Monitor
1. Turn off the monitor and the computer.
2. Unplug the monitor from the wall outlet.
3. Clean the monitor plastics with a clean cloth dampened with
water.
4. Clean the monitor screen with an antistatic screen cleaner.
ÄCAUTION: Do not use benzene, thinner, ammonia, or any other
volatile substances to clean your monitor or the screen. These
chemicals may damage the cabinet finish as well as the screen.
Shipping the Monitor
Keep the original packing box in a storage area. You may need it
later if you move or ship your monitor.
User Guide 2–3

Safety and Maintenance Guidelines
2–4 User Guide

3
Setting Up the Monitor
To set up the monitor, ensure that the power is turned off to the
monitor, computer system, and other attached devices, then
follow the steps below.
Installing the Monitor Base
✎Do not install the base if the monitor will be used on a wall,
swing arm, or other mounting fixture; instead refer to the section
on “Mounting the Monitor” in this chapter.
1. Place the display on a soft cloth on your desktop or table.
User Guide 3–1

Setting Up the Monitor

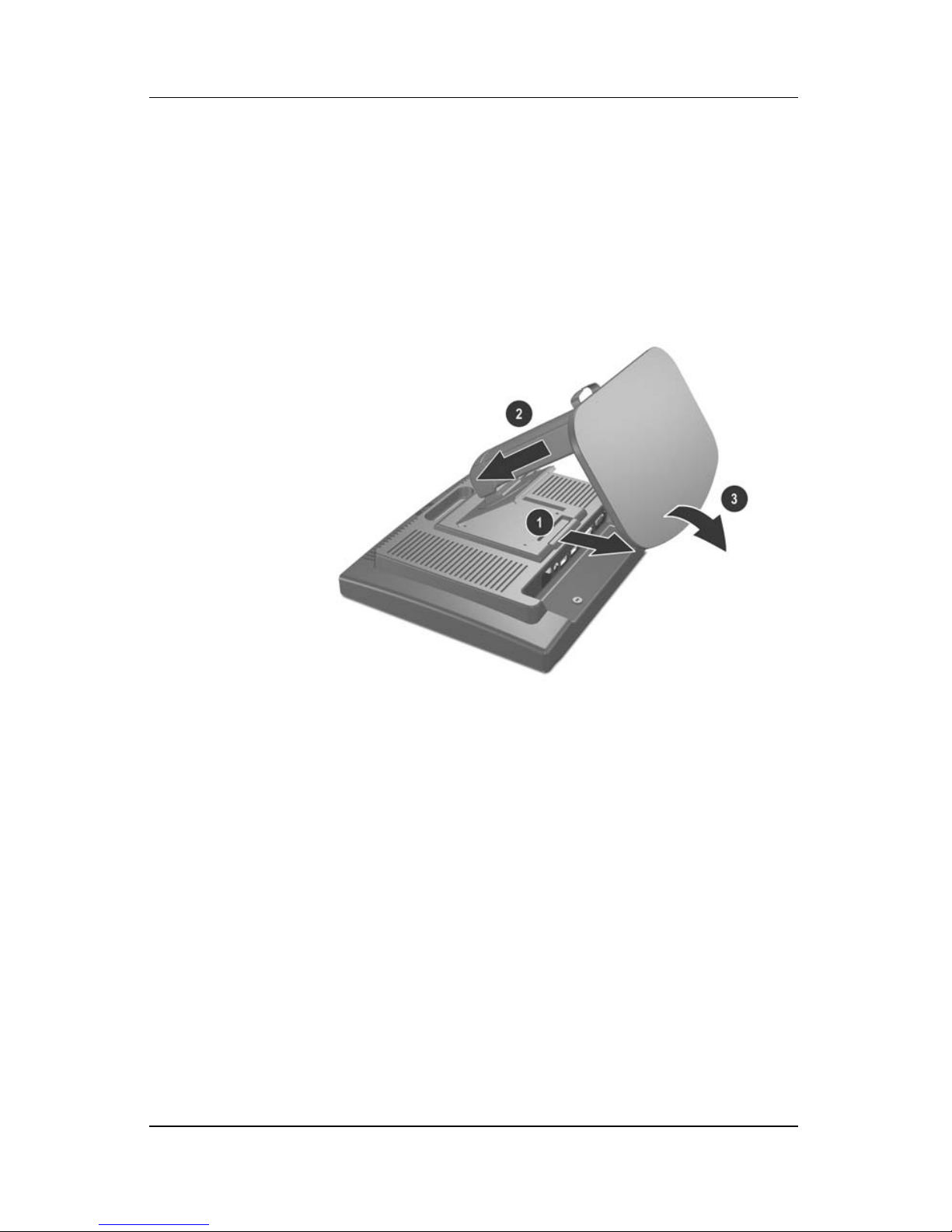

2. Pull down on the quick release latch 1on the back of the
monitor.
3. Position the tabs on the monitor base with the adapter plate
on the back of the display 2. Then push the monitor base
down toward the display 3until latched into place.
Attaching the Monitor Base
3–2 User Guide

Setting Up the Monitor
Rear Panel Components
Rear Panel Components
No. Component Function
1Master Power
Switch
Turns off all power to the monitor.
2AC Power
Connector
Connects the AC power cord to the monitor.
3DVI Connector
(available on
select models)
Connects the DVI-I signal cable or DVI-D signal cable to
the monitor.
4VGA Connector Connects the VGA cable to the monitor.
5USB Upstream
Connector
Connects the monitor USB hub to a host USB port/hub.
6USB Downstream
Connectors
Connects optional USB devices to the monitor.
User Guide 3–3

Setting Up the Monitor
Selecting the Signal Connectors and Cables
There are two signal input connectors:
■VGA connector
■DVI-I connector (available on select models)
The monitor will automatically determine which inputs have
valid video signals. The inputs can be selected through the
On-Screen Display (OSD) feature or by pressing the –button (to
enable DVI signal input) or the + button (to enable VGA signal
input) on the monitor front bezel.
The video mode supported by the DVI-I connector is determined
by the video cable used. For digital operation, use the DVI-D
signal cable provided. For analog operation, use the VGA signal
cable or VGA to DVI-I signal cable provided.
Connecting the Monitor
1. Place the monitor in a convenient, well-ventilated location
near your computer.
3–4 User Guide

Setting Up the Monitor
2. For analog operation,
❏ connect one end of the VGA signal cable to the VGA
connector on the monitor and the other end to the VGA
connector on the computer, or
❏ connect one end of the VGA-to-DVI signal cable to the
DVI connector on the monitor and the other end to the
VGA connector on the computer.
For digital operation (available on select models), use the
DVI-D signal cable. These cables are provided with the
monitor.
Connecting the VGA Signal Cable
User Guide 3–5

Setting Up the Monitor

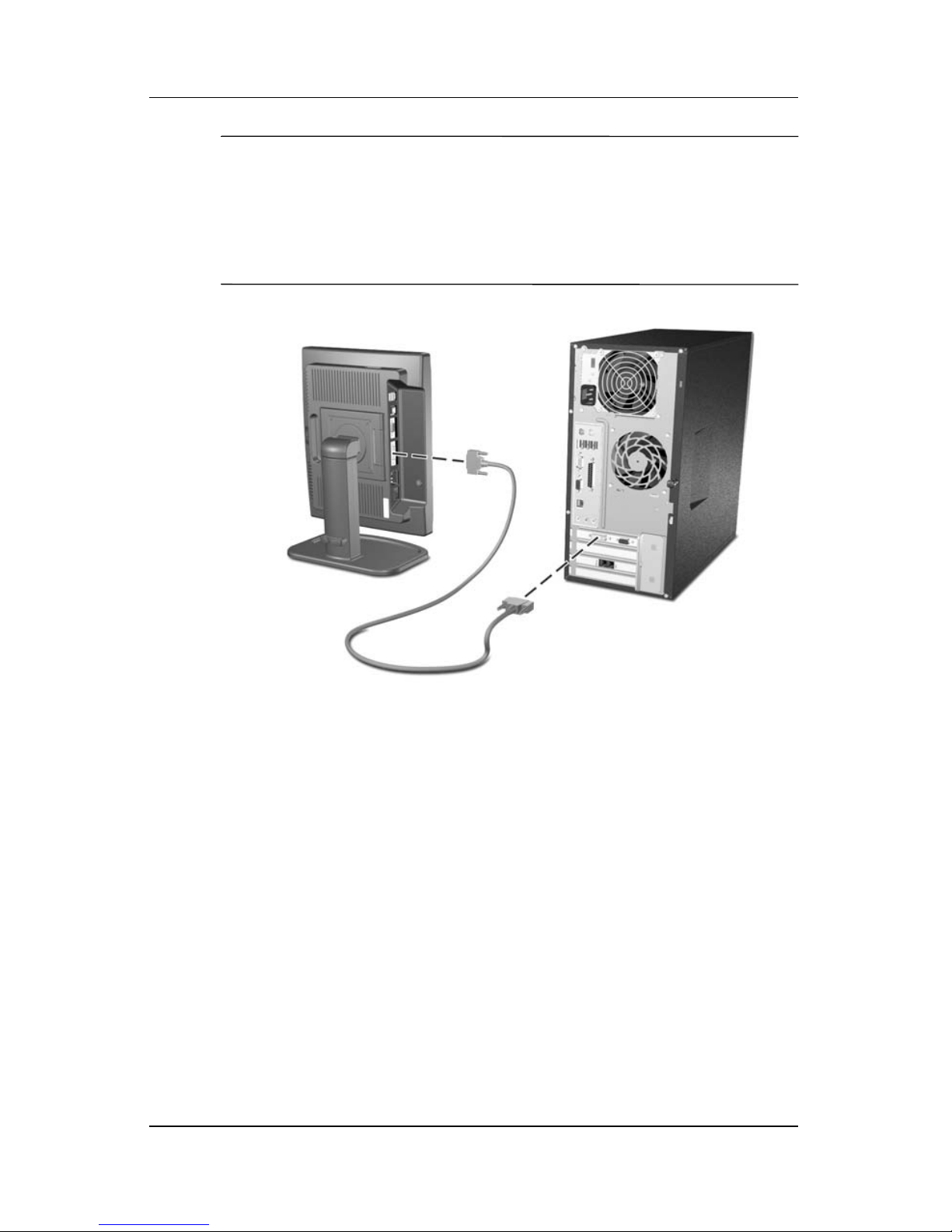

ÄCAUTION: The DVI-D cable supplied with this monitor is for
digital-to-digital connection only. Your computer must have a
DVI-compatible graphics card installed for use with this cable. When
connecting the DVI-D signal cable to the DVI connector on the
monitor (available on select models), you must connect the other end
of the DVI-D cable to the DVI connector on the computer.
Connecting the DVI-D Signal Cable
3–6 User Guide

Setting Up the Monitor

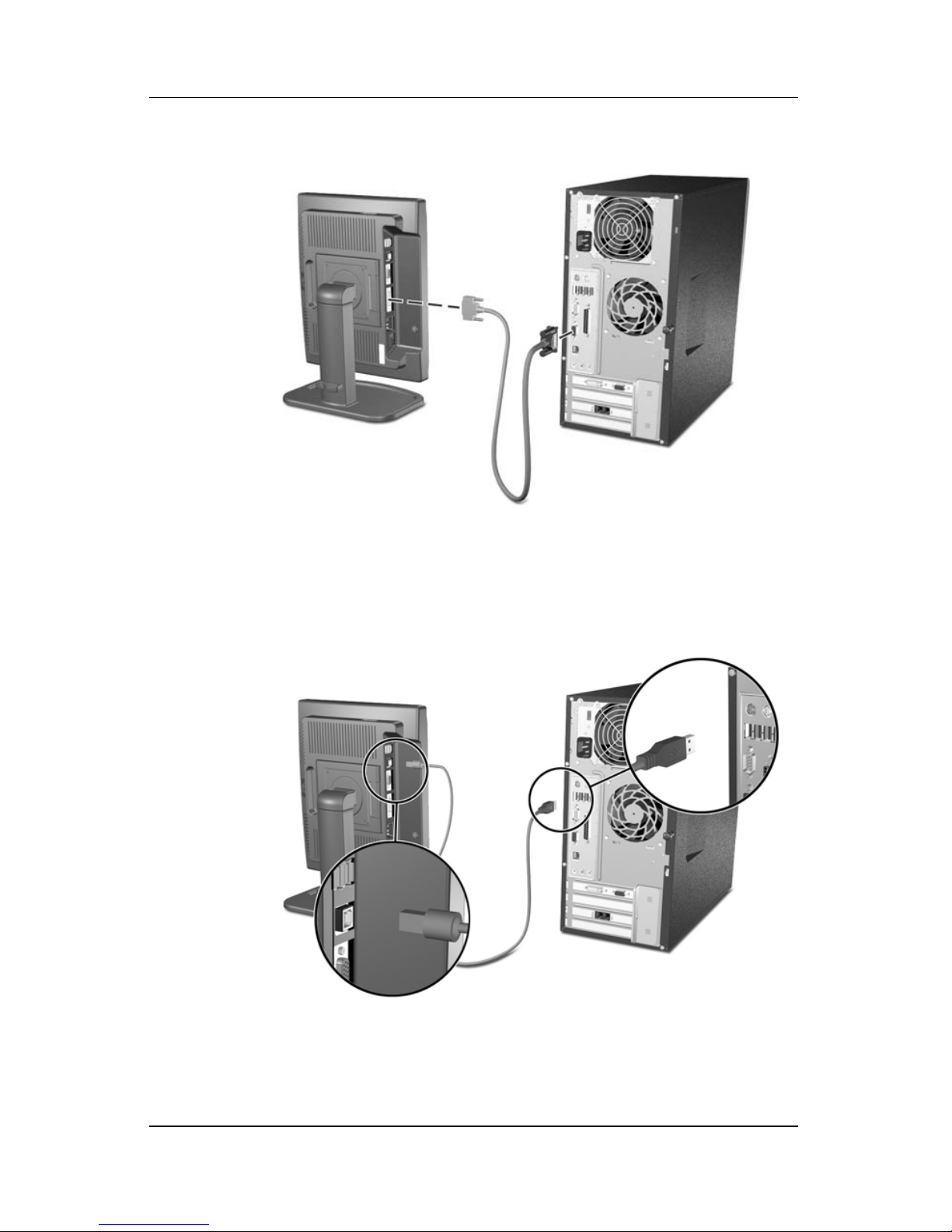

Connecting the VGA to DVI-I Signal Cable
3. Connect the USB cable to the USB upsteam connector on the
monitor and to a convenient USB connector on the computer.
Connecting the USB Cable
User Guide 3–7

Setting Up the Monitor
4. If ready, connect the USB devices to the USB downstream
connectors on the monitor.
Connecting USB Devices
3–8 User Guide
