HSS Hire DELTA DECK Troubleshooting guide

Operating & Safety Guide 340
340 / 01
versatile One-Person quick build
work platform, for construction
site and maintenance applications.
DELTA DECK
LOW LEVEL WORK PLATFORM
340_DELTA DECK_05/12/2019

Page 2
INTRODUCTION
The DELTA DECK is a Low Level Access Platform capable of platform heights ranging from 460mm up to 870mm from the
ground. It also features a four sided guardrail for the protec-tion of the user.
The whole unit can be folded into a compact, easily transportable package, with a total unit weight of 26.8kg and overall
dimensions of 310mm x 760mm x 1120mm.
Please ensure you read and fully understand this guide before assembly or disassembly of the DELTA DECK. As with any
other work equipment the DELTA DECK and this guide should always be used in conjunction with a suitable risk
assessment and method statement (by user) relative to the project to be undertaken.
This assembly guide has been compiled in accordance with BS EN 1298 and the DELTA DECK is manufactured in
accordance with ISO 9001 : 2015.
This assembly guide must be made available to the user / assembler at all times and can be downloaded as a pdf from the
HSS website.

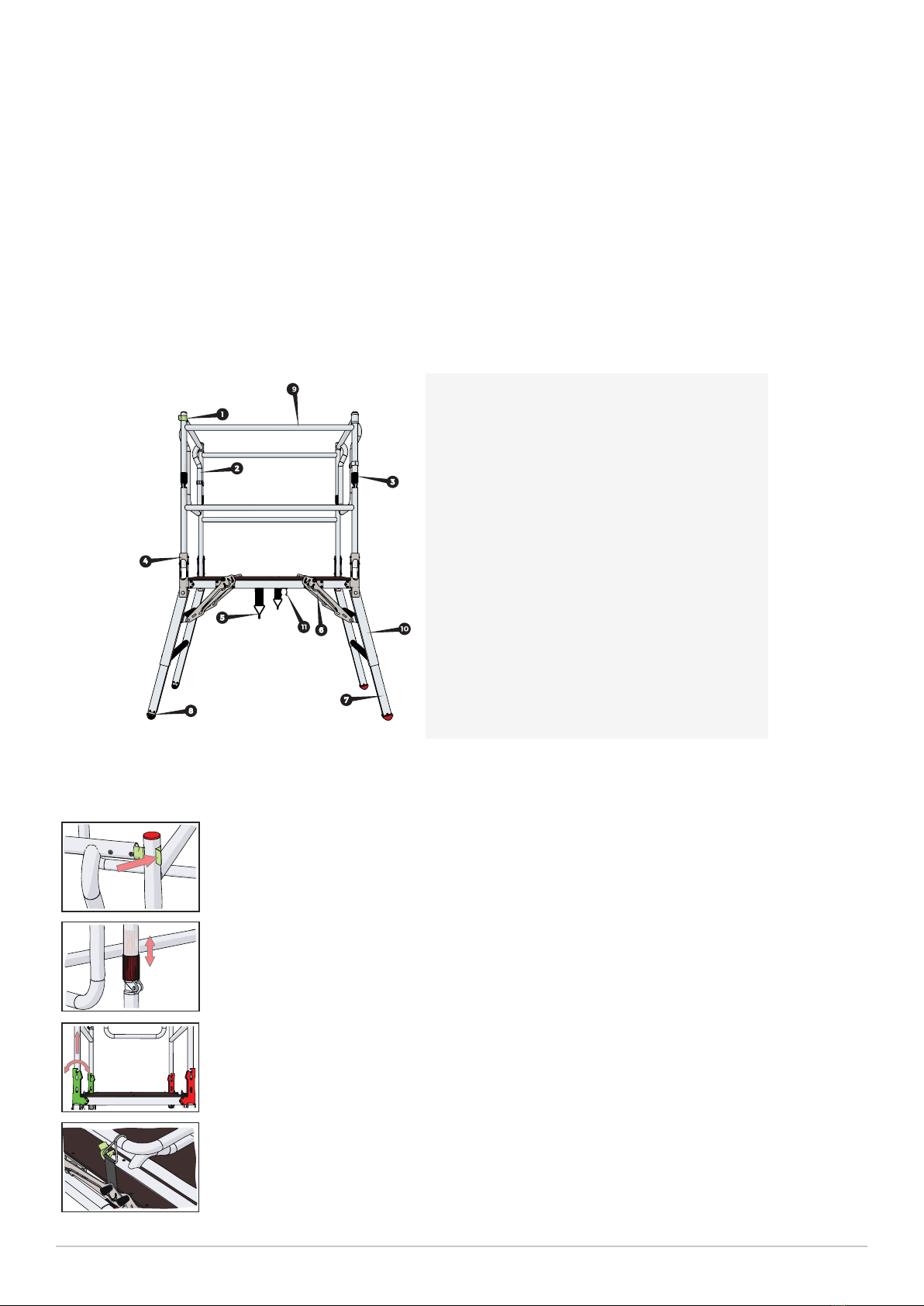

KNOW YOUR DELTA
DECK®
1
2
3
PARTS LISTING
4
5
6
GATE CATCHES
GATES
SIDE GUARDRAIL LOCKING DEVICES
SIDE GUARDRAIL BRACKETS
TRANSPORT STRAPS
LEG ADJUSTMENT LEVERS
ADJUSTABLE LEGS
LOCKING CASTORS
SIDE GUARDRAILS LEG
ASSEMBLIES LEG
RETAINING CLIPS
7
8
9
10
11
KNOW YOUR COMPONENTS
DELTA DECK®
GATE CATCH
The gate catch is a steel spring clip that can be released by pushing on the tab indicated by the arrow. To close the
gate simply pull the gate and ensure the catch springs over the side guardrail vertical tube gripping it fully.
SIDE GUARDRAIL LOCKING DEVICE
The side guardrail locking device is a gravity operated locking collar used to lock the side guardrail folding hinge in
the upright position. Simply allow the collar to drop over the hinge when assembling the unit and slide the collar
up to release the hinge when disassembling the unit.
SIDE GUARDRAIL BRACKETS
The side guardrail brackets allow the side guardrails to fold and serve as a locking device for the lower portion of
the side guardrail. The wide slotted bracket is the side highlighted in green and the narrow slotted bracket
highlighted in red. On assembly the green bracket is opened last and on disassembly closed first. The side guardrail
must be lifted and rotated simultaneously as shown, during both assembly and disassembly.
TRANSPORT STRAP
The transport strap holds the folded side guardrail assemblies in place for when the unit is being transported or
stored. Pull the elasticated transport strap unitl the metal hook is clear of the guardrail and then either let it drop
over the guardrail for transportation or remove the hook from the guardrail and release the tension if assembling
the unit.

Page 3
OFF
ON
A
B
C
123 A
B

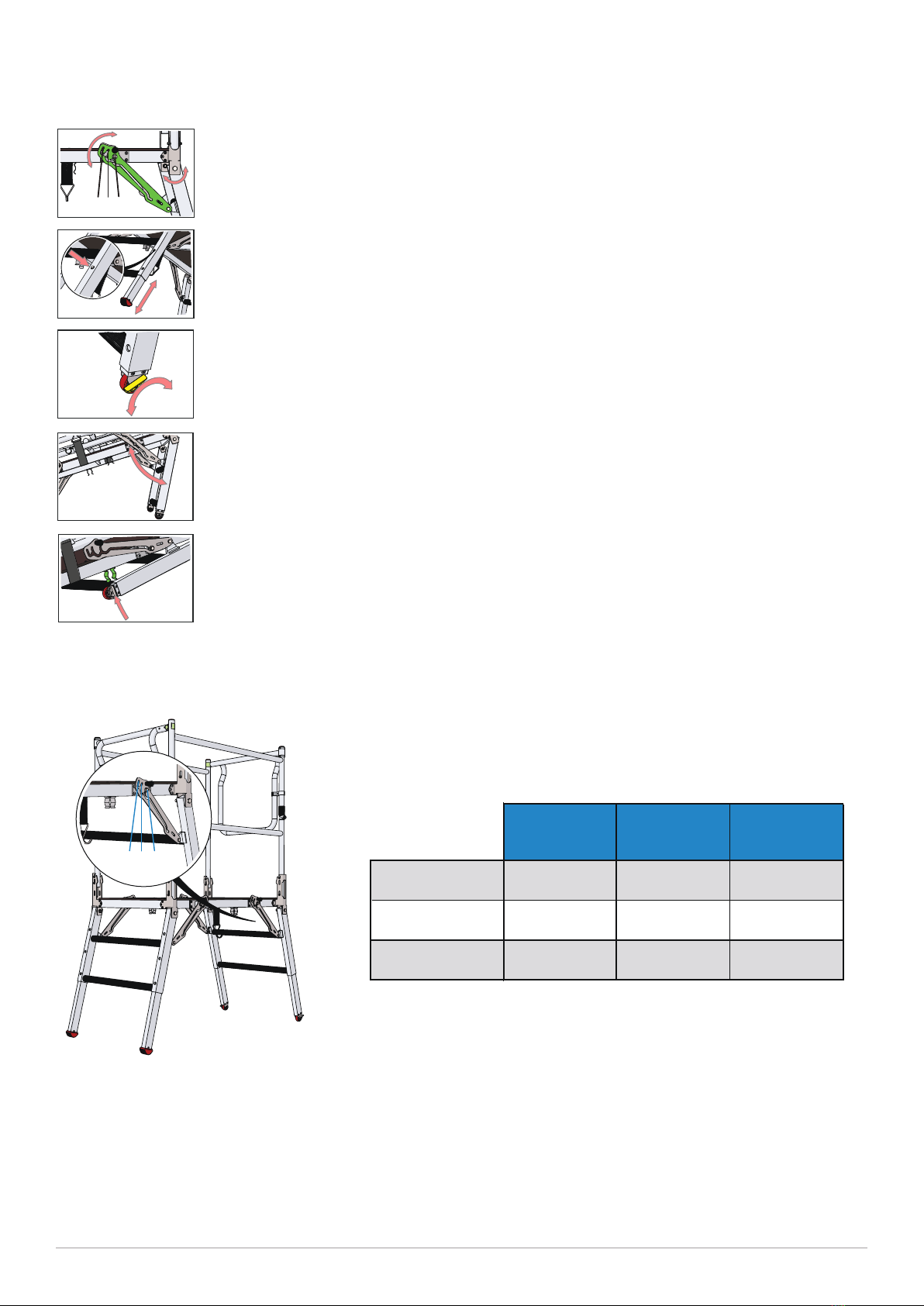

LOCKING CASTOR
The castors allow the unit to be moved smoothly between workplaces. They must be locked off when the unit is in
use and unlocked to allow the unit to be moved. The foot pedal (Highlighted in yellow) can be rotat-ed using your
foot, to lock or release the brake.
ADJUSTABLE LEG
The adjustable leg allows further height changes to be made can be extended or retracted by simply pushing in
the spring locating pin (A) and either extending or retracting the adjustable leg (B) until the spring pin locates into
one of three locating holes in the outer leg assembly (C).
LEG ADJUSTMENT LEVER
The lever (highlighted in green) allows rotation of the leg assembly (A) and once locked off in either of the
positions (1,2 or 3) it provides height changes to the unit. Release the leg adjustment lever using the handle (B)
and rotate the leg assembly (A) either way until the lever engages in either position 1,2 or 3.
KNOW YOUR COMPONENTS Cont.......
DELTA DECK®
LEG ASSEMBLY
The leg assembly holds the adjustable legs in place and also adjusts the height of the unit by using the leg
adjustment levers. When not in use the leg assembly is packed under the platform and held in this position by the
leg retaining clips.
LEG RETAINING CLIP
The leg retaining clip is a spring clip that simply grips the lower rung of the leg assembly and holds this leg
assembly in place during storage or transport. To release the leg assembly, simply pull it until the assembly is
released from the clip or push the leg assembly against the clip, until it grips the lower rung, to put the leg
assembly in the transport position.
KNOW YOUR DELTADECK ® HEIGHTS
UPPER
MIDDLE
LOWER
1 2 3
LEVER POS 1
(mm)
LEVER POS 2
(mm)
LEVER POS 3
(mm)
LEG UPPER PIN 460 530 590
LEG MIDDLE PIN 560 650 730
LEG LOWER PIN 660 770 870
HEIGHT TABLE

Page 4
SAFETY DOS AND DON’TS
Page 5
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
ALWAYS
Read and understand this guide before you begin assembly.
Ensure that all safety requirements are met and that DELTA DECK is the correct access solution for the task
you wish to perform.
Ensure that DELTA DECK is assembled and dismantled by a qualified, competent person.
Cordon off the work area creating a zone with a radius that is 1m greater than the total height of the
DELTA DECK.
Wear the correct Personal Protective Equipment for the task being performed. Gloves, steel toecap boots, a
hard hat and suitable clothing must be worn by all persons.
Tie back long hair and remove items of loose jewellery.
Perform a full risk assessment prior to assembling or using DELTA DECK and abide by yout findings.
Prevent access to unauthorised persons if you have no ohter option but to leave MiTOWER unattended and if
this is not possible then DELTA DECK must be dismantled.
Carry tools and materials safely retained in a tool belt that allows freedom of movement.
Access the platform using three points of contact at all times. Ensure the gate is closed behind you.
Erect DELTA DECK on smooth level ground that is capable of sup porting its own weight, the user and any tools
or materials without subsidence.
ALWAYS
ALWAYS
ALWAYS
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
NEVER
Use DELTA DECK if you don’t understand something in this guide; please contact the supplier for advice.
Assemble, use, move or dismantle DELTA DECK if you are tired or unwell or if you are under the influence of
alcohol or drugs.
Use DELTA DECK in adverse weather conditions which may endanger the user.
Use in wind conditions of Beaufort Force 5 and above. Please be aware of the tunnel effect caused by
buildings close to each other.
Assemble or use DELTA DECK near overhead hazards such as power lines that are within reach of DELTA
DECK or the user.
Ascend or descend your DELTA DECK if both hands are not free.
Add banners, notice boards, etc. to DELTA DECK.
Use DELTA DECK if contaminated by paint, chemicals, etc.
Overload the platforms (see page 8 ).
Lean from DELTA DECK and never apply undue side force.
Stand on the guardrails, toe boards, boxes (or similar) to gain extra height. If the working height is insuffcient
either adjust DELTA DECK to the required height or use an alternative method.
Use your DELTA DECK if it has damaged components / parts.
NEVER
NEVER

Page 5
The SWL of is 200kg, this includes the weight of the user plus tools and materials. The SWL must
not be exceeded.
DELTA DECK®
BEFORE YOU START
PREPARATION
The floor area must be clear of any obstructions, including materials and debris.
Check also each component for condition and correct function. If any part is missing or damaged/not working correctly it
must be replaced before assembling.
ASSEMBLY GUIDE
These instructions must always be made available to the user. If replacement copies are required, please contact your
supplier.
DAMAGED COMPONENTS
Regularly inspect all components for damage. Damaged components must be quarantined so that they cannot be used.
Where safe to do so, the component can be repaired but only by a qualified repairer. If in doubt contact your supplier for
advice. A copy of our Pre - Use checks, Inspection & Maintenance guide can be downloaded from our website.
www.popupproducts.co.uk
DISMANTLING YOUR DELTA DECK
DELTADECK is easily dismantled by simply reversing the assembly procedure.
SAFE WORKING LOAD (SWL)
- ASSEMBLY
DELTA DECK®
STEP 1
Place the unit on the floor and leave the transport straps
in place.
STEP 2
Lift one end of the platform and simultaneously pull the
leg assembly out, until the legs automatically lock in place.
Repeat the operation on the opposite side of the unit,
ensuring all four locking mechanisms are set at the same
height.
STEP 3
Undo the transport straps and lift one side guardrail
section. Rotate top section of the side guardrail through
180 degrees to allow both sections of the side guardrail to
be locked together using the side guardrail locking device.
Double check that locking positions at base of the side
guardrail are firmly secured. Repeat the above process for
the opposite side guardrail.

Page 6

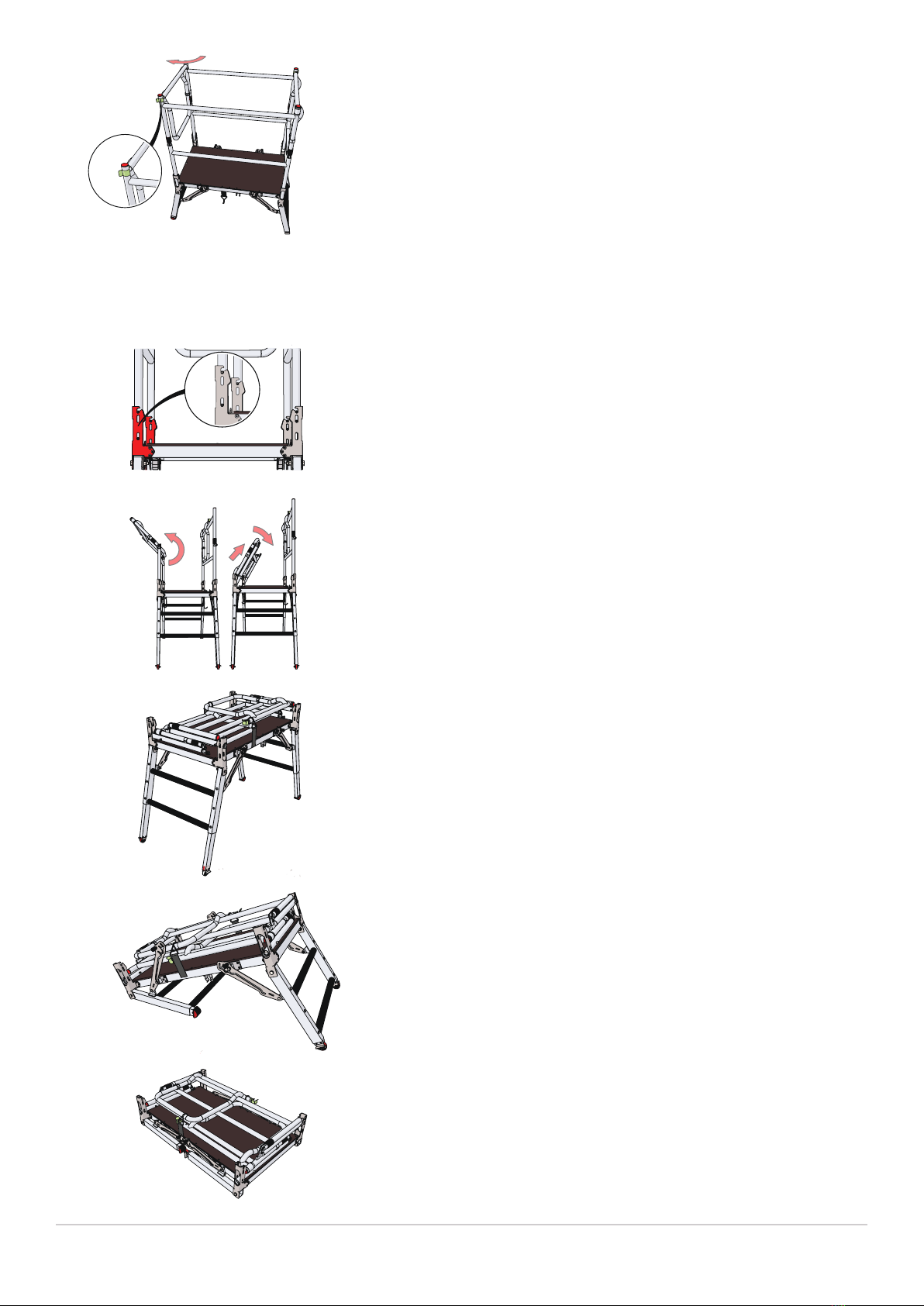

STEP 4
Close both gates, ensuring the gate catches are engaged correctly and
secure around the side guardrail vertical tubes. If required, adjust the
height of the unit using the adjustable legs and / or the leg adjustment
lever (See Pg.4 for details). Once the unit is at the correct height, position it
in the work area and lock off the castors (See pg.4 for details).
Open one gate, climb the rungs of the leg assembly, having 3 points of
contact at all times. Always keep your bodies centre of gravity towards the
platform. Once access has been gained, close the gate behind you,
ensuring the gate catch is secure.
DELTA DECK® - DISASSEMBLY
STEP 1
Identify the first side guardrail to collapse by looking for the
side guardrail with the pin located in the lowest slot as
shown here.
STEP 2
Open both gates and rotate top half of side guardrail through 180 degrees
(reversal of assembly procedure). Disengage base of side guardrail and lay
side guardrail unit onto platform. Repeat for the opposite side guardrail.
STEP 3
Attach the transport straps.
STEP 4
Retract all adjustable legs to their minimum adjustment. Pull leg
adjustment levers on one end of the unit and fold the leg assembly under
the platform. Repeat for the opposite adjustable legs / leg assembly.
STEP 5
Ensure leg assemblies are located in the leg retaining clips. The Ensure
leg assemblies are located in the leg retaining clips. The DELTA DECK®
has now been dismantled.
