Huawei eSpace IAD104H User manual

eSpace IAD104H
Quick Start
Issue
10
Date
2019-04-09
HUAWEI TECHNOLOGIES CO., LTD.

eSpace IAD104H
Quick Start
Contents
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
i
Contents
1 Packing List.........................................................................................1
2 Safety Precautions .............................................................................2
3 Installation ..........................................................................................6
4 Manual Configuration (CLI) ...........................................................7
4.1 Logging In Through Telnet....................................................................................... 7
4.2 Connecting to NGN/IP PBX (SIP)...........................................................................11
4.3 Accessing NGN/IP PBX (MGCP) .......................................................................... 20
4.4 Connecting to the IMS (SIP) .................................................................................. 27
4.5 Accessing Network Through the IAD..................................................................... 38
5 Configuration (EMS).......................................................................40
6 FAQs...................................................................................................43
7 Technical Specifications and Environment Requirements .....46

eSpace IAD104H
Quick Start
1 Packing List
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
1
1 Packing List
After you unpack the product package, check the items in the
following table. If the items in the package are different from
those in the table, contact the sales person.
Item
Quantity
eSpace 104H
1
Power supply adapter
1
Network cable
1
CD-ROM
1
Quick Start
1
Certificate
1

eSpace IAD104H
Quick Start
2 Safety Precautions
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
2
2 Safety Precautions
Pay attention to the following precautions when installing and
using the device.
Basic Requirements
Follow the requirements of the manufacturer to install the
device.
Do not disassemble the device. Contact the specified
maintenance station if the faults occur on the device.
Any company or person cannot change the design of the
structure, security, or performance without permission.
Comply with the related laws and regulations, and respect
the legal rights of others when using this device.
Usage Notice
Use the accessories shipped with the product and the
recommended accessories, such as the power supply
adapters and batteries. The power supply voltage must
meet the requirement on the input voltage of the device.
Keep the power plug clean and dry to avoid the electric
shock and other potential risks.

eSpace IAD104H
Quick Start
2 Safety Precautions
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
3
Keep your hands dry when plugging in or out the device
cable.
Stop the device and turn off the power before plugging in
or out the device cable.
In the lightning weather, turn off the power and remove
all the cables from the device, such as the power cable,
network cable, and phone cable. Otherwise, the device
may be damaged by the lightning.
If you do not need to use the device for a long time, turn
off the power and remove the power plug.
Keep the water and other liquids away from the device. If
the liquid accidentally flows into the device, turn off the
power immediately and remove all the cables from the
device, such as the power cables and network cables.
Contact the specified maintenance station if faults occur.
Do not use the damaged or aged cables.
If exceptions occur, for example, the device is smoking,
the sound is abnormal, or the device turns smelly, stop
using the device and turn off the power immediately.
Remove all the cables connected to the device, such as the
power cables and network cables. Contact the specified
maintenance station when faults occur.
Prevent the objects (such as the metal) getting into the
device from the heat dissipation hole.
Avoid scratch or wear and tear on the device shell.
Otherwise, the dropped paint may cause allergy or device
exceptions. For example, short circuit may be caused if
the paint drops into the host.
Keep children away from the device and accessories to
avoid the dangerous behaviors such as swallowing.
Cleaning Notice
Before you clean the device, stop the device and turn off
the power. Remove all the cables connected to the device,
such as the power cables and network cables.

eSpace IAD104H
Quick Start
2 Safety Precautions
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
4
When you clean the device, do not use the liquid cleaner
or spray cleaner to clean the device shell. Use the soft
cloth to wipe and clean the shell.
Environment Requirements
Keep the device dry when storing, transporting, and using
the device.
Avoid the collision when storing, transporting, and using
the device.
Place the device in the indoor environment with good
ventilation and without direct and strong sunlight.
Keep the device clean to avoid dust.
Do not place any object on the device to avoid the
overheating of the device or damage caused by extrusion.
Clear the space with the radius of over 10 cm around the
device for heat dissipation.
Keep the device away from the heat sources or exposed
fire, such as the electrical heater or candle.
Keep the device away from the appliance with the strong
magnetic field or intensive electric field, such as the
microwave oven, fridge, or mobile phone.
Environment Protection
Do not discard the obsolete devices or batteries randomly.
Discard them at the specified recycle station.
Comply with the local laws and regulations on processing
the device package materials, consumed batteries, and
obsolete devices, and support the recycling.
Class A Products

eSpace IAD104H
Quick Start
2 Safety Precautions
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
5
This product is of class A and may cause radio interference in a
living environment. If radio interference exists, take some
measures to eliminate the interference.

eSpace IAD104H
Quick Start
3 Installation
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
6
3 Installation
The eSpace Integrated Access Device 104H (eSpace IAD104H)
is the case-shaped device. You only need to connect cables.

eSpace IAD104H
Quick Start
4 Manual Configuration (CLI)
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
7
4 Manual Configuration (CLI)
About This Chapter
You can use the CLI to configure all eSpace Integrated Access
Device 104H (IAD104H) functions. The chapter describes how
to configure about typical scenes and advanced parameters by
using the command line (CLI).In addition, some titles are
marked with (SIP) or (MGCP) to indicate that these service
configurations can be implemented over SIP or MGCP.
4.1 Logging In Through Telnet
The IAD104H supports data configuration and maintenance
management in Web mode.
Context
You can log in to the web management system of the
IAD104H in either of the following modes:
HTTPS
The web browser interacts with IAD104H through
HTTPS, which ensures user information security.

eSpace IAD104H
Quick Start
4 Manual Configuration (CLI)
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
8
HTTP
The web browser interacts with IAD104H through HTTP.
You are advised to log in to the web management system
through HTTPS to ensure data security.
HTTP is disabled on the IAD by default. You can run the
system soft-parameter command to enable HTTP.
Before logging in to the web management system through
HTTPS, you have to load the web_rootcert, web_servercert,
and web_serverkey certificates and restart the IAD. For
details about how to load the certificates and restart the IAD,
see the load and reboot commands under Command
Reference > Config Commands in the eSpace IAD104H
Product Documentation.
Establishing the Web Configuration Environment
The IAD hardware connections are set up and the IAD is
powered on.
Use the network cable to connect the network port of the PC to
any network port of the IAD104H. If the PC network port does
not support self-adaptation, you need to use the crossover cable.
Set IP addresses of the PC and IAD (the default IP address of
the IAD is 192.168.100.1) in the same network segment to
ensure that the PC can ping the IAD successfully.
Before the delivery, the same IP address 192.168.100.1 is configured
on all IADs. Do not connect multiple IADs to the network at the
same time to prevent IP address conflict.

eSpace IAD104H
Quick Start
4 Manual Configuration (CLI)
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9
Logging In to the Web Management System
1. Start the Microsoft Internet Explorer. Enter the address of
the IAD104H (the default IP address is
https://192.168.100.1) in the address box.
The page shown in Figure 4-1 is displayed.
If you access the web management system through HTTPS on the
local PC for the first time, the message "Certificate Error:
Navigation Blocked" is displayed. In this case, you need to load the
web_rootcert certificate on the PC. For details, see Maintenance >
Loading the Web Root Certificate in the eSpace IAD104H
Product Documentation.
Figure 4-1 Login page
If you forget the IP address of the IAD, you can do as follows to
obtain the IP address.

eSpace IAD104H
Quick Start
4 Manual Configuration (CLI)
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
10
Dial *127 on the phone connected to the IAD, and then the
voice announcement plays the IP address.
Log in to the IAD through the serial port and run the display
ipaddress command in the common user mode to view the IP
address of the device. For details about how to log in to the IAD
through the serial port, see Configuration > Manual
Configuration(CLI) > Logging in to the CLI > Logging In
Through Local Serial Port in the eSpace IAD104H Product
Documentation.
2. Set the system language to simplified Chinese or English
as required. Enter the user name and password and click
Login. By default, the user name is root, the password is
huawei123.
The home page of the web management system is
displayed, as shown in Figure 4-2.
If a user enters incorrect passwords three consecutive times, the
system will lock the user for 5 minutes.
If a user performs no operation within 10 minutes, the user will
be automatically logged out.

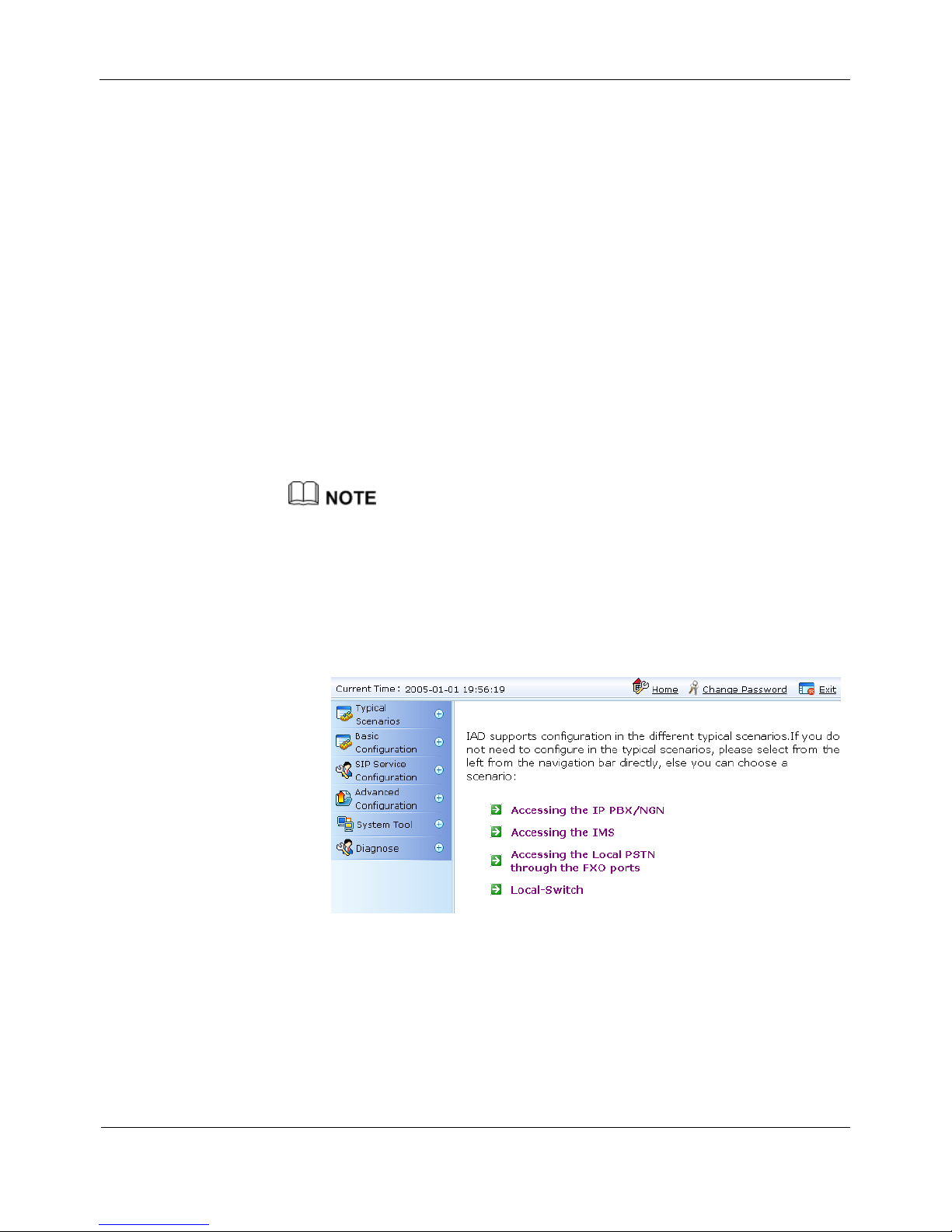

Figure 4-2 Home page
3. After you log in to the system, you can click Change
Password at the upper right corner of the page to set a
new password. After the password is set, record related
data.

eSpace IAD104H
Quick Start
4 Manual Configuration (CLI)
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
11
The web management system provides inner help information on the
Web page. Configure the data according to the help information.
And this document does not introduce the help information
repeatedly.
4.2 Connecting to NGN/IP PBX (SIP)
The users of the IAD104H register with the softswitch (for
example, Softx3000 and U1900) to implement the voice
service. After configuring the softswitch data, configure the
IAD104H data to use the voice service, including basic call
and fax services.
Data Preparation
In this example, the U1900 functions as the softswitch. You
can obtain the connection data and other network data such as
the default gateway between the IAD and the U1900 from the
network carrier or network administrator. The following
describes how to enable the voice function for an IAD104H
user.
Table 4-1 Connection data between the IAD and the Softswitch
(for example, U1900)
Item
Value
Parameter and Value on
the IAD
Control protocol
used between the
softswitch and
the IAD
SIP protocol
Protocol mode: SIP
IP address of the
softswitch
192.168.1.40/255.25
5.255.0
IP address of the SIP
server: 192.168.1.40

eSpace IAD104H
Quick Start
4 Manual Configuration (CLI)
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
12
Item
Value
Parameter and Value on
the IAD
IP address of the
IAD
192.168.1.62/255.25
5.255.0
IP address of the IAD:
192.168.1.62/255.255.255.
0
NOTE
The IAD must be able to ping
the SIP server.
SIP signaling
port number on
the softswitch
5060
Server port number: 5060
SIP signaling
port number on
the IAD
5060
local port: 5060
SIP user A
Device ID (eid):
8900
User number (dn):
8900
Authentication
type: authbyeid
(based on
password)
User ID for port 0: The
user ID is the same as
the device ID on the
softswitch.
Password for port 0:
The user password on
the IAD is the same as
the authentication
password on the
softswitch.Contact the
network carrier or
softswitch administrator
to determine whether to
set the password and the
specific password.

eSpace IAD104H
Quick Start
4 Manual Configuration (CLI)
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
13
Item
Value
Parameter and Value on
the IAD
SIP user B
Device ID (eid):
8901
User number (dn):
8901
Authentication
type: authbyeid
(based on
password)
User ID for port 1: The
user ID is the same as
the device ID on the
softswitch.
Password for port 1:
The user password on
the IAD is the same as
the authentication
password on the
softswitch.Contact the
network carrier or
softswitch administrator
to determine whether to
set the password and the
specific password.
Table 4-2 Other network information
Item
Data
IP address of the DNS server
192.168.1.50
IP address of the uplink gateway
192.168.1.1
NOTE
The gateway IP address must be in
the same network segment as the
IAD IP address. Contact the network
administrator to obtain the gateway
IP address.
Procedure
Step 1 Set the communication protocol.

eSpace IAD104H
Quick Start
4 Manual Configuration (CLI)
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
14
After the protocol is changed, the IAD will automatically
restart. The data, if not saved, will be lost after the IAD restart.
Therefore, you must save the settings before changing the
protocol.

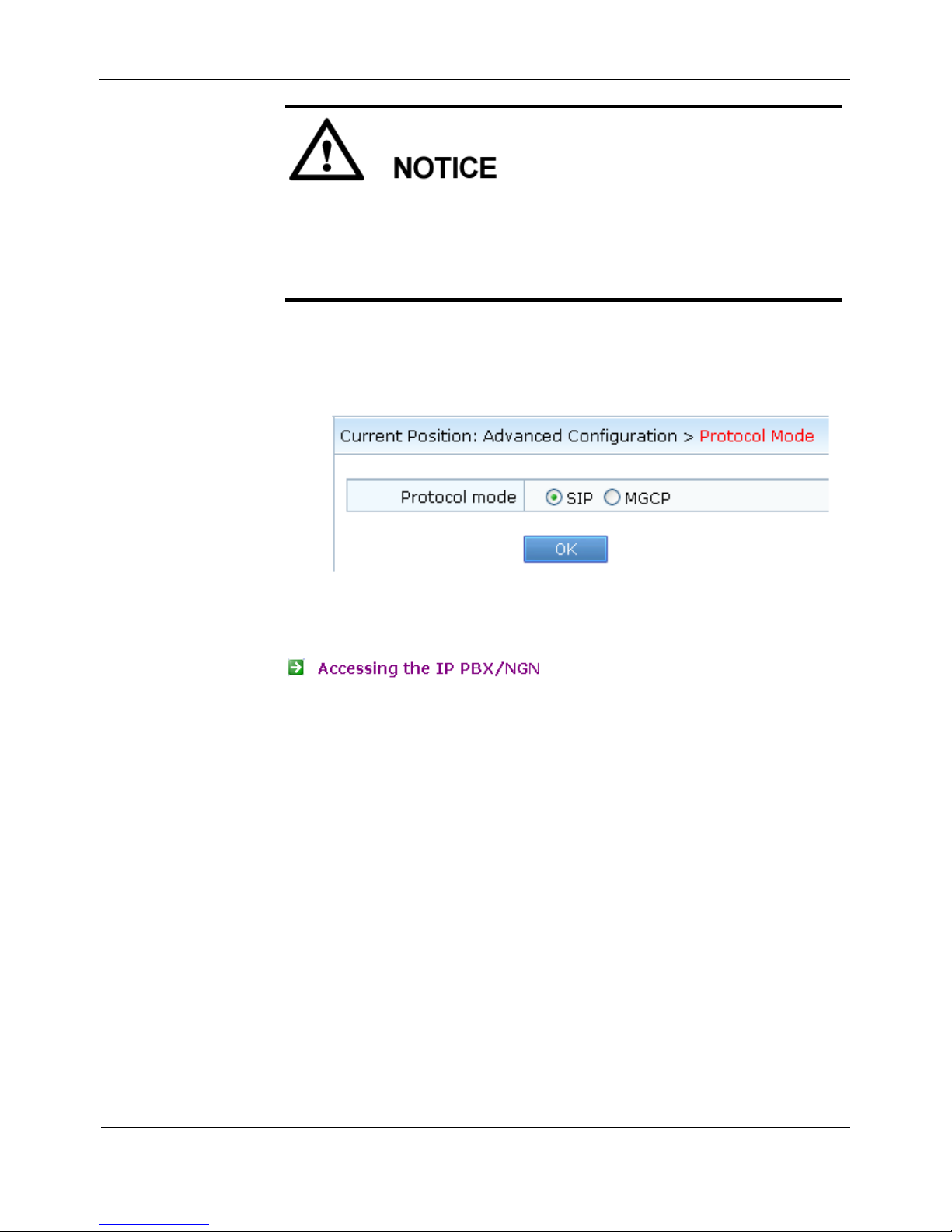

4. Choose Advanced Configuration > Protocol Mode.
The Protocol Mode page is displayed.
2. Select SIP and click OK.
Step 2 Log in to the web management system and click
.
Step 3 Configure network parameters for the IAD104H.
1. Click Start.
The Basic Configuration > Network Parameter page is
displayed.

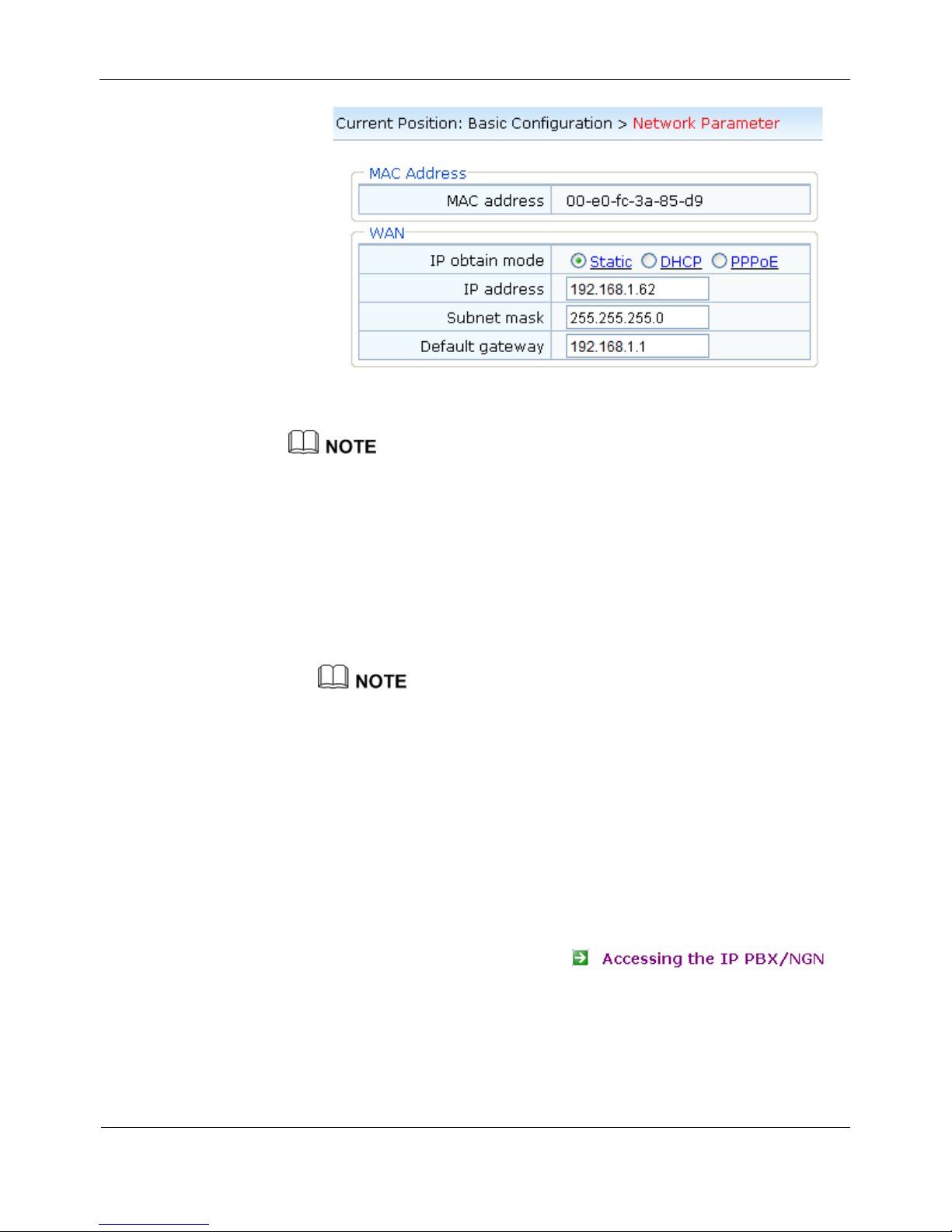

5. Set WAN parameters as planned.

eSpace IAD104H
Quick Start
4 Manual Configuration (CLI)
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
15
There are three methods of obtaining the IP address. Select a method
based on the actual networking scheme. For details, see the help
information.
3. Click Save.
The confirmation dialog box is displayed.
4. Click OK.
The web management system automatically restarts.
If the IP address obtaining mode is changed, the IAD restarts
automatically for the configuration to take effect. You can dial
*127 using a phone connected to the IAD and listen to the IP
address played by the phone, or you can connect to the IAD
using a serial cable to check the new IP address.
If obtaining an IP address in DHCP or PPPoE mode is selected
but the IAD fails to obtain an IP address in this mode, it takes
about 8 minutes for the IAD to restart. In this case, check
whether the DHCP or PPPoE server is available and whether the
server information is correctly configured.
After the IP address is changed, re-log in to the web
management system, click ,
and click Start to access the Basic Configuration >
Network Parameter page again.
5. (Optional) Configure the DNS server.

eSpace IAD104H
Quick Start
4 Manual Configuration (CLI)
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
16
If the DNS server is available on the network, you can
configure the DNS server on the IAD so that the IAD can
access other devices by domain name.
a. Set DNS parameters according to the data plan and
help information.
b. Click Save.
Step 4 Configure the SIP server.
1. Click Next.
The SIPService Configuration > SIPServer page is
displayed.
2. Set Obtain type to STATIC.
The IAD provides three methods of obtaining the SIP server IP
address, including STATIC, DNS, and DHCP.
If the DNS server has been configured on the network, set
Obtain type to STATIC or DNS and then configure the SIP
server by domain name.
If Obtain type is set to DHCP, configure the SIP server by
DHCP.
For details, see eSpace IAD104H Product Documentation.
3. (Optional) Select a value for SIP server register mode
and click OK.

eSpace IAD104H
Quick Start
4 Manual Configuration (CLI)
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
17
The IAD104H supports three registration modes. Select a
mode according to the help information.
4. (Optional) Configure the timeout interval for the
registration server.
a. Enter a value for Invite response time(s) .
b. Click OK.
The IAD104H first sends a call request to the current
registration server. If the server does not respond and the
request times out, the IAD104H sends the call request to
the next registration server.
5. Select the record corresponding to index 0 and click
Modify.
The page for modifying the SIP server is displayed.
6. Set Configuration to IP address mode, and enter the SIP
server IP address in the Server IP address field.
7. Click OK.
Step 5 (Optional) Configure the SIP signaling port number.
Deregister IAD users before changing the local port.
The default SIP signaling port number is 5060. You are advised
to use the default value. If you want to change the local port
number, change it accordingly on the SIP server.
1. Click Next.

eSpace IAD104H
Quick Start
4 Manual Configuration (CLI)
Issue 10 (2019-04-09)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
18
The SIPService Configuration > Local Port page is
displayed.
2. Change the local port number.
3. Click OK.
Step 6 Configure SIP users.
1. Click Next.
The SIPService Configuration > FXS User page is
displayed.
2. Select the slot number for the board where SIP users will
be configured.
3. Select port numbers and then configure SIP user
parameters according to the data plan and help
information.
User name and Password are optional. Contact the operator to
confirm whether User name and Password are required.
4. Click OK.
Step 7 (Optional) Click Next and configure the SIP digitmap.
