HUBBELL LIGHTING DUAL LITE RTSLP User manual

Remote Test Switch
RTSLP
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should
always be followed including the following.
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS
1. Consult local building code for approved wiring and installation.
2. Disconnect AC power before servicing and installation.
3. Do not mount near gas or electric heaters.
4. Do not use outdoors.
5. Do not use this equipment for anything other than its intended use.
6. The use of accessory equipment not recommended by the manufacturer will void product
listing and warranty and may cause an unsafe condition.
7. Any service on this equipment should be performed by qualied personnel only.
8. Equipment should be mounted in locations and at heights where it will not be subject to
tampering by unauthorized personnel.
9. Cap unused wires with enclosed wire nuts or other approved method.
10. Make sure wire terminations are secure and leads are properly tucked in appropriate wire
channels.

Dual-Lite • www.dual-lite.com
A Hubbell Lighting, Inc. brand with representatives’ ofces in principal cities throughout North America.
Copyright © Hubbell Lighitng, Inc., All Rights Reserved • Specications subject to change without notice. • Printed in U.S.A. 603778 05/17
1. Extend a consistent, unswitched AC supply of rated voltage to
the Remote Test Switch installation area. Attach AC supply to
a standard single-gang electrical box (by others) Caution: Do
not supply AC current until indicated.
2. The Remote Test Switch option can be used in either 120 or
277VAC applications.
3. Extend a grounded supply circuit from the emergency unit or
exit xture(s) to be controlled to the junction boxes.
4. All wiring connections should be in accordance with NEC
and local code requirements. Install xture(s) to be controlled
according to the instructions provided with the exit sign or unit.
5. Wire the Remote Test Switch as follows:
Connect Remote Test Switch using approved connectors and
wiring. Refer to Wiring Diagram at right for proper connections.
a. Use the provided wire nut to connect the utility AC input
line to one test switch lead.
b. Use the provided wire nut to connect the AC On pilot light
neutral wire, the utility AC input neutral conductor, and AC
supply neutral conductor.
c. Use the provided wire nut to connect the appropriate voltage lead from the AC On pilot light (120V-Black, 277V-
Orange) and the free test switch lead to the AC supply line conductor.
6. Connect ground wires in accordance with local codes.
7. Use the two #6-32 screws provided to mount the Remote Test Switch cover plate to the electrical box.
8. Energize the Remote Test Switch to the utility AC input circuit. All connected xtures should operate normally in the
AC mode.
Test
Switch
AC Supply to Inverter
Input Terminal Block
AC-On
Light
Utility AC Input
Electrical Box
(by others)
Common
Hot
Neutral
277V
Orange
120V
Black
Neutral
Select appropriate voltage lead
Line
INSTALLATION
OPERATION

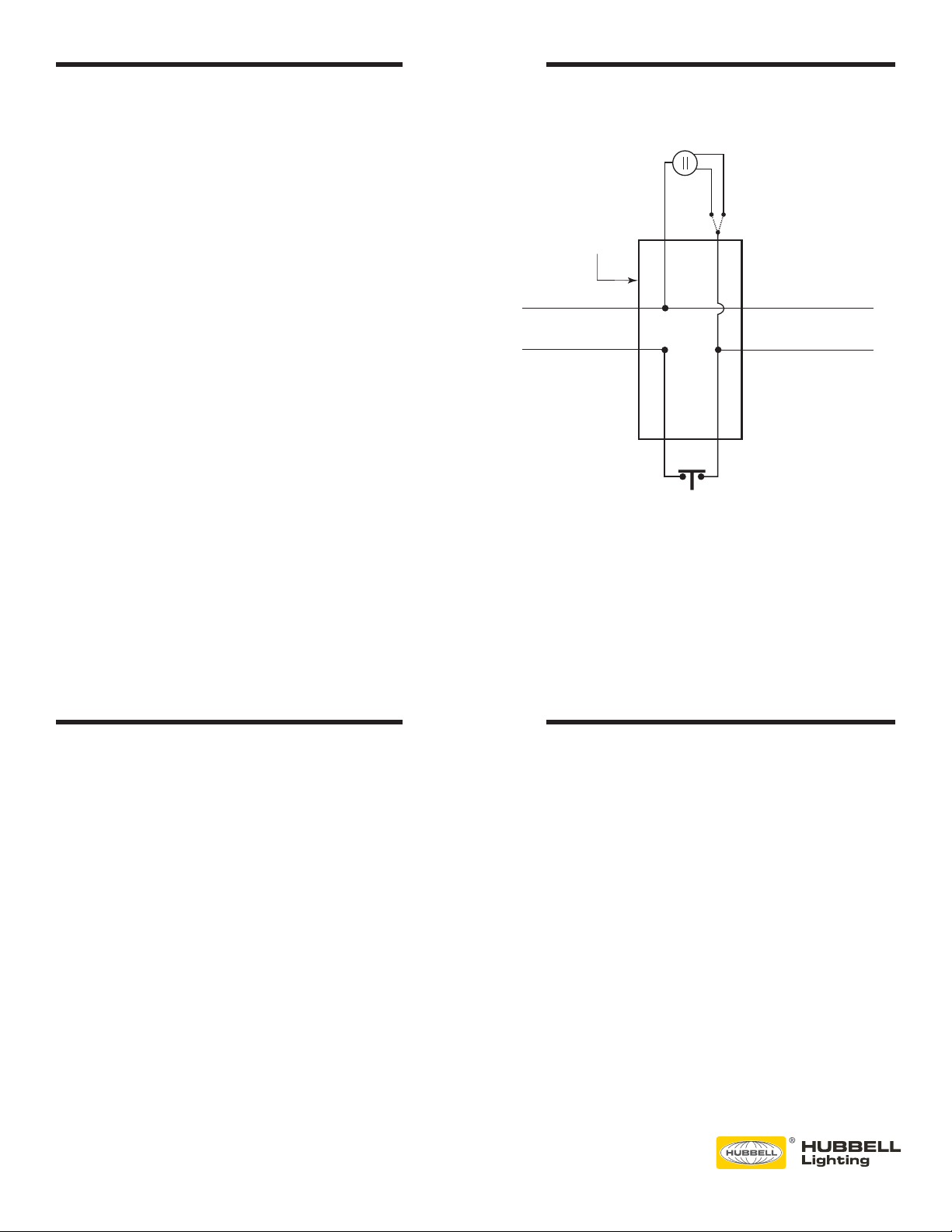

WIRING DIAGRAM
To test the Remote Test Switch (RTSLP):
1. Press the RTSLP module’s test switch. All the connected emergency xtures should now operate in emergency mode
and the AC On pilot light will turn off.
2. When the test switch is released, all connected emergency xtures should resume normal AC operation mode and the
AC On pilot light will light.
