Hubbell Gai-tronics 10458-701 User manual

Pub. 42004-464D

G A I - T R O N I C S ®
A H U B B E L L C O M P A N Y
VoIP Electronic Paging Modules
Wired and WiFi
TA B L E O F CO N T E N T S
GAI-TRONICS 3030 KUTZTOWN RD. READING, PA 19605 USA
610-777-1374 ◼800-492-1212 ◼Fax: 610-796-5954
VISIT WWW.GAI-TRONICS.COM FOR PRODUCT LITERATURE AND MANUALS
Confidentiality Notice.....................................................................................................................1
Computer Software Copyrights ......................................................................................................1
General Information.......................................................................................................................1
Features and Functions ..........................................................................................................................2
Available Models.....................................................................................................................................2
System Requirements and Limitations.................................................................................................2
Multicast Broadcasts ..............................................................................................................................3
Safety and General Information............................................................................................................3
Outdoor Product....................................................................................................................................3
Antenna Care ........................................................................................................................................3
Electromagnetic Interference/Compatibility.........................................................................................3
Operational Cautions ............................................................................................................................4
Safe Handling of CMOS Integrated Circuit Devices...........................................................................4
Installation ......................................................................................................................................5
Important Safety Information...............................................................................................................5
Outdoor Product....................................................................................................................................6
Antenna Care ........................................................................................................................................6
Cable Installation Safety Considerations..............................................................................................6
Mechanical Receipt Inspection..............................................................................................................6
Mount the Paging Module......................................................................................................................6
Open the Module.....................................................................................................................................8
Field Wiring...........................................................................................................................................10
Power Connection...............................................................................................................................10
Speaker Connection ............................................................................................................................ 11
Output Contact Connections...............................................................................................................11
Opto Output Connection.....................................................................................................................11
Antenna Connection............................................................................................................................11
Programming ................................................................................................................................12

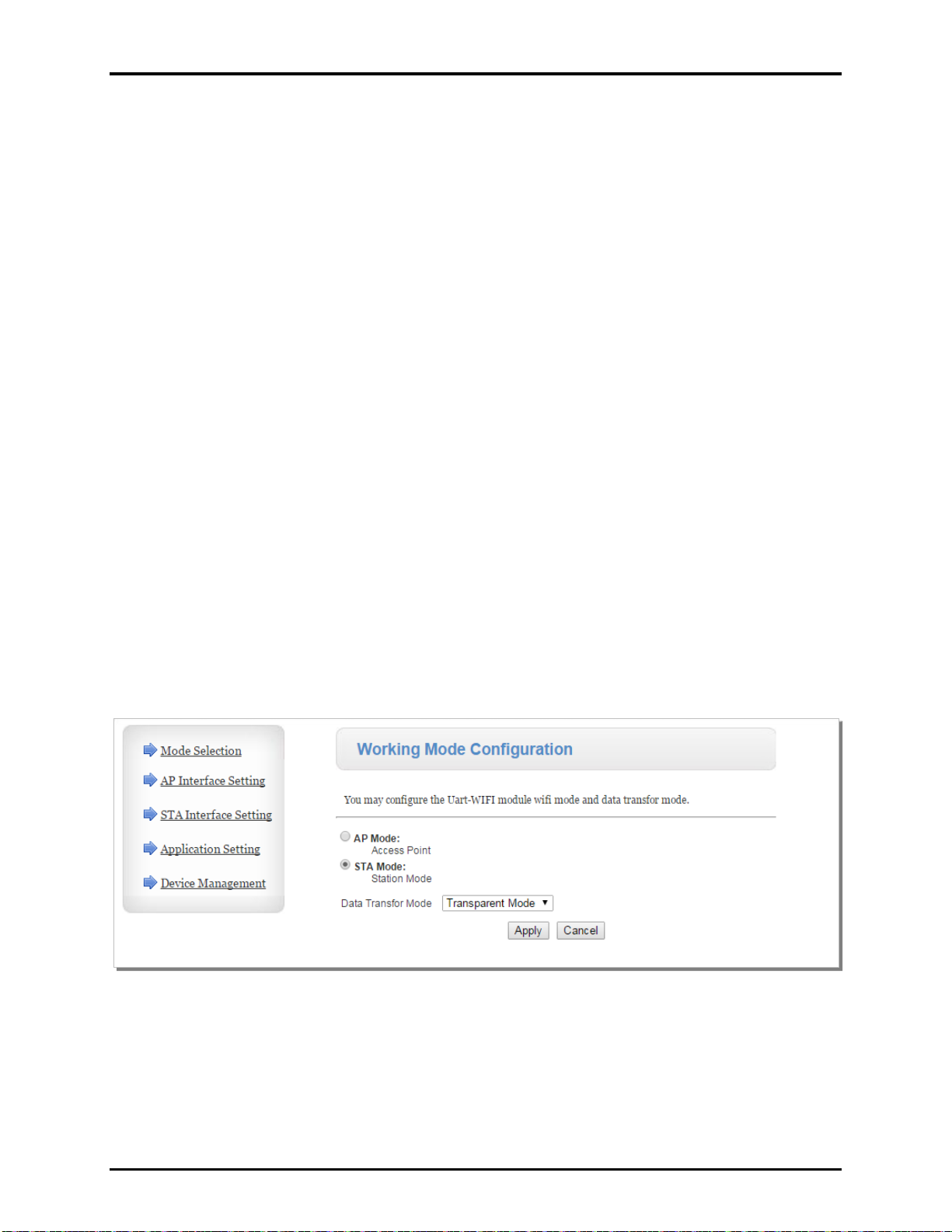

First Time WiFi Interface Setup (Model 10458-801 only) ...............................................................12
Reset WiFi Interface Configuration (Model 10458-801 only)...........................................................15
VoIP Paging Module Setup..................................................................................................................15
VoIP Paging Module Initial Network Configuration ........................................................................15

Table of Contents Pub. 42004-464D
GAI-TRONICS 3030 KUTZTOWN RD. READING, PA 19605 USA
610-777-1374 ◼800-492-1212 ◼Fax: 610-796-5954
VISIT WWW.GAI-TRONICS.COM FOR PRODUCT LITERATURE AND MANUALS
Close the VoIP Electronic Paging Module..........................................................................................15
Maintenance..................................................................................................................................16
VoIP Circuit PCBA Pushbuttons ........................................................................................................16
Reset....................................................................................................................................................16
Factory ................................................................................................................................................ 16
Status Indication...................................................................................................................................17
Power ..................................................................................................................................................17
Heartbeat.............................................................................................................................................17
Link.....................................................................................................................................................17
Speed...................................................................................................................................................17
USB port ................................................................................................................................................17
Service and Spare Parts........................................................................................................................17
Replacement Parts and Kits.................................................................................................................17
Reference Documentation ............................................................................................................18
Specifications ................................................................................................................................18
Power Options.......................................................................................................................................18
AC Power...............................................................................................................................................18
PoE (Power over Ethernet) (Model 10458-701 only).........................................................................18
Audio Output.........................................................................................................................................18
Network (Ethernet)...............................................................................................................................18
Control Outputs....................................................................................................................................18
WiFi Module (Model 10458-801 only).................................................................................................18
Mechanical.............................................................................................................................................18
Environmental.......................................................................................................................................19
Approvals.......................................................................................................................................19
FCC Licensing Information.........................................................................................................20


Pub. 42004-464D

G A I - T R O N I C S ®

A H U B B E L L C O M P A N Y

VoIP Electronic Paging Modules

Wired and WiFi

GAI-TRONICS 3030 KUTZTOWN RD. READING, PA 19605 USA

610-777-1374 ◼800-492-1212 ◼Fax: 610-796-5954

VISIT WWW.GAI-TRONICS.COM FOR PRODUCT LITERATURE AND MANUALS

Confidentiality Notice

This manual is provided solely as an installation, operation, and maintenance guide and contains sensitive

business and technical information that is confidential and proprietary to GAI-Tronics. GAI-Tronics

retains all intellectual property and other rights in or to the information contained herein, and such

information may only be used in connection with the operation of your GAI-Tronics product or system.

This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third

party.

Computer Software Copyrights

This product contains copyrighted computer programs stored in semiconductor memory. These programs

are copyrighted by GAI-Tronics and may not be reproduced in any form without expressed written

permission from GAI-Tronics.

General Information

GAI-Tronics’ electronic paging modules are mechanically designed for mounting an access panel in a

Model 234 Series Communication Station. Each paging module can be used with the Model 234SBM

Tower Broadcast Module or Model 234SBA Tower Broadcast Assembly to supply an amplified broadcast

to the tower (communication tower) speakers.

The Model 10458-701 VoIP electronic paging module enables audio broadcasts over an existing VoIP

network via the GAI-Tronics 234 Series Tower’s integral speakers. The Model 10458-801 VoIP WiFi

electronic paging module provides the same capability over an existing wireless network. The paging

modules are easily added to existing (10/100 BaseT Ethernet) wired or (IEEE 802.11 a/b/g/n) wireless

networks with minimal cost and effort.

The -701 and -801 paging modules include an integrated speaker amplifier circuit that can supply up to 30

watts of output power to an 8-ohm speaker or combination of speakers equaling 8 ohms. Each VoIP or

VoIP WiFi electronic paging module includes two dry contact Type A (normally open) outputs. Each

output is programmable for a variety of uses such as activation of a strobe or initiating a door latch

remotely.

The GAI-Tronics VoIP and VoIP WiFi electronic paging modules provide the flexibility to address a

diverse range of applications. A wide variety of functions are achievable by altering the configuration

data stored in the non-volatile memory. The configuration options include:

•webpage configuration

•configuration file

Pub. 42004-464D

VoIP Electronic Paging Modules—Wired and WiFi Page 2 of 20

P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-464D.docx

03/20

Features and Functions

The GAI-Tronics Models 10458-701 VoIP and

10458-801 VoIP WiFi electronic paging modules

are equipped with the following features:

• wired or WiFi

• one-way broadcasting from an IP network

• 30 watts speaker amplifier output (into an 8-

ohm speaker load) with 120/240 V ac power

input

• 8-watts speaker amplifier output (into an 8-

ohm speaker load) with PoE input

• two dry contact closure outputs

• SIP compatible (RFC3261)

• real-time alarm reporting via SNMP, Syslog,

or TMA software

• configurable via web page or download

• multicast capability, up to eight addresses

Available Models

Table 1. VoIP & VoIP WiFi Electronic Paging Module Model Chart

Part No. Description

10458-701 VoIP Electronic Paging Module, 30 W (8-ohm load)

10458-801 VoIP WiFi Electronic Paging Module, 30 W (8-ohm load)

System Requirements and Limitations

Systems containing VoIP paging module assemblies require A 100 BaseT Ethernet network with SIP

(Session Initiation Protocol) server. The operation of this equipment is limited by the customer’s LAN

media capabilities and the services available at each end point. The performance of each VoIP paging

module is dependent on the provision of sufficient bandwidth and network protocol prioritization to give

the quality of service required. The setup, installation, and software version of key components, such as

switches and routers, can significantly affect this equipment’s operation. Improper connections or loose

cables can also affect their operation.

VoIP paging modules require a local 120/240 V ac power source for operation.

The following network services provide required and optional functionality (This may vary widely

depending on how the network is deployed):

• SIP proxy server (to route calls)

• SIP registrar server (frequently combined with proxy servers)

• TFTP server (for downloading configuration files).

• TCP Syslog server (for reporting alarms and external inputs)

Figure 1. Model 10458-801 Outline Diagram

Pub. 42004-464D

VoIP Electronic Paging Modules—Wired and WiFi Page 3 of 20

P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-464D.docx

03/20

•SNMP server (for reporting via simple network management protocol)

•SNTP server (to synchronize the internal clock)

•STUN server (for NAT firewall traversal)

Dedicated systems, such as Gatekeepers, VoIP-enabled PABXs or soft PABXs may also provide these

functions. GAI-Tronics’ VoIP paging modules only support SIP (Session Initiation Protocol) to

RFC3261 call control signaling.

Multicast Broadcasts

Each paging module can receive multicast broadcasts. Multicast allows a single audio stream to be sent

to multiple end points simultaneously, achieving multi-point paging or public address functionality over

IP. Multicast requires the use of a SIP server that specifically supports multicast functionality and each

interface must be configured (enabled) to receive multicast packets.

Safety and General Information

Installation must be performed by qualified service personnel in accordance with the National

Electrical Code or applicable local codes.

Power Sources—Operate this unit only from the type of power source indicated on the label. If

unsure of the type of power supply to use, contact qualified service personnel.

•Refer to operating instructions for units intended to operate from battery power.

•Use only the recommended approved power supplies with units intended to operate with external

power supplies.

•The power source must comply with EN60950 for units intended to operate with a limited power

source. Substitutions may damage the unit or cause fire or shock.

Outdoor Product

Power Lines—Do not locate this product in the vicinity of overhead power lines, electric lights, power

circuits, or where it may contact such power lines or circuits, as this contact might be fatal. Refer to the

National Electrical Code Article 800 regarding installation.

Antenna Care

Unauthorized antennas, modifications, or attachments can damage the radio and may violate FCC

regulations.

Do NOT hold the antenna when the radio is IN USE. Holding the antenna affects the effective range.

Approved Accessories

Use ONLY GAI-Tronics approved accessories. Please visit www.gai-tronics.com.

Electromagnetic Interference/Compatibility

Electronic equipment may be susceptible to electromagnetic interference. If you experience interference,

visit the FCC website at http://www.fcc.gov for possible solutions.

Pub. 42004-464D

VoIP Electronic Paging Modules—Wired and WiFi Page 4 of 20

P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-464D.docx

03/20

Operational Cautions

HospitalsorHealthCareFacilities

To avoid electromagnetic interference and/or compatibility conflicts, turn off the radio in any facility

where posted notices instruct you to do so. Hospital or health care facilities may be using equipment that

is sensitive to external RF energy.

Aircraft/Airports

Airports may be using equipment that is sensitive to external RF energy. Any use of a radio must be in

accordance with applicable regulations.

Medical Devices—Pacemakers

These recommendations are consistent with the independent research by, and recommendations of the

U.S. Food and Drug Administration. Persons with pacemakers should:

•ALWAYS keep the radio more than six inches (15 cm) from a pacemaker when the radio is turned

ON.

•Do NOT carry the radio in the breast pocket.

•Turn the radio OFF immediately if there is any reason to suspect that interference is taking place.

BlastingCapsandAreas

To avoid possible interference with blasting operations, turn off the radio near electrical blasting caps, in

a blasting area, or in areas posted: Turn off two-way radios. Obey all signs and instructions.

Safe Handling of CMOS Integrated Circuit Devices

Many of the integrated circuit devices used in communications equipment are of the Complementary

Metal Oxide Semiconductor (CMOS) type. Because of their high open circuit impedance, CMOS

integrated circuits are vulnerable to damage from static charges. Care must be taken handling, shipping,

and servicing them and the assemblies in which they are used.

Even though protection devices are provided in CMOS integrated circuit inputs, the protection is effective

only against overvoltage in the hundreds of volts range such as is encountered in an operating system. In

a system, circuit elements distribute static charges and load the CMOS circuits, decreasing the chance of

damage. However, CMOS circuits can be damaged by improper handling of the modules, even in a

system.

To avoid damage to circuits, observe the following handling, shipping, and servicing precautions:

•Prior to and while servicing a circuit module, particularly after moving within the service area,

momentarily touch both hands to a bare metal, earth-grounded surface. This will discharge any static

charge that may have accumulated on the person doing the servicing.

NOTE:Wearing a conductive wrist strap will minimize static build-up during servicing.

•Whenever possible, avoid touching any electrically conductive parts of the circuit module with your

hands.

•Power down the unit before installing or removing the circuit module.

•When servicing a circuit module, avoid carpeted areas, dry environments, and certain types of

clothing (silk, nylon, etc.) because they contribute to static build-up. Similarly, disconnect the test

probe prior to removing the ground lead.

Pub. 42004-464D

VoIP Electronic Paging Modules—Wired and WiFi Page 5 of 20

P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-464D.docx

03/20

•All electrically powered test equipment should be grounded. Apply the ground lead from the test

equipment to the circuit module before connecting the test probe.

•If a circuit module is removed from the system, it is desirable to lay it on a conductive surface (such

as a sheet of aluminum foil) which is connected to ground through 100-kilohms of resistance.

•When soldering, be sure the soldering iron is grounded and has a grounded tip.

•Prior to connecting jumpers, replacing circuit components, or touching CMOS pins (if this becomes

necessary in the replacement of an integrated circuit device), be sure to discharge any static build-up

as described in procedure 1. Since voltage differences can exist across the human body, it is

recommended that only one hand be used if it is necessary to touch pins on the CMOS device and

associated board wiring.

•When replacing a CMOS integrated circuit device, leave the device in its conductive rail container or

conductive foam until it is to be inserted into the printed circuit module.

•All low impedance test equipment (such as pulse generators, etc.) should be connected to CMOS

device inputs after power is applied to the CMOS circuitry. Similarly, such low impedance

equipment should be disconnected before power is turned off.

•Replacement modules shipped separately from the factory will be packaged in a conductive material.

Any modules being transported from one area to another should be wrapped in a similar material

(aluminum foil may be used). Never use non-conductive material for packaging these modules.

Installation

Important Safety Information

Install equipment without modification and according to all applicable local and national electrical codes.

Consult the National Electrical Code (NFPA 70), Canadian Standards Association (CSA 22.1), and local

codes for specific requirements regarding your installation. Class 2 circuit wiring must be performed in

accordance with the NEC.

WARNING

—This product can contain hazardous voltages. Always remove power to this

station and any associated equipment before beginning any installation.

CAUTION

—Do not install this equipment in areas other than those indicated on the approval

listing in the Approvals section of this manual. Such installation may cause a

safety hazard and consequent injury or property damage.

•Read, follow, and retain instructions—All safety and operating instructions should be read and

followed before operating the unit. Retain instructions for future reference.

•Heed warnings—Adhere to all warnings on the unit and in the operating instructions.

•Attachments—Attachments not recommended by the product manufacturer should not be used, as

they may cause hazards.

•Servicing—Do not attempt to service this unit by yourself. Opening or removing covers may expose

you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

Pub. 42004-464D

VoIP Electronic Paging Modules—Wired and WiFi Page 6 of 20

P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-464D.docx

03/20

Outdoor Product

Power Lines—Do not locate this product in the vicinity of overhead power lines, electric lights, power

circuits, or where it may contact such power lines or circuits, as this contact might be fatal. Refer to the

National Electrical Code Article 800 regarding installation.

Antenna Care

Unauthorized antennas, modifications, or attachments can damage the radio and may violate FCC

regulations.

Do NOT hold the antenna when the radio is IN USE. Holding the antenna affects the effective range.

Approved Accessories

Use ONLY GAI-Tronics approved accessories. Please visit www.gai-tronics.com.

This permanently connected apparatus must have an ALL-POLE MAINS switch with a contact separation

of at least 3 mm in each pole incorporated in the electrical installation of the building.

Cable Installation Safety Considerations

Interconnecting communication and Class 2 dc power cables should be separated from electrical light or

other Class 1 circuits by at least 2 inches. The exception is where Class 1 wiring or power circuits are run

in a raceway, or are metal-sheathed or metal-clad, or are permanently separated from the conductors of

the other circuitry by a continuous and firmly fixed nonconductor such as porcelain tubes or flexible

tubing in addition to the insulation on the wire. Communications cables and in-building wiring should be

listed and marked for the purpose according to NEC Article 800.

Mechanical Receipt Inspection

The paging module is shipped in a cardboard container, protected from movement and distress by a self-

forming packaging material. Thoroughly inspect it as soon as possible after delivery. Immediately report

in-transit damage to the transportation company.

Mount the Paging Module

1. Remove the access panel from the Model 234 Tower (if applicable).

2. Remove the back plate from the paging module by removing the four #6-32 screws.

The Model 12510-002 or Model 12510-003 Access Panel Kit (sold separately) contains four #6-32

studs to attach the paging module.

3. Attach the mounting plate to the #6-32 studs with the provided #6 keps nuts.

Be sure to note the orientation of the access panel when attaching the plate (see Figure 2 and Figure

3).

4. Attach the remainder of the paging module to the mounting plate/access panel assembly with the four

#6-32 screws.

Note the orientation of the module.

5. Attach the access panel/paging module to the Model 234 Stanchion.

Pub. 42004-464D

VoIP Electronic Paging Modules—Wired and WiFi Page 7 of 20

P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-464D.docx

03/20

Figure 2. Mounting Plate

Pub. 42004-464D

VoIP Electronic Paging Modules—Wired and WiFi Page 8 of 20

P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-464D.docx

03/20

Figure 3. Component Identification

Open the Module

The VoIP paging module must be opened for programming and installation:

Bench programming and testing is recommended.

1. Remove the assembly from the carton and position on a flat surface.

2. Remove the four screws (two on top and two on bottom) holding the mounting plate to the chassis.

The mounting plate has two finger holes to remove it from the chassis.

3. Remove the six screws holding the chassis together (two on the rear and four on the sides) (see Figure

4).

4. Carefully open the chassis, keeping the U-bracket to the right.

Make all adjustments at the VoIP broadcast carrier PCBA, mounted on the U-bracket (see Figure 5).

Pub. 42004-464D

VoIP Electronic Paging Modules—Wired and WiFi Page 9 of 20

P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-464D.docx

03/20

Figure 4: Electronic Paging Module Assembly (Model 10458-701 shown)

Figure 5: Electronic Paging Module (opened)

Pub. 42004-464D

VoIP Electronic Paging Modules—Wired and WiFi Page 10 of 20

P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-464D.docx

03/20

Field Wiring

The paging modules have terminal blocks on the front of the assembly for all field wiring. The terminal

block labels indicate their functionality (see Figure 6).

WARNING

—Do not apply power until all the connections are wired.

1. Pull all field wires into the communication station.

2. Install all connections as indicated in the following subsections (see Table 2 and Figure 6 for wiring

details).

NOTE:Consult the National Electrical Code (NFPA 70), Canadian Standards Association (CSA 22.1),

and local codes for the specific requirements regarding your installation. Install all equipment

without modification and according to the local and national codes. Class 2 circuit wiring must

be performed in accordance with the NEC.

Table 2. Recommended Cable

Cable Use

Recommended Size

Conductor Range

LAN

Category 5 or better UTP Ethernet cable with an

RJ45 connector

Power

Two-conductor, No. 18 AWG is typical

No.28–12 AWG

Speaker

Two-conductor twisted pair, No. 18 AWG is typical

No. 30–12 AWG

Output contacts

Two or three-conductor, No. 18 AWG is typical

No. 28–20 AWG

Power Connection

Powerover Ethernet(PoE)

The device can be powered from the network cable if the speaker output requirement is less than 8 watts.

PoE works across standard network cabling (i.e. Cat5) to supply power directly from the data ports where

the device is connected.

Connect the LAN cable (Cat5 or better UTP cable) into the RJ45 jack on the VoIP PCBA.

NOTE:PoE is not applicable to Model 10458-80xseries.

LocalPower

The device requires a 120 or 240 V ac power source if the speaker output requirement is greater than 8

watts.

1. Remove the cover from the power terminal block.

2. Connect 120 or 240 V ac power wires observing the H, N, and GND labels.

3. Replace the cover.

NOTE:The external power supply is required for Model 10458-801 (see Figure 6).

Pub. 42004-464D

VoIP Electronic Paging Modules—Wired and WiFi Page 11 of 20

P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-464D.docx

03/20

Speaker Connection

1. Install all speaker kits and the antenna kit (for WiFi installations).

Make sure all wires and cables from the components are at the bottom of the 234 series

communication tower.

2. Connect the black/white and white/black speaker wires to the 4-point speaker connector.

Speakers 1 and 2 are series-wired onto terminals labeled 1 and 2. Speakers 3 and 4 are series-wired

onto terminals labeled 3 and 4 (see Figure 6).

Output Contact Connections

Two relay contact sets are available on the chassis. Each contact is a form A type NO (normally open)

contact.

Opto Output Connection

Connect the violet and orange wires from the GAI-Tronics Model 540-001 strobe to the terminals labeled

+ and −.

Polarity is important: Violet wire (+) and orange wire (−).

Antenna Connection

Plug the BNC connector on the antenna cable into the paging module.

Figure 6. Field Wiring Connections

Pub. 42004-464D

VoIP Electronic Paging Modules—Wired and WiFi Page 12 of 20

P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-464D.docx

03/20

Programming

NOTE:The 10458-701 and -801 VoIP and VoIP WiFi electronic paging modules include the same

embedded website as GAI-Tronics’ VoIP and VoIP WiFi telephones. There are many

programmable parameters utilized by the VoIP telephones that are not utilized by the VoIP

paging modules. All paging modules are factory programmed for optimum operation. Do not

make programming changes other than those directed in this manual.

The network configuration must provide VoIP service (using the SIP protocol) between the desired

locations before attempting to configure a GAI-Tronics VoIP telephone.

First Time WiFi Interface Setup (Model 10458-801 only)

Setup the WiFi interface to configure the telephone’s WLAN connection security:

1. Power on the paging module by connecting 24 to 48 V dc to terminal block P5.

The factory default configuration of the VoIP WiFi telephone’s interface is an access point on a

network named (SSID) HF-A11_AP.

2. Connect to the HF-A11_AP network using a PC/laptop with a wireless adapter.

The yellow LED on the telephone’s WiFi interface should be ON when the PC is connected to the

HFA11_AP network.

3. Open a web browser on the PC and enter 10.10.100.254 into the address field and press ENTER.

NOTE:Verify that the PC’s wireless network adapter is set to DCHP (Obtain an IP address

automatically) to connect to the HF-A11_AP access point.

The HF-A11_AP WiFi log in window opens.

4. Enter admin for both the user and password, and log in.

The WORKING MODE CONFIGURATION web page opens:

Figure 7. WiFi Interface Working Mode Configuration Web page

5. Select STA MODE then click the APPLY button.

The web page shows Set Successfully, Restart to use new setting.

6. Restart to use the new setting, and then click on the STA INTERFACE SETTING selection.

Pub. 42004-464D

VoIP Electronic Paging Modules—Wired and WiFi Page 13 of 20

P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-464D.docx

03/20

The STA INTERFACE SETTING web page opens:

Figure 8. WiFi Interface STA Interface Setting Web page

7. Click the SEARCH button, to the right of in the AP’s SSID field, to find the WiFi network that the

VoIP paging module will operate in.

The SITE SURVEY webpage opens, showing all available networks.

Figure 9. WiFi Interface Site Survey Web page

8. Select the desired network and click the APPLY button.

A reminder window to enter the WEP key or pass phrase pops up.

9. Click the OK button.

10. Enter the WEP Key or Pass Phrase for the selected network and click the APPLY button.

The AP’s SSID, security mode, and encryption type fields will be filled in when the STA interface

setting webpage opens again.

NOTE:Manually enter the AP’s SSID, security mode, encryption type, and WEP key or pass phrase

if the VoIP telephone is not within the range of the wireless network that it is being

configured to operate in.

Pub. 42004-464D

VoIP Electronic Paging Modules—Wired and WiFi Page 14 of 20

P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-464D.docx

03/20

The web page will show Set Successfully, Restart to use new setting after the configuration has

updated.

11. Click on the DEVICE MANAGEMENT selection.

The DEVICE MANAGEMENT webpage opens.

Figure 10. WiFi Interface Device Management Web page

12. Click the RESTART button, located in the RESTART MODULE section.

•The web page will show REBOOTING…while the WiFi module is restarting.

•Both LEDs on the RJ-45 jack J2 will turn OFF for several seconds while the WiFi interface

restarts.

•The green LED turns ON first; after the WiFi interface restarts.

•The yellow LED turns ON when the WiFi interface connects to the newly configured network.

13. Continue with the configuration of the VoIP paging module PCBA (see the VoIP Paging Module

Setup section).

14. If an incorrect WEP Key or Pass Phrase is entered: Follow the instructions in the next section (see

the Reset WiFi Interface Configuration section).

NOTE:The WiFi module is no longer an access point on its own network (HF-A11_AP). The WiFi

module should now be connected to or trying to connect to the newly configured wireless

network. The browser web page will not change from showing REBOOTING…because the PC is

no longer connected to the HF-A11_AP network.

Pub. 42004-464D

VoIP Electronic Paging Modules—Wired and WiFi Page 15 of 20

P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-464D.docx

03/20

Reset WiFi Interface Configuration (Model 10458-801 only)

Use this procedure to erase the current WiFi configuration in the telephone and configure the WiFi

adapter with the factory default settings:

1. Press the RLOAD button for 10 seconds to reset the WiFi interface back to factory default settings.

•The RLOAD button is on the WiFi interface PCBA.

•Both LEDs on the RJ-45 jack (J2) turn OFF for several seconds while the WiFi interface resets.

•Wait for the green LED to turn ON before trying to connect to the HF-A11_AP network.

2. Follow the instructions in the First Time WiFi Interface Setup section to connect to the HF-A11x_AP

network and change the configuration settings.

NOTE:The telephone’s power must be cycled before it will connect to the wireless network after

changing the WiFi interface configuration if the VoIP telephone was configured for DHCP.

VoIP Paging Module Setup

1. Connect a PC to the same network as the VoIP telephone.

2. Log into the unit’s web interface.

The unit is factory configured with a static IP address: 192.168.1.2.

3. Enter the username and password when prompted.

The initial factory settings are:

•USER NAME: user

•PASSWORD: password

4. Change the username and password upon first login.

This security measure helps prevent unauthorized changes to the VoIP telephone’s interface

configuration.

VoIP Paging Module Initial Network Configuration

Configure each VoIP PCBA for operation on the network prior to installation. Assign a local ID, domain,

proxy, and registrar.

1. Assign a host name.

Host names provide identification of different VoIP PCBAs on the network.

2. Test that calls can be made successfully.

3. Maintain the telephone by monitoring alarms.

4. Set up auto-updates.

Refer to Pub. 42004-548 for basic configuration instructions for these VoIP devices.

Close the VoIP Electronic Paging Module

Assemble the two chassis sections and tighten the screws.

Pub. 42004-464D

VoIP Electronic Paging Modules—Wired and WiFi Page 16 of 20

P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-464D.docx

03/20

Maintenance

VoIP Circuit PCBA Pushbuttons

Reset

Press the RESET button momentarily to warm reboot the telephone (see Figure 11). The telephone

maintains the current configuration.

Factory

Use the FACTORY button (see Figure 11) to erase the current configuration and restore the factory

default settings:

1. Press and release the RESET button.

2. Press and hold the FACTORY button for 10 seconds while the telephone is rebooting.

The telephone will reboot again with the factory default settings configured.

Figure 11. VoIP PCBA Indicators and Reset Buttons

Pub. 42004-464D

VoIP Electronic Paging Modules—Wired and WiFi Page 17 of 20

P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-464D.docx

03/20

Status Indication

Power

The ON LED, located on the VoIP PCBA (see Figure 11), illuminates when power is applied to the

telephone.

Heartbeat

The HB LED, located on the VoIP PCBA (see Figure 11), flashes when communication over the LAN is

established.

Link

The LNK LED, located on the VoIP PCBA (see Figure 11), indicates an active network connection when

illuminated.

Speed

The SP LED, located on the VoIP PCBA (see Figure 11), indicates a 100 Mbps network connection

when illuminated or a 10 Mbps connection when off.

USB port

The USB port is for GAI-Tronics service personnel only. Make no connection to this port.

Service and Spare Parts

Contact a regional service center for an RA# (return authorization number) if the equipment requires

service. Equipment must be shipped prepaid to GAI-Tronics with an RA# and a purchase order number.

Repairs or a replacement will be made in accordance with GAI-Tronics’ warranty policy if the equipment

is under warranty. Please include a written explanation of all defects to assist our technicians in their

troubleshooting efforts. Call 800-492-1212 inside the USA or 610-777-1374 outside the USA for help

identifying the Regional Service Center closest to you.

Replacement Parts and Kits

Table 3. Spare Parts List

Part No.

Description

10458-701

10458-801

100-02-7014-000

VoIP PCBA

◼

69625-001

VoIP Broadcast Carrier PCBA

◼

69868-101

Ethernet Wireless Interface PCBA

◼

40404-081

Power Supply PCBA

◼

12234-102

WiFi Antenna/Lens Kit

(for use with 234 series Stanchion)

◼

Pub. 42004-464D

VoIP Electronic Paging Modules—Wired and WiFi Page 18 of 20

P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-464D.docx

03/20

Reference Documentation

VoIP Telephone Basic Configuration Guide.................................................................................42004-548

VoIP Telephone Programming Guide................................................................................. 502-20-0171-001

Specifications

Power Options

AC Power

Input voltage.............................................................................................................120/240 V ac, 50/60 Hz

Input current...................................................................................... 0.35 A @ 120 V ac, 0.2 A @ 240 V ac

PoE (Power over Ethernet) (Model 10458-701 only)

Power............................................................................................................... 802.3af compliant (via RJ45)

Audio Output

Speaker output power

With PoE.....................................................................................................................8 W into 8-Ω load

With 120/240 V ac input...........................................................................................30 W into 8-Ωload

Frequency response....................................................................................................................300–3000 Hz

Network (Ethernet)

Signaling......................................................................................... SIP (RFC3261 compliant) loose routing

Configuration............................................................................................................... embedded web server

configuration file download

SNTP with time zone and daylight saving

automatic updating via TFTP

password protection

Control Outputs

Output 1 (isolated solid-state switch)................................................... 50 mA @ 30 V ac/dc (resistive load)

Output 2 (isolated SPST relay) ................................................................10 A @ 30 V ac/dc (resistive load)

WiFi Module (Model 10458-801 only)

Antenna (part of Model 12234-102 Antenna Lens Kit, purchased separately) ..................2.4 GHz, 2.0 dBi,

50-Ω, omni-directional,

¼ wavelength dipole configuration, VSWR ≤2.0

Standards..........................................................................................................................IEEE 802.11a/b/g/n

static IP provisioning or DHCP STUN client (NAT traversal)

Frequency............................................................................................................................2.412–2.484 GHz

Antenna connector..................................................................................................................................BNC

Mechanical
