Hubble LITHIUM AM Series User manual

AM-2
MANUAL
WARNING:
Working with high voltage systems is dangerous. Do not attempt to modify
your inverter and battery setup unless you are certain you understand the risk.
Speak to a qualied electrician if you are unsure.
It is important that you read this manual before attempting the installation of your
battery. Please take note of certain steps to ensure correct inverter compatibility.
Please visit https://www.hubblelithium.co.za for the latest version of this manual.
V 2.0
REVISION 2

AM-2

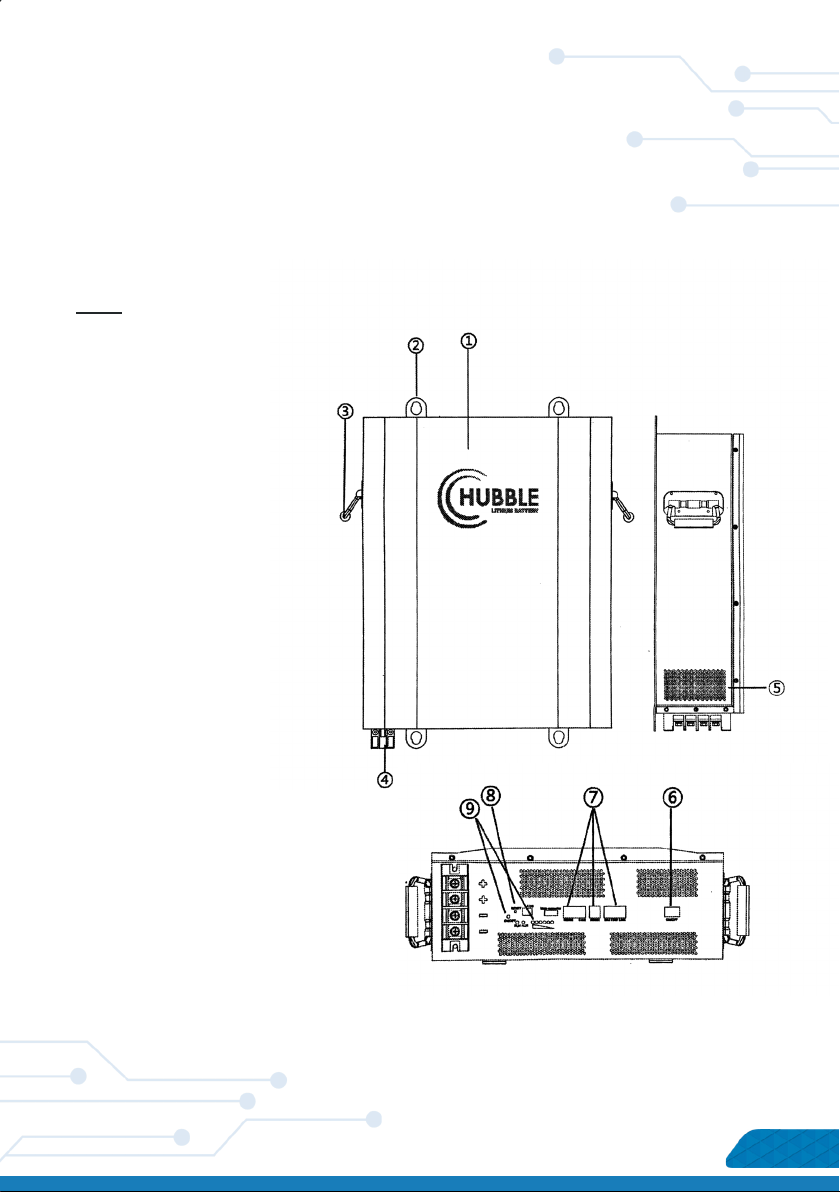

WIRE DIAGRAM
1. Cover
2. Hanging Ear
3. Handle
4. Output Terminal
5. Cooling Case
6. Power Switch
7. Communication Interface
8. Reset Switch
9. LED Lights
1

section 1
installation
WARNING
This product may only be installed by a qualied electritian. The unit is not designed to be installed upside
down or sideways on a wall.
The AM-2 is designed to be wall-mounted or installed at inside a cabinet. When installing on a
wall ensure you use Rawl boats to secure the unit to the wall.
DC ISOLATOR
The Hubble AM series of batteries has an integrated electronic circuit breaker built into the BMS.
The integrated electronic CB is for protecting the battery and the internal cells against overload,
over current, over volt etc. It is however required to install an external DC fuse or circuit breaker
before using or operating the batteries. Please ensure you use the correct rating as per battery
specication.

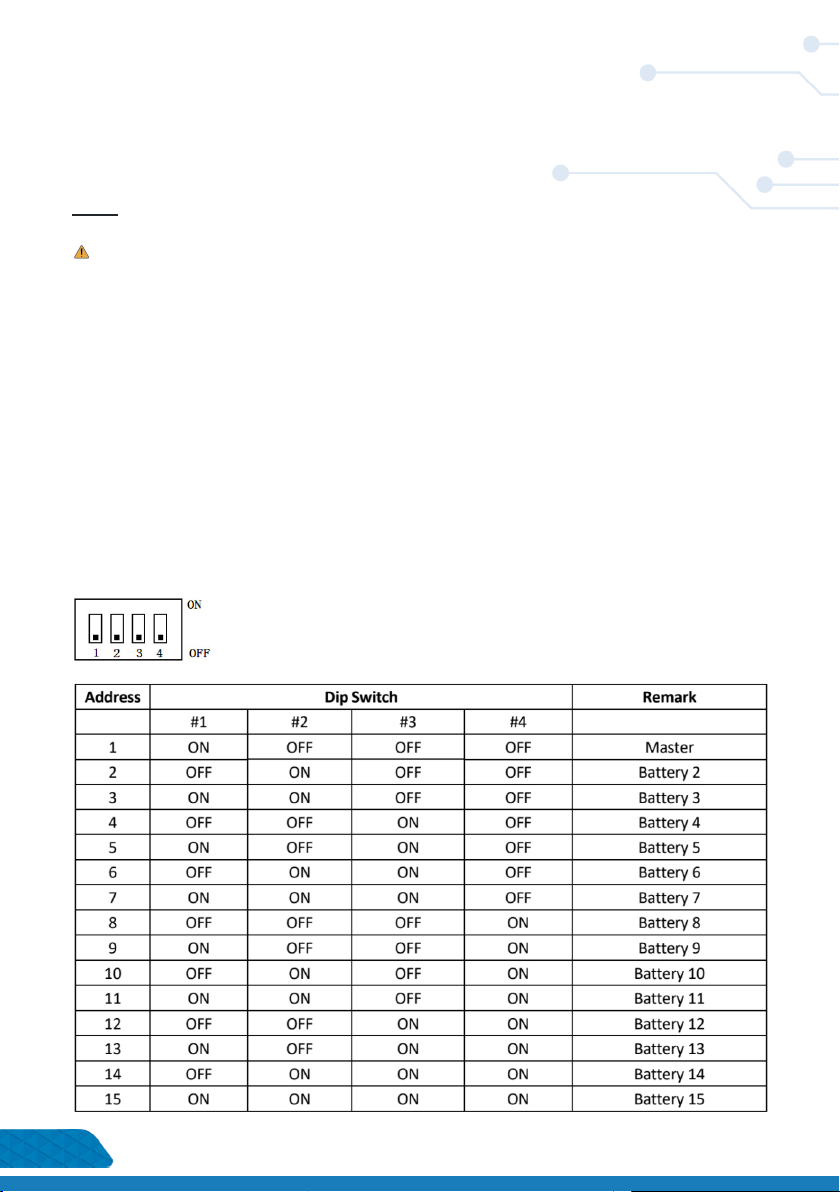

DIP SWITCH SETTINGS
Congure each battery address to enable proper setup and communication. Each battery needs
a unique serial address in order to communicate. If you are only using one battery in your setup,
ensure you set the battery to Address 1.
2

multiple
batteries
To connect multiple batteries, ensure you
use the supplied RJ45 to RJ45 (standard LAN
cable) and plug the one end into the master
“Battery Link”, and the other end into battery
#2. Continue this step until all the batteries
has been linked up
Continue to wire up the DC block terminals of
each battery to the inverter/charger. Once you
have completed the address conguration,
inverter-battery communication links and
wired up the DC connections you can proceed
to congure the inverter charge settings.
CORRECT METHODS OF BATTERY LINKING
Please note the diagrams for the correct
method of linking multiple batteries in parallel.
Diagram 1, displays a standard linking
connection. Digram 2, displays parallel batteries
to which the negatives and positives are
connected to common buzz bars.
DIAGRAM 1 DIAGRAM 2
NOTE: BATTERY LINK CABLE
If you do not have a battery link cable or the cable
provided is an insufcient length, you can use a
standard computer LAN cable to connect each
battery. The pin layouts for the ports are the same
as the universal LAN cable.
WARNING: PROTECTION MODE
If your batteries are unbalanced or the voltage of each pack is different by more than 2 Volts DC then your
packs will try to inter balance by over 100Amps. This could cause the other batteries in the conguration to
Over Current and go into protection mode. If this occurs, charge each pack full individually with the inverter/
charger, then switch the other packs on once each has been charged to 100%.
3

COMMUNICATION
PORTS
RS485 COMMUNICATION PORT
The RS485 interface is used only for performing rmware updates directly for the BMS. This port
cannot be used for any inverter communications.
RS232 COMMUNICATION PORT
The RS232 interface is used to connect to either the Hubble Cloudlink device or for technical
support to interface directly through a service laptop and access the BMS directly for programming
and troubleshooting.
WARNING: FIRE HAZARD & WARRANTY VOID
DO NOT CONNECT THIRD PARTY DEVICE
It is strictly forbidden to access or interfere directly with the battery BMS through third party devices
such as monitoring devices or logging devices that are not Hubble Lithium products. Third party
monitoring and interfacing devices have the potential to change charge voltages and algorithms
inadvertently - this can cause a catastrophic re hazard. Therefore, interfacing to the BMS directly without
authorization will void the warranty and Hubble Lithium will not be liable for any resulting damages.
OPTIONAL CLOUDLINK DEVICE
The Hubble Cloudlink is an optional add-on to the Hubble X and AM range of products. As long
as the device is connected to Wi-Fi it will cloud, all battery and inverter data to our cloud-server,
enabling users to remotely monitor their power system.

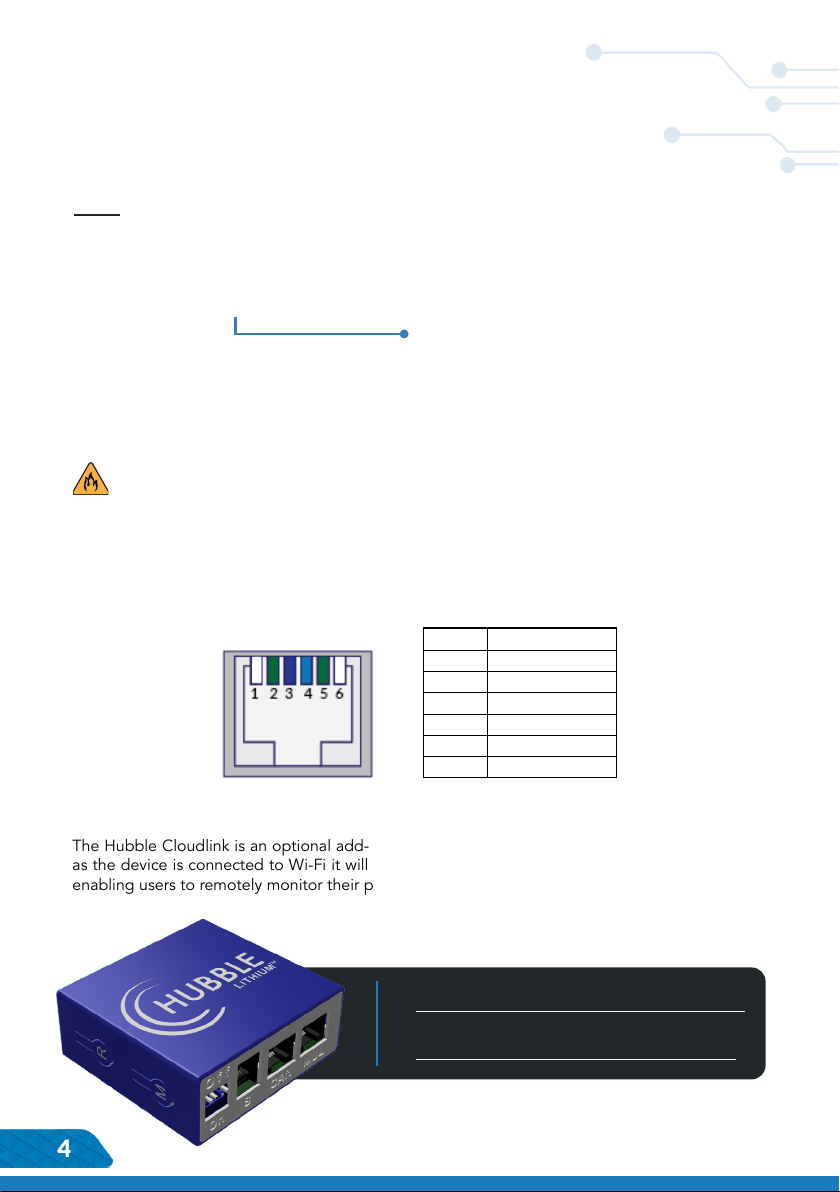

PIN DEFINITION
1 -
2 GROUND
3 BMS TRANSMIT
4 BMS RECEIVE
5 GROUND
6 -
RS232 PIN LAYOUT:
PLEASE NOTE:
This port is reserved for administrative and workshop technicians
4
Learn more about the Hubble Cloudlink here:
https://www.hubblelithium.co.za/hubble-cloudlink.html
Access the latest Coudlink Setup Guide here:
https://www.hubblelithium.co.za/cloudlink-setup.html

PLEASE NOTE:
This port is reserved for administrative and workshop technicians
SECTION 2
INVERTER SETUP
5
PRE-LAUNCH INVERTER SETUP
Set your Inverter/charger to the corresponding settings below before you start charging or using
the lithium batteries.
IMPORTANT NOTICE:
SET THE VOLTAGES CORRECTLY
AS OUT OF RANGE VOLTAGES
CAN DAMAGE THE BATTERY.
INVERTER/CHARGER SETTINGS
BULK / EQUALISATION CHARGE 53.6 V
FLOAT CHARGE 53.6 V
LOW DC CUTOFF 44 V
AXPERT RECOMMENDED SETTINGS
VOLTAGE POINT BACK TO UTILITY 47 V Axpert Type
VOLTAGE POINT BACK TO BATTERY 53 V Axpert Type
The recommended cutoff is 44V ~ 45V. However, the internal battery cutoff is as low as 40V. Setting
the cutoff to 40V will drain the battery to 0%. For extended lifespan we recommend a cutoff of
44V ~ 45V.
CAN BUS SETUP (OPTIONAL)
The AM series models has an integrated CAN bus port on each battery. The CAN bus can be used
to connect to any inverter that is CAN bus ready.
To connect the CAN bus cable from the battery to the inverter, ensure you have the
correct pin layouts. Firstly, ensure that you have the pin layout for the cable required
for your inverter. If you do not have this information, we list select inverter pin layouts
under the “Inverter Guides” tab on our website: https://www.hubblelithium.co.za/
The below is the pin conguration for the Hubble battery CAN cable:
PIN DEFINITION
1 -
2 GROUND
3 -
4 CANH
5 CANL
6 -
7 -
8 -
1 2 3 4 5 6 7 8
PLEASE NOTE:
INVERTER SETUP GUIDES
If you are setting up a non-axpert
type inverter, for example Deye
or Sunsynk - please navigate to
the Inverter Setup Guides tab
on our website and select the
correct corresponding inverter
guide:
https://www.hubblelithium.co.za

SECTION 3
led indicators
STATUS
NORMAL /
ALARM /
PROTECTION
RUN ALM SOC INDICATION LEDS
REMARK
POWER OFF Sleep OFF OFF OFF OFF OFF OFF All off
STANDBY Normal Fash 1 OFF Indication by SOC Standby state
Alarm Flash 1 Flash 3 Cell low voltage
CHARGE
Normal ON OFF
Indication by SOC
(The top SOC LED Flash
2)
ALM LED off when
Cell Over-charge
Voltage Alarm
Alarm ON Flash 3
Over Charge
Protection
ON OFF ON ON ON ON If no mains supply,
LED as standby
Temperature/
Over-current
Fault
Protection
OFF ON OFF OFF OFF OFF
DISCHARGE
Normal Flash 3 OFF
Indication by SOC
Alarm Flash 3 Flash 3
Under
Discharge
Protection
OFF OFF OFF OFF OFF OFF
Temperature
Alarm or
Over-Current
Alarm or
Short Circuit
Protection
OFF ON OFF OFF OFF OFF
Fault OFF ON OFF OFF OFF OFF
LED OPERATION STATUS
LED FLASH STATUS
FLASH ON OFF
FLASH 1 0.35 S 3.75 S
FLASH 2 0.5 S O.5 S
FLASH 3 0.5 S 1.5 S
When battery is turned on you can
reset the BMS operation mode
to default to clear a temporary
alarm status. Push the switch for 6
seconds, the BMS will reset. LEDs
will ash one at the same.
6

7
SECTION 4
bms & maintenance
BMS LOW POWER MODE
The Hubble BMS will enter low power mode if the following conditions happen:
1. When over-discharge protection has occurred. (30S later).
2. When all cell-voltage is less than the Sleep voltage parameter setting to prevent complete cell/
battery drain.
3. Standby time is more than 24 hours (without charge and discharge current, without balance,
without protection and fault).
BMS EMC SAFETY
ESD:
Complies with Level 4 of GB/T 17626.2-2006 (EN55024): 8KV at contact and 15KV at air. Normal
operation after test.
ELECTROMAGNETIC CONDUCTION:
Complies with Lever A of YD/T 983-1998 (EN55022)
ELECTROMAGNETIC RADIATION:
Complies with Lever A of YD/T 983-1998 (EN55022)
INRUSH:
Complies with GB/T 17626.5-2008 (EN6100-4-2).
DATA STORAGE
The Hubble BMS has a built-in alarm and event data storage memory. Alarms and events are
recorded as, occurrence time, fault categories, over/under cell voltage, pack voltage, charge/dis-
charge capacity,charge/discharge current, temperature, etc. This can be downloaded by a service
technician to help troubleshoot any issues or problems of the battery.
MAINTENANCE
The Hubble BMS will protect the battery and lifespan of your battery as best possible. However, it
must be noted that proper operation of the battery is recommended, and maintenance functions
should be taken to ensure the maximum life of your batteries.
Cell balancing is a very important function of the lifespan of your battery. It is important
to ensure the cell balancing functions are properly performed. The Hubble BMS
cell balancer will only activate upon 100% state of charge when the batteries near
full charge. Thus, it is critical that a full charge to the batteries are provided at least
once every 5 (ve) days, but preferably daily upon a charge cycle. Enough charge time
should be provided to balance the cells until the BMS completely stops taking charge
from the inverter. Cell cycle life cannot be guaranteed if balancing is not performed on
a regular basis. This is especially important in complete off grid systems where a stable
power supply is not available.

8
SECTION 5
completing setup
Information published on this manual is correct as of the date published on this manual.
Please ensure you have the latest manual which can be obtained from our website at www.hubblelithium.co.za
Once all the above steps have been completed you can proceed to follow the start-up instructions
given by your inverter manufacturer.
If you have any difculties with setting up your system, please contact our Technical Support
in your initial email so that we can provide you with timely assistance:
1. Inverter make & model
2. Model & number of connected batteries
3. Are your batteries in Series or Parallel?
4. A brief description of your system and any issues you may be having
5. If possible; images of your power system
6. Contact Details, if we should need to contact you
CONGRATULATIONS!
SUBSCRIBE TO OUR
YOUTUBE CHANNEL
TO VIEW OUR VIDEO
TUTORIALS:
https://www.youtube.com/channel/
UCaY_AJhdFtUqoWlWOwscv_Q
