Hublot SBF8A User manual

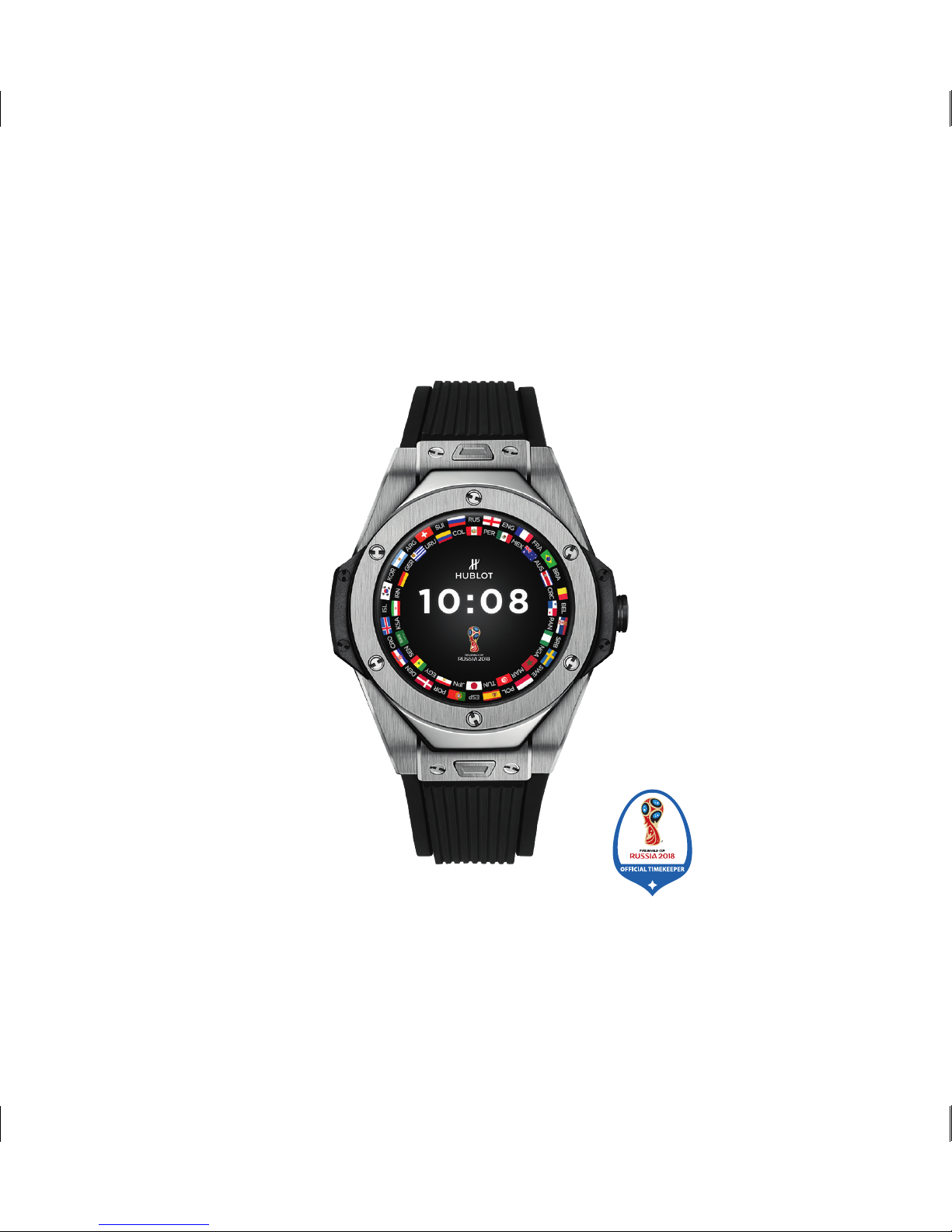

BIG BANG REFEREE 2018 FIFA WORLD CUP RUSSIA TM
INSTRUCTION MANUAL

BIG BANG REFEREE 2018 FIFA WORLD CUP RUSSIA TM
Reference number : 400.NX.1100.RX
Registration number : SBF8A

PART 1
QUICK START
GUIDE /
USER MANUAL
PART 3
HUBLOT
CONTACT
POINTS
PART 4
HUBLOT
CUSTOMER
SERVICE
CENTERS
PART 2
INTERNATIONAL
LIMITED
WARRANTY
1
29
47
65
81
99
115
131
147
163
179
195
211
227
243
259
277
293
309
325
341
357
388
406
409
English
Français
Deutsch
Italiano
Español
Português
Nederlands
Czech/Ceština
Polish/Polski
Danish/Dansk
Swedish/Svenska
Norwegian/Norsk
Finnish/Suomi
Russian/ Russian
Greek/Greeeeeek
Turkish/Türkçe
Thai/ hai
Bahasa Indonesia
Japanese/ panese
Korean/ Korean
Simplified Chinese/ Chinese
Traditional Chinese/ Chinese
Hebrew/ H
Arabic/Arabic
Hublot customer service centers

1
ENGLISH

2

3
INTRODUCTION
Each Big Bang Referee 2018 FIFA World Cup Russia ™ Watch is built to meet the most exacting requirements.
From conception and design to the nishes, we have paid the same attention to detail on this Big Bang Referee
2018 FIFA World Cup Russia ™ Watch as we do on each and every one of our watch models, while joining forces
with Google and Intel.
The materials used in our devices make them exceptionally resilient, even when used under the most rigorous
conditions. Before a new Hublot product is released, it must complete numerous reliability and quality tests.
With its modern, unique and timeless design, your new Big Bang Referee 2018 FIFA World Cup Russia ™ Watch
combines Swiss quality watchmaking tradition with technology.

4
QUICK START GUIDE / USER MANUAL
PART 1
“ ONE CLICK ” SYSTEM
Your Big Bang Referee 2018 FIFA World Cup Russia ™ Watch features an interchangeable “ One Click ” system which
allows you to change your strap and the buckle with great ease.
Detaching the strap from the watch head :
• Press the buttons located at 6o’clock and 12 o’clock on the watch head (diagram 2) then pull the strap away from
the watch head to detach the strap (diagram 3).
Attaching the strap to the watch head :
• Gently insert the metal part of the strap into the space provided in the watch head until you hear a click (diagram 3).
1. (neutral position) 2. 3.

5
Detaching the strap from the buckle :
• Press the button on the back of the buckle (diagram 1) then pull the strap away from the buckle to detach the strap
(diagram 2 and 3).
Attaching the buckle to the strap :
• Gently insert the tab for the “ One Click ” spring attached to the end of the strap (diagram 3 and 4) into the space
provided in the buckle until you hear a click (diagram 3).
If you would like to wear a Hublot strap with your Big Bang Referee 2018
FIFA World Cup Russia ™ Watch which is not the one originally provided,
and which does not have a “ One Click ” attachment (diagram 4),
you can change the attachment yourself using the tab lug at the top right (diagram 4).
You can also refer to the video tutorial which can be found by following this link :
https://www.hublot.com/media/com_modedemploi/Instruction-manual-evolution-of-clasps-EN.pdf
1. (neutral position) 2. 3.
4.

6
COMPATIBILITY
Your Big Bang Referee 2018 FIFA World Cup Russia ™ is compatible with phones running Android 4.4+ and iOS
9+.Visit g.co/WearCheck from your phone to nd out if it is compatible.
CHARGING ACCESSORIES PROVIDED WITH BIG BANG REFEREE 2018 FIFA WORLD CUP RUSSIA ™ WATCH
Your Big Bang Referee 2018 FIFA World Cup Russia ™ Watch should be provided with a charging puck, micro USB
cable* and wall plug*.
*Design or availability may vary depending on the region.
Charging puck Micro USB cable* Wall plug*

7

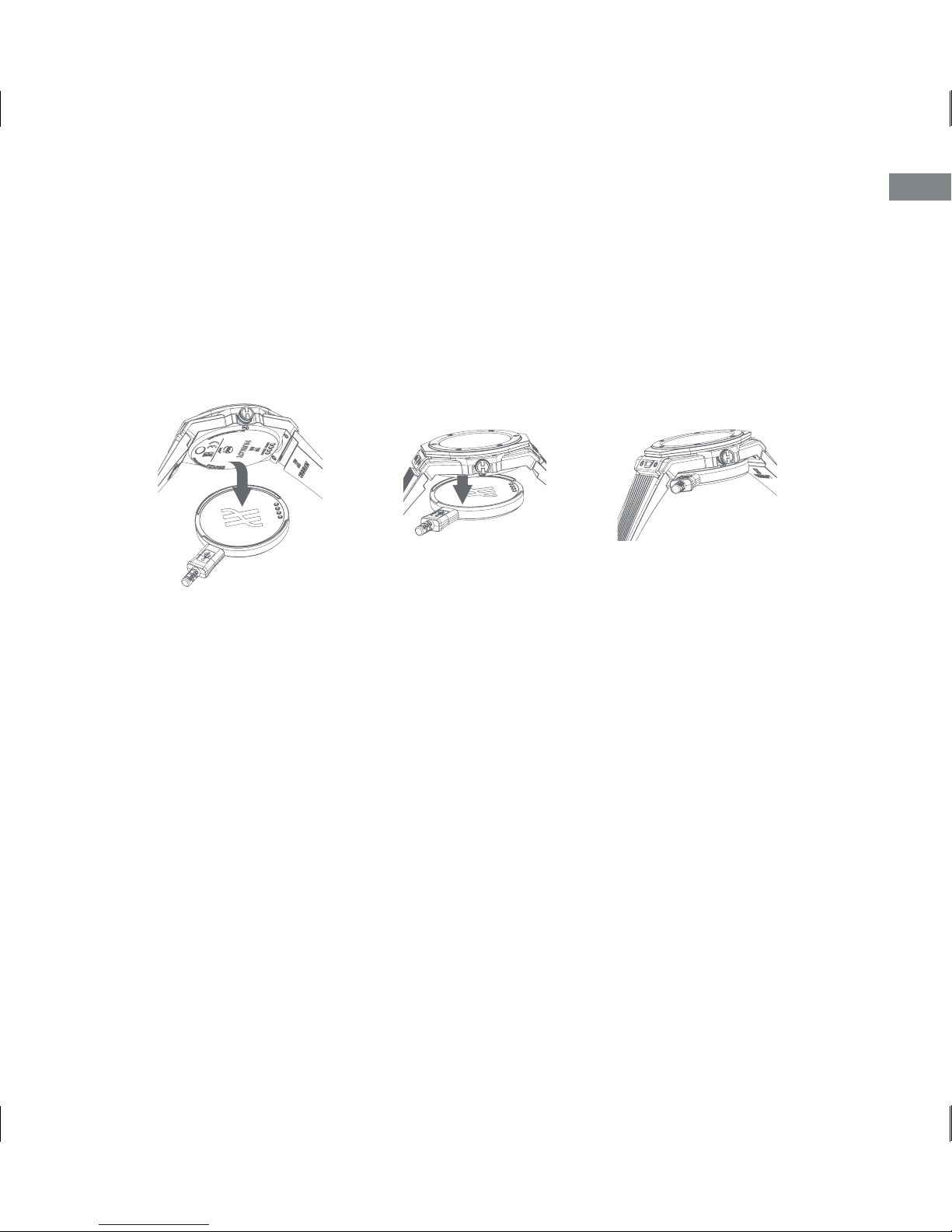

CHARGING YOUR BIG BANG REFEREE 2018 FIFA WORLD CUP RUSSIA ™ WATCH
Before using your Big Bang Referee 2018 FIFA World Cup Russia ™ Watch for the rst time, you should charge the
battery. Use the charging puck, micro USB cable and wall plug provided with the Big Bang Referee 2018 FIFA World
Cup Russia ™ Watch to charge its battery.
It is recommended that your Big Bang Referee 2018 FIFA World Cup Russia ™ Watch is charged every night to ensure
you can enjoy its full benets throughout the day.
1. Please insert the micro USB cable into the charging puck (diagram 1).
2. Place the back of the watch against the charging puck, ensuring that the four connection points line up. Magnets on
the charger will help these to align correctly (diagram 2).
3. After your Big Bang Referee 2018 FIFA World Cup Russia ™ Watch is aligned on the charging puck (diagram 3), plug
the USB cable into the wall plug you received when the Big Bang Referee 2018 FIFA World Cup Russia ™ Watch was
initially purchased. Plug it into an authorized power source.
Note : It is best to unplug your charger when not in use in order to save electricity.
1. 2. 3.1. 2. 3.

8
TURNING ON YOUR BIG BANG REFEREE 2018 FIFA WORLD CUP RUSSIA ™ WATCH
FOR THE FIRST TIME
1. Place your Big Bang Referee 2018 FIFA World Cup Russia ™
Watch on your charger and connect to a power source
2. Press and hold the power button for a few seconds to turn
the watch on
3. Tap the screen to begin
4. Tap a language
5. Follow the on-screen instructions
TURNING OFF YOUR BIG BANG REFEREE 2018 FIFA WORLD CUP RUSSIA ™ WATCH
1. Press and hold the power button
2. Tap “ settings ”, tap “ system ” and tap “ turn off ”.
3. When prompted with message “ Turn off : Are you sure ? ”, tap the checkmark.
PAIRING YOUR BIG BANG REFEREE 2018 FIFA WORLD CUP RUSSIA ™ WATCH
1. Turn on your Big Bang Referee 2018 FIFA World Cup Russia ™ Watch and follow the on-screen instructions.
2. Connect your phone to Wi-Fi, turn on Bluetooth and make sure your phone and Big Bang Referee 2018 FIFA World
Cup Russia ™ Watch are in close proximity.
3. Download the Wear OS by Google application from the Google Play store or App store depending on your phone,
launch the Wear OS by Google app on your phone and follow the instructions.
4. A conrmation message will be displayed on your Big Bang Referee 2018 FIFA World Cup Russia ™ Watch and
phone once they are paired.

9
HOW TO USE YOUR NEW BIG BANG REFEREE 2018 FIFA WORLD CUP RUSSIA ™ WATCH
From the watch face :
1. Swipe right or left to choose a watch face. Tap the one you want to use to activate it.
2. Swipe up to check your notications. Tap a notication to get more information.
3. Swipe down from the top of the screen to open quick settings.
4. Push the power button to open the app list and swipe right to go back to the watch face.
5. Press and hold the power button to launch the Google Assistant. You can also use a voice command.
Try : “ Ok Google - Show me my steps ”.

10

11
INTERNATIONAL LIMITED WARRANTY
PART 2
Your Big Bang Referee 2018 FIFA World Cup Russia ™ Watch has been manufactured in collaboration with top partners
Google and Intel, bringing the best of two different worlds : Swiss luxury watchmaking and Silicon Valley technology.
Each Big Bang Referee 2018 FIFA World Cup Russia ™ Watch has been tested to ensure that it is water-resistant to
50m / 5atm and functions perfectly.
Your Big Bang Referee 2018 FIFA World Cup Russia ™ Watch is covered by a limited international warranty, granted
by Hublot SA, against any manufacturing defects for a period of two years from the date of purchase. The accessories
benet from a one-year warranty from the date of purchase.
Accessories include charging accessories (charging puck, micro USB cable, wall plug) as well as non-charging acces-
sories. Non-charging accessories include bracelets and buckles. For more information about those elements, please
consult the quick start guide in this manual. Limited conditions apply to both the Big Bang Referee 2018 FIFA World
Cup Russia ™ Watch and its accessories. The accessories are not water-resistant, except for rubber straps, ceramic
or metal bracelets, and the buckle.
Your Big Bang Referee 2018 FIFA World Cup Russia ™ Watch and its non-charging accessories are interchangeable,
as illustrated in the quick start guide. Using this function can be dangerous if the components are handled improperly
as the product contains small and sharp components. We strongly recommend that you read through the full terms of
this warranty with due care.
What is covered ?
Under this limited warranty, Hublot SA, having its registered ofce at Ch. de la Vuarpillière 33 – 1260 Nyon, Switzerland
undertakes to repair, free of charge, any problem with the functions of the Big Bang Referee 2018 FIFA World Cup
Russia ™ Watch or its accessories that result from a manufacturing defect. This warranty is only honored in the ofcial
Hublot Customer Service Centers listed in the last section of this document.
The two-year warranty for the Big Bang Referee 2018 FIFA World Cup Russia ™ Watch, and one-year warranty for
accessories from date of purchase of your Big Bang Referee 2018 FIFA World Cup Russia ™ Watch, cover any function
defect arising during normal use of the device in accordance with the technical specications and user manuals for the
Big Bang Referee 2018 FIFA World Cup Russia ™ Watch and accessories. This may relate, for instance, to an issue with
powering on/off or charging, a display malfunction, or an inability to use the applications or functions of your Big Bang
Referee 2018 FIFA World Cup Russia ™ Watch normally due to a defect. This warranty applies in countries where the
Big Bang Referee 2018 FIFA World Cup Russia ™ Watch and its accessories are distributed.

12
Any indisputable quality defect relating to the appearance (scratches, impacts, etc.) or mechanical functions of the
product that obviously result from a quality issue with a component or incorrect assembly of the Big Bang Referee 2018
FIFA World Cup Russia ™ Watch by Hublot are covered by the warranty.
Your Big Bang Referee 2018 FIFA World Cup Russia ™ Watch and its non-charging accessories are interchangeable,
as illustrated in the quick start guide part of this manual. Hublot is not liable for any aesthetic or functional damage
occurring from misuse of any components during assembly performed by the client in an attempt to take advantage
of this product interchangeability.
In addition, certain limiting conditions apply, and it is therefore essential that you read the following paragraphs :
What are the limiting conditions of this warranty ?
To benet from this limited warranty, the following must be provided :
• The “ Hublotista ” International Warranty Card located in the warranty booklet you received with your Big Bang Referee
2018 FIFA World Cup Russia ™ Watch must be enclosed with your Big Bang Referee 2018 FIFA World Cup Russia ™
Watch when it is sent for repair. It must be duly completed, dated and signed, or duly electronically activated by an
authorized Hublot retailer at the time of sale.
• Hublot will not honor the warranty for Big Bang Referee 2018 FIFA World Cup Russia ™ Watches sold without a valid
International Warranty card, duly completed, dated and signed, or duly electronically activated by an authorized Hublot
retailer at the time of sale.
• The serial number engraved on the case is perfectly legible and no part of the original case back or original serial
number has been removed, modied, falsied, altered, replaced, erased, defaced or made illegible.
Failure to abide by any of the above conditions renders all rights resulting from the Hublot international warranty null
and void.
What is not covered ?
Damage resulting from a service provided anywhere other than at an ofcial Hublot Customer Service Center is not
covered and shall void the warranty. The limited warranty also does not cover the crystal and battery, or any damage to
the case or hardware due to moisture that might have entered your Big Bang Referee 2018 FIFA World Cup Russia ™
Watch as a result of improper handling. More generally, it does not apply if your Big Bang Referee 2018 FIFA World Cup
Russia ™ Watch has been used improperly or for unsuitable purposes :
• the product has been opened by the user or by an unauthorized person ;
• the product has been connected to non-recommended accessories such as another type of battery or charger ;

13
• the product has been intentionally damaged or if the recommended rules for product start-up, have not been ob-
served, or if the product has been damaged by being incorrectly plugged in, or exposed to very high voltage or electric
discharges, or subject to major impacts, dropping, or abnormal mechanical stress leading to signicant damage to the
electronic components or case ;
• the product has been abnormally exposed to water or other chemical substances (presence of corrosion,
humidity) ;
• cosmetic or cleaning products, such as wipes, sun cream, or moisturizer, are used on the Big Bang Referee 2018 FIFA
World Cup Russia ™ and, in particular, its screen ;
• the product has been exposed to a high temperature (greater than 60° C/140° F) or other extreme environmental
conditions ;
• an attempt has been made to modify the product software.
If one or the above-mentioned situations are observed, then the Big Bang Referee 2018 FIFA World Cup Russia ™
Watch will not be covered by the international warranty. The normal wear and aging of your Big Bang Referee 2018
FIFA World Cup Russia ™ Watch and its accessories due to normal usage is not covered by warranty. In particular,
this applies to :
• any surface damage due to normal usage of product, scratches on the case, bracelet, crystal, or buckle, ingress of
dust or surface damage, change of color of parts due to exposure to solar radiation or contact with any chemical
substances ;
• reduction in length of performance due to normal aging of the battery.
Additional information about the material used in the Big Bang Referee 2018 FIFA World Cup Russia ™ Watch :
Some of our Big Bang Referee 2018 FIFA World Cup Russia ™ Watches have design features highlighted by a ne
electro-plated titanium carbide coating. Sensitive to friction on hard, rough surfaces, this thin layer of titanium carbide
can wear away over time. The international warranty does not cover the alteration of this thin layer by an impact or
mishandling. Under normal conditions of use, the coating on your Hublot watch will fully satisfy your requirements.
Additional information about operating systems and downloads :
In addition to the above, please note that Hublot shall not be held liable for malfunctions or defects with the Big Bang
Referee 2018 FIFA World Cup Russia ™ Watch which occur following updates to the operating systems of the Big Bang
Referee 2018 FIFA World Cup Russia ™ Watch or pairing of the Big Bang Referee 2018 FIFA World Cup Russia ™
Watch with specic mobile phone models. Furthermore, should you intend to download third party applications and/
or third party software in relation to the Big Bang Referee 2018 FIFA World Cup Russia ™ Watch, you acknowledge
that Hublot shall not be held liable for the use and/or exploitation of such third party applications and/or software.
We strongly encourage you to read through third parties’ terms and conditions with due care.

14
General conditions and limitations :
This warranty gives you specic legal rights and you may also have other rights under local laws which vary from coun-
try to country. Hublot and its ofcial Customer Service Centers shall have sole discretion to decide to repair or replace
any Hublot timepiece under this limited international warranty. To the extent permitted by the local law, Hublot shall not
be liable for any incidental, special, punitive or consequential damages. This limited warranty may be transferred with
the Big Bang Referee 2018 FIFA World Cup Russia ™ Watch.
We recommend that you send your Big Bang Referee 2018 FIFA World Cup Russia ™ Watch by registered mail, care-
fully packaged to prevent damage, to the nearest ofcial Hublot Customer Service Center, or take it to your authorized
Hublot dealer or dedicated Hublot boutique. Hublot cannot be held liable for loss or damage during shipping. This list
of ofcial Hublot Customer Service Centers can be found at the end of this booklet. On request, these ofcial Hublot
Customer Service Centers will provide you with the details of your nearest authorized Hublot dealer or dedicated
Hublot boutique. This warranty does not affect your legal rights as a consumer. Please check that you have received
a “ Hublotista ” International Warranty Card at the time of purchase – otherwise you will not be covered by the limited
warranty services outlined above.
Additionally, in order to be covered by this international warranty, the following administrative conditions must be met
when returning the product :
• To the extent permitted by local laws, the product shall be returned with its original battery and charger to an autho-
rized Hublot Customer Service Center.
For further information, please consult the safety & legal information provided with your product.

15
SPECIFIC ADDITIONAL TERMS OF WARRANTIES APPLICABLE TO AUSTRALIA AND NEW ZEALAND
This International Warranty is in addition to other rights and remedies available to you under law, which may not be
excluded. In addition to your rights above, Hublot goods come with warranties that cannot be excluded under the
Australian Consumer Law or under New Zealand Law. If your Hublot goods are defective, you are entitled to a repla-
cement or refund for a major failure or may be entitled to recover costs, which include an amount for reduction in the
product’s value and in some cases compensation for loss or damage. You are also entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. In Australia,
please contact LVMH Watch & Jewellery Australia Pty Ltd, Level 5, Rialto North Tower, 525 Collins Street Melbourne VIC
3000 Australia for any warranty inquiries.
SPECIFIC ADDITIONAL TERMS OF WARRANTIES APPLICABLE TO FRANCE
This international limited warranty is in addition to other rights and remedies available to you under law, which may
not be excluded. With respect to the above-mentioned international limited warranty, “ when the buyer asks the seller
to carry out repairs covered by his commercial warranty upon the acquisition and the repair of a movable asset, any
resultant period of unavailability lasting seven days or longer shall be added to the unexpired term of the warranty. The
said period shall run from the time when the buyer requests assistance or the time when the product in question is
taken out of service pending repair, should this be subsequent to the request for assistance ” (article L217-16 of the
French Consumer Code).
Notwithstanding anything to the contrary in this warranty, in addition to the international limited warranty, Hublot is
liable for the French legal (i) warranty of conformity described in articles L217-4 to L217-13 of the French Consumer
Code, and (ii) warranty against hidden defects in the conditions set out in articles 1641 to 1648 and 2232 of the
French Civil Code.
With respect to the warranty against hidden defects, according to article 1641 of the French Civil Code “ the seller is
bound to a warranty against hidden defects in the item sold that render it unt for its intended use, or that so impair
its use that the buyer would not have bought it, or would only have given a lesser price for it if he had known of the
defects ”, and to the rst paragraph of article 1648 of the same Code “ an action resulting from redhibitory defects must
be brought by the buyer within two years from the discovery of the defect ”.
With respect to the guarantee of conformity, according to articles L217-4 and L217-5 of the French Consumer Code
“ the seller shall deliver a product which conforms to the contract and is held liable for any lack of conformity which
exists upon delivery. He is also held liable for any lack of conformity caused by the packaging or the assembly instruc-
tions, or the installation if he assumed responsibility therefor or had it carried out under his responsibility ” and “ the
product conforms to the contract ” :

16
1. If it is suitable for the purpose usually associated with such a product and, if applicable :
• If it corresponds to the description given by the seller and has the features that the seller presented to the buyer in
the form of a sample or model ;
• If it has the features that a buyer might reasonably expect to have considering the public statements made by the
seller, the producer or his representative, including advertising and labeling ;
2. Or if it has the features dened by mutual agreement between the parties or is suitable for any special requirement
of the buyer which was made known to the seller and which the latter agreed to . In addition, an “ action resulting from
a lack of conformity lapses two years after delivery of the product ” (article L217-12 of the French Consumer Code).
SPECIFIC ADDITIONAL TERMS OF WARRANTIES APPLICABLE TO THE GRAND-DUCHY OF LUXEMBOURG
This international limited warranty is without prejudice to the rights and remedies available to you in accordance
with the Luxembourg legal (i) warranty of conformity described under articles L212-1 to L212-7 of the Luxembourg
Consumer Code and (ii) warranty against hidden defects in the conditions set out in articles 1641 to 1649 of the
Luxembourg Civil Code.
With respect to the guarantee of conformity, a professional must deliver a product which conforms to the contract and
is held liable for any lack of conformity which exists upon delivery, even unknown to him. He is also liable for any lack
of conformity caused by the packaging, the assembly instructions or the installation if such installation formed part of
the contract or took place under his responsibility. To invoke the professional’s legal warranty of conformity, you must,
using any means, inform the latter of the default in conformity within a period of two years from the date of delivery
of the product.
With respect to the warranty against hidden defects, articles 1641 and following of the Luxembourg Civil Code state
that “ a seller is bound by a warranty against hidden defects in the item sold that renders it unt for its intended use,
or that so impairs such use that the buyer would not have bought it, or would only have given a lesser price for it if he
had known of the defects ”. In accordance with article 1648 of the Luxembourg Civil Code, the buyer must inform the
seller of the hidden defects within a brief period of time from the moment the defect was discovered or should have
been discovered.
SPECIFIC ADDITIONAL TERMS OF WARRANTIES APPLICABLE TO GREECE
This international limited warranty is in addition to the rights and remedies available to you under the relevant provisions
of the Greek Civil Code and Greek Consumer Protection Law 2251/1994, which cannot be excluded.

17
SPECIFIC ADDITIONAL TERMS OF WARRANTIES APPLICABLE TO ISRAEL
Notwithstanding anything to the contrary in this warranty :
• The warranty will be provided by MARVIDEX on behalf of Hublot SA
• The warranty shall commence from the date on which the Big Bang Referee 2018 FIFA World Cup Russia ™ Watch
was delivered to you.
• Following the end of the rst year of warranty, In order to benet from the warranty: (1) The “ Hublotista ” international
warranty card, located in the warranty booklet you received with your Big Bang Referee 2018 FIFA World Cup
Russia ™ Watch, must be enclosed with your Big Bang Referee 2018 FIFA World Cup Russia ™ Watch when it is
sent for repair and must be signed and dated at the time of purchase by an authorized Hublot dealer, and (2) Hublot
will not honor the warranty for Big Bang Referee 2018 FIFA World Cup Russia ™ Watches sold without a valid war
ranty card properly lled out and signed by an authorized Hublot dealer or by a dedicated Hublot boutique.
• During the rst year of warranty :
1) To the extent that in the course of the repair it was necessary to replace the Big Bang Referee 2018 FIFA World Cup
Russia ™ Watch – in whole or in part – then this replacement shall be free of charge. You shall receive a written notice
regarding any repair or replacement that has been done with respect to your Big Bang Referee 2018 FIFA World Cup
Russia ™ Watch.
2) Repairing a malfunction in the Big Bang Referee 2018 FIFA World Cup Russia ™ Watch shall bring it back to the
condition it was in prior to the occurrence of the malfunction, and if such repair involves the replacement of any com-
ponents, such components will be replaced with new and original components.
3) Damage to batteries is covered.
4) Big Bang Referee 2018 FIFA World Cup Russia ™ Watches that have been delivered for repair to a service center
will be repaired within 10 days from the date on which the Big Bang Referee 2018 FIFA World Cup Russia ™ Watch was
delivered to the service center. Big Bang Referee 2018 FIFA World Cup Russia ™ Watches delivered for repair to the
point of sale, will be repaired within 14 days from the date of the delivery of the product to the point of sale. Saturdays
and holidays will not be counted as part of the periods detailed herein.
• Damages arising out of force majeure, which has occured after the Big Bang Referee 2018 FIFA World Cup Russia ™
Watch was delivered to you or from a willful misconduct, are not covered under this warranty. The warranty is provided
in the service centers located at the end of this booklet.
• Big Bang Referee 2018 FIFA World Cup Russia ™ Watch information :
Name of product : Big Bang Referee 2018 FIFA World Cup Russia ™. Registration number: SBF8A followed by the
7-digit Serial number of your product (on the case-back). Year of manufacture: 2017/2018. Date of purchase of the
Big Bang Referee 2018 FIFA World Cup Russia ™ Watch : Please check that you have a “ Hublotista ” warranty card
in the warranty booklet. Seller/Importer : MARVIDEX, IMBER ST- QUIRYAT ARYE, 49002 Petach-Tikva, Israël Phone :
972-3-9297000 FAX: [phone]. Additional Limited Warranty : importer’s obligations which are not listed
under this specic addendum for Israel, and are detailed under the general “ International Limited Warranty ”, shall be
considered as a limited warranty of the importer in accordance with applicable law.
