Hubner EGS 41 Instruction sheet

English
Translation of the original configuration manual issued November 2018
ID 74513
Configuration manual
electronic overspeed switch
EGS®41
EGS®(H)41
certificated according IEC 61508 SIL2 and DIN EN ISO 13849-1 PL d
Read the configuration manual prior to assembly,
starting installation and handling!
Keep for future using!

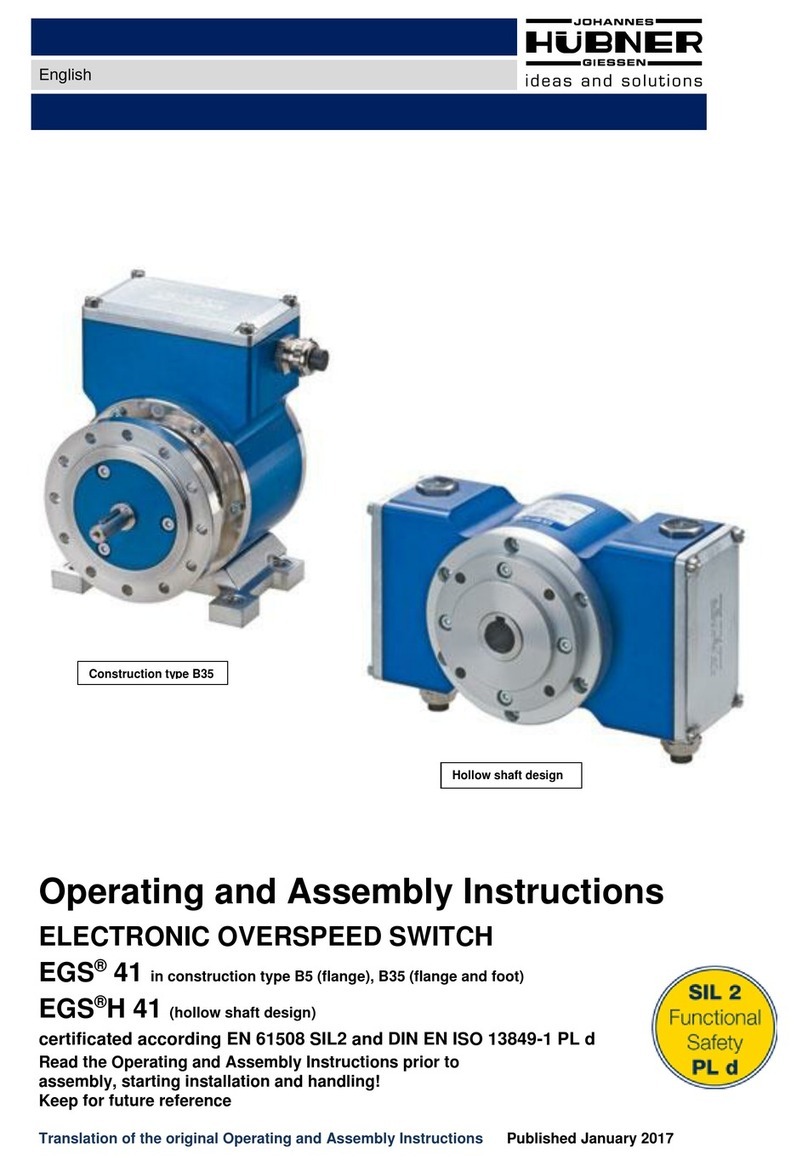

construction B35
hollow shaft design

Configuration manual EGS(H)41
2
Trademark
EGS®is a registered trademark of Johannes Hübner Fabrik elektrischer Maschinen GmbH.
Windows®is a registered trademark of Microsoft Corporation in the United States and other countries.
Protected trademarks bearing a ™ or ®symbol are not always depicted as such in the manual.
However, the statutory rights of the respective owners remain unaffected.
Manufacturer / publisher
Johannes Hübner
Fabrik elektrischer Maschinen GmbH
Siemensstraße 7
35394 Giessen
Germany
Phone: +49 641 / 7969 0
Fax: +49 641 / 73645
E-Mail: [e-mail]
www.huebner-giessen.com
Headquarters: Giessen
Court of registration: Giessen
Commercial register number: HRB 126
The manual has been drawn up with the utmost care and attention. Nevertheless, we cannot exclude
the possibility of errors in form and content. It is strictly forbidden to reproduce this publication or parts
of this publication in any form or by any means without the prior written permission of
Johannes Hübner Fabrik elektrischer Maschinen GmbH.
Subject to errors and changes due to technical improvements.
Copyright © Johannes Hübner Fabrik elektrischer Maschinen GmbH.
All rights reserved.
US41_KonfigManual_En.doc Build: 31795

Configuration manual EGS(H)41
3
Directory
1Setting up........................................................................................................................ 5
1.1 Planning and configuration......................................................................................................... 5
1.2 System requirements.................................................................................................................. 5
1.3 Installing the software................................................................................................................. 6
1.4 Installing the driver manually...................................................................................................... 7
2Configuring ..................................................................................................................... 9
2.1 Fundamental procedure.............................................................................................................. 9
2.2 Configuration planning table..................................................................................................... 10
3Software description .....................................................................................................11
3.1 Head section............................................................................................................................. 12
3.2 Information section ................................................................................................................... 13
3.3 Display section.......................................................................................................................... 13
3.4 Establishing a connection and logging on................................................................................ 14
4Parameters 1..................................................................................................................15
4.1 Inverse rotation evaluation........................................................................................................ 18
4.2 Underspeed .............................................................................................................................. 18
4.3 Rotation-direction dependent switching.................................................................................... 18
4.4 Switch delay.............................................................................................................................. 18
4.5 Slip detection ............................................................................................................................ 18
5Parameters 2..................................................................................................................19
5.1 Broken wire detection ............................................................................................................... 19
5.2 Delayed overcurrent switch-off................................................................................................. 19
5.3 Identification and password...................................................................................................... 19
5.4 Delete errors............................................................................................................................. 20
5.5 Switching contact test............................................................................................................... 20
6Monitoring screen..........................................................................................................21
6.1 Functions .................................................................................................................................. 22
7Operating data ...............................................................................................................23
8Pulldown-Menu “file”.....................................................................................................24
8.1 Save monitoring data................................................................................................................ 24
8.2 Save parameter ........................................................................................................................ 24
8.3 Save device data ...................................................................................................................... 24
9Pull-down-Menu “Settings”...........................................................................................25
9.1 Reset Password........................................................................................................................ 25
9.2 Boot loader firmware................................................................................................................. 26
10Error table ......................................................................................................................27
11Notes on configuration..................................................................................................28
11.1 Switch delay.............................................................................................................................. 28
11.2 Delayed overcurrent switch-off................................................................................................. 28

Configuration manual EGS(H)41
4
11.3 Slip angle detection .................................................................................................................. 28
11.4 Diagnostics output .................................................................................................................... 28
12Index...............................................................................................................................29

Configuration manual EGS(H)41
5
This document tells you how to adjust the program settings for EGS(H) 41 with the EGS41Pro soft-
ware and transfer them to the device.
PLEASE NOTE!
The documentation and the dimensional drawings will be copied in the installation folder
in PDF format by the installation.
1Setting up
Allow sufficient time to plan the integration and configuration of the EGS(H) 41. Please remember that
planning and configuration errors can put people at risk. Put organizational measures in place to guar-
antee safety during configuration procedures!
Ensure that the system cannot enter any dangerous states during the configuration procedures includ-
ing in that part of the system monitored by devices connected to the EGS(H) 41.
To configure the EGS(H) 41 you require the following:
Operating instructions belonging to the EGS(H) 41
Notebook/PC running a Windows® operating system
The configuration software EGS41Pro
A EGS(H) 41 device ready for operations
Connecting cable to connect the notebook/PC with the EGS(H) 41 device
1.1 Planning and configuration
Caution!
Ensure you have planned the application thoroughly before you begin to configure the
EGS(H)41!
Amongst other considerations the planning must include:
A detailed safety analysis of the planned application
A complete list of all required devices, their connections as well as the signals provided or re-
quired by these devices.
In addition, the following conditions must be fulfilled:
The EGS(H) 41 must be connected to the power supply.
The safety components must be electrically connected to the EGS(H) 41.
Read also the appropriate operating and assembly instructions.
1.2 System requirements
For configuration purposes it is possible to use any commercially available Windows®notebooks/PCs
that fulfil the following system requirements:
- Windows®XP SP3 / Vista / 7/8/8.1/10
- CD-ROM drive
- Available USB port

Configuration manual EGS(H)41
6
1.3 Installing the software
Ensure the EGS(H) 41 device and your notebook/PC are connected via the USB cable.
Close the automatically started „Found new hardware wizard“ with a click on “Cancel“.
Place the supplied CD containing the software into the CD drive or, alternatively, download the Set-
up.exe. If the Setup.exe does not run automatically, navigate via Explorer on the CD-ROM drive and
there start the Setup.exe.
1. The Setup guides you through the installation. Please follow the instructions on the monitor.
If you use Windows XP or Vista, continue with step 2, users higher operating system versions
go on to step 3.
2. Windows XP SP3/ Vista
Due to the ended support for your operating system, it is no longer possible for us to sign the
driver, therefore you need to confirm the installation manually. To do this, in Windows XP,
click on “Continue Anyway ”. In Windows Vista click on “ Install this driver software anyway ”.
After that, the setup routine will continue.
3. Completion
The software has been installed and starts automatically.

Configuration manual EGS(H)41
7
1.4 Installing the driver manually
PLEASE NOTE!
You must log into a user account with administrator rights to install the software.
Ensure all programs are closed.
If it is necessary to install the driver manually, depending on your operating system, please check the
following steps.
Connect the supplied USB cable with the EGS(H) 41 device and your notebook/PC
By pressing “Windows key”“Pause/Break”or desktop “Computer”(right click) “Properties”you get into
the System Properties.
Open the device manager, which lists all the connected devices. Select “JHG Dev”(right click)
“Update Driver”.
Windows XP SP3 :

Configuration manual EGS(H)41
8
Newer Windows versions:
Now select the installation source via “Browse”and point to path of your installation, there select the
folder drivers. The Installation begins with a click on Next. The following illustrations are for Windows
XP Sp3 and newer Windows versions.
Windows XP Sp3:
Newer Windows versions:
Click Next, the installation of the driver software for this device has been completed.
Finish the installation with “close”.
The EGS(H) 41 device is now ready to be used.

Configuration manual EGS(H)41
9
2Configuring
In this chapter you will learn how to configure the EGS(H) 41 using the configuration software
EGS41Pro. For the purpose of clarity the user interface is divided up into different sections.
The drawing below offers a schematic overview:
Head section (1):
In this section the software control menus and
the status padlock icon are displayed (please
refer to Chapter 3.1).
Display section (2):
This is where the current device settings of the
EGS(H) 41 are displayed. The display section is
always visible. This makes it possible to check
implemented settings (please refer to Chapters
2.1 and 3.3).
Configuration section (3):
This is where the device parameters are entered
on the pages Parameters 1 and Parameters 2.
This is where graphic information is displayed on
the diagnostic screens
(please refer to Chapters 4 and 5).
Information section (4)
General information about the configuration
software, the connected devices as well as a
dynamic
communications status indicator are displayed in
the information section
(please refer to Chapter 3.2).
2.1 Fundamental procedure
The EGS(H) 41 is configured effectively by taking the following steps:
Turn on the PC
Connect the EGS(H) 41 device to the USB port of the PC
Switch on the EGS(H) 41 device
Launch the software EGS41Pro (please refer to Chapter 3)
Establish communications and log onto the EGS(H) 41 (please refer to Chapter 3.4)
Configure parameters (please refer to Chapters 4 and 5)
Check parameter settings
Approve the parameters in the device
Test the parameter settings of the EGS(H) 41 on a secured system
The EGS(H) 41 device is ready for operations after completing these steps.
Head section (1):
Display section (2)
Configuration section (3)
Information section (4)

Configuration manual EGS(H)41
10
2.2 Configuration planning table
PLEASE NOTE!
A configuration planning table is provided below.
Use a printout or a copy of the planning table below to
plan the configuration of the EGS(H) 41.
Parameter
Factory setting
New value
User device designation
Inverse speed alignment
Not active
Underspeed
Not active
Speed dependent switching
Not active
Switch delay
Not active
Switch 1 active
Not active
Switch 2 active
Not active
S1R –nov_on
90 rpm
S1R –nov_off
100 rpm
S2R –nov_on
180 rpm
S2R –nov_off
200 rpm

Configuration manual EGS(H)41
11
3Software description
Connect the EGS(H) 41 device to the PC with the USB cable.
Switch on the power supply to your EGS(H) 41.
To launch the software EGS41Pro click 'Start \ Programs \ HUEBNER –GIESSEN \ EGS 41.
When launching the software for the first time a window is displayed containing the licensing agree-
ment.
Use the scroll bar on the right-hand side of the screen to view all of the text! Click the 'Print' button to
print out the licensing agreement.
The software EGS41Pro will not launch if you do not accept the licensing agreement.
CAUTION!
Please read the licensing agreement carefully
After you have accepted the licensing agreement the EGS41Pro Home screen is displayed.

Configuration manual EGS(H)41
12
The individual functions on the “Home screen”are described in more detail in Chapter 3.1.
To establish a connection to the EGS(H) 41 proceed as follows:
On the Home screen click the 'Establish connection' button.
Communications have been successfully established when the communication status symbol rotates.
You can now begin to configure the device.
3.1 Head section
The menu bar containing basic commands to operate the software is located in the head section.
PLEASE NOTE!
Menu commands are presently unavailable if dimmed (for example, because the configu-
ration software is unable to communicate with the EGS(H)41.
First define the user language for the user interface under 'System settings/language'.
If required, click '?\Help' to call up the online context-sensitive Help.
To exit the program click 'File\Exit'.
The current log-in status is displayed in the middle of the head section. A padlock with an open shack-
le symbolizes that the configuration is not yet safeguarded against unauthorized alterations.
A closed padlock indicates that the configuration is securely safeguarded against unauthorized altera-
tions. Chapter 5 'Parameter 2 page' contains details on safeguarding the configuration.
The user level with which the user is logged onto the device is displayed below the padlock symbol (in
this example the status is: User.

Configuration manual EGS(H)41
13
3.2 Information section
Information from the connected EGS(H)41 is displayed in the information section.
The previously mentioned dynamic indicator symbolizing the communication status between the PC
and the EGS(H)41 is displayed in the middle. Each successfully transmitted or received data packet
causes the partial ring to rotate.
3.3 Display section
The display section is located on the left-hand side of the screen, where it possible to check the set-
tings transmitted to the EGS(41). The current speed and direction of rotation of the EGS(41). are dis-
played in the top part of the display section.
Below that the speed(s) settings are displayed in table form.
The abbreviations are explained in the chapter 4 on the 'Parameters 1' page.
ATTENTION!
The values displayed in the table always correspond to the current device settings!
Below the table a graphic displays the switching statuses of the safe outputs 'S1, S2' and the diagnos-
tics output 'Diag.'.
ATTENTION!
The graphical symbols always represent the defined setpoint value!
Graphic symbols depicted in red indicate that switch position determined by the
EGS(H)41 does not match the programmed switch position.

Configuration manual EGS(H)41
14
The reason why the switch symbol is highlighted red is because the switch is either defective or not
connected correctly. The number of hours [h] in operation and the PCB temperature of the connected
device is displayed below the switch symbol.
When a switch is inactive it appears dimmed.
Text highlighted red indicates that a device fault has occurred (see Chapter 10).
3.4 Establishing a connection and logging on
Click the button 'Establish connection' to establish communications between the configuration software
and the EGS(H)41 device.
The rotating communications status indicator is displayed.
Data relating to device identification such as user designation, article code and the serial number are
read out of the device and displayed in the information area.
The device status on the right-hand side of the information area changes to 'connected'.
Device data in the information section is refreshed approx. once per second.
You have now accessed the lowest user level. In this level you are able to view the settings of the
connected EGS(H)41. On the 'Monitoring' screen you are able to observe the positions of the switches
analogous to an oscilloscope. Further details are available in Chapter 6.
Password authentication is required to be able to make changes to the configuration!
To enter your password for authentication click the menu item 'Device settings\Parameters'.
Enter your password in the Enter password box and click OK to confirm.
PLEASE NOTE!
The login password is set ex-works to 'huebner'.
CAUTION!
Change the password as soon as possible to protect the configuration from unauthorized
access!
(Please refer to Chapter 5 'Parameter 2 page').
Once you have successfully logged in three new pages are displayed on-screen for selection:
Operating data
Parameters 1
Parameters 2

Configuration manual EGS(H)41
15
Changes are made to the settings of the EGS(H)41 on the pages Parameters 1 and Parameters 2. On
the Operating data page you are able to view a collation of all of the device settings and print these
out for documentation purposes.
Online Help
Press 'F1' to display additional information about the individual functions.
4Parameters 1
On this page the settings are made that define the operating characteristics of the EGS(H)41. You are
able to define the switch-off speeds as well as possible additional speed-dependent functions.
A fundamental condition that applies to all switching speed inputs is that they must be within the de-
vice-specific switching range of 0.5-5400 rpm.
An input value “0”in the field nov_off disables the corresponding switch.
An input value “0”in the field nu-on disabled the underspeed (see chapter 4.2, 4.3).
The speed-dependent functions are displayed in a schematic graphic at the top of the page.
The input fields for entering switching thresholds are displayed in the lower part of the page in table
form. One line is allocated to a respective switch (S1R to S2L).
The columns are allocated to the respective switching thresholds for the speeds nu_on to nov_off and
switch delay.
Depending on the activation boxes selected only those lines and columns are displayed that are rele-
vant to the respective function.
The switches listed in the lines are allocated
as follows
The values listed in the columns are allocated
as follows
S1R:
Switching speeds of switch 1 with
clockwise direction of rotation
nu_off
Switch-off speed for underspeed
detection
S2R:
Switching speeds of switch 2 with
clockwise direction of rotation
nu_on
Switch-on speed for underspeed
detection
S1L:
Switching speeds of switch 1 with
anti-clockwise direction of rotation
nov_off
Switch-off speed for overspeed de-
tection
S2L:
Switching speeds of switch 2 with
anti-clockwise direction of rotation
nov_on
Switch-on speed for overspeed de-
tection
Delay
Delay time applied to triggered
switch-off in ms
Switching range 0,5 … 5400 rpm

Configuration manual EGS(H)41
16
CAUTION!
When switch delay is activated the actual switch-off speed is higher than the set switch-
off speed!
Observe also information on determining the switching deviation described in the Operat-
ing and Assembly instruction EGS(H)41!
After making changes to the switching speed settings click the 'Check input' button to check the new
settings do not violate restrictions.
Restrictions:
nov_on < 0,9 * nov_off
nu_on < 0,9 * nov_on
nov_off < 0,9 * nu_on (or nu_off = nu_on = 0)
0.5 ° < slip angle ≤90°

Once the check has been completed successfully the data is stored to a temporary memory in the
connected device. Flawed entries are highlighted red and data transmission to the device is prevent-
ed.
To indicate that the data has not yet been accepted on a permanent basis the entry and display areas
are each displayed with a red frame.
To begin the process of accepting the changes permanently click the button 'Store data in device'.

Configuration manual EGS(H)41
17
You will again be required by a security prompt to verify and confirm your changes.
Click the 'Confirm' button to confirm the changes you have undertaken and store these permanently in
the connected device.
To reject the changes click the 'Reject' button.
The data in the temporary memory will be deleted.
PLEASE NOTE!
Before the settings can be accepted and used by the EGS(H)41 they must be saved to
the device; to do so click the 'Save data in device' button then click the 'Confirm' button in
the 'Confirm data' dialog box.
The respective activation check boxes are in the Overspeed switch configuration dialogue box on the
right of the page.
As there are no restrictions to observe the settings are transmitted immediately to the temporary
memory in the connected device.
For information on the activation boxes please refer to the chapters 4.1, 4.2, 4.3, 4.4 and 4.5.

Configuration manual EGS(H)41
18
4.1 Inverse rotation evaluation
Clockwise rotation for the switches S1R and S2R is defined as anti-clockwise rotation when viewing
the end of the shaft of the EGS(H)41. When inverse rotation evaluation is activated the allocations for
S1R and S1L are inverted.
4.2 Underspeed
Underspeed is detected. Below the speed nu_off the respective switch is open (off). The switch is
closed again when the speed exceeds nu_on. The input columns for 'nu_on' and 'nu_off' are displayed
if underspeed detection is activated.
4.3 Rotation-direction dependent switching
The switching speeds S1R and S2R apply to clockwise direction of rotation. The speeds S1L and S2L
apply to anti-clockwise direction of rotation.
The input lines for S1L and S2L are displayed if rotation direction dependent switching is activated.
If 'Rotation direction dependent switching' is not activated the switches S1 and S2 are not labelled with
a rotation indicator R or L. The switching speeds entered apply independent of the direction of rota-
tion.
4.4 Switch delay
The adjustable switch delay facility suppresses the switch-off function if the maximum speed is ex-
ceeded only briefly. That can be appropriate for example during load shedding. When the speeds
nov_off are exceeded the switches S1 and S2 are opened only after the delay time set in the 'Delay'
field has elapsed. The delay time can be set between 0 and 300 ms. The switch-off function is not
triggered if the speed again falls below the nov_off value within the set delay time.
PLEASE NOTE!
The delay time applies only to the switch-off function when the defined nov_off speed is
exceeded. All other switching operations are triggered immediately.
4.5 Slip detection
It is important in some applications to be able to detect if the system is standing precisely still or if it is
turning at a crawling speed. The rotary speed monitoring function is unable to detect speeds below
0.25 rpm.
When slip detection is activated the selected switch opens when the drive is stationary (at a standstill).
The switch is closed again if the shaft of the basic unit turns more than the set
slip angle ( ±1° … ±90°), independent of the speed. It is not possible to combine slip angle detection
and underspeed switch-off within a single switching channel.

Configuration manual EGS(H)41
19
5Parameters 2
On this page the settings are made that define the safety-relevant characteristics of theEGS(H)41.
5.1 Broken wire detection
Broken wire detection is available for the switching outputs S1 and S2. Detection is triggered as soon
as the internal load current monitoring measures less than 5 mA when a switch is closed.
PLEASE NOTE!
This detection cannot function if there are opened contacts in the safety circuit in series to
the switch output.
5.2 Delayed overcurrent switch-off
A switching load with high initial current requirements can trigger an undesired over-current switch-off.
It is possible to delay this overcurrent detection 1 ms, 2 ms or 5 ms.
5.3 Identification and password
In the middle section, you can give the device any user device name. This makes it easier to allocate
EGS(H) 41 to its place of installation (e.g. “hoist 22”). The device name is limited to 12 characters.
Furthermore, in the second line of the middle section, you can define a new password for access to
the configuration. With this password, only an authorized group of users will be able to change the
configuration. To verify your authorization, enter the current password in the left box and the new
password in the right box.
Press “change”to activate the new password in the device.
The password must be created from the alphanumeric characters a-z, A-Z and 1-9. The maximum
length of the password is limited to 12 characters.

Configuration manual EGS(H)41
20
PLEASE NOTE
The password on delivery of EGS(H) 41 is “huebner”.
Please note that you must enter a new password to protect the configuration from unau-
thorized changes!
When the factory-set password is changed the padlock symbol at the top of the screen is displayed
closed.
To save changes permanently to the device click the 'Save data to device' button.
If an assigned user password has been lost, see chapter 9.1
5.4 Delete errors
It is possible to delete displayed error messages in the safety settings section. This also resets the
connected device.
If the cause of the error has not been rectified the internal diagnostics displays the error message
again after the connected device is reset.
Load factory settings:
All settings made in the device are returned to the original factory settings.
CAUTION!
Loading the factory defaults irrevocably overwrites all configuration settings, including the
safety settings!
5.5 Switching contact test
You can test the function of the switching outputs in the connected device in the bottom section.
Set the corresponding outputs directly using the buttons allocated to switching outputs S1, S2 and the
diagnosis output Diag.
Press “Reset test”to deactivate the test settings.
You can only carry out the test functions when the device is at a standstill!
