Hubsan NANO Q4 SE User manual

HUBSAN NANO Q4 SE
ITEM NO: H001
www.echothree.co.uk

INTRODUCTION
Thank you for buying thisHubsan product.This specific model is a user friendly
multi-functional RC quadcopter,with full 4-channel control capable of acrobatic
manoeuvres.Please read the manualcarefullyand follow all the instructions.Be sure
to keep the manualfor future reference.
1. Safety Notes
1.1 ImportantNotes
This multi-functional RC quadcopter is not a toy.
To prevent injury from improper operation please read these instructions carefully. Be
aware of your personal safety, safety of others and your surrounding environment. It is
recommended that beginners should learn to fly the quadcopter under the guidance of a
more experienced user.
1.2 Caution
Propellerswork at high speed which may cause injury with improper use.The user is
responsiblefor any damage caused by improperuse.
Do not operate the quadcopter in crowds, buildings, airports or near any high voltage
cables.
1.3 Li-Po batterysafety notes
The quadcopteris poweredby a Lithium-Polymer battery.
If you plan to not use the quadcopter for a prolonged period of time then store with the
battery at approximately 50% charge to maintain battery life and performance.
Important
●Risk of explosionif the batteryis replaced by an unauthorized battery.
●Disposeused batteriesaccordingto the local regulation

1.4 Prevent moisture
The quadcoptercontains many precisionelectricalcomponents.
Store the product in a dry area at room temperature. Exposure to water or moisture
may cause malfunctionand result in loss of control.

1.5 Always be aware of the rotating propellers
Be careful to keep yourself away from the rotating propellers.Always fly the quadcopter in
sight. To prevent any damage or harm, power off the quadcopter and the remote
controllerimmediately after use.
1.6 Avoid flying alone
Beginners should fly under supervision.

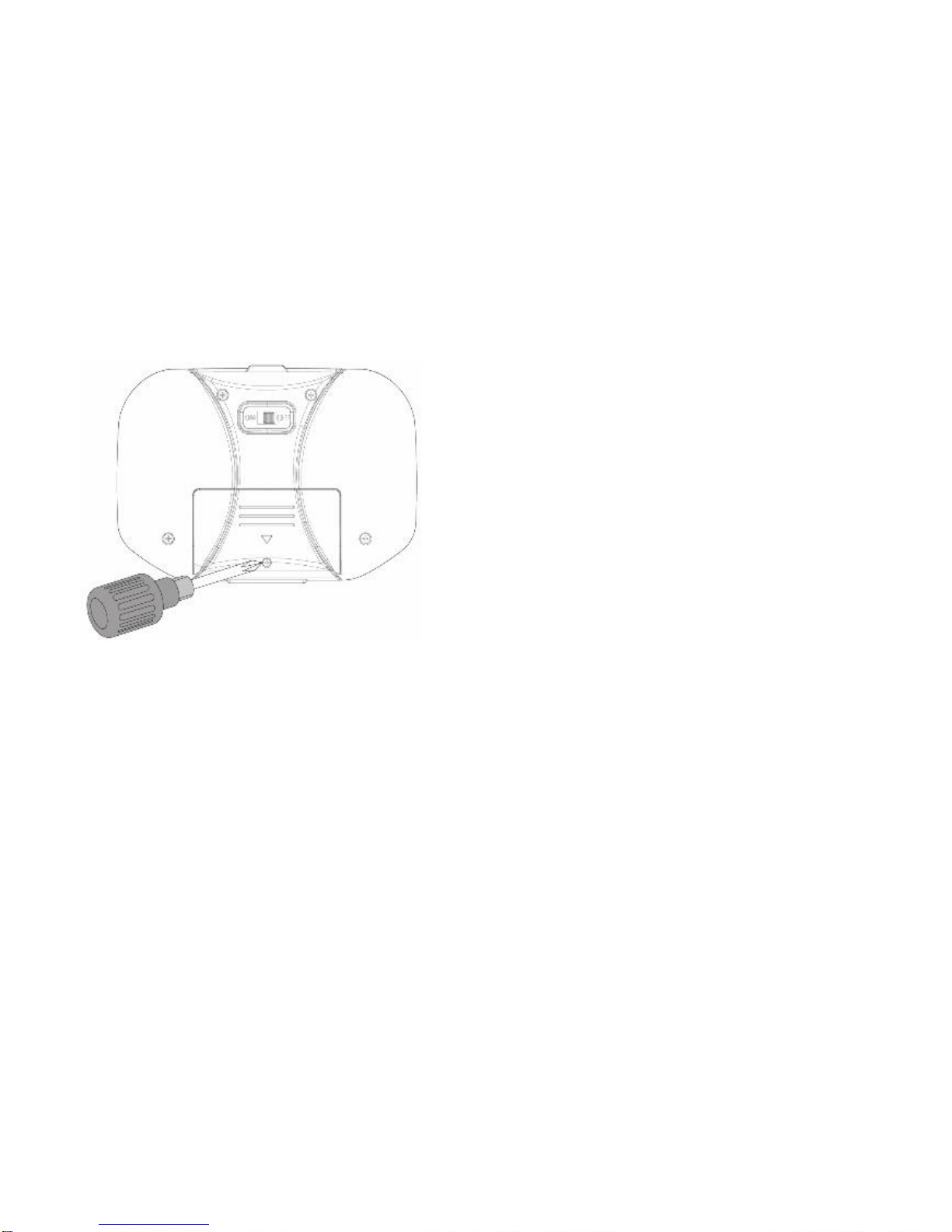

1.7 Changing controller batteries
The remote control requires 2 x AAA
batteries (not included)

2. Items in the Box
Check all the items in the box before use.
S/N Part Name Photos Quantity Remarks
1 Quadcopter 1
Equipped with
1 x Li-Po Battery
2 Propellers 8
Propeller A: 4pcs
Propeller B: 4pcs
3 Remote
Controller
1
Requires
2 x AAA Batteries
(Not Included)
4 USBCharger 1 For
recharging the
Li-Po Battery
5 Manual
1QuickGuideInstruction

3. Safety check before flying
●Before flight, make sure the batteries of the quadcopter and the controller are fully
charged.
●Before powering on the remote controller, make sure the throttle stick is at the lowest
position.
●Turnon the quadcopter first then poweron the transmitter.
●After operating the drone, you must turn off the quadcopter first then the transmitter.
The wrongsequencecould cause damageto the quadcopter and surroundings due to lack
of control.
4. Charge the Li-Po Battery
Connect the quadcopter to the Hubsan USB charger, then connect the USB charger to a
USB
port, such as a computeror mobilepowercharger.
It takes approximately 30 minutes to fully charge the battery. The USB LED indicator will
stay red whilst the quadcopter is charging and will turn off when it is fully charged. Please
unplugthe chargerand battery when chargingis completed.
Flight time is around5 minutes.
The batteryshouldonly be chargedwith the HUBSANchargerto avoid
overcharging
or damage to the battery.

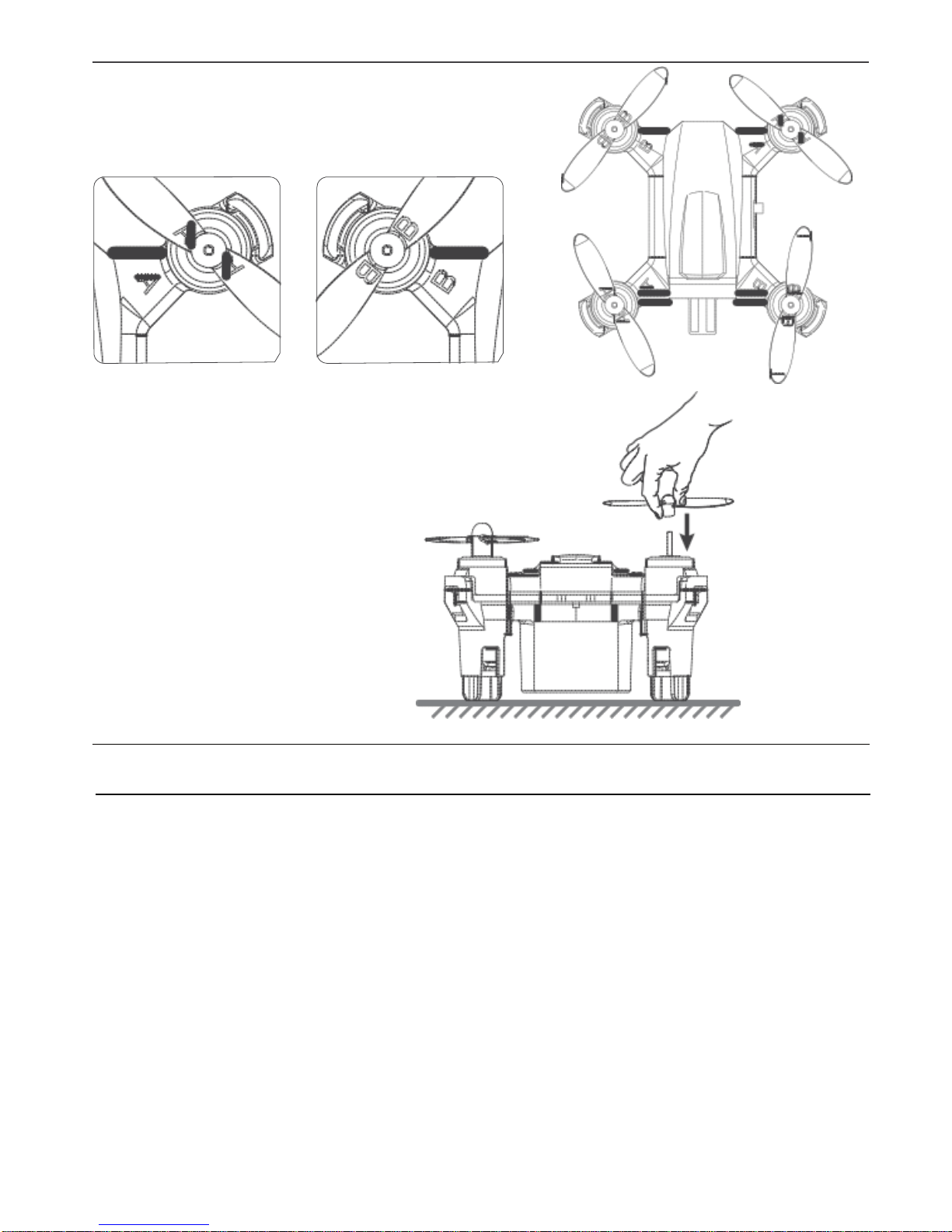

5. Propellers
(1) Attachthe propellers to the corresponding motorsthat
are marked A andB;
A=A B=B
(2) Tighten the propellers to themotorshaft.
●Makesurethat the A andB propellers are installed correctly. The quadcopter
will not fly if propellers are improperly installed.

6. Remote Controller
5 LEDIndicator
1 Throttle/ Rudder Stick 2
Elevator/Aileron Stick
4 Throttle/ Rudder Trim 3 Elevator/ Aileron Trim
4 PowerSwitch
6.1 InputKeyFunction
S/N
Mode/ Control
Function
1
Throttle/RudderStick
Pushthestick forward or backward andthequadcopter
will ascend or descend; Pushthestickleftorright andthe
quadcopter willrotateleftorright.
2
Elevator/AileronStick
Pushthestick forward or backward andthequadcopter
willfly forward or backward; Push thestick leftorright
andthe quadcopter willflyleftorright.
3
ElevatorTrim
Adjusts for forward and backward drift.
4
AileronTrim
Adjusts forleftand right drift.
5
LED Indicator
Flashingredbeforebinding;
Constant red LED afterbinding.
6
PowerSwitch
Turnon/offthe
remote controller.
●Do not mix old and newbatteries ●Do not mix differenttypes of batteries
●Do not charge non-rechargeable battery.

6.2 Quadcopter calibration
Quadcopter calibration is required whenthe quadcopter driftsduringflight.
Landthe quadcopter and placeit ona horizontal/flat surface forcalibration.
Calibrating procedures:
Pushthe leftstick to thebottomright corner, andmovethe rightstick fromleftto right
quicklyandrepeatuntilthe 4 LED indicators on quadcopter flashalternately. Calibration is
completed whenthe indicators stopflashing.
7. Start to Fly
7.1 Power-On
The quadcopteris designed with a Power-On safety system, it ensures the motors will not
start unlesssafetysignals are detected.
7.1.1 First power on the quadcopter, then pull the throttle stick to the lowest position and
power on the transmitter. Before the quadcopter and the transmitter are successfully bound
together, do not move the joysticks or press any of the buttons, otherwise the quadcopter
couldbe unstable.

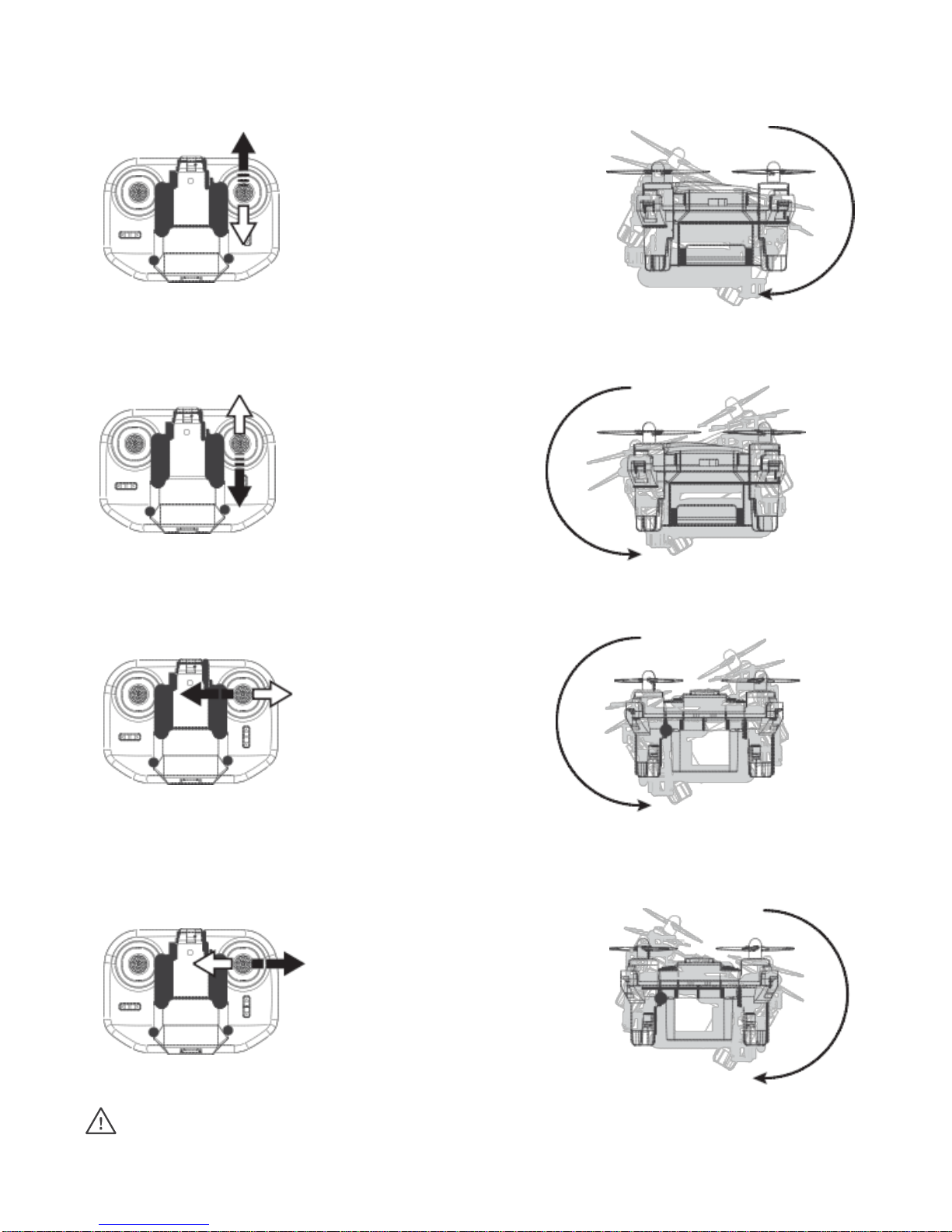

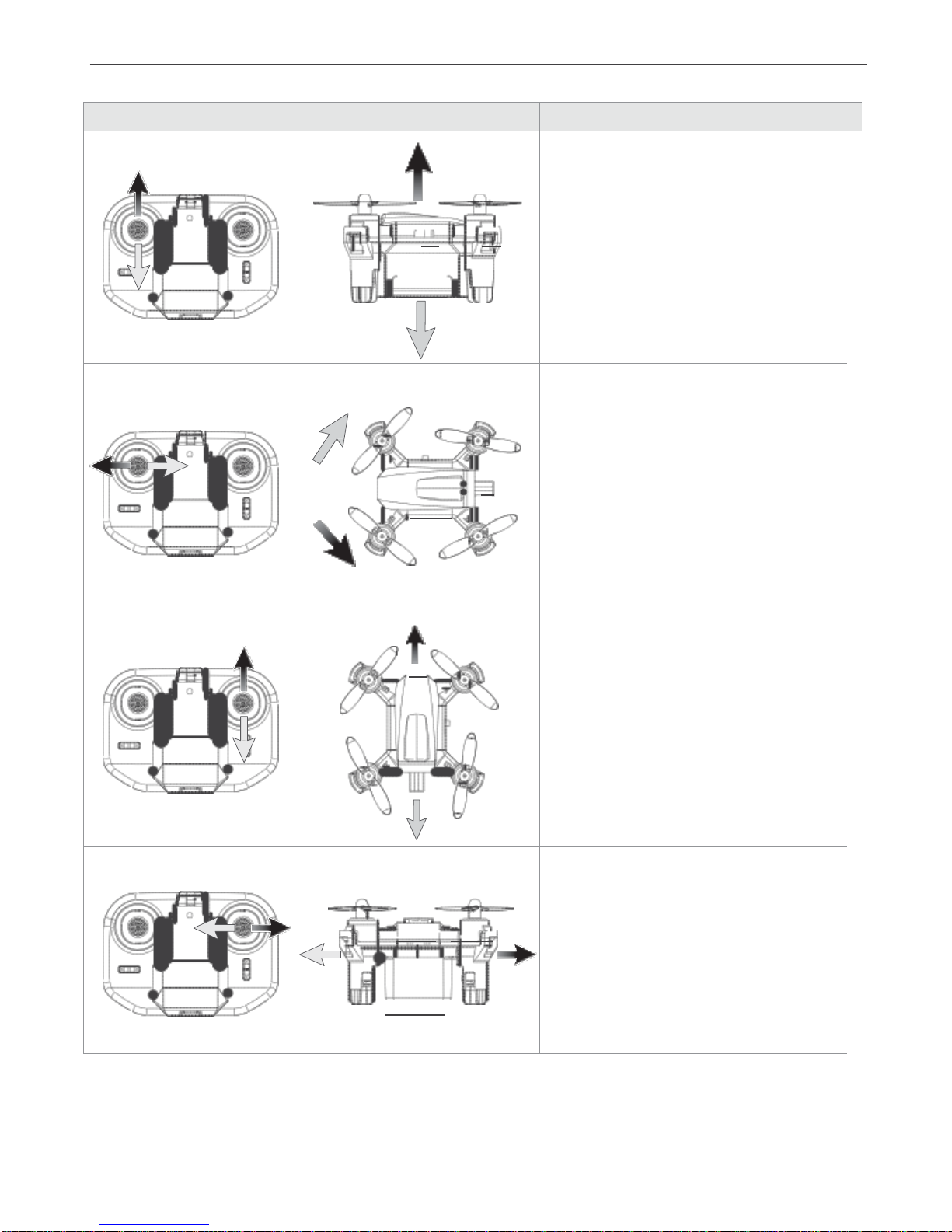

7.2 Basic Flight
Transmitter
Quadcopter
Operation
Up
The throttle stick controls the ascent
and descent of the Q4. Push the
stick up to ascend the Q4. Pull the
stick down to descend the Q4. Move
the throttle stick above center position
to take off. Move the stick gradually to
prevent the Q4from ascending too
quickly.
Right Rotation
Left Rotation
The rudder stick controls the rotation of
the Q4. Pushthe stick to the left and the
Q4 will rotate counterclockwise. Push
the stick to the right and the Q4 will
rotate clockwise. Pushing harder will
cause the Q4to rotate fasterinthe
corresponding direction.
Forward
Backward
The Elevator stick moves theQ4
forward andbackward.
Pushthestick uptheandtheQ4 will
fly forward.
Pullthestick downandthe Q4 will
fly backward.
Theangleofstick movement
corresponds to theangleoftiltand
flightspeed.
Right
Left
The Aileron stick controls leftand right
flight.Pushthesticktotheleftandthe
Q4 willflytotheleft.Pushthestickto
theright and theQ4 willflytotheright.
Theangleof stick movement
corresponds tothe angle of tilt andflight
speed.

7.3 Headless mode
Headlessmodemeansthe Q4 will set the currentdirectionas the defaultdirection.When
you choosea defaultheadlessmode,yourQ4 will alwaysmoveto the left of that default
directionwhen you pull youraileronstickto the left and moveto right when you pull the
aileronstickto the right regardless of wherethe droneis pointingat.
In headlessmode,the 2 LEDin the front will blink simultaneously.
Shortpressthe Throttlestickfor to enter/exitheadlessmode.
Shortpressthe Throttlestickto enterinto the headlessmode,indicatedby two beeps.
Shortpressthe Throttlestickagainto exit the headlessmode,indicatedby one beep.
8. Advanced performance setup
Normal Mode/ Expert Mode
The default settingis NormalMode, and the Expertmode can be activated to increasethe
sensitivity of the remote control sticks.
Aerial Flip Mode
Long press the throttle stick to enter Flip Mode, indicatedby a beep sound.
The beep sound will last for 2 seconds. Within this 2 second period, push the elevator
stick to performa flip.

8.1 Forward flip
Push the elevator stick forward quickly then release the stick.
8.2 Backwardflip
Push the elevatorstick backward quicklythen release the stick.
8.3 Left flip
Push the elevator stick left quickly then release the stick.
8.4 Right flip
Push the elevator stick right quickly then release the stick.
Flip Mode is not available when battery is low.

S/N
PartName
Qty
07
Li-Po Battery
1
08
Lower Body Shell
1
09
Screw PA1.0*4
4
3. Exploded View
1
2
2
3
5
4
4
5
6
7
8
9
S/N
PartName
Qty
01
Propeller A
2
02
Propeller B
2
03
Upper Body Shell
1
04
Motor A
2
05
Motor B
2
06
PCBA
1

H001 TROUBLESHOOTING
1. Transmitter and Quadcopter cannot pair
Throttle stick needs to be at the lowest position. Please do not move or press the sticks and
trimsduringthe initial power-on binding.
2.
Gyroscope notworking.
a ) Battery voltage istoo low.
b) Re-bind.
c ) Land the quadcopter onthe ground withthe throttlestickat thelowest position and wait for
3 seconds thentakeoff.
3.
Unable to flip
Battery voltage is toolow.
4.
Quadcopter is shaking or making noise during flight
Check if the motors, body shell and propellers are properly positioned, then check if themotors
or propellers aredamaged.
5.
Propellers workwell,but cannot takeoff
a) Propellers werenot installed properly. Makesurethat propeller A and B areinstalled
accordingly.
b)Motorswerenot installed properly. Makesure motor A andB are installed accordingly.
6. Oneor more
motors stopped working
a)Checkif propellers were installed tootight.
7. The
quadcopter is drifting
Calibrate as instructed below:
a)Makesurethe propellers, motors and quadcopter areina good condition, the battery isfully
charged and connected correctly andthe quadcopter is boundto the remote controller.
b) Calibrating procedures:
Push the left stick to the bottom right corner, and move the right stick from left to right quickly
and repeat until the 4 LED indicators on quadcopter blink alternately. Calibration is completed
whenthe indicators stopblinking.

All R i ghts Reserved
WWW.HUBSAN.COM
VERSION 1 .3 EN
