HuddleCamHD HuddleCamHD 18x User manual

USB3.0
HD Color Video Camera
User Manual
English

1
Preface:
Thanks for using our HD color video conference camera.
This manual introduces the function installation and operation of the HD camera. Prior to
installation and usage, please read the manual thoroughly.
Warning
This product can be only used in specified range in order to avoid any damage or danger;
Don’t expose the camera to rain or moisture place
Don’t remove the cover to reduce the risk of electric shock. Refer servicing to qualified
personnel.
Never operate the camera under unqualified temperature , humidity and power supply;
Please use the soft cloth to clean the camera. Use neuter cleanser if bad smeared .Don’t use
the strong or cleanser avoiding scuffing.
Notes
Electromagnetic fields at the specific frequency may affect the image quality.

2
Contents
NOTES ..........................................................................................................................................................................................3
ACCESSORIES............................................................................................................................................................................3
FAST INSTALLATION ...............................................................................................................................................................3
CAMERA HIGHLIGHTS ...........................................................................................................................................................5
CAMERA SPECIFICATIONS....................................................................................................................................................5
CAMERA INTERFACE EXPLANATION................................................................................................................................6
REMOTE CONTROLLER EXPLANATION...........................................................................................................................7
USAGE OF IR REMOTE CONTROLLER ..............................................................................................................................8
RS-232C INTERFACE (PIN SPECS).......................................................................................................................................10
COM CONTROL.......................................................................................................................................................................11
MENU SETTING........................................................................................................................................................................16

3
Notes
Electric Safety
Installation and operation must accord with electric safety standards.
Caution to transport
Avoid stress, vibration and soakage in transport, storage and installation.
Polarity of power supply
The power supply of the product is ±12V; the max electrical current is 2A.

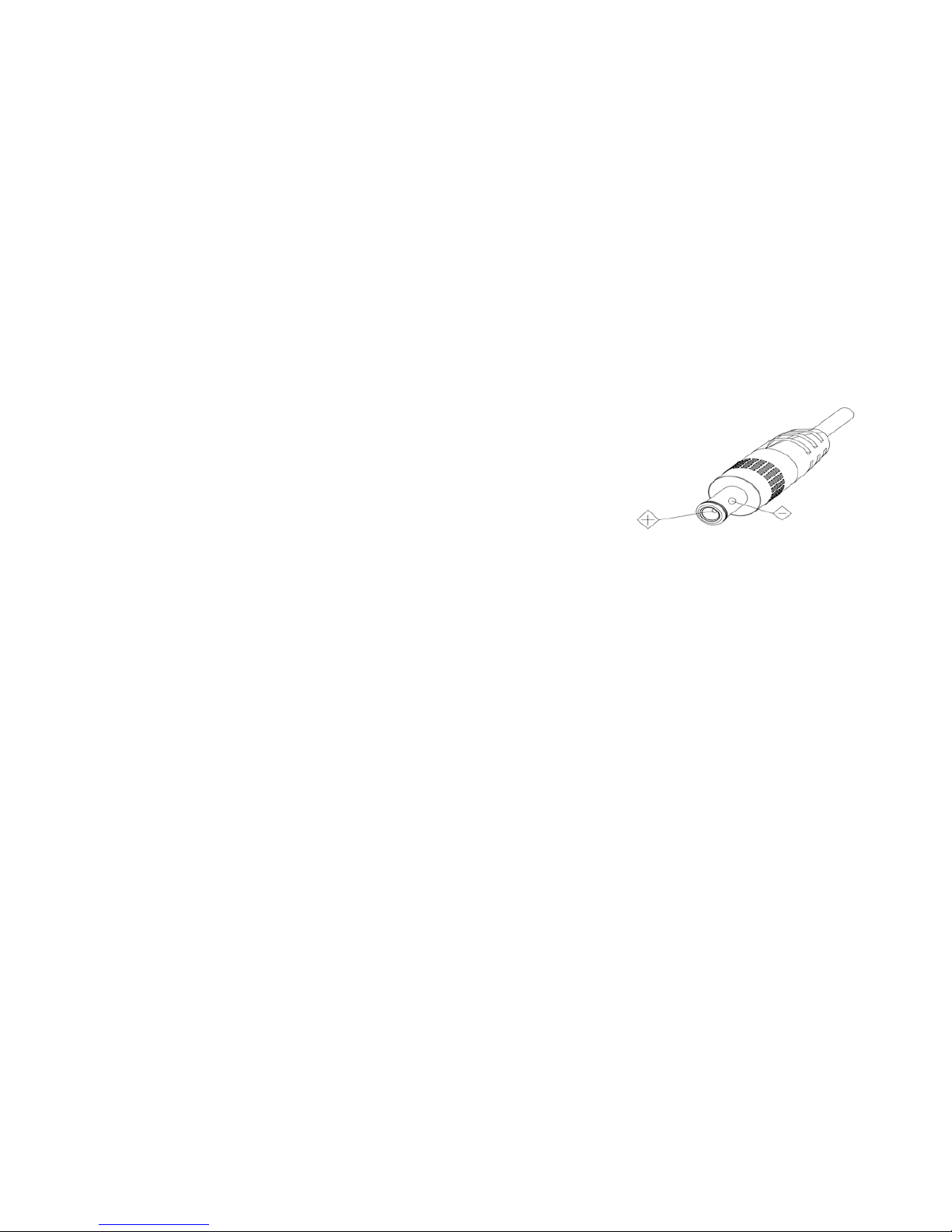

Polarity of the power supply as the following drawing
Install Carefully
Never move the camera by seizing the camera head. Don’t rotate camera head by hand; otherwise,
mechanical trouble will occur.
This series item must put on the smooth desk or platform, and it can not be installed slantways;
If the camera is installed on TV or computer, the base can be fixed by three double-sided adhesive trays.
Don’t apply in corrosive liquid, gas or solid environment to avoid the cover which is made up of organic
material. To make sure no obstacle in rotation range
Never power on before installation is not completed
Don’t dispatch discretionarily
We are not responsible for any unauthorized modification or dismantling.
Accessories
When you open the box, check that all the supplied accessories are included:
Camera.....................................1
Power adapter .........................1
Power cable…………………….1
USB 3.0 data cable…………….1
RS232 cable…………………….1
Remote controller………………1
User manual ……………………1
Double-side glue shim ..............4
Fast Installation
1The system platform is Win7 or Win8;
2 Interface of computer main board is equipped with a USB3.0
Recommended configuration cpu : core i3 3.4GHz; Display cardNvidia GT630;
Internal storage6GBbetter to use desktop
3Computer hardware device manager of universal serial bus (usb) controller are “USB3.0 Root Hub” and
“USB3.0Extensible host controller”
1. Please check the connection before turning on the power.

4
2. Dial switch setting at the bottom
Two DIP switch is set to ON; Namely select normal work mode.
3.rotary switch setting
The choice of 16 rotary switch video formats
Dial-up
0 1080P60
1 1080P50
2 1080P30
3 1080P25
4 720P60
5 720P50
6 720P30
7 720P25
8 --------
9 --------
A --------
B --------
C --------
D --------
E --------
F Display the video format set via OSD menu
Note: need to restart the camera after switching video format.
4.When the power supply switch is “on”, the indicator light is open (red color)
5. Confirm the computer device manager has the image device "Cyt-FX3" device, and then you can find the
"Cyt-FX3" device in the video client-side.
6. Confirm the computer installed USB3.0 driving. Computer hardware device manager of universal serial bus
(usb) controller are “USB3.0 Root Hub”and“USB3.0Extensible host controller” If not, please
install“Intel(R)_USB_3.0_extensible_Host_Controller_Driver
SW2-2SW2
-1
instruction
1 ON OFF Undefined
2 OFF OFF Updating mode
3 OFF ON Debugging mode
4 ON ON Working mode

5
7.When testing the local video, software "e - CAMView” is available.
8.Test PC PTZ control with "AMCAP_PTZ" software to realize the dual function of video and control.Select
“Preview” in the menu “Options” and click “PTZ Control” window through menu “PTZ”. Source code control
protocol will be provided in the attachment.
9.When the camera is power-on and begin initialize, horizontally to the left turn to the limit position, vertically
turn to the bottom; finally both horizontal and vertical turn to the middle position. The motor stops running, and
initialization is completed. (Note: If the power-on mode is opened and saved preset position 0 or 1, then the
pan/tilt will be set to 0 or 1 preset position)
10. Factory Default : entry OSD menu by pressing the menu key of remote controller, MENU->
RESET->ALL RESET, moving the left/right key to select Yes then confirm by HOMEkey as
the following form,
Camera Highlights
1.Chinese / English menu,convenient to use.
2. Provide high speed transmission USB3.0 interface, DVI-I interface(including the HDMI and YPbPr signal)
3. IR remote controller signal transparent transmission function: camera can receive both its own remote
controller signal and the one from terminal equipment, by transmitting the signal through VISCA IN to
terminal equipment IR receiver.
Camera Specifications:
 RESET 

SYS. RESETNO
CAM.RESET NO
P T. RESET NO
ALL. RESETNO
BACK       

6
1. video format : 1080P60/50/30/25 720P60/50/30/25
2. Video Output Interface : USB3.0, DVI-I(including the HDMI and YPbPr signal)
3. Image Sensor : 1/2.8 inch 2 Megapixels high quality HD CMOS Sensor
4. Lens: f4.7mm-84.6mm, (18×optical zoom), F1.8-2.8, angle of view: 62°- 3.2°.
5. Rotation: ±170°for pan rotation, and -30°~+90°for tilt rotation, support up-side down installation.
6. Speed: 0.1°-180°/sec for pan rotation, 0.1°-80°/sec for tilt rotation.
7. Presets : 10 preset positions (can reach to128 presets by serial command), precision error less than 0.2°.
8. Support auto/ manual white balance/indoors/ out doors/ controller auto/ auto-track white balance ,
auto/manual exposure (iris , shuttle ) , auto/manual/One Push focus
9. support WDR function: with performance 100dB,
10. Control Signal interface : 8 pins mini DIN, RS232/RS485VISCA/Pelco-D/Pelco-P protocol
11. Power interface : HEC3800 power jack , Power supply adapter: 12VDC/2A
12. Max power consumption: 12W
13. working temperature: -5 to +45
14. Storage temperature:-20 to +60
15. Weight: 1.3KG
Camera Interface Explanation
1.Camera lens 2.Camera base 3.Power indicator light
4.Remote Controller Receiver light 5.Tripod screw hole 6.Installation hole
7.RS232 control interface 8. USB3.0 B Male interface . 9.12VDC Input Power Supply Jack
Dimension:

7

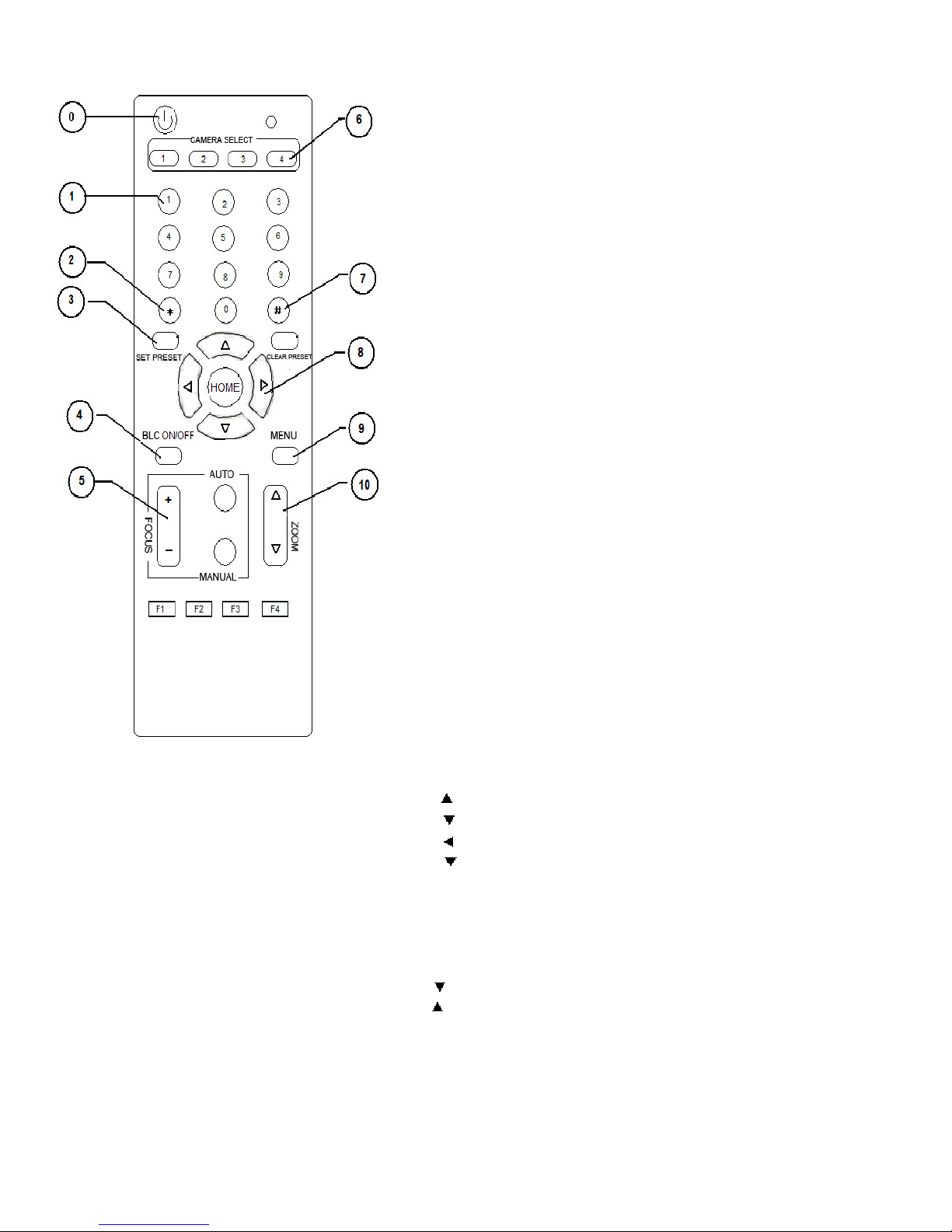

Remote Controller Explanation:
Definition of IR controller
0Standby key
After pressing the standby key, the camera will step into standby
mode.Press again,the camera will open again.(Note: Standby
mode power consumption is about half of the normal mode)
1.Number key
Setting or locating presets
2.* key
Key combination use
3.Set preset key:
Set preset
Set preset key + 0-9 number key
Clear preset key
Clear preset key + 0-9 number key
or++clear all the presets
4.BLC control key
BLC ONopen black light compensationonly work when exposure
mode setting is Auto
BLC OFFclose black light compensationOnly available in the
exposure mode effective for Auto
5.Focus control key
Focusfocus length far from near
Focusfocus length near from far
Auto focusthe camera focus mode is auto
Manual focusthe camera focus mode is manual
6.Camera address selection
Select the camera which want to be controlled
7. # key
Key combination use
8.pan/tilt control key
Press key up
Press key down
Press key left
Press keyright
“HOME” key: Return to the middle position
9.Menu setting
Open or close the OSD menu
10.Zoom Control key
zoom lens near
zoom lens far
11.Camera IR remote control address selection
*++F1Camera Address No.1
*++F2Camera Address No. 2
*++F3Camera Address No. 3
*++F4Camera Address No. 4

8
Usage of IR Remote Controller
Finishing initialization, it can receive and execute the IR commands. Users can control the pan/tilt/zoom,
setting and running preset positions via the IR remote controller.
Key Instruction
1In this instruction, “press the key” means a click rather than a long-press, and a special note will be given
if a long-press for more than one second is required.
2When a key-combination is required, do it in sequence. For example, “ *+#+F1”means
press“*”first and then press“#” and press“F1”at last.

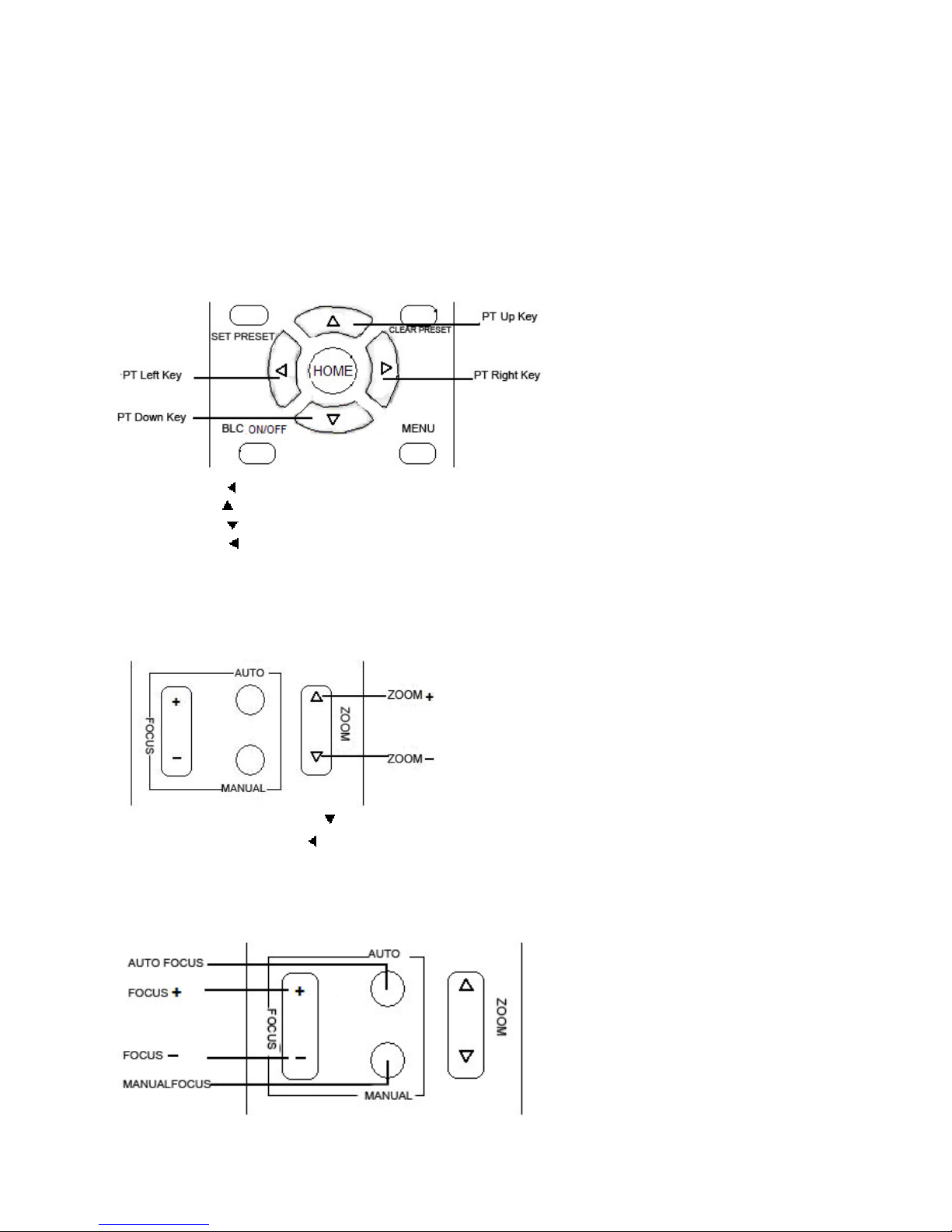

1.Pan/Tilt Control
Up: press
Down: press
Left: press
Right: press
Back to middle positionpressHOME
Press and hold the up/down/left/right key, the pan/tilt will keep running, from slow to fast, until it run to the
endpoint; The pan/tilt running stops as soon as the key is released.
2. Zoom Control
ZOOM OUT: press ZOOM  key
ZOOM IN: press ZOOM  key
Press and hold the key, the camera will keep zooming in or zooming out and stops as soon as the key is
released.
Support Auto and Manual focus
3. Focus Control
Focus (far) Press focus+ key
Focus (near) Press focus-key

9
Auto Focus: Press auto
Manual Focus: Press manual
Press and hold the key, the action of focus continues and stops as soon as the key is released.

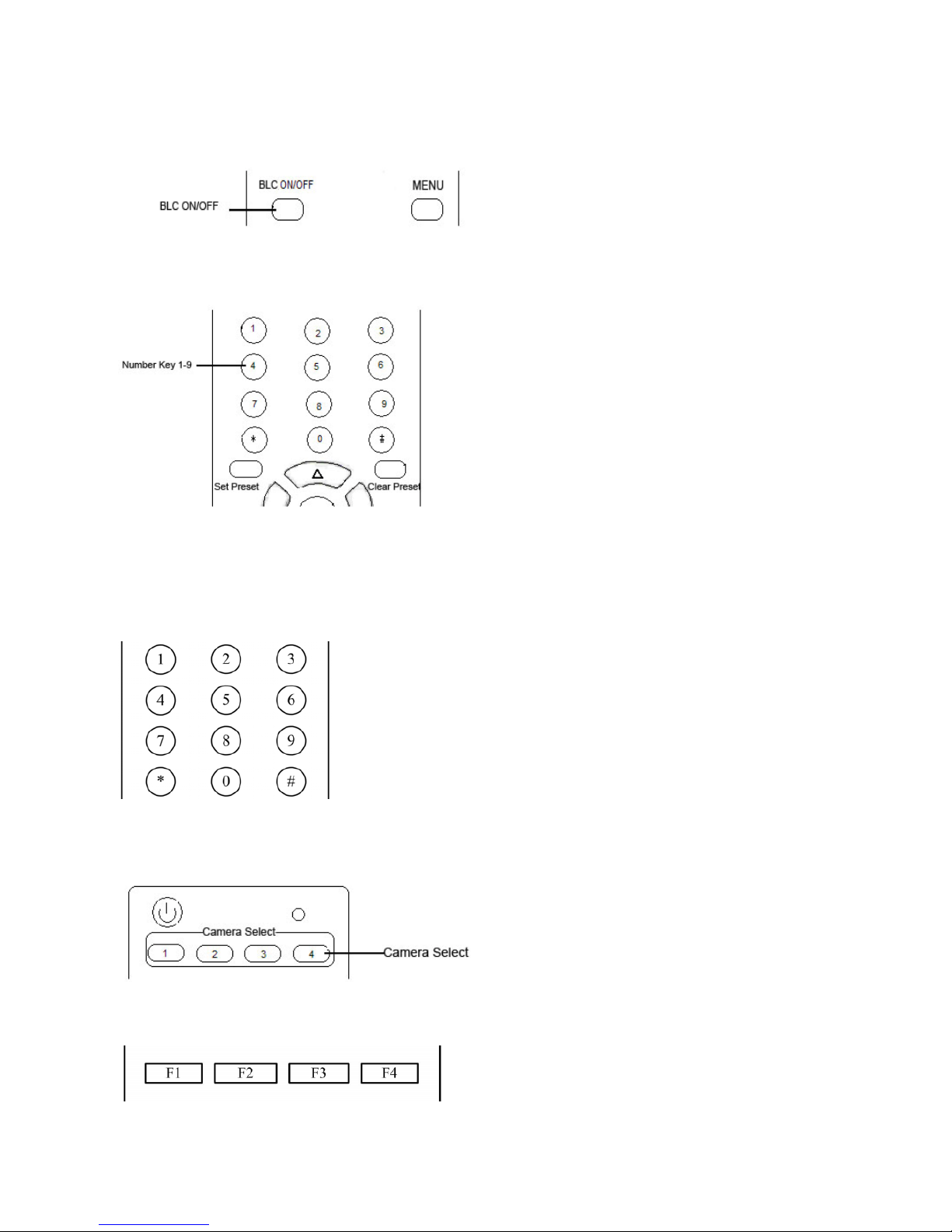

4.BLC Setting
BLC ON / OFF :not support
5. Presets setting
1Preset setting : to set a preset position, the users should press the SET PRESETkey first and then
press the number key 0-9 to set a relative position, 10 preset positions in total are available.
2Preset clearing : to clear a preset position, the user can press the CLEAR PRESETkey first and then
press the number key 0-9 to clear the relative position;
Note : press the#key three times continually to cancel all the presets.
6Preset Running
Press a number key 0-9 directly to run a relative preset.
Note: Action in vain if a relative preset position does not exist.
7Camera Selection
Select the camera number to control.
8Camera Remote Controller Address Setting
*++F1Camera Address No.1
*++F2Camera Address No. 2
*++F3Camera Address No. 3
*++F4Camera Address No. 4

10
RS-232C Interface (Pin Specs)
Camera Windows DB-9
1.DTR 1.CD
2.DSR 2.RXD
3.TXD1 3.TXD
4.GND 4.DTR
5.RXD1 5.GND
6.RS485-A 6.DSR
7.IR OUT 7.RTS
8.RS485-B 8.CTS
9.RI
Camera Mini DIN
1.DTR 1.DTR
2.DSR 2.DSR
3.TXD 3.TXD
4.GND 4.GND
5.RXD 5.RXD
6.RS485-A 6.GND
7.IR OUT 7.NC
8.RS485-B 8.NC
Camera RS485
1.DTR
2.DSR
3.TXD1
4.GND
5.RXD1
6.RS485-A A
7.IR OUT
8.RS485-B B
9.GND
No. Function
1 DTR
2 DSR
3 TXD 1
4 GND
5 RXD 1
6 RS485-A
7 IR OUT
8 RS485-B

11
COM Control
In normal working mode, the camera is able to be controlled via RS-232C/RS485 command (VISCA IN) .
The parameter of the RS232C/RS485 COM is as following :
Baud Rate 2400/4800/9600/115200 bit/s
Start bit1bit ;
Data bit: 8bit ;
Stop bit : 1bit;
Code: None
Connected to power, the camera runs to the down left, then back to middle, with the farthest zoom rate in the
auto focus and auto iris mode. After initialization,the camera runs to the preset No.0 or 1 if it is saved.Then
the users can control the camera via serial command.
VISCA Protocol
Part1 . Camera Return Command
Ack/Completion Message
Command Packet Note
ACK z0 41 FF Returned when the command is accepted.
Completion z0 51 FF Returned when the command has been executed.
z = Camera Address + 8
Error Messages
Command Packet Note
Syntax Error z0 60 02 FF Returned when the command format is different or when a
command with illegal command parameters is accepted
Command Not Executable z0 61 41 FF
Returned when a command cannot be executed due to current
conditions. For example, when commands controlling the focus
manually are received during auto focus.
Part 2 Camera Control Command
Command Function Commad Packet Note
AddressSet Broadcast 88 30 01 FF Address setting
IF_Clear Broadcast 88 01 00 01 FF I/F Clear
CommandCancel  8x 21 FF 
On 8x 01 04 00 02 FF
CAM_Power Off 8x 01 04 00 03 FF Power ON/OFF
Stop 8x 01 04 07 00 FF
Tele(Standard) 8x 01 04 07 02 FF
Wide(Standard) 8x 01 04 07 03 FF

Tele(Variable) 8x 01 04 07 2p FF
Wide(Variable) 8x 01 04 07 3p FF p = 0(low) - 7(high)
CAM_Zoom
Direct 8x 01 04 47 0p 0q 0r 0s FF pqrs: Zoom Position
Stop 8x 01 04 08 00 FF
Far(Standard) 8x 01 04 08 02 FF
Near(Standard) 8x 01 04 08 03 FF

Direct 8x 01 04 48 0p 0q 0r 0s FF pqrs: Focus Position
CAM_Focus
One Push AF 8x 01 04 18 01 FF
CAM_ZoomFocus Direct 8x 01 04 47 0p 0q 0r 0s
0t 0u 0v 0w FF
pqrs: Zoom Position
tuvw: Focus Position
Auto 8x 01 04 35 00 FF Normal Auto
Indoor 8x 01 04 35 01 FF
Outdoor 8x 01 04 35 02 FF
OnePush 8x 01 04 35 03 FF
CAM_WB
Manual 8x 01 04 35 05 FF

12
Command Function Commad Packet Note
Reset 8x 01 04 03 00 FF
Up 8x 01 04 03 02 FF
Down 8x 01 04 03 03 FF
Manual Control of R Gain
CAM_RGain
Direct 8x 01 04 43 00 00 0p 0q FF pq: R Gain
Reset 8x 01 04 04 00 FF
Up 8x 01 04 04 02 FF
Down 8x 01 04 04 03 FF
Manual Control of B Gain
CAM_Bgain
Direct 8x 01 04 44 00 00 0p 0q FF pq: B Gain
Full Auto 8x 01 04 39 00 FF Automatic Exposure mode
Manual 8x 01 04 39 03 FF Manual Control mode
Shutter priority 8x 01 04 39 0A FF Shutter Priority Automatic Exposure mode
Iris priority 8x 01 04 39 0B FF Iris Priority Automatic Exposure mode
CAM_AE
Bright 8x 01 04 39 0D FF Bright mode(Manual control)
Reset 8x 01 04 0A 00 FF
Up 8x 01 04 0A 02 FF
Down 8x 01 04 0A 03 FF
Shutter Setting
CAM_Shutter
Direct 8x 01 04 4A 00 00 0p 0q FF pq: Shutter Position
Reset 8x 01 04 0B 00 FF
Up 8x 01 04 0B 02 FF
Down 8x 01 04 0B 03 FF
Iris Setting
CAM_Iris
Direct 8x 01 04 4B 00 00 0p 0q FF pq: Iris Position
Reset 8x 01 04 0C 00 FF
Up 8x 01 04 0C 02 FF
Down 8x 01 04 0C 03 FF
Gain Setting
CAM_Gain
Direct 8x 01 04 0C 00 00 0p 0q FF pq: Gain Positon
CAM_Bright Direct 8x 01 04 4D 00 00 0p 0q FF pq: Bright l Positon
On 8x 01 04 3E 02 FF
Off 8x 01 04 3E 03 FF Exposure Compensation ON/OFF
Reset 8x 01 04 0E 00 FF
Up 8x 01 04 0E 02 FF
Down 8x 01 04 0E 03 FF
Exposure Compensation Amount Setting
CAM_ExpComp
Direct 8x 01 04 4E 00 00 0p 0q FF pq: ExpComp Position
Reset 8x 01 04 02 00 FF
Up 8x 01 04 02 02 FF
Down 8x 01 04 02 03 FF
Aperture Control
CAM_Aperture
Direct 8x 01 04 42 00 00 0p 0q FF pq: Aperture Gain
Reset 8x 01 04 3F 00 0p FF
Set 8x 01 04 3F 01 0p FF
CAM_Memory
Recall 8x 01 04 3F 02 0p FF
p: Memory Number(=0 to 127)
Corresponds to 0 to 9 on the Remote
Commander
On 8x 01 04 61 02 FF
CAM_LR_Reverse Off 8x 01 04 61 03 FF Image Flip Horizontal ON/OFF
On 8x 01 04 66 02 FF
CAM_PictureFlip Off 8x 01 04 66 03 FF Image Flip Vertical ON/OFF
VideoSystem Set 8x 01 06 35 00 0p FF
P: Video format
1:1080P60
2:1080P50
4:720P60
5:720P50
6:1080P30
7:1080P25
8:720P30
9:720P25
CAM_IDWrite  8x 01 04 22 0p 0q 0r 0s FF pqrs: Camera ID (=0000 to FFFF)
SYS_Menu OFF 8x 01 06 06 03 FF Turn off the menu

13
Command Function Commad Packet Note
On 8x 01 06 08 02 FF
Off 8x 01 06 08 03 FF
IR_Receive
On/Off 8x 01 06 08 10 FF
IR(remote commander)receive ON/OFF
On 8x 01 7D 01 03 00 00 FF
IR_ReceiveReturn Off 8x 01 7D 01 13 00 00 FF
IR(remote commander)receive message via
the VISCA communication ON/OFF
Up 8x 01 06 01 VV WW 03 01 FF
Down 8x 01 06 01 VV WW 03 02 FF
Left 8x 01 06 01 VV WW 01 03 FF
Right 8x 01 06 01 VV WW 02 03 FF
Upleft 8x 01 06 01 VV WW 01 01 FF
Upright 8x 01 06 01 VV WW 02 01 FF
DownLeft 8x 01 06 01 VV WW 01 02 FF
DownRight 8x 01 06 01 VV WW 02 02 FF
Stop 8x 01 06 01 VV WW 03 03 FF
AbsolutePosition 8x 01 06 02 VV WW
0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF
RelativePosition 8x 01 06 03 VV WW
0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF
Home 8x 01 06 04 FF
Pan_tiltDrive
Reset 8x 01 06 05 FF
VV: Pan speed 0x01 (low speed) to 0x18 (high
speed)
WW: Tilt speed 0x01 (low speed) to 0x14 (high
speed)
YYYY: Pan Position(TBD)
ZZZZ: Tilt Position(TBD)
Set 8x 01 06 07 00 0W
0Y 0Y 0Y 0Y 0Z 0Z 0Z 0Z FF
Pan-tiltLimitSet
Clear 8x 01 06 07 01 0W
07 0F 0F 0F 07 0F 0F 0F FF
W:1 UpRight 0:DownLeft
YYYY: Pan Limit Position(TBD)
ZZZZ: Tilt Limit Position(TBD)
Part3 Inquiry Command
Command Command Packet Return Packet Note
y0 50 02 FF On
CAM_PowerInq 8x 09 04 00 FF y0 50 03 FF Off(Standby)
CAM_ZoomPosInq 8x 09 04 47 FF y0 50 0p 0q 0r 0s FF pqrs: Zoom Position
y0 50 02 FF Auto Focus
CAM_FocusModeInq 8x 09 04 38 FF y0 50 03 FF Manual Focus
CAM_FocusPosInq 8x 09 04 48 FF y0 50 0p 0q 0r 0s FF pqrs: Focus Position
y0 50 00 FF Auto
y0 50 01 FF Indoor mode
y0 50 02 FF Outdoor mode
y0 50 03 FF OnePush mode
y0 50 04 FF ATW
CAM_WBModeInq 8x 09 04 35 FF
y0 50 05 FF Manual
CAM_RGainInq 8x 09 04 43 FF y0 50 00 00 0p 0q FF pq: R Gain
CAM_BGainInq 8x 09 04 44 FF y0 50 00 00 0p 0q FF pq: B Gain
y0 50 00 FF Full Auto
y0 50 03 FF Manual
y0 50 0A FF Shutter priority
y0 50 0B FF Iris priority
CAM_AEModeInq 8x 09 04 39 FF
y0 50 0D FF Bright
CAM_ShutterPosInq 8x 09 04 4A FF y0 50 00 00 0p 0q FF pq: Shutter Position
CAM_IrisPosInq 8x 09 04 4B FF y0 50 00 00 0p 0q FF pq: Iris Position
CAM_GainPosiInq 8x 09 04 4C FF y0 50 00 00 0p 0q FF pq: Gain Position
CAM_ BrightPosiInq 8x 09 04 4D FF y0 50 00 00 0p 0q FF pq: Bright Position
CAM_ExpCompModeInq 8x 09 04 3E FF y0 50 02 FF On
y0 50 03 FF Off
CAM_ExpCompPosInq 8x 09 04 4E FF y0 50 00 00 0p 0q FF pq: ExpComp Position
CAM_ApertureInq 8x 09 04 42 FF y0 50 00 00 0p 0q FF pq: Aperture Gain
CAM_MemoryInq 8x 09 04 3F FF y0 50pp FF pp: Memory number last operated.
SYS_MenuModeInq 8x 09 06 06 FF y0 50 02 FF On
y0 50 03 FF Off
CAM_LR_ReverseInq 8x 09 04 61 FF y0 50 02 FF On
y0 50 03 FF Off
CAM_PictureFlipInq 8x 09 04 66 FF y0 50 02 FF On
y0 50 03 FF Off
CAM_IDInq 8x 09 04 22 FF y0 50 0p 0q 0r 0s FF pqrs: Camera ID
CAM_VersionInq 8x 09 00 02 FF y0 50 ab cd

14
Command Command Packet Return Packet Note
mn pq rs tu vw FF
VideoSystemInq 8x 09 06 23 FF y0 50 0p FF
P: 4~9 Video format
4:720P60
5:720P50
6:1080P30
7:1080P25
8:720P30
9:720P25
y0 50 02 FF On
IR_Receive 8x 09 06 08 FF y0 50 03 FF Off
y0 07 7D 01 04 00 FF Power ON/OFF
y0 07 7D 01 04 07 FF Zoom tele/wide
y0 07 7D 01 04 38 FF AF On/Off
y0 07 7D 01 04 33 FF CAM_Backlight
y0 07 7D 01 04 3F FF CAM_Memory
IR_ReceiveReturn
y0 07 7D 01 06 01 FF Pan_tiltDrive
Pan-tiltMaxSpeedInq 8x 09 06 11 FF y0 50 ww zz FF ww: Pan Max Speed
zz: Tilt Max Speed
Pan-tiltPosInq 8x 09 06 12 FF y0 50 0w 0w 0w 0w
0z 0z 0z 0z FF
wwww: Pan Position
zzzz: Tilt Position
Note : x means the camera address you want to control , y=x + 8
Pelco-D Protocol Command List
Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7
Up 0xFF Address 0x00 0x08 Pan Speed Tilt Speed SUM
Down 0xFF Address 0x00 0x10 Pan Speed Tilt Speed SUM
Left 0xFF Address 0x00 0x04 Pan Speed Tilt Speed SUM
Right 0xFF Address 0x00 0x02 Pan Speed Tilt Speed SUM
Upleft 0xFF Address 0x00 0x0C Pan Speed Tilt Speed SUM
Upright 0xFF Address 0x00 0x0A Pan Speed Tilt Speed SUM
DownLeft 0xFF Address 0x00 0x14 Pan Speed Tilt Speed SUM
Upleft 0xFF Address 0x00 0x0C Pan Speed Tilt Speed SUM
Zoom In 0xFF Address 0x00 0x20 0x00 0x00 SUM
Zoom Out 0xFF Address 0x00 0x40 0x00 0x00 SUM
Focus Far 0xFF Address 0x00 0x80 0x00 0x00 SUM
Focus Near 0xFF Address 0x01 0x00 0x00 0x00 SUM
Set Preset 0xFF Address 0x00 0x03 0x00 Preset ID SUM
Clear Preset 0xFF Address 0x00 0x05 0x00 Preset ID SUM
Call Preset 0xFF Address 0x00 0x07 0x00 Preset ID SUM
Query Pan Position 0xFF Address 0x00 0x51 0x00 0x00 SUM
Query Pan Position Response 0xFF Address 0x00 0x59 Value High
Byte
Value Low
Byte SUM
Query Tilt Position 0xFF Address 0x00 0x53 0x00 0x00 SUM
Query Tilt Position Response 0xFF Address 0x00 0x5B Value High
Byte
Value Low
Byte SUM
Query Zoom Position 0xFF Address 0x00 0x55 0x00 0x00 SUM
Query Zoom Position
Response 0xFF Address 0x00 0x5D Value High
Byte
Value Low
Byte SUM
Pelco-P Protocol Command List
Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8
Up 0xA0 Address 0x00 0x08 Pan Speed Tilt Speed 0xAF XOR
Down 0xA0 Address 0x00 0x10 Pan Speed Tilt Speed 0xAF XOR
Left 0xA0 Address 0x00 0x04 Pan Speed Tilt Speed 0xAF XOR
Right 0xA0 Address 0x00 0x02 Pan Speed Tilt Speed 0xAF XOR
Upleft 0xA0 Address 0x00 0x0C Pan Speed Tilt Speed 0xAF XOR
Upright 0xA0 Address 0x00 0x0A Pan Speed Tilt Speed 0xAF XOR

15
Function Byte1 Byte2 Byte3 Byte4 Byte5 Byte6 Byte7 Byte8
DownLeft 0xA0 Address 0x00 0x14 Pan Speed Tilt Speed 0xAF XOR
DownRight 0xA0 Address 0x00 0x12 Pan Speed Tilt Speed 0xAF XOR
Zoom In 0xA0 Address 0x00 0x20 0x00 0x00 0xAF XOR
Zoom Out 0xA0 Address 0x00 0x40 0x00 0x00 0xAF XOR
Focus Far 0xA0 Address 0x00 0x80 0x00 0x00 0xAF XOR
Focus Near 0xA0 Address 0x01 0x00 0x00 0x00 0xAF XOR
Set Preset 0xA0 Address 0x00 0x03 0x00 Preset ID 0xAF XOR
Clear Preset 0xA0 Address 0x00 0x05 0x00 Preset ID 0xAF XOR
Call Preset 0xA0 Address 0x00 0x07 0x00 Preset ID 0xAF XOR
Query Pan Position 0xA0 Address 0x00 0x51 0x00 0x00 0xAF XOR
Query Pan Position
Response 0xA0 Address 0x00 0x59 Value High Byte
Value Low
Byte 0xAF XOR
Query Tilt Position 0xA0 Address 0x00 0x53 0x00 0x00 0xAF XOR
Query Tilt Position Response 0xA0 Address 0x00 0x5B Value High
Byte
Value Low
Byte 0xAF XOR
Query Zoom Position 0xA0 Address 0x00 0x55 0x00 0x00 0xAF XOR
Query Zoom Position
Response 0xA0 Address 0x00 0x5D Value High Byte
Value Low
Byte 0xAF XOR

16
Menu Setting
1. Main Menu
In normal working mode, press MENUkey to display the menu, using scroll arrow to point at or highlight
the selected items.
LANGUAGE: Language setting, Chinese / English
SYSTEM OPTIONsystem setting
CAMERA OPTIONcamera setting
PT OPTIONpan tilt setting
V. FORMAT: video format setting
RESETreset setting
HELPfor help
2. SYSTEM OPTION
Move the pointer to the (SYSTEM SET) in the Main Menu, click theHOMEand enter the (SYSTEM SET) as
follow,
PROTOCOL: Reset Condition VISCA
Protocol type:VISCA/Pelco-P/Pelco-D
ADDRReset Condition: 01
VISCA=1~7 Pelco-P/Pelco-D = 1~63
B. RATEReset Condition:9600
2400/4800/9600/115200
RS485Reset Condition:off
It is ON when using RS485 communication
 VER./ VER/CAM VER: version information,it will upgrate synchronously with the
software
Machine Model: Machine internal identified code UH-S
3. CAMERA OPTION
Move the pointer to the (CAMERA SET) in the Main Menu, click theHOMEand enter the (CAMERA SET) as
follow,
 MAIN

LANGUAGE󳅢󲽵󳄳󲓣     
SYSTEM OPTION      
CAMERA OPTION      
PT OPTION
V. F O R M AT 
RESET
HELP            

EXIT         
SYSTEM SET

PROTOCOLVISCA
ADDR 0 1 
B. RATE9600
RS485 OFF
ARM.VER 1.0A
. VER1.0
CAM.VER010404 
MODEL UH-S 
BACK

17
EXPOSUREexposure setting
COLOR: color setting
LEN: lens setting
3.1EXPOSURESETTING
Move the pointer to the (EXPOSURE) in the Main Menu, click theHOMEand enter the (EXPOSURE SET) as
follow,
EXP. MODEReset Condition: Auto
Available mode: AutoManualShutterIris
SHUTTERReset Condition: Default
Available selections: 1/601/901/1001/1251/1801/2501/3501/5001/7251/1000
1/15001/20001/30001/40001/60001/10000only available in Manual Shutter mode
IRISReset Condition: Default
Available:0~13only available in Manual Iris mode
BRIGHTReset Condition: 5
Available: 0~9
GAIN: Reset Condition: Default
Available: 0~15only available in Manual mode
EV MODEReset Condition: off
Available: On/Off (only available in non manual model)
LEVEL: Reset Condition: Default
Available Setting: -3~3
WDR : Reset Condition: off
Available: On/Off
LEVELReset Condition: Default
Available Setting: 0~5
3.2 COLOR SETTING
Move the pointer to the (COLOR SET) in the Main Menu, click theHOMEand enter the (COLOR SET) as
follow,
CAMERA SET

EXPOSURE
COLOR
LEN          
BACK
EXPOSURE SET

EXP.MODE Auto 
SHUTTER --
IRIS --
GAIN --
BRIGHT 5
EV. MODE off
LEVEL --
WDR off
LEVEL --
BACK         

18
WB MODEReset Condition: ATW
White balance mode setting: AutoIndoorOutdoorOnePushATWManual
R.GAINReset Condition:Default
Red gain setting0~50only available in Manual mode
B.GAINReset Condition:Default
Blue gain setting0~50only available in Manual mode
GAMMA: Reset Condition:0
GAMMA setting: 0~3
SATURATION: Reset Condition:3
SATURATION setting: 0~9
APERTUREReset Condition:5
APERTURE setting: 0~9
FLICKReset Condition:off
FLICK setteing50HZ/60HZ/OFF
NR LEVEL: Reset Condition:2
NR LEVEL setting: 0~9
CONTRAST: Reset Condition:3
CONTRAST setting:0~9
3.3 LENS SETTING
Move the pointer to the (LEN SET) in the Main Menu, click theHOMEand enter the (LEN SET) as follow,
FOCUSAutoManualOnePush
4. PAN TILT SETTING
Move the pointer to the (PT SET) in the Main Menu, click theHOMEand enter the (PT SET) as follow,
POWER ACTReset Condition: OFF
0/1( the camera will move to no.0/1 preset position after 12 seconds without control since
power on), Off
SPEEDBYZReset Condition: On
only work for IR remote control:
Onwhen the camera zoom becomes larger, rotation speed comes down, Off
 LEN

FOCUSAUTO
 
BACK  
COLOR

WB.MODEATW 
R.GAIN --
B.GAIN --
GAMMA0
SATURATION 3
APERTURE 5
FLICK Off 
NRLEVEL 2
CONTRAST 3
BACK  
 PT SET

POWER.ACT Off
SPEEDBYZ On
MOUNT.MODE Up
IR M.SPEED 16 
IR Z.SPEED 07
MIN.SPEED 0
SCAN.SPEED 10
BACK        

19
MOUNT.MODEReset Condition: Up
UP, DOWN
IR M.SPEED Reset Condition: 16
IR remote control move speed: 5~24
IR Z.SPEED Reset Condition: 07
IR remote control zoom speed: 1~7
MIN.SPEED: Reset Condition: 0
Minimum start speed for serial command: 0~9
SCAN. SPEED: Reset Condition: 10
move speed: 4~15
5. RESET
Move the pointer to the (SET) in the Main Menu, click theHOMEand enter the (SET) as follow,
SYS. RESETsystem reset:Protocol: VISCA; Address: 1; baud rate:9600; S485:Off
CAM. RESETcamera parameter reset
PT. RESETpower action: Off; speed by zone: On; mount mode:Up;
IR move speed:16; IR zoom speed: 7;MIN.SPEED 0;SCAN. SPEED 10
ALL RESETreset above 3 items
6. HELP
Show instruction of the OSD menu operation
7. EXIT
In main menu, press the keyMENUagain will show the exit window as follows:
SAVEto save settingsYesNo.
NoticepressHOMEkey to confirm;
pressMENUkey to return to the main menu
 EXIT

SAVE        Ye s / N o

O
K
 BAC
K
 
HELP 

  SELET MENU
  CHANGESETTING
 ENTER
 RETURN

BACK  
RESET

SYSTEM. RESETNO 
CAM.RESET NO 
PT. RESET NO 
ALL. RESETNO 

BACK  
