HuddleCamHD HC-WEBCAM-120 User manual

Please check HUDDLECAMHD.com for
the most up to date version of this document Ver 1.0 5/19
HuddleCamHD Wide Angle Webcam
USB 2.0 Webcam
INSTALLATION & OPERATION MANUAL

Page 2 of 14
Ver 1.0 5/19
Precautions………………………………………………………………………………………….
Safety Tips…………………………………………………………………………………………….
•Please read this manual carefully before using the camera.
•Avoid damage from stress, violent vibration or liquid intrusion during
transportation, storage or installation.
•Take care of the camera during installation to prevent damage to the camera
case, ports, or lens.
•Do not apply excessive voltage. (Use only the specified voltage.) Otherwise, you
may experience electrical shock.
•Keep the camera away from strong electromagnetic sources.
•Do not aim the camera at bright light sources (e.g. bright lights, the sun, etc.) for
extended periods of time.
•Do not clean the camera with any active chemicals or corrosive detergents.
•Do not disassemble the camera or any of the camera's components. If problems
arise, please contact your authorized dealer.
•After long term operation, moving components can wear down. Contact your
authorized dealer for repair.
In The Box…………………………………………………………………………….
Supplied Equipment
•Webcam (1)
•Privacy Cover
•User Manual (1)

Page 3 of 14
Ver 1.0 5/19
Physical Description………………………………………………………………………

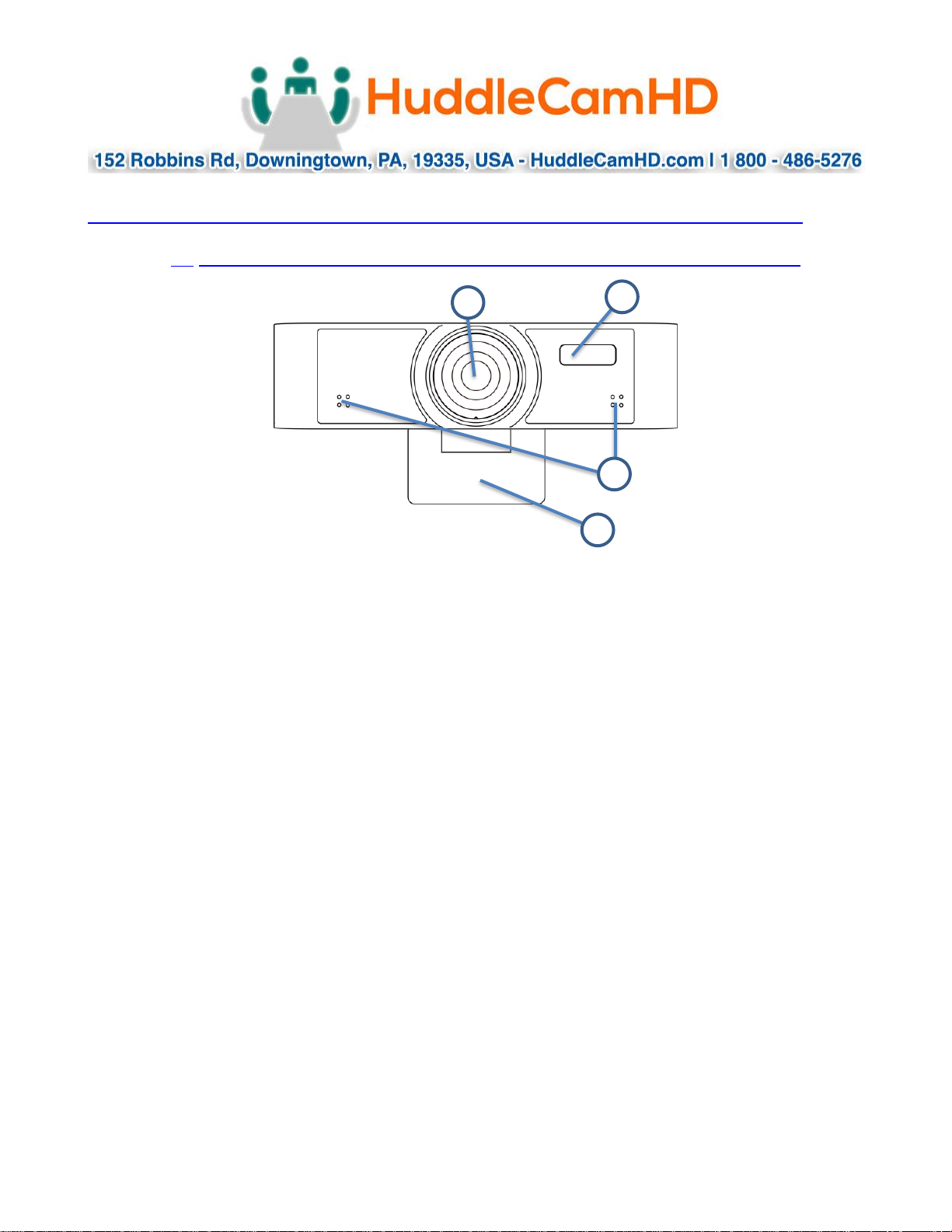

1. Front View…………………………………………………………………………………
1. Lens
120° field of view lens
2. Power LED
Blue LED lights when unit is powered and on.
3. Microphone array
Internal microphone array with up to a 15-foot range
4. Top Mount
Used for resting the camera on a monitor
1
2
3
4

Page 4 of 14
Ver 1.0 5/19

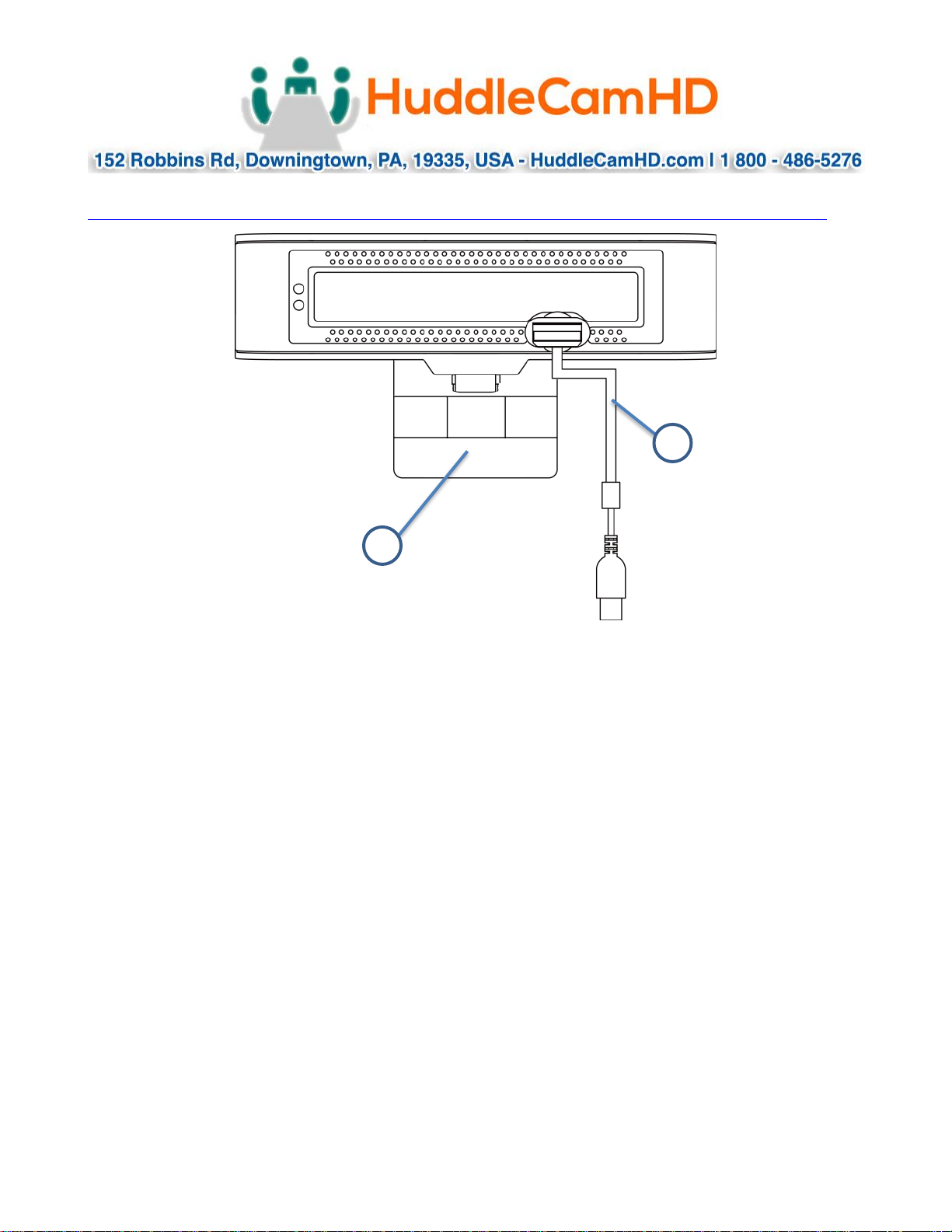

2. Rear View…………………………………………………………………………………………………….
5. Built in USB 2.0 cable
For connection to PC USB 2.0 port.
6. Bottom Mount
Used for securing the camera in position on monitor
7. 1/4-20 Mount
Used for mounting to any standard 1/4-20 mounting screw
5
6

Page 5 of 14
Ver 1.0 5/19
OSD MENU………………………………………………………………………………………………
On Screen Display Menu - Use the OSD menu to access and change the camera’s
settings by using the HuddleCamHD Webcam OSD Menu application.
The camera OSD Menu is as follows:
•Exposure
oFull Auto
▪ExpCompMode On/Off
▪Exp Comp -7 ~ +7 (Available when ExpCompMode
is “On”)
▪Gain Limit 0 ~ 15
▪Backlight On/Off
▪DRC Strength 0 ~ 8
▪Anti-Flicker Off/50Hz/60Hz
oShutter Priority
▪Shutter 1/30s, 1/60s, 1/90s, 1/100s, 1/125s, 1/200s,
1/250s, 1/350s, 1/500s, 1/725s, 1/1000s,
1/1500s, 1/2000s, 1/3000s, 1/4000s,
1/6000s, & 1/10000s
▪DRC Strength 0 ~ 8
oBright
▪Bright 0 ~ 17
▪Gain Limit 0 ~ 15
▪DRC Strength 0 ~ 8
▪Anti-Flicker Off/50Hz/60Hz

Page 6 of 14
Ver 1.0 5/19
•Color
oAuto
▪AWB Sens Low/Middle/High
▪RG Tuning -10 - +10
▪BG Tuning -10 - +10
▪Saturation 60% - 200%
▪Hue 0 – 14
oIndoor
▪Saturation 60% - 200%
▪Hue 0 – 14
oOutdoor
▪Saturation 60% - 200%
▪Hue 0 – 14
oOnePush
▪AWB Sens High/Low/Normal
▪RG Tuning -10 - +10
▪BG Tuning -10 - +10
▪Saturation 60% - 200%
▪Hue 0 – 14
oManual
▪RG Tuning 0 – 255
▪BG Tuning 0 – 255
▪Saturation 60% - 200%
▪Hue 0 – 14

Page 7 of 14
Ver 1.0 5/19
•Image
▪Luminance 0 – 14
▪Contrast 0 – 14
▪Sharpness Auto/0 – 15
▪Flip-H Off/On
▪Flip-V Off/On
▪Gamma Default/0.45/0.5/0.56/0.63
▪Style Clarity/Bright/PC/Clarity (LED)/Norm
▪LDC Off/-10 - +10
•Focus
▪AF-Sense Low/Medium/High
▪Focus Mode Manual/Auto/One-Shot
▪Focus Area Middle Area/Upper Half/All/Bottom Half
•Noise Reduction
▪2D-NR Close/Auto/1~5
▪3D-NR Close/1~8
•Information Displays current camera settings
•Restore Default Restore camera default settings

Page 8 of 14
Ver 1.0 5/19
Connection Instructions………………………………………………………………………
1. Connect USB 2.0 cable from webcam to an available USB port on the PC.
2. Select and configure camera in your software of choice.
NOTE: Failure to follow this sequence may result in no connection to PC.
Care Of The Unit………………………………………………………………………………….
Remove dust or dirt on the surface of the lens with a blower (commercially available).
Installation Instructions………………………………………………………………………
Monitor Installation…………………………………………………………………………………….
When mounting the HuddleCam on a monitor, ensure that the mount screw is fastened
tightly to the camera. Use the top mount to rest the camera on the monitor. Position the
bottom mount on the back of the monitor to secure the camera in position.

Page 9 of 14
Ver 1.0 5/19
Tripod Installation……………………………………………………………………………………….
When using the HuddleCam with a tripod, screw the tripod to the bottom of the camera

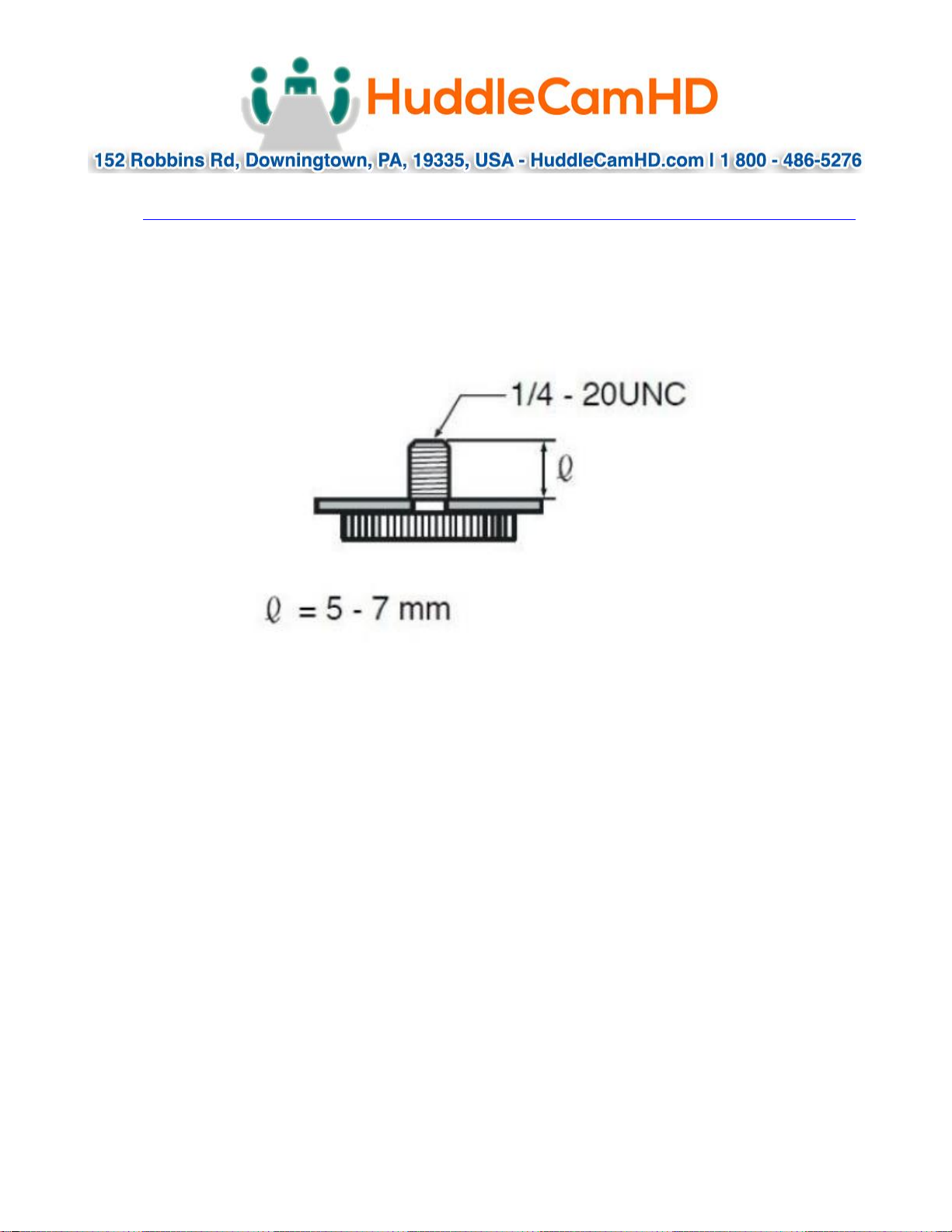

mount. The tripod screw must fit below specifications:
Note: Tripod must stand on a level surface.

Page 10 of 14
Ver 1.0 5/19
Troubleshooting………….…………………………………………………………………………
•No image
oCheck whether the USB cable is connected properly to the PC.
oCheck whether the LED glows when USB is connected to the PC.
•Abnormal display of image
oCheck OSD of camera through the OSD Menu app.
oCheck settings of software you’re viewing the video feed in.
•Image is shaky or vibrating
oCheck whether the camera is mounted solidly or sitting on a steady
horizontal and level surface.
oCheck the building and any supporting furniture for vibration.
oAny external vibration that is affecting the camera will be more apparent
when in tele zoom (zoomed in) settings.

Page 11 of 14
Ver 1.0 5/19
Important Notes Regarding USB Connectivity:
USB 3.0 ports are backwards compatible with USB 2.0 devices. USB 2.0 ports are not
completely forward compatible with USB 3.0 devices (some USB 3.0 devices will connect to
USB 2.0 with limited functionality).
External USB hubs should be avoided (i.e. give the camera its own USB port on the device)
as they are not well suited to transmitting HD video reliably.
USB extension systems must be fully compatible with the version of USB that you are using
and must utilize an external power supply, when required. Always connect the HuddleCam
directly to the PC in order to associate the UVC drivers before attempting to use any
extension system.
USB power saving settings in the device’s operating system should be turned off completely
for reliable USB camera connectivity.
HuddleCam Cameras
All HuddleCamHD cameras utilize the UVC (USB Video Class) drivers that are built into
Windows, Mac OS and Linux to stream HD video to your device via your device’s USB port
(USB 2.0 or USB 3.0 depending upon HuddleCam model). When your device successfully
recognizes the camera, your device will register the HuddleCam as an “imaging device”.
You can see this in your Windows Device Manager program (type “device manager” into the
Windows search tool) as shown in the screenshot, below:

Page 12 of 14
Ver 1.0 5/19
In this example, you can see the HuddleCam model in use connected as a fully functional
USB 2.0 device (HuddleCamHD).
If your device has not connected to or has not recognized the HuddleCam as an imaging
device (in which case, you may see a new “unknown device”, “Westbridge” or “CYTFX3”
labeled device show up in Device Manager’s “Universal Serial Bus Controllers” section
rather than in the “Imaging Devices” section), the HuddleCam will not be available to
programs that utilize a camera. In this case, try restarting the device and reconnecting the
camera via USB (USB 2.0 or USB 3.0 depending upon HuddleCam model).

Page 13 of 14
Ver 1.0 5/19
Similarly, you can see a connected device in System Information on a MAC. See screenshot
below:
In this example, you can see the HuddleCam model in use connected as a fully functional
USB 2.0 device (HuddleCamHD).

Page 14 of 14
Ver 1.0 5/19
Specs………………………………………………………………………………………………………
Model Number: HC-WEBCAM-120
Camera & Lens
•Video CMOS Sensor 1/2.7” CMOS 2.07M Mega Pixel
•Frame Rate 1080p-30/25, 720p-30/25,
960x540p-30/25, 640x360p-30/25
•Field of View 120°
•Lens Focus: f=3.1mm
•Min Lux 0.05 Lux @ F1.8, AGC ON)
•Warranty 3 years parts and labor
Rear Board Connectors
•Video Interface USB 2.0
•Power Interface USB 2.0 5V
Physical
•Material Aluminum, Plastic
•Dimensions 4.6”W x 1.4”D x 1.2”H
(118mm x 36mm x 30mm)
•Weight 0.2 lbs (93 g) (not including mounting bracket)
•Box Dimensions 5.5”W x 3”D x 3.125”H (139.7mm x 76.2mm x 79.4mm)
•Boxed Weight 0.75 lbs (0.34 kg)
•Color Black
•Operating Temperature 14°F to +104°F (-10°C to +40°C)
•Storage Temperature -40°F to 140°F (-40°C +60°C)
•Working Environment Indoor only
