Huion KAMVAS Pro 16 Plus User manual

Kamvas Pro 16 Plus (4K)
Contents
Product Overview ...................................................... 2
Display Introduction ................................................... 2
Product and Accessories ................................................ 2
Product Connection .................................................... 4
Driver and Setting ..................................................... 6
Install Driver ........................................................ 6
Driver Interface Preview ................................................. 8
Pen Display Setting .................................................... 9
Digital Pen Setting .................................................... 12
Driver Setting ....................................................... 21
Pen-enabled OSD Menu ................................................ 26
Digital Pen Basic Operation .............................................. 28
Specifications ........................................................ 32
Troubleshooting Solutions .............................................. 34
1 / 37

Kamvas Pro 16 Plus (4K)
Product Overview
Display Introduction
Thanks for choosing HUION KAMVAS Pro 16 Plus (4K) creative pen display. This is a new
generation of professional drawing display, which can greatly improve your work efficiency of
painting and creation, and full of fun. You can freely painting and writing, depicting different
lines and colors, just as the pen writes on the paper, which brings you a real shock experience.
To give you a better understanding and using of your tablet, please read this user manual
carefully. The user manual only shows the information under Windows, unless otherwise
specified, this information applies to both Windows and Mac systems.
Note: The pictures in the User Manual are for reference only.
Product and Accessories

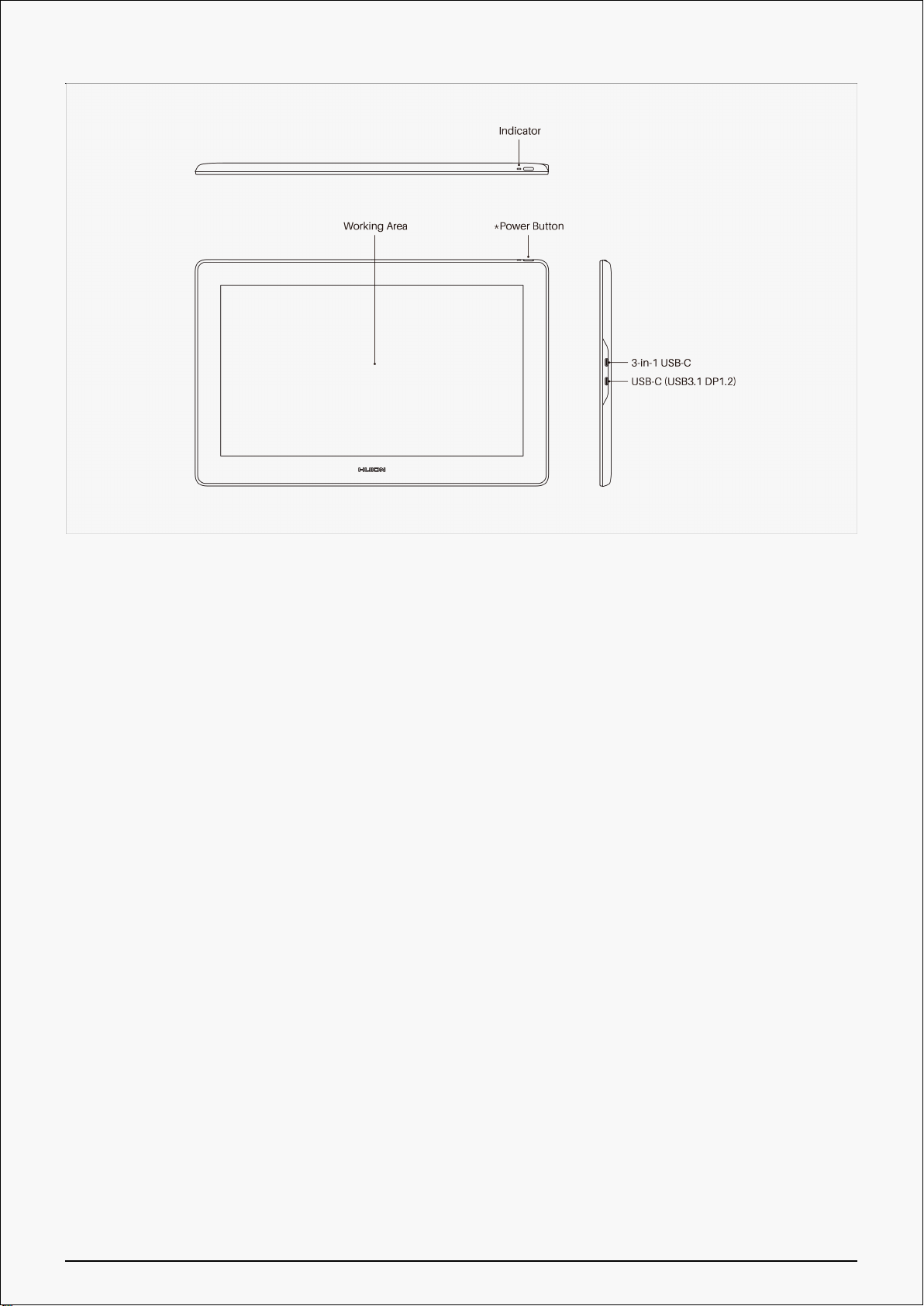

Product Overview
Please see the detailed product introduction.
2 / 37

Kamvas Pro 16 Plus (4K)
Accessories
After unboxing your package, make sure that you have the following items:
Pen Display*1
Battery-free Pen*1
Pen Case*1
Pen Holder*1
Replacement Nibs(Inside the Pen Holder)*10
3-in-1 Cable*1
USB Extension Cable*1
USB-C To USB-C Cable*1
USB Power Cable*1
USB Power Adapter*1
Foldable Stand ST200*1
Quick Start Guide*1
Cleaning Cloth*1
3 / 37

Kamvas Pro 16 Plus (4K)
*Adjustable Stand
We designed this ergonomic adjustable stand specially for your KAMVAS display, you can
adjust the angle of the display according to your usage habit, and make you feel more
comfortable when painting and creating.
4 / 37

Kamvas Pro 16 Plus (4K)
Product Connection
The display supports the connection of a computer and Android device, please refer to the
following connection method.

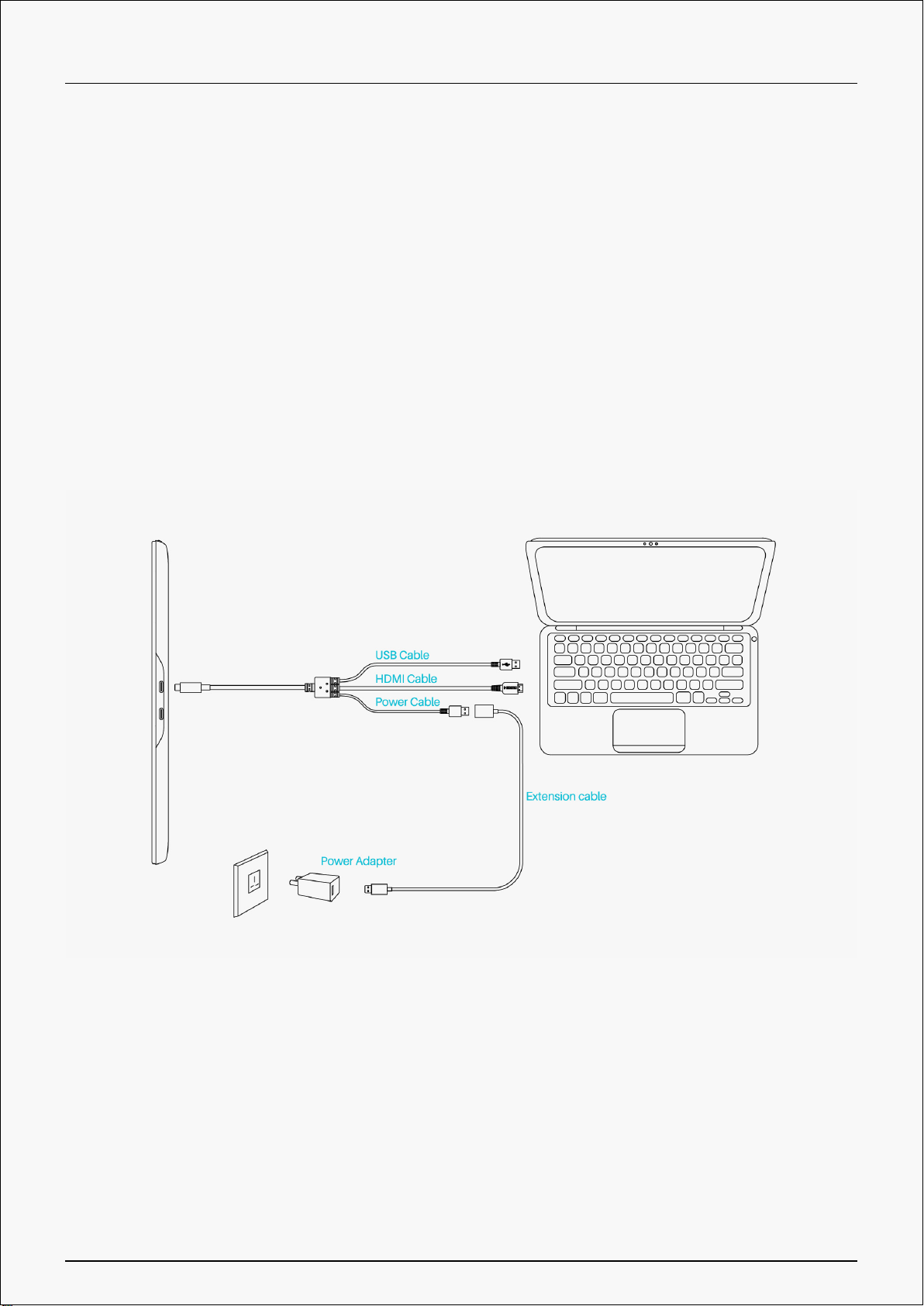

3-in-1 Type-C Cable
Connect the pen display to your computer with 3-in-1 Cable.
① Connect the display to your computer with 3-in-1 cable;
② Connect the power adapter to the power cable.
*
When the power cable is not long enough to be connected to the power adapter, an extension
cable is available to help reach further.
All USB power adapters are applicable as long as its gauge is 5V and 3A.

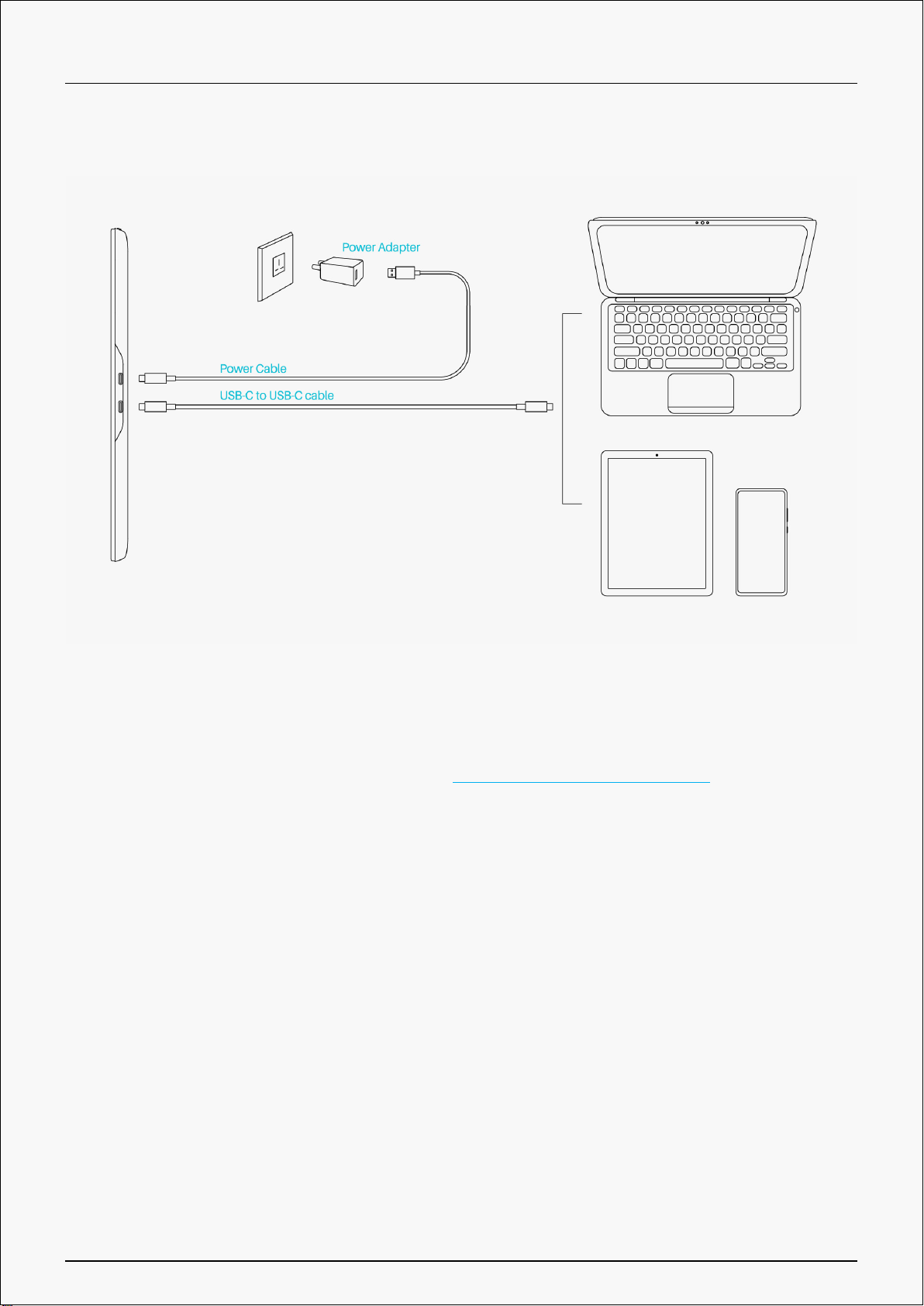

USB-C to USB-C Cable
Connect the display to your computer or Android device with USB-C to USB-C cable.
① Connect the display to your computer or Android device with USB-C to USB-C cable.
② Connect the power adapter to the power cable.
*
The USB-C to USB-C and power cable can be purchased separately. Please notice the USB-C to
USB-C cable must meet the requirements of USB3.1 GEN1 and DP1.2 or above, and gauge of
5 / 37

Kamvas Pro 16 Plus (4K)
the power cable should be 5V, 3A at least.
Driver and Setting
Install Driver
Please download the driver from our website: Driver-Kamvas Pro 16 Plus (4K)
Note:
1. Before installing driver, please close all graphic software and antivirus program.
2. If you have installed other pen tablet driver, please uninstall it before you install this driver.
3. Please make sure your computer OS are as following: Windows 7 or later, macOS 10.12 or
later.
4. Run the tablet driver program and complete the installation according to the instruction.

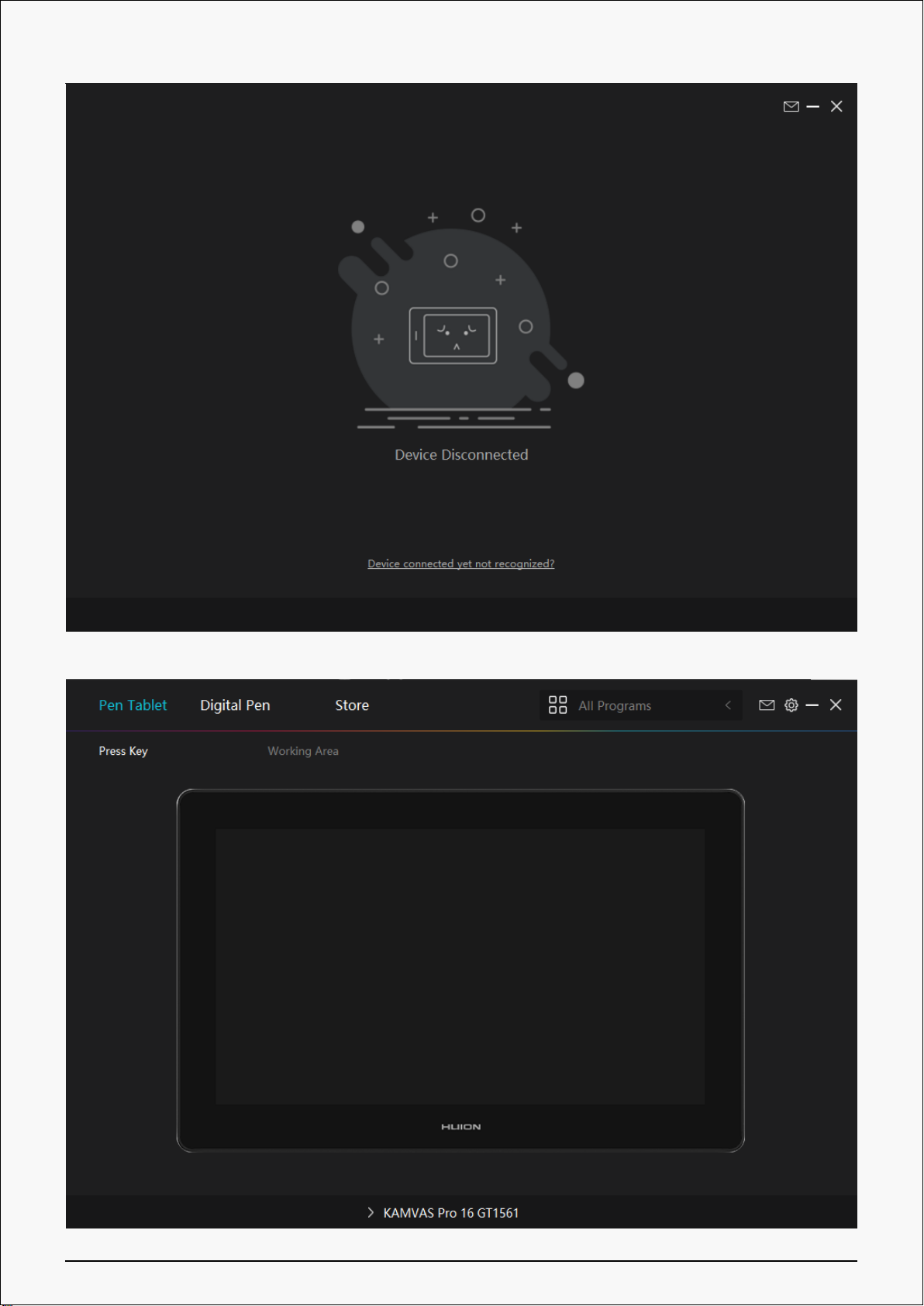

After the download is successful, double-click to open the driver.
If the connection fails, please reconnect the computer to the device, or restart the driver or
computer.
6 / 37

Kamvas Pro 16 Plus (4K)
7 / 37

Kamvas Pro 16 Plus (4K)

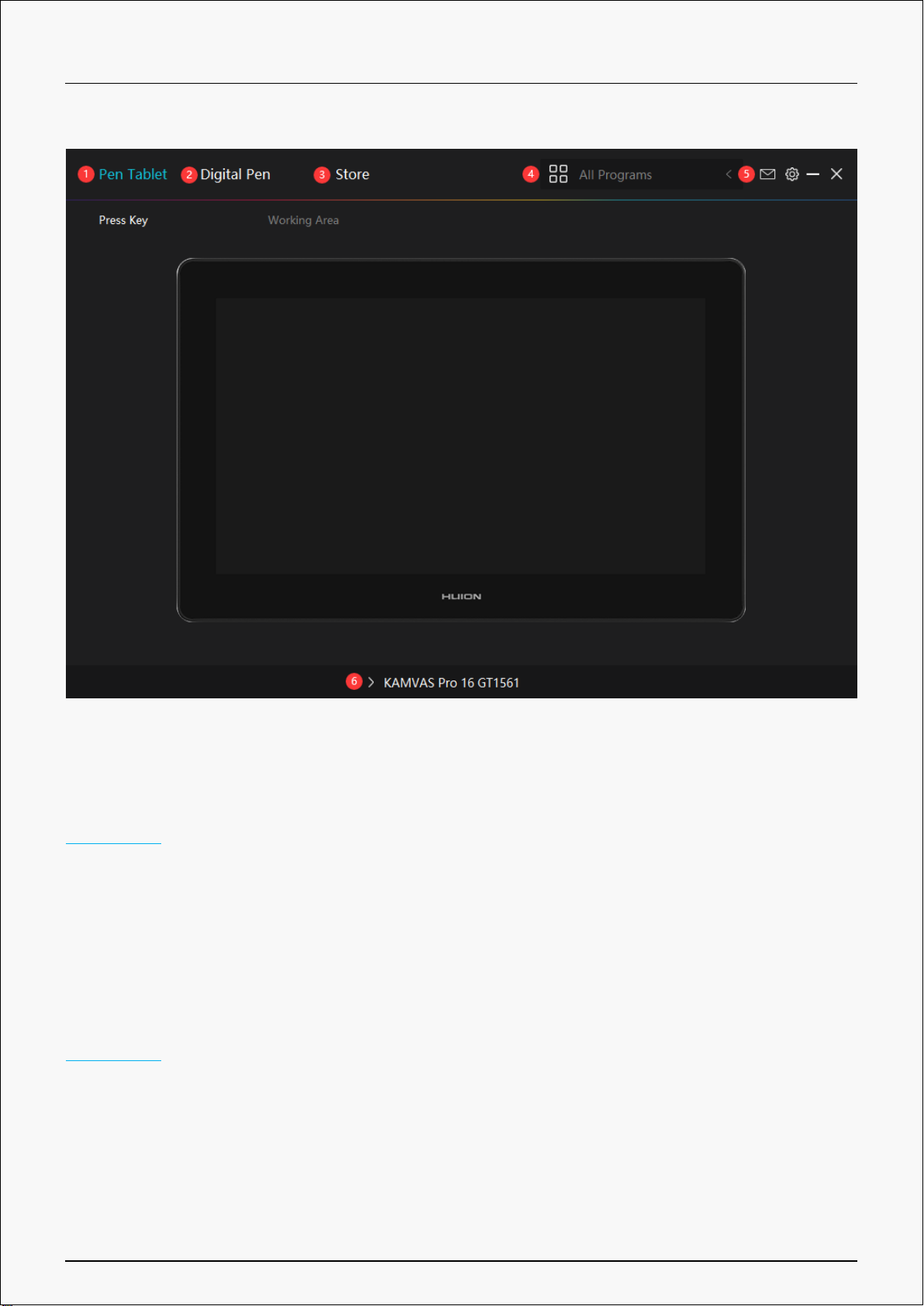

Driver Interface Preview
1. Pen Display
Pen Tablet function setting interface, the users can set the device function on this interface.
See Section
2. Digital Pen
The users can set the Pen function on this interface. About Press Key, Mode selection,
Pressure Sensitivity Adjustment and Pressure Test.
See Section
3. Store
Huion Store, where you can get the latest information about the product such as its FAQ or
sales promotion. Additionally, you can also purchase other products or accessories on Huion
8 / 37

Kamvas Pro 16 Plus (4K)
Store.
4. Add Programs
You can customize different functions on the current device for different programs.
When select All programs, the setting of the device is valid for every program.
By clicking Add a Program from the drop-down list, you can set the functions for a specific
program and hence have unique settings for different programs. After that, when launching a
specific program, the Driver will automatically recognize it and the setting features will change
to its corresponding one.
5. Setting
The users can set the Driver function on this interface. About Device Information, Backup
Setting, General Setting and Driver Update.
See Section
6. Switch between Devices
Driver can support the connection to two digital drawing devices at the same time. When
these devices are sharing the same Driver with the current device, users can customize the
settings of the devices by switching the Driver interface to the corresponding one.
Pen Display Setting
Working Area
Select the Working Area tab to define the relationship between pen movement on the device
and cursor movement on the monitor screen.
By default the entire active area of device maps to the entire monitor. If more than one
monitor is in use and you are in extended mode, you need to choose the related monitor on
the driver interface which you are going to map to.
If your monitors are in mirror mode (All monitors display the same content), the device maps
to the entire space on each monitor and the screen cursor is displayed on each monitor
simultaneously.
9 / 37

Kamvas Pro 16 Plus (4K)
1. Working Area Setting
Define the device area that will be mapped to the screen area.
[1] Full Area: the entire active area of the device. This is the default setting.
[2] Screen Ratio: As a general rule, be 16:9.
[3] Customized Area:
1> Enter coordinate values.
2> Drag the corners of the foreground graphic to select the screen area.
2. Rotate Working Area
By changing the direction of the device to adapt to the left and right hand operation. You can
rotate the tablet by 0°, 90°, 180° or 270°.
10 / 37

Kamvas Pro 16 Plus (4K)
3. Monitor Calibration
Click "Cursor Calibration" to enter the calibration page and operate according to the prompts.
11 / 37

Kamvas Pro 16 Plus (4K)
Please use the digital pen to click on the center red dot of the cross in a common pen-holding
posture. You can cancel Calibration and restore default.
12 / 37

Kamvas Pro 16 Plus (4K)
Digital Pen Setting
1. Press Key
The function setting is the same as the Press Key setting of the tablet. Please refer to it.
①Keyboard Key
Click on the input box above and enter a valid key combination to creat a shortcut. For
example "Ctrl+A", "Ctrl+Z", and so on.
13 / 37

Kamvas Pro 16 Plus (4K)
②Mouse Key
Select the function of a Mouse or Wheel. Please see the picture below for detailed functions.
Mouse: Left Button, Right Button, Middle Button.
Wheel: Wheel Forward, Wheel Backward.
Double-Left Click.
14 / 37

Kamvas Pro 16 Plus (4K)

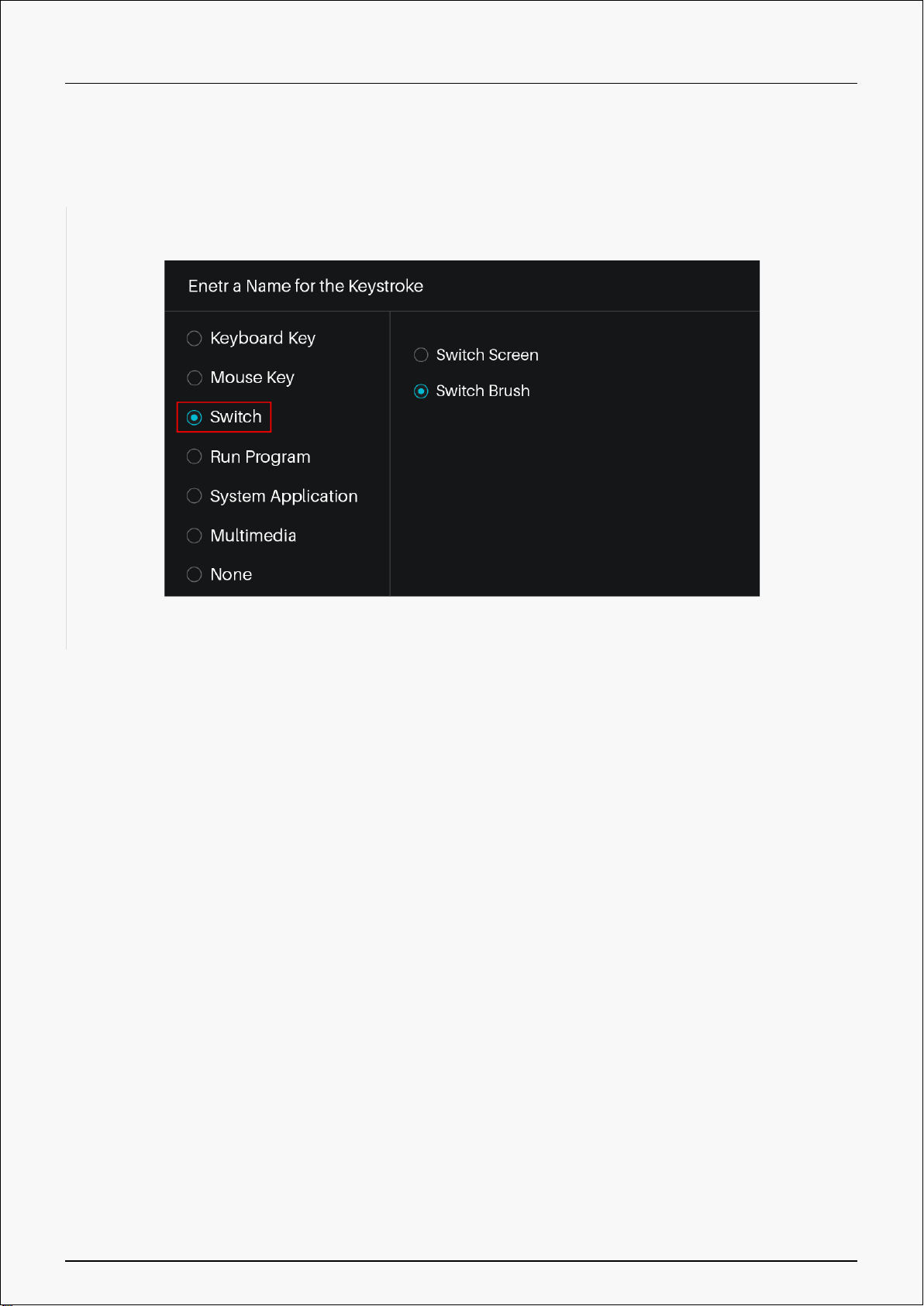

③Switch
Select Switch Screen or Switch Brush.
Note: Some software does not support the "Switch Brush" function.
④Run Program
Browse and select a program that you want to launch quickly. After the setting, you can launch
that program with just a single press.
15 / 37

Kamvas Pro 16 Plus (4K)
⑤System Application
The table below are the functions of Windows and Mac Systems that can be customized on the
Keys.

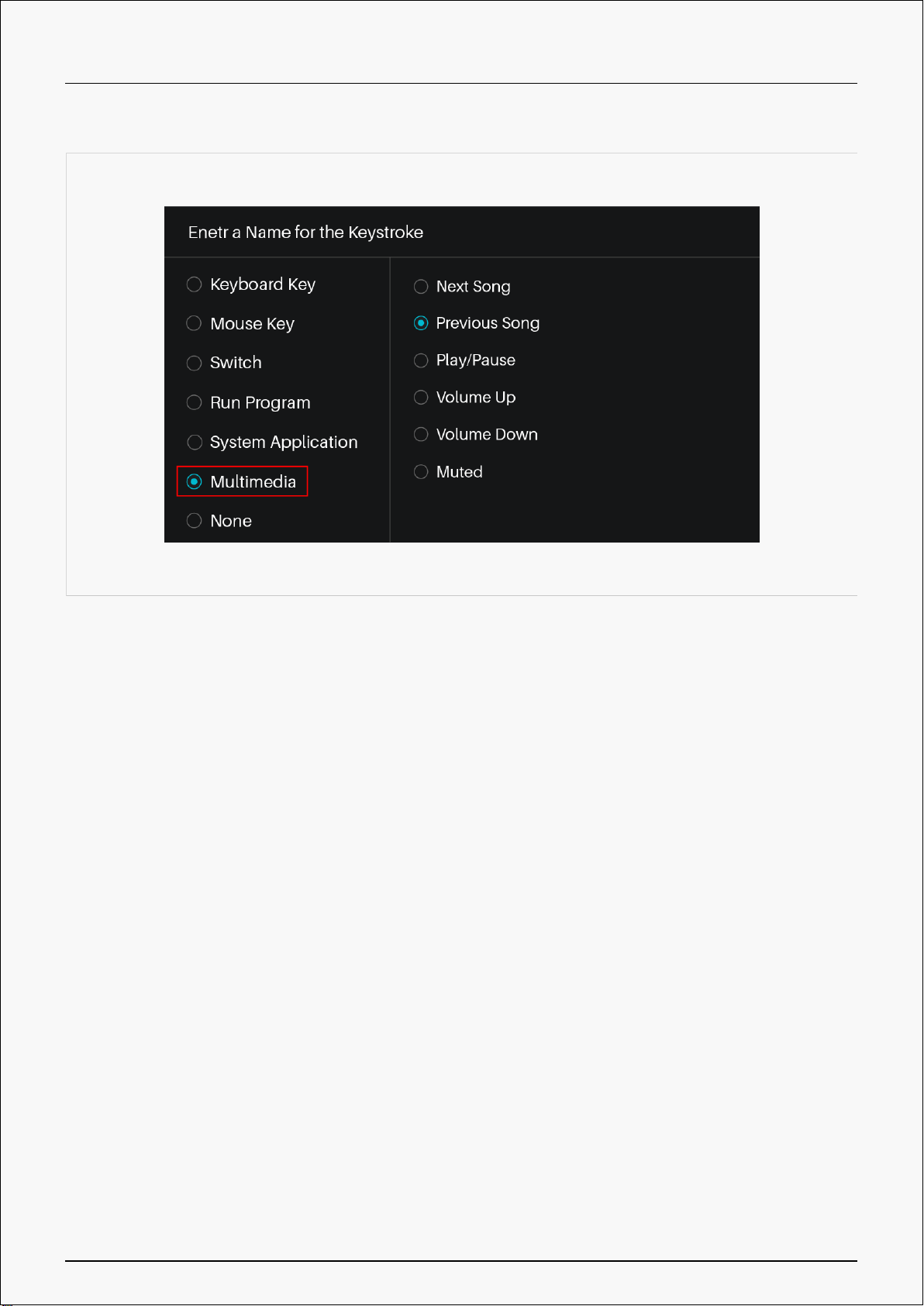

⑥Multimedia
16 / 37

Kamvas Pro 16 Plus (4K)
To realize the functions such as previous song, next song, play/pause, volume up, volume
down.
⑦None
When select None, the keys will have no function.

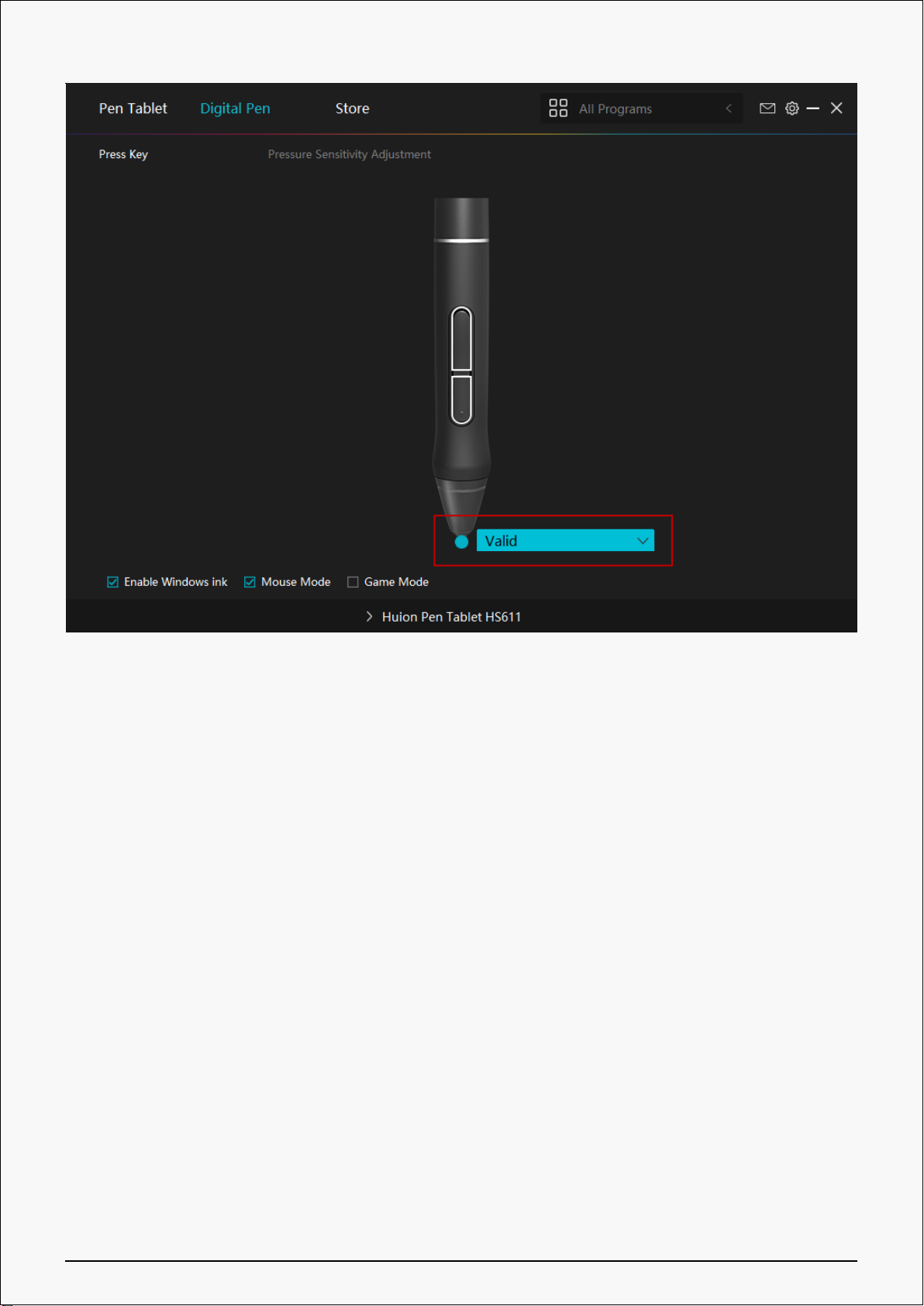

2. Pen Nib Activity
The pen nibs can be set to be Valid/Invalid as needed. Click the drop-down option to select. In
Valid mode, the digital pen can be used normally. In Invalid mode, the digital pen has cursor
movement, but cannot complete the specified action.
17 / 37

Kamvas Pro 16 Plus (4K)

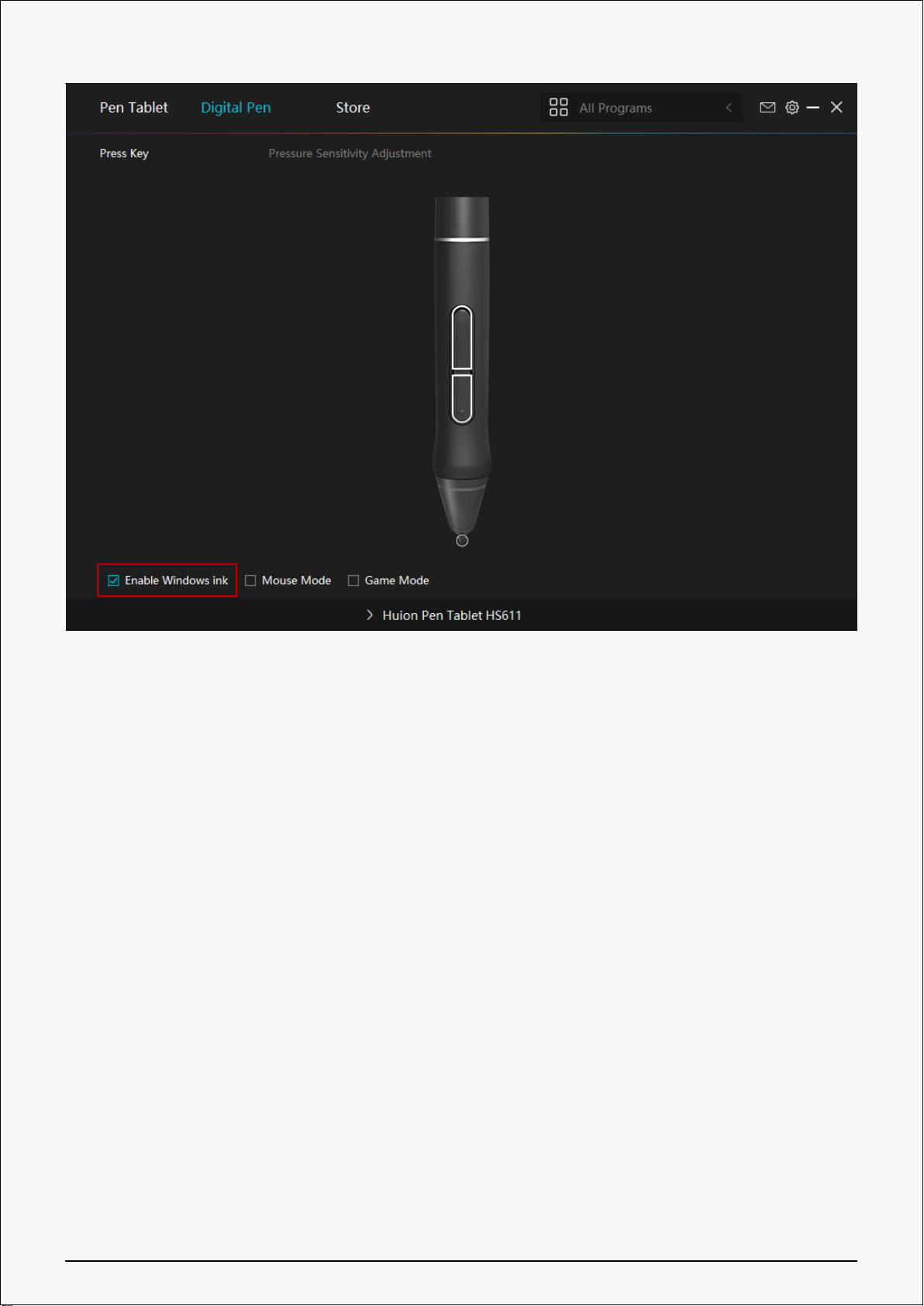

3. Enable Windows ink
Microsoft Windows provides extensive support for pen input. Pen features are supported in
such as Microsoft Office, Windows Whiteboard, Adobe Photoshop CC, SketchBook 6 and so on.
18 / 37

Kamvas Pro 16 Plus (4K)
4. Pressure Sensitivity Adjustment
The pressure sensitivity will be changed by dragging the slider up and down, the smaller the
value, the more pressure sensitive.
Click the Redo button at the top right of the Settings box to reset the pressure sensitivity to
the default state.
19 / 37

Kamvas Pro 16 Plus (4K)
5. Pressure Test
You can gradually apply pressure to the stylus on the screen to test the pressure level. Click
the Clear button to clear all the ink.
