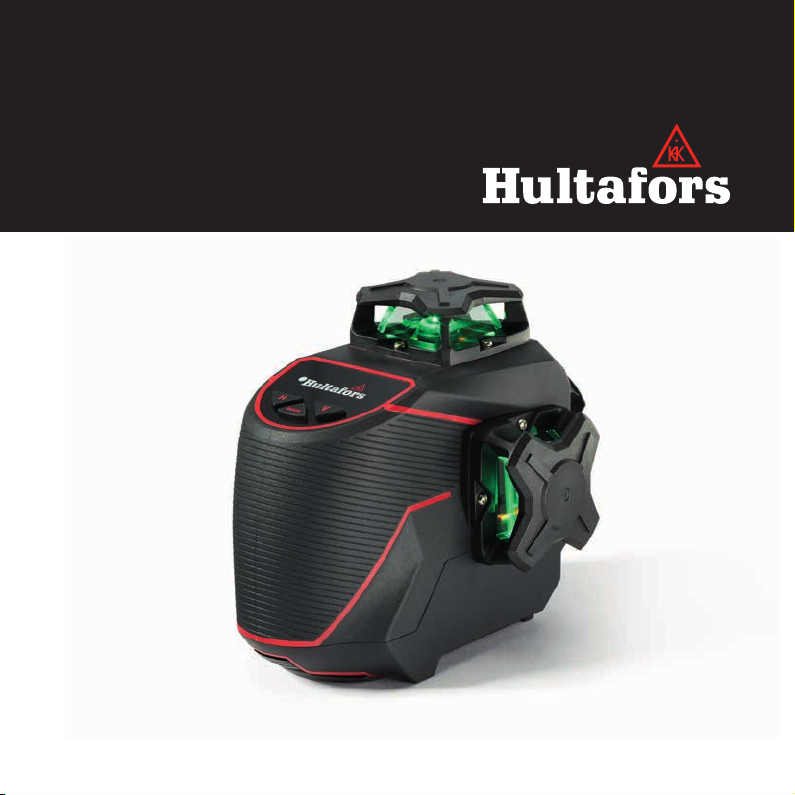

Hultafors H3x360G User manual

H3x360G
Operating instructions EN

2
INCLUDED IN DELIVERY WITH THE H3x360G
H3x360G
3.6V Li-ion Batteries (3450mAh)
Power plug
Charger
Quick start guide
Case

3
Operating manual
cross laser H3x360G
About this manual
Congratulations on the purchase of your new
H3x360G! You have acquired a Hultafors
measuring instrument, which can make
your work easier, faster and more precise.
To utilize the complete functionality range
of this measuring instrument, and to ensure
safe operation, please observe the following
instructions:
• Please read this operating manual before
starting to use the device.
• Always keep the operating manual near
the device.
• Only hand over the device to other users
together with the operating manual.
• Never render the attached warning signs
unreadable.
Contents
1. General information
2. Description
3. Technical data
4. Safety instructions
5. Laser safety/Classification
6. Getting Started
7. Operation
8. Checking the accuracy
9. Maintenance, storage and transportation
10. Delivery contents and accessories
11. Troubleshooting
12. Disposal
13. Manufacturer’s guarantee
14. EC conformity declaration

4
1.1 Signal words and their meaning
DANGER
For an imminent danger that could lead to
serious injury or death.
WARNING
For a possibly dangerous situation that could
lead to serious injury or death.
CAUTION
For a possibly dangerous situation that could
lead to slight injury or property damage.
NOTE
For application notes and other useful
information
1.2 Pictograms and other information
1.2.1 WARNING SIGNS
Warning of dangers in general
1. General information
1.2.2 SYMBOLS
Read instructions before use.
Batteries and devices must not be
disposed of with household waste.
Do not throw batteries into a fire.
Warning label on packages with
Li-ion batteries.
Warning signs on battery Do not
heat the battery above 60 °C.
Class 2 laser device.
Do not look into the laser beam!

1.
2.
3. 4.
5
2.1 Unit components
1. Laser beam output aperture
2. On/o switch, transport lock
3. Tripod adapter 1/4” & 5/8”
4. Battery compartment cover
2. Description
2.2 Intended use
e H3x360G is a line laser that enables a single person to level and align plumb points as well as
90 degree angles horizontally and vertically. e device is designed to be preferably used indoors.
For outdoor applications, it must be ensured that the ambient conditions are similar to those indoors.
e visibility range of the laser lines depends on the ambient conditions. In low light conditions or for
long distances, the hand-held receiver can be used to locate the laser line position (the hand-held
receiver is not included in the standard delivery, but can be ordered as an option).
Follow the instructions contained in this manual. e device and accessory equipment may be a
source of danger if they are utilised improperly or inappropriately by persons who are not adequately
instructed.

6
3. Technical data
3.1 Cross laser H3x360G
Working range
- Laser lines
- Receiver
r = 20 m*
r = 80 m*
Max. measurement tolerance
- Laser lines ± 0.3 mm/m
Protection class IP 54
Levelling range (typical) ± 3°
Levelling time (typical) ≤ 5 s
Power supply 2 x 3.6 V Li-ion batteries (3450 mAh)
Battery life (at 20°C) 8 hrs (all diodes)
Permissible temperatures
Operating temperature
Storage temperature
-10°C to +50°C
-20°C to +60°C
Laser diode lines/points 505-520 nm < 1 mW
Laser class 2, DIN EN 60825-1 : 2014
Tripod adapter 1/4“ & 5/8“
Weight without batteries 720 g
Dimensions H x W x L 150 x 95 x 125mm
*... depending on the ambient conditions in the workplace. Subject to modifications (drawings, descriptions and technical data).

7
4. Safety instructions
4.1 Area of responsibility
4.1.1 MANUFACTURER
Hultafors is responsible for the safe delivery
condition of the product, including the operating
manual and the original accessories.
Hultafors Group AB
Hultaforsvägen 21
517 21 Bollebygd, Sweden
4.1.2 OPERATOR
e operator is responsible for using the product
as intended, the deployment of personnel,
their training and the operational safety of the
product.
• e operator understands the safety
information which is stated on the product
and the instructions which are contained in
the operating manual.
• e operator shall comply with local
regulations relating to safety and accident
prevention regulations as well as worker
protection laws and regulations.
• e operator shall immediately notify Hultafors
if safety-related issues should develop on the
product or during its utilization.
• e operator shall ensure that the product
is not utilized any further if defects become
evident, and he will have the product repaired
professionally.
4.2 Improper Use
• Use of the device and the accessories without
instruction.
• Use of third-party accessories or additional
equipment.
• Use outside of the intended limits
(see Chapter 3 / Technical data).
• Use under extreme temperature fluctuations
without an adequate acclimatization.
• Disabling of safety devices and removal of
hazard notices and labels.
• Unauthorized opening of the device.
• Performance of modifications or alterations
the device or the accessories.
• Deliberate blinding of third parties.
• Inadequate safeguarding at the installation site.
4.3 Utilization limitations
e H3x360G is suitable for a continuous use in an
atmosphere which can be inhabited by humans.
• Do not operate the product in explosion-prone
or corrosive environments.
• Inform the local safety authorities and
safety experts before working in hazardous
environments, in close proximity to electrical
installations or similar surroundings.

8
4.4 Usage Hazards
4.4.1 GENERAL
WARNING
Missing or incomplete instructions may
result in improper or incorrect use.
is can cause accidents with serious
damages to persons, property, assets
and the environment.
• Follow the manufacturer‘s and operator‘s
safety instructions.
• Protect equipment and accessories from
access by children.
WARNING
Blinding by laser radiation can indirectly
lead to serious accidents, especially
for people who are driving a vehicle or
operating machinery. Do not look into
the laser beam.
• Do not set up the laser beam and the laser
plane at eye level or aim at people.
CAUTION
A fall, longer storage, transportation
or other mechanical eects can lead
to erroneous measurement results.
Check the unit for damage before use.
Do not use damaged equipment.
• Repairs have to be exclusively performed by
Hultafors.
• Before use, check the accuracy of the device
(see Chapter 8/Checking the accuracy)
4.4.2 CHARGER/BATTERIES/RECHARGEABLE
BATTERIES
DANGER
Strong mechanical influences, can
lead to a leakage, fire or explosion of
the batteries or trigger the release
of toxic substances.
• Batteries and rechargeable batteries may not
be opened or exposed to mechanical loads.
• Repairs have to be exclusively performed by
Hultafors.
WARNING
High ambient temperatures and
immersion into liquids can cause
a leakage, fire or explosion of the
batteries or trigger the release of
toxic substances.
• Protect batteries and rechargeable batteries
from mechanical influences during transport.
• Do not overheat batteries and rechargeable
batteries or expose them to fire.
• Avoid the ingress of moisture into batteries
and rechargeable batteries.
• Do not use damaged batteries or rechargeable
batteries. Perform a proper disposal
(see Chapter 12 / Disposal).

9
WARNING
A short-circuiting or unintended use can
cause batteries to overheat and create
an injury or fire hazard.
• Do not transport or store batteries in the
pockets of garments.
• Do not bring the battery contacts in contact
with jewelery, keys, or other electrically
conductive objects.
• Do not charge non-rechargeable batteries.
• Do not discharge the batteries through
short-circuiting.
• Do not solder the batteries within the device.
• Do not mix old and new batteries, and do not
mix batteries from dierent manufacturers or
with a diering type designation.
WARNING
If disposed of improperly third parties
can possibly be seriously injured and
the environment polluted. e burning
of plastic components generates toxic
fumes which may impair the health
of people. Batteries/rechargeable
batteries may explode if they are
damaged or heated excessively, and
thereby cause poisoning, burning,
corrosion or environmental
contamination.
If disposed of negligently unauthorized
persons are able to use the product
improperly.
• e product must not be disposed of together
with household waste. Dispose of the device
and accessories properly
(see Chapter 12 / Disposal).
• Protect the product at all times from access
through unauthorized persons, especially
children.
4.5 Electromagnetic compatibility (EMC)
e electromagnetic compatibility is the ability of
the product to function in an environment where
electromagnetic radiation and electrostatic
discharges are present, without causing
electromagnetic interference to other devices.

10
4.5.1 INTERFERENCE OF OTHER DEVICES
BY H3X360G
Although the product meets the strict
requirements of the relevant directives and
standards, Hultafors can not completely
exclude the possibility of interference with other
devices (for example, when using the product in
combination with third-party devices, such as
field computers, personal computers, wireless
devices, mobile phones, certain cables or
external batteries).
• When using computers and radio equipment
make sure to observe the vendor-specific
information about electromagnetic
compatibility.
• Only use original Hultafors equipment and
accessories.
4.5.2 INTERFERENCE OF THE H3X360G
BY OTHER DEVICES
Although the product meets the strict
requirements of the relevant directives and
standards, Hultafors can not entirely exclude the
possibility that intense electromagnetic radiation
in the immediate vicinity of radio transmitters,
two-way radios, diesel generators, etc. can
distort the measurement results.
• When performing measurements under these
conditions check the plausibility of the results.
5. Laser safety/classification
e H3x360G projects a 360° horizontal line and
two 360° vertical lines.
e product corresponds to Laser class 2
according to DIN EN 60825-1:2014.
Class 2 laser:
When using Class 2 laser devices, the eye is
protected by the blink reflex or aversion reaction
in the case of random and short-term exposure.
WARNING
Looking directly into the beam with
optical aids (e.g. binoculars, telescopes)
can be dangerous.
CAUTION
Looking into the laser beam may be
hazardous to the eye.
• Do not look into the laser beam.
• Do not aim the laser beam at other people.

39,7mm
36,13mm
Notes:
Approximate finished size Dimensions (W x H):
Origination software:
File name:
Description:
Last edit:
For products:
Rev:
Adobe Illustrator 2021
Material:
Color specification:
PDF from supplier
(battery_sticker-input_sticker_PRINT.pdf) +
Hultafors logo
Red. Pantone 485C (CMYK 0, 95, 100, 0)
Yellow (CMYK 2, 6, 91, 0)
Black. Pantone Black 6C (CMYK 40, 20, 20, 100)
White. (CMYK 0, 0, 0, 0)
Text
Cutting lines
Folding lines
Information
Explanation line categories (should not be included in print)
Print for label on H3x360G bottom side
FbB-409190.ai
409190
LT 2021-12-17
B0
39,7 x 36,1 mm
11
Labelling on the device:
• Do not remove the type plate!
6. Getting Started
Fully charge the batteries before first use.
e battery charge status is shown on the display.
Charge the batteries when the symbol flashes
continuously on the screen. Use the charger
supplied with your H3x360G.
e device cannot be used whilst charging.
e batteries are fully charged in approx. 3 hours.
6.1 Operation with batteries
1. Open the battery compartment cover.
2. Insert batteries with the correct polarity into
the H3x360G.
3. Close the battery compartment cover (audible
click of the cover).
Only use type 18650 3.6 V Li-ion batteries
(3450 mAh).
Remove the batteries if the instrument is not
used for an extended period.
NOTE
e intensity of the laser lines can vary
depending on the battery quality.

12
• Recharge the battery regularly or ensure
additional batteries are available.
7.1.2 PULSE MODE
e REC LGD0 receiver can be used to detect
the laser lines at even greater distances or in
unfavorable environmental conditions. Pulse
mode is active on the H3x360G when the MODE
button is pressed. e laser lines flash three
times to indicate the change.
7.1.3 CREATING INCLINATIONS BEYOND THE
RANGE OF AUTOMATIC LEVELLING
ON:
• Push the on/o switch, transport lock to
the le (OFF position).
• Hold down the MODE button for at least
5 seconds.
• To indicate that the self-leveling is switched
o, the lines will blink every 4 seconds.
OFF:
• Hold down the MODE button for at least
5 seconds.
CAUTION
If the laser line is not projected vertically
to the surface or the surface is uneven,
this can lead to erroneous measurement
results.
• Make sure that the laser line is projected
vertically on to the wall or the target surface.
7. Operation
7.1 Getting started
7.1.1 SWITCHING THE INSTRUMENT ON AND OFF
ON:
Push the on/o switch, transport lock to the
right (ON position) and the pendulum unit will
be released. e device emits three 360° lines
from the outlet openings. To turn the vertical
and horizontal 360° lines on and o, press the
H and V buttons. e instrument will level itself
automatically within the specified inclination range
(see Chapter 3/ Technical data).
OFF:
Push the on/o switch, transport lock to the
le (OFF position) and the pendulum unit will be
locked; the laser line will disappear.
NOTE
Magnets can aect the measurement
instrument and lead to false results.
If the vertical laser line is not projected vertically
to the wall or to the target surface, uneven surfaces
can lead to erroneous measurement results.
• Make sure that the vertical laser line is
projected vertically on to the wall or the target
surface.
Severe temperature fluctuations can lead to
erroneous measurement results.
• Before start-up, allow the device to acclimatize
to the ambient conditions.
e laser lines will flash every 30 seconds when
the battery capacity falls below 10%.

13
7.2 Applications
7.2.1 HORIZONTAL LEVELLING 360°
7.2.2 VERTICAL LEVELLING 360°
7.2.3 90° ANGLE
90°
7.2.4 INCLINATION
7.2.5 WORKING AT DISTANCES
90°

14
min. 3 m
ca. 1,2 m
ca. 3 m
ca. 10 m
A B
ca.
20 cm
180°
ca. 10 m
180°
4
1
A B
A
ca.
20 cm
B
3
1
d 1
4
2
3
1 2
2
d 2
8. Checking the accuracy
Check the accuracy of the Hultafors H3x360G
before each measurement.
• Before starting the check, let the device
acclimatise to the environmental conditions.
8.1 Checking the accuracy of the
vertical line
• Attach a plumb line as close as possible
possible to a (at least) 3 m high wall.
• Mount the H3x360G onto a tripod at a height
of approx. 1.2 m.
• Position the device approx. 3 m in front of the
plumb line.
• Switch on the H3x360G and project the
vertical laser line onto the plumb line.
If the deviation is greater than 4 mm, the device
must be readjusted. In this case, consult your
dealer.
8.2 Checking the leveling accuracy of
the horizontal line
1. Select two horizontal, flat walls (A & B), which
are approx. 10 meters apart.
• Mount the H3x360G onto a tripod and position
it at a distance of approx. 20 cm from wall A.
• Mark the intersecting point of the vertical
and horizontal lines on wall A.
2. Rotate the H3x360G by 180° and mark point
on wall B.
• Position the laser at the same height approx.
20 cm away from wall B and mark point on
wall B.
3. Rotate the H3x360G by 180° and mark
point on wall A.
• Measure the vertical distance of the
marked points - and the vertical spacing
of the points - .
ca. 10 m
A B
ca.
20 cm
180°
ca. 10 m
180°
4
1
A B
A
ca.
20 cm
B
3
1
d 1
4
2
3
1 2
2
d 2

15
ca. 10 m
A B
ca.
20 cm
180°
ca. 10 m
180°
4
1
A B
A
ca.
20 cm
B
3
1
d 1
4
2
3
1 2
2
d 2
• Mark the center point of and .
• If the reference points and are on
dierent sides of the
center point, must be subtracted
from .
• If the reference points and are on the
same side of the
center point, must be added to .
• Divide the results with twice the value of the
room length.
If the result is greater than 4 mm, the device
must be readjusted. For this, please consult your
dealer.
9. Maintenance, storage and
transportation
9.1 Cleaning
• Wipe o any dirt with a so damp cloth.
• Check the outlet openings of the laser regularly,
and thoroughly clean them if necessary. Do not
touch the glass with your fingers.
• Do not use aggressive cleaning agents or
solvents.
• Do not immerse the device into water!
• Clean and dry wet equipment, accessories
and transport containers prior to packaging
them. Only pack equipment again when it is
completely dry.
• Keep plug connections clean and protected
from moisture.
9.2 Storage
9.2.1 GENERAL
• e equipment may only be stored within the
specified temperature limits
(see Chapter 3 / Technical data).
• Aer a prolonged storage, check the accuracy
of the measuring device before using it.
9.2.2 BATTERIES
• For storage, remove the batteries from the
device or from the charging station.
• e storage should preferably be performed in
a dry environment at room temperature
(see Chapter 3 / Technical data).

16
• Protect from moisture and humidity. Dry wet or
damp batteries before storage or before use.
• Prior to a prolonged storage, charge the battery
to 80 % capacity (see Chapter 7 / operation).
Repeat the procedure every 6 months.
• Aer storage, fully charge the battery before use.
• Check the battery for damage before use.
Do not use damaged batteries!
9.3 Transport
9.3.1 GENERAL
• e device may be damaged by strong
vibrations or by falling.
• Never transport the product loose. Always
use the original packaging or an equivalent
transport container.
• Switch o the measuring device before
transporting it. During the shutdown the
pendulum unit is locked in position and
protected against damage.
• Check the unit for damage before use.
• Regularly check the accuracy of the device
(see Chapter 8 / Checking the accuracy).
9.3.2 BATTERIES
When transporting or shipping batteries, the
operator is responsible for complying with the
applicable national and international laws and
regulations.
• Before shipping, remove the batteries from the
device.
10.1 Product contents H3x360G
H3x360G Cross laser
3.6V Li-ion Batteries (3450mAh)
Power plug
Charger
Quick Starter
Case
10.2 Accessories
RECG Hand-held receiver
B-120 Compact tripod
UH Universal holder
LA-2 read adapter set
LBG Laser goggles, green
TPG Magnetic target, green
MAH Magnetic bracket
B-10 Mini tripod
Further information on accessories can be found
at www.hultafors.com
10. Delivery contents and
accessories

17
11. Troubleshooting
Error Possible cause Remedy
Laser lines blink in one
second intervals.
• Device outside of self-leveling
range.
• Align device horizontally.
Device turns o again
immediately eer
startup.
• Battery flat.
• Battery empty.
• Replace battery.
• Charge battery.
Laser lines blink every
4 seconds.
• Device is in manual inclination
mode.
• Push the on/o switch,
transport lock to the right (OFF
position).
Laser lines flash every
30 seconds.
• Battery capacity below 10%. • Replace the battery.

18
12. Disposal
If disposed of improperly third parties can
possibly be seriously injured and the
environment polluted.
e burning of plastic components generates
toxic fumes which may impair the health of
people.
Batteries/rechargeable batteries may explode
if they are damaged or heated excessively, and
thereby cause poisoning, burning, corrosion or
environmental contamination.
If disposed of negligently unauthorized persons
are able to use the product improperly.
Measuring tools, accessories and packaging
must be recycled in an environmentally-friendly
manner.
e product as well as the
accessories – especially the
batteries and rechargeable
batteries – may not be disposed
of with household waste.
• Ensure proper disposal of the
device and the accessories.
• Observe the country-specific
disposal requirements.
Your Hultafors dealership will accept returned
batteries as well as old equipment, and will
ensure proper disposal.
Only for EU countries
Electric tools may not be
disposed of with household
waste!
According to the European
Directive 2002/96/EC on
Waste Electrical and Electronic
Equipment and its
implementation in national law,
no longer usable electrical and
electronic equipment must be
collected separately and recycled
in an environmentally
friendly manner.

19
13. Manufacturer‘s Guarantee
e manufacturer guarantees freedom from
defects of the device for a period of two years,
with the exception of batteries, as of the point in
time the device is handed over. e guarantee
is limited to repairs and/or replacements at the
manufacturer‘s discretion.
Defects which are caused through improper
handling by the purchaser or third parties, natural
wear and optical flaws that do not aect the
usability of the equipment, are not covered by this
guarantee. Claims under this guarantee can only
be invoked if the device is submitted to the dealer
along with the invoice or original receipt.
If the guarantee claim is justified, the manufacturer
shall bear the transport costs. e duration of the
guarantee will not be extended through repair or
spare parts work which is carried out within the
scope of the guarantee.
Further claims are excluded, unless these are
stipulated by the respective by the respective
national legislation. In particular the manufacturer
shall not be liable for any direct, indirect, incidental
or consequential damages, losses or expenses
in connection with the use or because of the
inability to use the tool for any purpose whatsoever.
Implied warranties for the usage or suitability for a
particular purpose are expressly excluded.

20
EN 60825-1:2014
14. EC conformity declaration
Declaration of Conformity
We Hultafors Group AB, Hultaforsvägen 21, Hultafors
declare under our sole responsibility that the Product(s)
H3x360G
to which this declarations relates is in conformity with the following standards.
Following the provisions of Directive(s)
Electromagnetic compatibility 2014/30/EU
Low Voltage Directive 2014/35/EU
