HULTDINS SuperSaw 350E User manual

Installation manual
SuperSaw 350E

2013– HULTDIN SYSTEM AB.
This publication applies to the following models:
SuperSaw 350E S/N 054-0020 & up
This publication contains instructions for the installation and maintenance of the SuperSaw 350E grapple saw units. The
instructions cover general information, procedures and specifications applicable to this grapple saw. If doubt should arise
concerning the validity of the instructions please consult the nearest dealer for more detailed information.
Illustrations, technical information and specifications were, as far as we have been able to judge, correct at the time of print.
However, we reserve the right to, without prior notice, revise specifications, instructions, equipment, etc. as a result of
ongoing product improvement activities.
No part of this publication may without approval of HULTDIN SYSTEM AB be translated, reproduced, stored or
transmitted electronically, mechanically, photographically or in another way not specified here.
Even if all conceivable measures have been taken to make the contents as complete as possible, HULTDIN SYSTEM AB
takes no responsibility for possible damages that may arise as a result of the instructions not being followed or improper use
of the product
Important!
The parts and components used in HULTDIN SYSTEM AB’s products are specifically chosen. Therefore original
spare parts are always the best alternative in a possible need of repairs or upgrading.
All service and repairs should be carried out by qualified service personnel or an authorized repair shop with suitable tools
and lifting devices.
This publication is published by: HULTDIN SYSTEM AB
Skolgatan 12
SE-930 70 MALÅ
Sweden

Eng_ss350TOC.fm SuperSaw 350E
CONTENTS
Contents Page Contents Page
Safety instructions.................................................... 5
General safety....................................................... 5
Meaning of safety messages................................. 5
Operational Safety................................................ 6
Chain shot hazard................................................. 6
Operator and bystander safety........................ 6
Maintenance safety............................................... 7
Welding........................................................... 7
Modifying the equipment............................... 7
Product description.................................................. 8
Main parts, Grapple saw ...................................... 8
Adjustment valves, Grapple saw.......................... 9
Hydraulic pressure test points............................ 10
Main parts SuperCut 100 ................................... 11
Labeling.............................................................. 12
Technical Data........................................................ 13
SuperSaw 350E - 10cc....................................... 13
SuperSaw 350E - 19cc....................................... 14
Special tools....................................................... 15
Hydraulic diagram SuperSaw 350E / alt. 1........ 16
Hydraulic diagram SuperSaw 350E / alt. 2........ 17
Funktional description .......................................... 18
SuperCut 100...................................................... 18
Chain lubrication system.................................... 19
Installation.............................................................. 20
Where to install the grapple saw? ...................... 20
Installation on SuperGrip II ............................... 21
Hydraulic installation......................................... 22
Initial upstart.......................................................... 23
Saw motor upstart .............................................. 23
Adjusting saw bar feed out pressure .................. 24
Adjusting saw bar feed out................................. 25
Adjusting saw bar retraction .............................. 25
Adjusting chain tension pressure ....................... 26
Bleeding the chain tension system..................... 26
Procedures .............................................................. 27
Replacing saw chain........................................... 27
Replacing saw bar.............................................. 28
Replacing bar holder .......................................... 29
Replacing drive sprocket.................................... 30
Refilling chain lubrication oil ............................ 31
Maintenance instructions...................................... 32
Regular maintenance.......................................... 32
Daily maintenance........................................ 32
Lubrication ................................................... 33
Strainer for chain lubrication........................ 33
The first month of operation .............................. 33
Fasteners....................................................... 33

CONTENTS
4 SuperSaw 350E Eng_ss350TOC.fm
(This page intentionally left empty for future additions)

SAFETY INSTRUCTIONS
en011301_sc.fm Safety instructions 5
Safety instructions
General safety
• This page describes important safety instructions,
which the operator should have a good
knowledge of before the equipment is used.
• This product should only be used by operators
with proper knowledge and training.
• The owner and the operator are responsible for
following all safety regulations and that the
machine is safely equipped.
• The owner and the operator are responsible for
following National and local laws, regulations
and other instructions when using the product.
• The owner and the operator are responsible for
replacing damaged parts and/or unreadable
warning signs.
• The manual should be available at all times so
that the operator is able to follow safety
regulations and the procedures of maintenance
activities.
Meaning of safety messages
Danger!
Danger indicates a hazard with a high level of risk
which, if not avoided, will result in death, serious
injury and/or serious property damage.
Warning!
Warning indicates a hazard with a medium level of
risk which, if not avoided, could result in death,
serious injury and/or serious property damage.
Caution!
Caution indicates a hazard with a low level of risk
which, if not avoided, could result in minor or
moderate injury and/or property damage

SAFETY INSTRUCTIONS
6Safety instructions en011301_sc.fm
Operational Safety
• Check the unit for damages at the beginning of
each shift.
• Make sure that the hydraulic pressure in the
grapple cylinder is adjusted according to the
specifications. If the pressure is too high, the unit
will be overloaded, which could cause a
structural failure, resulting in injury and/or
property damage.
• When operating this equipment ensure all
unauthorized persons remain at least 90 meters
clear of the machine.
• The operator must immediately evict
unauthorized persons who are in the danger zone
or are heading towards the danger zone
• Training or demonstration of this equipment
should be performed from an operator´s cab
approved by national regulations. Observers
should always remain at least 90 meters.
• Keep all windows and doors securly closed when
operating.
Chain shot hazard
Operator and bystander safety
Because of the high speeds, high stress, heavy loads, wear
factors and varying levels of repair and maintenance given
to saw-chain based machines, there is a possibility that
chain or chain pieces can be thrown from the machine at
high speed and enormous energy. Operators and
bystanders are exposed to a risk of serious injury.
Machines should be designed with appropriate guards and
shields, and care should be taken to minimize the exposure
of users and bystanders to the cutting plane of the saw.
• There is risk of seriousinjury or death to machine
operators and bystanders from “Chain Shot”,
which is the high-speed ejection of chain parts
that can occur in the event of a derailed or a
broken chain. For maximum protection, machines
should be equipped with an energy-absorbing
chain shot guard.
• Always use High Speed saw chains with 3/4”
pitch saw units.
90 meters

SAFETY INSTRUCTIONS
en011301_sc.fm Safety instructions 7
Maintenance safety
• The machine's condition must be checked
regularly, daily inspections shall be performed
and any deficiencies must be corrected. The
machine shall be maintained in such condition
that the operator or other persons are not exposed
to danger or accidents.
• Never commit any service on the equipment
without proper knowledge. All service and
repairs in electrical and hydaulical systems
should be carried out by qualified personnel only.
• Repair any damages immediate when discovered.
Do not use the equipment until any damages are
rectified.
• Before performing any maintenance or service
work, lower the unit to the ground and shut off
the engine. Turn off any master shut-offs and do
not allow personnel in the cab.
• When working on the saw chain always ensure
the engine is shut off and wear safety gloves to
prevent injuries. Remove the saw chain when
making any adjustments or servicing the saw unit
• Use safety glasses and protective gloves when
servicing the equipment. Hydraulic oil or
lubricants in contact with skin or eyes may cause
irritations or allergies.
• Use hard hat and safety boots when servicing the
equipment. Leakage of hydraulic oil or lubricants
will increase the risk of slipping or falling.
• The unit has sharp edges. Use proper wrenches
and protective gloves when working on the unit.
• Hydraulic hoses and adapters may be pressurized
even with the engine shut off. Loosen any parts
with caution.
• Always make sure that the system is
depressurized before committing any service on
the equipment.
• Always secure movable parts mechanically
before any hydraulic hose is loosened.
• Never try to stop a leakage in the hydraulic
system with you hand. Pressurized hydraulic oil
can be injected under the skin and cause death or
severe damage.
Welding
In case of a structural repair of the equipment, when
welding may be needed, consult the dealer for
recommended instructions.
When welding on the grapple the following steps must
be taken:
• Make sure that fire-extinguishing equipment is
available.
• Clean the area around the welding area to
eliminate any fire hazard.
• Connect the ground wire so the welding current
does not pass over any bushings.
• Place the ground wire as close to the welding area
as possible.
• When welding close to bushings, dissassemble
the bushings asthey are made of a plastic
compound-material which high temperatures may
damage.
Modifying the equipment
It is not approved to:
• Modify the grapple without the consent of
HULTDIN SYSTEM AB.
• Alter the function of the grapple without the
consent of HULTDIN SYSTEM AB.
• Use spare parts other than original HULTDINS
parts.

PRODUCT DESCRIPTION
8 SuperSaw 350E En011302a_ss350.fm
Product description

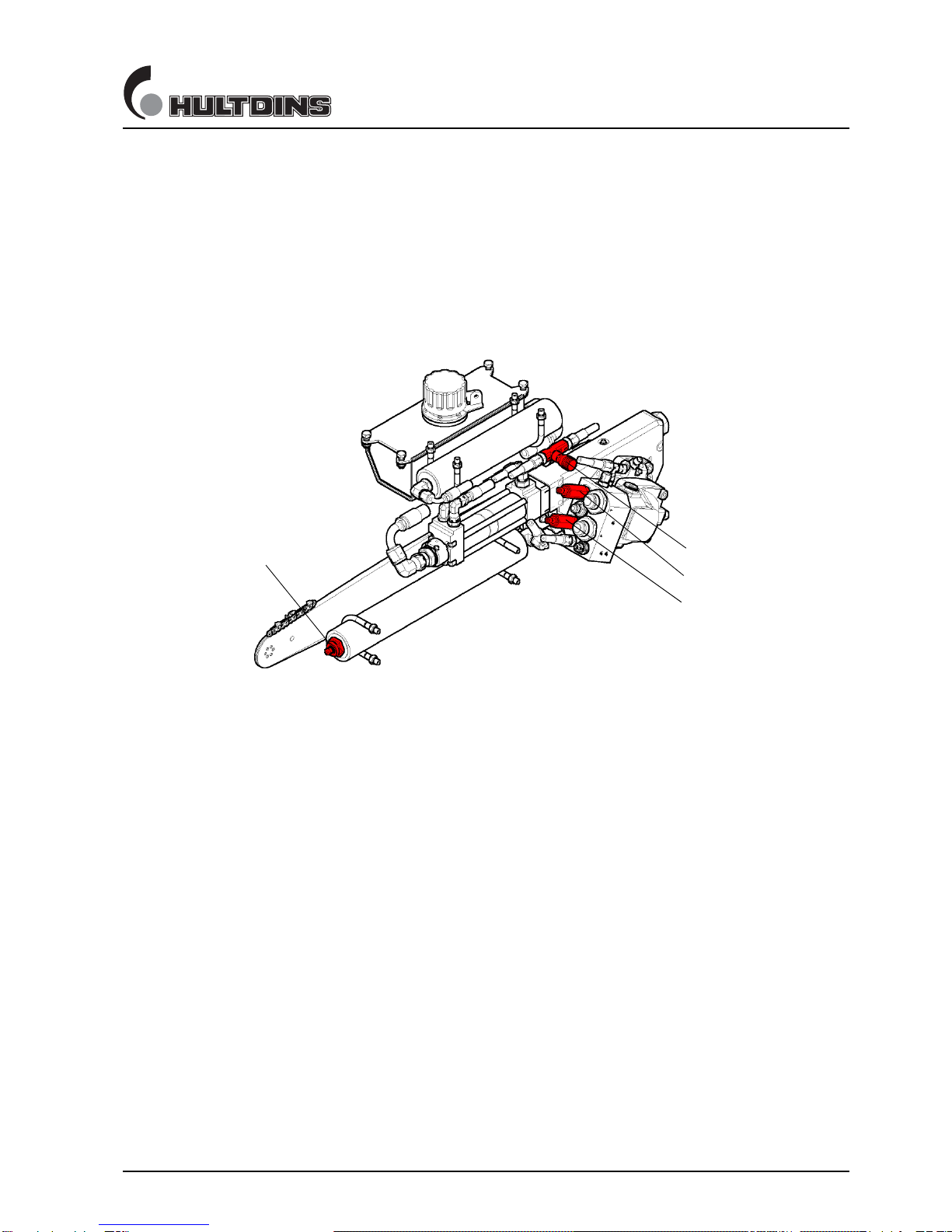

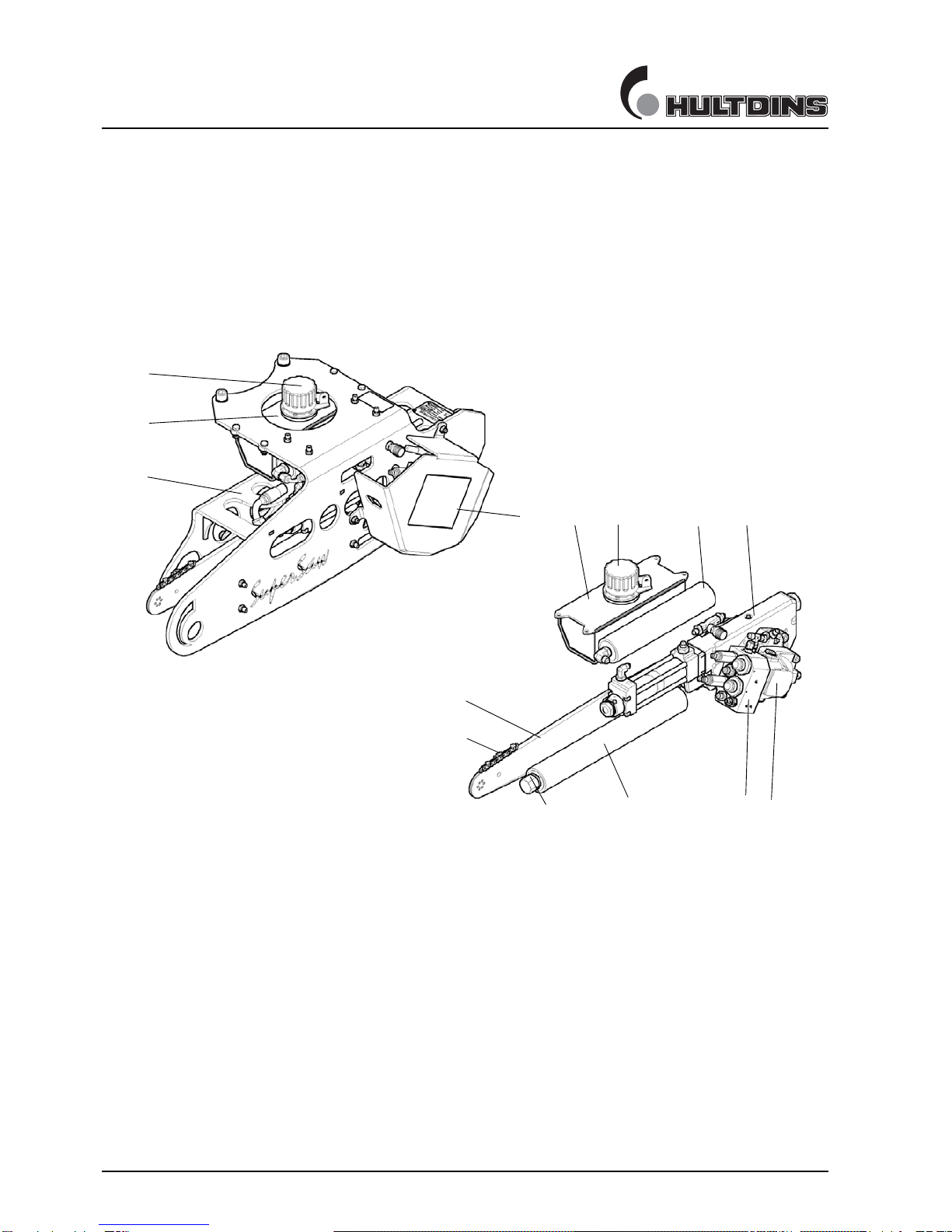

Main parts, Grapple saw
The SuperSaw 350E grapple saw consists basically of a frame, a saw unit and a
hydraulic system. The illustration shows the location of the main parts.
Fig. 1 Uppbyggnad SuperSaw 350E
1Frame
2 Saw motor cover
3 Lubrication oil tank
4 Refilling cap for chain lubrication oil
5 Hydraulic manifold with adjusting valves for chain tensioning and saw bar feed out
6 Saw unit
7 Saw motor
8 Accumulator for saw motor case drain
9 Air tank for saw bar retraction
10 Air nippel for air-pressure adjustment
11 Saw bar
12 Saw chain
1
2
3
4
5
6
7
8
9
10
11
12
34

PRODUCT DESCRIPTION
En011302b_ss350.fm SuperSaw 350E 9
product description
Adjustment valves, Grapple saw
The SuperSaw 350E grapple saw has the following adjustment valves. The location
of the valves shows on the illustration.
ill. 2 Adjustment valves
1 Pressure regulating valve for saw bar feed out pressure
2 Pressure regulating valve for saw chain tension pressure
3 Restrictor valve for saw bar feed out speed adjustment
4 Air nipple for saw bar retraction adjustment
1
42
3

PRODUCT DESCRIPTION
10 SuperSaw 350E En011302c_ss350.fm
product description

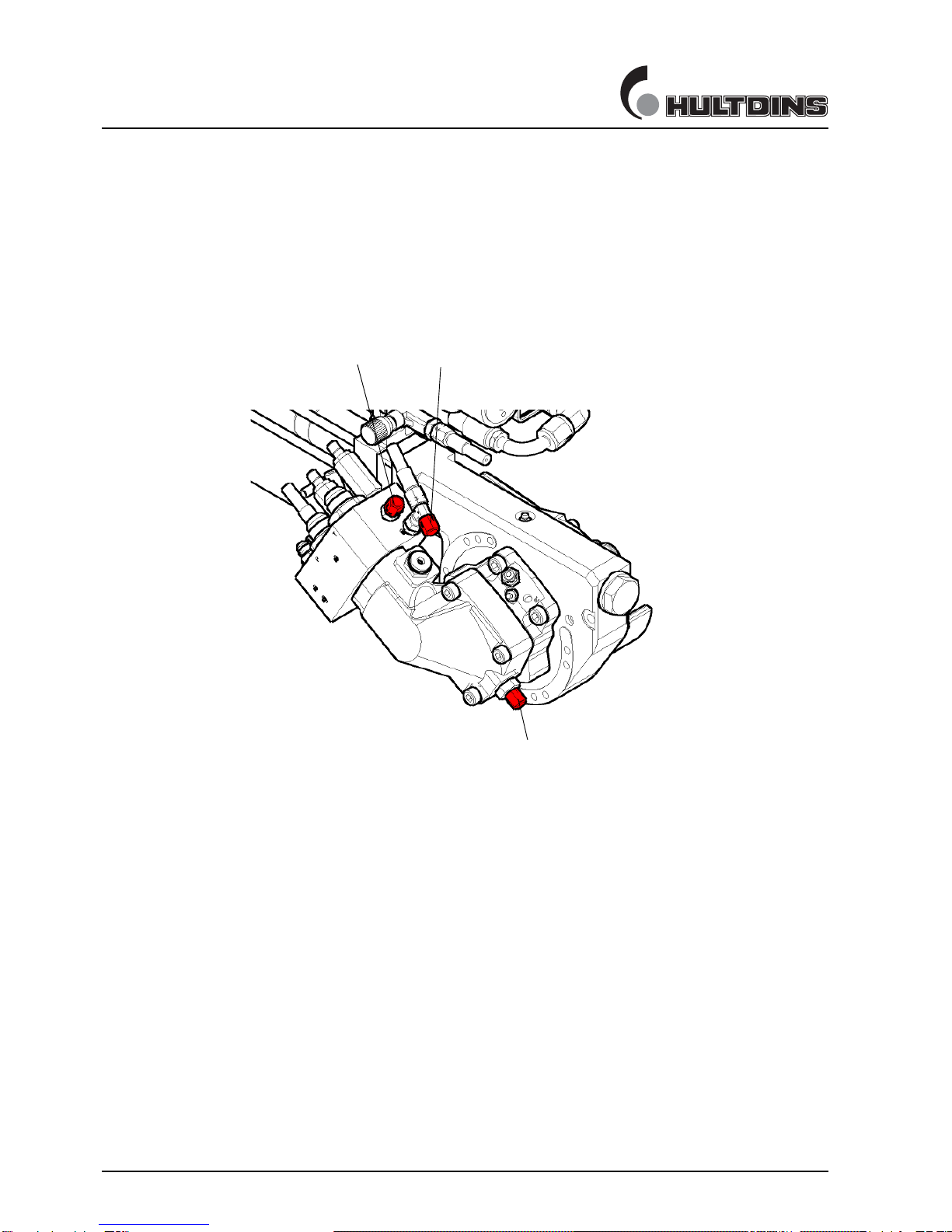

Hydraulic pressure test points
The SuperSaw 350E grapple saw has three different hydraulic pressure test points,
as shown on the following illustration.
ill. 3 Hydraulic pressure test points
1 Test point for saw bar feed out pressure
2 Test point for chain tension pressure
3 Test point for saw motor case drain pressure
12
3

PRODUCT DESCRIPTION
En010902_sc100.FM SuperCut 100 11
Product description

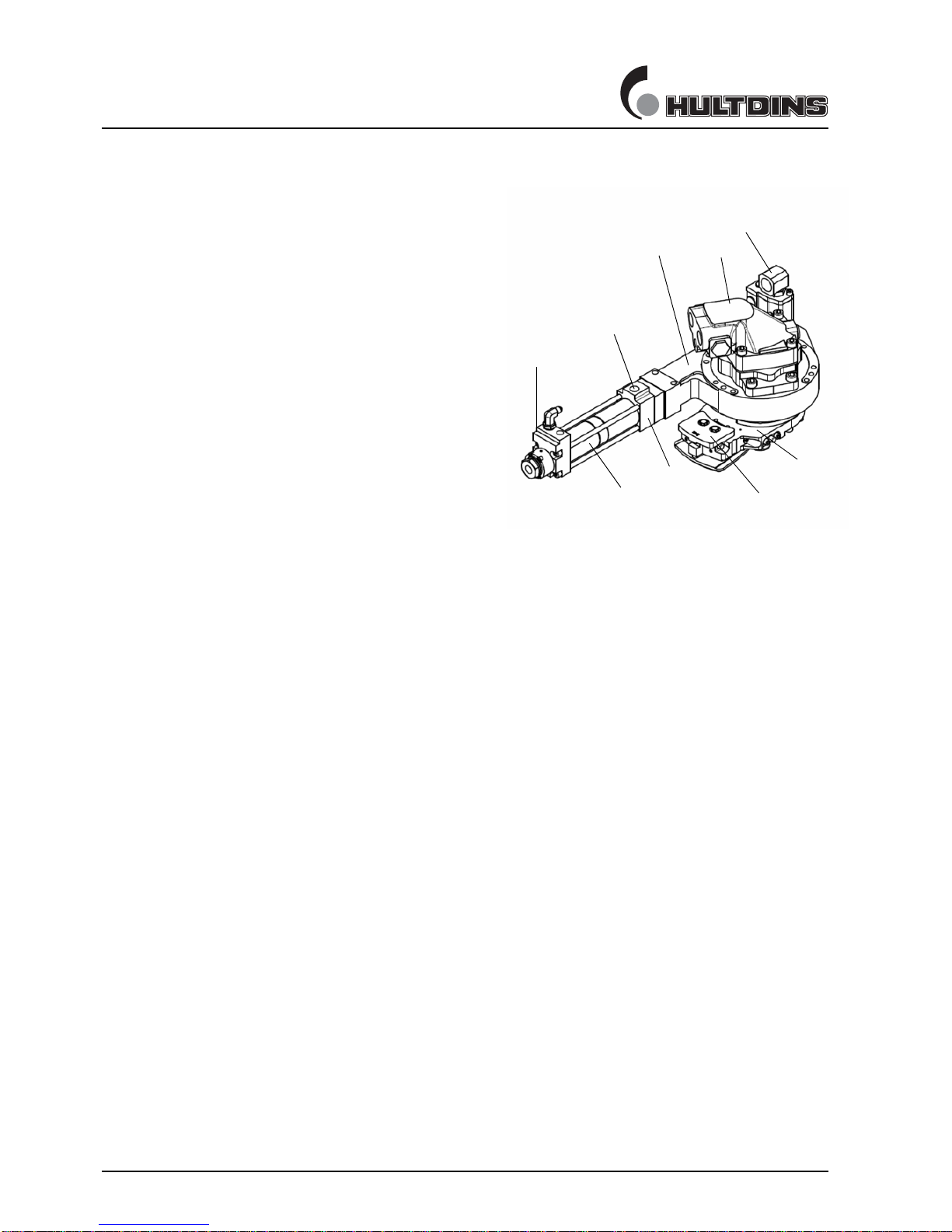

Main parts SuperCut 100
The SuperCut 100 saw unit is made up of the following main parts.
1. Housing with integrated 4-point bearing/gear drive
2. Tension device
3. Bar holder
4. Saw motor
5. Saw bar feed out cylinder with rack
6. Lubrication oil pump
7. Cut control
ill. 4 Main parts SuperCut 100
1
2
3
4
7
5
6

PRODUCT DESCRIPTION
12 SuperSaw 350E En010903_ss350.fm
Märkning SuperGrip SG II
Seriel number
CE-label
Warning label
Laser cut product marking
Warning label
Product description
SuperSaw 350E is a low weight grapple saw, which
together with SuperGrip SG II is generally mounted on
cranes intended for on road- and off road vehicles.
SuperSaw 350E is only intended to be used for small
timber, pulp- and waste wood systems.
SuperSaw 350E must not be used for felling
applications,as there is a risk that the grapple arms or other
parts of the grapple or grapple saw may fail, which could
result in injury or damaged equipment.
Labeling
SuperSaw 350E is labeled with serial number, model num-
ber, mfg. year, weight and a CE-label according to the fol-
lowing illustration.

TECHNICAL DATA
En010904a_ss350.fm SuperSaw 350E 13
Technical Data
SuperSaw 350E - 10cc
Dimensions
Total weight .404” 89 kg
Length ‘A’ 1017 mm
Width ‘B’ 446 mm
Height ‘C’ 331 mm
Width ‘D’ 99 mm
Saw bar .404” 75 cm
Hydraulic system
Saw motor displacement 10 cm3
Min. hydraulic pressure, saw motor 16,0 MPa*
Min. hydraulic flow, saw motor 60 lpm *
Hyd. pressure, saw bar feed out‘P1’ 7,5 - 8,5 MPa
Hyd. pressure, chain tensioning‘P2’ 2,5 MPa
Gas pressure, accumulator ‘P3’ 0,1 MPa
Air pressure, saw bar retraction‘P4’ 1,2 - 1,4 MPa
Chain lubrication
Type of lubrication Proportional
Lub. volume @ 95° feed out (.404”) 3,5 ml
Lub. oil tank capacity 2,7 lit.
* Max. saw chain speed and Max. power input to the saw
chain may NEVER exceed recommendations from each
saw chain manufacturer.
B
D
C
A

TECHNICAL DATA
14 SuperSaw 350E En011204b_ss350.fm
Technical Data
SuperSaw 350E - 19cc
Dimensions
Total weight .404”
Total weight 3/4” 94 kg 96 kg
Length ‘A’ 1017 mm
Width ‘B’ 446 mm
Height ‘C’ 331 mm
Width ‘D’ 121 mm
Saw bar .404”
Saw bar 3/4” 67 / 75 cm 67 / 75 cm
Hydraulic system
Saw motor displacement 19 cm3
Min. hydraulic pressure, saw motor 16,0 MPa*
Min. hydraulic flow, saw motor 115 lpm (.404”)*
80 lpm (3/4”)*
Hyd. pressure, saw bar feed out‘P1’ 7,5 - 8,5 MPa
Hyd. pressure, chain tensioning‘P2’ 2,5 MPa (.404”)
5,5 MPa (3/4”)
Gas pressure, accumulator ‘P3’ 0,1 MPa
Air pressure, saw bar retraction‘P4’ 1,2 - 1,4 MPa
Chain lubrication
Type of lubrication Proportional
Lub. volume @ 95° feed out (.404”)
Lub. volume @ 95° feed out (3/4”) 3,5 ml 6,5 ml
Lub. oil tank capacity 2,7 lit.
* Max. saw chain speed and Max. power input to the saw
chain may NEVER exceed recommendations from each
saw chain manufacturer.
B
D
C
A

TECHNICAL DATA
En010904c_ss350.fm SuperSaw 350E 15
Technical data
Special tools
The following special tools are supplied with the unit and
required when servicingSuperSaw 350E.
Air pump
The air-pump is used when adjusting the saw bar
retraction speed. See ill. 5.
Installation tool
The installation tool, P/N 0690149, is required when
replacing the check valve for the chain tensioning.. See ill.
6.
Check valve key
The check valve key, P/N 0696011, is required when
replacing the check valve for the chain lubrication. It is
also used when bleeding the chain tensioning cicuit. See
ill. 7.
Pressure gauge hose
The pressure gauge hose, P/N 0724011, is used to connect
a pressure gauge to the pressure test points on the saw
motor manifold. See ill. 8.
ill. 5 Air-pump, P/N 0138042
ill. 6 Installation tool, P/N 0690149
ill. 7 Check valve key, P/N 0696011
ill. 8 Pressure gauge hose, P/N 0724042

TECHNICAL DATA
16 SuperSaw 350E En010904d_ss350.fm
Technical data
Hydraulic diagram SuperSaw 350E / alt. 1
1. Tension device
2. Saw motor manifold
3. Air tank for saw bar retraction
4. Pressure regulating valve for chain tensioning
5. Pressure regulating valve for saw bar feed out
6. Saw motor
7. Main valve on carrier*
8. Saw bar feed out cylinder
9. Grapple cylinder
10. Check restrictor valve for Saw bar feed out
11. Rotator
12. Accumulator for saw motor case drain
13. Check valve
14. Pilot valve for chain tensioning
15. Bleed screw for chain tensioning
16. Pressure test point
17. Anti cavitation valve
18. Dump valve *
* Required on carrier, but not supplied with the grapple saw.
ill. 9 Hydraulic diagram
1
15
14
16
4
2
8
11 9
3
16
5
13
13
10
12
6
17
7
18 13

TECHNICAL DATA
En010904e_ss350.fm SuperSaw 350E 17
Technical Data
Hydraulic diagram SuperSaw 350E / alt. 2
1. Tension device
2. Saw motor manifold
3. Air tank for saw bar retraction
4. Pressure regulating valve for chain tensioning
5. Pressure regulating valve for saw bar feed out
6. Saw motor
7. Main valve on carrier*
8. Saw bar feed out cylinder
9. Grapple cylinder
10. Check restrictor valve for Saw bar feed out
11. Rotator
12. Accumulator for saw motor case drain
13. Check valve
14. Pilot valve for chain tensioning
15. Bleed screw for chain tensioning
16. Pressure test point
17. Anti cavitation valve
18. Dump valve *
* Required on carrier, but not supplied with the grapple saw.
ill. 10 Hydraulic diagram
1
15
14
16
4
2
8
11 9
3
16
5
13
13
10
12
6
17
7
18 13

FUNKTIONAL DESCRIPTION
18 SuperCut 100 En010905a_sc100.FM

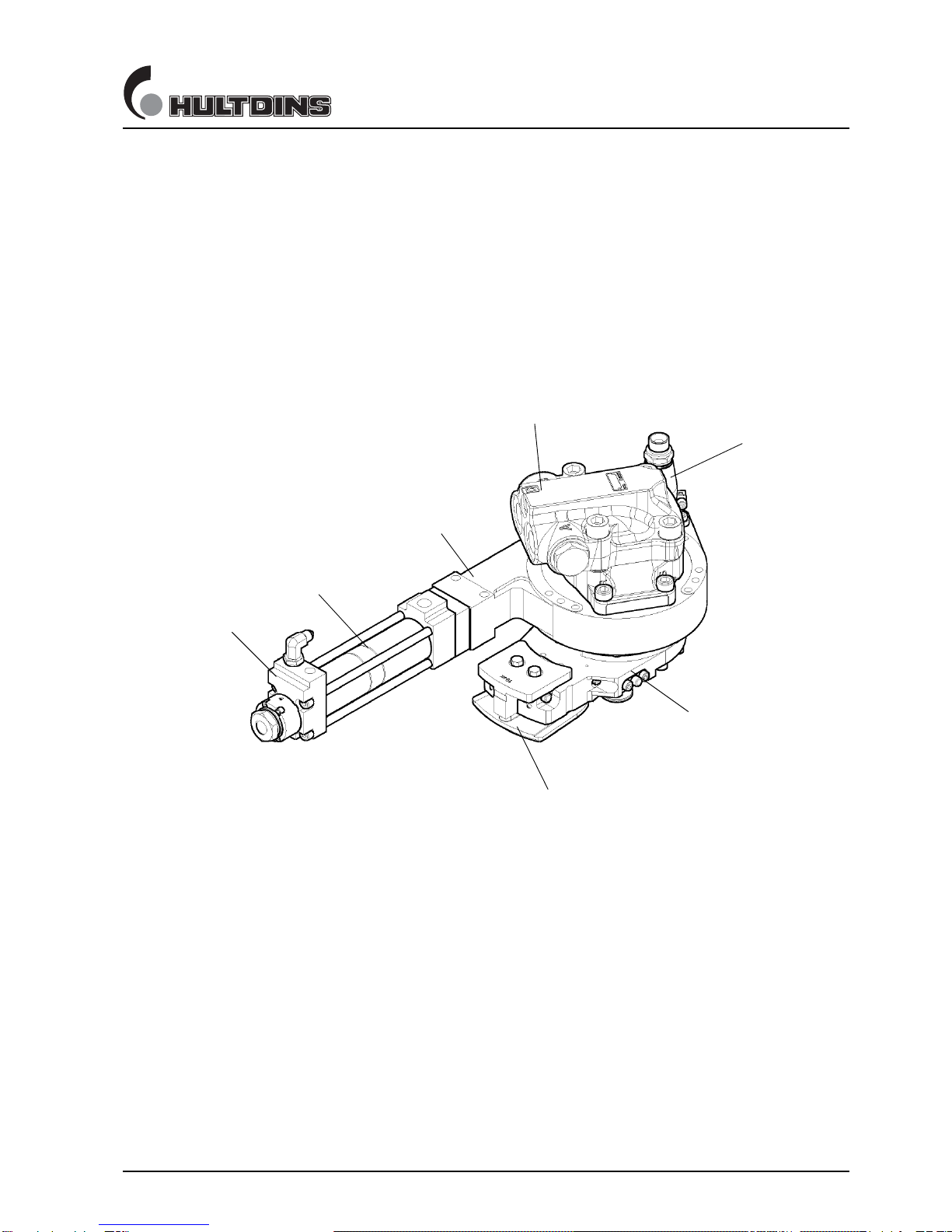

Funktional description
SuperCut 100
The SuperCut 100 is made up of one Saw stand (1) which
contains a 4-point bearing with a gear drive, a feed out
cylinder (5) with integrated rack and proportional lubrication oil
pump (6). The feed out cylinder (5) is equipped with hydraulic
dampening for “Soft Stop” to eliminate shock loads. The piston
stops the hydraulic flow by passing the entry hole (A) in the
connection flange (7).
The SuperCut 100 can be supplied with different saw motors ,
from 10cc to 32cc (4).
The SuperCut 100 is equipped with a patented automatic chain
tension system, made up of a tensioning device (2) on which the
bar holder (3) is attached.
Optional accessories such as cut-control devices (8) are easy to
install.
The feed out cylinder (5) and the bar holder (3) are not on the
same level, which eliminates problems with snow packing or
other debris. The saw bar feed out angle (B) is 95°.
The tension device(2) can easily be relocated in 9.23° steps for
various “saw bar starting” angles, to accommodate specific
attachment design requirements.
The SuperCut 100 is can be equipped with .404” pitch saw
chains with saw bars up to 90cm, or with 3/4” pitch saw chains
with saw bars up to 67,5cm.
Fig. 11 Huvudkomponenter SuperCut 100
1. Housing with integrated 4-point bearing/gear drive
2. Tension device
3. Bar holder
4. Saw motor
5. Saw bar feed out cylinder with rack
6. Lubrication oil pump
7. Connection flange
8. Cut control
1
2
3
4
5
6
7
8
A

FUNCTIONAL DESCRIPTION
en010005.sc100b.FM SuperCut 100 19
Functional description

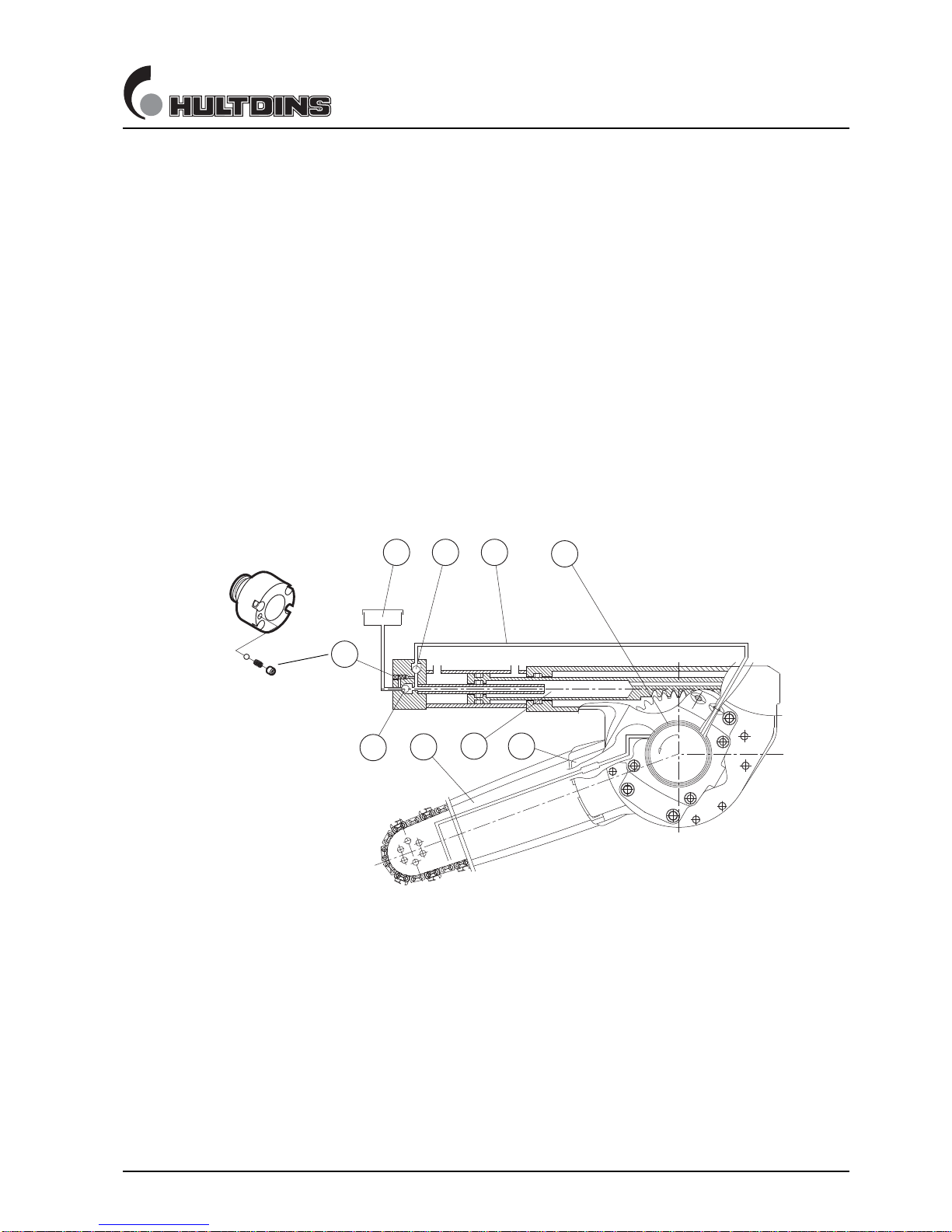

Chain lubrication system
The SuperCut 100 is equipped with a lubrication oil pump
integrated with the feed out cylinder. The lubrication oil
pump supplies oil via a piston operation to the saw chain
during the entire feed out process.
The lubrication oil pump is fed with oil from the oil tank
(1), trough the inlet check valve (2) and to a reservoar in
the piston rod (3).
When the saw bar (8) is fed out, the oil goes through the
outlet check valve (4), via a hydraulic hose (5) to the
swivel in the saw motor (6) and finally through the bar
holder to the saw bar (8).
The purpose of the pressure relief valve (9) is to limit the
pressure in the lubrication circuit to prevent damages on the
sviwel seals in the saw motor. The cracking pressure of the
valve is between 3.0 to 5.0 MPa (435 to 725 Psi).
The supply of oil is proportional, which means that the
volume of oil supplied depends on how much the saw bar is
fed out.
By using different lubrication oil pumps, the amount of oil
supplied to the saw bar can be varied depending on
different lubrication requirements.
1. Lubrication oil tank
2. Inlet check valve
3. Piston rod
4. Outlet check valve
5. Hydraulic hose
6. Swivel in saw motor
7. Bar holder
8. Saw bar
9. Pressure relief valve
Fig. 1 Chain lubrication system
1 4 5 6
283 7
9

INSTALLATION
20 SuperSaw 350E En011106a_ss350.FM
Installation
Where to install the grapple saw?
SuperSaw 350 should normally be installed with the saw
motor on the same side as the piston rod of the grapple
cylinder, to achive the best weight balance.
On the A-models of the SuperGrip II grapples, the
SuperSaw 350 should be installed on the same side as the
longer tips of the grapple arms, to optimize the performace
of the grapple saw together with the grapple.
