HULTDINS SuperSaw 551 User manual

Installation manual
SuperSaw 551

2015– HULTDIN SYSTEM AB.
This publication applies to the following models:
SuperSaw 551 S/N 031-1272 and up
This publication contains instructions for the installation and maintenance of the SuperSaw 551 grapple saw units. The
instructions cover general information, procedures and specifications applicable to this grapple saw. If doubt should arise
concerning the validity of the instructions please consult the nearest dealer for more detailed information.
Illustrations, technical information and specifications were, as far as we have been able to judge, correct at the time of print.
However, we reserve the right to, without prior notice, revise specifications, instructions, equipment, etc. as a result of
ongoing product improvement activities.
No part of this publication may without approval of HULTDIN SYSTEM AB be translated, reproduced, stored or
transmitted electronically, mechanically, photographically or in another way not specified here.
Even if all conceivable measures have been taken to make the contents as complete as possible, HULTDIN SYSTEM AB
takes no responsibility for possible damages that may arise as a result of the instructions not being followed or improper use
of the product
Caution!
The parts and components used in HULTDIN SYSTEM AB’s products are specifically chosen. Therefore original
spare parts are always the best alternative in a possible need of repairs or upgrading.
All service and repairs should be carried out by qualified service personnel or an authorized repair shop with suitable tools
and lifting devices.
This publication is published by: HULTDIN SYSTEM AB
Skolgatan 12
SE-930 70 MALÅ
Sweden

en_ss551TOC.fm SuperSaw 551
CONTENTS
Contents Page Contents Page
Safety instructions.................................................... 4
General safety....................................................... 4
Meaning of safety messages................................. 4
Operational Safety................................................ 5
Chain shot hazard................................................. 5
Operator and bystander safety........................ 5
Maintenance safety............................................... 6
Welding........................................................... 6
Modifying the equipment............................... 6
Product description.................................................. 7
Main parts, Grapple saw ...................................... 7
Adjustment valves, Grapple saw.......................... 8
Hydraulic pressure test points.............................. 9
Hydraulic connections........................................ 10

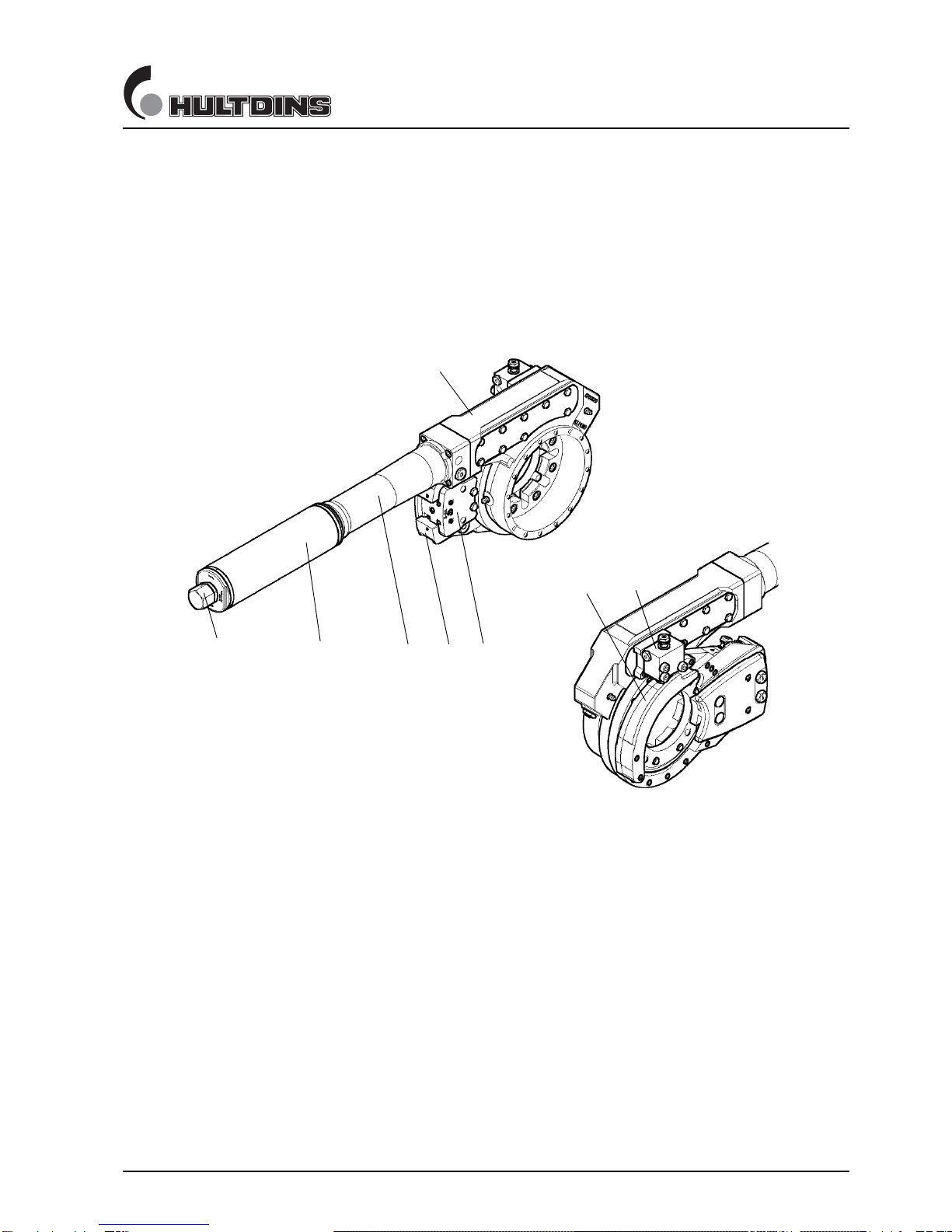

Main parts SuperCut .......................................... 11
Labeling.............................................................. 12
Technical Data........................................................ 13
SuperSaw 551 - 19cc.......................................... 13

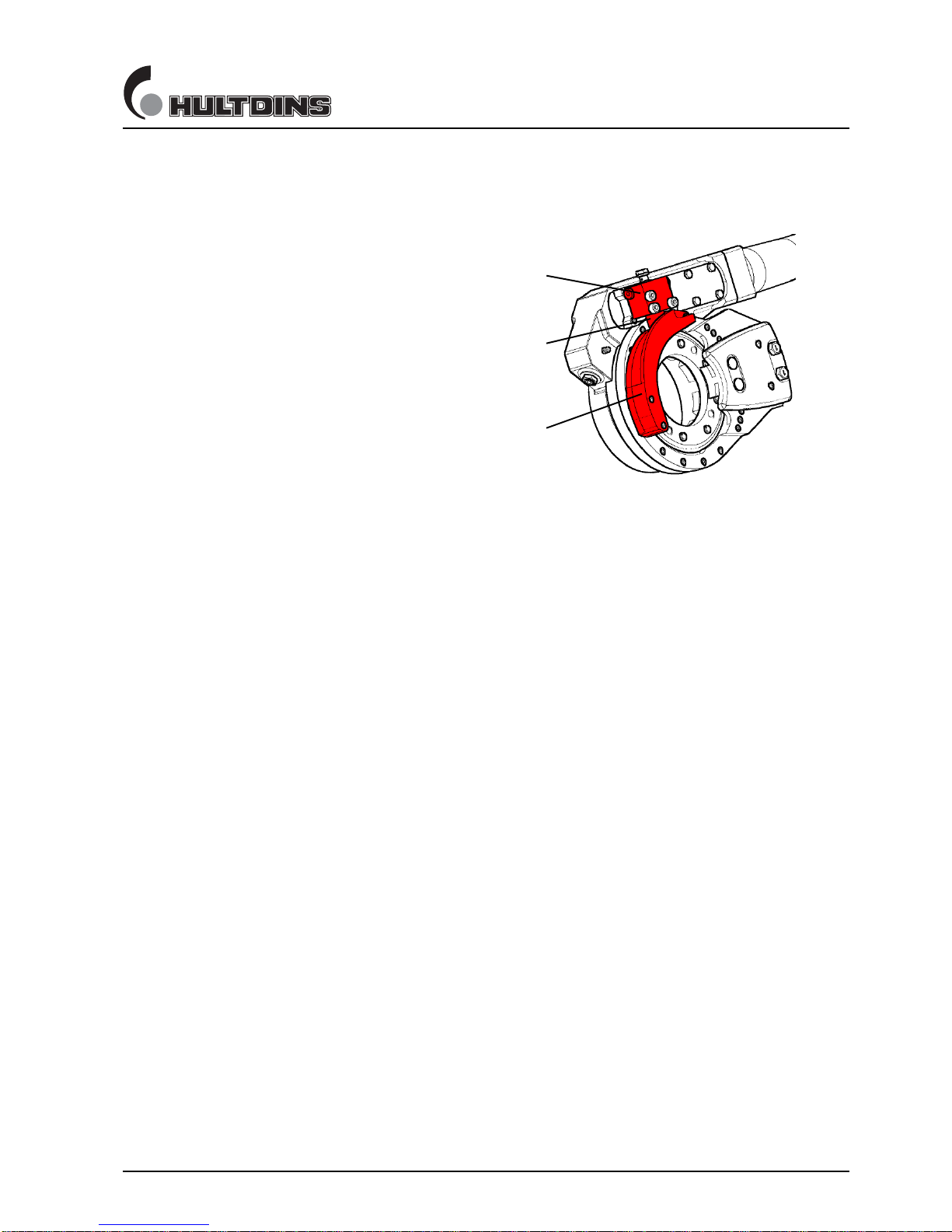

Rotator bracket................................................... 14
Special tools....................................................... 15

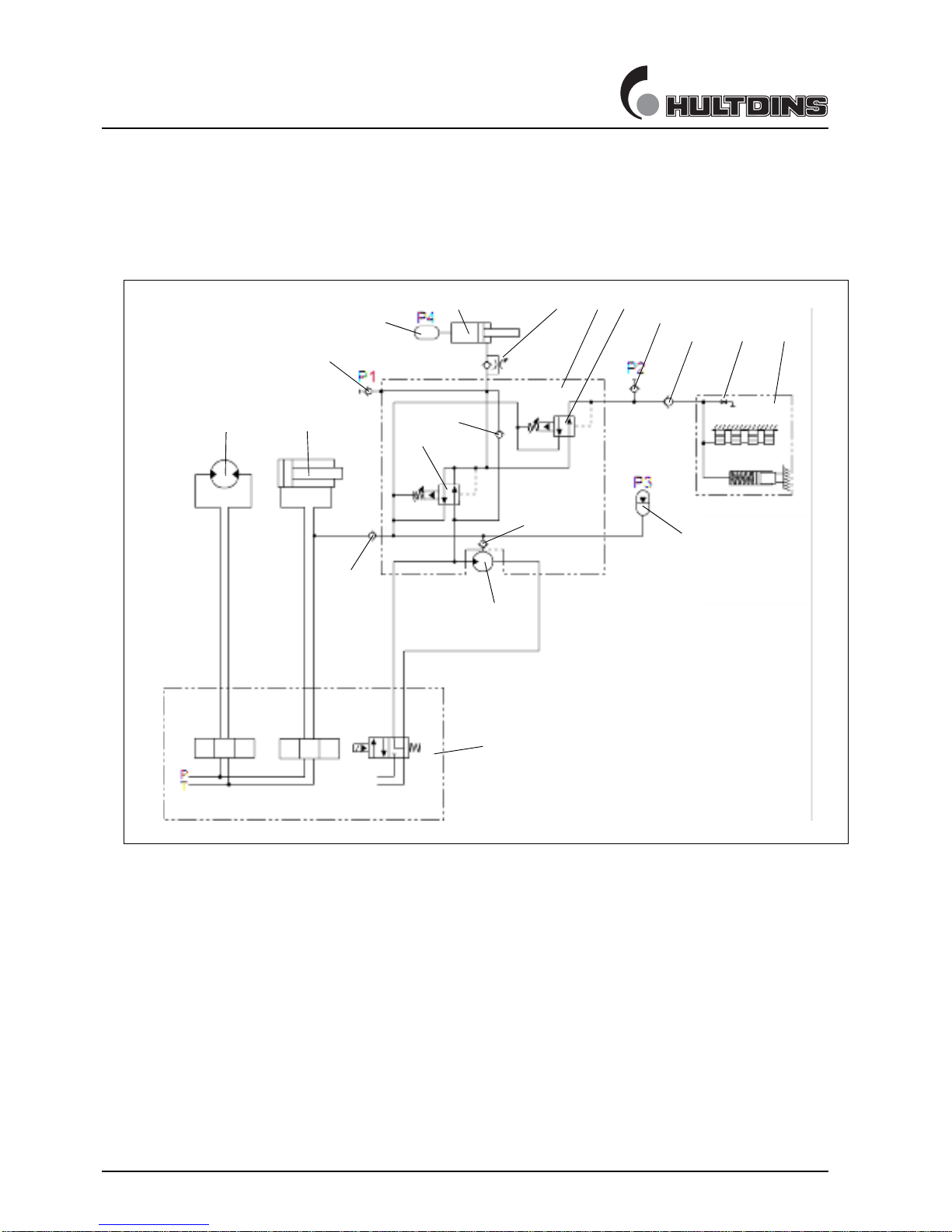

Hydraulic diagram SuperSaw 551 ..................... 16
Functional description........................................... 17
Chain lubrication system.................................... 17
Installation.............................................................. 18
Where to install the grapple saw? ...................... 18
Installing rotator bracket.................................... 19
Hydraulic installation......................................... 20
Initial upstart.......................................................... 21
Saw motor upstart .............................................. 21
Adjusting saw bar feed out pressure .................. 22
Adjusting saw bar feed out................................. 23
Adjusting saw bar retraction .............................. 23
Adjusting chain tension pressure ....................... 24
Bleeding the chain tension system..................... 24
Procedures .............................................................. 25
Replacing saw chain........................................... 25
Replacing saw bar.............................................. 26
Replacing bar holder .......................................... 27
Replacing drive sprocket.................................... 28
Refilling chain lubrication oil ............................ 29
Maintenance instructions...................................... 30
Regular maintenance.......................................... 30
Daily maintenance........................................ 30
Lubrication ................................................... 31
The first month of operation .............................. 31
Fasteners....................................................... 31

SAFETY INSTRUCTIONS
4Safety instructions en011301_sc.fm
Safety instructions
General safety
• This page describes important safety instructions,
which the operator should have a good
knowledge of before the equipment is used.
• This product should only be used by operators
with proper knowledge and training.
• The owner and the operator are responsible for
following all safety regulations and that the
machine is safely equipped.
• The owner and the operator are responsible for
following National and local laws, regulations
and other instructions when using the product.
• The owner and the operator are responsible for
replacing damaged parts and/or unreadable
warning signs.
• The manual should be available at all times so
that the operator is able to follow safety
regulations and the procedures of maintenance
activities.
Meaning of safety messages
Danger!
Danger indicates a hazard with a high level of risk
which, if not avoided, will result in death, serious
injury and/or serious property damage.
Warning!
Warning indicates a hazard with a medium level of
risk which, if not avoided, could result in death,
serious injury and/or serious property damage.
Caution!
Caution indicates a hazard with a low level of risk
which, if not avoided, could result in minor or
moderate injury and/or property damage

SAFETY INSTRUCTIONS
en011301_sc.fm Safety instructions 5
Operational Safety
• Check the unit for damages at the beginning of
each shift.
• Make sure that the hydraulic pressure in the
grapple cylinder is adjusted according to the
specifications. If the pressure is too high, the unit
will be overloaded, which could cause a
structural failure, resulting in injury and/or
property damage.
• When operating this equipment ensure all
unauthorized persons remain at least 90 meters
clear of the machine.
• The operator must immediately evict
unauthorized persons who are in the danger zone
or are heading towards the danger zone
• Training or demonstration of this equipment
should be performed from an operator´s cab
approved by national regulations. Observers
should always remain at least 90 meters.
• Keep all windows and doors securly closed when
operating.
Chain shot hazard
Operator and bystander safety
Because of the high speeds, high stress, heavy loads, wear
factors and varying levels of repair and maintenance given
to saw-chain based machines, there is a possibility that
chain or chain pieces can be thrown from the machine at
high speed and enormous energy. Operators and
bystanders are exposed to a risk of serious injury.
Machines should be designed with appropriate guards and
shields, and care should be taken to minimize the exposure
of users and bystanders to the cutting plane of the saw.
• There is risk of seriousinjury or death to machine
operators and bystanders from “Chain Shot”,
which is the high-speed ejection of chain parts
that can occur in the event of a derailed or a
broken chain. For maximum protection, machines
should be equipped with an energy-absorbing
chain shot guard.
• Always use High Speed saw chains with 3/4”
pitch saw units.
90 meters

SAFETY INSTRUCTIONS
6Safety instructions en011301_sc.fm
Maintenance safety
• The machine's condition must be checked
regularly, daily inspections shall be performed
and any deficiencies must be corrected. The
machine shall be maintained in such condition
that the operator or other persons are not exposed
to danger or accidents.
• Never commit any service on the equipment
without proper knowledge. All service and
repairs in electrical and hydaulical systems
should be carried out by qualified personnel only.
• Repair any damages immediate when discovered.
Do not use the equipment until any damages are
rectified.
• Before performing any maintenance or service
work, lower the unit to the ground and shut off
the engine. Turn off any master shut-offs and do
not allow personnel in the cab.
• When working on the saw chain always ensure
the engine is shut off and wear safety gloves to
prevent injuries. Remove the saw chain when
making any adjustments or servicing the saw unit

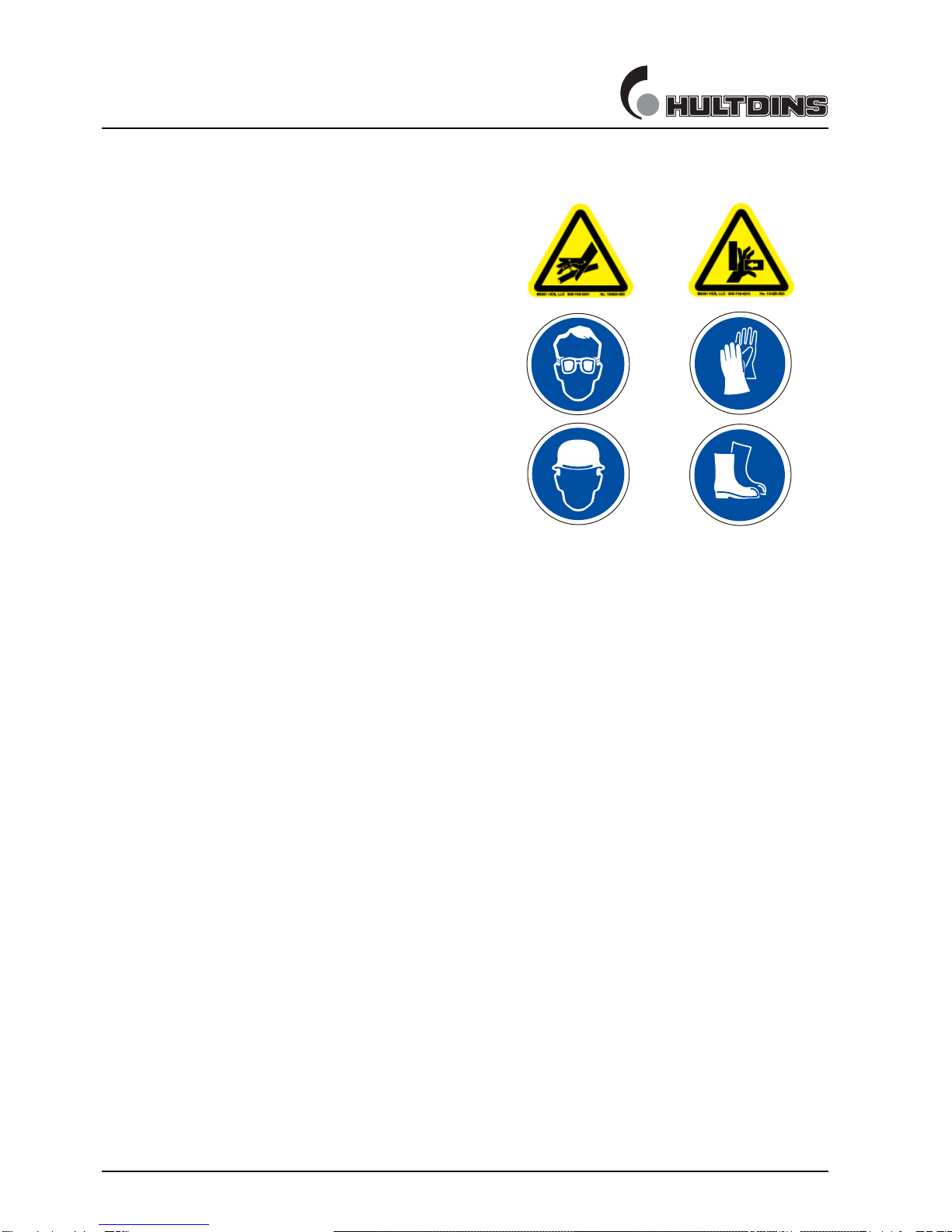

• Use safety glasses and protective gloves when
servicing the equipment. Hydraulic oil or
lubricants in contact with skin or eyes may cause
irritations or allergies.
• Use hard hat and safety boots when servicing the
equipment. Leakage of hydraulic oil or lubricants
will increase the risk of slipping or falling.
• The unit has sharp edges. Use proper wrenches
and protective gloves when working on the unit.
• Hydraulic hoses and adapters may be pressurized
even with the engine shut off. Loosen any parts
with caution.
• Always make sure that the system is
depressurized before committing any service on
the equipment.
• Always secure movable parts mechanically
before any hydraulic hose is loosened.
• Never try to stop a leakage in the hydraulic
system with you hand. Pressurized hydraulic oil
can be injected under the skin and cause death or
severe damage.
Welding
In case of a structural repair of the equipment, when
welding may be needed, consult the dealer for
recommended instructions.
When welding on the equipment the following steps
must be taken:
• Make sure that fire-extinguishing equipment is
available.
• Clean the area around the welding area to
eliminate any fire hazard.
• Connect the ground wire so the welding current
does not pass over any bushings.
• Place the ground wire as close to the welding area
as possible.
• When welding close to bushings, dissassemble
the bushings asthey are made of a plastic
compound-material which high temperatures may
damage.
Modifying the equipment
It is not approved to:
• Modify the equipment without the consent of
HULTDIN SYSTEM AB.
• Alter the function of the equipment without the
consent of HULTDIN SYSTEM AB.
• Use spare parts other than original HULTDINS
parts.

PRODUCT DESCRIPTION
en011102a_ss551.fm SuperSaw 551 7
Product description

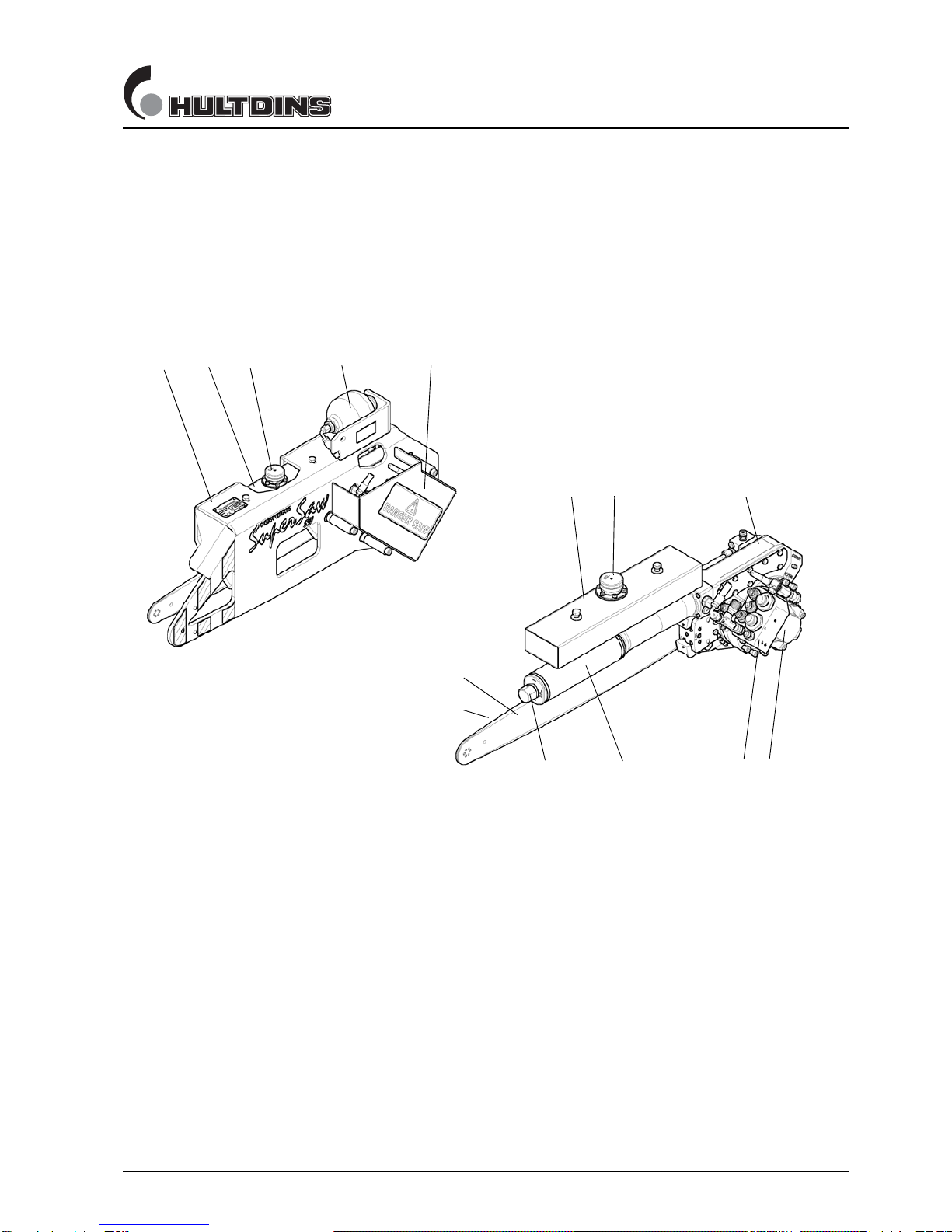

Main parts, Grapple saw
The SuperSaw 551 grapple saw consists basically of a frame, a saw unit and a
hydraulic system. The illustration shows the location of the main parts.
Fig. 1 Main parts SuperSaw 551
1Frame
2 Saw motor cover
3 Lubrication oil tank
4 Refilling cap for chain lubrication oil
5 Saw motor manifold with adjusting valves for chain tensioning and saw bar feed out
6 Saw unit
7 Saw motor
8 Accumulator for saw motor case drain
9 Air tank for saw bar retraction
10 Air nippel for air-pressure adjustment
11 Saw bar
12 Saw chain
12
34
5
6
7
8
9
10
11
12
34

PRODUCT DESCRIPTION
8 SuperSaw 551 en011102b_ss551.fm
product description

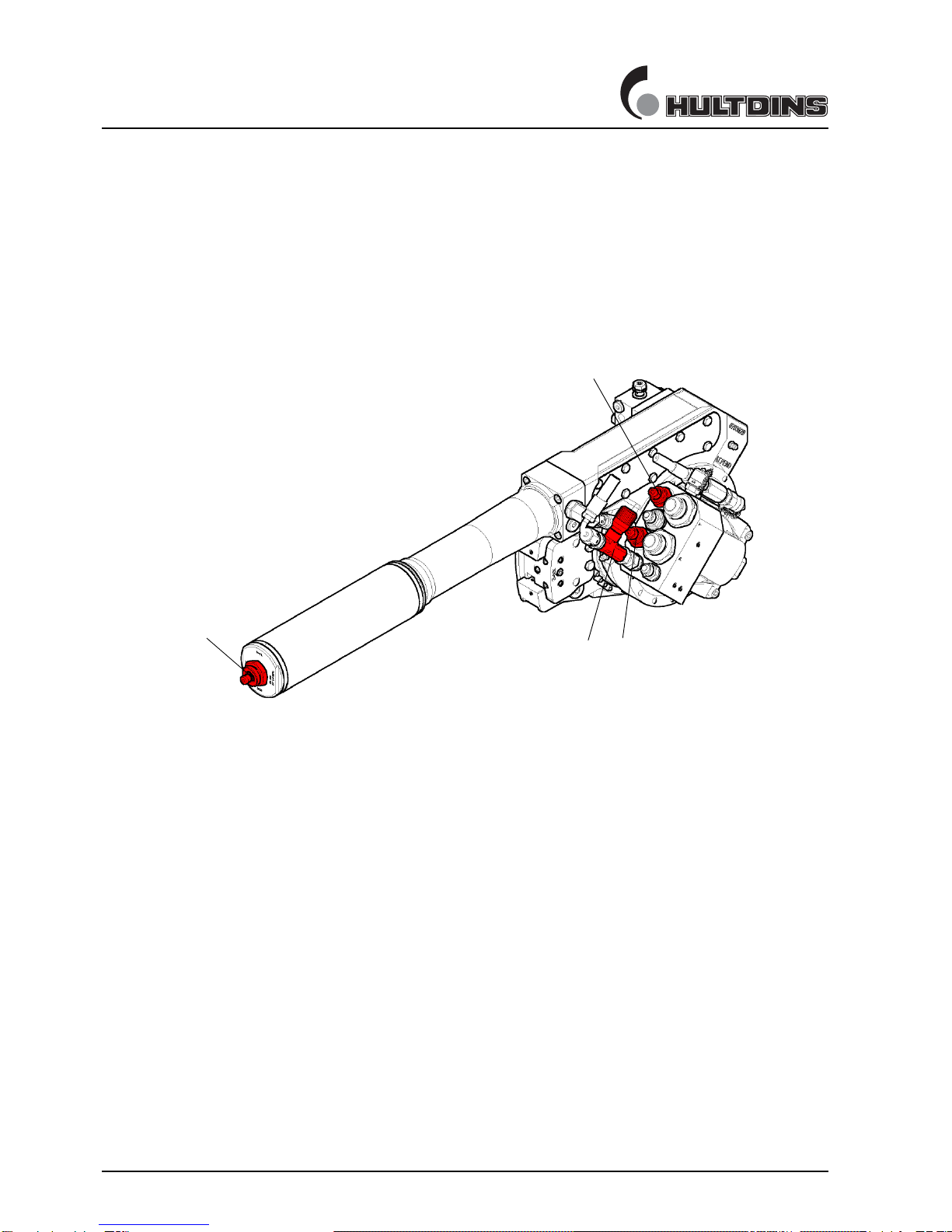

Adjustment valves, Grapple saw
The SuperSaw 551 grapple saw has the following adjustment valves. The location
of the valves shows on the illustration.

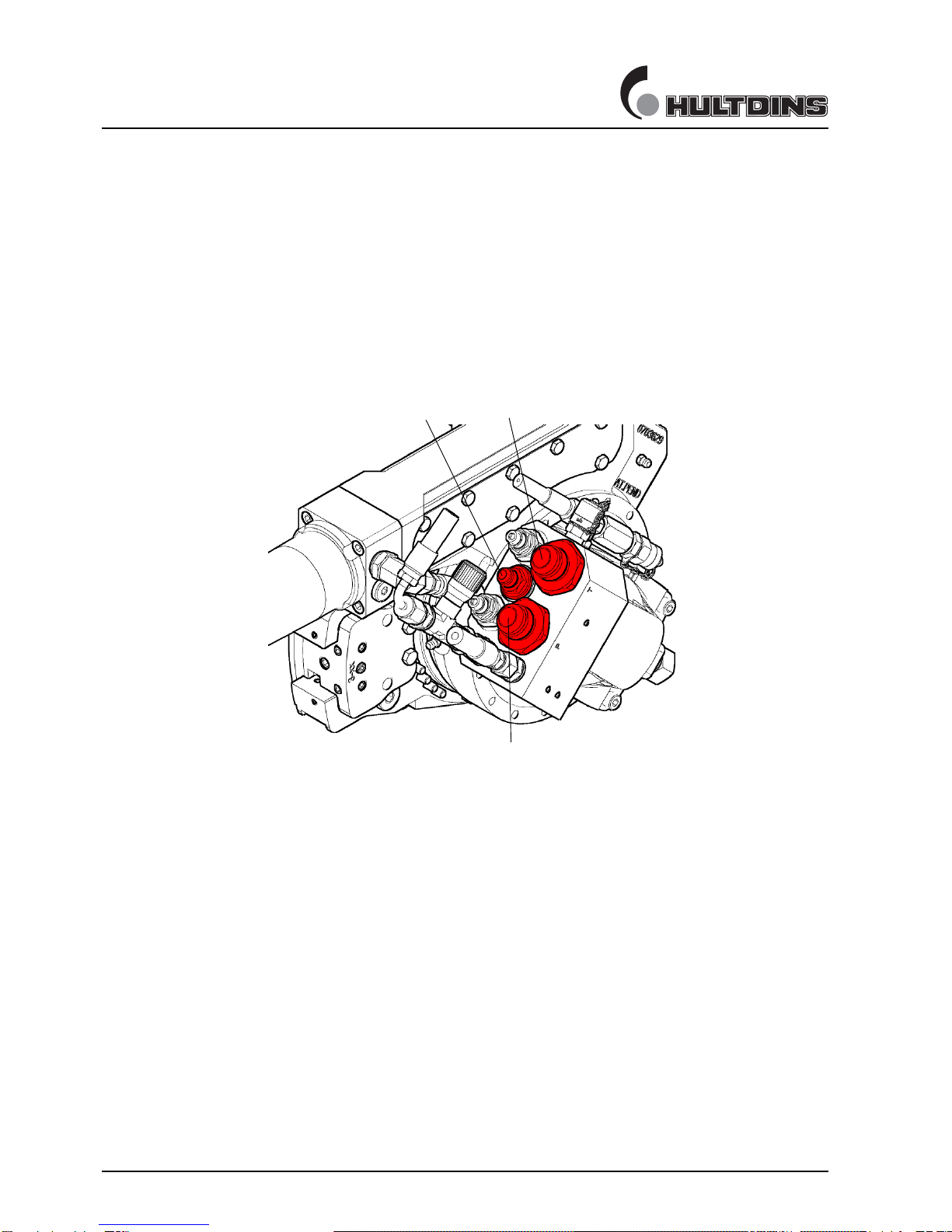

ill. 2 Adjustment valves
1 Pressure regulating valve for saw bar feed out pressure
2 Pressure regulating valve for saw chain tension pressure
3 Restrictor valve for saw bar feed out adjustment
4 Air nipple for saw bar retraction adjustment
1
4
2
3

PRODUCT DESCRIPTION
en011102c_ss551.fm SuperSaw 551 9
product description
Hydraulic pressure test points
The SuperSaw 551 grapple saw has two different hydraulic pressure test points, as
shown on the following illustration.

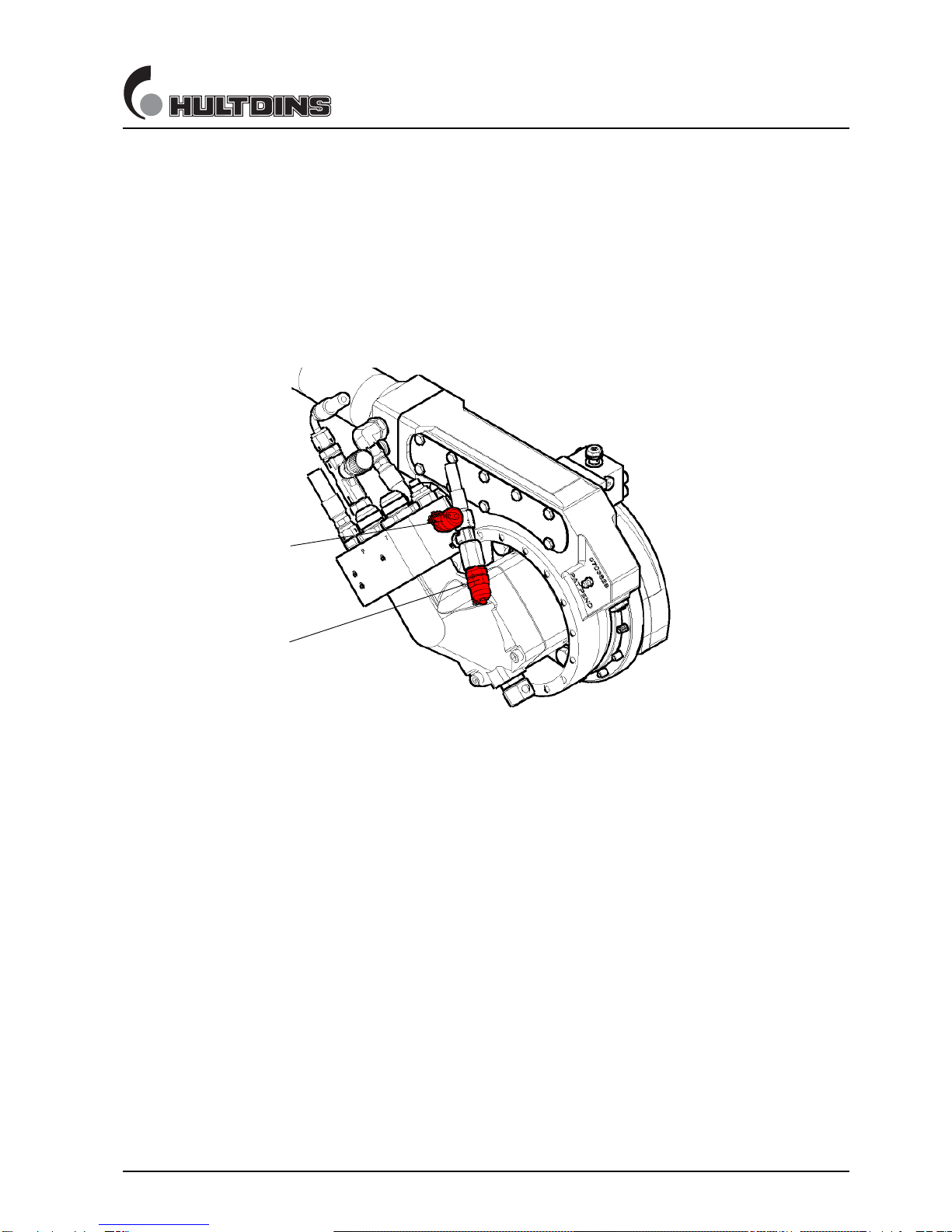

ill. 3 Hydraulic pressure test points
1 Test point for saw bar feed out pressure
2 Test point for chain tension pressure
1
2

PRODUCT DESCRIPTION
10 SuperSaw 551 en011502f_ss551.fm
product description
Hydraulic connections
The SuperSaw 551 grapple saw is hydraulically installed with the following three
connection ports.
The location of the ports shows on the following illustration.
ill. 4 Hydraulic connections
1 Saw motor pressure line
2 Saw motor return line
3 Saw motor case drain line
1
32

PRODUCT DESCRIPTION
en011102d_ss550.fm SuperSaw 11
Product description
Main parts SuperCut
The SuperCut saw unit is made up of the following main parts.
1. Housing
2. Tension device
3. Bar holder
4. Feed out cylinder
5. Lubrication oil pump
6. Cam
7. Air tank for saw bar retraction
8. Air nipple for air-pressure adjustment
ill. 5 Main parts SuperCut
1
23 4
7
5
6
8

PRODUCT DESCRIPTION
12 SuperSaw 551 en011303_ss551.fm
Märkning SuperGrip SG II
Serial number
CE-label
Warning label
Product label
Warning label
Warning label
Product description
The SuperSaw 551 grapple saw, which together with
SuperGrip, SuperGrip II or GLC grapples is generally
mounted on cranes intended for on road- and off road
vehicles. SuperSaw 551 is only intended to be used for
timber, pulp- and waste wood systems.
SuperSaw 551 must not be used for felling applications,as
there is a risk that the grapple arms or other parts of the
grapple or grapple saw may fail, which could result in
injury or damaged equipment.
Labeling
SuperSaw 551 is labeled with serial number, model num-
ber, mfg. year, weight and a CE-label according to the fol-
lowing illustration.

TECHNICAL DATA
en011204b_ss551.fm SuperSaw 551 - 19cc 13
Technical Data
SuperSaw 551 - 19cc
Dimensions
Total weight .404” 105 kg
Length ‘A’ 1095 mm
Width ‘B’ 162 mm
Height ‘C’ 400 mm
Width ‘D’ 120 mm
Saw bar .404” 90 cm
Hydraulic system
Saw motor displacement 19 cm3
Min. hydraulic pressure, saw motor 16,0 MPa*
Min. hydraulic flow, saw motor 125 lpm *
Hyd. pressure, saw bar feed out‘P1’ 5,0 - 5,5 MPa
Hyd. pressure, chain tensioning‘P2’ 3,0 MPa
Gas pressure, accumulator ‘P3’ 0,1 MPa
Air pressure, saw bar retraction‘P4’ 1,2 - 1,4 MPa
Chain lubrication
Type of lubrication Proportional
Lub. oil tank capacity 3,0 lit.
* Max. saw chain speed and Max. power input to the saw
chain may NEVER exceed recommendations from each
saw chain manufacturer.

TECHNICAL DATA
14 SuperSaw en011104a_0720335.fm
Technical Data
Rotator bracket
Dimensions
Total weight incl. hoses 48 kg
Length ‘A’ 90 mm
Length ‘B’ 192 mm
Height ‘C’ 64 mm
Rotator hole pattern M16 / 173 mm

TECHNICAL DATA
en011104c_ss550.fm SuperSaw 15
Technical data
Special tools
The following special tools are supplied with the unit and
required when servicing SuperSaw 550/551.
Air pump
The air-pump is used when adjusting the saw bar
retraction speed.
ill. 6 Air-pump, P/N 0138042

TECHNICAL DATA
16 SuperSaw 551 En011104d_ss551.fm
Technical data
Hydraulic diagram SuperSaw 551, typical installation
1. Tension device
2. Saw motor manifold
3. Air tank for saw bar retraction
4. Pressure regulating valve for chain tensioning
5. Pressure regulating valve for saw bar feed out
pressure
6. Saw motor
7. Main valve on carrier*
8. Saw bar feed out cylinder
9. Grapple cylinder
10. Check restrictor valve for Saw bar feed out
11. Rotator
12. Accumulator for saw motor case drain
13. Check valve
14. Check valve for chain tensioning
15. Bleed valve for chain tensioning
16. Pressure test point
* Required on carrier, but not supplied with the grapple saw.
P1 - P4, see Technical data
ill. 7 Hydraulic diagram
1
15
14
4
2
8
11 9
3(P4) 16(P2)
13
10
12(P3)
6
7
5
13
13
16(P1)

FUNCTIONAL DESCRIPTION
en011105b_sc.FM SuperCut 17
Functional description
Chain lubrication system
SuperCut is equipped with a M06 lubrication pump.
The lubrication oil pump supplies oil during the entire feed out
process.
The lubrication oil pump (1) is a piston pump operated by a
cam(3), attached to the saw unit. During the saw bar feed out
process, the cam (3) will compress the piston (2) and chain
lubrication oil is fed out to the saw bar.
The volume of oil that is supplied to the saw bar depends on how
much the piston (2) is compressed.
The lubrication volume can be adjusted by replacing the cam (3).
Fig. 8 Chain lubrication system
1. Lubrication oil pump M06
2. Piston
3. Cam
1
2
3
A

INSTALLATION
18 SuperSaw en011506a_ss550.FM
Installation
Where to install the grapple saw?
SuperSaw 550 should normally be installed with the saw motor
on the same side as the piston rod of the grapple cylinder, to
achive the best weight balance.
On the A-models of the SuperGrip II grapples, the SuperSaw
550 should be installed on the same side as the longer tips of the
grapple arms, to optimize the performance of the grapple saw
together with the grapple.
The grapple saw should be installed with a Min. distance of 70
mm from the saw chain to the log, with the saw bar fully
retracted.

INSTALLATION
en011106a_0720335.fm SuperSaw 19
Installation
Installing rotator bracket
1. Assemble the manifold (1) to the rotator (2). Tighten
the collar screws (3) with the correct torque
according to the following chart.
Note! On manifolds whith collar screws (3) with size
G3/4”, The plugs (4) should be tightened with a
torque of 420 Nm.
Torque
Size Torque
G1/2” 100 Nm
G3/4” 170 Nm
2. Assemble the spacer (1) to the rotator (2).
Torque 266 Nm, M16, 6 pcs.
3. Assemble the rotator asm. and the rotator bracket to
the grapple.
Torque 266 Nm, M16, 10 pcs (6 pcs).
ill. 9 Assemble the manifold to the rotator
2134
ill. 10 Assemble the spacer to the rotator
2
1
ill. 11 Assemble the rotator asm. and the rotator bracket to the
grapple

INSTALLATION
20 SuperSaw en011106a_0720335.fm
4. Assemble the grapple saw to the rotator bracket.
Torque 130 Nm, M12, 12 pcs.
Hydraulic installation
1. Connect the saw motor pressure line to port “1” on
the rotator.
2. Connect the saw motor return line to port “2” on the
rotator.
3. Connect the saw motor drain line to port “0” at the
back of the rotator manifold.
4. Connect the hoses from the grapple cylinder to the
connections at the bottom of the rotator manifold.
5. Start the machine and test all functions to make sure
that everything is working properly.
ill. 12 Assemble the grapple saw to the rotator bracket
ill. 13 Hydraulic installation
“2”
“1” Return line
Pressure line
Drain line
“0”
