Huma-i Smart HI-300 User manual

󾙕󾙒󾙒

󾙔󾙔󾙗󾙓󾙒󾙓󾙒




Thank you for purchasing our air quality monitors.
Introduction - Huma-i smart (HI-300)
Huma-i smart (HI-300) is equipped with a dedicated sensor for CO2
(carbon dioxide) and VOC (volatile organic compounds), enabling accurate
measurement of CO2and VOC in real time. In addition, PM1.0/PM2.5/
PM10/Temperature/Humidity can be measured simultaneously in real time
with precision.
Through the Wi-Fi network connection, you can check and manage various
air quality anytime & anywhere with a mobile app. It will help you to improve
the quality of life through the management of air quality data for the last
90 days. You can receive real-time notification of changes in air quality
through push messages, and also provide accurate weather information.
Thank you.
Anytime & Anywhere with Huma-i
Before getting started
First, search for and install the Huma-i app from Google Play or Apple
App Store.
Huma-i app
1. Run the downloaded Huma-i app and register as a member.
2. Create a home name first, and then register the name of the room in
which the device will be installed.

3. Click “Product registration” button to register the product.
Product registration is only possible after setting at least one room.
4. After registering the product, you can check the air quality information
such as CO2, VOC, fine dust (PM1.0/PM2.5/PM10), temperature and
humidity through the mobile app in the form of graphs with numbers,
more easily and conveniently.
※Please refer to the Huma-i app manual for how to use the Huma-i app,
such as product registration. The app manual can be downloaded from
“Huma-i website (www.huma-i.com) →Reference →Download”.
Product package
Huma-i smart (HI-300) 1ea User Manual 1ea
USB cable 1ea Adaptor 1ea (optional)
** The product configuration image in this manual is for illustrative purposes only, and
may look different from the actual product.
www.huma-i.com

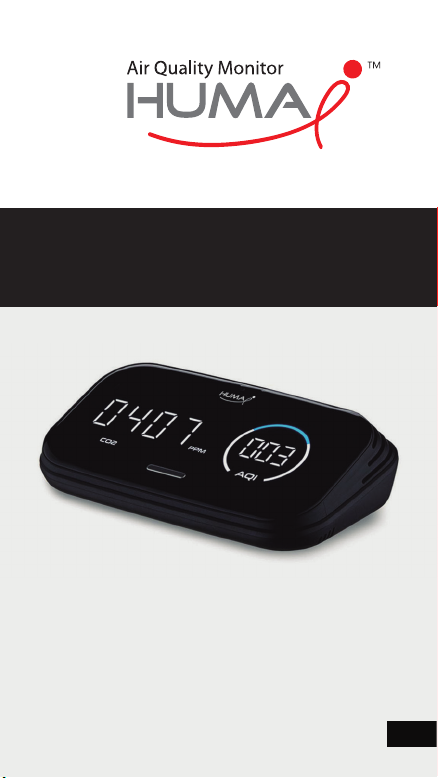

Huma-i smart (HI-300)
User Manual
Indoor Air Quality Monitor for
CO
2 /VOC/PM1.0/PM2.5/PM10
Temperature/Humidity

Main functions
1. USB C connector
1) When the USB C cable is connected to the adapter, the product turns
on automatically.
2) When the power is connected, the device starts operating.
3) Battery Mode - Disconnect the USB C cable to enter battery mode.
① When entering battery mode, the product is automatically turned
off after 30 minutes to protect battery life.
② Press the mode selection button for more than 5 seconds to turn
off the power. After 2 seconds, a beep sounds and the power turns
off after 5 seconds. The measured value blinks 1 minute before the
power is automatically turned off.
③ At this time, pressing the mode selection button automatically
extends the use for 30 minutes. If you activate the mobile app,
you can still use it.
④ In battery mode, it can be used for 60 minutes, depending on the
environment. Connect the power supply before running out of
1. USB C connector
2. Indoor AQI display
3. Temperature /
Humidity indicator
4. Mode selection button
5. Display mode
6. Battery status indicator
7. Wi-Fi status indicator
8. Status LED
9. Brightness
10. Data storage
(1)
(2)
(3)
(8)
(7)
(6)
(4)
(5)

battery. If power is turned off when using battery mode, the
product will automatically power on again when the USB cable is
connected.
⑤Huma-i smart is designed to be used when the power is connected.
Battery mode is supported for user convenience, so use battery mode
only when necessary.
2. Indoor AQI display
1) It displays the current indoor AQI figures and steps.
2) The color changes according to the AQI step.
3) If the 'Poor' or 'Unhealthy' condition persists in the AQI step for more
than 5 minutes, the AQI alarm sounds for 1 minute. The mobile app
device alarm setting enables the AQI alarm to be turned on/off.
(The initial setting is "OFF")
① Good – BLUE
② Moderate – GREEN
③ Poor – YELLOW
④ Unhealthy – RED
Huma-i smart AQI Table
AQI Status
AQI figures
Status display color
Unhealthy
201 ~ 500
Red
Good
0 ~ 50
Blue
Moderate
51 ~ 100
Green
Poor
101 ~ 200
Yellow
※ The Huma-i Air Quality Index (AQI) converts individual measurements of VOC, CO2, PM10,
PM2.5 and PM1.0 and displays them as an integrated air quality index.
Unhealthy
36 ~
36 ~
71 ~
Good
0 ~ 15
0 ~ 15
0 ~ 30
Moderate
16 ~ 25
16 ~ 25
31 ~ 50
Poor
26 ~ 35
26 ~ 35
51 ~ 70
※ In the case of PM10, it is not displayed on the device and can be checked through the app.
2.201 ~
9.999
2001 ~
5000
0.661 ~
2.200
1001 ~
2000
0.221 ~
0.660
701 ~
1000
0.000 ~
0.220
400 ~
700
VOC (ppm)
CO
2 (ppm)
PM10 (㎍/㎥)
PM2.5 (㎍/㎥)
PM1.0 (㎍/㎥)
Measurement object and unit

3. Temperature/Humidity indicator
1) It displays the temperature and humidity of the current room.
2) Temperature/humidity display can be set in the mobile app.
(The initial setting is “OFF”)
3) Celsius (℃) and Fahrenheit (°F) can be set in the mobile app.
(The initial setting is “Celsius”)
4) Since the temperature and humidity sensors are inside the product,
there may be a deviation of 5 to 10%.
4. Mode selection button
1) It can be used to select and change the display mode.
2) When AQI alarm sounds, it can be used to stop AQI alarm sounds.
3) When operating in battery mode, press and hold for 5 seconds to turn
off the product.
5. Display mode
Huma-i smart shows various air quality values. Press the mode selection
button to switch modes.
Five modes (Clock => VOC => CO2=> PM2.5 => PM1.0)
are changed in order.
① Clock
When registering the product through the mobile app, the time is
automatically set. (AM/PM display)
② VOC
A waiting time of 15 to 60 seconds is required until VOC value is displayed.
During the waiting time, “----”ppm is displayed.
③ CO2
A waiting time of less than 180 seconds is required until CO2value is
displayed. During the waiting time, “----”ppm is displayed. The first time
you use the product after receiving it, it may take longer to wait.
④ PM2.5
It displays PM2.5 value as soon as the product power is connected.
⑤ PM1.0
It displays PM1.0 value as soon as the product power is connected.

⑥ AUTO mode
It can be set only in the mobile app.
The display screen automatically changes in the order of Clock
=> VOC => CO2=> PM2.5 => PM1.0 every 5 seconds.
In AUTO mode, the status LED lights.
⑦ OFF mode (full-screen off mode)
It can be set only in the mobile app.
In the display OFF mode, the status LED blinks.
6. Battery status indicator
1) When the power is connected, it displays the charging status and turns
off automatically after 5 seconds.
2) If the power cable is disconnected while the product is on (battery
mode), the remaining battery is displayed.
7. Wi-Fi status indicator
1) When the Wi-Fi is not connected, the Wi-Fi icon flashes.
2) When the Wi-Fi is connected, the Wi-Fi icon turns off
8. Status LED
1) If the device's display is on, the status LED will automatically turn off.
2) When set to OFF mode (full-screen off mode) in the mobile app,
the status LED blinks.
9. Brightness
1) The brightness of the screen is automatically adjusted through the
illuminance sensor.
2) The screen brightness can be set to "Dark/Middle/Bright/AUTO"
in the mobile app. (the initial setting is "Bright")
10. Data storage
1) If the Wi-Fi connection is lost, the measured data is saved in the device.
Up to 90 days of data can be stored.
2) When Wi-Fi connected, the measured data is automatically sent to the
server every 5 minutes.
3) With Wi-Fi disconnected, data stored on the instrument is automatically
sent to the server when Wi-Fi connection is reconnected.

Specifications
Indoor Air Quality Monitor
Huma-i smart (HI-300)
CO2: 400 ~ 5,000ppm
VOC: 0.000 ~ 9.999ppm
PM1.0/PM2.5/PM10: 0 ~ 999㎍/㎥
Temperature: -30 ~ 100℃ (-22 ~ 212°F)
Humidity: 0 ~ 99 %RH
AM/PM
Customized LED display
2.4GHz only 802.11 b/g/n
Supports Android and iOS
Input: AC 100/240V, 50/60Hz, USB-C
Output: 5V/1A external power adaptor
Li-polymer @ 650mAh/3.7V
-10 ~ 60℃ (14 ~ 140°F)
-25 ~ 60℃ (-13 ~ 140°F)
136 * 82 * 40mm
(5.35 * 3.23 * 1.58 inches)
171g (6.03oz)
CE FCC KC
Product
Model No
Measurement
Range
Display
Clock
Wi-Fi
App
Operating Temperature
Power Adaptor
Storage Temperature
Dimension
Weight
Battery
Certifications

1. Do not place in high temperature and humid conditions or prolonged
exposure to direct sunlight. It may deform the appearance or cause a
malfunction.
2. Do not use for a long period of time in a high concentration fine dust
environment. Measurement may not be smooth.
3. Do not arbitrarily disassemble the product. Quality assurance does not
apply to products that are randomly disassembled.
4. Be careful not to let drinks or water get inside the product. It may cause
a malfunction, electric shock or fire.
5. Depending on the environment (temperature, humidity, wind) and how
to use this product, errors may occur.
6. The measured values of this product are for personal use only, and the
manufacturer and seller are not liable for the measured values.
MADE IN KOREA
Limited Warranty

Note: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void
the user's authority to operate the equipment under FCC rules.
FCC ID: 2AC7Z-ESPWROOM32D
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
*** Be advised that FCC ID is the ID for the RF module.
V.1.2
