USB-201 (v1.0) 1
Revision History
Date
Revision
Description
Sep. 7, 2015 v1.0 Initial release
Introduction
Thank you for purchasing our product USB Multiplexer 8:1 USB-201.
USB-201 can switch 8 ports by your PC with simple command. It can promote
labor-saving for inspection process and auto-inspection system of USB devices.

USB-201 (v1.0) 2
1. Specifications
Model
USB-201
Power Input
DC 5 [V] / under 250 [mA] (when USB port not selected)
Supplied by AC adapter (self-power)
Channel
8 ch
Target side port OS
not limited
Control side port OS
Windows 8.1 / 8 / 7 / XP
Controller Port

USB mini-B connector
USB 2.0 Full-speed
ESD protection
Common Port
USB B connector
USB 2.0 Hi / Full / Low-speed
ESD protection
Switching Port

USB A connector x 8
USB 2.0 Hi / Full / Low-speed
ESD protection
Current Measure Function
Simple Current Monitor Circuit is mounted
Control Method
communication control by virtual COM port
baud-rate and other conditions are optional
Status LED
Power / Error x 1 (bi-color LED)
Selection display x 8 (bi-color LED)
LSI
MAX4999 USB2.0 Multiplexer (MAXIM)
Operating Temp. Range
0 to +60 °C * No condensation permitted. Except AC adapter
Operating Humid. Range
30 to 85 % RH *
No condensation permitted. Except AC adapter
Storage Temp. Range
-20 to +55 °C * No condensation permitted. Except AC adapter
Storage Humid. Range
30 to 85 % RH *
No condensation permitted. Except AC adapter
Noise Tolerance
not specified
Safety Standard
not specified
Dimensions
165 x 80.5 x 39 [mm]
6.496" x 3.169" x 1.535" (not including projection)
Weight
approx. 230 [g]
Accessory
USB Cable 1.8 [m]
mini USB cable 1.0 [mm]
RoHS Compliance
YES
* There may be cases that these parts and specifications are changed.

USB-201 (v1.0) 3
1.1. Optional Accessories
Model Name
Description
ACC-027
Metal bracket type A
for vertical mounting USB series
JAN : 4937920801096
ACC-028
Metal bracket type A
for horizontal mounting USB series
JAN : 4937920801102
ACC-031
Din rail attachment type B for USB series
JAN : 4937920801256

USB-201 (v1.0) 4
2. Overview

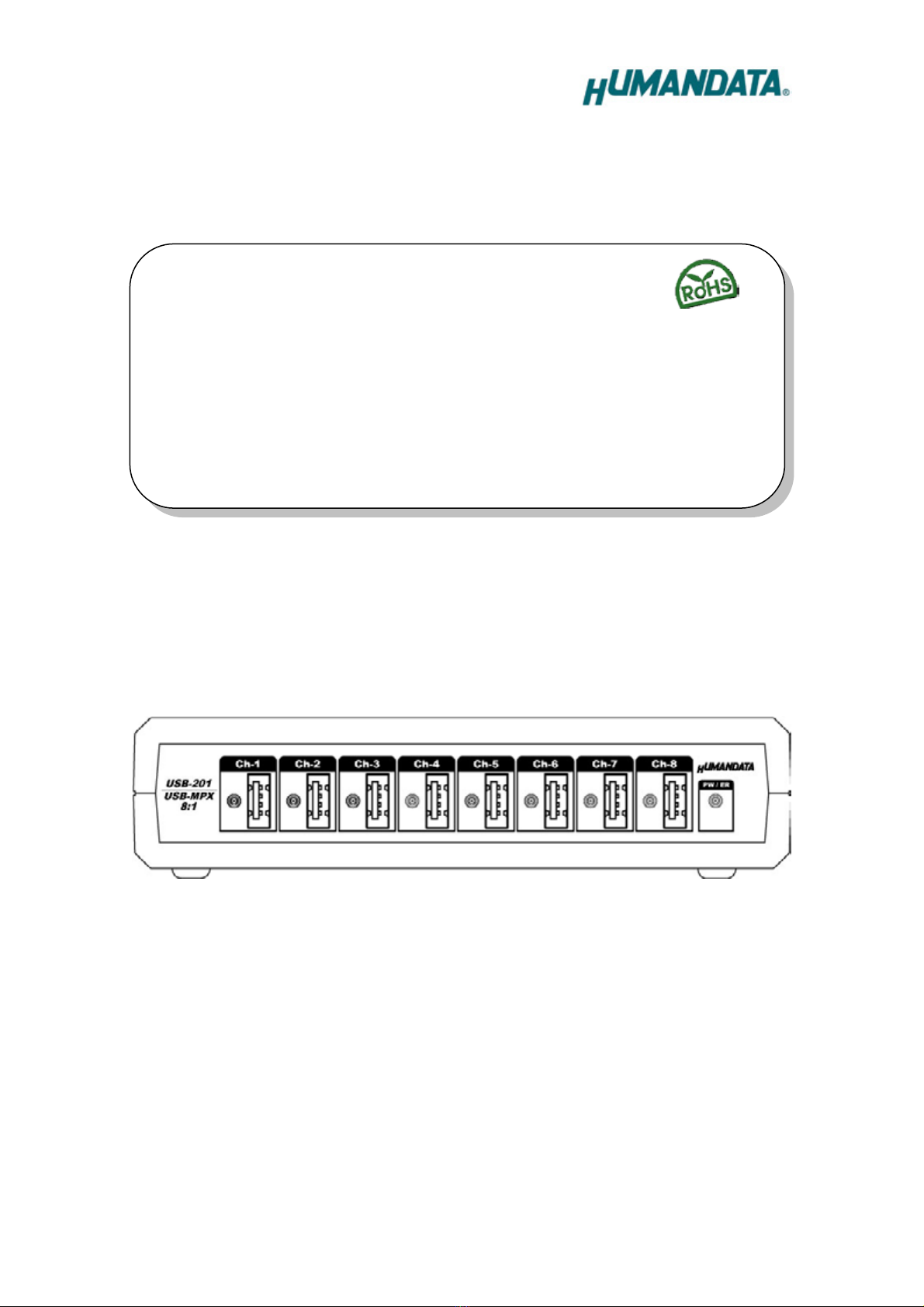

Front Side
Rear Side
2.1. Setting Switch
The function of these switches is not opened. Please set them to OFF.
3. Power Input
USB-201 is self powered; cannot be operated by bus-power. Please input power by
attached AC adapter.
Selection Display LED x 8
Power / Error LED
Switching Port x 8
Power Switch
Power Input
Common Port
Controller Port
Setting Switch

USB-201 (v1.0) 5
4. Controller Command
You can control with simple single character command shown in the following table
by using terminal software and keyboard. Each controller command is an ASCII
text. The command is case sensitive.
Send Command Function Response
‘1’
～
‘8’
Select USB port from 1 to 8
<CMD>,[active channel]<CR>
‘0’ Select no USB port <CMD>,0<CR>
‘C’
Get active USB port
<CMD>,[active channel]<CR>
‘I’ Get electric current value <CMD>,[current value]<CR>
‘Z’
Set current offset value
(set the current sensor value
as base value)
<CMD>,[offset value]<CR>
‘X’ Clear current offset value <CMD>,[offset value(=0)]<CR>
‘V’
Get product version
“USB-201 Ver.***”<CR>
other - “Undefined command”<CR>
<CMD> : response sending command
<CR> : Carriage Return (0x0D)
Current value is monitored by mounted current sensor circuits. It is not calibrated.
Please think the value is just for reference.

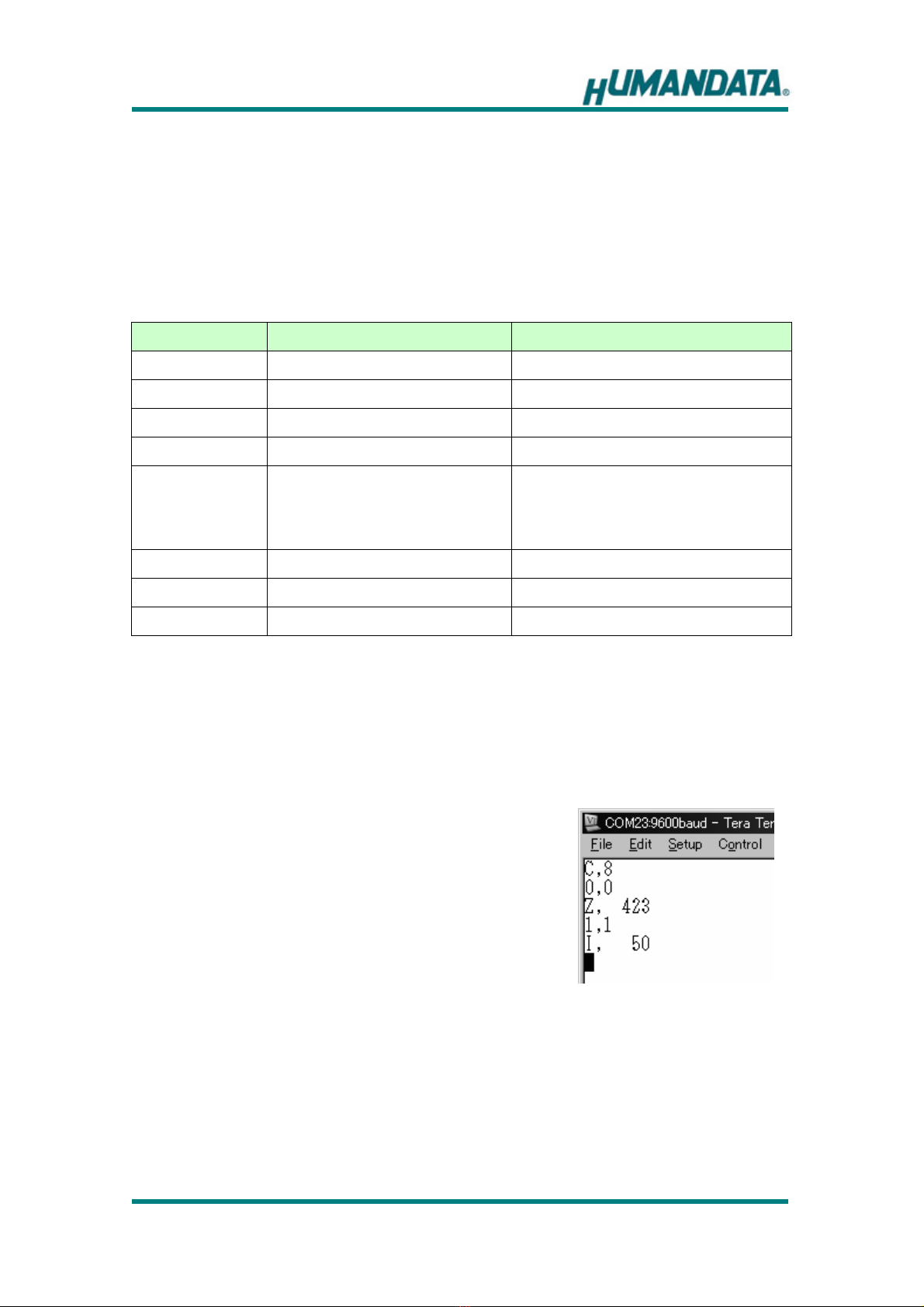

Communication example
First clear all USB connections, then set current
offset value, and set USB port ch.1 active and get
the value 50 as current value.

USB-201 (v1.0) 6
