Humhold HDCS-35A1 User manual

Dehumidifier
MODEL:HDCS-35A1
User Manual

Table of Contents
Safety Warning…...................................................................... 2
Frequent Enquiries......................................................................3
Installation…...............................................................................4
Components................................................................................ 5
Control Panel..............................................................................6
Operation Methods.................................................................... 7
Drainage.......................................................................................8
Maintenance............................................................................. 10
Troubleshooting........................................................................ 11
1

Safety Warning
For your safety, please read the following contents carefully
before using this dehumidifier:
Prohibition:
▲ Please do not place this dehumidifier close to heating devices (flame and heaters,
etc.).
▲ Please do not turn on or turn off this dehumidifier by plugging in or pulling out the
plug.
▲ Do not use insecticide spray or other flammable substances in the vicinity of this
dehumidifier.
▲ Do not scratch appearance of this dehumidifier with sharp matters.
▲ Do not splash oil or water into this dehumidifier.
▲ Do not clean this dehumidifier with water, please wipe it with subhumid soft cloth.
▲ Do not wipe this dehumidifier with chemical solvents such as benzene, gasoline
and alcohol, etc. Please clean this dehumidifier with neutral detergent.
▲ Please do not incline this dehumidifier over 45°or place this dehumidifier upside
down.
2
Requirements:
 Install this humidifier in smooth places to reduce vibration and noise.
 Do not place this dehumidifier in water or other liquids.
 In order to prevent accidents, please do not use this dehumidifier if
wires or other connections are damaged.
 This appliance can be used by children aged 8 and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children without supervision.
 When stop, reset or clean this dehumidifier, please cut off the power.
 Please use the dehumidifier at the specified voltage.
 This dehumidifier can only be used indoors, please do not use for other purposes.
 Please do not place heavy objects on this dehumidifier.
 Please empty water tank to prevent overflow and spill before restarting
thisdehumidifier.
 Please do not incline in case that the spilled water damages this dehumidifier.
 Please do not place waste rods and hard objects into the dehumidifier.
 If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or other qualified personnel.
 When this dehumidifier is not used for long time, please unplug the electric cord.
 Power supply of the Dehumidifier shall comply with the safety regulations
of it is used and ensure reliable grounding.

Frequent enquiries
Q: Why is there less water stored in dehumidifier water
tank in Winter?
In winter temperature is low and air is dry. In comparison with summer,
the dehumidification ability of the dehumidifier decreases remarkably,
this is not a product defect.
Q: Why the dehumidifier
running suddenly？
cannot
run or stops
 In this case, this dehumidifier may be full of water or the water tank is not
installed properly, please drain the water in the water tank, or re-install the
water tank in a proper way.
 At the moment the dehumidifier may be in the “dehumidification mode”, the
ambient temperature is lower or higher (dehumidification cannot be
performed ）when the ambient temperature is ＜41℉or ＞90℉).
The ambient temperature for operation of the dehumidifier is 41 - 90 ℉, and
the relative humidity is 30%-80%. The optimal temperature for use is
61-90℉.
Q: Why is hot air blown out from air supply outlet?
 This dehumidifier extracts the air in the room, and the dehumidification unit
cools the air, the temperature decreases below the condensation point, the air
condenses into water drops, which falls into water tank finally, and the
dehumidified air is heated by the temperature returning unit. This can reduce
energy consumption and also accelerate dehumidification, therefore, hot air
is blown out, this is not a product defect.
3

Installation
 Please drain the water from water tank before running.
 During running please do not open doors and windows as much as
possible to save energy resources.
 When the dehumidifier is installed, a certain space must be reserved
around this dehumidifier, the minimum distance above is 19.7inch,
and the minimum distance in front/rear and left/right is 7.9inch as
required, as shown in figure below.
 When big noise is found during operation of this dehumidifier:
It is recommended inserting pads or damping rubber sheets, etc.
below this dehumidifier, this can reduce vibration and noise, and can
also reduce sinking of wood floor or carpet.
at least 19.7in
at least 7.9in
at least 7.9in
at least 7.9in
at least 7.9in
4

Filter frame
D
rain plug
Wrapping post
Castor
Components
Front side
Back side
Handle
Water tank
WBack panel ater tank handle
Water tank cover Front panel
Control panel
5

Timer
24h timer setup, press this key to set on/off time of the dehumidifier, and the setting range
is 1-24h. Press twice continously to cancel timer setup.
Dry key in dehumidifier
Press this key to start drying procedure in the dehumidifier
Air speed
In AUTO or CONTINUOUS mode air speed, HIGH and LOW can be circularly selected.
LED Display
In AUTO, CONTINUOUS and DRYING modes,
etc., this figure displays room humidity. When
humidity is set in AUTO mode, this figure shows
the set humidity; and displays the set time in timer
state, % represents percentage ofhumidity.
Humidity setting
Once this key is pressed, the humidity is displayed circularly
in the range of 30%-35%-40%-45%-50%-55%-60%-65%-
70%-75%-80%, and the humidity setting is only valid in
AUTO mode.
6
Humidity indicate function
Press the humidity setting button and the mode button at the same time to turn ON/
turn OFF the humidity light indicator. When the machine works, the color of light
belt on the front cover will change with humidit level. Red color show humidity over
65 %, green color shows humidity 40-60 % and blue color shows less than 35 %
humidity. When the humidity is 60%-65% and 35%-40%, the color status of the light
strip is displayed according to the previous status.
Mode
During startup or timer startup press this key to select AUTO,
CONTINUOUS and DRYING modes, etc., and the indicator lamp corresponding
to the selected mode is on.
Press this button 3s , the child lock function starts. Re-press 3s, cancel the function.
On/off key Press this key to turn on or turn off the dehumidifier.

Operating methods
Description of functions
Setting of timer off
 When the dehumidifier is running, press the [Timer] key to adjust time from 1h
to 24h, press the key once to increase the setting time by 1h. When the setting
time exceeds 24h, the figure returns to 1 to start cycle. The [Timer] key can also
be pressed all the time, the time increases and changes circularly. When the set
time is up, the dehumidifier turns off automatically. After the setting is
completed, if the [Timer] key does not act at all within 5s, the set time is
confirmed. In timer off state, the key lamp on the [Timer] key is normally on.
Setting of timer on
 When the dehumidifier is in standby state,the time adjustment by the [Timer] key
is the same as timer off. After the setting is completed, if the [Timer] key does not
act at all within 5s, the set time is confirmed. In timer
on state, the key lamp on the [Timer] key is normally on, and the set time is
displayed on the controlpanel.
AUTO mode
 Select AUTO dehumidification, if the room humidity is higher than the
set humidity or is between +5% and -5% of the set humidity , the compressor
will start and the fan will run at the set speed. If the room humidity is lower than
the set humidity by -5%, then the compressor will stop but the fan will run at the
set speed. The default set humidity value is 50%.
CONTINUOUS mode

 Select CONTINUOUS dehumidification, no matter what the relative humidity in
the room is, the compressor starts, the fan runs at high speed in default, and the
air speed can be regulated via the air speedkey.
DRYING function
Press the Drying key in dehumidifier to start drying in the duhumidifier to
prevent inner unit mildew .

SWING function
Press the timer and dry key simultaneously to turn on / off the swing
function.
7

Drainage
1. Use of water tank
Attention: when the water tank is full, please empty it. Before putting
the water tank into the dehumidifier, please confirm whether the floater
rotates flexibly or not.
When the water tank is full , the full water icon on the LED display
flashes (the compressor, fan and negative ion stops running), and the
BUZZER rings 10 times to remind the user till the water is drained.

Put your hands at both sides
of the back cover of the
depression, gently remove
the water tank and open the
tank cover on the right side
of the body, then pour the
water from the gap between
the water tank and the cover.
 Close the water tank cover,
rotate the water tank handle
downward, and then gently put it
back to restart the dehumidifier.
8

2. Continuous drainage

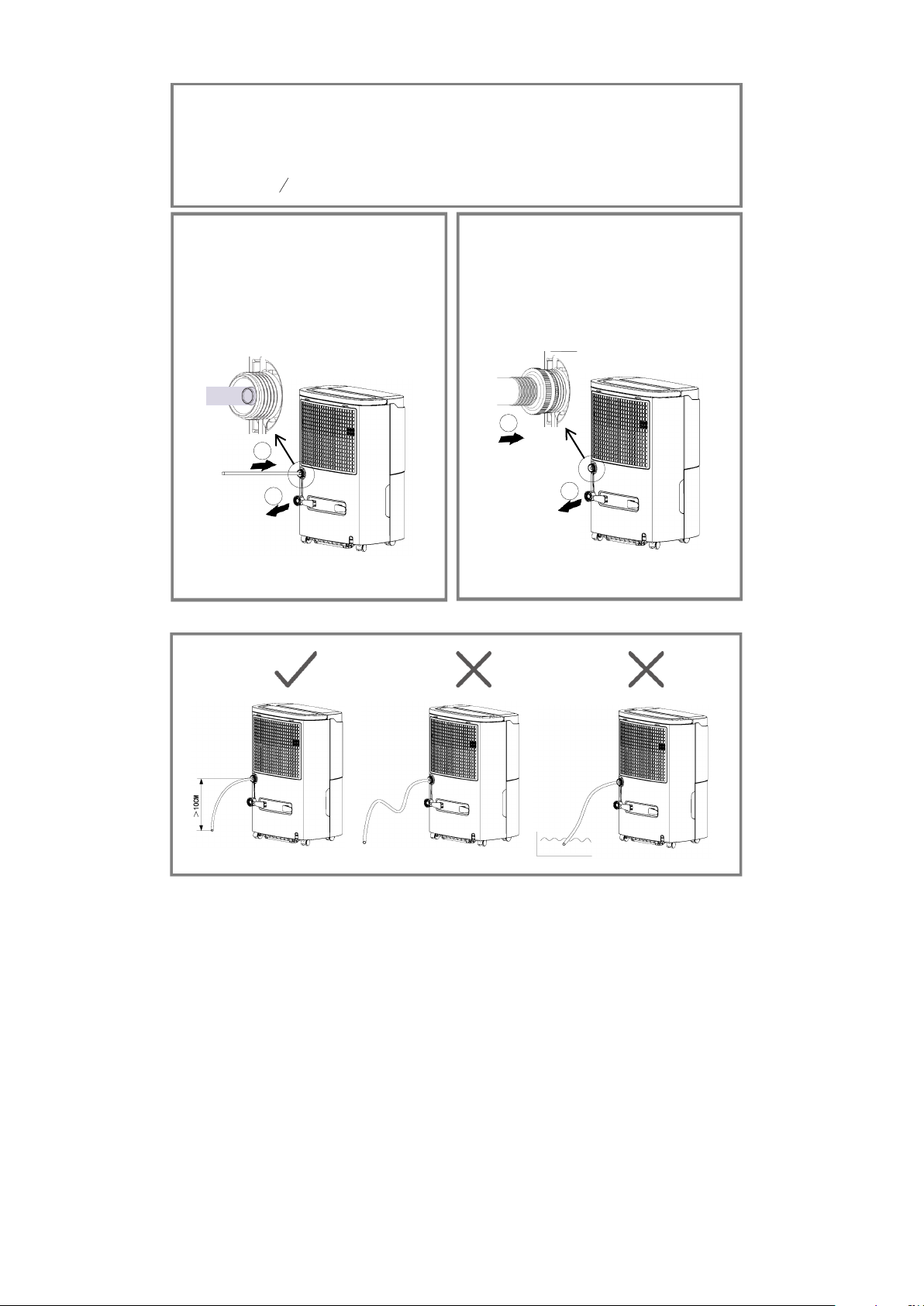

1.Find the water outlet on the back of
the unit: screw off the water cap
(counter clockwise), and then insert
the 9.0 mm water hose into the drain
pipe, as shown in Figure 1.
2.Find the water outlet on the back of
the unit: screw off the water cap
(counter clockwise), and then connect
the garden drain pipe, as shown in
Figure 2.
Note: The height of the external water pipe shall not be higher than the water
outlet, and the water pipe at the rear-end shall transit smoothly to avoid
leakage.
If you do not want to drain water in the water tank frequently, you can
connect a drainage pipe on the back of this dehumidifier to drain water.
Two kind of pipe is optional . One is inner diameter 9mm ,which provided by
manufacturer. Another is standard screw thread garden drain pipe with outer
diameter of 1
116 inches and the pitch of 11.5TPI
2
11
2
9

Maintenance
Precautions:
Please disconnect power supply before maintenance or repair to prevent
electric shock.
If the dehumidifier is not used for a long time, please disconnect power
supply.
Please do not clean the dehumidifier body with chemical solvents such as
alcohol, gasoline and benzene.

Please clean the water tank and its
cover with soft cloth dipped in
cold or warm water at regular
time to prevent mould inside the
dehumidifier.

Wipe the surface of the
dehumidifier slightly with wet
cloth, and do not use detergent
or abrasive in case the plastic
surface is damaged.
 Clean the washable PP
strainer at least once per
two weeks simply with
cold or warm water, do not
wash with chemical
solvents or hot water.
10

Troubleshooting
Problems Possible Causes Solutions
The dehumidifier does not
run
Does power plug fall? Insert power plug into socket.
Is the water tank full of water? (the
water tank is full of water or is placed
at wrong place)
Drain water from the water
tank, and then install the
water tank again.
The ambient temperature is lower
than 41℉or higher than 90℉Normal phenomenon
The dehumidification
function is not effective
Is the room temperature or humidity
too low?
In dry season the
dehumidification ability will
reduce.
Are the air outlet and inlet blocked? Clean up the objects blocking
the air outlet and inlet.
The air does not blow out Is the air strainer blocked?
Clean the air strainer as shown
above.
Noise is abnormal during
operation
Is the dehumidifier tilted or unstable? Please place the dehumidifier
in smooth place.
Is the air strainer blocked?
Clean the air strainer
as shown above.
There is “tittering” sound
The flowing sound of
refrigerant, which is a normal
phenomenon.
Water leaks
Connection of drainage pipe becomes
loose Fasten drainage pipe.
Drainage system is blocked Remove obstacles and
straighten out water pipe.
Frosting occurs
The ambient temperature is low, and
it is in the state waiting for defrost.
It is a normal phenomenon,
and the dehumidifier has the
automatic defrosting function.
Display code Instrustion
FL The water tank is full
E1 The coil sensor detects anomaly
E2 The room temperature sensor detects
anomaly
P1 The unit is in the defrosting state,normal
CL
LC
T
Child lock funtcion starts
he unit is in the internal drying state,normal
11

Conforms to UL STD. 484
Certified to CSA STD. C22.2 NO. 117
Made in China
