360 Imaging™
Installation Guide
360 Imaging™
Installation Guide
532050-1_B

Thank ou!
Thank you for choosing Humminbird®, the #1 name in ishfinders. Humminbird® has
built its reputation by designing and manufacturing top-quality, thoroughly reliable
marine equipment. Your Humminbird® accessory is designed for trouble-free use in
even the harshest marine environment. In the unlikely event that your Humminbird®
accessory does require repairs, we offer an exclusive Service Policy - free of charge
during the first year after purchase, and available at a reasonable rate after the
one-year period. or complete details, see the separate warranty card included with
your accessory. We encourage you to read this manual carefully in order to get full
benefit from all the features and applications of your Humminbird® product.
Contact our Customer Resource Center at 1-800-633-1468 or visit our Web site at
humminbird.com.
WA NING! This device should not be used as a navigational aid to prevent collision,
grounding, boat damage, or personal injury. When the boat is moving, water depth may
change too quickly to allow time for you to react. Always operate the boat at very slow speeds
if you suspect shallow water or submerged objects.
WA NING! The electronic chart in your umminbird® unit is an aid to navigation designed
to facilitate the use of authorized government charts, not to replace them. Only official
government charts and notices to mariners contain all of the current information needed for
the safety of navigation, and the captain is responsible for their prudent use.
WA NING! umminbird® is not responsible for the loss of data files (waypoints, routes,
tracks, groups, recordings, etc.) that may occur due to direct or indirect damage to the unit’s
hardware or software. It is important to back up your control head’s data files periodically. Data
files should also be saved to your PC before restoring the unit’s defaults or updating the
software. See your umminbird® online account at humminbird.com and the Waypoint
Management Guide on your umminbird® Manual CD for details.
WA NING! Disassembly and repair of this electronic unit should only be performed by
authorized service personnel. Any modification of the serial number or attempt to repair
the original equipment or accessories by unauthorized individuals will void the warranty.
WA NING! This product contains chemicals known to the State of California to cause
cancer and/or reproductive harm.

ROHS STATEMENT: Product designed and intended as a fixed installation or part of a system
in a vessel may be considered beyond the scope of Directive 2002/95/EC of the European
Parliament and of the Council of 27 January 2003 on the restriction of the use of certain
hazardous substances in electrical and electronic equipment.
NOTE: Some features discussed in this manual require a separate purchase, and some features
are only available on international models. Every effort has been made to clearly identify those
features. Please read the manual carefully in order to understand the full capabilities of your
model.
NOTE: The illustrations in this manual may not loo the same as your control head, but your
product will function in the same way.
NOTE: To purchase accessories for your control head, visit our Web site at humminbird.com
or contact our Customer Resource Center at 1-800-633-1468.
NOTE: The procedures and features described in this manual are subject to change without
notice. This manual was written in English and may have been translated to another language.
Humminbird® is not responsible for incorrect translations or discrepancies between documents.
NOTE: The installation of this advanced accessory should be performed by a qualified marine
technician.
360 Imaging™, 700 Series™, 800 Series™, 900 Series™, 1100 Series™, Humminbir ®, WeatherSense®, an
X-Press™ Menu are tra emarke by or registere tra emarks of Johnson Out oors Marine Electronics, Inc.
© 2013 Johnson Out oors Marine Electronics, Inc. All rights reserve .
ATTENTION INTERNATIONAL CUSTOMERS: Pro ucts sol in the U.S. are not inten e for
use in the international market. Humminbir ® international units provi e international
features an are esigne to meet country an regional regulations. Languages, maps, time
zones, units of measurement, an warranty are examples of features that are customize
for Humminbir ® international units purchase through our authorize international
istributors.
To obtain a list of authorize international istributors, please visit our Web site at
umminbird.com or contact our Customer Resource Center at [phone].

Table of Contents
i
Introduction 1
Installation Overview 2
Install the GPS Receiver/ eading Sensor 6
1. Choose the Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.InstalltheSensor................................................... 7
A. Stem Mount with 1” - 14 Thread. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
B. Access Under the Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
C. No Access Under the Mounting Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3. Connect to the Control Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Install the Transducer Deployment System 16
1.InstallationOverview............................................... 16
2.ChoosetheMountingLocation........................................17
3.InstalltheTransomBracket...........................................20
4.InstalltheTransducerBracket.........................................22
5. Install the Transducer Deployment System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.RoutetheCablesandConnectPower ..................................27
7.TesttheInstallation.................................................31
Set up the Control ead 32
1.PoweronandConfirmConnections.................................... 32
2. Set up 360 Imaging™ on the Control Head. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
3. Test 360 Imaging™ on the Control Head . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
4. Confirm the Heading Sensor Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
5. Confirm the Baud Rate (for devices connected to the Sensor pigtail only) .......... 40
6.SetuptheNetworkandAlarms ...................................... 40
Power Off 41

Table of Contents
ii
Maintenance 42
Control Head Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
TransducerMaintenance.............................................. 43
Transducer Deployment System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Troubleshooting 44
ishing System Doesn’t Power Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
ishing System Defaults to Simulator with a Transducer Attached . . . . . . . . . . . . . 45
The Pod Doesn’t Deploy or Retract . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
indingtheCauseofNoise.............................................47
Removing the Pod (for authorized repair only) 48
Reconnecting the Pod (for authorized repair only) 51
Specifications 54
Contact umminbird® 56

Introduction
This manual will guide you through the following installation requirements for the
360 Imaging™ Transducer Deployment System:
Installing the GPS Receiver/ eading Sensor
Installing the Transducer Deployment System
Connecting to the Control ead and Power
Testing the Installation
Powering Off
NOTE: The installation of this advanced accessory should be performed by a qualified marine
technician.
Before proceeding with this installation, the Humminbird® control head
should be installed. See your Humminbird® control head installation guide
for instructions. The 360 Imaging™ Transducer Deployment System can
be connected directly to the control head or to a Humminbird® Ethernet
Switch (optional) for networking. See the Ethernet Switch accessory guide
to install the Ethernet Switch.
1In roduc ion

1|Installation Overview
Before you start the installation, please take a moment to familiarize yourself with the
parts list and supplies list. We also encourage you to read the instructions beforehand
so that you may understand the installation requirements.
H
Q
G
F
D
E
A
B
C
L
J
K
I
N
O
P
M
2
Ins alla ion

Parts
The 360 Imaging™ Transducer Deployment System includes the following items:
Transducer Deployment System
Transom Bracket
(4) 5/16" - 18 Hex Lock Nuts
(4) 5/16" Split Ring Lock Washers
(4) 5/16" lat Washers
(4) 5/16" ender Washers
(4) 5/16" - 18, 3 1/2" Bolts
Transducer Bracket
(8) 1/4" - 20 lat Washers
(4) 1/4" Split Ring Lock Washers
(4) 1/4" - 20 Hex Lock Nuts
(2) 1/4" - 20, 3 3/4" Bolts
(2) 1/4" - 20, 3 1/4" Bolts
Anti-Seize Tube
GPS Receiver/ eading Sensor and screws for mounting
Power Cable (6', 2 m)
Ethernet Cable (20', 6 m)
Pod Cover (not shown)
NOTE: Product supplies and features are subject to change without notice.
Q
P
O
M
L
K
J
G
F
E
D
N
I
H
C
B
A
3Ins alla ion

Supplies
In addition to the hardware included with your Transducer Deployment System, you
will need the following supplies:
Drill with various drill bits
Electrical tape
Awl or pencil
1/2" & 7/16" sizes in wrenches, ratchets, and sockets
Torque wrench with 5 - 7 FT/LB capacity
3M Marine Adhesive Sealant 5200 (recommended)
or Marine Grade Adhesive Sealant
Marine-grade silicone caulk or sealant
Cable ties for cable routing
4' straight edge or level
Tape measure
8 A fuse
Safety goggles
Dust mask
Cables: Depending on your Humminbird® model and system configuration, you
may need to purchase additional cables, as shown below. Visit our Web site at
humminbird.com or call our Customer Resource Center at 1-800-633-1468.
•700 Series™ with Ethernet: To connect the Ethernet to the control head,
you will need to purchase the Ethernet Adapter Cable (AS EC QDE).
•Extention Cables are available for Ethernet and the GPS Receiver/Heading
Sensor.
•Y-Cable: If the COM port on the control head is already used by another
installed accessory, you will need to purchase a Humminbird® Y-Cable to
add the GPS Receiver/Heading Sensor to the installation.
4
Ins alla ion

Switch (optional): If you do not have a main switch or fuse panel available on
your boat to connect power, you will need to purchase a battery switch. See
Install the Transducer Deployment System, Section 6. oute the Cables and
Connect Power for more information.
Lag Bolts (optional): If you are unable or choose not to drill completely through
the transom as recommended, you will need to purchase (4) 5/16" lag bolts of
the appropriate length.
5Ins alla ion

Install the GPS Receiver/Heading Sensor
Use the following instructions to install the GPS Receiver/Heading Sensor (“Sensor”)
on your boat.
1. Choose the Mounting Location
It is important to consider the following information when you choose a mounting
location for the Sensor:
•Interference: Do NOT mount the Sensor close to a VH antenna or within the
active area of a radar. Do NOT install the Sensor near ferrous metals or near
anything that can create a magnetic field. Hardware and cables that handle
large currents, such as batteries and power cables, are also examples of
equipment that may cause interference.
•Reception: Mount the Sensor in an area that has full exposure to the sky. The
effective area of reception is 5˚ above the horizon.
•Surface: Whether the Sensor Cable will be routed down through the
mounting surface or to the side, or if your’re using a stem mount, the
mounting surface will influence how you install the Sensor. or details, see
Section 2: Install the Sensor.
•Extension Cables: Test run the Sensor Cable from the chosen mounting
location to the control head. 10 ft (3m) extension cables may be purchased from
Humminbird® if your planned cable route exceeds 20 ft (6 m). Maximum cable
length, including extension cables, should not exceed 50 ft (16 m).
•Y-Cable: If the COM port on the control head is already used by another
installed accessory, you will need to purchase a Humminbird® Y-Cable to add
the Sensor to the installation.
6
Ins alla ion - GPS/Heading Sensor

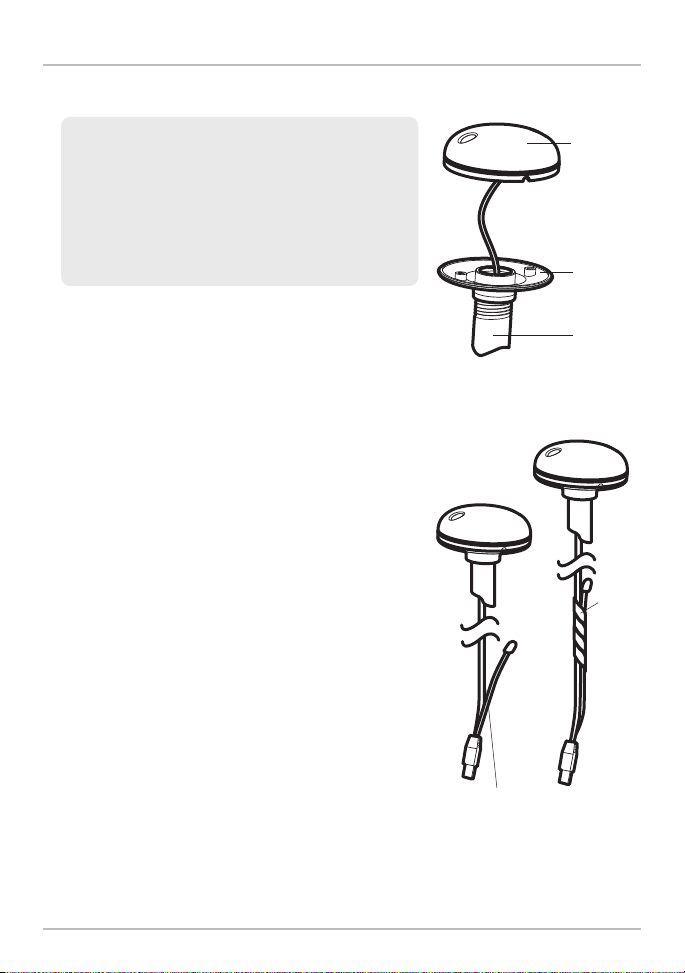

2. Install the Sensor
There are three different options to mount the sensor. Proceed to the section that
matches the type of mounting location you will be using, as follows:
Stem
Cable routed through the hole
Cable routed to the side
Stem Mount with 1” - 14 Thread
The Sensor will be mounted on a stem or
antenna pole. Proceed to Section A.
Access Under the Mounting Deck
The Sensor will be deck mounted and the
cable can be routed down through the
mounting surface. Proceed to Section B.
NO Access Under the Mounting Deck
The Sensor will be deck mounted and the
cable must routed to the side because there is
not space for a cable through or underneath
the mounting location. Proceed to Section C.
7Ins alla ion - GPS/Heading Sensor

A. Stem Mount with 1”-14 Thread
Use the following instructions to stem mount the Sensor:
1. If you have a pre-existing stem mount, skip to
step 2.
If you need to mount the antenna pole (stem),
mark the chosen mounting location and drill a
3/4” (19 mm) hole for the cable and cable
connector.
If you have purchased hardware to stem
mount your Sensor, follow the instructions
included with that hardware to attach the stem
to the boat.
2. Screw the Sensor base onto the stem first,
making sure that the stem pipe does not
protrude from the Sensor base. (This adds
protection to the cable when it is pulled through
the pipe stem.) Deburr the pipe edges to reduce
cable abrasion.
3. Use electrical tape to secure the NMEA pigtail
to the cable.
NOTE: Unless it is needed, leave the NMEA pigtail
secured to the cable. If you are connecting the pigtail to
a NMEA 0183 device, see Section 3: Connect to the
Control Head for connection information.
Stem Mount, Attaching the
Sensor Base to the Stem
Base
Cover
Stem
Taping the NMEA Pigtail
to the Cable
NMEA Pigtail Cable Out
NMEA
Pigtail
Cable
Taped
WA NING! Do NOT mount the Sensor to a stem
mount or antenna pole that contains ferrous metals.
NOTE: It is important to review the mounting
considerations and test run the cable route as
indicated in Section 1 before proceeding with the
installation.
8
Ins alla ion - GPS/Heading Sensor

4. Route the Sensor cable through the stem and
through the planned cable route. To use
extension cables, see the details in Section 1:
Choose the Mounting Location.
5. Position the Sensor so the arrow on the cover
is pointed straight toward the front of the boat
in the direction of travel. The arrow should be
parallel with the keel.
NOTE: Failure to align the Sensor correctly will result in
incorrect compass readings.
6. Attach the Sensor to its base using the
included #6 -1/4” screws. and tighten only.
Positioning the Arrow
on the Sensor
Attaching the Sensor
to the Base
#6 -1/4
Mounting Screws
9Ins alla ion - GPS/Heading Sensor

10
Ins alla ion - GPS/Heading Sensor
B. Access Under the Mounting Location
Use the following instructions to deck mount the Sensor and route the cable down
through the mounting surface:
1. Mark the mounting location and drill a 3/4”
(19 mm) hole for the cable and cable connector.
2. Secure the NMEA pigtail to the cable with
electrical tape.
NOTE: Unless it is needed, leave the NMEA pigtail
secured to the cable. If you are connecting the pigtail
to a NMEA 0183 device, see Section 3: Connect to
the Control Head for connection information.
3. Route the Sensor cable through the planned
cable route. To use extension cables, see the
details in Section 1: Choose the Mounting
Location.
4. Cover the cable hole with the Sensor.
Position the Sensor so the arrow on the cover
is pointed straight toward the front of the boat
in the direction of travel. The arrow should be
parallel with the keel.
NOTE: Failure to align the Sensor correctly will result
in incorrect compass readings.
Taping the NMEA Pigtail
to the Cable
NMEA Pigtail Cable Out
NMEA
Pigtail
Cable
Taped
NOTE: It is important to review the mounting considerations and test run the cable
route as indicated in Section 1 before proceeding with the installation.

11 Ins alla ion - GPS/Heading Sensor
5. Make sure the Sensor is flush against the surface, and mark the two
mounting holes with a pencil or awl.
6. Move the Sensor to the side and drill two pilot holes, using a 5/32”
(4 mm) bit.
NOTE: Apply marine-grade silicone caulk or sealant to both screw and drilled holes as
needed to protect your boat from water damage.
7. Align the Sensor’s screw holes over the pilot screw holes and attach with the
#6 - 3/4” Phillips head screws. and tighten only.
NOTE: If the mounting surface is thin or made of a light-weight material, you may
need to add reinforcing material below the mounting surface in order to support the
Sensor.
Positioning the Arrow
on the Sensor
Attaching the Sensor to the
Mounting Surface
Cable routed through the hole
#6 - 3/4
Mounting Screws

12
C. No Access Under the Mounting Location
Use the following instructions to deck mount the Sensor and route the cable to the
side if there is not space for a cable underneath the mounting location:
1. Secure the NMEA pigtail with electrical tape.
NOTE: Unless it is needed, leave the NMEA pigtail
secured to the cable. If you are connecting the pigtail
to a NMEA 0183 device, see Section 3: Connect to
the Control Head for connection information.
2. Route the cable from the Sensor to the Control
head.
• The Sensor has two wire routing notches.
Use the cable notch closest to the
intended cable route.
• If holes are required to route the cable,
they must be 3/4” (19 mm) to allow for the
cable connector.
• To use extension cables, see the details in
Section 1: Choose the Mounting Location.
Taping the NMEA Pigtail
to the Cable
NMEA Pigtail Cable Out
NMEA
Pigtail
Cable
Taped
NOTE: It is important to review the mounting considerations and test run the cable
route as indicated in Section 1 before proceeding with the installation.
Ins alla ion - GPS/Heading Sensor

3. With the cable routed, position the Sensor so
the arrow on the cover is pointed straight
toward the front of the boat in the direction of
travel. The arrow should be parallel with the
keel.
NOTE: Failure to align the Sensor correctly will result in
incorrect compass readings.
4. Make sure the Sensor is flush against the
surface, and mark the two mounting holes
with a pencil or awl.
5. Move the Sensor to the side and drill the two
5/32” (4 mm) pilot holes.
NOTE: Apply marine-grade silicone caulk or sealant to
both screw and drilled holes as needed to protect your
boat from water damage.
6. Align the Sensor’s screw holes over the pilot
screw holes and attach with the #6 - 3/4”
Phillips head screws. and tighten only.
Positioning the Arrow
on the Sensor
Attaching the Sensor to the
Mounting Surface
Cable routed to the side
#6 - 3/4
Mounting Screws
13 Ins alla ion - GPS/Heading Sensor

3. Connect to the Control Head
Use the following instructions to connect the Sensor cable to the control head.
1. Insert the Sensor’s NMEA-COM connector into the control head’s COM port.
The connectors are keyed to prevent reversed installation, so be careful not
to force the connector into the port.
• If there is another accessory plugged into the COM port, install the
AS YC ("Y") cable (optional-purchase required).
• Attach the COM connector of the Y-cable directly to the control head
COM port. Connect the Sensor to the NMEA-COM connector of the
Y-cable. Reconnect your other ishfinder accessories to the ACCY-COM
connector of the Y-cable. See the illustration Optional Configuration(s)
for the Sensor Installation.
2. Optional: The control head outputs NMEA signals through the Sensor’s
pigtail cable for connection to a device such as an autopilot. Connect the
NMEA Out (White Wire) of the cable to the NMEA In of the device you are
connecting to your ishfinder. The pinouts of this cable are as follows:
• Green Wire, GPS NMEA Out
• Black Wire, Ground
• White Wire, Control Head NMEA Out
NOTE: See the illustration Optional Configuration(s) for the Sensor Installation.
WA NING! It is important to finish all installation connections before powering
on the control head.
14
Ins alla ion - GPS/Heading Sensor
