Hundure RAC-920PE User manual

RAC-920PE/PM
Standalone Access Controller
Hardware Manual
Version 1.01

Table of Contents
Chapter 1 Product Overview ...............................................................................................4
1.1 Package Contents..................................................................................................4
1.2 Features.................................................................................................................5
1.3 Specifications.........................................................................................................6
Chapter 2 Physical Dimension ............................................................................................7
2.1 Dimension ..............................................................................................................7
2.2 Appearance Introduction ........................................................................................8
Chapter 3 System Configuration & Wire Connections.........................................................9
3.1 System Configuration.............................................................................................9
3.2 Wire Connections.................................................................................................10
3.2.1 Controller Terminal Introduction.................................................................10
3.2.2 Siren/Alarm Connection .............................................................................11
3.2.3 Electronic Lock Setup ................................................................................12
3.2.4 Exit Button/Door Sensor Connection .........................................................13
3.2.5 Slave Reader Connection ..........................................................................15
3.2.6 Power Supply Connection..........................................................................16
Chapter 4 Installations ......................................................................................................17
4.1 Hardware Setup ...................................................................................................17
4.2 Communication Interface Connection ..................................................................18
4.3 ACU-30 Wire Diagram .........................................................................................19
Chapter 5 Setting ..............................................................................................................20
5.1 ID Setting .............................................................................................................20
5.2 Function Settings .................................................................................................21
5.2.1 Add a Card Number ...................................................................................22
5.2.2 Delete a Card Number ...............................................................................23
5.2.3 Delete All Card Numbers ...........................................................................24
5.2.4 Successive Addition of Card Numbers.......................................................25
5.2.5 Successive Deletion of Card Numbers ......................................................26
5.2.6 Set Unlock Door Time................................................................................27
5.2.7 Door Sensor Detection Time......................................................................28
5.2.8 Enable/Disable Conditional Unlock Door Settings .....................................29
5.2.9 Compare valid Address..............................................................................30
5.2.10 Advanced Settings 1 ................................................................................31
HUNDURE 2RAC-920PE/PM Hardware manual
5.2.11 Advanced Settings 2 ................................................................................32

5.2.12 Reswipe Card Check Time ......................................................................33
5.2.13 Sensor NO/NC Settings ...........................................................................34
5.2.14 Access Granted for Master Code............................................................35
5.2.15 Set Date ...................................................................................................36
5.2.16 Set Time...................................................................................................37
5.2.17 Enable/Disable Keypad............................................................................38
5.2.18 Save Invalid Card No. ..............................................................................39
5.2.19 Mifare Card Reading Format(for RAC-920PM only) ................................40
5.2.20 Mifare Read Block Settings(for RAC-920PM only)...................................41
5.2.21 Mifare Index of card No. (for RAC-920PM only).......................................42
5.2.22 Mifare Length of card No.(for RAC-920PM only) .....................................43
5.2.23 Compress Mifare Card No.(for RAC-920PM only) ...................................44
5.2.24 Set Key Value (for RAC-920PMonly) .......................................................45
5.2.25 Read Block Mode.....................................................................................46
5.2.26 Set Master Code ......................................................................................47
5.2.27 Set Disarm Card/Code.............................................................................48
5.2.28 Set Duress Card(Code)............................................................................49
5.2.29 Set Memory Mode....................................................................................50
5.2.30 Door Open Mode .....................................................................................51
5.2.31 Valid Card Mode ......................................................................................52
5.2.32 Slave Reader Setting ...............................................................................53
5.2.33 Relay Mode..............................................................................................54
5.2.34 System Initialization .................................................................................55
Chapter 6 Testing..............................................................................................................56
Chapter 7 Troubleshoot ....................................................................................................57
Appendix ...........................................................................................................................58
Appendix A：RAC-920 Function List ........................................................................58
Revision History
HUNDURE 3RAC-920PE/PM Hardware manual
Version Description
V1.0 First Edition
V1.01 3.2.6 Add a note

Chapter 1 Product Overview
1.1 Package Contents
RA C- 92 0 x 1 Quick Start Guide x 1 Plate x 1 Hex Key Wrench x 1
Screw x 3
Cable x 1
HUNDURE 4RAC-920PE/PM Hardware manual

1.2 Features
zSlim, stylish design, water proof sensitive touch keypad with backlight.
zWaterproof and bell key design. Suit for various location. (IP65 certificate)
zSupport network or standalone operation.
zProvide RS-485 communication, able expandable to 64 sets by RS-485 interface.
zMemory capacity 1024 cardholders / 800 events.
zSupport swipe card and card with pin codes enter modes and door relay time from
1~600 seconds.
zCasing tamper proof detection and door tamper alarm. Programmable door
sensor detection time from 1~600 seconds and able set relay or reader beep of
alarm type.
zDuress card/code setting. When door opened in the emergency, controller will
send signal to control center at the same time for tracing and rescue.
zConditional Unlock Door function, able open 1~9999 seconds per time.
zUnique ID or Block reading format supported and programmable key value.(RAC-
920PM)
HUNDURE 5RAC-920PE/PM Hardware manual
zWatchdog function secures system free from halting.

1.3 Specifications
* Product design and specifications are subject to change without prior notice.
HUNDURE 6RAC-920PE/PM Hardware manual
機型 Model RAC-920PE RAC-920PM
Processor 8 Bit
Memory 32K
Input Ports 3 Sensors (Door Sensor x 1、Exit Button x 1、Case
Sensor x 1)
Output Ports Relay x 1 (Electronic Lock),O.C. Output x 2 (Electronic
Lock/Alarm/Door Bell, external ACU-30)
Cardholders / Events 1,024 / 800
LED Indicator Power
LCD Display -
Keypad 13 Key (0-9, ＊, ＃, Bell) (Sensitive Touch Keypad)
Real Time Clock Yes
Beep Tone Buzzer
ID Setting DIP switch setting
Read Format & Range 125 KHz (EM Compatible) (RAC-920PE)
13.56 MHz (MIFARE® Compatible) (RAC-920PM)
EM: 8~10 CM(RAC-920PE) (max.),
MIFARE®: 3~5 CM (RAC-920PM) (max.)
Power Input DC 12V / 1A
Current Consumption 250mA (max.)
Comm. Interface RS-485
Comm. Baud Rate 19,200 bps-N-8-1
Operating Temp. -10℃~ 55℃/ 14℉~ 131℉
Relative Humidity 20% ~ 80% (Non-condensing)
Dimension 120mm(L) x 77mm(W) x 22mm(H)
Weight (Device) 140g

Chapter 2 Physical Dimension
2.1 Dimension
HUNDURE 7RAC-920PE/PM Hardware manual
Scale:mm

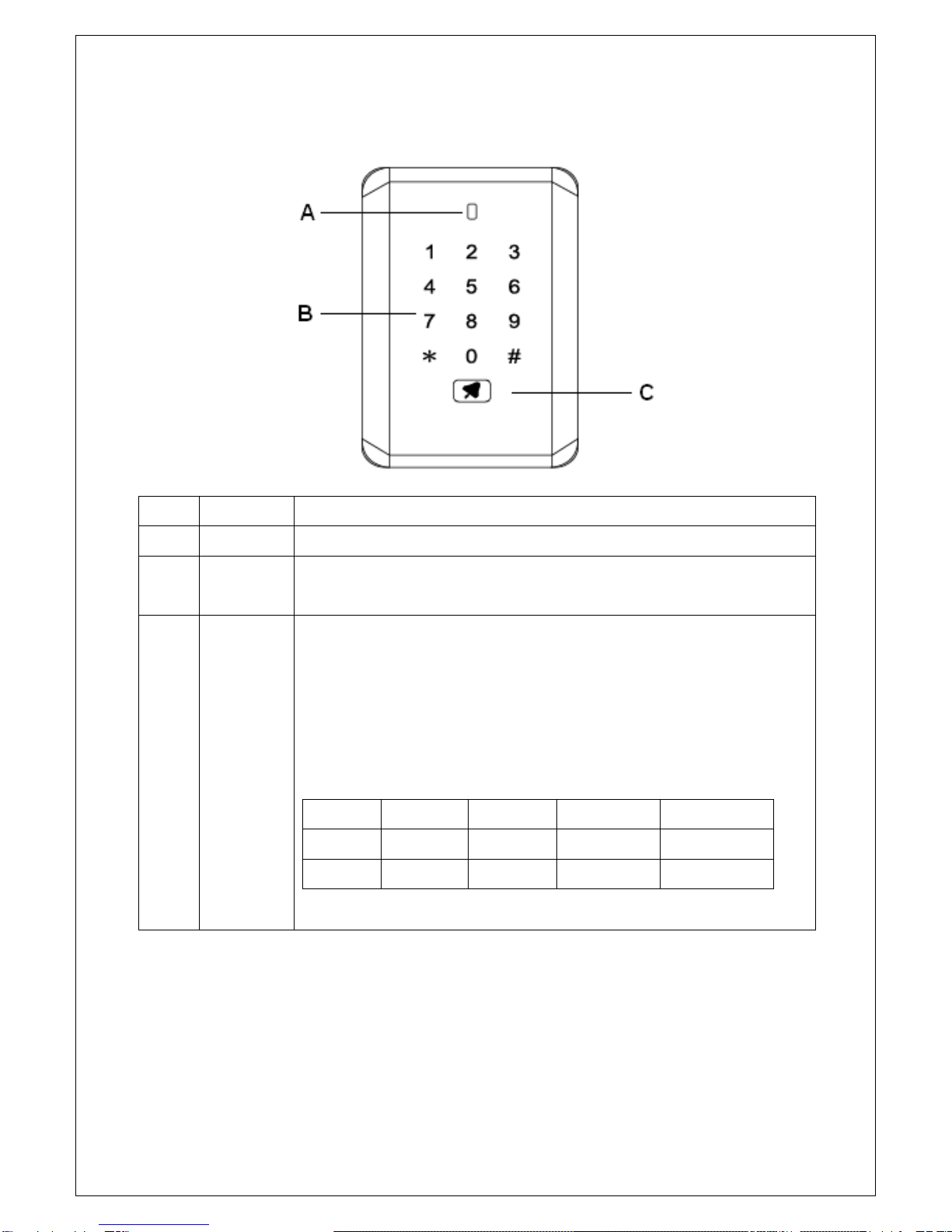

2.2 Appearance Introduction
Item Name Description
A POWER Power LED, flashed green led usually
B Numerical
Keypad
0~9 : Numeric key. ＊: Cancel ＃: Enter
C Bell Bell Function key
Request Bell function should select mode 1 and activate by
HAMS-19.
Relay Active as below
(Relay 0 signifies Controller relay. Relay 1~2 signifies relay in the
external relay board.
PS: Siren and alarm can not work at the same time. Only select
one once.
Relay0 Relay1 Relay2 Relay3
Mode 0 Door Door Siren/Alarm X
Mode 1 Bell Door Siren/Alarm X
HUNDURE 8RAC-920PE/PM Hardware manual

Chapter 3 System Configuration & Wire Connections

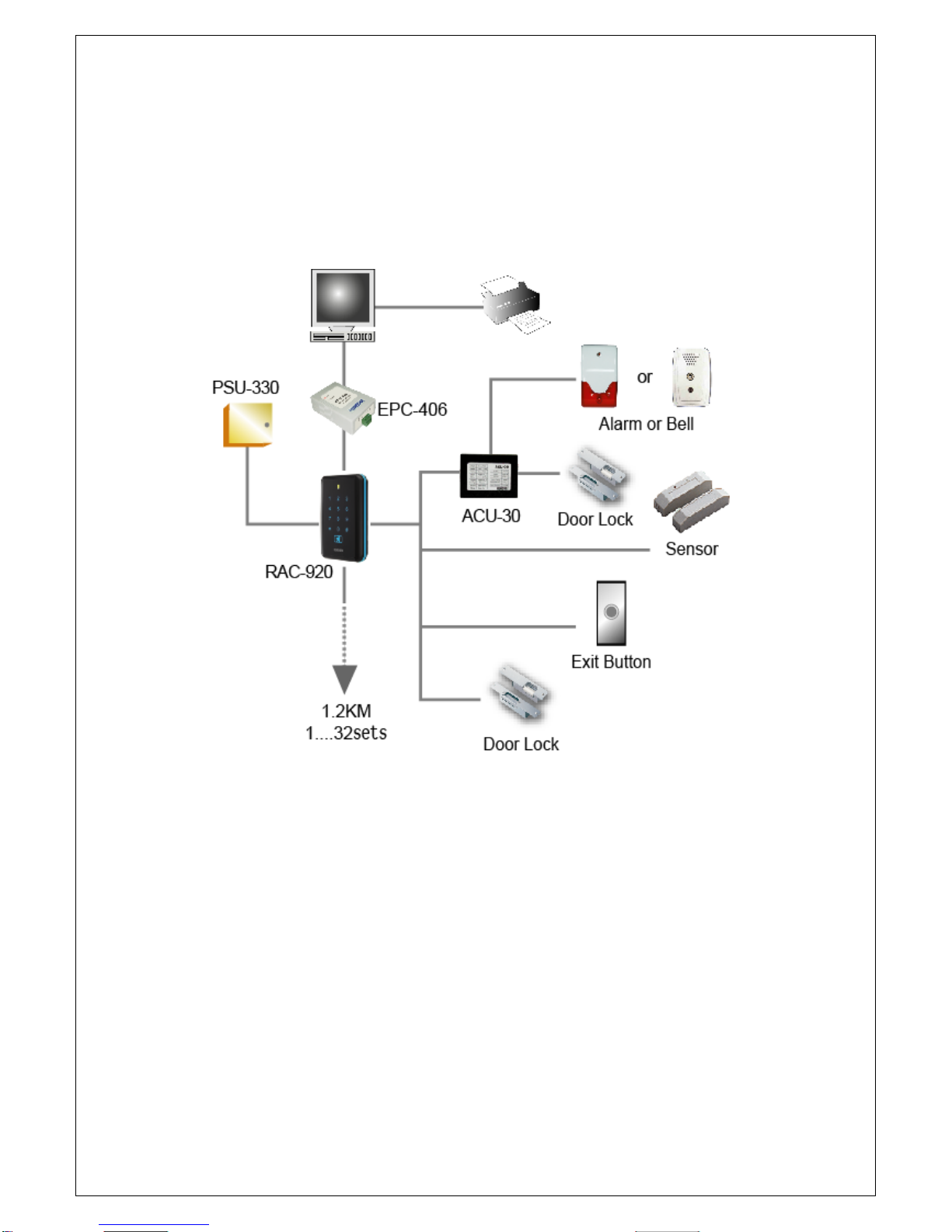

3.1 System Configuration
HUNDURE 9RAC-920PE/PM Hardware manual

3.2 Wire Connections
3.2.1 Controller Terminal Introduction
A SW2 Case Sensor
B SW1 IDSetting (Kindly refer to Chapter5.1)
C Contact( (Kindly refer to Chapter 3.2)
D JP1 Built in Relay
HUNDURE 10 RAC-920PE/PM Hardware manual

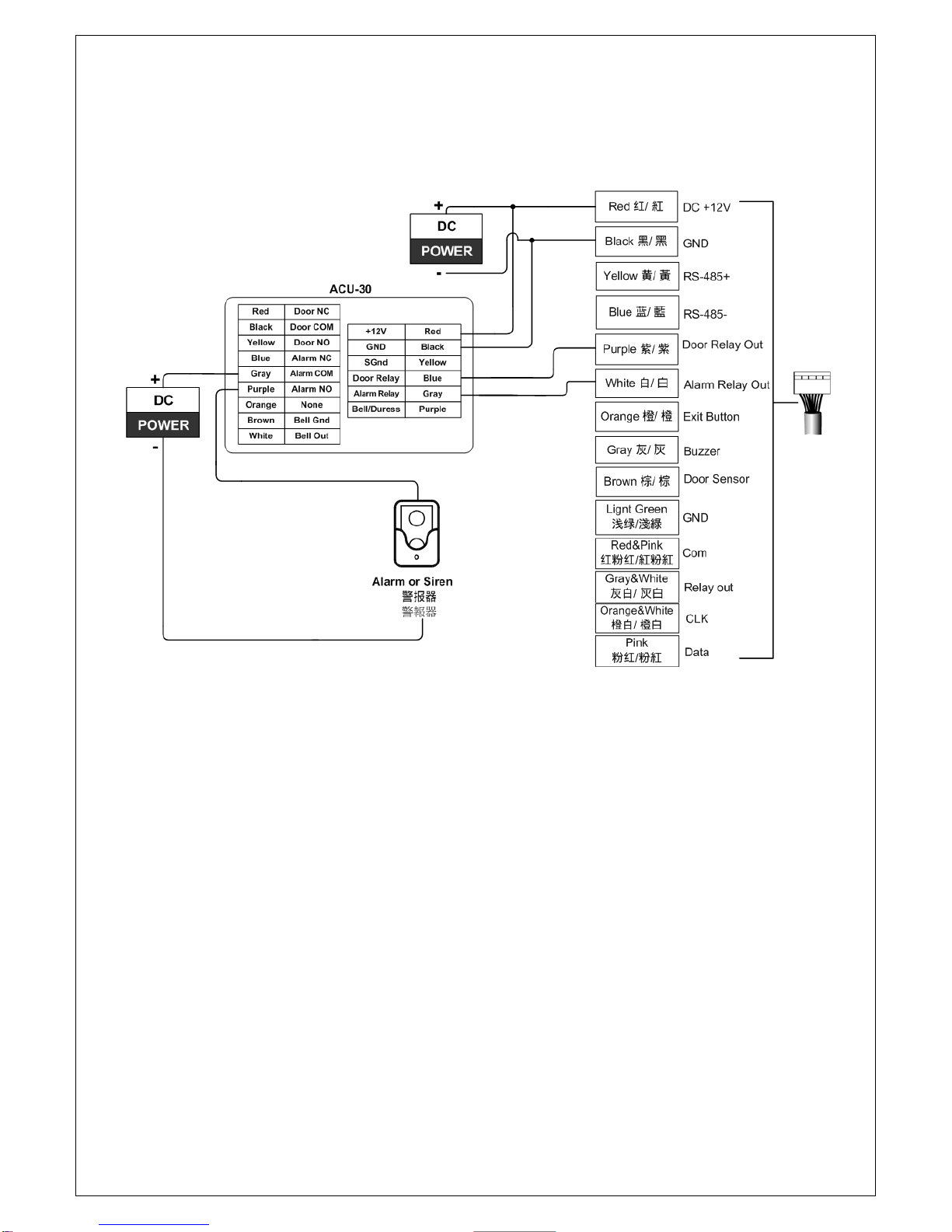

3.2.2 Siren/Alarm Connection
With ACU-30 for digital output
HUNDURE 11 RAC-920PE/PM Hardware manual

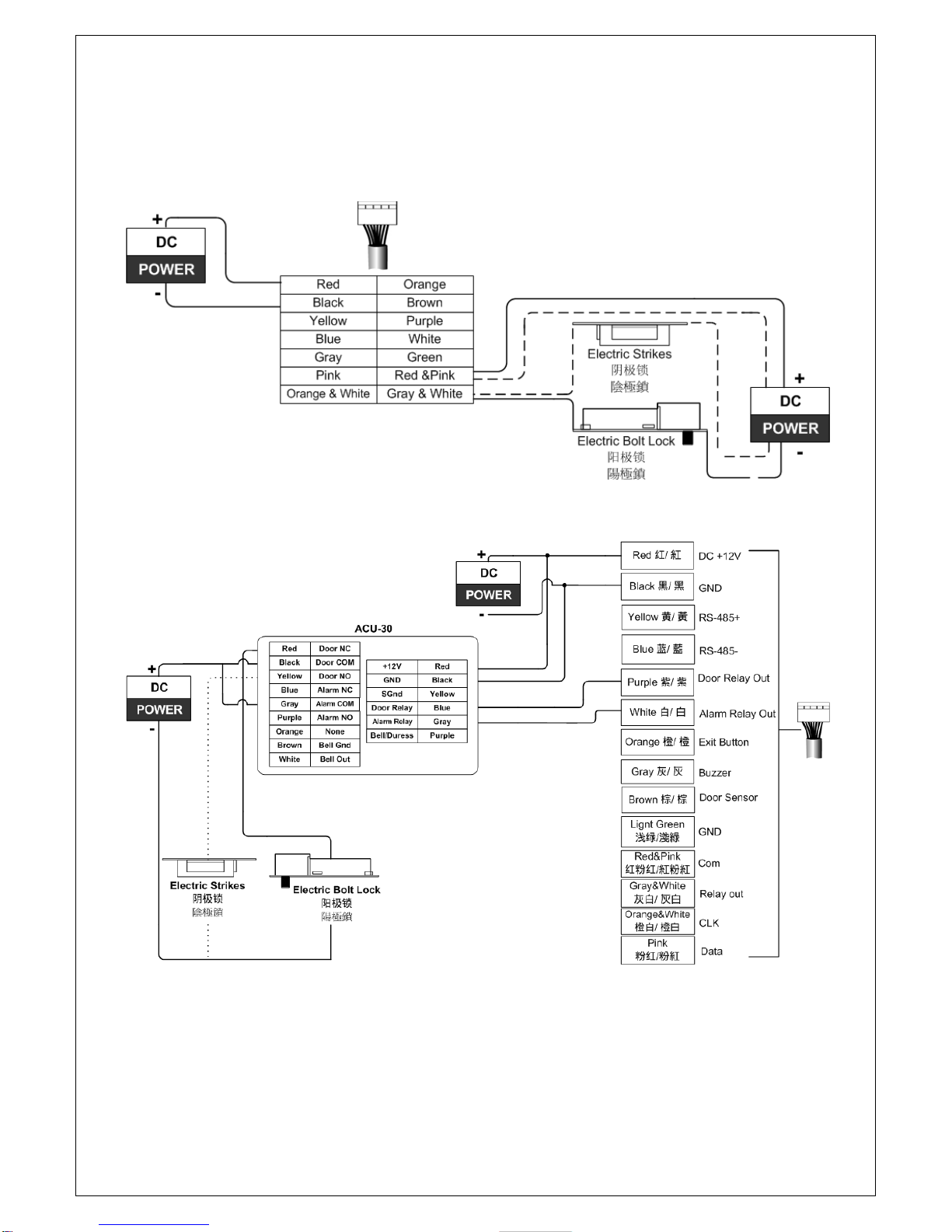

3.2.3 Electronic Lock Setup
Without ACU-30 for digital output
With ACU-30 for digital output
HUNDURE 12 RAC-920PE/PM Hardware manual

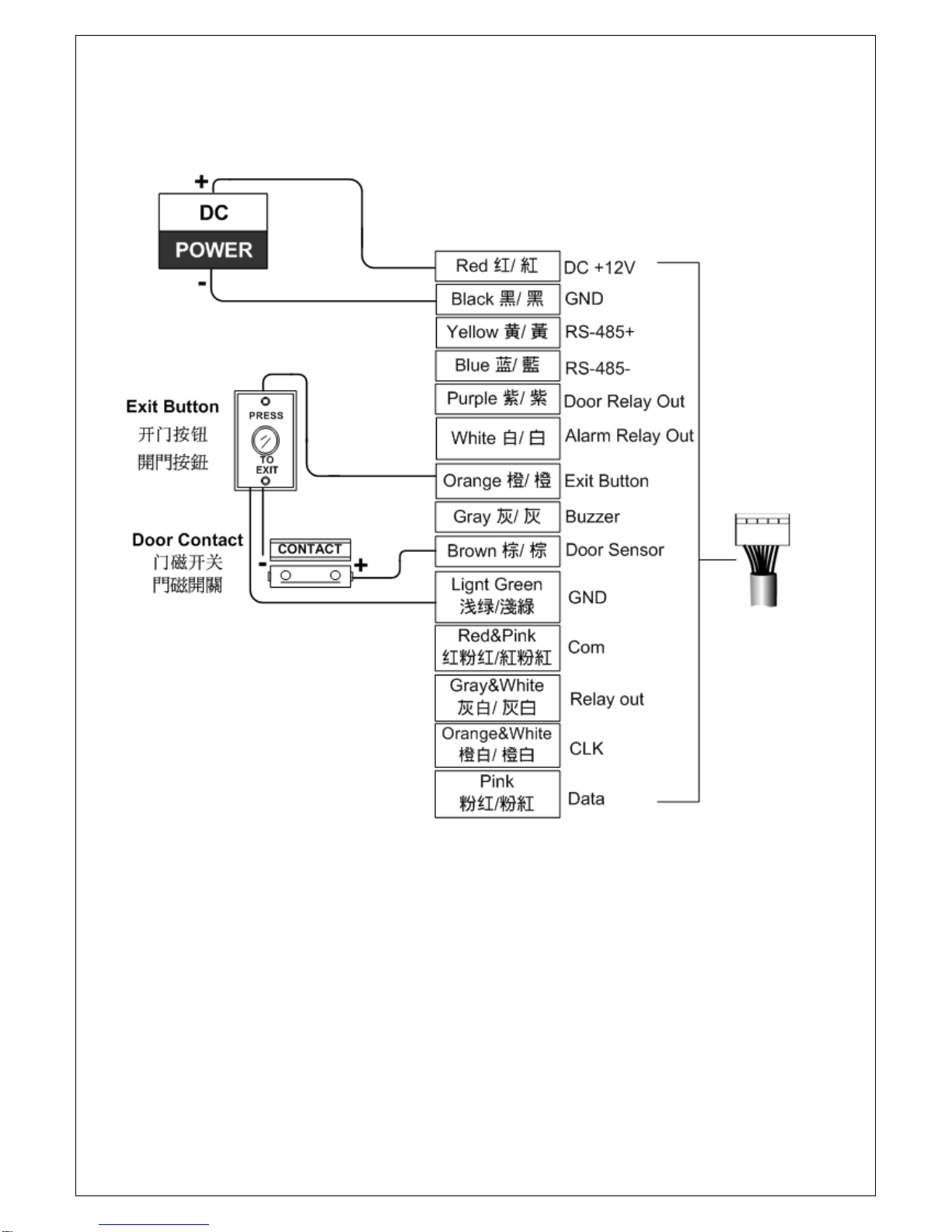

3.2.4 Exit Button/Door Sensor Connection
Without ACU-30 for digital output
HUNDURE 13 RAC-920PE/PM Hardware manual

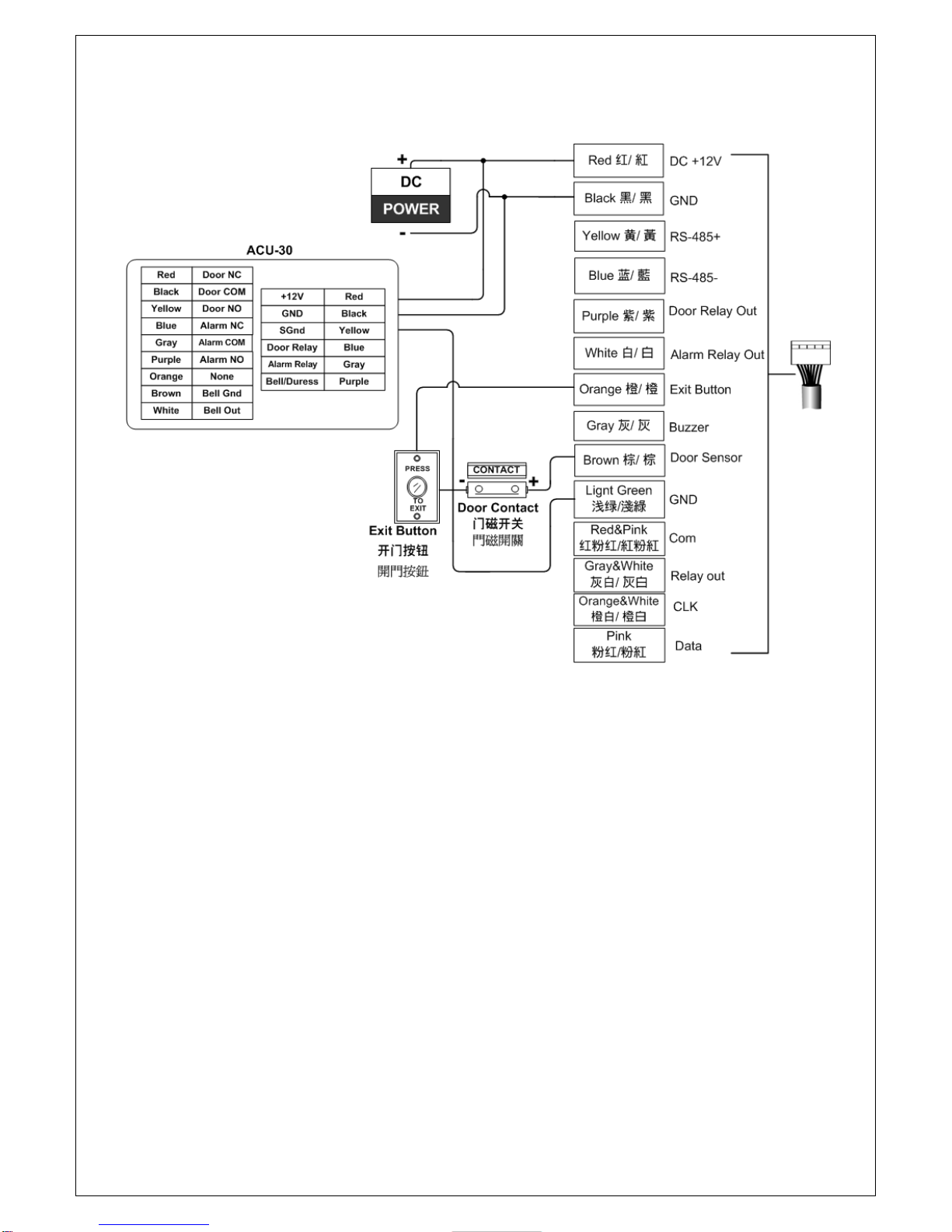

With ACU-30 for digital output
HUNDURE 14 RAC-920PE/PM Hardware manual

3.2.5 Slave Reader Connection
HUNDURE 15 RAC-920PE/PM Hardware manual

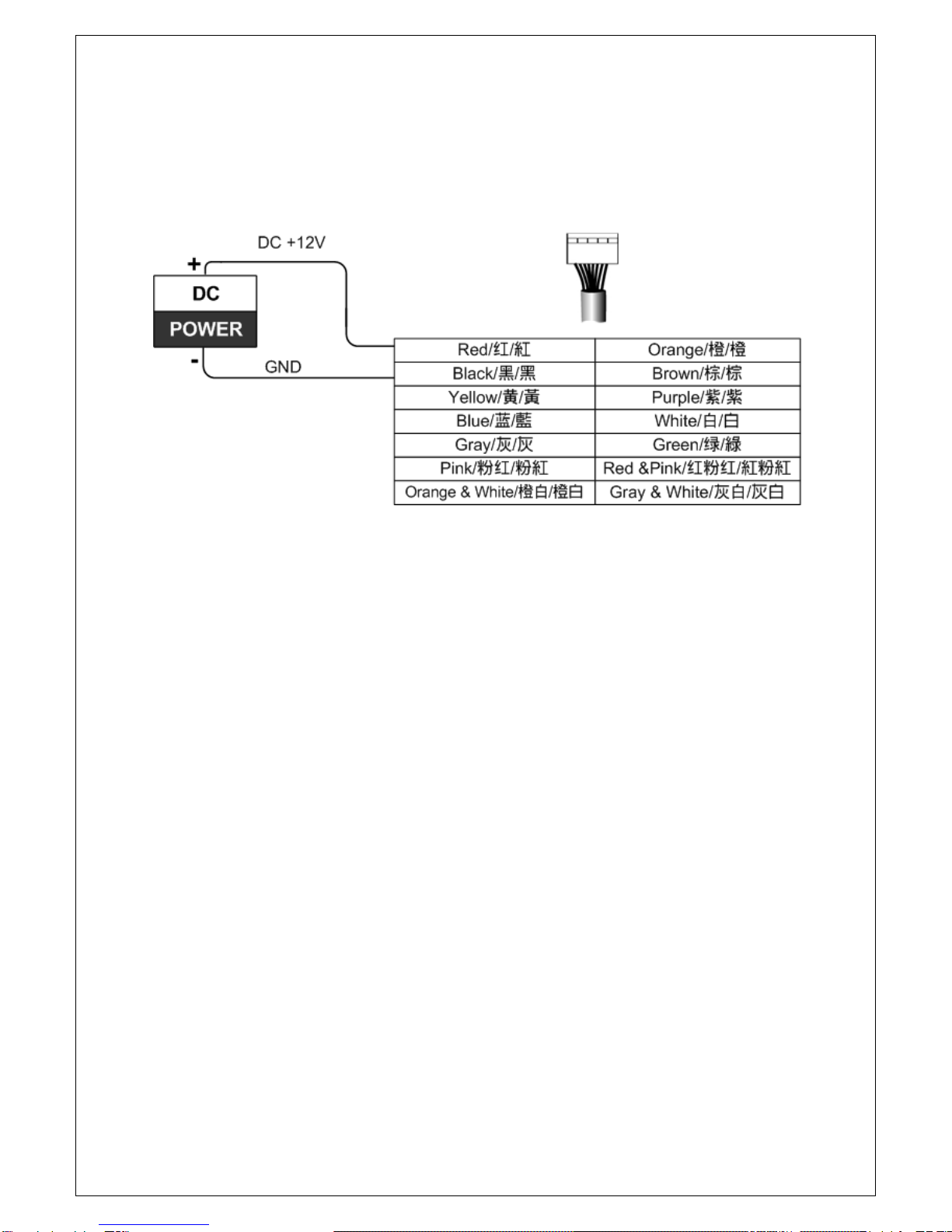

3.2.6 Power Supply Connection
Note：To avoid interference self- detection of sensitive keypad , please do not touch
keypad when input power.
HUNDURE 16 RAC-920PE/PM Hardware manual

Chapter 4 Installations
4.1 Hardware Setup
Kindly refer to the “3.2 wiring connections” for the NODE ID settings
before the hardware installation.
Do not over tighten the back plate screws during installation to
prevent distortion.
(A). Mount the base plate onto the wall or other desired location.
(B). Connect the wires in accordance with the wiring instruction below.
(C). Make sure the back plate and the controller upper cover guides are aligned.
(D). Install the controller upper cover to the back plate.
(E). Use the hex key wrench to fasten the screw onto the bottom of the controller.
HUNDURE 17 RAC-920PE/PM Hardware manual

4.2 Communication Interface Connection
HUNDURE 18 RAC-920PE/PM Hardware manual

4.3 ACU-30 Wire Diagram
HUNDURE 19 RAC-920PE/PM Hardware manual

Chapter 5 Setting

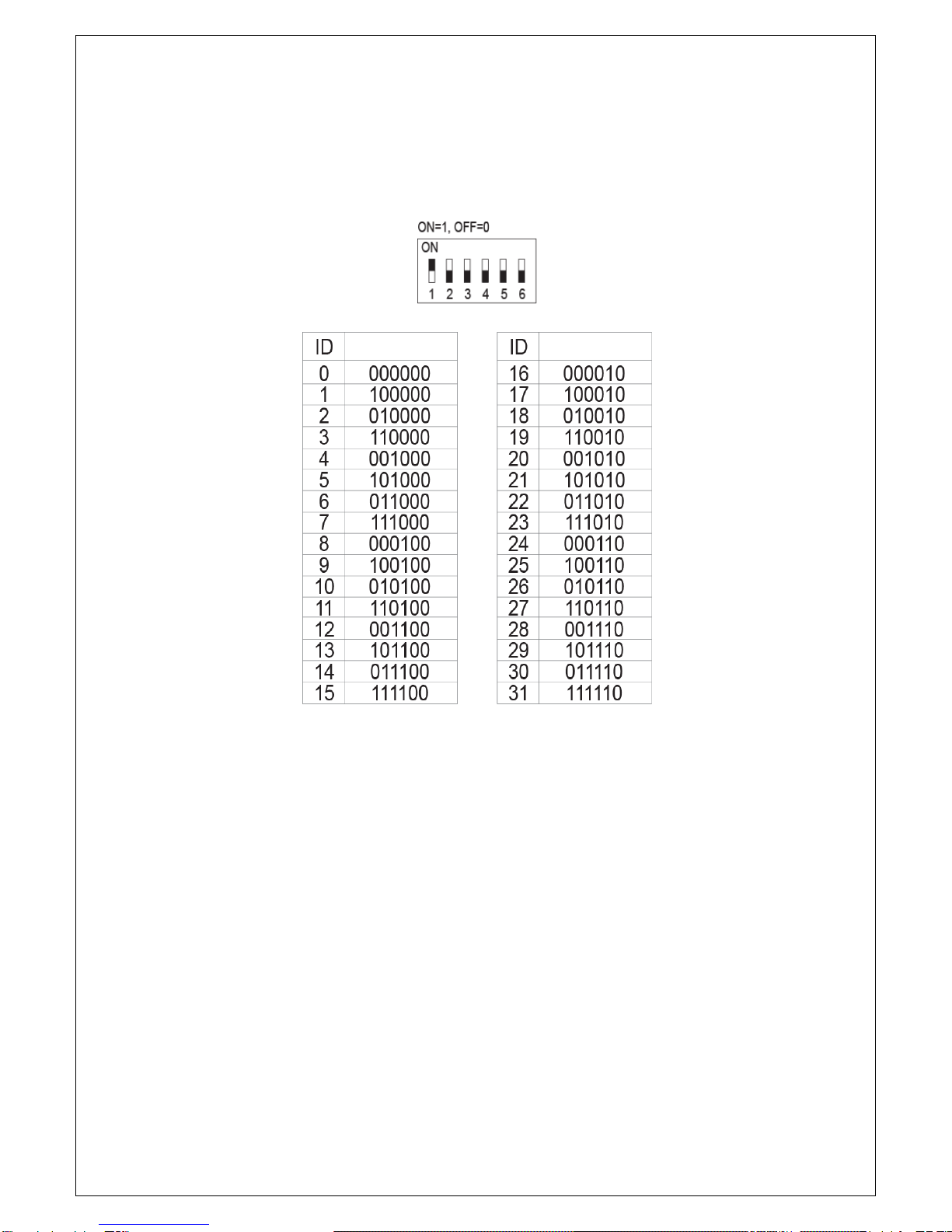

5.1 ID Setting
HUNDURE 20 RAC-920PE/PM Hardware manual
