Hunnebeck Edge Protection system User manual

Edge protection system
HÜNNEBECK EPS
User guide

2
Content
Content
1 Concrete solutions ................................................................................................... 6
2 Examples of concrete equipment ...........................................................................7
3 EPS post an EPS post extra installation guide ..................................................... 8
4 EPS Post/Extra installation...................................................................................... 9
5 EPS Post sizes...........................................................................................................11
6 EPS Clamp and EPS Latch installation guide......................................................12
7 EPS Clamp installation guide.................................................................................13
8 EPS Latch installation guide ..................................................................................14
9 EPS Clamp and EPS Latch placement..................................................................15
10 EPS Clamp and EPS Latch installation guide ......................................................16
11 Single Panel installation guide.............................................................................. 17
11.1 Panel placement: EPS Post and Extra .............................................................................17
11.2 Panel placement: Dual Purpose Stand............................................................................17
11.3 Panel placement: Standard Support Post...................................................................... 18
11.4 Panel placement: Steel Frame Post ................................................................................ 18
12 Double height installation guidelines...................................................................19
12.1 Panel continuation: overlap............................................................................................... 19
13 Dual Purpose Stand installation guide................................................................ 20
13.1 Dual Purpose Stand installation....................................................................................... 21
14 Slab Grab installation guide.................................................................................. 22
14.1 Slab Grab installation......................................................................................................... 23
15 Slab Grab spacing .................................................................................................. 24
16 Standard Support Post installation...................................................................... 25
17 Curb Grab installation guide................................................................................. 26
17.1 Curb Grab spacing.............................................................................................................. 28
18 Standard support post install ............................................................................... 28
19 Concrete Socket Base intallation guide.............................................................. 29
20 Concrete Socket Base installation....................................................................... 30
21 Standard Support Post installation...................................................................... 32
22 Universal Facemount Bracket - concrete installation guide ............................ 33
22.1 Universal Facemount Bracket install ..............................................................................33
22.2 Universal Facemount Bracket spacing...........................................................................34
23 Standard Support Post intall................................................................................. 35
24 Standard Support Post installation guide........................................................... 36
24.1 Standard Support Post install ...........................................................................................37
24.2 Steel Frame Post installation............................................................................................ 38
25 High Visibility Footplate intallation guide .......................................................... 39
25.1 High Visibility Footplate install ........................................................................................ 39
25.2 Distance from edge............................................................................................................ 40
25.3 High Visibility Footplate spacing ................................................................................... 40
25.4 Standard Support Post installation.................................................................................. 41

3
Unless stated otherwise all dimensions are in mm
HÜNNEBECK EPS
26 High Visibility Footplate Ballast Bracket installation guide............................. 42
26.1 Ballast Bracket installation................................................................................................ 42
26.2 Ballast Block installation.....................................................................................................44
27 Free-Standing Footplate installation guide ........................................................ 45
27.1 Free-standing footplate install......................................................................................... 46
27.2 Distance from edge............................................................................................................ 48
27.3 Free-Standing Footplate spacing ................................................................................... 48
28 Access solutions..................................................................................................... 49
29 Examples of access solutions............................................................................... 50
30 Elevator Gate / Lift Shaft Gate installation guide ...............................................51
31 Elevator / Lift Shaft Gate installation................................................................... 52
32 Typical elevator gate/lift shaft gate & panel set ups ......................................... 54
33 Typical elevator gate/lift shaft gate enclosure set up....................................... 54
34 EPS Gate Socket Base and Top Fix installation guide ...................................... 55
34.1 EPS Gate Socket Base install........................................................................................... 55
34.2 EPS Gate - Top Fix install .................................................................................................. 56
34.3 Correct HÜNNEBECK Pin installation.............................................................................57
35 Steel frame solutions ............................................................................................. 58
35.1 Examples of steel equipment .......................................................................................... 59
36 Webxbracketintallationguide .......................................................................... 60
36.1 Webxbracketinstallationguide.................................................................................... 60
36.2Webxbracketspacing..................................................................................................... 62
36.3 Steel Frame Post installation............................................................................................ 62
37 Webxbracketindexingguide............................................................................. 63
37.1 Webxbracketindexingguide........................................................................................ 63
37.2 Indexing settings................................................................................................................. 65
38 WebxExtensionBracketinstallationguide...................................................... 66
38.1 Extension Bracket installation.......................................................................................... 66
38.2 Steel frame post installation............................................................................................. 68
39 I-Beam Clamp installation guide .......................................................................... 69
39.1 I-Beam Clamp installation guide ..................................................................................... 69
39.2 I-beam clamp spacing........................................................................................................ 70
39.3 Steel Frame Post install.......................................................................................................71
40 I-Beam Clamp indexing guide............................................................................... 72
40.1 I-Beam Clamp indexing guide ..........................................................................................73
40.2 Indexing settings..................................................................................................................74
41 Bolt on Steel Socket installation guide ............................................................... 75
41.1 Bolt on Steel Socket installation ......................................................................................76
41.2 Bolt on Socket spacing.......................................................................................................77
41.3 Steel Frame Post installation.............................................................................................77
42 Blind Bolts installation guide................................................................................ 79
42.1 BlindBoltinstallation-facex......................................................................................... 80
42.2 Blind Bolt installation - Top Fix.......................................................................................... 81

4Unless stated otherwise all dimensions are in mm
43 SacricialSocketinstallationguide..................................................................... 82
43.1 SacricialSocket:installation........................................................................................... 83
43.2SacricialSocketsspacing ............................................................................................... 84
43.3 Steel Frame Post install..................................................................................................... 85
44 SacricialStubinstallationguide......................................................................... 86
44.1 SacricialStub:installation................................................................................................87
44.2SacricialSocketSpacing................................................................................................. 88
44.3 Steel Frame Post install..................................................................................................... 89
45 Steel Frame Post installation guide..................................................................... 90
45.1 Steel Frame Post installation............................................................................................. 91
46 Extension Post installation guide......................................................................... 92
46.1 Extension Post installation guide ................................................................................... 93
46.2 Extension Post installation................................................................................................ 95
47 Timber frame solutions.......................................................................................... 96
47.1 Examples of timber equipment ........................................................................................97
48 Dual Purpose Stand timber installation guide ................................................... 98
48.1 Dual Purpose Stand: timber ............................................................................................. 99
49 Timber Socket Base installation guide............................................................... 101
49.1 Timber Socket Base installation - Floor .......................................................................102
49.2 Timber Socket Base installation - Stair.........................................................................103
49.3 Standard support post install..........................................................................................104
50 Adapter faceplate timber installation guide..................................................... 105
50.1 Adapter Faceplate: timber...............................................................................................106
51 Universal facemount bracket – timber installation guide ...............................107
51.1 Universal Facemount Bracket installation...................................................................108
51.2 Uni. Facemount Bracket spacing...................................................................................109
51.3 Standard support post install..........................................................................................109
52 Standard Support Post installation guide........................................................... 111
52.1 Standard Support Post install ..........................................................................................112
53 Stair protection ...................................................................................................... 113
53.1 Examples of stair equipment ...........................................................................................114
54 Newel Post installation guide.............................................................................. 115
54.1 Adjustable handrail installation .......................................................................................116
54.2 Newel Post installation ......................................................................................................118
55 Stair clamp installation guide .............................................................................. 119
55.1 Stair Clamp installation.....................................................................................................120
55.2 To reverse Stair Clamp Socket ........................................................................................121
55.3 Standard Newel Post install ............................................................................................122
56 Landing Post installation guide...........................................................................123
56.1 Landing Post installation guide ......................................................................................124
56.2 Stair Rail Connector installation .....................................................................................126
57 Stair Rail Connector installation guide...............................................................127
57.1 Stair Rail Connector install...............................................................................................128
57.2 EPS Post and Stair Rail Connector placement ...........................................................130

5
Unless stated otherwise all dimensions are in mm
HÜNNEBECK EPS
58 Adjustable Stair Rails insatallation guide .......................................................... 131
58.1 Adjustable handrail installation .......................................................................................131
59 Debris Guards Landing and Stairs installation guide.......................................134
59.1 Debris Guard installation guide......................................................................................135
60 Debris Guard Connector Bracket / Center Post Clip installation guide ........137
60.1 Debris Guard Connector Bracket ..................................................................................138
60.2 Debris Guard installation guide......................................................................................140
61 General.................................................................................................................... 141
61.1 Traceability............................................................................................................................141
61.2 Important...............................................................................................................................141
61.3 Patents and registered designs ......................................................................................141

6Unless stated otherwise all dimensions are in mm
Concrete solutions
1 Concrete solutions

7
Unless stated otherwise all dimensions are in mm
HÜNNEBECK EPS

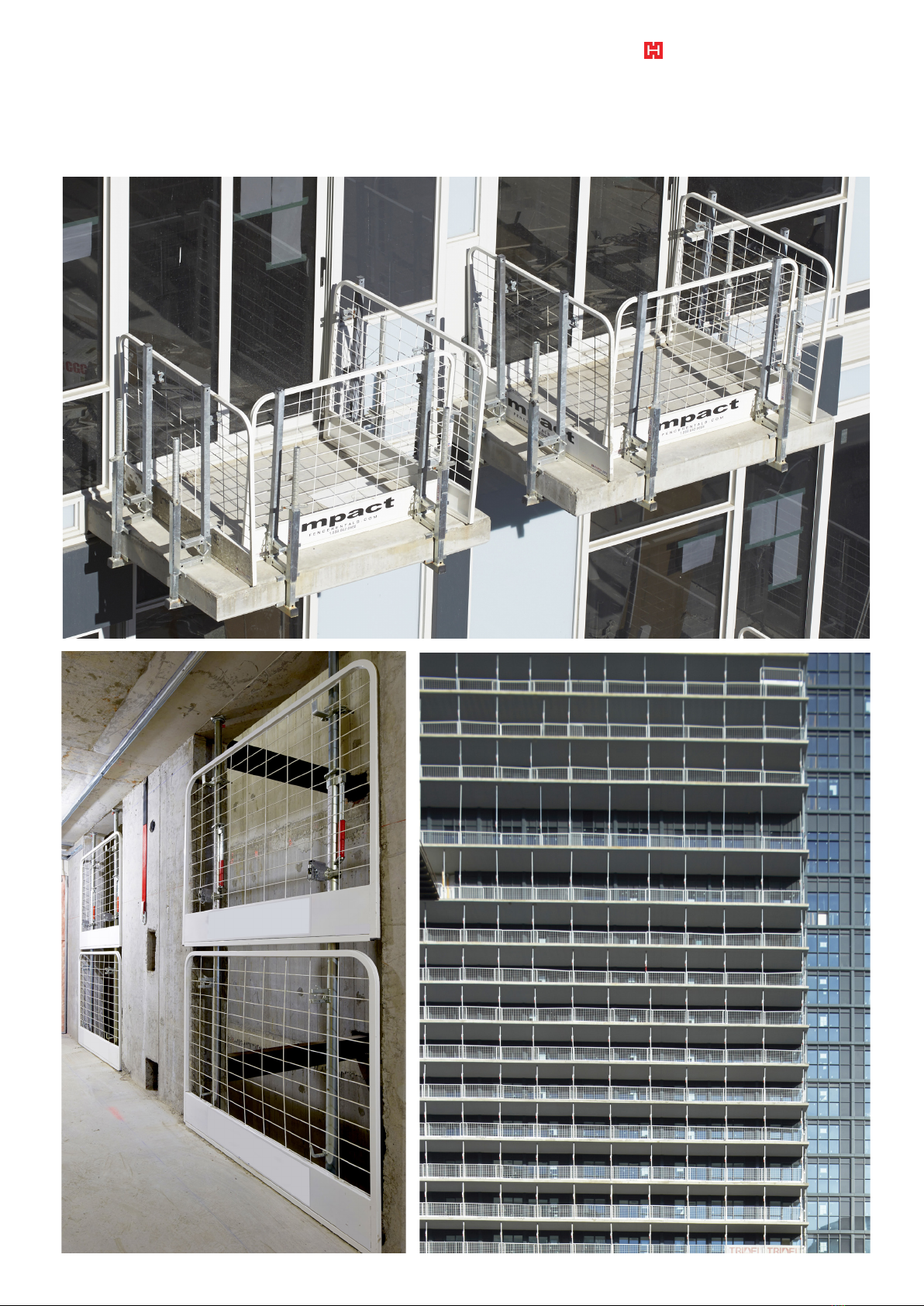

2 Examples of concrete equipment

8Unless stated otherwise all dimensions are in mm
EPS post an EPS post extra installation guide

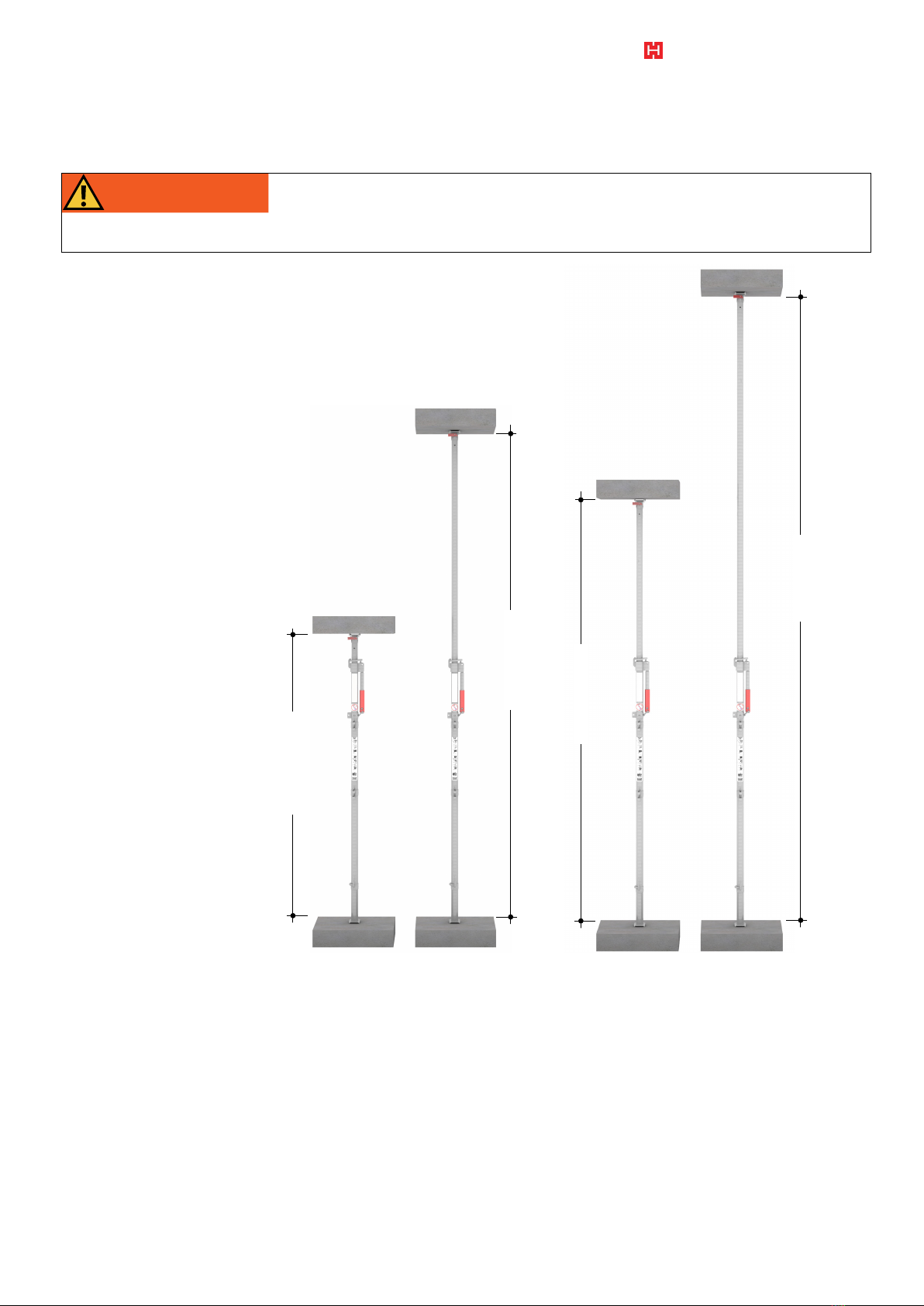

3 EPS post an EPS post extra installation guide
EU001
EPS Post
EU002
EPS Post Extra
NA002
NA001

9
Unless stated otherwise all dimensions are in mm
HÜNNEBECK EPS
4 EPS Post/Extra installation
WARNING WARNING!
Disassembly process must follow the instructions in reverse order. Improper installation
or removal could result in serious injury or death.
Step 1 With handle held horizontal, raise inner post to contact ceiling.
Step 2 Ensure the post is vertical using a magnetic spirit level and that all four points of the
topandbottomgrabplatesaretouchingtheoor/ceiling,pushhandleclosedtoxin
place.
Step 3 Swing locking ring into notch.

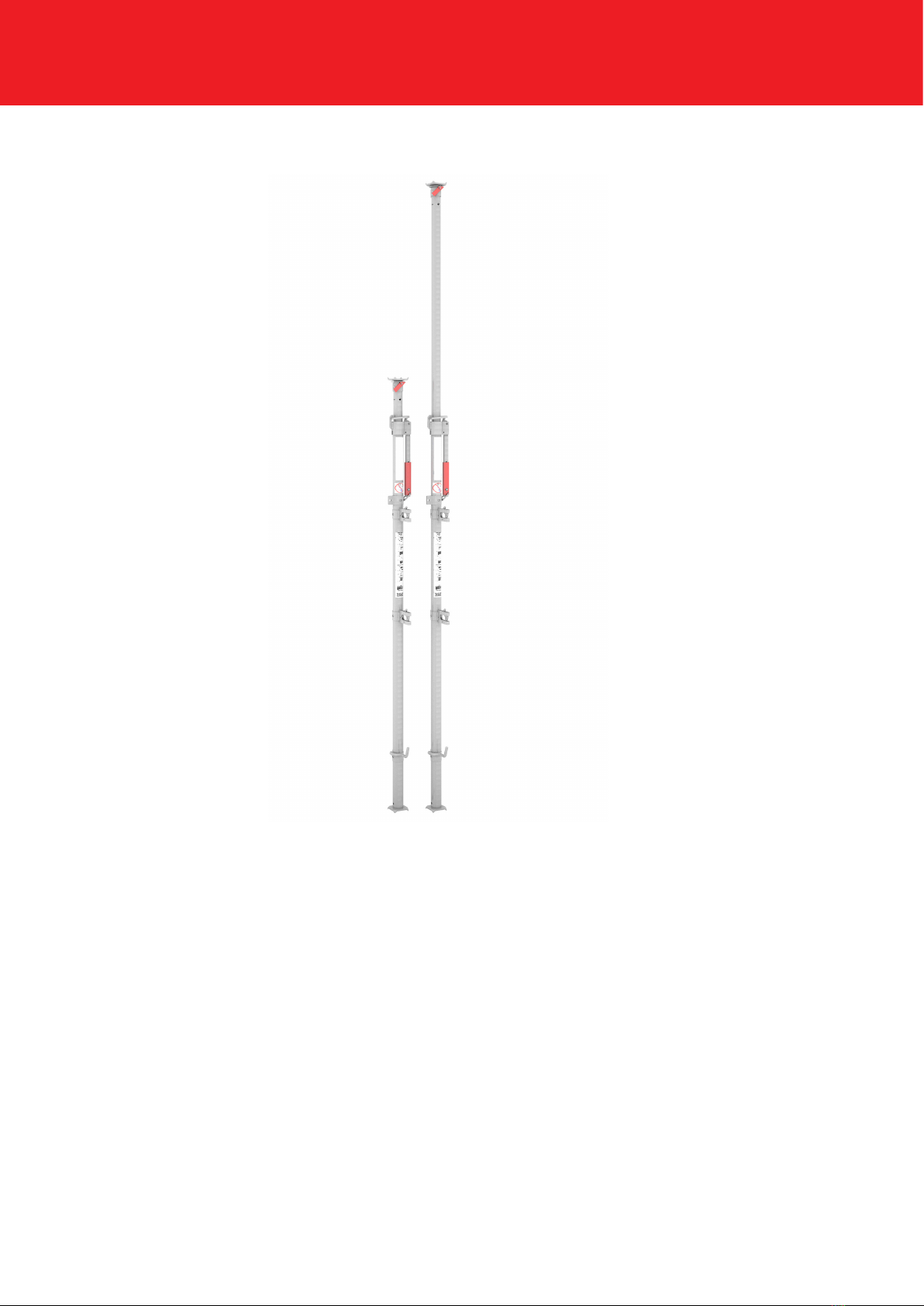

RAPID POST/EXTRA INSTALLATION
STEP 1:
WITH HANDLE HELD
HORIZONTAL, RAISE INNER
POST TO CONTACT CEILING.
STEP 2:
ENSURE THE POST IS
VERTICAL USING A
MAGNETIC SPIRIT LEVEL
AND THAT ALL FOUR
POINTS OF THE TOP AND
BOTTOM GRAB PLATES ARE
TOUCHING THE
FLOOR/CEILING, PUSH
HANDLE CLOSED TO FIX IN
PLACE.
IMPORTANT NOTE:
WHEN THE CORRECT
PRESSURE IS REACHED, THE
FORCE CHECK FLAG IS
RAISED HORIZONTAL
>RIGHT>. IF THE FORCE
CHECK FLAG DOES NOT
RAISE <LEFT<, REPEAT STEP
2 UNTIL FORCE CHECK FLAG
REACHES HORIZONTAL.
STEP 3:
SWING LOCKING RING INTO
NOTCH.
STEP 4:
SLIDE SAFETY LATCH DOWN
OVER LOCKING RING UNTIL
BUTTON POPS OUT.
STEP 5:
FEED ZIP TAG THROUGH
HOLE OVER SAFETY LATCH.
(OPTIONAL)
STEP 6:
FINISHED INSTALLATION.
POST PLACEMENT
RAPID POSTS AND RAPID
POST EXTRAS SHOULD
BE FITTED AT MAXIMUM
CENTERS OF 2700mm/9'
FOR FULL PANELS AND
1100mm/3'6" FOR HALF
PANELS.
WHERE PANELS ARE
FITTED TO A CORNER,
ALWAYS USE 2 POSTS
FOR EACH PANEL.
FOR PANEL INSTALLATION, PLEASE SEE PANEL INSTALLATION GUIDE.
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
RAPID POST/EXTRA INSTALLATION
STEP 1:
WITH HANDLE HELD
HORIZONTAL, RAISE INNER
POST TO CONTACT CEILING.
STEP 2:
ENSURE THE POST IS
VERTICAL USING A
MAGNETIC SPIRIT LEVEL
AND THAT ALL FOUR
POINTS OF THE TOP AND
BOTTOM GRAB PLATES ARE
TOUCHING THE
FLOOR/CEILING, PUSH
HANDLE CLOSED TO FIX IN
PLACE.
IMPORTANT NOTE:
WHEN THE CORRECT
PRESSURE IS REACHED, THE
FORCE CHECK FLAG IS
RAISED HORIZONTAL
>RIGHT>. IF THE FORCE
CHECK FLAG DOES NOT
RAISE <LEFT<, REPEAT STEP
2 UNTIL FORCE CHECK FLAG
REACHES HORIZONTAL.
STEP 3:
SWING LOCKING RING INTO
NOTCH.
STEP 4:
SLIDE SAFETY LATCH DOWN
OVER LOCKING RING UNTIL
BUTTON POPS OUT.
STEP 5:
FEED ZIP TAG THROUGH
HOLE OVER SAFETY LATCH.
(OPTIONAL)
STEP 6:
FINISHED INSTALLATION.
POST PLACEMENT
RAPID POSTS AND RAPID
POST EXTRAS SHOULD
BE FITTED AT MAXIMUM
CENTERS OF 2700mm/9'
FOR FULL PANELS AND
1100mm/3'6" FOR HALF
PANELS.
WHERE PANELS ARE
FITTED TO A CORNER,
ALWAYS USE 2 POSTS
FOR EACH PANEL.
FOR PANEL INSTALLATION, PLEASE SEE PANEL INSTALLATION GUIDE.
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
RAPID POST/EXTRA INSTALLATION
STEP 1:
WITH HANDLE HELD
HORIZONTAL, RAISE INNER
POST TO CONTACT CEILING.
STEP 2:
ENSURE THE POST IS
VERTICAL USING A
MAGNETIC SPIRIT LEVEL
AND THAT ALL FOUR
POINTS OF THE TOP AND
BOTTOM GRAB PLATES ARE
TOUCHING THE
FLOOR/CEILING, PUSH
HANDLE CLOSED TO FIX IN
PLACE.
IMPORTANT NOTE:
WHEN THE CORRECT
PRESSURE IS REACHED, THE
FORCE CHECK FLAG IS
RAISED HORIZONTAL
>RIGHT>. IF THE FORCE
CHECK FLAG DOES NOT
RAISE <LEFT<, REPEAT STEP
2 UNTIL FORCE CHECK FLAG
REACHES HORIZONTAL.
STEP 3:
SWING LOCKING RING INTO
NOTCH.
STEP 4:
SLIDE SAFETY LATCH DOWN
OVER LOCKING RING UNTIL
BUTTON POPS OUT.
STEP 5:
FEED ZIP TAG THROUGH
HOLE OVER SAFETY LATCH.
(OPTIONAL)
STEP 6:
FINISHED INSTALLATION.
POST PLACEMENT
RAPID POSTS AND RAPID
POST EXTRAS SHOULD
BE FITTED AT MAXIMUM
CENTERS OF 2700mm/9'
FOR FULL PANELS AND
1100mm/3'6" FOR HALF
PANELS.
WHERE PANELS ARE
FITTED TO A CORNER,
ALWAYS USE 2 POSTS
FOR EACH PANEL.
FOR PANEL INSTALLATION, PLEASE SEE PANEL INSTALLATION GUIDE.
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
NOTE NOTE
Whenthecorrectpressureisreached,theforcecheckagisraisedhorizontal(right).
Iftheforcecheckagdoesnotraise(left),repeatstep2untilforcecheckagreaches
horizontal.

10 Unless stated otherwise all dimensions are in mm
EPS Post/Extra installation
Step 4 Slide safety latch down over locking ring until button pops out.
Step 5 Feedziptagthroughholeoversafetylatch.(Optional)
Step 6 Finished installation.
RAPID POST/EXTRA INSTALLATION
STEP 1:
WITH HANDLE HELD
HORIZONTAL, RAISE INNER
POST TO CONTACT CEILING.
STEP 2:
ENSURE THE POST IS
VERTICAL USING A
MAGNETIC SPIRIT LEVEL
AND THAT ALL FOUR
POINTS OF THE TOP AND
BOTTOM GRAB PLATES ARE
TOUCHING THE
FLOOR/CEILING, PUSH
HANDLE CLOSED TO FIX IN
PLACE.
IMPORTANT NOTE:
WHEN THE CORRECT
PRESSURE IS REACHED, THE
FORCE CHECK FLAG IS
RAISED HORIZONTAL
>RIGHT>. IF THE FORCE
CHECK FLAG DOES NOT
RAISE <LEFT<, REPEAT STEP
2 UNTIL FORCE CHECK FLAG
REACHES HORIZONTAL.
STEP 3:
SWING LOCKING RING INTO
NOTCH.
STEP 4:
SLIDE SAFETY LATCH DOWN
OVER LOCKING RING UNTIL
BUTTON POPS OUT.
STEP 5:
FEED ZIP TAG THROUGH
HOLE OVER SAFETY LATCH.
(OPTIONAL)
STEP 6:
FINISHED INSTALLATION.
POST PLACEMENT
RAPID POSTS AND RAPID
POST EXTRAS SHOULD
BE FITTED AT MAXIMUM
CENTERS OF 2700mm/9'
FOR FULL PANELS AND
1100mm/3'6" FOR HALF
PANELS.
WHERE PANELS ARE
FITTED TO A CORNER,
ALWAYS USE 2 POSTS
FOR EACH PANEL.
FOR PANEL INSTALLATION, PLEASE SEE PANEL INSTALLATION GUIDE.
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
Post placement
EPSpostsandEPSpostextrasshouldbettedatmaximumcentresof2700mmforfull
panelsand1100mmforhalfpanels.Wherepanelsarettedtoacorner,alwaysuse2
posts for each panel.

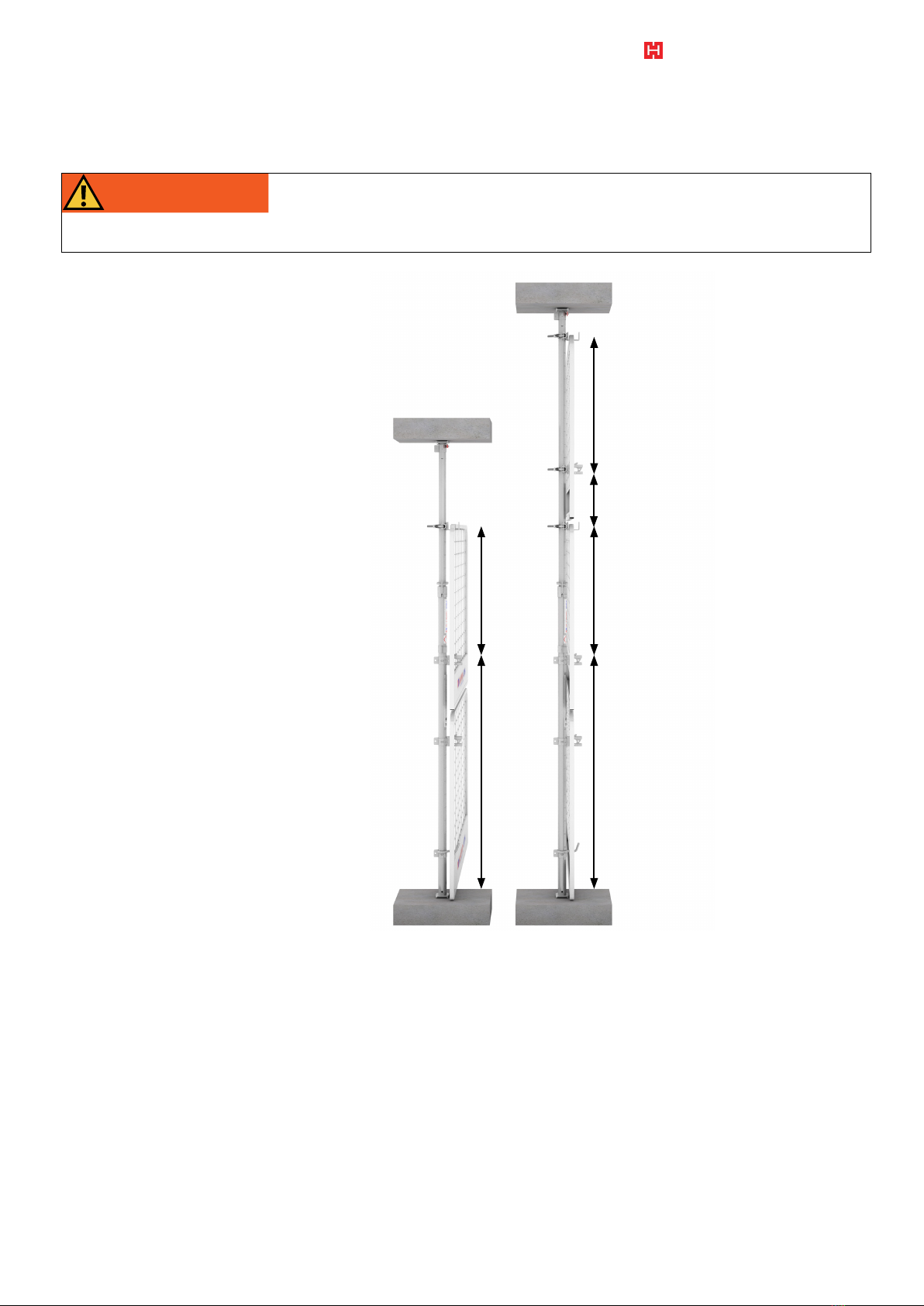

2700 mm
Maximum centres
1100 mm
Maximum centres
Toconformtoansi/assea
10.18-2007, Post centres
for the full panel must not
exceed 2200 mm.
For panel installation, please see panel installation guide.

11
Unless stated otherwise all dimensions are in mm
HÜNNEBECK EPS
5 EPS Post sizes
WARNING WARNING!
Disassembly process must follow the instructions in reverse order.
Improper installation or removal could result in serious injury or death.
2000 mm
3400 mm
2900 mm
4300 mm
EPS Post EPS Post extra
EU001/NA001 EU002/NA002

12 Unless stated otherwise all dimensions are in mm

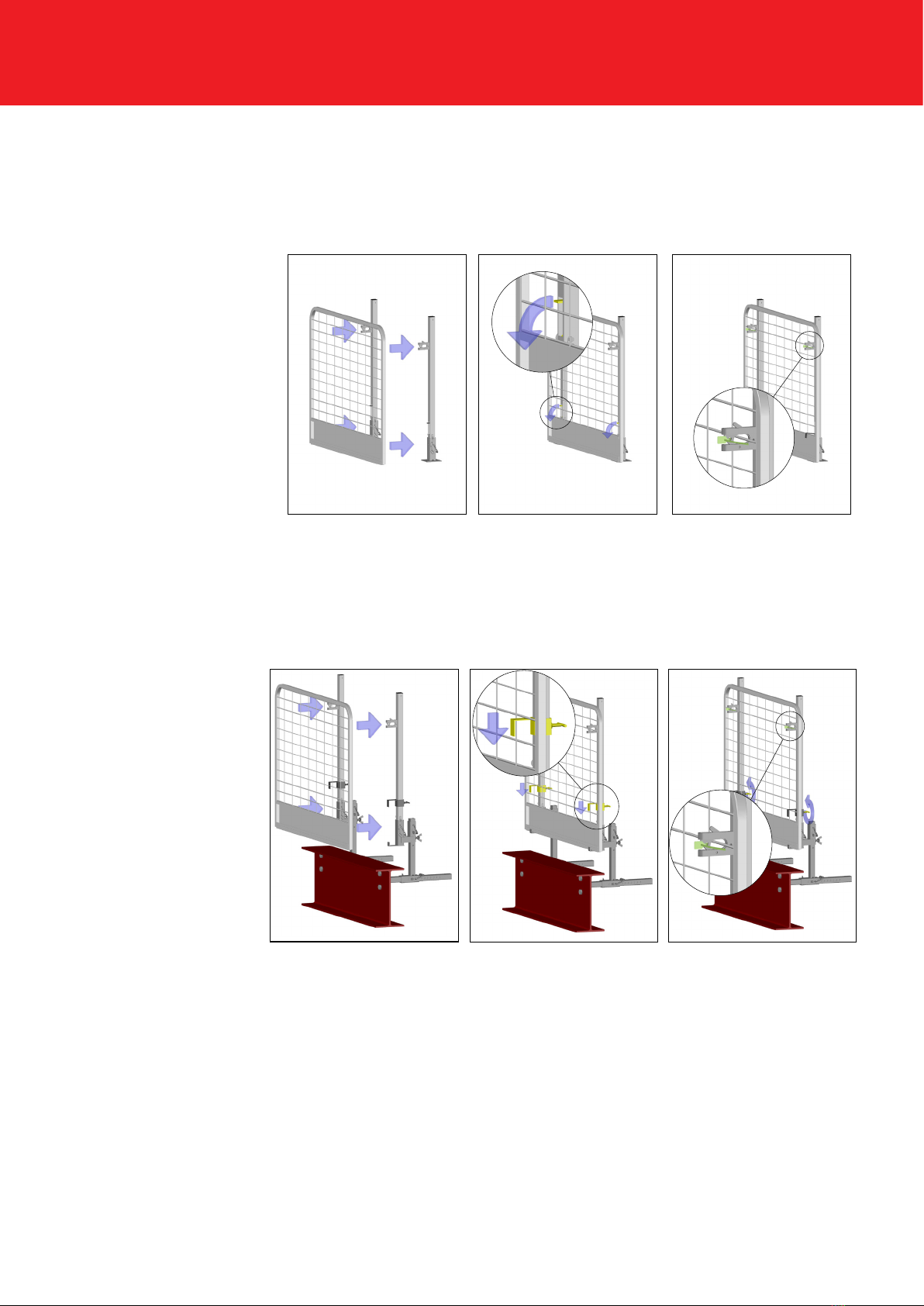

EPS Clamp and EPS Latch installation guide
6 EPS Clamp and EPS Latch installation guide
EU020
EPS clamp
EU021
EPS latch
NA021
NA020

13
Unless stated otherwise all dimensions are in mm
HÜNNEBECK EPS
7 EPS Clamp installation guide
WARNING WARNING!
Disassembly process must follow the instructions in reverse order.
Improper installation or removal could result in serious injury or death.
Step 1 Placeclamparoundpostatspeciedheight(seepage15).
Step 2 Close clamp.
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
RAPID CLAMP INSTALLATION GUIDE
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST AT
SPECIFIED HEIGHT (SEE PAGE 14).
STEP 4: TIGHTEN NUT.STEP 3: CLOSE BOLT OVER CLAMP.
RAPID LATCH INSTALLATION GUIDE
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST AT
SPECIFIED HEIGHT (SEE PAGE 14).
STEP 4: TIGHTEN NUT.STEP 3: CLOSE BOLT OVER CLAMP.
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
RAPID CLAMP INSTALLATION GUIDE
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST AT
SPECIFIED HEIGHT (SEE PAGE 14).
STEP 4: TIGHTEN NUT.STEP 3: CLOSE BOLT OVER CLAMP.
RAPID LATCH INSTALLATION GUIDE
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST AT
SPECIFIED HEIGHT (SEE PAGE 14).
STEP 4: TIGHTEN NUT.STEP 3: CLOSE BOLT OVER CLAMP.
Step 3 Close bolt over clamp.
Step 4 Tighten nut.
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
RAPID CLAMP INSTALLATION GUIDE
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST AT
SPECIFIED HEIGHT (SEE PAGE 14).
STEP 4: TIGHTEN NUT.STEP 3: CLOSE BOLT OVER CLAMP.
RAPID LATCH INSTALLATION GUIDE
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST AT
SPECIFIED HEIGHT (SEE PAGE 14).
STEP 4: TIGHTEN NUT.STEP 3: CLOSE BOLT OVER CLAMP.
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
RAPID CLAMP INSTALLATION GUIDE
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST AT
SPECIFIED HEIGHT (SEE PAGE 14).
STEP 4: TIGHTEN NUT.STEP 3: CLOSE BOLT OVER CLAMP.
RAPID LATCH INSTALLATION GUIDE
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST AT
SPECIFIED HEIGHT (SEE PAGE 14).
STEP 4: TIGHTEN NUT.STEP 3: CLOSE BOLT OVER CLAMP.

14 Unless stated otherwise all dimensions are in mm
EPS Latch installation guide
8 EPS Latch installation guide
WARNING WARNING!
Disassembly process must follow the instructions in reverse order.
Improper installation or removal could result in serious injury or death.
Step 1 Placeclamparoundpostatspeciedheight(seepage15).
Step 2 Close clamp.
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
RAPID CLAMP INSTALLATION GUIDE
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST AT
SPECIFIED HEIGHT (SEE PAGE 14).
STEP 4: TIGHTEN NUT.STEP 3: CLOSE BOLT OVER CLAMP.
RAPID LATCH INSTALLATION GUIDE
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST AT
SPECIFIED HEIGHT (SEE PAGE 14).
STEP 4: TIGHTEN NUT.STEP 3: CLOSE BOLT OVER CLAMP.
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
RAPID CLAMP INSTALLATION GUIDE
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST AT
SPECIFIED HEIGHT (SEE PAGE 14).
STEP 4: TIGHTEN NUT.STEP 3: CLOSE BOLT OVER CLAMP.
RAPID LATCH INSTALLATION GUIDE
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST AT
SPECIFIED HEIGHT (SEE PAGE 14).
STEP 4: TIGHTEN NUT.STEP 3: CLOSE BOLT OVER CLAMP.
Step 3 Close bolt over clamp.
Step 4 Tighten nut.
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
RAPID CLAMP INSTALLATION GUIDE
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST AT
SPECIFIED HEIGHT (SEE PAGE 14).
STEP 4: TIGHTEN NUT.STEP 3: CLOSE BOLT OVER CLAMP.
RAPID LATCH INSTALLATION GUIDE
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST AT
SPECIFIED HEIGHT (SEE PAGE 14).
STEP 4: TIGHTEN NUT.STEP 3: CLOSE BOLT OVER CLAMP.
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
RAPID CLAMP INSTALLATION GUIDE
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST AT
SPECIFIED HEIGHT (SEE PAGE 14).
STEP 4: TIGHTEN NUT.STEP 3: CLOSE BOLT OVER CLAMP.
RAPID LATCH INSTALLATION GUIDE
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 2: CLOSE CLAMP.STEP 1: PLACE CLAMP AROUND POST AT
SPECIFIED HEIGHT (SEE PAGE 14).
STEP 4: TIGHTEN NUT.STEP 3: CLOSE BOLT OVER CLAMP.

15
Unless stated otherwise all dimensions are in mm
HÜNNEBECK EPS
9 EPS Clamp and EPS Latch placement
WARNING WARNING!
Disassembly process must follow the instructions in reverse order.
Improper installation or removal could result in serious injury or death.
1368 mm 725 mm
725 mm1368 mm
Double height
containment
Triple height
containment
780 mm320 mm
EU001
EU002
For panel installation, please see panel installation guide.

16 Unless stated otherwise all dimensions are in mm
EPS Clamp and EPS Latch installation guide
10 EPS Clamp and EPS Latch installation guide
ToconformtoAnsi/Assea10.18-2007,Postcenters
for the full panel must not exceed 2200 mm.
EU005
Half panel 1400 mm
12 Kg
EU085
Quarter panel
655 mm
9.5 Kg
EU003
Full panel
2900 mm
21.5 Kg
NA005
NA003
NA085

17
Unless stated otherwise all dimensions are in mm
HÜNNEBECK EPS
11 Single Panel installation guide
For double height panels or higher, please see overleaf.
WARNING WARNING!
Disassembly process must follow the instructions in reverse order.
Improper installation or removal could result in serious injury or death.
11.1 Panel placement: EPS Post and Extra
Step 1 Place bottom of panel on to low hook.
Step 2 Place top of panel into latch.
Step 3 Securelatchwithziptag.(Optional)
SINGLE PANEL INSTALLATION GUIDE
STEP 1:
PLACE BOTTOM OF
PANEL ON TO LOW
HOOK.
STEP 2:
PLACE TOP OF PANEL
INTO LATCH.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
FOR DOUBLE HEIGHT PANELS OR HIGHER, PLEASE SEE OVERLEAF.
PANEL PLACEMENT: RAPID-POST & EXTRA
PANEL PLACEMENT: DUAL PURPOSE STAND
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STANDARD SUPPORT POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
LOWER POST HOOK
OVER PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STEEL FRAME POST
SINGLE PANEL INSTALLATION GUIDE
STEP 1:
PLACE BOTTOM OF
PANEL ON TO LOW
HOOK.
STEP 2:
PLACE TOP OF PANEL
INTO LATCH.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
FOR DOUBLE HEIGHT PANELS OR HIGHER, PLEASE SEE OVERLEAF.
PANEL PLACEMENT: RAPID-POST & EXTRA
PANEL PLACEMENT: DUAL PURPOSE STAND
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STANDARD SUPPORT POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
LOWER POST HOOK
OVER PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STEEL FRAME POST
SINGLE PANEL INSTALLATION GUIDE
STEP 1:
PLACE BOTTOM OF
PANEL ON TO LOW
HOOK.
STEP 2:
PLACE TOP OF PANEL
INTO LATCH.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
FOR DOUBLE HEIGHT PANELS OR HIGHER, PLEASE SEE OVERLEAF.
PANEL PLACEMENT: RAPID-POST & EXTRA
PANEL PLACEMENT: DUAL PURPOSE STAND
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STANDARD SUPPORT POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
LOWER POST HOOK
OVER PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STEEL FRAME POST
11.2 Panel placement: Dual Purpose Stand
Step 1 Place panel into latch.
Step 2 Drop post hook over bottom of panel.
Step 3 Securelatchwithziptag.(Optional)
SINGLE PANEL INSTALLATION GUIDE
STEP 1:
PLACE BOTTOM OF
PANEL ON TO LOW
HOOK.
STEP 2:
PLACE TOP OF PANEL
INTO LATCH.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
FOR DOUBLE HEIGHT PANELS OR HIGHER, PLEASE SEE OVERLEAF.
PANEL PLACEMENT: RAPID-POST & EXTRA
PANEL PLACEMENT: DUAL PURPOSE STAND
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STANDARD SUPPORT POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
LOWER POST HOOK
OVER PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STEEL FRAME POST
SINGLE PANEL INSTALLATION GUIDE
STEP 1:
PLACE BOTTOM OF
PANEL ON TO LOW
HOOK.
STEP 2:
PLACE TOP OF PANEL
INTO LATCH.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
FOR DOUBLE HEIGHT PANELS OR HIGHER, PLEASE SEE OVERLEAF.
PANEL PLACEMENT: RAPID-POST & EXTRA
PANEL PLACEMENT: DUAL PURPOSE STAND
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STANDARD SUPPORT POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
LOWER POST HOOK
OVER PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STEEL FRAME POST
SINGLE PANEL INSTALLATION GUIDE
STEP 1:
PLACE BOTTOM OF
PANEL ON TO LOW
HOOK.
STEP 2:
PLACE TOP OF PANEL
INTO LATCH.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
FOR DOUBLE HEIGHT PANELS OR HIGHER, PLEASE SEE OVERLEAF.
PANEL PLACEMENT: RAPID-POST & EXTRA
PANEL PLACEMENT: DUAL PURPOSE STAND
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STANDARD SUPPORT POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
LOWER POST HOOK
OVER PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STEEL FRAME POST

18 Unless stated otherwise all dimensions are in mm
Single Panel installation guide
11.3 Panel placement: Standard Support Post
Step 1 Place panel into latch.
Step 2 Drop post hook over bottom of panel.
Step 3 Securelatchwithziptag.(Optional)
SINGLE PANEL INSTALLATION GUIDE
STEP 1:
PLACE BOTTOM OF
PANEL ON TO LOW
HOOK.
STEP 2:
PLACE TOP OF PANEL
INTO LATCH.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
FOR DOUBLE HEIGHT PANELS OR HIGHER, PLEASE SEE OVERLEAF.
PANEL PLACEMENT: RAPID-POST & EXTRA
PANEL PLACEMENT: DUAL PURPOSE STAND
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STANDARD SUPPORT POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
LOWER POST HOOK
OVER PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STEEL FRAME POST
SINGLE PANEL INSTALLATION GUIDE
STEP 1:
PLACE BOTTOM OF
PANEL ON TO LOW
HOOK.
STEP 2:
PLACE TOP OF PANEL
INTO LATCH.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
FOR DOUBLE HEIGHT PANELS OR HIGHER, PLEASE SEE OVERLEAF.
PANEL PLACEMENT: RAPID-POST & EXTRA
PANEL PLACEMENT: DUAL PURPOSE STAND
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STANDARD SUPPORT POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
LOWER POST HOOK
OVER PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STEEL FRAME POST
SINGLE PANEL INSTALLATION GUIDE
STEP 1:
PLACE BOTTOM OF
PANEL ON TO LOW
HOOK.
STEP 2:
PLACE TOP OF PANEL
INTO LATCH.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
FOR DOUBLE HEIGHT PANELS OR HIGHER, PLEASE SEE OVERLEAF.
PANEL PLACEMENT: RAPID-POST & EXTRA
PANEL PLACEMENT: DUAL PURPOSE STAND
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STANDARD SUPPORT POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
LOWER POST HOOK
OVER PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STEEL FRAME POST
11.4 Panel placement: Steel Frame Post
Step 1 Place panel into latch.
Step 2 Lower post hook over panel.
Step 3 Securelatchwithziptag.(Optional)
SINGLE PANEL INSTALLATION GUIDE
STEP 1:
PLACE BOTTOM OF
PANEL ON TO LOW
HOOK.
STEP 2:
PLACE TOP OF PANEL
INTO LATCH.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
FOR DOUBLE HEIGHT PANELS OR HIGHER, PLEASE SEE OVERLEAF.
PANEL PLACEMENT: RAPID-POST & EXTRA
PANEL PLACEMENT: DUAL PURPOSE STAND
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STANDARD SUPPORT POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
LOWER POST HOOK
OVER PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STEEL FRAME POST
SINGLE PANEL INSTALLATION GUIDE
STEP 1:
PLACE BOTTOM OF
PANEL ON TO LOW
HOOK.
STEP 2:
PLACE TOP OF PANEL
INTO LATCH.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
FOR DOUBLE HEIGHT PANELS OR HIGHER, PLEASE SEE OVERLEAF.
PANEL PLACEMENT: RAPID-POST & EXTRA
PANEL PLACEMENT: DUAL PURPOSE STAND
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STANDARD SUPPORT POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
LOWER POST HOOK
OVER PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STEEL FRAME POST
SINGLE PANEL INSTALLATION GUIDE
STEP 1:
PLACE BOTTOM OF
PANEL ON TO LOW
HOOK.
STEP 2:
PLACE TOP OF PANEL
INTO LATCH.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
FOR DOUBLE HEIGHT PANELS OR HIGHER, PLEASE SEE OVERLEAF.
PANEL PLACEMENT: RAPID-POST & EXTRA
PANEL PLACEMENT: DUAL PURPOSE STAND
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
DROP POST HOOK
OVER BOTTOM OF
PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STANDARD SUPPORT POST
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
STEP 1:
PLACE PANEL INTO
LATCH.
STEP 2:
LOWER POST HOOK
OVER PANEL.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL PLACEMENT: STEEL FRAME POST

19
Unless stated otherwise all dimensions are in mm
HÜNNEBECK EPS
12 Double height installation guidelines
Fordoubleheightorhigher,EPSLatchesandEPSClampsmustrstbeinstalledonEPS
Posts, see EPS Latch and EPS Clamp installation guide.
WARNING WARNING!
Disassembly process must follow the instructions in reverse order.
Improper installation or removal could result in serious injury or death.
Step 1 Place top of panel on to high hook.
Step 2 Place bottom of panel in to latch.
Step 3 Securelatchwithzip-tag.(Optional)
RAPID-EPS
RAPID-Edge Protection Systems Ltd.
T: 01 13 25 2 888 3 | F: 01 13 307 49 90 | W: r api dep s.c om
UNIT D TREEFIELD INDUSTRIAL ESTATE, GELDERD ROAD, GILDERSOME, LEEDS, LS27 7JU
RAPID-EPS PANELS
INSTALLATION GUIDE
STEP 1:
PLACE TOP OF PANEL
ON TO HIGH HOOK.
DOUBLE HEIGHT INSTALL GUIDELINES
STEP 2:
PLACE BOTTOM OF
PANEL IN TO LATCH.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL CONTINUATION: OVERLAP
PANELS MUST OVERLAP BY 1 FULL MESH APERTURE WITH MAXIMUM 2700mm/9'0" CENTRES. (FULL PANEL)
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
FOR DOUBLE HEIGHT OR HIGHER, RAPID LATCHES AND RAPID CLAMPS
MUST FIRST BE INSTALLED ON RAPID POSTS, SEE RAPID LATCH AND
RAPID CLAMP INSTALLATION GUIDE.
EDGE PROTECTION FEDERATION
epf
RAPID-EPS
RAPID-Edge Protection Systems Ltd.
T: 01 13 25 2 888 3 | F: 01 13 307 49 90 | W: r api dep s.c om
UNIT D TREEFIELD INDUSTRIAL ESTATE, GELDERD ROAD, GILDERSOME, LEEDS, LS27 7JU
RAPID-EPS PANELS
INSTALLATION GUIDE
STEP 1:
PLACE TOP OF PANEL
ON TO HIGH HOOK.
DOUBLE HEIGHT INSTALL GUIDELINES
STEP 2:
PLACE BOTTOM OF
PANEL IN TO LATCH.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL CONTINUATION: OVERLAP
PANELS MUST OVERLAP BY 1 FULL MESH APERTURE WITH MAXIMUM 2700mm/9'0" CENTRES. (FULL PANEL)
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
FOR DOUBLE HEIGHT OR HIGHER, RAPID LATCHES AND RAPID CLAMPS
MUST FIRST BE INSTALLED ON RAPID POSTS, SEE RAPID LATCH AND
RAPID CLAMP INSTALLATION GUIDE.
EDGE PROTECTION FEDERATION
epf
RAPID-EPS
RAPID-Edge Protection Systems Ltd.
T: 01 13 25 2 888 3 | F: 01 13 307 49 90 | W: r api dep s.c om
UNIT D TREEFIELD INDUSTRIAL ESTATE, GELDERD ROAD, GILDERSOME, LEEDS, LS27 7JU
RAPID-EPS PANELS
INSTALLATION GUIDE
STEP 1:
PLACE TOP OF PANEL
ON TO HIGH HOOK.
DOUBLE HEIGHT INSTALL GUIDELINES
STEP 2:
PLACE BOTTOM OF
PANEL IN TO LATCH.
STEP 3:
SECURE LATCH WITH
ZIP-TAG. (OPTIONAL)
PANEL CONTINUATION: OVERLAP
PANELS MUST OVERLAP BY 1 FULL MESH APERTURE WITH MAXIMUM 2700mm/9'0" CENTRES. (FULL PANEL)
IMPORTANT: DISASSEMBLY PROCESS MUST FOLLOW THE INSTRUCTIONS IN REVERSE ORDER.
IMPROPER INSTALLATION OR REMOVAL COULD RESULT IN SERIOUS INJURY OR DEATH.
FOR DOUBLE HEIGHT OR HIGHER, RAPID LATCHES AND RAPID CLAMPS
MUST FIRST BE INSTALLED ON RAPID POSTS, SEE RAPID LATCH AND
RAPID CLAMP INSTALLATION GUIDE.
EDGE PROTECTION FEDERATION
epf
12.1 Panel continuation: overlap
Panelsmustoverlapby1fullmeshaperturewithmaximum2700mmcentres.(Full
panel)

20 Unless stated otherwise all dimensions are in mm
Dual Purpose Stand installation guide
13 Dual Purpose Stand installation guide
EU007
Dual Purpose Stand
NA007
