Hunza High power rgbw User manual

Jul 2023 V2 Hunza-High-Power-RGBW-Bracket-Spot-Weighted-Base-Spot_Installation-Instructions HUNZATM

BS/HPRGBW

PURE LED RGBW

IMPORTANT! TO MEET HUNZA’S BLACK LABEL WARRANTY,* PLEASE READ BEFORE INSTALLING THE FIXTURE.

PLEASE NOTE: THESE INSTRUCTIONS MUST NOT CONTRAVENE YOUR LOCAL ELECTRICAL AUTHORITY REGULATIONS,

WITH WHICH ALL INSTRUCTIONS HEREIN MUST COMPLY. PLEASE KEEP INSTRUCTIONS FOR FUTURE REFERENCE.

WARNING: DO NOT connect the secondary side (output) of a live driver to

the fixture, this will cause a spike in voltage that can damage the LED. When

connecting or disconnecting the fitting always insure the 120/240V power supply

is disconnected.

WARNING:When using a photocell and/or timer we recommend using devices

with relay outputs as opposed to electronic. The high frequency of electronic

devices can lead to failure of the LED driver.

WARNING: If the mounting surface is to be “acid washed” the fixtures must be

removed prior to the process to avoid damage to the fixture and its fittings.

WATERPROOFING FIXTURES: Ensure the fixture is fixed in place and ensure a

waterproof seal is made between the fixture and surface. Ensure that installation

on exteriors meets local authority regulations.

WATERPROOFING CONNECTIONS: Make sure to waterproof connections to the

luminaire, input cables and/or dimming cable. A non waterproof connection will

allow water to ingress into the power supply and/or fixture head which can lead

to failure.

*T&C’s apply. See website for details: hunzalighting.com/warranty

INTERNATIONAL

Installation Guide

Step 1: Mount the Luminaire

• Select an appropriate position and surface to install the luminaire.

• FOR THE SPOT LIGHT WITH BRACKET, drill a hole where desired and then fix the light with a wall plug and screw in the bottom of the bracket. Ensure the luminaire is

mounted to a suitable substrate.

• THE WEIGHTED BASE SPOT LIGHT has been designed to be placed where needed without any drilling necessary.

IMPORTANT: Please DO NOT SUBMERSE in a pond or pool.

Step 2: Make Wire Connections

• Make waterproof connections, please refer to wiring guide.

• IMPORTANT: For 110/240V (Retro) connections the fixture must be grounded.

Step 3: Install Glare Guard/Snoot (Optional)

• Carefully remove lens ring making sure not to drop the glass lens and cause damage to it, keeping gasket in place.

• Hold the body of luminaire tightly and screw Glare Guard/Snoot ring onto luminaire.

• Still holding the body of the luminaire tightly rotate Glare Guard/Snoot to desired position.

High Power RGBW Spot Light with Bracket / with Weighted Base

INSTALLATION INSTRUCTIONS

PURE LED RGBW

PURELED™

RGBW

Luminaire

DMX 512 8 Bit

Orange Wire +

Orange/White Wire -

Green Wire +

Green/White Wire -

Blue Wire +

Blue/White Wire -

Brown Wire -

Brown/White Wire -

Red Channel +

Red Channel -

Green Channel +

Green Channel -

Blue Channel +

Blue Channel -

White Channel +

White Channel -

Output (1+)

Output (1-)

Output (2+)

Output (2-)

Output (3+)

Output (3-)

Output (4+)

Output (4-)

Driver Output

110/277VAC IMPORTANT!

DRIVER REQUIRES IP RATED

ENCLOSURE

NOT SUPPLIED

SUPPLIED

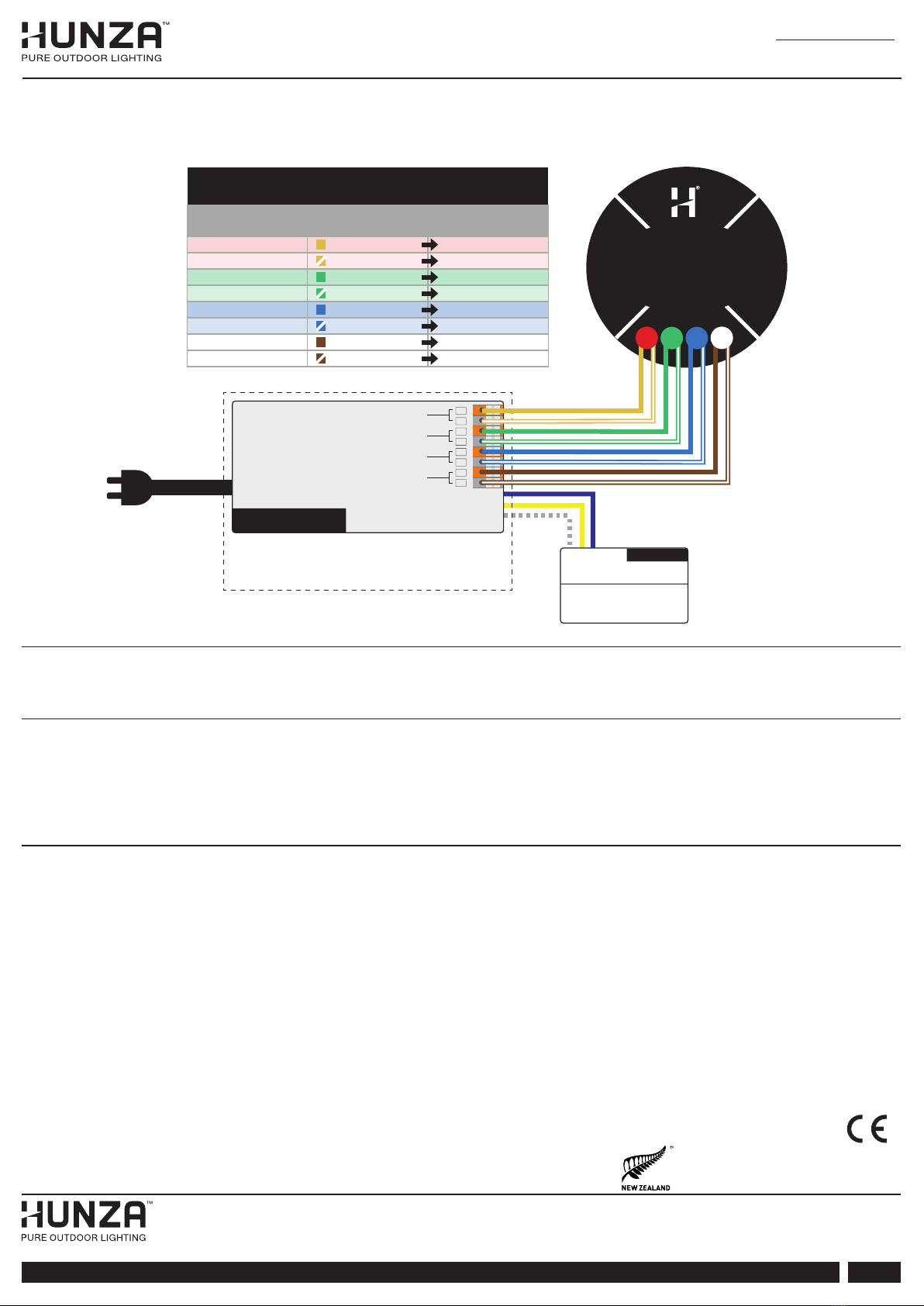

Driver to LED Termination Key

Driver Channels/

Groups Wire Colour LED Channels

RGBW Constant

Current Driver

*Refer to supplier installations

CH 1 output

CH 2 output

CH 3 output

CH 4 output

QUICK WIRING GUIDE ONLY: For full installation refer to installation instructions

Fixture includes 3m cable, run additional 8 core cable to the xture if necessary.

House the driver remotely and enclose within an IP rated enclosure.

Jul 2023 V2 Hunza-High-Power-RGBW-Bracket-Spot-Weighted-Base-Spot_Installation-Instructions HUNZATM

2. All Hunza™ luminaires must be installed according to the installation

instructions supplied with the luminaires by a certificated electrician. The

installer is solely responsible for determining the correct wiring of series or

parallel luminaires.

3. All connections within the electrical system must be waterproof.

4. The environment in which the fixture is to be installed must be considered

carefully when selecting the finish. Solid Bronze, Copper or Stainless Steel

luminaires are recommended for high-risk environments such as near salt water

or salt laden air. Aluminium luminaires may not be covered by the full warranty

in these situations.

5. Bronze, Copper and Aluminium fixtures are not recommended for installation

in areas high in geothermal activity. Warranty is not offered for these materials in

geothermal areas.

6. For aluminium fixtures, warranty on the powder coat finish is excluded for

failure due to exposure to: chemical substances in the ground, fertilizers and

water containing corrosive agents.

7. Stainless Steel requires regular cleaning with fresh water when installed in

high salinity environments. (Refer to instructions supplied with luminaire). The

warranty does not cover tea staining or surface pitting caused by inadequate

maintenance procedures.

8. Hunza™ underwater fixtures are not covered by warranty in situations where

there are chemical imbalances in the water.

9. Warranty is excluded for corrosion due to electrolytic reactions caused by the

presence of electrical current in the ground or water.

10. Warranty excludes impact damage (except for glass lenses), incorrect

installation and incorrect re-assembly.

11. Fixtures must be kept properly maintained, including replacement of gaskets

and lenses when necessary and use of approved wattage lamps.

12. Fixtures must not be pressure washed (water blasted). Please refer to IP

ratings of each fixture.

13. Hunza™, at its discretion, may replace components to remedy the fault or

supply a replacement fixture.

14. Hunza™ warranty is limited to the repair or replacement of products ONLY.

Labour charges will not be accepted.

15. Warranty on transformers is limited to 5 years, and applies only when

transformers are installed in environments at less than 40 degrees Celsius

ambient temperature.

16. Hunza™ will not be liable for any labour charges for any repair or

replacement of defective drivers. Drivers have their own manufacturer warranty

and any faults will be at the responsibility of the manufacturer.

17. Hunza™ reserves the right to limit liability on non-standard (custom

designed) luminaires and/or delivery arrangements.

18. Damage caused by lightning strikes, high voltage spikes or incorrect polarity

connection is not covered by the Black Label warranty.

19. Polycarbonate and acrylic lenses are limited to a 5 year warranty.

20. N.B. Acrylic Quartz, Cloak, TIR or Bollard lenses must NOT be cleaned with

any petrochemical substance. This will void the warranty.

21. Warranty excludes halogen lamps and lamp holders, which are consumable

items.

22. Use of 3rd party colour correction gels and filters will void the warranty if

used with PureLED products.

HUNZA™ BLACK LABEL WARRANTY

When you purchase or specify a Hunza™ luminaire, you get the benefit of

the legendary Hunza™ reputation for high quality and long life. We back this

up with our Black Label extended warranty, offering up to 25 years on body

components and 5 years on the integral PURE LED™ system. When installed

and maintained properly, Hunza™ luminaires will last a lifetime so we keep

serviceability firmly in mind when designing the components and system

construction.

Hunza™ 25 Year Warranty All Hunza™ Cast Bronze luminaires have a 25

year replacement warranty against body corrosion, subject to the standard

conditions listed below.

Hunza™ 10 Year Warranty Hunza™ stainless steel* and copper luminaires have

a 10 year replacement warranty on body components, subject to the standard

conditions listed below (*excludes underwater fixtures ).

Hunza™ 5 Year Warranty All Hunza™ aluminium luminaires with a UV stable

powder-coat finish and underwater fixtures have a 5 year replacement warranty

on body components, subject to the standard conditions listed below.

Hunza™ Lifetime Warranty All glass lenses supplied with Hunza™ luminaires

have a lifetime warranty.

Hunza™ PURE LED™ System Integral PURE LED components have a 5 year

warranty and are subject to the standard conditions listed below.

Other Hunza™ Components 5 year warranty on other Hunza™ components,

Hunza™ accessories and are subject to the standard conditions listed below.

Third Party Components Coverage on plug-in (drop-in) LED lamps, power

supplies and other 3rd-party components are limited to the manufacturer’s

warranty.

STANDARD CONDITIONS:

1. Warranty is subject to proof of purchase being provided and begins at the

date of invoicing from the factory.

DO NOT USE BLEACH, concentrated cleaners, or solvents under any circumstances. DO NOT water blast/pressure blast

fixtures. DO NOT USE ABRASIVE COMPOUNDS.

POWDER-COATED ALUMINIUM: To keep your powdercoated aluminium fixtures in the best condition, please clean

by wiping gently with a damp, soft cloth or chamois and window cleaner. Do not use metal polishing compounds like

Brasso1, Autosol2 etc. To restore the lustre of the paint finish, use a silicon spray.

Powdercoated aluminium fixtures are not recommended for installation near the sea or close to salt water.

CAST BRONZE, COPPER AND BRASS will age naturally and will patina over time, it is not necessary to clean copper

frequently. When they do require cleaning, wipe them with a damp cloth. DO NOT use polishing compounds.

HUNZA PRODUCTIONS LTD

130 Felton Mathew Ave

Saint Johns, Auckland 1072

New Zealand

Ph: +64-9-528 9471

Fax: +64-9-528 9471

E: [email protected]

Hunza™ fixtures are available from specialist outdoor lighting distributors.

Specifications, Installation, IES, CAD & Guides are available online: www.hunzalighting.com

FOR 316 MARINE GRADE STAINLESS STEEL LUMINARIES: To maintain the finish of 316 stainless steel it is

recommended to wash the luminaire with fresh water from time to time to stop salt and corrosive elements building

up. For extra protection, we recommend applying a thin film of CLEAR SILICON GREASE (Moreys© Crystal Clear Food

Machinery MP2 Grease) to the exterior of fixture between maintenance.

ELECTRO POLISHES still require regular maintenance. Even an electro polished stainless steel fixture under an eave or

roof will suffer from the build up of salt deposits as it will not be washed away by rain.

MATERIAL MAINTENANCE

Made in New Zealand

by Hunza™ Productions LTD

BS/HPRGBW

PURE LED REPLACEMENT

CAUTION: Make sure that the power to the luminaire is switched off before attempting to change the lamp. Beware of hot luminaire and lamp. Make absolutely sure when changing lamps that the correct wattage

lamp is installed. Incorrect wattage lamps may cause HUNZA™ transformers to overload causing them to heat up and turn the luminaires off.

LED REPLACEMENT (PLEASE PAY CLOSE ATTENTION TO THE COMPONENT ORDER): Unscrew lens ring. Remove gasket and lens. Unplug PureLED Module and plug in new PureLED Module. (For LED Board

replacement unscrew LED board and replace with new LED board.) Reverse action to seal making sure components are replaced in the correct order. Incorrect order, can lead to failure of LED and/or leaking.

INTERNATIONAL

Wiring Guide

Make water proof connections using heavy walled adhesive lined heat shrink (refer to wiring guide below). Recommendations: Run all low voltage cables in flexible
