OPERATOR’S MANUAL
MANUAL DEL OPERADOR
PORTABLE GENERATOR
GENERADOR PORTÁTIL
HU2250
Your generator has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
DANGER: You WILL be KILLED or SERIOUSLY HURT if you do not follow the instructions in this operator’s
manual.
Thank you for your purchase.
Su nuevo generador ha sido diseñado y fabricado de conformidad con estrictas normas para brindar fiabilidad, facilidad de
uso y seguridad para el operador. Con el debido cuidado, le brindará muchos años de sólido y eficiente funcionamiento.
PELIGRO: El incumplimiento de las instrucciones en este manual del operador puede CAUSARLE LA MUERTE
O LESIONARLE GRAVEMENTE.
Le agradecemos su compra.
SAVE THIS MANUAL FOR FUTURE REFERENCE
GUARDE ESTE MANUAL PARA FUTURAS CONSULTAS
NEUTRAL FLOATING
PUNTO NEUTRO FLOTANTE

ii
See this fold-out section for all of the figures
referenced in the operator’s manual.
Consulte esta sección desplegable para ver todas
las figuras a las que se hace referencia en el
manual del operador.

iii
Fig. 1
A
B
e
c
D
A
m
B
c
K
D
L
F
N
eI
H
G
J
A - Recoil starter grip (mango del arrancador retráctil)
B - Air filter (filtro de aire)
C - Choke lever (palanca del anegador)
D - Oil cap/dipstick (tapa de relleno de aceite/varilla medidora de aceite)
E - Fuel cap (tapa del tanque)
F - Fuel tank (tanque de combustible)
G - 120 volt AC receptacle (120 V de CA receptáculo)
H - 12 volt receptacle (12 V de receptáculo)
Fig. 2
I - AC circuit breaker (disyuntor de circuito de CA)
J - Engine switch (interruptor del motor)
K - Oil drainage bolt (perno de drenaje de aceite)
L - Handle (mango)
M - Ground terminal (terminal de conexión a tierra)
N - Fuel valve (válvula de combustible)
A - Wheels (ruedas)
B - Axle (eje)
C - Washer (arandela)
D - Lanyard with pin (correa con pasador)
E - Bottle of engine lubricant (botella de lubricante para motor)

iv
A - Fuel valve (interruptor del motor)
B - Engine switch (válvula de combustible)
C - Recoil starter grip (mango del arrancador
retráctil)
Fig. 3
Fig. 4
A - Lanyard (correa)
B - Handle lock pin (pasador de seguro del
mango)
C - Handle (mango)
B
c
A
Fig. 5
Fig. 8
Fig. 6
A - Handle (mango)
B - Lanyard with pin (correa con pasador)
Fig. 7
A - Wheels (ruedas)
B - Axle (eje)
C - Washer (arandela)
A
B
A - Oil cap/dipstick (tapa de relleno de aceite/
varilla medidora de aceite)
B - Lubricant fill hole (agujero de llenado de
aceite)
B
c
A
A
B
A - Fuel cap (tapa del tanque de combustible)
B - Fuel tank (tanque de combustible)
B
A
c
AB

v
ON
OFF
Fig. 9 Fig. 11
Fig. 12
Fig. 13
BA
A - Fuel valve (válvula de combustible)
B - Off (apagado)
C - On (encendido)
AB
c
Fig. 10
A - Move choke lever left to run (desplace
izquierda la palanca del anegador para poner
en marcha)
B - Move choke lever right to start (desplace
derecha de la palanca del anegador para
arrancar)
A - Latch (pestillo)
B - Air filter cover (tapa del filtro de aire)
C - Filter element (elemento de filtro)
D - Air filter unit (unidad del filtro de aire)
A
DcB
A - Oil drainage bolt (perno de drenaje de aceite)
B - Oil cap/dipstick (tapa de relleno de aceite/
varilla medidora de aceite)
A
B
A - Spark plug (bujía)
B - Spark plug cap (tapa de la bujía)
AB
Fig. 14
A - Spark arrestor (parachispas)
A

Page 2 — English
This product has many features for making its use more pleasant and enjoyable. Safety, performance, and dependability
have been given top priority in the design of this product, making it easy to maintain and operate.
TABLE OF CONTENTS
INTRODUCTION
 Introduction...................................................................................................................................................................... 2
 Important Safety Instructions........................................................................................................................................3-4
 Specific Safety Rules ....................................................................................................................................................... 4

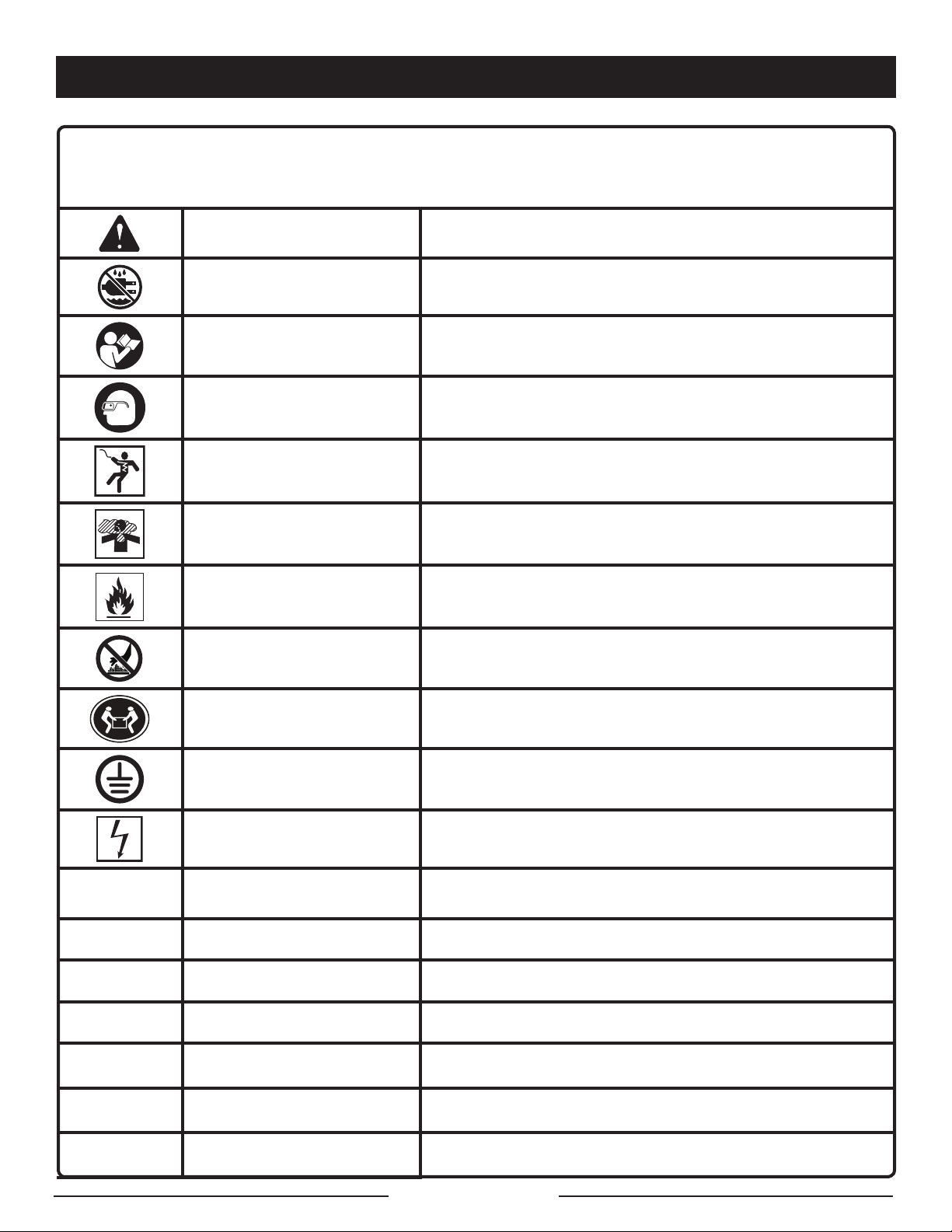

 Symbols ........................................................................................................................................................................5-7
 Electrical........................................................................................................................................................................8-9
 Features ........................................................................................................................................................................ 10
 Assembly........................................................................................................................................................................ 11
 Operation ..................................................................................................................................................................12-13
 Maintenance .............................................................................................................................................................14-16
 Troubleshooting.............................................................................................................................................................. 17
 Warranty......................................................................................................................................................................... 18
 Parts Ordering / Service....................................................................................................................................Back Page
DANGER:
GROUNDING THE GENERATOR
To reduce the risk of shock or electrocution, generator must be
properly grounded. The nut and ground terminal on the frame
must always be used to connect the generator to a suitable ground
source. The ground path should be made with #8 size wire. Con-
nect the terminal of the ground wire between the lock washer and
the nut, and tighten the nut fully. Connect the other end of the wire
securely to a suitable ground source.
The National Electric Code contains several practical ways in which to
establish a good ground source. If a steel or iron rod is used, it should
be at least 5/8 in. diameter, and if a nonferrous rod is used, it should be
at least 1/2 in. diameter and be listed as material for grounding. Drive
therodorpipetoadepthof8ft.Ifarockbottomisencounteredlessthan
4 ft. down, bury the rod or pipe in a trench.
All electrical tools and appliances operated from this generator must be properly grounded by use of a third wire or
be “Double Insulated.”
It is recommended to:
1. Use electrical devices with 3-prong grounded plugs.
2. Use an extension cord with a 3-pole receptacle and a 3-prong plug at opposite ends to ensure continuity of the
ground protection from the generator to the appliance.
Check and adhere to all applicable federal, state, and local regulations relating to grounding specifications. Consult a
qualified electrician or service personnel if the grounding instructions are not completely understood or if in doubt as
to whether the generator is properly grounded.

Page 3 — English
DANGER:
Carbon Monoxide. Using a generator indoors WILL KILL
YOU IN MINUTES.
Generator exhaust contains high levels of carbon mon-
oxide (CO), a poisonous gas you cannot see or smell. If
you can smell the generator exhaust, you are breathing
CO. But even if you cannot smell the exhaust, you could
be breathing CO.
 Never use a generator inside homes, garages, crawl-
spaces, or other partly enclosed areas. Deadly levels
of carbon monoxide can build up in these areas. Us-
ing a fan or opening windows and doors does NOT
supply enough fresh air.
 ONLY use a generator outdoors and far away from
open windows, doors, and vents. These openings
can pull in generator exhaust.
Even when you use a generator correctly, CO may
leak into the home. ALWAYS use a battery-powered or
battery-backup CO alarm in the home.
If you start to feel sick, dizzy, or weak after the generator
has been running, move to fresh air RIGHT AWAY. See a
doctor. You could have carbon monoxide poisoning.
WARNING:
Read and understand all instructions. Failure to follow
all instructions listed below may result in electrocution,
fire, and/or carbon monoxide poisoning, which will cause
death or serious injury.
WARNING:
National Electric Code requires generator to be grounded
to an approved earth ground. Before using the ground
terminal, consult a qualified electrician, electrical inspec-
tor, or local agency having jurisdiction for local codes
or ordinances that apply to the intended use of the
generator.
SAVE THESE INSTRUCTIONS
This manual contains important instructions that should be
followed during installation and maintenance of the genera-
tor and batteries.
 Do not allow children or untrained individuals to use this
unit.
 Never start or run the engine inside a closed or partially
enclosed area. Breathing exhaust fumes will kill you.
 Wear eye protection which is marked to comply with ANSI
Z87.1 as well as hearing protection when operating this
equipment.
 Keep all bystanders, children, and pets at least 10 feet
away.
 Wear sturdy and dry shoes or boots. Do not operate while
barefoot.
 Do not operate generator when you are tired or under the
influence of drugs, alcohol, or medication.
 Keep all parts of your body away from any moving parts
and all hot surfaces of the unit.
 Do not touch bare wire or receptacles.
 Do not use generator with electrical cords which are
worn, frayed, bare, or otherwise damaged.
 Before storing, allow the engine to cool and drain fuel
from the unit.
 Do not operate or store the generator in rain, snow, or
wet weather.
 Store the generator in a well-ventilated area with the
fuel tank empty. Fuel should not be stored near the
generator.
 Empty fuel tank, close fuel valve, and restrain the unit
from moving before transporting in a vehicle.
 Allow engine to cool for five minutes before refueling.
 To reduce the risk of fire and burn injury, handle fuel with
care. It is highly flammable.
 Do not smoke while handling fuel.
 Store fuel in a container approved for gasoline.
 Position the unit on level ground, stop engine, and allow
to cool before refueling.
 Loosen fuel cap slowly to release pressure and to keep
fuel from escaping around the cap.
 Tighten the fuel cap securely after refueling.
 Wipe spilled fuel from the unit.
 Never attempt to burn off spilled fuel under any circum-
stances.
 Generators vibrate in normal use. During and after the
use of the generator, inspect the generator as well as
extension cords and power supply cords connected to
it for damage resulting from vibration. Have damaged
items repaired or replaced as necessary. Do not use plugs
or cords that show signs of damage such as broken or
cracked insulation or damaged blades.
 For power outages, permanently installed stationary gen-
erators are better suited for providing back-up power to
the home. Even a properly connected portable generator
can become overloaded. This may result in overheating
or stressing the generator components, possibly leading
to generator failure.
 Use only authorized replacement parts and accessories
and follow instructions in the section of this manual. Use
of unauthorized parts or failure to follow maintenance
instructions may create a risk of shock or injury.
IMPORTANT SAFETY INSTRUCTIONS

Page 4 — English
WARNING:
When this generator is used to supply a building
wiring system: generator must be installed by a quali-
fied electrician and connected to a transfer switch as
a separately derived system in accordance with NFPA
70, National Electrical Code. The generator shall be
connected through a transfer switch that switches all
conductors other than the equipment grounding con-
ductor. The frame of the generator shall be connected to
an approved grounding electrode. Failure to isolate the
generator from power utility can result in death or injury
to electric utility workers.
 Exhaust contains poisonous carbon monoxide, a color-
less, odorless gas. Breathing exhaust can cause loss
of consciousness and can lead to death. If running in a
confined or partially-enclosed area, the air may contain
a dangerous amount of carbon monoxide. To keep ex-
haust fumes from building up, always provide adequate
ventilation.
 Always use a battery-powered carbon monoxide detec-
tor when running the generator. If you begin to feel sick,
dizzy, or weak while using the generator, shut it off and
get to fresh air immediately. See a doctor. You may have
carbon monoxide poisoning.
 Place the generator on a flat, stable surface with a slope
of no more than 4°.
 Operate in a well-ventilated, well-lit area isolated from
working areas to avoid noise interference.
 Operating the generator in wet conditions could result in
electrocution. Keep the unit dry.
 Keep the generator a minimum of 3 feet away from all
types of combustible material.
 Do not operate generator near hazardous material.
 Do not operate generator at a gas or natural gas filling
station.
 Do not touch the muffler or cylinder during or immediately
after use; they are HOT and will cause burn injury.
 This generator has a neutral floating condition. This means
the neutral conductor is not electrically connected to the
frame of the machine.
 Do not connect to a building’s electrical system unless a
transfer switch has been properly installed by a qualified
electrician.
 Do not allow the generator’s gas tank to overflow when
filling. Fill to 1 in. below the top neck of the gasoline tank
to allow for fuel expansion. Check the ventilation hole in-
side the fuel tank cap for debris. Do not block the vent.
 Do not smoke when filling the generator with gasoline.
 Shut down the engine and allow to cool completely before
adding gasoline or lubricant to the generator.
 Do not remove the oil dipstick or the fuel tank cap when
the engine is running.
 Pay close attention to all safety labels located on the
generator.
 Keep children a minimum of 10 feet away from the gen-
erator at all times.
 The unit operates best in temperatures between 23°F and
104°F with a relative humidity of 90% or less.
 Specific modifications for high-altitude performance are
needed if the generator will always be operated at alti-
tudes above 5,000 feet. Contact your nearest authorized
service center for more information and to have these
modifications performed.
 Operating voltage and frequency requirement of all
electronic equipment should be checked prior to plug-
ging them into this generator. Damage may result if the
equipment is not designed to operate within a +/- 10%
voltage variation, and +/- 3 hz frequency variation from
the generator name plate ratings. To avoid damage, al-
ways have an additional load plugged into the generator
if solid state equipment (such as a television set) is used.
A power line conditioner is recommended for some solid
state applications.
 Save these instructions. Refer to them frequently and use
them to instruct others who may use this product. If you
loan someone this product, loan them these instructions
also.
 Maintain the unit per maintenance instructions in this
Operator’s Manual.
 Inspect the unit before each use for loose fasteners, fuel
leaks, etc. Replace damaged parts.
IMPORTANT SAFETY INSTRUCTIONS
SPECIFIC SAFETY RULES

Page 5 — English
The following signal words and meanings are intended to explain the levels of risk associated with this product.
SYMBOL SIGNAL MEANING
DANGER: Indicates an imminently hazardous situation, which, if not avoided, will result
in death or serious injury.
WARNING: Indicates a potentially hazardous situation, which, if not avoided, could result
in death or serious injury.
CAUTION: Indicates a potentially hazardous situation, which, if not avoided, may result in
minor or moderate injury.
CAUTION: (Without Safety Alert Symbol) Indicates a situation that may result in property
damage.
SYMBOLS

Page 6 — English
Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper
interpretation of these symbols will allow you to operate the product better and safer.
SYMBOL NAME DESIGNATION/EXPLANATION
Safety Alert Indicates a potential personal injury hazard.
Wet Conditions Alert Do not expose to rain or use in damp locations.
Read The Operator’s Manual To reduce the risk of injury, user must read and understand
operator’s manual before using this product.
Eye Protection Always wear eye protection marked to comply with ANSI Z87.1.
Electric Shock Failure to use in dry conditions and to observe safe practices can
result in electric shock.
Toxic Fumes
Running generator gives off carbon monoxide, an odorless, color-
less, poison gas. Breathing carbon monoxide can cause nausea,
fainting, or death.
Fire/Explosion Fuel and its vapors are extremely flammable and explosive. Fire
or explosion can cause severe burns or death.
Hot Surface To reduce the risk of injury or damage, avoid contact with any hot
surface.
Lifting Hazard To reduce the risk of serious injury, avoid attempting to lift the
generator alone.
Ground Consult with local electrician to determine grounding requirements
before operation.
Electrocution Failure to properly ground generator can result in electrocution,
especially if the generator is equipped with a wheel kit.
V Volts Voltage
A Amperes Current
Hz Hertz Frequency (cycles per second)
W Watt Power
hrs Hours Time
gal Gallon Volume
qt Quart Volume
SYMBOLS

Page 7 — English
SAFETY LABELS
The information below can be found on the generator. For your safety, please study and
understand all of the labels before starting the generator.
If any of the labels come off the unit or become hard to read, contact an authorized service
center for replacement.
 You WILL be KILLED or SERIOUSLY HURT if you do not
follow the Operator’s Manual instructions.
 Risk of Fire. Do not add fuel while the product is operat-
ing.
 Generator is a potential source of electric shock. Do not
expose to moisture, rain, or snow. Do not operate with
wet hands or feet.
 Exhaust contains poisonous carbon monoxide gas that
can cause unconsciousness or DEATH. Operate in well-
ventilated, outdoor areas away from open windows or
doors.
 Failure to properly ground generator can result in elec-
trocution, especially if the generator is equipped with a
wheel kit.
 Do not expose to rain or use in damp locations.
 Using a generator indoors WILL KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a
poison you cannot see or smell.
 NEVER use inside a home or garage, EVEN IF doors and
windows are open.
 Only use OUTSIDE and far away from windows, doors,
and vents.
FUEL WARNING
No smoking when filling with gasoline. Do not overfill. Full
level is 1 in. below the top of the fuel neck. Stop the engine
for five minutes before refueling to avoid the heat from the
muffler igniting fuel vapors.
ENGINE LUBRICANT WARNING
You must add lubricant before first operating the generator.
The oil reservoir capacity is 20 oz. Always check the lubricant
level before each operation. The lubricant level should always
register between the hatched areas on the dipstick.
GROUNDING WARNING
National Electric Code requires generator to be grounded to an approved earth ground.
HOT SURFACE WARNING
Do not touch the muffler or aluminum cylinder of the engine.
They are very HOT and will cause severe burns. Don’t put
any flammable or combustible materials in the direct path
of the exhaust.
DANGER
You WILL be KILLED or SERIOUSLY
HURT if you do not follow the operator’s
manual instructions.
Risk of fire. Do not add fuel while the
product is operating.
Generator is a potential source of electric
shock. Do not expose to moisture, rain, or
snow. Do not operate with wet hands or feet.
Exhaust contains poisonous carbon
monoxide gas that can cause unconsciousness
or DEATH. Operate in well ventilated, outdoor
areas away from open windows or doors.
Failure to properly ground generator can
result in electrocution, especially if the
generator is equipped with a wheel kit.
Do not expose to rain or use in damp
locations.
940707029-00
Risk of Fire. Check for any fuel overflow or leaking. Stop the engine before refueling.
Riesgo de incendio. Revise si hay algún derrame o fuga de combustible. Apaque el
motor antes de poner combustible.
940974004-01
DANGER PELIGRO
Add lubricant to full mark to start.
Añada lubricante hasta la marca de ileno
para arrancar.
940708012-01
HOT SURFACE
SUPERFICIE CALIENTE
WARNING
ADVERTENCIA
940680036-00
Product does not include ground rod or copper wire. National Electric Code requires generator to be properly
grounded to an approved earth ground. Call an electrician for local grounding requirements.
El producto no incluye el alambre de cobre ni la barra de conexión a tierra. Los Reglamentos Nacionales de
Electricidad exigen que el generador esté debidamente conectado a una tierra aprobada. Comuniquese con
un electrista para todo lo relacionado con los requistos de conexión a tierra.
WARNING ADVERTENCIA
940513013-00
SYMBOLS
Using a generator indoors WILL KILL YOU IN MINUTES.
Generator exhaust contains carbon monoxide. This is a
poison you cannot see or smell.
NEVER use inside a home or
garage, EVEN IF doors and
windows are open.
Only use OUTSIDE and far
away from windows, doors,
and vents.
DANGER

Page 8 — English
EXTENSION CORD CABLE SIZE
Refer to the table below to ensure the cable size of the extension cords you use are capable of carrying the required load.
Inadequate size cables can cause a voltage drop, which can damage the appliance and overheat the cord.
Current in
Amperes
Load in Watts Maximum Allowable Cord Length
At 120V At 240V #8 Wire #10 Wire #12 Wire #14 Wire #16 Wire
2.5 300 600 1000 ft. 600 ft. 375 ft. 250 ft.
5 600 1200 500 ft. 300 ft. 200 ft. 125 ft.
7.5 900 1800 350 ft. 200 ft. 125 ft. 100 ft.
10 1200 2400 250 ft. 150 ft. 100 ft. 50 ft.
15 1800 3600 150 ft. 100 ft. 65 ft.
20 2400 4800 175 ft. 125 ft. 75 ft.
25 3000 6000 150 ft. 100 ft.
30 3600 7200 125 ft. 65 ft.
40 4800 9600 90 ft.
ELECTRIC MOTOR LOADS
It is characteristic of common electric motors in normal operation to draw up to six times their running current while start-
ing. This table may be used to estimate the watts required to start “Code G” electric motors; however, if an electric motor
fails to start or reach running speed, turn off the appliance or tool immediately to avoid equipment damage. Always check
the requirements of the tool or appliance being used compared to the rated output of the generator.
Motor Size (H.P.) Running Watts Watts Required to Start Motor
Repulsion Induction Capacitor Split Phase
1/8 275 600 850 1200
1/6 275 600 850 2050
1/4 400 850 1050 2400
1/3 450 975 1350 2700
1/2 600 1300 1800 3600
3/4 850 1900 2600 —
1 1100 2500 3300 —
CAUTION:
Operating voltage and frequency requirement of all electronic equipment should be checked prior to plugging them
into this generator. Damage may result if the equipment is not designed to operate within a +/- 10% voltage variation,
and +/- 3 hz frequency variation from the generator name plate ratings. To avoid damage, always have an additional
load plugged into the generator if solid state equipment (such as a television set) is used. A power line conditioner is
recommended for some solid state applications.
ELECTRICAL

Page 9 — English
GENERATOR CAPACITY
Make sure the generator can supply enough continuous (run-
ning) and surge (starting) watts for the items you will power
at the same time. Follow these simple steps.
1. Select the items you will power at the same time.
2. Total the continuous (running) watts of these items. This
is the amount of power the generator must produce to
keep the items running. See the wattage reference chart
at right.
3. Estimate how many surge (starting) watts you will need.
Surge wattage is the short burst of power needed to start
electric motor-driven tools or appliances such as a circular
saw or refrigerator. Because not all motors start at the
same time, total surge watts can be estimated by adding
only the item(s) with the highest additional surge watts to
the total rated watts from step 2.
Example:
Tool or Appliance Continuous
Running) Watts
Surge
(Starting) Watts
Furnace Fan 800 2350
Refrigerator 700 2200
Well Pump 1000 1500
Light (75 Watts) x 4 300 300
2800 Total
Running Watts
2350 Highest
Surge Watts
Total Continuous (Running) Watts 2800
Plus Highest Additional Surge Watts + 2350
Equals Total Generator Output Required 5150
POWER MANAGEMENT
To prolong the life of the generator and attached devices,
it is important to take care when adding electrical loads to
the generator. There should be nothing connected to the
generator outlets before starting its engine. The correct and
safe way to manage generator power is to sequentially add
loads as follows:
1. With nothing connected to the generator, start the engine
as described later in this manual.
2. Plug in and turn on the first load, preferably the largest
load you have.
3. Permit the generator output to stabilize (engine runs
smoothly and attached device operates properly).
4. Plug in and turn on the next load.
5. Again, permit the generator to stabilize.
6. Repeat steps 4 and 5 for each additional load.
Never add more loads than the generator capacity. Take
special care to consider surge loads in generator capacity
as previously described.
CAUTION:
Do not overload the generator’s capacity. Exceeding the
generator’s wattage/amperage capacity can damage the
generator and/or electrical devices connected to it.
ELECTRICAL
Application/Equipment Estimated
Run Wattts
Estimated
Starting
Watts
Emergency / Home Standby
Clock Radio 50 50
Lights (qty. 4 x 75 W) 300 300
Refrigerator 700 2200
Furnace Fan 800 2350
Water Well Pump 1000 1500
Microwave 1000 1000
Sump Pump 1050 2200
Electric Range (per element) 2100 2100
Job Site
Electric Drill − 1/2 HP 600 900
Airless Sprayer − 1/3 HP 600 1200
Quartz Halogen Work Light 1000 1000
Reciprocating Saw 960 960
Air Compressor − 1 HP 1600 4500
Circular Saw − 7-1/4 in. 1400 2300
Planer/Jointer − 6 in 1800 1800
Miter Saw − 10 in. 1800 1800
Table Saw/Radial Arm Saw − 10 in. 2000 2000
*Wattages listed are approximate. Check tool or appliance for actual wattage.

Page 10 — English
PRODUCT SPECIFICATIONS
ENGINE
Engine Type.................................................. 169cc Subaru
Cooling System .................................................. Forced Air
Starting System.........................................................Recoil
Ignition System............................................................T.C.I.
Spark Plug.............................................. Champion RL86C
Engine Lubricant Volume...........................................20 oz.
Fuel Volume................................................................2 gal.
GENERATOR
Rated Voltage ..............................................................120V
Rated Amps............................................................ 18.75 A
Rated Output......................................................... 2,250 W
Maximum Output................................................... 2,800 W
Rated Frequency....................................................... 60 Hz
DIMENSIONS
Length ................................................................. 17-1/2 in.
Width ................................................................... 23-1/3 in.
Height.................................................................. 16-1/2 in.
KNOW YOUR GENERATOR
See Figure 1.
The safe use of this product requires an understanding of the
information on the product and in this operator’s manual as
well as a knowledge of the project you are attempting. Before
use of this product, familiarize yourself with all operating
features and safety rules.
AC CIRCUIT BREAKER
The circuit breaker is provided to protect the generator
against electrical overload.
AIR FILTER
The air filter helps to limit the amount of dirt and dust drawn
into the unit during operation.
CHOKE LEVER
The choke lever is used when starting the engine.
FUEL TANK
The fuel tank has a capacity of 2 gallons.
GROUND TERMINAL
The ground terminal is used to assist in properly ground-
ing the generator to help protect against electrical shock.
Consult with a local electrician for grounding requirements
in your area.
OIL CAP
Remove the oil fill cap to check and add lubricant to the
generator when necessary.
OIL DRAINAGE BOLT
When changing the engine lubricant, the oil drainage bolt is
loosened to allow old engine lubricant to be drained.
RECEPTACLES
Your generator has the following single phase, 60 Hz outlets:
two 120 Volt AC and one 12 Volt outlet. These can be used
foroperatingappropriateappliances,electricallighting,tools,
and motor loads.
RECOIL STARTER GRIP
The recoil starter grip is used (along with the engine switch)
to start the generator’s engine.
FEATURES

Page 11 — English
WARNING:
Do not attempt to operate the generator until assembly
is complete. Failure to comply could result in possible
serious personal injury.
PACKING LIST
See Figure 2.
The following items are included with the generator:
Key
No. Description Qty.
1 Wheels.................................................................2
2 Axle......................................................................2
3 Washer.................................................................2
4 Lanyard and Handle Lock Pin .............................1
5 Bottle of Engine Lubricant...................................1
Operator’s Manual (not shown) ...........................1
UNPACKING
This product requires assembly.
Carefully cut the box down the sides then remove the
machine and any accessories from the box. Make sure
that all items listed in the packing list are included.
NOTE: This machine is heavy and requires a minimum of
two people to lift. To avoid back injury, lift with your legs
and not your back.
WARNING:
Do not use this product if any parts on the Packing List
are already assembled to your product when you unpack
it. Parts on this list are not assembled to the product by
the manufacturer and require customer installation. Use
of a product that may have been improperly assembled
could result in serious personal injury.
Inspect the unit carefully to make sure no damage oc-
curred during shipping.
Do not discard the packing material until you have carefully
inspected and satisfactorily operated the product.
If any parts are damaged or missing, please call
1-800-242-4672 for assistance.
WARNING:
If any parts are damaged or missing do not operate
this product until the parts are replaced. Failure to heed
this warning could result in serious personal injury.
WARNING:
Do not attempt to modify this product or create acces-
sories not recommended for use with this product. Any
such alteration or modification is misuse and could result
in a hazardous condition leading to possible serious per-
sonal injury.
WARNING:
Do not attempt to operate the generator until assembly
is complete. Failure to comply could result in possible
serious personal injury.
INSTALLING THE WHEELS
See Figure 3.
Wheels are provided to assist in moving the generator to
the desired location.
 Locate the axle, washer, and wheels.
Slide the axle through the hole in the center of the wheel
then slide the washer onto the axle.
Lift the machine and slide the axle into the wheel mount-
ing hole in the machine base as shown.
Push the wheel into the hole until it clicks in place and is
secured properly.
 Repeat the process on the other side to install second
wheel.
SECURING THE HANDLE
See Figures 4. - 5
 Attach the lanyard to the handle lock pin and the handle
as shown.
 Insert the pin through the hole in the handle and the
generator frame to secure handle in place.
WARNING:
Do not attempt to lift the unit by the handle assembly.
If it is necessary to lift the generator, always grasp by
the frame. Use proper lifting techniques to avoid back
injury.
ASSEMBLY

Page 12 — English
DANGER:
Carbon Monoxide. Using a generator indoors WILL KILL
YOU IN MINUTES.
Generator exhaust contains high levels of carbon mon-
oxide (CO), a poisonous gas you cannot see or smell. If
you can smell the generator exhaust, you are breathing
CO. But even if you cannot smell the exhaust, you could
be breathing CO.
 Never use a generator inside homes, garages, crawl-
spaces, or other partly enclosed areas. Deadly levels
of carbon monoxide can build up in these areas. Us-
ing a fan or opening windows and doors does NOT
supply enough fresh air.
 ONLY use a generator outdoors and far away from
open windows, doors, and vents. These openings
can pull in generator exhaust.
Even when you use a generator correctly, CO may
leak into the home. ALWAYS use a battery-powered or
battery-backup CO alarm in the home.
If you start to feel sick, dizzy, or weak after the generator
has been running, move to fresh air RIGHT AWAY. See a
doctor. You could have carbon monoxide poisoning.
DANGER:
Failure to properly ground generator can result in elec-
trocution, especially if the generator is equipped with a
wheel kit. National Electric Code requires generator to be
properly grounded to an approved earth ground. Call an
electrician for local grounding requirements.
WARNING:
Do not allow familiarity with this product to make you
careless. Remember that a careless fraction of a second
is sufficient to inflict serious injury.
WARNING:
Do not use any attachments or accessories not
recommended by the manufacturer of this product. The
use of attachments or accessories not recommended
can result in serious personal injury.
APPLICATIONS
This generator is designed to supply electrical power for
operating compatible electrical lighting, appliances, tools,
and motor loads.
BEFORE OPERATING THE UNIT
 Only use OUTSIDE and far away from windows, doors,
and vents.
 NEVER use inside a home or garage, EVEN IF doors and
windows are open.
 Always position the generator on a flat firm surface.
CAUTION:
Attempting to start the engine before it has been properly
filled with lubricant will result in equipment failure.
CHECKING/ADDING LUBRICANT
See Figure 6.
Engine lubricant has a major influence on engine perfor-
mance and service life. For general, all-temperature use,
SAE 10W-30 is recommended. Always use a 4-stroke motor
lubricant that meets or exceeds the requirements for API
service classification SJ.
NOTE: Non-detergent or 2-stroke engine lubricants will
damage the engine and should not be used.
 Unscrew the oil cap/dipstick and remove.
 Wipe dipstick clean and re-seat in hole; do not re-
thread.
 Remove dipstick again and check lubricant level. Lubri-
cant level should fall between the hatched areas on the
dipstick.
 If level is low, add engine lubricant until the fluid level
rises to the upper portion of the dipstick.
 Replace and secure the oil cap/dipstick.
CHECKING/ADDING FUEL
See Figure 7.
 Remove the fuel cap.
 Fill the fuel tank to 1 in. below the top of the fuel neck.
 Replace and secure the fuel cap.
NOTE: Always use unleaded gasoline with a pump octane
rating of 86 or higher. Never use old, stale, or contaminated
gasoline, and do not use an oil/gas mixture. Do not allow
dirt or water into the fuel tank.
OPERATION

Page 13 — English
USING FUEL STABILIZER
Fuel gets old, oxidizes, and breaks down over time. Adding
a fuel stabilizer (not included) extends the usable life of fuel
and helps prevent deposits from forming that can clog the
fuel system. Follow fuel stabilizer manufacturer’s directions
for correct ratio of stabilizer to fuel.
 Add stabilizer to fuel tank, then fill with gasoline following
previous instructions.
NOTE: Fuel stabilizer and gasoline can be mixed prior
to filling the tank by using a gas can or other approved
fuel container and shaking gently to combine.
 Replace and secure the fuel tank cap.
 Start and run the engine for at least 5 minutes to allow
stabilizer to treat the entire fuel system.
OXYGENATED FUELS
Some conventional gasolines are blended with alcohol or an
ether compound. These gasolines are collectively referred
to as oxygenated fuels. To meet clean air standards, some
areas of the United States and Canada use oxygenated fuels
to help reduce emissions.
If using an oxygenated fuel, make sure it is unleaded and
meetstheminimum octanerating requirements.Beforeusing
an oxygenated fuel, try to confirm the fuel’s contents. Some
states/provinces require this information to be posted on the
pump. The following are the EPA approved percentages of
oxygenates:
Ethanol (ethyl or grain alcohol) 10% by volume. You
may use gasoline containing up to 10% ethanol by volume.
Gasoline containing ethanol may be marketed under the
name “Gasohol.” Do not use E85 fuel.
MTBE (methyl tertiary butyl ether) 15% by volume. You
may use gasoline containing up to 15% MTBE by volume.
Methanol (methyl or wood alcohol) 5% by volume. You
may use gasoline containing up to 5% methanol by volume
as long as it also contains cosolvents and corrosion inhibi-
tors to protect the fuel system. Gasoline containing more
than 5% methanol by volume may cause starting and/or
performance problems. It may also damage metal, rubber,
and plastic parts of the generator or your fuel system.
Ifyounoticeanyundesirableoperatingsymptoms,tryanother
service station or switch to another brand of gasoline.
NOTE: Fuel system damage or performance problems re-
sulting from the use of an oxygenated fuel containing more
than the percentages of oxygenates stated previously are
not covered under warranty.
CAUTION:
On a level surface with the engine off, check the lubricant
level before each use of the generator.
STARTING THE ENGINE
See Figures 8 - 10.
NOTE: If location of generator is not level, the unit may not
start or may shut down during operation.
 Unplug all loads from the generator.
 Turn the fuel valve to the ON position.
 Move the choke lever right to the START position.
NOTE: If engine is warm or the temperature is above
50˚F, move the choke lever left to the RUN position.
 Put the engine switch in the ON (I ) position.
 Pull the recoil starting grip until the engine runs (a maxi-
mum of 6 times).
NOTE: Do not allow the grip to snap back after starting;
return it gently to its original place.
 Allow the engine to run for 30 seconds, then move the
choke lever left to the RUN position.
STOPPING THE ENGINE
See Figures 8 - 10.
To stop the engine under normal operating conditions:
 Remove any load from the generator.
 Turn the fuel valve to the OFF position.
 Put the engine switch in the OFF (O ) position.
To stop the engine in an emergency situation:
 Put the engine switch in the OFF (O ) position.
OPERATION

Page 14 — English
WARNING:
When servicing, use only identical Husky replacement
parts. Use of any other parts may create a hazard or
cause product damage.
Only the parts shown on the parts list are intended to be
repaired or replaced by the customer. All other parts should
be replaced at an authorized service center.
GENERAL MAINTENANCE
Keep the generator in a clean and dry environment where it
is not exposed to dust, dirt, moisture, or corrosive vapors.
Do not allow the cooling air slots in the generator to become
clogged with foreign material such as leaves, etc.
Do not use a garden hose to clean the generator. Water en-
tering the fuel system or other internal parts of the unit can
cause problems that will decrease the life of the generator.
To clean the unit:
 Use a soft bristle brush and/or vacuum cleaner to loosen
and remove dirt and debris.
 Clean air vents with low pressure air that does not exceed
25 psi.
 Wipe the exterior surfaces of the generator with a damp
cloth.
CHECKING/CLEANING AIR FILTER
See Figure 11.
For proper performance and long life, keep air filter clean.
 Locate the latch under the air filter and pull to release.
 Remove the air filter cover.
 Remove the filter element.
 If the filter element is dirty, clean with warm, soapy water.
Rinse and let dry.
 Apply a light coat of engine lubricant to the element, then
squeeze it out.
 Replace the element in the air filter unit.
 Replace the air filter cover and lock the latch.
NOTE: Do not run the generator without the air filter or
gasket. Rapid engine wear will result.
CHANGING ENGINE LUBRICANT
See Figure 12.
 Remove the oil cap/dipstick.
 Place a container underneath the oil drainage bolt to col-
lect used lubricant as it drains.
 Unscrew the oil drainage bolt and remove.
 Allow lubricant to drain completely.
 Reinstall the oil drainage bolt and tighten securely.
 Refill with lubricant following the instructions in the
Checking/Adding Lubricant section.
 Reinstall the oil cap/dipstick.
NOTE: Used lubricant should be disposed of at an
approved disposal site. See your local oil retailer for more
information.
SPARK PLUG MAINTENANCE
See Figure 13.
The spark plug must be properly gapped and free of deposits
in order to ensure proper engine operation. To check:
 Remove the spark plug cap.
 Clean any dirt from around base of spark plug.
 Remove spark plug using wrench (not included).
 Inspect spark plug for damage, and clean with a wire
brush before reinstalling. If insulator is cracked or
chipped, spark plug should be replaced.
NOTE: If replacing, use the following recommended
spark plug or equivalent: Champion RL86C.
 Measure plug gap. The correct gap is 0.02−0.03 in.
(0.6−0.7 mm). To widen gap, if necessary, carefully bend
the ground (top) electrode. To lessen gap, gently tap
ground electrode on a hard surface.
 Seat spark plug in position; thread in by hand to prevent
cross-threading.
 Tighten with wrench to compress washer. If spark plug
is new, use 1/2 turn to compress washer appropriate
amount. If reusing old spark plug, use 1/8 to 1/4 turn for
proper washer compression.
NOTE: An improperly tightened spark plug will become
very hot and could damage the engine.
MAINTENANCE

Page 15 — English
CLEANING THE EXHAUST PORT AND
MUFFLER
Depending on the type of fuel used, the type and amount of
lubricantused,and/or youroperating conditions,the exhaust
port and muffler may become blocked with carbon deposits.
If you notice a power loss with your gas-powered products,
you may need to remove these deposits to restore perfor-
mance. We highly recommend that only qualified service
technicians perform this service.
SPARK ARRESTOR
See Figure 14.
The spark arrestor must be cleaned or replaced every 50
hoursoryearlytoensureproperperformance of your product.
Spark arrestors may be in different locations depending on
the model purchased. Please contact your nearest service
dealer for the location of the spark arrestor for your model.
EMPTYING FUEL TANK/CARBURETOR
To help prevent gum deposits in the fuel system, drain the
fuel from the tank and carburetor before storing.
 Run the generator until the fuel tank is empty.
 When the fuel has gone from the tank, close the fuel
valve.
NOTE: Consult hazardous waste management guidelines
in your area for the proper way to dispose of used fuel.
TRANSPORTING
 Turn engine switch OFF (O ).
 Turn the fuel valve to the OFF position.
 Make sure engine and exhaust of unit is cool.
 Empty the fuel tank.
 Do not drop or strike unit or place under heavy objects.
MAINTENANCE

Page 16 — English
STORAGE
When preparing the generator for storage, allow the unit to cool completely then follow the guidelines below.
STORAGE TIME PRIOR TO STORING
Less than 2 months  Run the generator until the fuel tank is empty.
2 months to 1 year  Start and run the engine for at least 5 minutes to allow stabilizer to treat the entire fuel system.
 Run the generator until the fuel tank is empty.
1 year or more  Start and run the engine for at least 5 minutes to allow stabilizer to treat the entire fuel system.
 Remove spark plug.
 Run the generator until the fuel tank is empty.
 Put a tablespoon of engine oil into the spark plug cylinder. Turn the engine slowly with the pull
rope to distribute the oil.
 Reinstall spark plug.
 Change engine lubricant.
After removal from storage:
 Fill with fresh gasoline.
MAINTENANCE SCHEDULE
Before
each use
After 1st month
or 20 hours of
operation
Every 3 months
or 50 hours of
operation
Every 6 months
or 100 hours
of operation
Every year or
after 300 hours
of operation
Check Engine Lubricant 
Change Engine Lubricant  
Check Air Filter 
Clean Air Filter 
Change Air Filter 
Check/Adjust Spark Plug 
Replace Spark Plug 
Check/Adjust Idle Speed 
Check/Adjust Valve
Clearance* 
Clean Fuel Tank and
Filter* 
Check Fuel Tube 
* These items should only be carried out by an authorized service center.
NOTE: Maintenance should be performed more frequently when generator is used in dusty areas.
When generator has exceeded the maximum figures specified in the table, maintenance should still be cycled
according to the intervals of time or hours stated herein.
MAINTENANCE
