ILLUSTRATED PARTS LIST
MODEL NUMBER ST 268EP
PRODUCT NUMBER 961 91 00-38
MFG. ID. NUMBER 96191003803

2
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
10
11
11
11
11
1
2 (EXPLODED)
3
4
5
6
7
9
9
9
8
12
12
13
14
15
16
17
18 19
20
21
21
22
22
23
23
24
25
26
27
28
29
30
31 31
32
33
34
35
36
37
37
2
01.07.026-E

3
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
1 532 18 41-05 IMPELLER
2 532 42 71-48 GEARBOX ASSEMBLY
3 532 18 89-09 BEARING
4 532 42 71-46 IMPELLER PULLEY
5 532 44 24-38 DISCHARGE BASE
6 532 18 40-95 CORNER BRACKET
7 532 19 21-99 CLEAN OUT TOOL
8 532 40 54-00 TOOL CLIP
9 873 80 04-00 NUT 1/4-20
10 874 78 04-26 SCREW 1/4-20 X .625
11 532 42 79-42 NUT 5/16-18
12 532 16 31-83 SCREW 5/16-18 X .625
13 532 42 71-45 IMPELLER HUB
14 532 42 71-54 IMPELLER SLEEVE
15 873 90 06-00 NUT 3/8-16
16 532 18 03-55 CARRIAGE BOLT
17 532 19 41-89 SCREW 13-16 X .625
18 532 40 77-60 PLUG
19 532 42 73-02 GEARBOX COVER RH
20 532 42 73-45 GASKET
21 532 40 77-70 SEAL
22 532 40 77-62 BEARING
23 532 17 46-97 THRUST WASHER 1.00
24 532 40 77-63 WORM GEAR
25 532 40 77-64 AUGER SHAFT
26 532 18 92-82 SQUARE KEY
27 532 40 77-58 BEARING
28 532 17 46-83 THRUST WASHER
29 532 42 71-47 IMPELLER SHAFT
30 532 18 42-05 ROLL PIN
31 532 17 46-81 THRUST WASHER
32 532 17 46-84 THRUST BEARING
33 532 40 77-69 BEARING
34 532 40 77-68 O-RING
35 532 40 77-67 SCREW 5/16-18 X .750
36 532 42 73-17 GEARBOX COVER LH
37 532 19 20-90 SHEAR BOLT

4
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
1
2
3 (5x)
4 (5x)
01.07.022-C

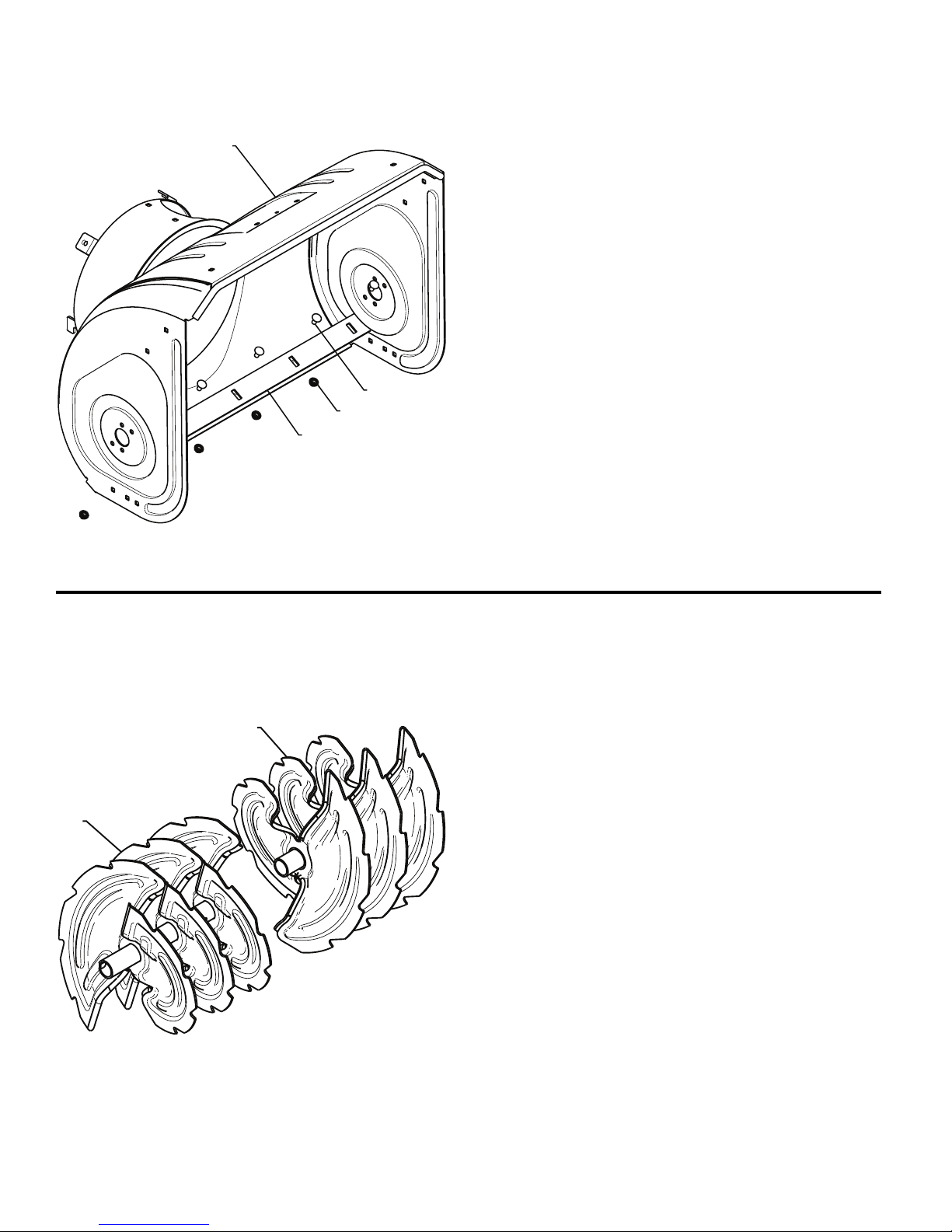

1 532 42 95-87 AUGER HOUSING
2 532 40 77-27 SCRAPER BAR
3 872 27 05-05 CARRIAGE BOLT 5/16−18 X .625
4 532 15 53-77 NUT 5/16−18
1
2
01.07.015-A
1 532 42 69-57 AUGER ASSEMBLY 27 LH
2 532 42 69-58 AUGER ASSEMBLY 27 RH

5
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
1
1
2
2
3
3
01.11.002-B

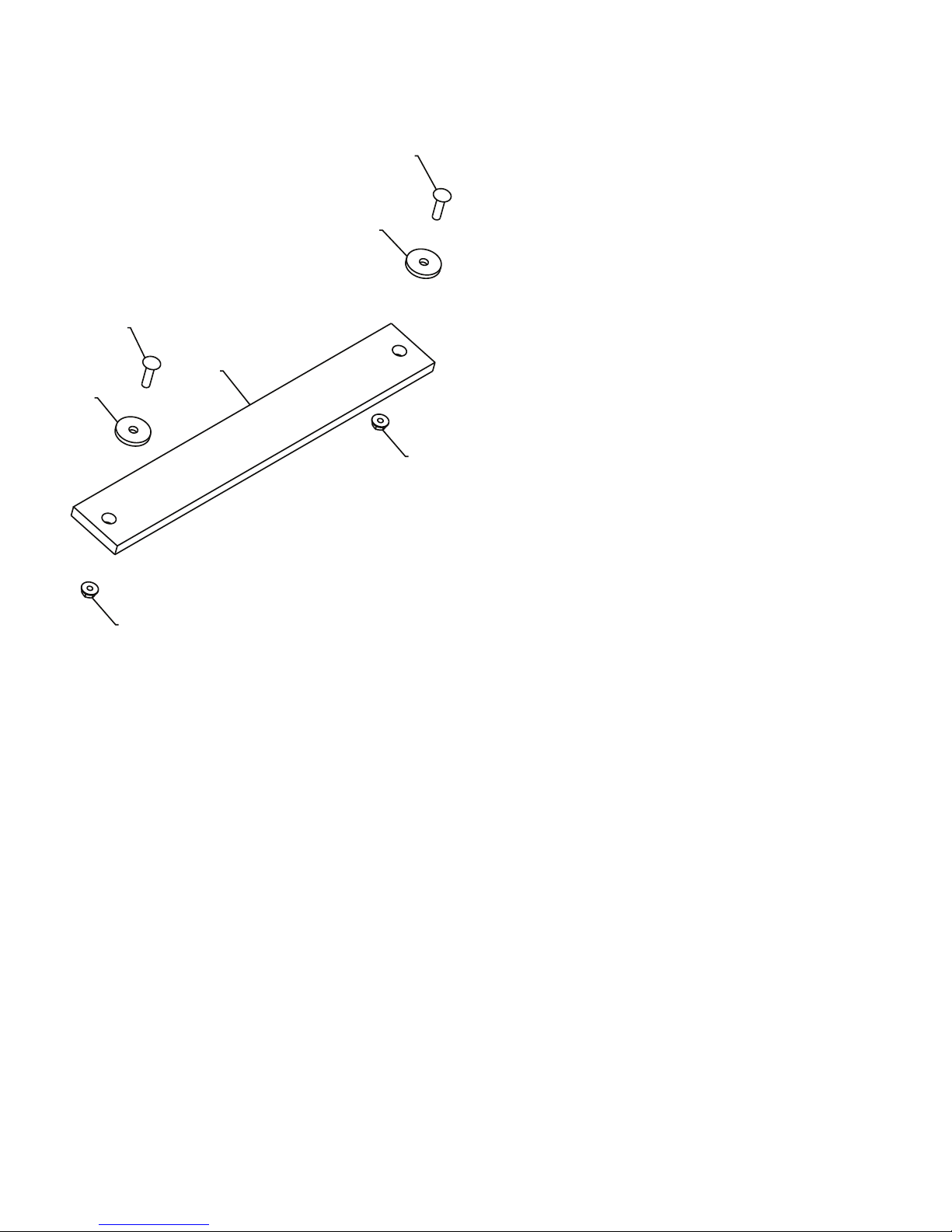

1 532 40 78-34 SKID PLATE
2 872 27 05-06 CARRIAGE BOLT 5/16−18 X .750
3 532 75 11-53 NUT 5/16−18
1
1
2
2
3
3
4
4
5
5
01.07.025-D
1 532 18 81-70 PLASTIC RETAINER
2 532 43 06-91 AUGER BALL BEARING
3 532 17 95-82 SCREW 5/16-18 x 1.00
4 874 78 04-26 SCREW 1/4-20 x .625
5 873 80 04-00 NUT 1/4-20

6
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS AUGER HOUSING / IMPELLER ASSEMBLY
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
KEY PART
NO. NO. DESCRIPTION
01.17.002-B
1
2
3
3
2
4
4
1 532 18 25-15 WEIGHT BAR
2 872 11 05-10 CARRIAGE BOLT 5/16−18 X 1.25
3 532 75 11-53 NUT 5/16−18
4 819 11 22-06 WASHER

7
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
*10
*11
1
2
3
4
5
6
6
6
6
7
9
8
*12
*13
*14
15
16
17
18
18
19
01.09.028-A

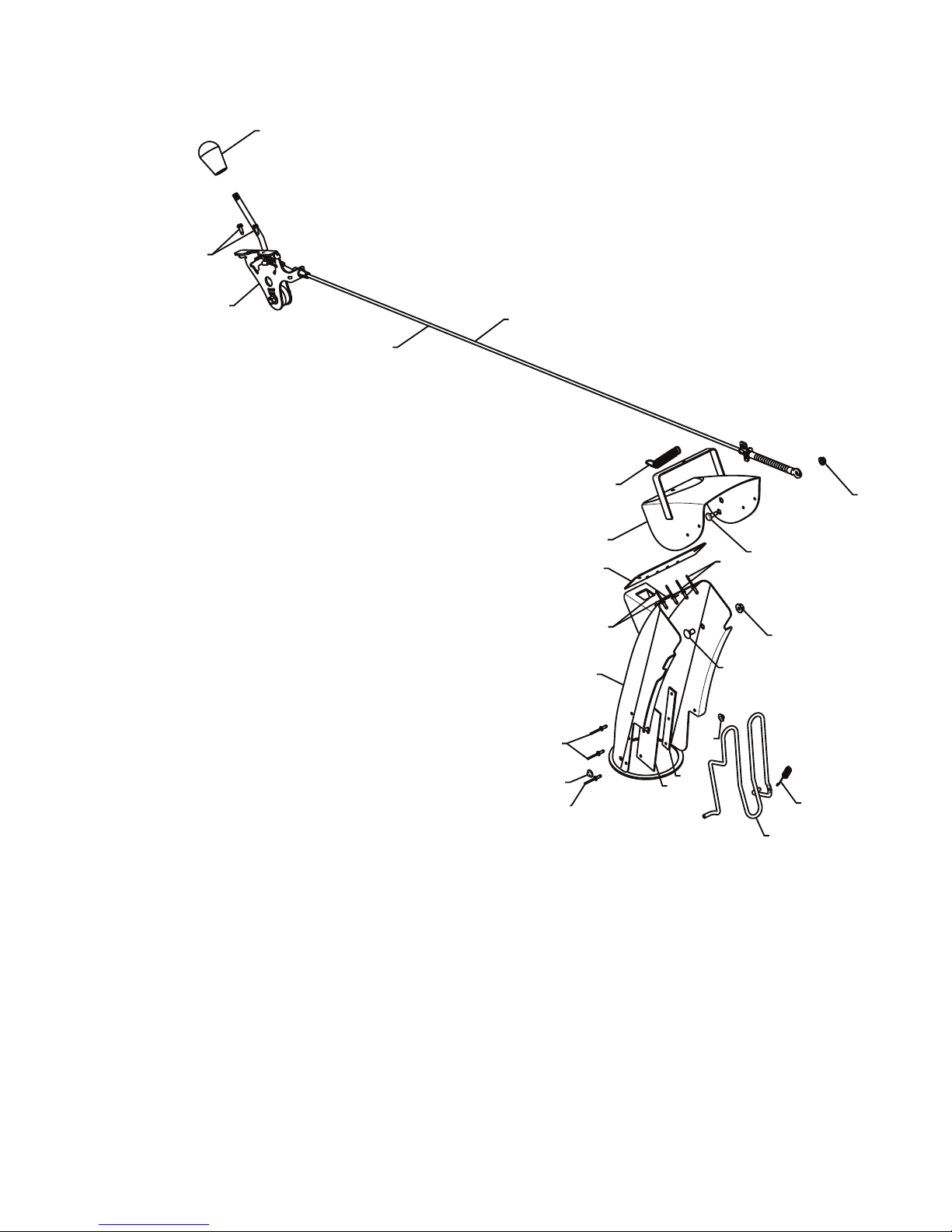

1 532 44 40-41 CHUTE WELDMENT
2 532 18 41-13 DEFLECTOR WELDMENT
3 532 42 06-73 DEFLECTOR CONTROL ASSEMBLY
4 532 42 03-25 DEFLECTOR SEAL
5 532 41 42-80 KNOB BLACK
6 532 12 84-15 POP RIVET
7 817 50 10-10 SCREW 10-24 X .625
8 532 43 03-24 CHUTE SHOW SHIELD
9 532 42 17-28 SHIELD RETAINER STRAP
*10 532 17 98-29 SHOULDER BOLT 1/4-20 X .375
*11 532 19 17-30 NUT 1/4-20
*12 872 25 05-05 CARRIAGE BOLT 3/8-16 X .625
*13 532 75 11-53 NUT 5/16-18
*14 532 18 45-05 DEFLECTOR SPRING
15 532 42 06-79 (SERVICE PART) DEFLECTOR CONTROL
16 532 42 06-72 (SERVICE PART) DEFLECTOR CABLE BLACK
17 532 43 55-82 CHUTE GUARD
18 532 05 93-49 PUSH NUT
19 532 43 56-16 SPRING
NOTE:
1. ALL ITEMS INDICATED WITH AN * ARE PROVIDED IN THE BAG OF ITEMS SHIPPED LOOSE WITH PRODUCT.
2. ITEMS 15 AND 16 ARE SERVICE PART NUMBERS TO ALLOW PURCHASE OF INDIVIDUAL ITEMS IF NECESSARY.

8
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
01.09.009-A
12
2
3
3
4
4

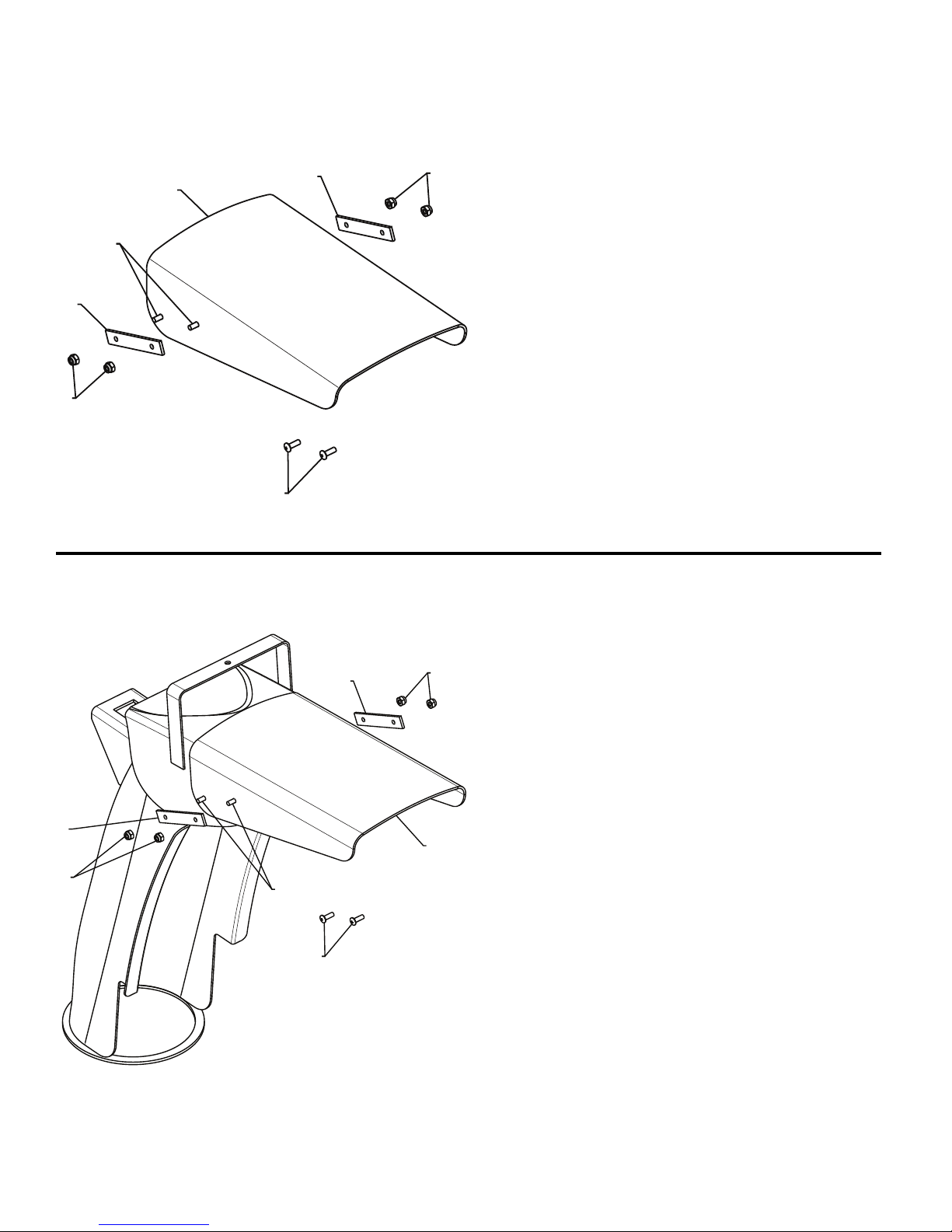

1 532 42 11-38 SHIELD DEFLECTOR
2 532 42 32-47 STRAP
3 532 18 22-27 SCREW 8-32 X .50
4 532 18 22-28 NUT 8-32
1
2
2
3
3
4
4
01.14.011-A
1 532 42 11-38 SHIELD DEFLECTOR
2 532 42 32-47 STRAP
3 532 18 22-27 SCREW 8-32 X .50
4 532 18 22-28 NUT 8-32

9
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS CONTROL PANEL / DISCHARGE CHUTE
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
1
2
2
*3
*4 *5
*6
*7
01.09.010-B
KEY PART
NO. NO. DESCRIPTION

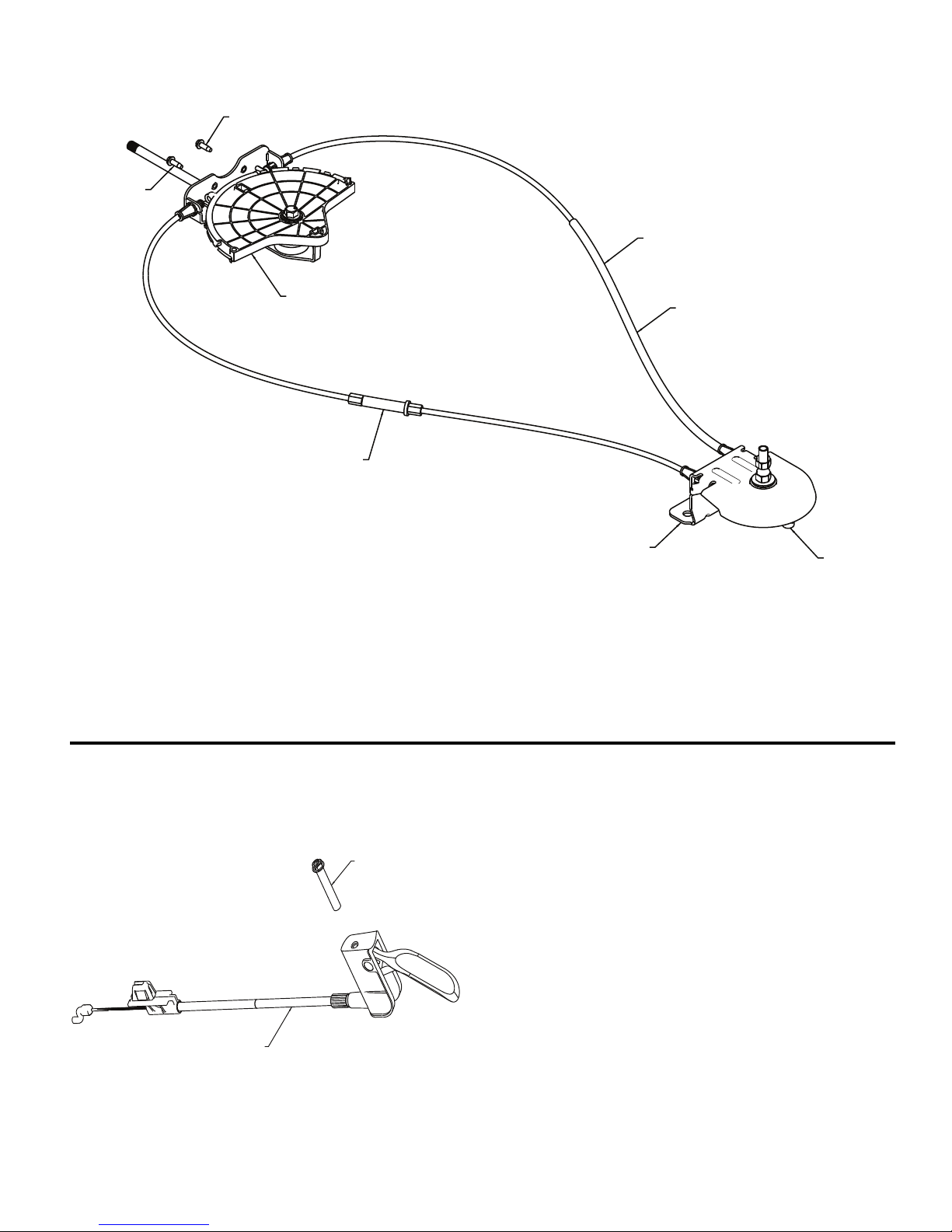

1 532 42 82-72 LEVER/CABLE ROTATOR ASSEMBLY
2 817 50 10-10 SCREW 10-24 X .625
*3 532 42 06-78 ROTATOR HEAD
*4 532 40 59-32 ROTATOR PIVOT BRACKET
*5 532 42 06-75 PULLEY PIVOT
*6 532 42 82-73 CABLE ASSEMBLY ADJUSTABLE GRAY
*7 532 42 83-10 CABLE ASSEMBLY HEAT SHIELD GRAY
NOTES:
1. ITEMS INDICATED WITH AN * ARE LISTED AS REFERENCE FOR SERVICE PARTS ONLY.
1
2
01.15.017-A
1 532 43 86-29 STEER CABLE
2 874 04 10-24 SCREW 10−24 X 1.50

10
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS HANDLES
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
10
11
1
2
3
8
4
5
6
7
7
9
9
8
12
12
13
13
14
14
01.08.012-E
1 532 41 55-39 CONTROL PANEL
2 532 42 91-50 CONTROL LEVER LH
3 532 42 91-51 CONTROL LEVER RH
4 532 41 55-46 TRACTION ROD ARM
5 532 42 90-98 IMPELLER ROD ARM
6 532 41 26-77 INTERLOCK ROD
7 532 42 16-13 SPACER
8 532 16 96-75 RETAINER
9 817 06 04-10 SCREW 1/4-20 X .62
10 532 41 42-80 KNOB BLACK
11 532 41 42-81 KNOB RED
12 532 17 88-99 HANDLE KNOB
13 819 13 13-16 WASHER 3/8
14 872 12 06-18 CARRIAGE BOLT 3/8-16 X 2.25

11
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS HANDLES
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
1
2
3
4
6
67
7
8
8
8
9
9
5
5
10
10
01.08.011-A
1 532 42 17-08 PLOW HANDLE LH
2 532 42 17-09 PLOW HANDLE RH
3 532 42 91-48 PANEL BRACKET LH
4 532 42 91-49 PANEL BRACKET RH
5 532 41 45-15 HEATED HANDLE GRIP
6 874 78 05-12 SCREW 5/16−18 X .750
7 874 78 05-24 SCREW 5/16−18 X 1.50
8 532 75 11-53 NUT 5/16−18
9 532 15 54-15 WASHER
10 532 17 87-75 POP RIVET 1/8
1
2
3
3
4
4
4
4
01.05.015-A
1 532 43 60-43 LOWER HANDLE
2 532 44 36-17 PIVOT SUPPORT
3 532 42 88-67 BOLT 5/16−18 X .750
4 817 00 06-16 SCREW 3/8−16 X 1.00

12
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
REPAIR PARTS HANDLES
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
10
10
10
1
2
3
4
5
5
6
7
9
8
01.12.001-E

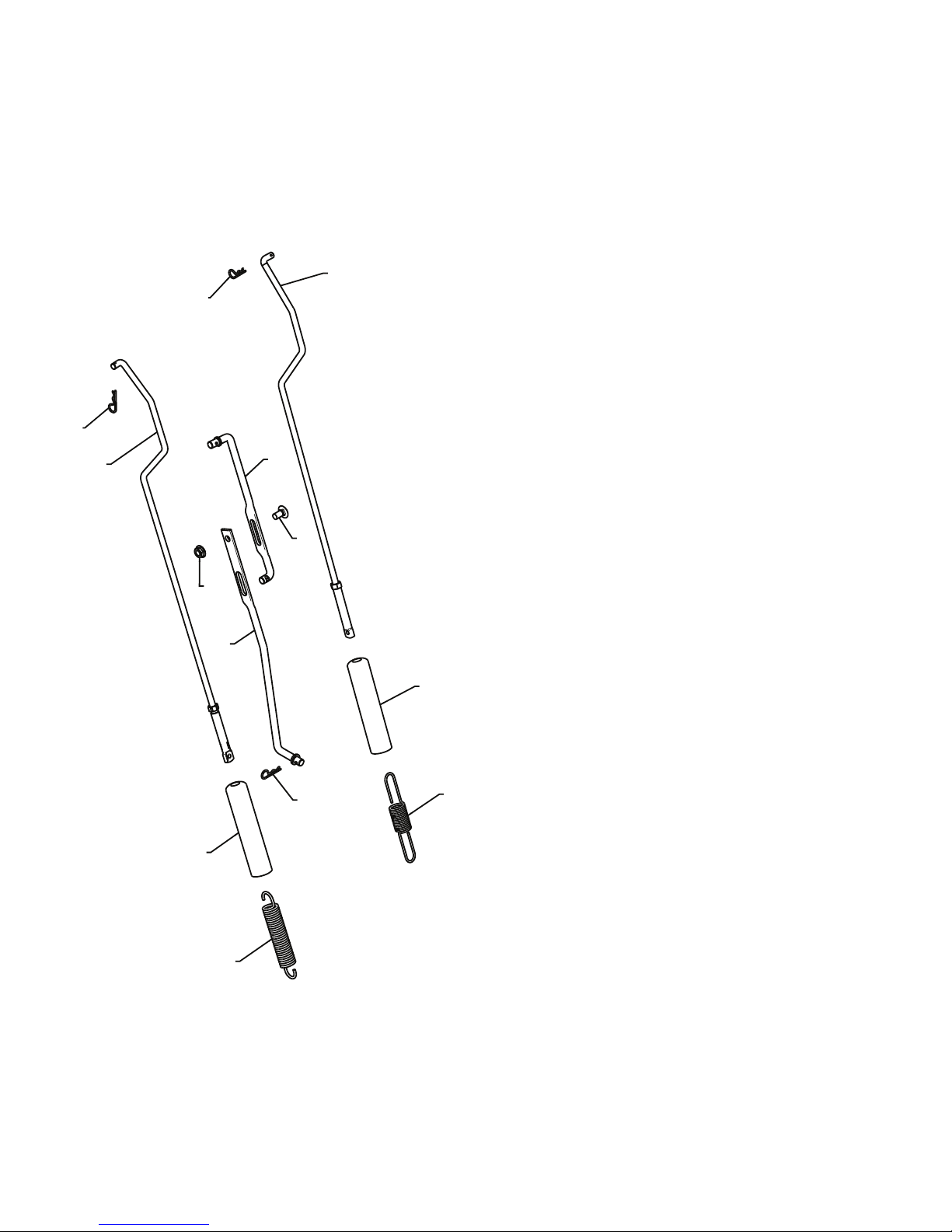

1 532 18 04-80 IMPELLER ROD ASSEMBLY
2 532 40 57-40 TRACTION ROD ASSEMBLY
3 532 18 04-45 SHIFTER ROD TOP
4 532 18 77-16 SHIFTER ROD BOTTOM
5 532 18 04-47 SPRING SLEEVE
6 532 17 86-69 IMPELLER SPRING
7 532 18 09-26 TRACTION SPRING
8 872 27 05-05 CARRIAGE BOLT 5/16-18 X .625
9 532 15 53-77 NUT 5/16-18
10 532 16 96-75 RETAINER

13
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS HANDLES
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
1
2
3
4
5
601.08.007-C

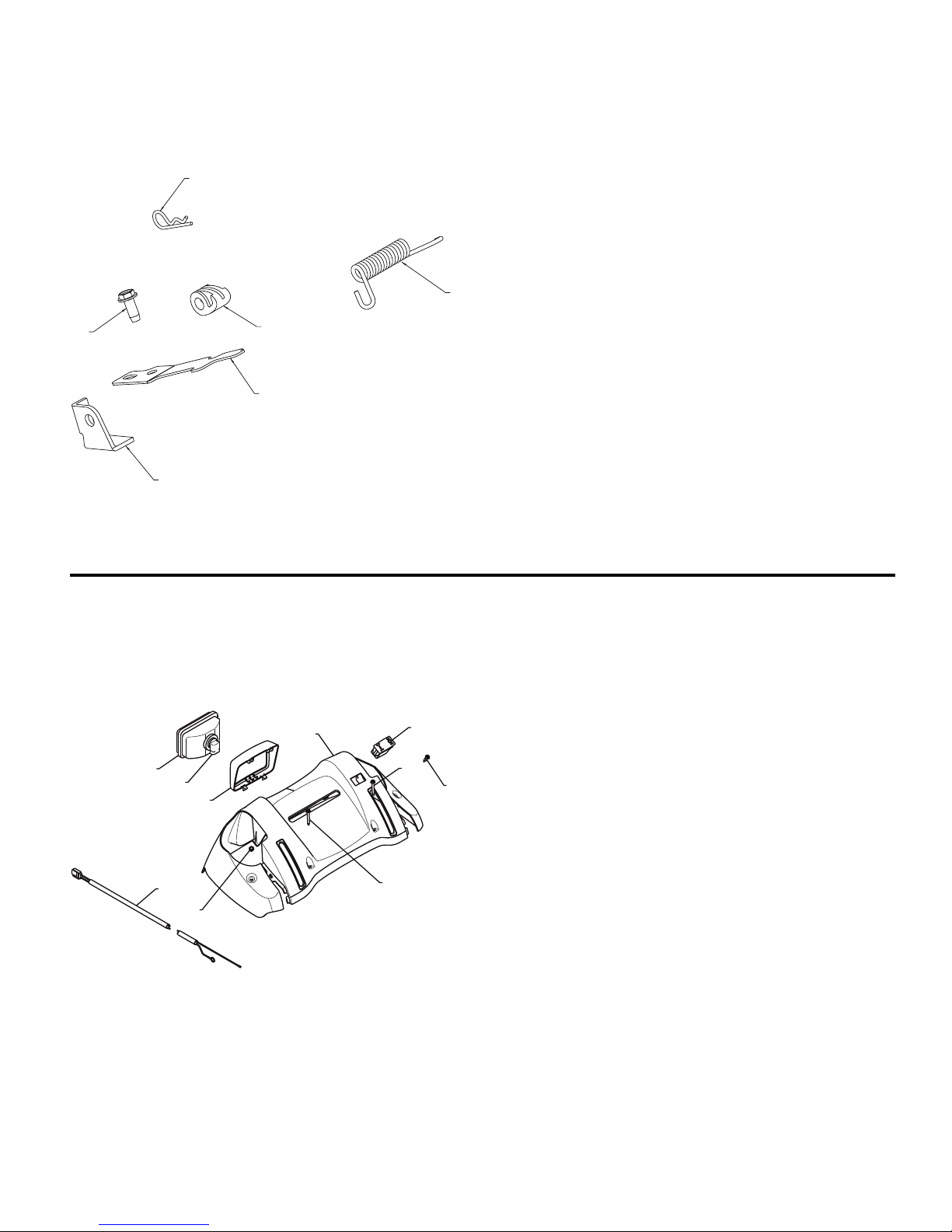

1 532 41 62-88 INTERLOCK SPRING
2 532 41 45-72 INTERLOCK CAM
3 532 44 32-15 TORSION SPRING
4 532 16 96-75 RETAINER
5 817 06 04-10 SCREW 1/4−20 X .625
6 532 42 18-14 INTERLOCK STOP
1
2
3
4
4
5
5
6
7
8
01.10.010-C
1 532 42 13-51 CONSOLE PANEL GRAY
2 532 42 14-48 HEADLIGHT BEZEL GRAY
3 532 17 86-66 HALOGEN HEADLIGHT
4 532 18 44-71 SHOULDERSCREW10−24X.625
5 532 17 52-62 SCREW 10−24 X 1.25
6 532 41 77-60 GRIP SWITCH
7 532 40 56-99 WIRE HARNESS
8 532 40 16-20 BULB

14
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.

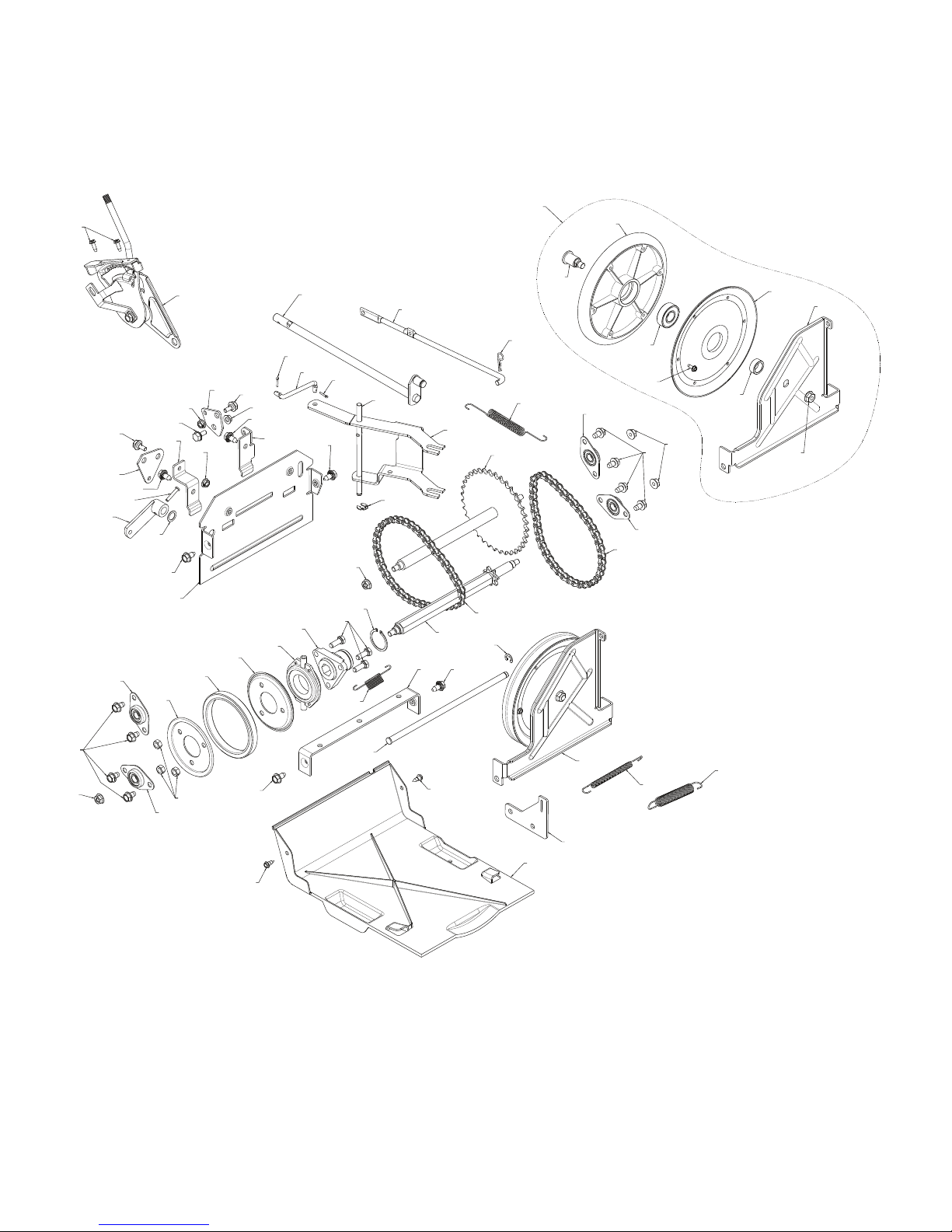

REPAIR PARTS DRIVE
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
10 11
11
11
1
2
3
5
6
7
9
9
9
8
12
13
01.02.013-C
53
53
53
53
14
15
15
16 17
18
45
46
48 51
52
50
49
47
19
22
34
20
24
2425
26
26
27
28
29 30
4
23
23
23
31
32
33
33
35
36
37
39
40
39
41
42
43 44
38
53
24
24
4
54
21
ITEM 42 EXPLODED

15
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS DRIVE
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
1 532 19 88-75 SPEED SELECTOR
ASSEMBLY
2 817 50 10-10 SCREW 10-24 X .625
3 532 43 60-80 END PLATE
4 817 49 05-08 SCREW 5/16-18 X .50
5 532 05 70-79 WASHER
6 532 40 54-85 CONTROL ARM
7 532 19 85-80 CLEVIS PIN
8 532 41 54-50 SHIFTER PLATE
9 532 40 28-81 SHOULDER BOLT
10 532 41 54-33 SHIFTER BRACKET
11 532 19 17-30 NUT 1/4-20
12 532 41 54-35 CLUTCH PLATE
13 532 41 68-64 CLUTCH BRACKET
14 532 18 71-01 SHIFTER LINK
15 532 70 02-79 RETAINER
16 532 42 75-42 CONTROL SHAFT
17 532 40 25-68 CLUTCH ROD
18 532 16 96-75 RETAINER
19 532 40 17-32 SHIFTER YOKE
20 532 40 23-10 PIVOT ROD
21 812 00 00-36 RETAINER
22 532 40 28-78 RETURN SPRING
23 532 75 11-53 NUT 5/16-18
24 532 40 89-81 BEARING
25 873 93 05-00 NUT 5/16-18
26 532 19 95-09 RUBBER WHEEL PLATE
27 532 44 06-20 RUBBER RING
28 532 17 53-44 BEARING
29 532 17 86-13 WHEEL HUB
30 874 76 05-14 SCREW 5/16-18-.875
31 812 00 00-12 RETAINER RING
32 532 40 21-87 SPROCKET SHAFT
33 532 40 16-19 CHAIN
34 532 43 73-03 SPROCKET WELDMENT
35 532 40 19-84 SHIFTER BRACKET
36 532 18 01-35 SPRING
37 532 40 26-52 PLATE PIVOT ROD
38 532 42 82-88 E-RING .375
39 532 18 44-71 SHOULDER SCREW
40 532 41 08-77 BOTTOM PAN
41 532 41 66-82 SPRING BRACKET
42 532 40 26-89 DRIVE PLATE ASSEMBLY
43 532 41 45-57 IDLER SPRING
44 532 17 88-28 IDLER SPRING
45 532 40 25-04 PULLEY SHAFT
46 532 40 18-20 DRIVE PLATE
47 532 19 87-91 BEARING
48 532 40 23-93 PULLEY HALF
49 817 54 10-08 SCREW 10-24 X .50
50 532 40 25-11 SPACER BEARING
51 532 42 29-41 SWING PLATE
52 532 13 20-10 NUT 3/8-16
53 532 42 88-67 SCREW 5/16-18 X .750
54 817 00 05-10 SCREW

16
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS DRIVE
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1b
1b
1a
2
3
3
4
4
5
6
6
7
7
9
9
8
01.03.002-B
1 532 40 49-23 AXLE ASSEMBLY (assy of 1a,1b)
1a 532 40 43-07 AXLE SHAFT
1b 532 18 42-06 ROLL PIN 3/16 X 1.50
2 532 40 26-91 SPROCKET
3 532 17 46-97 THRUST WASHER
4 532 17 98-30 BEARING
5 532 14 63-15 SCREW 5/16−18 X .625
6 817 49 05-08 SCREW 5/16−18 X .500
7 532 17 12-71 CLEVIS PIN 1/4 X 1−3/4
8 532 18 92-82 SQUARE KEY
9 532 12 47-88 RETAINER

17
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
KEY PART
NO. NO. DESCRIPTION

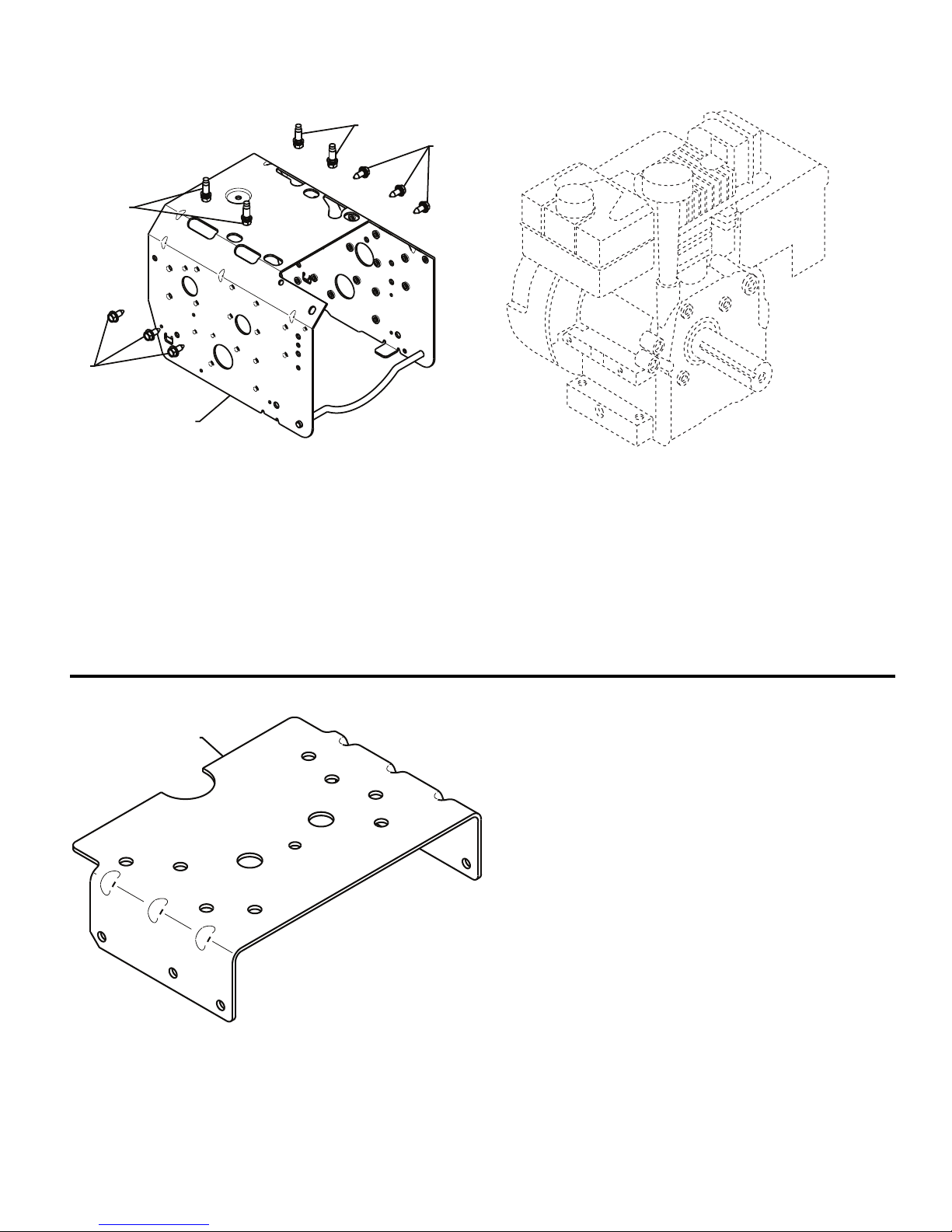

REPAIR PARTS CHASSIS / PULLEYS
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
1
01.01.007-B
1 532 43 63-11 ENGINE MOUNT PLATE
1
2
2
3
3
01.00.034-A
- - – – – – B&S ENGINE 20M314-1479-H2
1 532 43 59-52 FRAME
2 532 15 04-06 BOLT 3/8-16
3 532 42 88-67 SCREW 5/16-18 X .750

18
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS CHASSIS / PULLEYS
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
10
11
1
2
3
4
5
6
7
9
8
12
13
13
13 14
15
16
17
18
19
20
20
21
21
22
23
24
01.21.004-C
1 532 40 80-19 IMPELLER BELT
2 532 41 97-44 TRACTION BELT
3 532 42 92-71 IDLER ARM BRACKET
4 532 43 08-46 IDLER PULLEY
5 532 42 92-70 IDLER ARM BRACKET
6 532 42 65-89 NUT 5/16-18
7 874 78 05-24 SCREW 5/16-18 X 1.50
8 532 42 42-97 SHOULDER BOLT 5/16-18 X .50
9 532 42 88-67 SCREW 5/16-18 X .625
10 532 16 67-85 NUT 5/16-18 NYLOCK
11 532 18 77-86 TRACTION IDLER BRACKET
12 532 18 05-22 TRACTION PULLEY
13 532 05 92-89 WASHER
14 873 80 05-00 NUT 5/16-18
15 874 78 05-20 SCREW 5/16-18 X 1.25
16 532 85 10-84 SCREW 3/8-24 X 1.375
17 532 40 00-26 WASHER
18 532 42 64-92 PULLEY ENG IMPELLER
19 532 42 64-90 PULLEY ENG TRACTION
20 874 61 05-16 SCREW 5/16-24 X 1.00
21 810 04 05-00 LOCKWASHER 5/16
22 532 15 54-52 BELT GUIDE
23 811 05 05-00 LOCKWASHER 5/16
24 532 17 53-31 IDLER BUSHING
1
01.21.013-C
1 532 44 30-30 COVER ASSEMBLY

19
KEY PART
NO. NO. DESCRIPTION

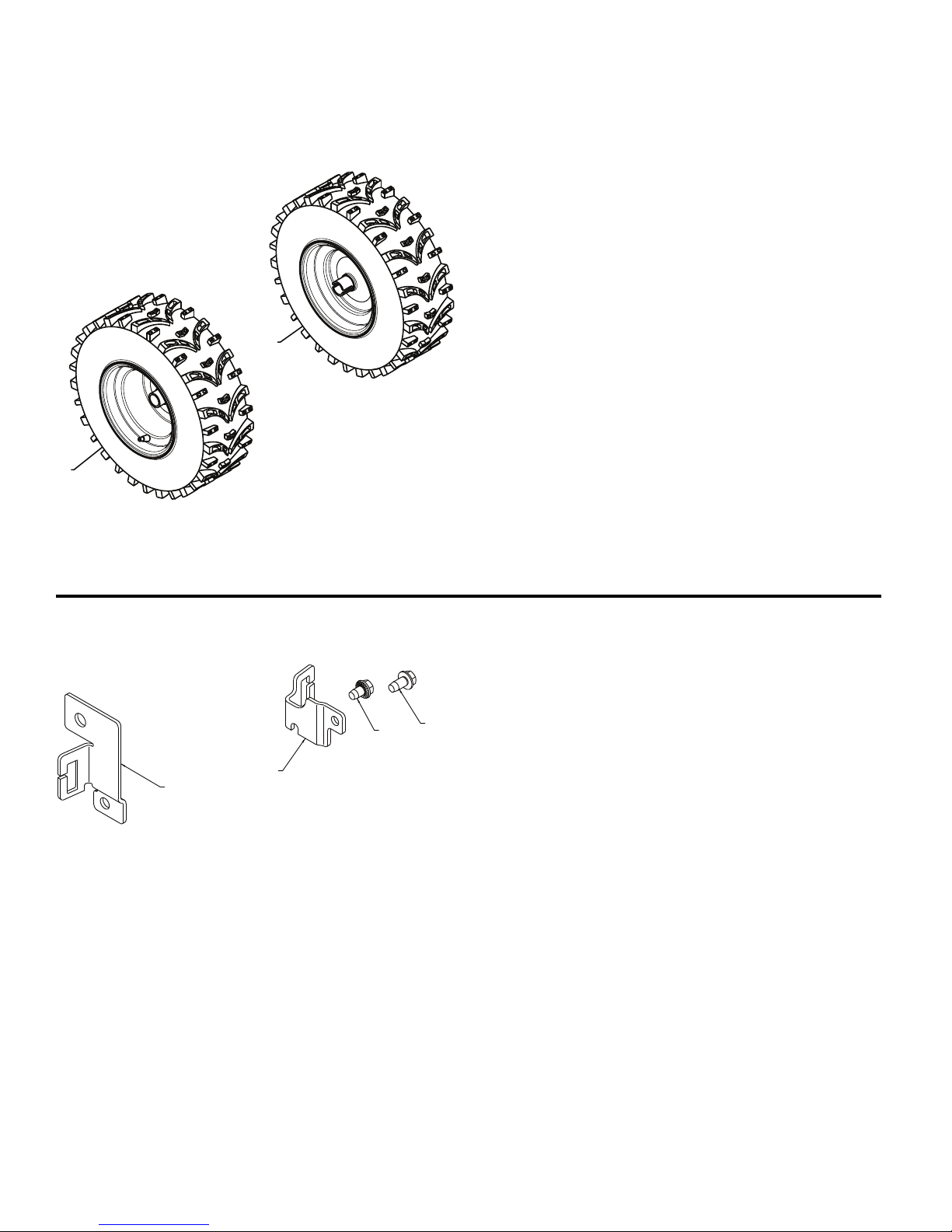

REPAIR PARTS WHEELS
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
10
10
11
11
1
2
1
2
2
2
3
3
4
4
5
5
6
6
7
7
9
9
8
8
12
12
13 13
14
14
15
16
16
17
17 18
19
19
20
20
21
21
22
22
23
23
24
01.15.001-B
1 532 40 51-61 COVER
2 532 18 44-71 SHOULDER SCREW
3 812 00 00-45 RETAINER RING
4 532 19 21-26 WHEEL DRIVER
5 532 18 24-66 RETAINER RING
6 532 18 76-22 WHEEL LOBE
7 532 19 49-41 CLUTCH SLIDE
8 532 17 91-39 SPRING
9 532 18 92-82 SQUARE KEY
10 532 19 49-40 AXLE LOBE
11 532 17 46-97 THRUST WASHER
12 532 19 95-19 STEERING YOKE
13 532 18 41-97 STEERING BRACKET
14 817 49 05-08 SCREW 5/16−18 X .50
15 532 19 95-11 PIVOT BRACKET
16 532 19 95-18 BELLCRANK
17 532 18 18-47 BELLCRANK PIN
18 817 60 04-06 SCREW 1/4−20 X .375
19 532 40 50-77 STEERING LINK
20 532 70 02-79 RETAINER
21 532 08 51-79 RETAINER
22 532 19 38-85 SPRING
23 532 18 20-15 LEVER PIN
24 532 19 95-12 PIVOT BRACKET

20
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
REPAIR PARTS WHEELS
SNOW THROWER - MODEL NO. ST 268EP (96191003803), PRODUCT NO. 961 91 00-38
NOTE: All component dimensions given in U.S. inches. 1 inch = 25.4 mm
IMPORTANT: Use only Original Equipment Manufacturer (O.E.M.) replacement parts.
Failure to do so could be hazardous, damage your snow thrower and void your warranty.
1
2
01.06.024-A
1 532 43 65-68 WHEEL ASSEMBLY LH
2 532 43 65-69 WHEEL ASSEMBLY RH
1
2
3
4
01.15.015-A
1 532 43 84-46 CABLE BRACKET LH
2 532 43 84-47 CABLE BRACKET RH
3 817 49 04-08 SCREW 1/4 -20 X .500
4 817 60 04-06 SCREW 1/4 -20 X .375
