Husqvarna W 70 P User manual

Operators manual
W 70 P
Please read the operator’s manual carefully and make sure you understand the instructions before using
the machine. US
Wet Vacuum Cleaner
To order go to Discount-Equipment.com

We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman,
Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto, Power
Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack, Lull,
Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic, Dynapac,
MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti, Morrison, Contec,
Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S. Curtis, Gehl Pavers, Heli,
Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, CH&E, General Equip-
ment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent, Stanley, Tamco, Toku, Hatz,
Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air, APT, Wylie, Ingersoll Rand /
Doosan, Innovatech, Con X, Ammann, Mecalac, Makinex, Smith Surface Prep,Small Line,
Wanco, Yanmar
Discount-Equipment.com is your online resource for
commercial and industrial quality parts and equipment sales.
561-964-4949
visit us on line @ www.discount-equipment.com
TO PURCHASE THIS PRODUCT PLEASE CONTACT US
Select an option below to find your Equipment
Equipment Financing and
Extended Warranties Available

Introduction
Dear Customer.
We thank you for choosing Husqvarna as your supplier.
We hope that the Wet vacuum cleaner from Husqvarna will be to your satisfaction and meet your
expectations.
Husqvarna have been a manufacturer of professional dust extractors since 1967 and has over the years
acquired a genuine technical knowledge in this area. We are working hard with improvement in our
product segment and will continue to provide the market with new equipment.
Notice!
This instruction does only cover the wet vac type Husqvarna W 70 P.
The vet vacuum cleaner Husqvarna W 70 P are developed for cleaning of construction area,
water cooled drilling machines etc.
If the wet vac is used for other applications or been used in other ways then explained in this
instruction book, Husqvarna will not take any responsibility.
Before starting to use the machine, please read carefully the safety regulations.
Read the complete instruction book before start using the Husqvarna W 70 P.
All spare part used for the Husqvarna W 70 P must be recognized by Husqvarna Construction
Products.
SWEDEN
10 A
118 CFM
1.6 HP
To order go to Discount-Equipment.com

Unpacking
When unpacking the machine, please check that the following accessories are included:
•The hose with end fittings.
•Steel tube.
•Floor nozzle.
•Crevice tool.
If some of above mention parts are missing, please contact Discount-equipment.

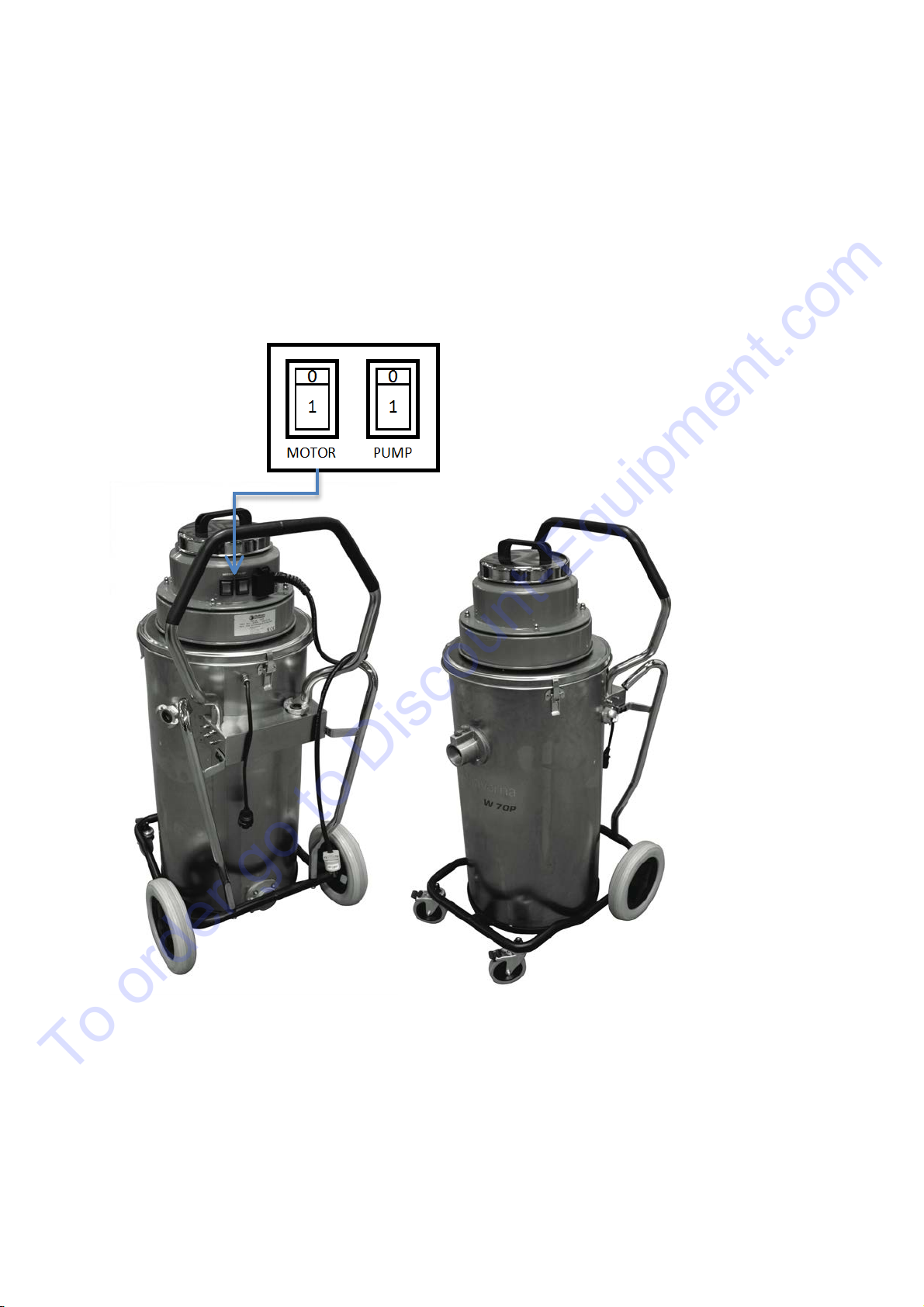

Product overview
Left switch:
0: motor off
1: motor on
Right switch:
0: Pump off
1: Pump on
To order go to Discount-Equipment.com

Safety instructions
Handling
Warning
•Make sure that you read and understand the instructions for the main product to ensure that
you know what personal equipment to wear, what safety equipment to use and how to work in
a safe mode.
Warning
•Cables damaged through crunching or cracking can be dangerous if used and should be
replaced immediately. Risk of personal injury.
Warning
•Do not connect the machine to an unearthed socket. Risk of personal injury.
Warning
•Risk for pinch injuries when handling the toggle fastener.
Warning
•The machine must not be use in environments where explosive gases can occur. Large risk for
explosions.
Warning
•Do not point the suction hose towards body parts when the machine is running. Avoid placing
your hand or other parts of the body against the suction inlet if the suction hose is not fitted.
Risk of personal injury.
Warning
•Check, when lifting the machine, that the dust container is empty and that no one is standing
under the lifted machine. Risk for personal injury and material damage
Service
Warning
•Remove the plug from the wall socket when carrying out maintenance work. Risk of personal
injury. Replace all guards over the motor and fan components once servicing is complete.
Warning
•Health impairing dust can be spread during filter and bags replacement. Accordingly, the user
should wear protective glasses, protective gloves, and a breathing mask conforming to
protection class FFP3.
Function
The motor is started by the switch. Dust laden air is then sucked through the inlet valve at high speed
via the suction hose. The air is slowed down by the cyclone and coarse dust particles are separated out,
partly by centrifugal force and partly by gravity. Air and finer particles then pass through the fine filter
where separation is made.
Use
Before using must the user be educated in handling the vacuum cleaner and the dust.
From time to time the filter must be cleaned or replaced. It´s appropriate when the work is
completed or when there is poor suction.
Connect proper evacuation hose. Fix the free end of the hose.
WARNING
Connect the electric plug to a power outlet with the correct voltage, see the nameplate.
To order go to Discount-Equipment.com

Fit the suction hose on the suction apparatus
There is a hose intake with a hose lock on the tank. Lift the hose lock and insert the suction hose´s
metal adapter into the intake. Lower the the hose lock into the recess of the adapter. The hose lock
fixes the adapter in the hose intake and is lifted when the suction hose is to be removed.
Fit the nozzle on the hand pipe
The floor nozzle has adjustable wheels. Adjust the wheel setting so as to achieve the best suction
effect. Adjust the wheels with the knob which is located on the rear side of the nozzle. The wheels and
rubber strips of the nozzle are replaceable. Ensure that the nozzle is kept in good condition.
After use
Switch off the suction apparatus with the switch. Remove the plug on the electrical cable from the
electrical outlet. Do not pull the electrical cable!
Empty and clean the suction apparatus and the accessories used. If necessary, the tank and accessories
can be flushed clean.
Never leave water or wet dirt in the suction apparatus. This can cause bad smells and poor hygiene.
Change of filter
Risk of dust dispersion - Use of personal safety equipment
Unhealthy dust can be spread during filter change. Accordingly, the user should wear protective
glasses, protective gloves, and a breathing mask conforming to protection class FFP3.
Recommended intervals for filter change: Socks filter every 6 months and Hepa filer every 12 month.
Replace filter as follows:
1. Remove the plug from the electric outlet.
2. Lift off the filterholder with the filter.
3. Loosen the fingernut and remove the filter cap and filter.
4. Check the sealing on the filterholder.
5. Assemble the new filter.
6. Clean all other parts.
Service
•Avoid cleaning with high pressure cleaner. If necessary do not point at the openings on the
machine, especially the opening for the cooling air.
•Before moving the machine from the working area, the machine must be cleaned. Furthermore
must the inlet be locked with the expanding plug attached.
•All other equipment must be regarded contaminated and be treated thereafter.
•If possible use a special suitable room.
•Proper personel protective equipment must be used.
•All parts after service, which are contaminated, must be taken core of in a proper way in plastic
bags according to all regulations.
•If the vacuum cleaner has to be used for other purposes, it is extremely important that the vacuum
cleaner will be cleaned, to avoid spreading of hazardous dust.
WARNING
Switch off the machine and pull the plug out of the socket.
WARNING
Before cleaning and servicing the machine, you must switch the machine off and pull out the
plug from the outlet.
To order go to Discount-Equipment.com

Accessories
Following is parts that should be changed on a regular basis:
Part.no. Description No/machine
590469401 400-2C C-filter 1 ea
4228007 TH55 Filter bag (5 pcs) 0,2 ea (Dry)
4228007a TH55w Filter bag (5 pcs) 0,2 ea (Wet)
Warranty
All Husqvarna suction devices and accessories have a 12-month factory warranty for material and
manufacturing defects. You can extend the warranty to 36 months by returning the attached warranty
slip. Do not attempt to repair the suction apparatus without the consent of the manufacturer. The
warranty does not cover defects which are the result of normal wear and tear, negligence, defective
use, unauthorised repair or the suction apparatus being connected to the incorrect voltage.
In the event of any complaint, the suction apparatus or an agreed part of it must be returned to us or
our authorised representative for warranty examination and for any warranty repair or replacement.
Problem solving
The W 70 P is designed and manufactured for severe environments and tasks, but the user must notice
that the machine contents of components which must be protected from hits and blows. filter, sealings
connections are carefully chosen to serve the operator. Therefore must the machine be treated with
knowledge as to work correctly for many years.
Problem Cause Procedure
Motor doesn´t start No current Connect the machine
Defect cable Change
Defect switch Change
Motor stops immediately Wrong fuse Connect to proper fuse
Motor runs, but no suction Hose not connected Connect the hose
Hose blocked Clean the hose
Motor runs, but poor suction Hole on the hose Change hose
Blocked filter Change filter
Suction unit loose Adjust
Dirt in the hose or Clean the hose and intake
intake
Defect sealings Change current sealing
Dust is blowing from motor Defect or loose filter Adjust or change
Poor pumping The pump or tubes are Clean the pump
choked up
Abnormal noise Order service
TECHNICAL DATA
SAVE THESE INSTRUCTIONS!
To order go to Discount-Equipment.com

Technical data
W 70P
VOLTAGE/CURRENT 120 V / 10 A
POWER SUPPLY 1-phase
MOTOR POWER 1,2 kW / 1.6 HP
PUMP POWER 650 W
PUMP WATERLIFT 9 m /30 ft
PUMP DISCHARGE 260 l/min / 69 gal/min
AIRFLOW 200 m³/h / 118 CFM
VACUUM 22 kPa
VAC WATER LIFT 90 in
HOSE ∅38- 50mm
INLET ∅50mm
MAIN FILTER Filter surface 0.6m2
99.5%
DUST COLLECTION SYSTEM 70 l disp. bag
DIMENSION LxWxH 600x570x1250mm
WEIGHT 45 kg / 99 lbs
To order go to Discount-Equipment.com

Notes
______________________
______________________
______________________
______________________
______________________
______________________
______________________
To order go to Discount-Equipment.com

Original instructions
1158780-26, rev 2
2017-05-22
