Huvema HU 150 BGS User manual
GRINDINGMACHINES
HU 150 BGS
HU 200 BGS
HU 250 BGS
2CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED CHANGES AND TYPING ERRORS RESERVED
Table of conTenTs
Technical data 3

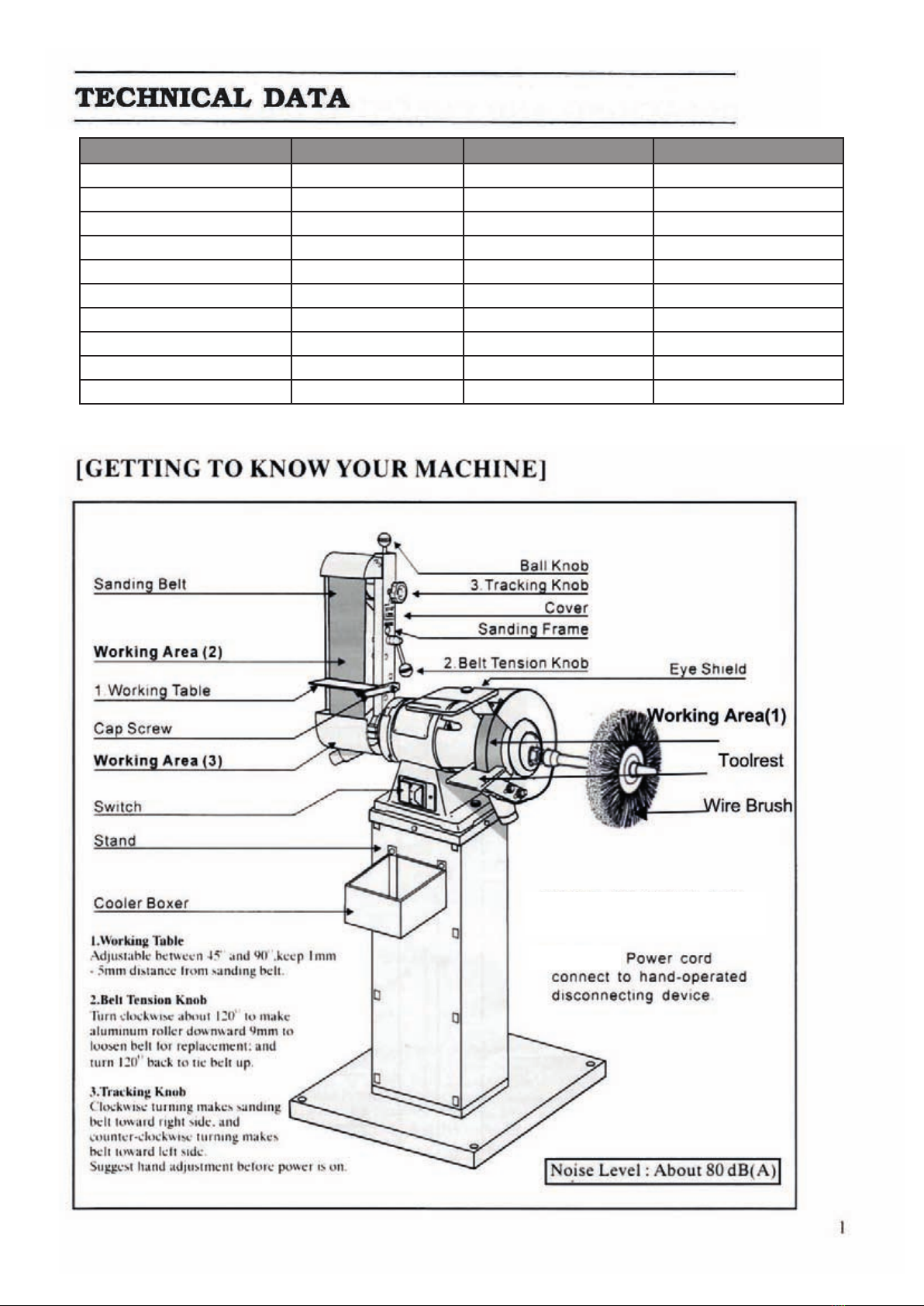

Getting to know your machine 3
Unpacking and checking list 4
Loose parts in rectangle box 4
Assembly chart - eyeshield and toolrest 6
Assembly chart - sanding belt device 7
Assembly chart - mop/buffer & wire brush 9
Grinding wheel’s replacement 10
About workstand 11
Diagrams and parts list 12-17
Handling of machine 18
Environment requirements for installation 18
Electrical connection/disconnection and operation 18
Electric circuit diagrams 19-21
3
CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED
HU 150 BGS HU 200 BGS HU 250 BGS
Grinding wheel 150x25x20 mm 200x25x20mm 250x38x25,4 mm
Sanding belt 50x1000 mm 100x1000 mm 100x1150 mm
Motor 1 phase, 230V, 50 Hz 3 phase, 400V, 50 Hz 3 phase, 400V, 50 Hz
Motor power 0,35 kW 0,7 kW 1,5 kW
Grinding wheel speed 2850 rpm 2850 rpm 2850 rpm
Sanding belt speed 900 m/min 900 m/min 1800 m/min
Steel brush 150x16x12 mm 200x20x12 mm n.a.
Polishing disc 125x16x12 mm 175x25x12 mm n.a.
Net weight, ca. 17 kg 28 kg 50 kg
Packaging dimensions 560x380x250 mm 600x460x340 mm 600x480x670 mm
4CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED CHANGES AND TYPING ERRORS RESERVED
5
CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED
6CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED CHANGES AND TYPING ERRORS RESERVED
7
CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED
8CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED CHANGES AND TYPING ERRORS RESERVED
9
CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED
10 CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED CHANGES AND TYPING ERRORS RESERVED
11
CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED
12 CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED CHANGES AND TYPING ERRORS RESERVED
Drawing anD parTs lisT HU 150 bgs
13
CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED
14 CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED CHANGES AND TYPING ERRORS RESERVED
Drawing anD parTs lisT HU 200 bgs
15
CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED
16 CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED CHANGES AND TYPING ERRORS RESERVED
Drawing anD parTs lisT HU 250 bgs
17
CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED
18 CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED CHANGES AND TYPING ERRORS RESERVED
19
CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED
HU 150 BGS HU 150 BGS
20 CHANGES AND TYPING ERRORS RESERVED
CHANGES AND TYPING ERRORS RESERVED CHANGES AND TYPING ERRORS RESERVED
HU 200 BGS HU 200 BGS
