Huvitz HCP-7000 User manual

-------------------------------------------------------------------- HCP-7000 Opreator’s Manual 1
Operator’s Manual
Chart Projector

2HCP-7000 Operator’s Manual -----------------------------------------------------------------------
IMPORTANT NOTICE
This product may malfunction due to electromagnetic waves caused by portable personal
telephones, transceivers, radio-controlled toys, etc. Be sure to avoid having objects such as,
which affect this product, brought near the product.
The information in this publication has been carefully checked and is believed to be entirely
accurate at the time of publication. HUVITZ assumes no responsibility, however, for possible
errors or omissions, or for any consequences resulting from the use of the information
contained herein.
HUVITZ reserves the right to make changes in its products or product specifications at any
time and without prior notice, and is not required to update this documentation to reflect such
changes.
© 2009 - 2010 HUVITZ Co., Ltd.
689-3, Geumjeong-dong, Gunpo-si, Gyeonggi-do,
435-862, Republic of Korea
All rights are reserved.
Under copyright laws, this manual may not be copied, in whole or in part, without the prior
written consent of HUVITZ Co., Ltd.

-------------------------------------------------------------------- HCP-7000 Opreator’s Manual 3
CONTENTS
1. Introduction……….....................................................................................................5
1.1. Outline of product..............................................................................................5
1.2. Classifications ...................................................................................................5
1.3 Cerfication…………………………………………………...………………………….6
1.4 EMS…………………………………………………………………………………….6
2. Safety Information…………………………………………………………………………….11
2.1. Introduction......................................................................................................11
2.2. Safety Symbols................................................................................................12
2.3. Environmental factors......................................................................................14
2.4. Safety Precautions ..........................................................................................15
3. Features……….. .....................................................................................................17
4. Notes for Using the Instrument................................................................................18
5. Configurations.........................................................................................................19
5.1. Main Body .......................................................................................................19
5.2. Main Body cont................................................................................................20
5.3. Accessories.....................................................................................................21
6. Installation…............................................................................................................22
6.1. Position of Chart Projector...............................................................................22
6.2. How to obtain correct Letter Size and focus (Zooming Type only)....................23
7. Input and Use of Program........................................................................................24

4HCP-7000 Operator’s Manual -----------------------------------------------------------------------
7.1. How to input user's program ............................................................................24
7.2. How to use your stored programs....................................................................25
8. Types of Chart (Type C is Standard)......................................................................26
9. Maintenance and Repair..........................................................................................27
9.1. Fuse Replacement...........................................................................................27
9.2. Remote contol batteries Replacement .............................................................28
9.3. Cleansing ........................................................................................................28
9.4. Disposal Information........................................................................................29
10. Specifications ..........................................................................................................30
11. Components List......................................................................................................31
11.1. Standard accessories.......................................................................................31
12. Service Information..................................................................................................32

-------------------------------------------------------------------- HCP-7000 Opreator’s Manual 5
1. Introduction
1.1. Outline of product
HUVITZ HCP-7000 is an automatic chart projector which provides 41 different charts
including red/green and polarized filters for the eye optometry. Users can select the
desired charts instantaneously by cordless remote controller. Charts move quickly and
quietly. The customized two programs will help you to perform more convenient and
effective examination. You can also execute the binocular balance tests, stereo tests,
fixation disparity tests, fusion tests and aniseikonia tests with HCP-7000. This
automatic chart project is compatible with HUVITZ digital refractor, HDR-7000.
1.2. Classifications
- Type of protection against electric shock: Class I Equipment
- Degree of protection against electric shock: No applied parts
- Degree of protection against the ingress of water: Ordinary
- Equipment not suitable for use in the presence of a flammable anesthetic mixture with air
or with oxygen or nitrous oxide.

6HCP-7000 Operator’s Manual -----------------------------------------------------------------------
1.3. Certification
1.4. EMS
Manufacturer’s declaration Manufacturer’s declaration -electromagnetic emission
The Model HCP-7000 is intended for use in the electromagnetic environment specified below. The customer or the user of
HCP-7000 should assure that it is used in such an environment
Emission test
Compliance
Electromagnetic environment - guidance
RF emissions CISPR 11
Group 1
The Model HCP-7000 uses RF energy only for its internal
function. Therefore. Its RF emissions are very low and are not
likely to cause any interference in nearby electronic
equipment
Class A
The Model Digital Refractor HCP-7000 is suitable for use in
all establishments other than domestic and those directly
connected to the public low-voltage power supply network
that supplies buildings used for domestic purposes.
Harmonics emission IEC
61000-3-2
A
Voltage fluctuation IEC 61000-
3-3
Complies

-------------------------------------------------------------------- HCP-7000 Opreator’s Manual 7
Manufacturer’s declaration - electromagnetic immunity
The Model HCP-7000 is intended for use in the electromagnetic environment specified below. The customer or
the user of the Model HCP-7000 should assure that it is used in such an environment
Immunity test
IEC 60601 Test level
Compliance level
ElectromagneticEnvironment -
guidance
Electrostatic
discharge (ESD)
IEC 61000-4-2
6 kV Contact 8 kV Air
6 kV Contact 8 kV Air
Floors should be wood, concrete or
ceramic tile. If floors are covered
with synthetic material, the relative
humidity should be at least 30%
Electrical fast
Transient / burst
IEC 61000-4-4
2kV for power supply
lines
2kV for power supply
lines
Mains power quality should be that
of a typical commercial or hospital
environment.
Surge IEC 61000-
4-5
1 kV differential mode 2
kV common mode
1 kV differential mode 2
kV common mode
Mains power quality should be that
of a typical commercial or hospital
environment.
Power frequency
(50/60Hz)
Magnetic field
IEC 61000-4-8
3.0 A/m
3.0 A/m
Power frequency magnetic fields
should be at levels characteristic of
a typical location in a typical
commercial or hospital
environment.
Voltage dips,
short Interruptions
and Voltage
variations on
power supply
input lines IEC
61000-4-11
<5% U т(>95% dip in
U т) for 0.5cycle
40% U т(60% dip in U т)
for 5 cycle
70% U т(30% dip in U т)
for 25 cycle
<5% U т(<95% dip in
U т) for 5 s
<5% U т(>95% dip in
U т) for 0.5cycle
40% U т(60% dip in U т)
for 5 cycle
70% U т(30% dip in U т)
for 25 cycle
<5% U т(<95% dip in
U т) for 5 s
Mains power quality should be that
of a typical commercial or hospital
environment. If the user of the
Model HCP-7000 requires
continued operation during power
mains interruptions, it is
recommended that the Model
HCP-7000 be powered from an
uninterruptible power supply or a
battery
NOTE: U тis the a.c. mains voltage prior to application of the test level.

8HCP-7000 Operator’s Manual -----------------------------------------------------------------------
The Model HCP-7000 is intended for use in the electromagnetic environment specified below. The customer or
the user of the Model HCP-7000 should assure that it is used in such an environment
Immunity test
IEC 60601 Test
level
Compliance level
Electromagnetic environment - guidance
Conducted RF
IEC 61000-4-6
3 Vrms 150 kHz to
80 MHz
3 Vrms 150 kHz to
80 MHz
Portable and mobile RF communications
equipment should be used no closer to any
part of the Model HCP-7000, including
cables, than the recommended separation
distance calculated from the equation
applicable to the frequency of the transmitter.
Recommended separation distance
Radiated RF
IEC 61000-4-3
3 V/m 80.0 MHz to
1.0 GHz
3 V/m 80.0 MHz to
1.0 GHz
Recommended separation distance 80 MHz
to 800 MHz 800 MHz to 1.0 GHz Where P is
the maximum output power rating of the
transmitter in watts (W) according to the
transmitter manufacturer and d is the
recommended separation distance in meters
(m). Field strengths from fixed RF
transmitters, as deter-mined by an
electromagnetic site survey, (a) Should be
less than the compliance level in each
frequency range (b). Interference may occur
in the vicinity of equipment marked with the
following symbol:
NOTE 1) U тis the A.C. mains voltage prior to application of the test level. NOTE 2) At 80 MHz and 800 MHz, the
higher frequency range applies. NOTE 3) These guidelines may not apply in all situations. Electromagnetic
propagation is affected by absorption and reflection from structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and
land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted
theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an
electromagnetic site survey should be considered. If the measured field strength in the location in which
the EUT is used exceeds the applicable RF compliance level above, the EUT should be observed to
verifynormal operation. If abnormal performance is observed, additional measures may be necessary,
such as re-orienting or relocating the EUT. b Over the frequency range 150 kHz to 80 MHz, field strengths
should be less than [V1] V / m.
Recommended Separation Distances Between Portable and Mobile RF Communications Equipment and
the HCP-7000 System.

-------------------------------------------------------------------- HCP-7000 Opreator’s Manual 9
The Model HCP-7000 system is intended for use in an electromagnetic environment in which radiated RF
disturbances are controlled. The user of the HCP-7000 system can help prevent electromagnetic interference
by maintaining a minimum distance between portable and mobile RF communications equipment
(transmitters) and the HCP-7000 system as recommended below, according to the maximum output power of
the communications equipment.
Rated maximum output
power (W) of transmitter
Separation distance (m) according to frequency of transmitter
150 kHz to 80 MHz
80 MHz to 800 MHz
800 MHz to 1.0 GHz
0.01
0.12
0.12
0.23
0.1
0.37
0.37
0.74
1
1.17
1.17
2.33
10
3.70
3.70
7.37
100
11.70
11.70
23.30
For transmitters rated at a maximum output power not listed above, the recommended separation distance (d)
in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is
the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1: At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies NOTE 2:
These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and
reflection from structures, objects, and people.
Immunity and Compliance Level
Immunity test
IEC 60601 Test Level
Actual Immunity Level
Compliance Level
Conducted RF IEC
61000-4-6
3 Vrms 150 kHz to 80
MHz
3 Vrms
3 Vrms
Radiated RF IEC 61000-
4-3
3 V/m 80 MHz to 1.0
GHz
3 V/m
3 V/m

10 HCP-7000 Operator’s Manual -----------------------------------------------------------------------
Guidance and manufacturer’s declaration - electromagnetic immunity
The Model HCP-7000 is intended for use in the electromagnetic environment specified below. The customer
or the user of the HCP-7000 should assure that it is used in such an environment
Immunity
test
IEC 60601
Test level
Compliance
level
Electromagnetic environment -guidance
Conducted
RF IEC
61000-4-6
3 Vrms
150 kHz to
80MHz
3 Vrms 150
kHz to 80
MHz
The HCP-7000 must be used only in a shielded location with a
minimum RF shielding effectiveness and, for each cable that
enters the shielded location with a minimum RF shielding
effectiveness and, for each cable that enters the shielded
location
Radiated
RF IEC
61000-4-3
3 V/m 80.0
MHz to 2.5
GHz
3 V/m 80.0
MHz to 2.5
GHz
Field strengths outside the shielded location from fixed RF
transmitters, as determined by an electromagnetic site survey,
should be less than 3V/m.a Interference may occur in the
vicinity of equipment marked with the following symbol:
NOTE 1) These guidelines may not apply in all situations. Electromagnetic propagation is affected by
absorption and reflection from structures, objects and people. NOTE 2) It is essential that the actual shielding
effectiveness and filter attenuation of the shielded location be verified to assure that they meet the minimum
specification.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and
land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted
theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an
electromagnetic site survey should be considered. If the measured field strength outside the shielded location
in which the EUT is used exceeds 3V/m, the EUT should be observed to verify normal operation. If abnormal
performance is observed, additional measures may be necessary, such as relocating the EUT or using a
shielded location with a higher RF shielding effectiveness and filter attenuation.

-------------------------------------------------------------------- HCP-7000 Opreator’s Manual 11
2. Safety Information
2.1 Introduction
Safety is everyone’s responsibility. The safe use of this equipment is largely
dependent upon the installer, user, operator, and maintainer. It is imperative that
personnel study and become familiar with this entire manual before attempting to
install, use, clean, service or adjust this equipment and any associated accessories. It
is paramount that the instructions contained in this manual are fully understood and
followed to enhance safety to the patient and the user/operator. It is for this reason
that the following safety notices have been placed appropriately within the text of this
manual to highlight safety related information or information requiring special
emphasis. All users, operators, and maintainers must be familiar with and pay
particular attention to all Warnings and Cautions incorporated herein.
“Warning ”indicates the presence of a hazard that could result in severe personal injury,
death or substantial property damage if ignored.
NOTE
“Note”describes information for the installation, operation, or maintenance of which is
important but hazard related if ignored.
“Caution”indicates the presence of a hazard that could result in minor injury, or
property damaged if ignored.
!
WARNING
!
CAUTION

12 HCP-7000 Operator’s Manual -----------------------------------------------------------------------
2.2 Safety Symbols
The International Electrotechnical Commission (IEC) has established a set of symbols
for medical electronic equipment, which classify a connection or warn of any potential
hazards. The classifications and symbols are shown below.
2.2.1. Save these instructions
I and O on the power switch represent ON and OFF
respectively.
Signal Input/Output Connection.
This symbol identifies a safety note. Ensure you
understand the function of this control before using it.
Control function is described in the appropriate User’s
or Service Manual.
Manufactured by xxxx (year).
Identifies the point where the system safety ground is
fastened to the chassis. Protective earth connected to
conductive parts of Class I equipment for safety
purposes.

-------------------------------------------------------------------- HCP-7000 Opreator’s Manual 13

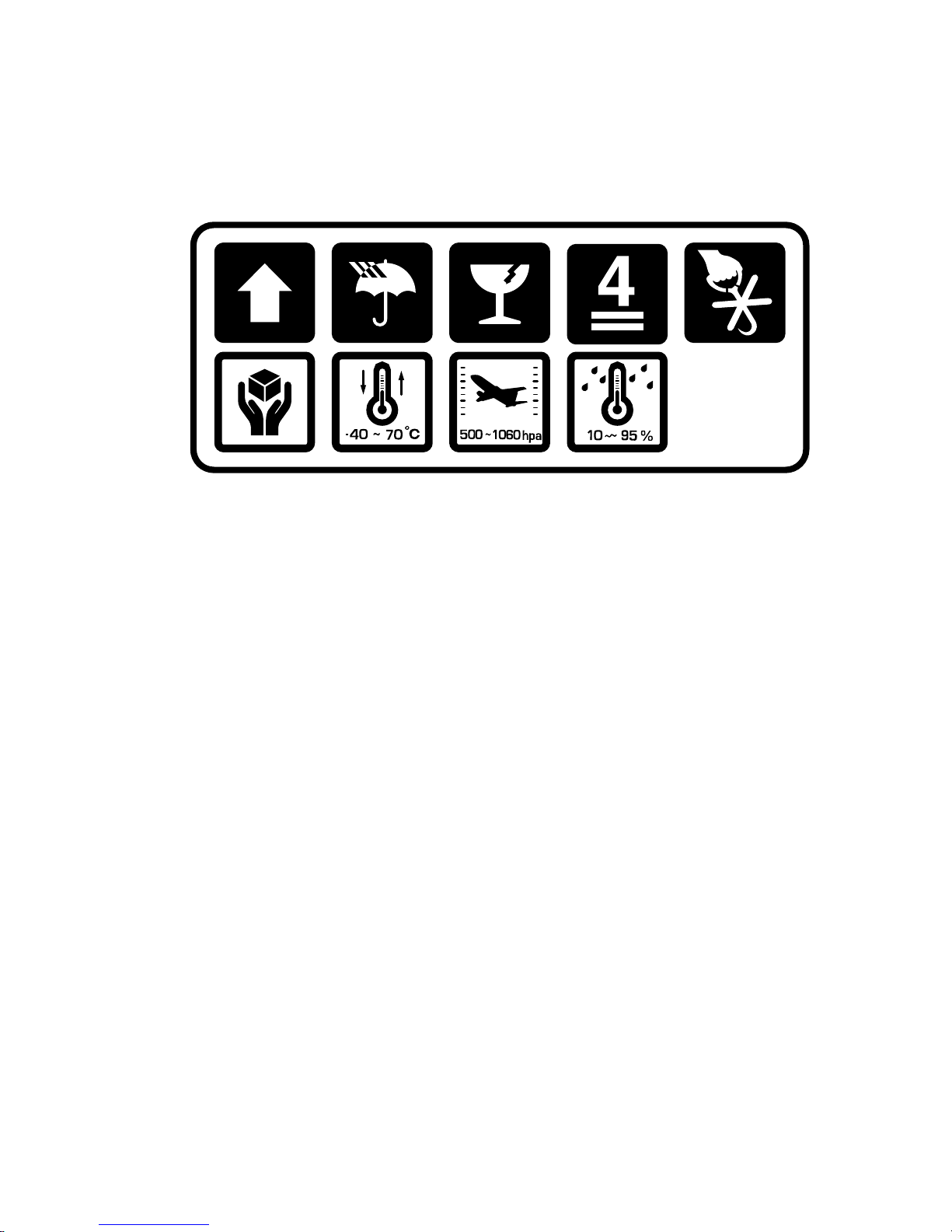

2.2.2. Shipping Mark
1 2 3 4 5
6 7 8 9
1. THIS SIDE UP
2. KEEP DRY
3. FRAGILE
4. DO NOT LOAD 4th
5. USE NO HOOK
6. DO NOT THROW
7. THE AMBIENT TEMPERATURE -40℃TO 70℃
8. THE ATMOSPHERE PRESSURE 500 TO 1060hPa
9. THE HUMIDITY 10 TO 95%

14 HCP-7000 Operator’s Manual -----------------------------------------------------------------------
2.3 Environmental factors
Avoid the following environments for operation or storage:
Where the equipment is exposed to water vapor.
Don’t operate an equipment with a wet hand.
Where the equipment is exposed to direct sunlight.
Where the temperature changes extremely.
Normal operating temperature range is from 10℃
to 40℃, Humidity is from 30% to 75%.
Where it is near the heat equipment.
Where the humidity is extremely high or there is a ventilation
problem.
Where the equipment is subject to excessive shocks or
vibrations.
Where equipment is exposed to chemical material or
explosive gas.
Be careful not to be inserted dust, especially, metal

-------------------------------------------------------------------- HCP-7000 Opreator’s Manual 15
Avoid places where the ambient temperature falls below 10℃or exceeds 40℃for
normal operation, or below -10℃or exceeds 40℃(14℉-104℉) for transportation
and storage. Humidity should be maintained between 30 and 75% for normal
operation, transportation and storage. Atmospheric pressure should be maintained
between 500 to 1060hPa for normal operation, transportation and storage. Avoid
environments where the equipment is exposed to excessive shocks or vibrations.
2.4 Safety Precautions
This equipment has been developed and tested according to national as well as
international safety standards. This guarantees a very high degree of safety for this
device. The correct handling of this equipment is imperative for its safe operation.
Therefore, please read carefully all instructions before switching on this device. For
more detailed information, please contact our Customer Service Department or one of
our authorized representatives.
1. This equipment must not be used (a) in an area that is in danger of
explosions and (b) in the presence of flammable, explosive, or volatile
solvents such as alcohol, benzene or similar chemicals.
2. Do not put or use this device in humid rooms. Humidity should be
maintained between 30 and 75% for normal operation. Do not expose the
device to water splashes, dripping water, or sprayed water. Do not place
containers containing fluids, liquids, or gases on top of any electrical
equipment or devices.
3. The equipment must be operated only by, or under direct supervision of
a properly trained and qualified person.
4. Customer maintenance of this equipment may only be performed as
stated in the User’s Manual. Any additional maintenance may only be

16 HCP-7000 Operator’s Manual -----------------------------------------------------------------------
performed by HUVITZ service technicians or other authorized persons.
5. The manufacturer is only responsible for effects on safety, reliability,
and performance of this equipment when the following requirements are
fulfilled: (1) The electrical installation in the respective room
corresponds to the specifications stated in this manual and (2) This
equipment is used, operated, and maintained according to this manual.
6. The manufacturer is not liable for damage caused by unauthorized
tampering with the device(s). Such tampering will forfeit any rights to
claim under warranty.
7. Only persons who have undergone proper training and instructions are
authorized to install, use, operate, and maintain this equipment.
8. Keep the User’s Manual in a place easily accessible at all times for
persons operating and maintaining the equipment.
9. Please do not pull on any cable. Always hold on to the plug when
disconnecting cables.
10. Before every operation, visually check the equipment for exterior
mechanical damage(s) and for proper function.
11. Do not cover any ventilation grids or slits.

-------------------------------------------------------------------- HCP-7000 Opreator’s Manual 17
3. Features
Bright (LED), high quality images
Quiet, instantaneous chart selection
41 different charts including: red/green and polarizing filters, binocular
balance tests, stereo tests, fixation disparity tests, fusion tests and Aniseikonia tests.
34 Masks (vertical line, horizontal line, and single character)
2.5 ~ 8 m (8 ~ 26 feet) projection range
Cordless Remote Control
User Programmable (2 programs up to 30 charts each)
Easily networked with HUVITZ’s Digital Refractor

18 HCP-7000 Operator’s Manual -----------------------------------------------------------------------
4. Notes for Using the Instrument
Do not hit or drop the instrument. The instrument may be damaged if it
receives a strong impact. The impact can damage the function of this
instrument. Handle it with care.
Exposure to direct sunlight or very bright indoor lights can influence the
results of measurements.
If you want to connect this with other equipment, consult the dealer.
Sudden heating of the room in cold areas will cause condensation of vapor
on the protective glass in the measurement window and on optical parts
inside the instrument. In this case, wait until the condensation disappears before
performing measurements.
Keep the objective glass of the examinee side clean. If it is stained with other
substances or a fingerprint, it may cause an error or inaccurate measurements.
Disconnect the power supply and consult the dealer when there is smoke,
strange odors, or noise while working.
Don’t use organic solution such as alcohol, thinner, benzene, etc. to clean
the surface of this instrument. It may damage the instrument.
When moving the HCP-7000, always make sure the power supply is off, and then lift
the bottom of the unit with both hands.
If you leave the HCP-7000 without using it for long periods, disconnect the power
supply and protect the unit with dust cover.

-------------------------------------------------------------------- HCP-7000 Opreator’s Manual 19
5. Configurations
5.1 Main Body
The HCP-7000 Chart Projector is mainly composed of the body, stand, screen and
remote control.
[Fig. 1 Front View with Remote Control]
1
2
1. Projection lens 2. IR receiving window
3. Stand (table mount) 4. Wireless remote control
