Hybrid Energies HE-22 User manual

HE-22 1
Model: HE-22
Gas/Elecrical Fired Heater
USERS’ INSTALLATION
OPERATION and
MAINTENANCE MANUAL
Hybrid Energies Inc.
12285 Cardinal Street, Mission
BC V4S1L3, Canada
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference.
This appliance may be installed in an aftermarket
permanently located, manufactured home (USA
only) or mobile home, where not prohibited by local
codes.
This appliance is only for use with the type
of gas indicated on the rating plate. This appliance
is not convertible for use with other gases, unless a
certified kit is used.
*Conversion kit required for Propane use
Tested and listed
by
LABTEST Certification Inc
Delta, British Columbia
ANSI Z21.88-2019 / CSA 2.33-2019,
CSA 2.17-2017 CAN/CSA P.4.1-15
Electrical listings:
CSA-C22.2 No. 46-13 (R2018)
UL 2021 “Fixed and Location-Dedicated Electric Room Heaters”
SERIAL NUMBERS 1001 AND HIGHER
HYBRID ENERGIES A.T. Inc

INTRODUCTION
Congratulations on choosing a Hybrid Energies patented heating appliance.
The HE-22 is one of the most advanced Power Vented Gas heaters available today. It is solidly designed
using the latest technology and manufactured to the highest quality. It is our aim to provide you with an
appliance for many trouble-free years of reliable service.
Some of the many features of your HE-22 are:
• Heater Classification The HE-22 is classified as a fireplace heater and furnace.
• Multi Zone Heating It uses the latest safety technology and is suitable for continuously
operated zone heating.
• Safe Touch Front The front surface is safe to touch for all your family.
• Hybrid Gas/Electric Choose between electric and gas heating.
• High Efficiency The HE-22 has one of the highest efficiency ratings, making it
• less expensive to operate.
• Adjustable Flame The flame aesthetics and heat output can be adjusted to suit
the owner’s liking and heating needs.
• Solid Construction Firebox constructed of stainless steel and aluminized coated
steel for long life and durability.
• Optional Accessories Check with your Authorized Hybrid Energies Dealer for optional
accessories to suit your home’s décor and your tastes.
• Electronic Control System The HE-22 uses a gas control valve that is operated by a
multifunction remote control. It can be used as either an
Intermittent Pilot or Standing Pilot system. (See page 31 for
information regarding this system)
Fireplace Model Number HE-22
Fireplace Serial Number
Date of Installation
Type of Gas Used by the Heater NGas Propane
Dealer’s Name

TABLE OF CONTENTS
PAGE No.
 Caution and Safety warnings 4
 Certification and code requirements 5
 Manufactured Home or Mobile Home 6-7
 Specifications / Rating label 8
 Appliance Dimensions 9
 Appliance Description 10
 Unpacking & Instruction Road Map 11
 Attaching Air Circulating Pipes 12
 Installation / Framing 13
 Installation / Top Bottom Glass 14
 Installation / Side Panels 15-16
 Installation / Circulating Ducts 17
 Venting clearances / Installation 18-19

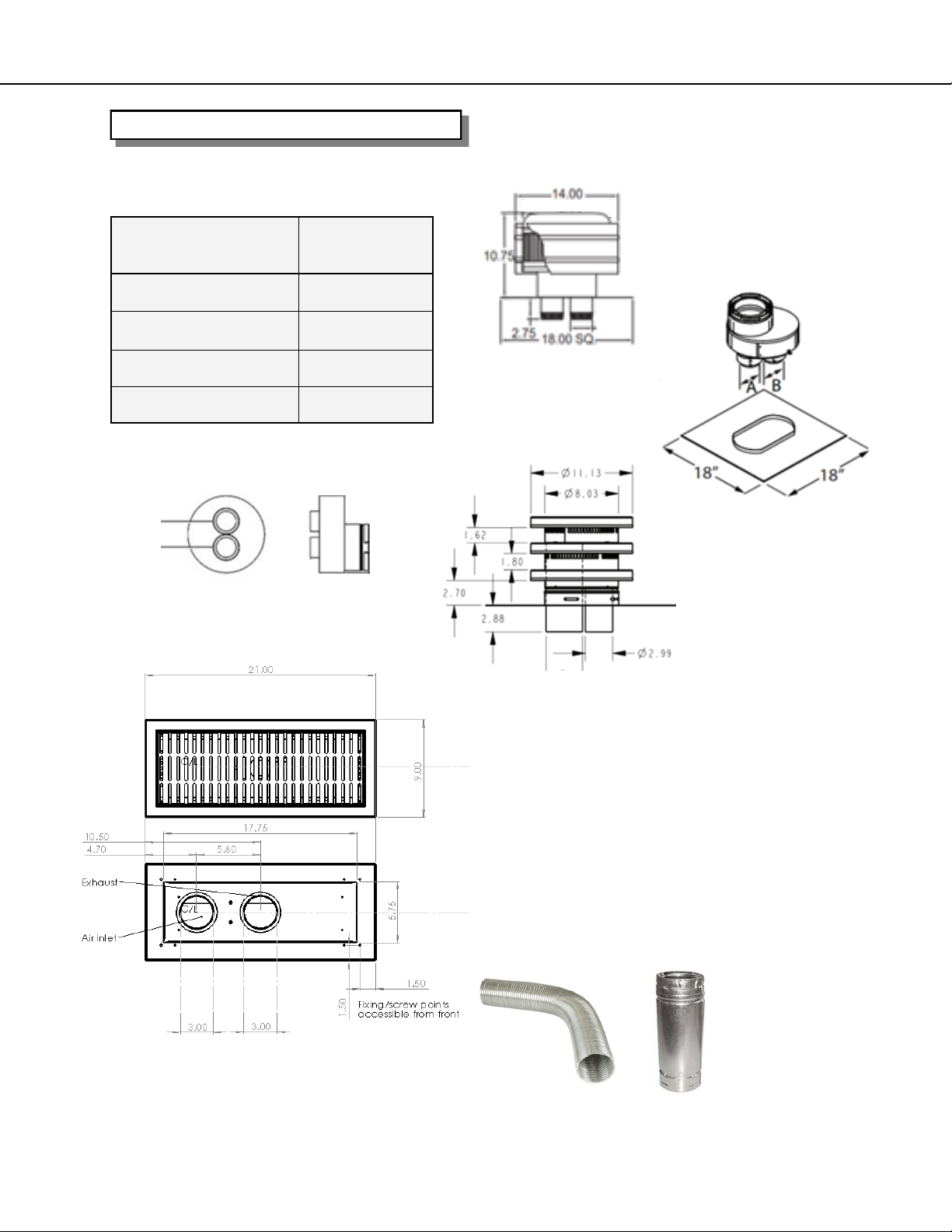

 Venting Components 20
 Vertical Venting and Clearances 21
 Vent Chart 22
 Vent Pipe Clearances 23
 Rear Vent Installation 24-25
 Air Circulating pipes Installation 26
 Gas Connection 27
 Electrical Connections 28
 Final Installation check 29
 First Fire 30
PAGE No.
 Lighting Instructions / Label 31
 Rating label 32
 Checking inlet and outlet pressure 33
 Front Glass removal 34
 Switchable Glass removal (optional) 35
 Mid Glass removal 36
 Firebox Door removal 37
 SIT Remote Control operation 38-41
 Gas Electrical Circuit 42
 Electrical Circuit Diagram 43
 Maintenance 44
 Servicing under warranty 45
 Operational Flow Chart 46
 Fault Finding chart 47
 Parts List 48
 Frequently ask questions 49
 Note sheet 50
 Warranty 51
 Warranty Registration 52

HE-22 4
Due to high temperatures, the appliance should be located out of traffic and away from furniture
and draperies.
Children and adults should be alerted to the hazards of high surface temperature and stay
away to avoid burns or clothing ignition.
Young children should be carefully supervised when they are in the same room as the
appliance. Toddlers, young children and others may be susceptible to accidental contact
burns. A physical barrier is recommended if there are at risk individuals in the house. To
restrict access to a fireplace or stove, install an adjustable safety gate to keep toddlers, young
children and other at risk individuals out of the room and away from hot surfaces.
Clothing or other flammable material should not be placed on or near the appliance.
Do not operate with cracked or broken glass. Be careful not to strike or slam the glass.
Never use abrasive cleaners or clean when hot.
Any safety screen or guard removed for servicing an appliance must be replaced prior to
operating.
Installation and Repair should be done by a qualified service person. The appliance should be
inspected before use and at least annually by a professional service person. More frequent
cleaning may be required due to excessive lint from carpeting, bedding materials, etc. It is
imperative that the control compartments, burners and circulating air passageways of the
appliance are kept clean.
Periodic examination of venting systems by a qualified agency.
Do not use this appliance if any part has been under water. Immediately call a qualified service
technician to inspect the appliance and to replace any part of the control system and any gas
control which has been under water.
FOR YOUR SAFETY - Do not install or operate your HE-22 without reading and understanding
this manual. Any installation or operational deviation from this instruction manual voids the
Hybrid Energies Warranty and may prove hazardous.
This appliance must be installed by a qualified gas installer and the installation must conform to
the installation codes.
Provide adequate clearance around air openings for combustion and ventilation air.
Never obstruct front openings.
Provide adequate clearances for proper operation and servicing of the appliance.
This appliance must be properly connected to an approved venting system and must not be
connected to a chimney flue serving a separate solid fuel burning appliance.
Must provide adequate clearance around the intake and exhaust openings
CAUTION SAFETY

HE-22 5
This appliance was listed by LABTEST Certification Inc to the following USA and Canadian gas
appliance standards.
• ANSI Z21.88-2019 / CSA 2.33-2019 Vented Gas Fireplace Heaters.
• CSA-C22.2 No. 46-13 (R2018) "Electric air-heaters".
• UL 2021 “Fixed and Location-Dedicated Electric Room Heaters.
• CSA 2.17-2017 – Gas-Fired Appliances for Use at High Altitudes.
• CAN/CSA P.4.1-15 – Testing Method for Measuring Annual Fireplace Efficiency.
The listing label is attached to the appliance on the front fan housing.
Please contact Hybrid Energies A.T. Inc., if you have any questions regarding the certification
of this appliance.
Electrical equipment and wiring supplied on this appliance is in compliance with the
applicable clauses of the Standard for Electrical Features of Fuel Burning Equipment,
CSA C22.2 No. 3.
This vented gas fireplace may be installed in a bedroom or bedsitting room when
installed with a certified thermostat and automatic ignition system.
APPLIANCE CERTIFICATION
INSTALLATION CODES
This appliance must be installed by a qualified gas appliance installer. The installation must
conform with the local codes or, in the absence of local codes, with the current National Fuel
Gas Code ANSI Z223.1/ NFPA 54 in the US, or Installation Code CAN/CGA-B149.1 in Canada.
Electrical connections and grounding must conform with local code, or current National
Electrical code ANSI/NFPA No. 70-1987 in the US, and in Canada the current Canadian
Electrical Code CSA C22.1.
A manufactured home (USA only) or mobile home OEM installation must conform with the
Manufactured Home Construction and Safety Standard, Title 24CFR, Part 3280, or, when such
a standard is not applicable, the Standard for manufactured Home Installations, ANSI/NCSBCS
A225.1 or Standard for Gas Equipped Recreational vehicles and Mobile Housing, CSA Z240.4
We recommend that our gas hearth products be installed and serviced by professionals
who are certified in the U.S. by the National Fireplace Institute®(NFI) as NFI Gas
Specialists.
HIGH ALTITUDE INSTALLATION
When installing this appliance beyond 4500 ft. (1372 M) above sea level, the appliance must
be properly de-rated and installed according to local codes. In the absence of local codes in
accordance with the current National Fuel Gas Code, ANSI Z223.1/ NFPA 54 in the US, or
Installation Code, CAN/CGA-B149, in Canada.

HE-22 6

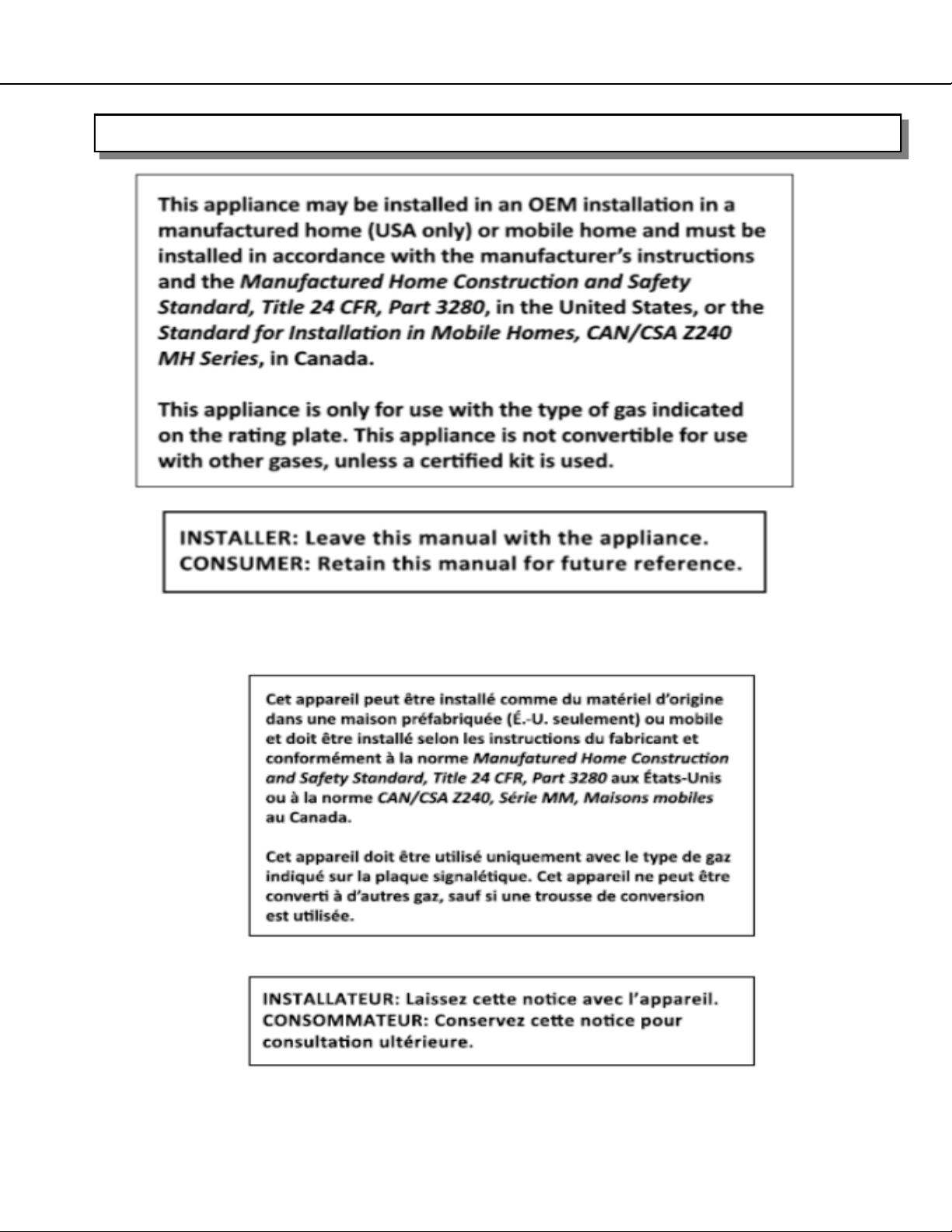

APPLIANCE FOR INSTALLATION IN MANUFACTURED OR MOBILE HOME
Note: If this appliance is intended for mobile home, manufactured home
or recreational vehicle please contact your dealer for the appropriate
conversion kit

HE-22 7
APPLIANCE FOR INSTALLATION IN MANUFACTURED OR MOBILE HOME (CONTINUED)

HE-22 8
SPECIFICATIONS
NG LPG
Input rating / Entrée assignée 10,000—15,500btu (3.0—4.5kw) 12,700—15,500btu (3.7—4.5kw)
Manifold pressure / Pression d’admission 3.5”. W.C. (0.9 kPa) 10” W.C. (2.5 kPa)
Orifice size - Center/ Dimension de l’orifice
Orifice size - Outside/ Dimension de l’orifice 48# DMS (mm ) 48# DMS (mm ) 60# DMS 60# DMS
Minimum supply pressure for purpose of input
adjustment / Pression minimale d’alimentation
pour le but d'ajustement de contribution 5 in. W.C. (1.24 kPa) 11.0 in. W.C. (2.8 kPa)
Control valve / La soupape contrôle: SIT Proflame 2 SIT Proflame 2
Altitude / Elevation 0 - 4500 ft (0 - 1372 m) 0 - 4500 ft (0 - 1372 m)
Electrical rating / Tension électrique 120 VAC, 60 Hz, 0.64A 120 VAC, 60 Hz, 0.64A
Electrical rating / Tension électrique 240ac, 60 Hz, 13A 3.Kw 240ac, 60 Hz, 13A 3.Kw
Keep burner and control compartment clean. See
Instructions accompanying the heater. Maintenir
propres le brûleur et le compartiment de com-
mande. Voir les instructions relatives à l’installa-
tion et au fonctionnement qui accompagnent le
radiateur.
Optional fuel conversion kit : HE-P-16
Minimum clearances to Combustibles / Distances:
Minimales entre l’appareil et les combustibles:
Ceiling / Plafond: 0” (0 mm)
Floor / Plancher: 2”(51 mm)
Adjacent Side Wall/Paroi latérale adjacent: 0” (0 mm)
Mantle: 2” (51 mm)
See Owner’s Manual for additional clearances
Clearances are measured from the edge of the firebox
door unless otherwise noted.

HE-22 9
APPLIANCE DIMENSIONS
4.00
All dimension are shown in inches

HE-22 10
Ducted warm air
(4x 4.00” outlets)
Combustion air
inlet Combustion exhaust
Circulating fan
Glass viewing
area
Ignition module
Gas valve
Heat
exchanger
Combustion
fan
Circulating room air inlet
DO NOT OBSTRUCT
MAINTAIN 2.00” CLEARANCE
APPLIANCE DESCRIPTION
Top View
Bottom
Wall mount rails

HE-22 11

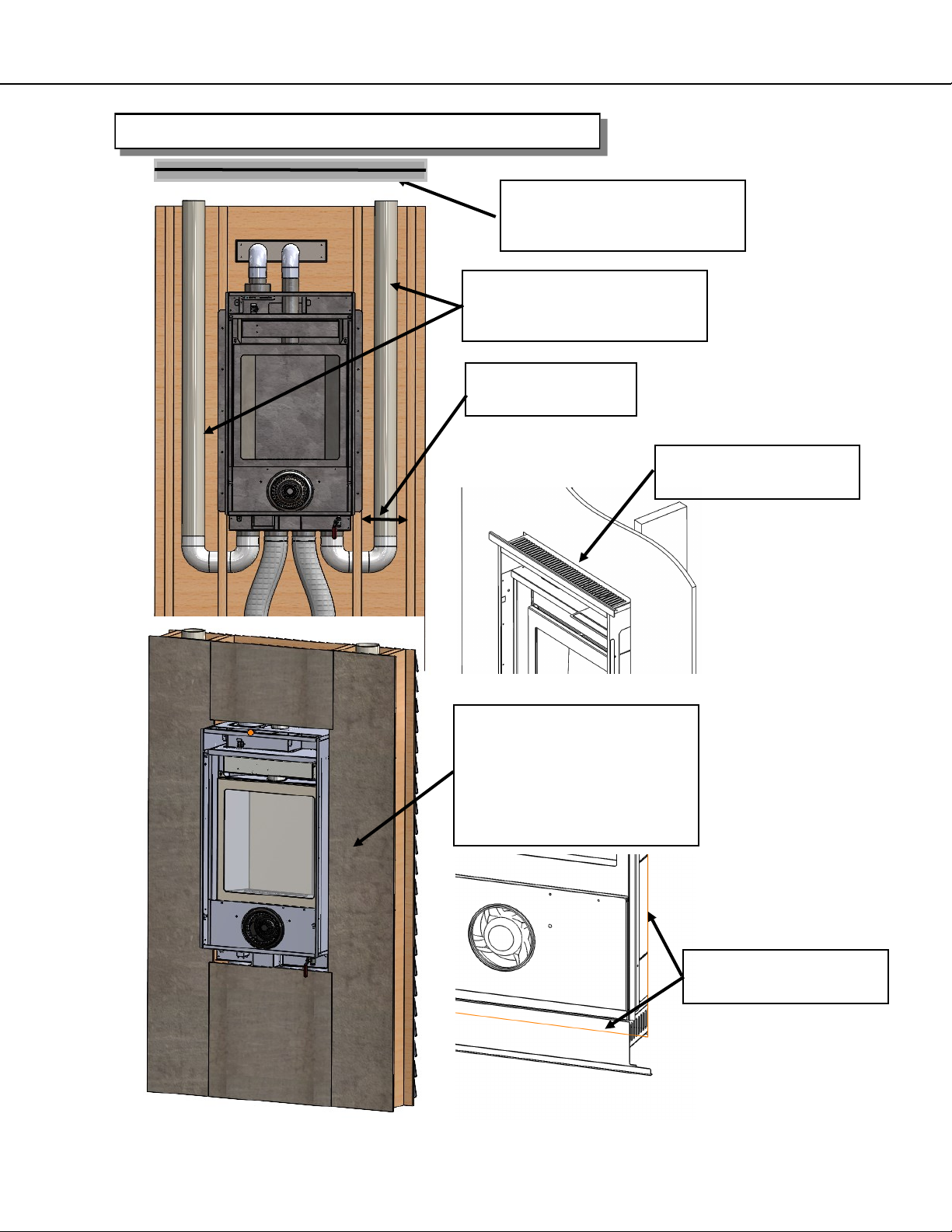

Installers unpacking and installation road map

HE-22 12

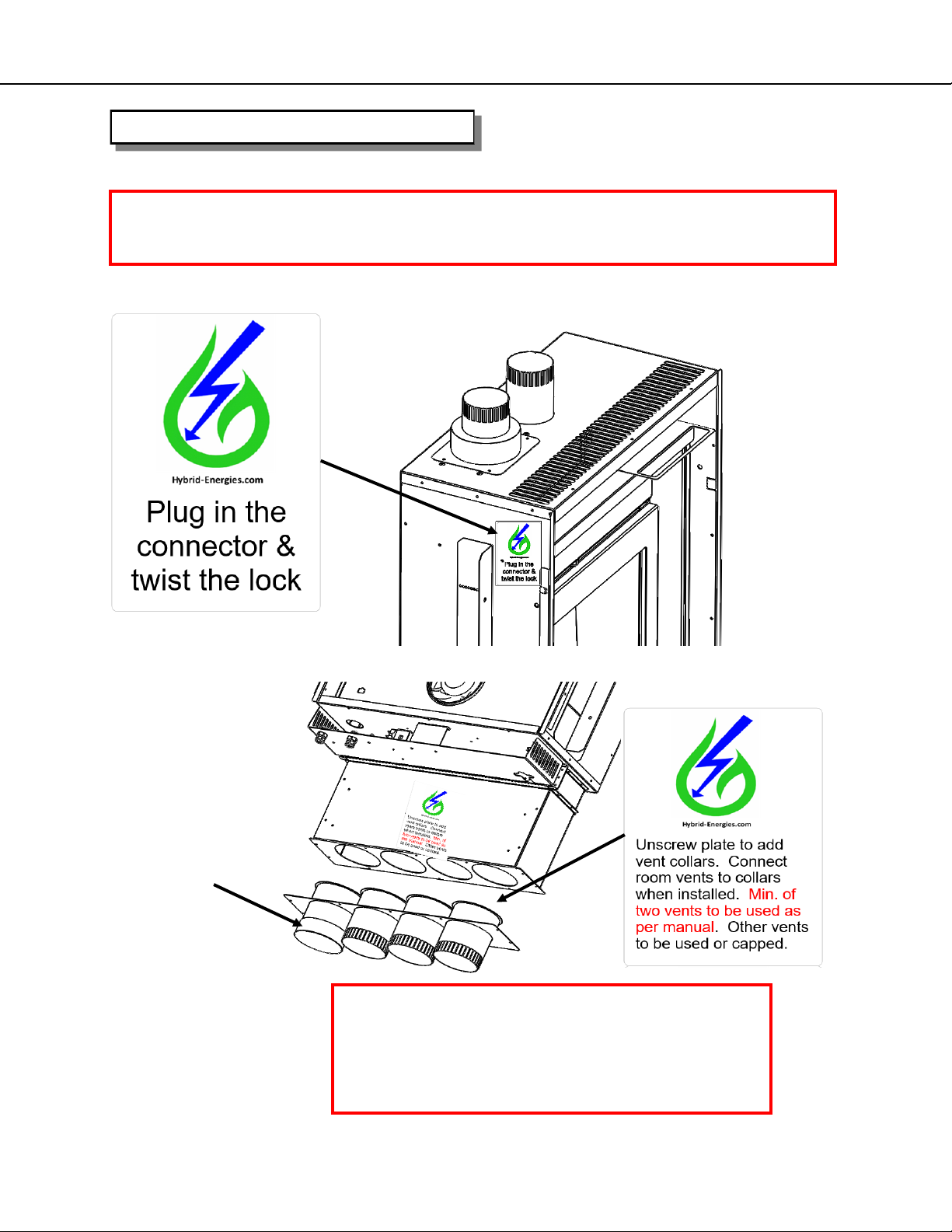

Attaching air circulating pipes
WARNING
Before mounting the unit into the wall the top combustion plug must be connected and
the four outlet pots attached
WARNING
To prevent overheating of the HE-22 a minimum of
20sq” must left open at all times.
Failure to do this may result in damage to compo-
Remove label and
Cap any outlets

HE-22 13

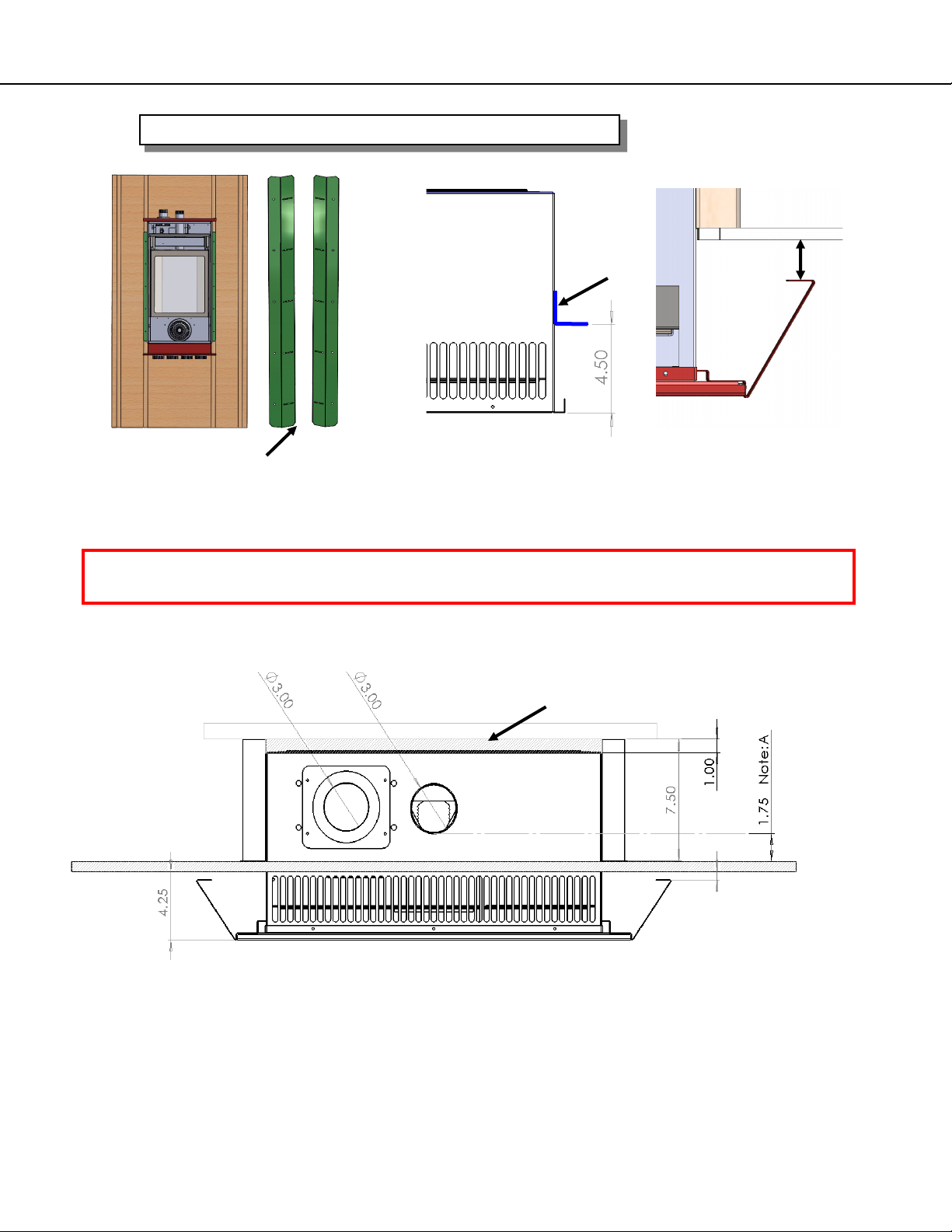

Installation Instructions / Framing (24” 2X8 studs shown as example
Chase Clearances:
The model HE-22 is zero clearance to combustibles
A. Minimum Chase width (24” stud center). 22.50”
B. Minimum boxed opening for air circulating pipes (optional for additional heat zones). 6.00” *
C. Minimum clearance from top of case heater to top enclosure. 2.00”
D. Minimum clearance from bottom of case heater to bottom enclosure. 12.00”
E. Minimum clearance from back of case heater to back enclosure. 0.00”
F. Minimum chase depth. 7.50”
G. Minimum clearance from side of unit to stud. 0.00”
Note:
Framing including additional supports to be constructed as required by local building code(s) and good
construction practice.
*Optional chase for zoned warm air circulating pipes.
E
F
G
A
B
F
0.00
0.00”
5.50”
C
D

HE-22 14

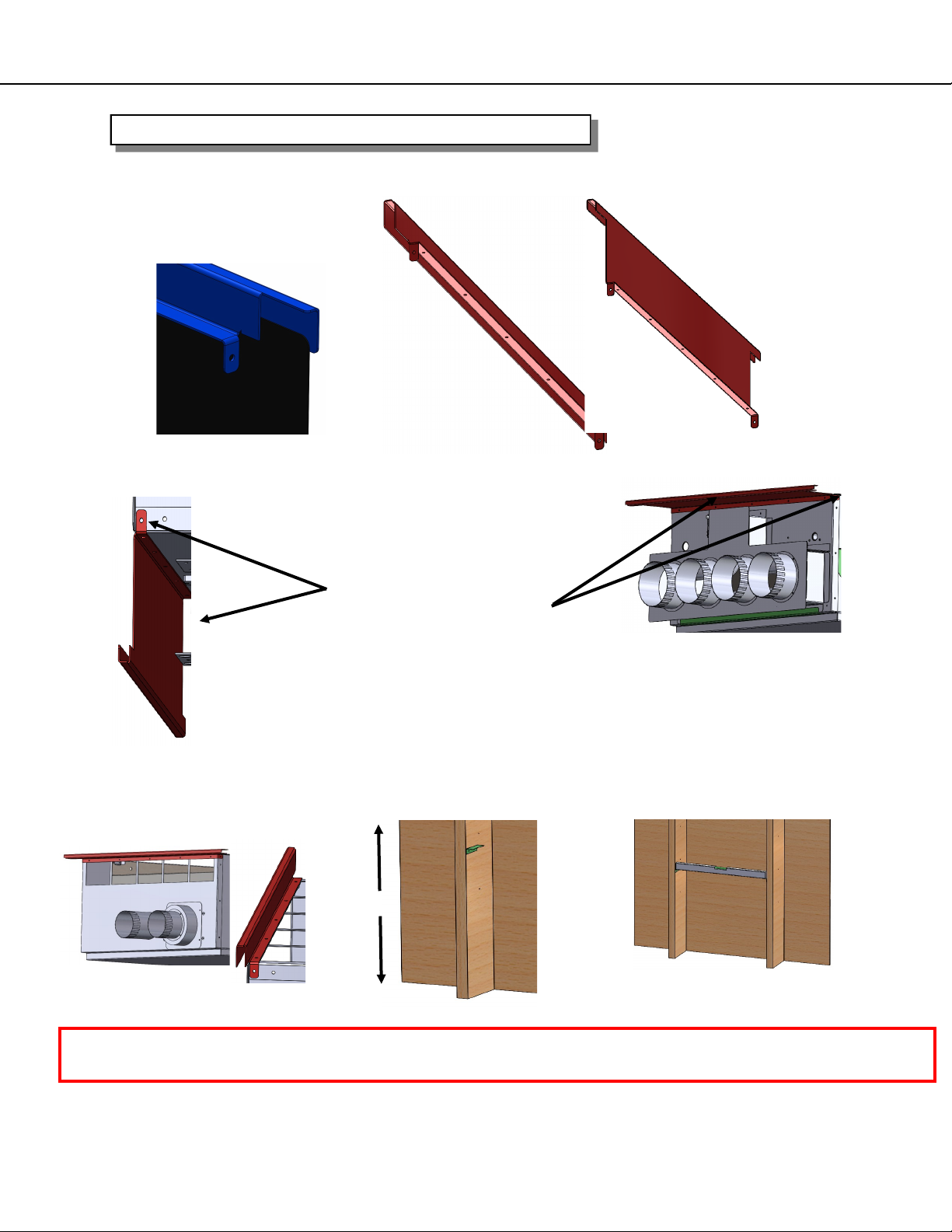

Installation Instructions (Top & bottom glass rail)
Bottom glass
rail
Attach top front glass support
with screws
provided (5 x top, 2 x sides)
X
X = Desired height of unit from floor
(bottom of glass holder). Recommend
34.00” for optimal viewing.
Use a spirit level to verify
bottom support brackets
are level
Top front glass support
Attach bottom glass
support with screws provided
(5 x bottom, 2x side)
Top glass
rail
Glass located
into rail
Note: All screws required to mount the top and bottom glass rails can be found attached
to the unit as shipped

HE-22 15
0.50

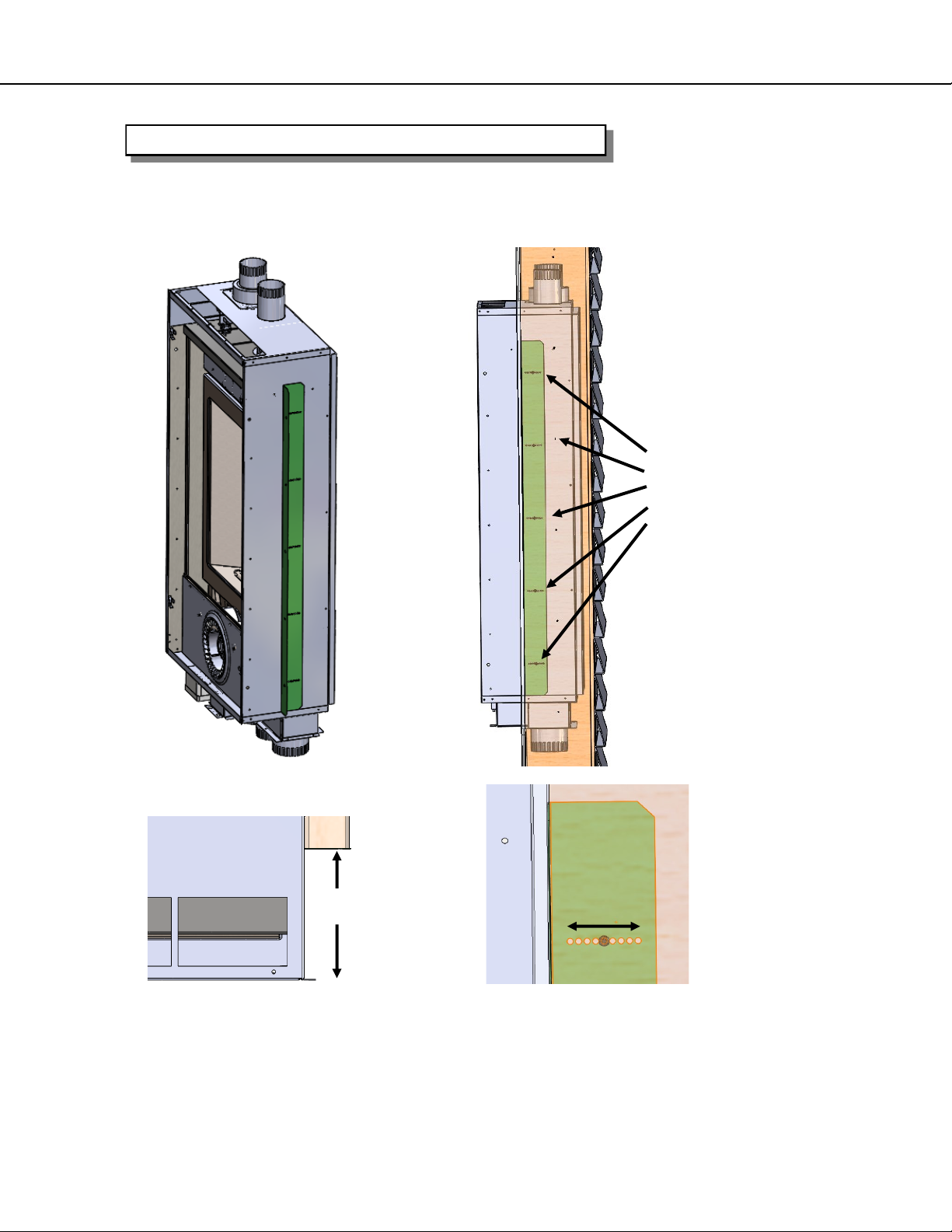

Installation Instructions (Side rail installation)
Side rails Typical side rail fitment for 2x8 wall cavity with 5/8” dry wall.
(using middle hole on side brackets)
Notes
A: Maintain minimal distance to combustibles of 1.00” to exhaust.
B: Side panels recommended gab at 0.5” (may be tight to wall if re-
Insulation panel
Unit may be installed into 2x6” wall. If this reduces the clearance to the exhaust
pipe than non-combustible material must be used until vent set back
re-introduces 1:00” clearance.
Please observe local code requiring insulation.
Attach Side
rails
Note: All screws required to mount the 2 x side rails can be found attached to the unit
as shipped
Note ‘A”
Note ‘B’

HE-22 16
4.50 1.5”
Attach side support
brackets with 5 x screws
each side.
Using the middle hole in the bracket will set the unit to the
correct depth in a standard 2 x 8” stud (7.50” cavity
depth).
Adjustment is provided to allow for variations in cavity
depth and/or wall finishes.
Top View
Recommended depth from
finished surface.
Installation Instructions (Side rail installation)

HE-22 17
Installation Instructions Framing Circulating Ducts
4” insulated air circulating ducts.
Zero clearance to combustibles
Note: Header across outer beams
for support above circulating
ducts.
6” chase for circulating
ducts
Wall surface maybe constructed of
combustible material as long as
clearance maintained to exhaust
outlet of 1.00”
Unit must be installed into framed
chase before wall surface applied.
Do not obstruct top air inlet
grill with wall covering
Maintain 1/4” clearance with
wall covering around unit

HE-22 18
Venting Clearances and Installation

HE-22 19
Venting Clearances and Installation
4.00in (4cm)
See local code
Zero
Zero Zero
Zero
See local code
See local code
See local code
4.00in (4cm)

HE-22 20
Make Model
Metalfab 4DVT33FX
Duravent 46DVA—GK
Amerivent 4DCAT33
Selkirk 4DT-33IK35
Selkirk
2.9”
Dura-vent
2.9”
Metalfab
Ameri-vent
3.0”
Vent piping
Any certified solid pipe ‘B” Vent may be used or the
following 3” 2 ply flex pipe:
• Selkirk 3” Flexi liner.
• Duravent 3” duraflex liner
• Ecco Heating 3” flex liner.
• Amerivent 3” ALK liner.
Exhaust Venting Components
Vertical termination
Horizontal termination
HORIZONTAL TERMINATIONS
For horizontal termination, only the
HE-B-100 horizontal
termination must be used.
