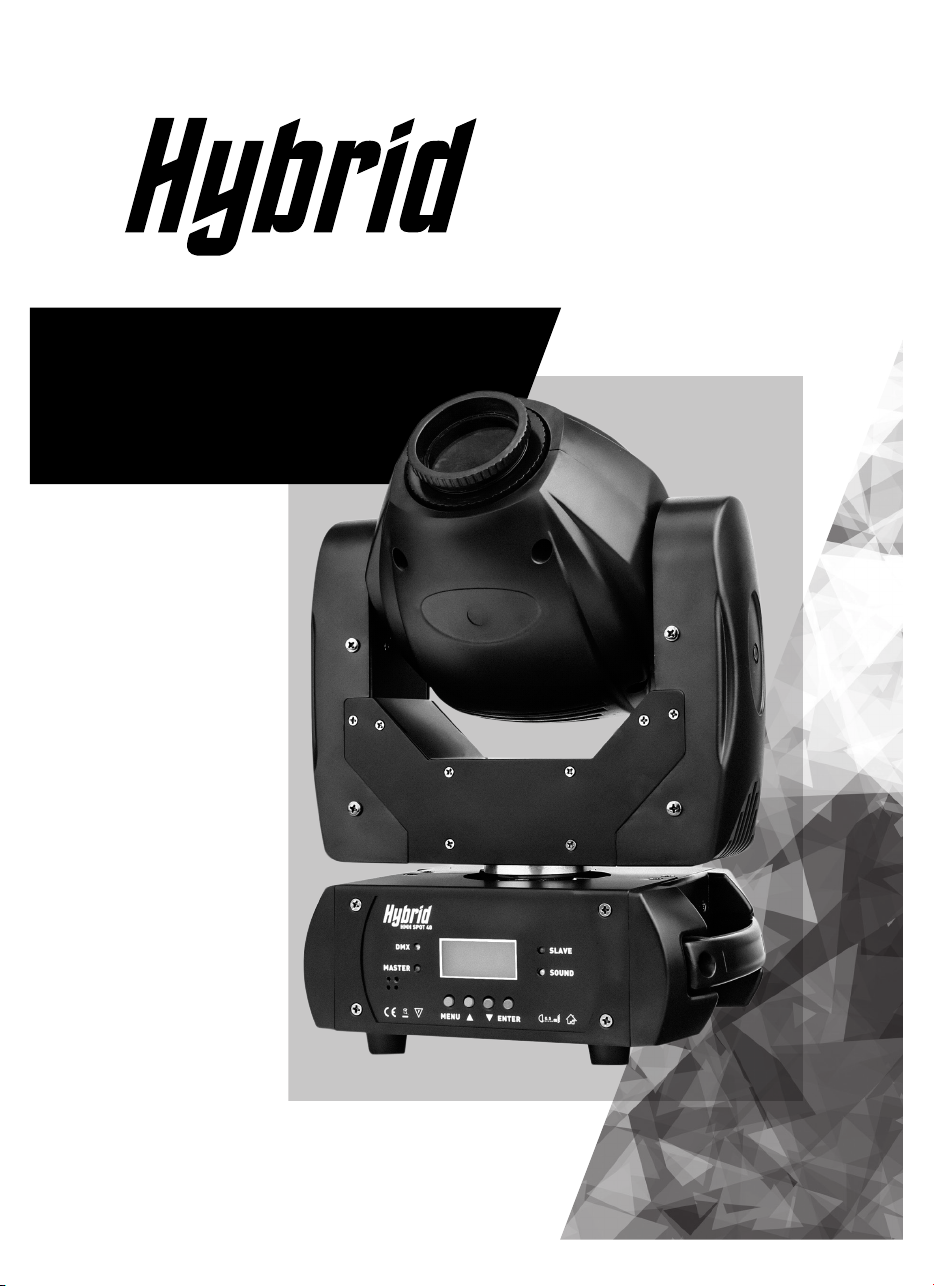

Hybrid+ HMHSPOT40 User manual

USER MANUAL
40 WATT
LED SPOT
HMHSPOT40

PAGE 1
WELCOME
Congratulations on your purchase of the HMHSPOT40 Hybrid 40 Watt LED Spot, engineered
and designed by Hybrid.
Please read the instructions carefully which includes important
information about the installation, operation and maintenance.
SAFETY INTRODUCTIONS
Please keep this User Manual for future consultation. If you sell the fixture to another user,
be sure that they also receive this instruction booklet.
Unpack and check carefully there is no transportation damage before using the fixture.
Before operating, ensure that the voltage and frequency of power supply match the power
requirements of the fixture.
It’s important to ground the yellow/green conductor to earth in order to avoid
electric shock.
Disconnect main power before servicing and maintenance.
Use safety chain when fixes this fixture. Don’t handle the fixture by taking its head only,
but always by taking its base.
Maximum ambient temperature is Ta : 40°c. Don’t operate it where the temperature is
higher than this.
In the event of serious operating problem, stop using the fixture immediately. Never try to
repair the fixture by yourself. Repairs carried out by unskilled people can lead to damage
or malfunction. Please contact the nearest authorized technical assistance center.
Always use the same type spare parts.
Do not connect the device to any dimmer pack.
Do not touch any wire during operation and there might be a hazard of electric shock.
To prevent or reduce the risk of electrical shock or fire, do not expose the fixture to rain
or moisture.
The housing must be replaced if they are visibly damaged.
Do not look directly at the LED light beam while the fixture is on.

PAGE 2
WARNING
To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain
or moisture.
Do not open the unit within five minutes after switching off.
The housing, the lenses, or the ultraviolet filter must be replaced if they are
visibly damaged.
TECHNICAL SPECIFICATIONS
11 and13 DMX channels
Pan : 540degree Tilt : 270degree
4 Operational Modes: DMX, Master/Slave, auto ,sound activated
Gobo wheel : 11 static gobos/sharking + open
Color wheel: 9 fixed colors + White
Light Source: 1x40W White LED
Power supply: 100 - 240Vac 50-60Hz
Power consumption: 65 W
Packing Size:L375×W260×H305mm
Weight: 5.65k
CAUTION
There are no user serviceable parts inside the fixture. Do not open the
housing or attempt any repairs yourself. In the unlikely situation,
your unit may require service, please contact your nearest dealer.

PAGE 3
USER MANUAL - HMHSPOT40 PROFESSIONAL LED SPOT
INSTALLATION
The unit should be mounted via its screw holes on the bracket.
Always ensure that the unit is firmly fixed to avoid vibration and slipping
while operating. Always ensure that the structure to which you are attaching
the unit is secure and is able to support a weight of 10 times of the unit’s
weight. Also always use a safety cable that can hold 12 times of the weight
of the unit when installing the fixture. The equipment must be fixed by
professionals.And it must be fixed at a place where is out of the touch of
people and has no one pass by or under it.
1. MENU
2. UP
3. DOWN
4. ENTER
To select the program function
Increase parameter
Reduce parameter
Enter sub menu

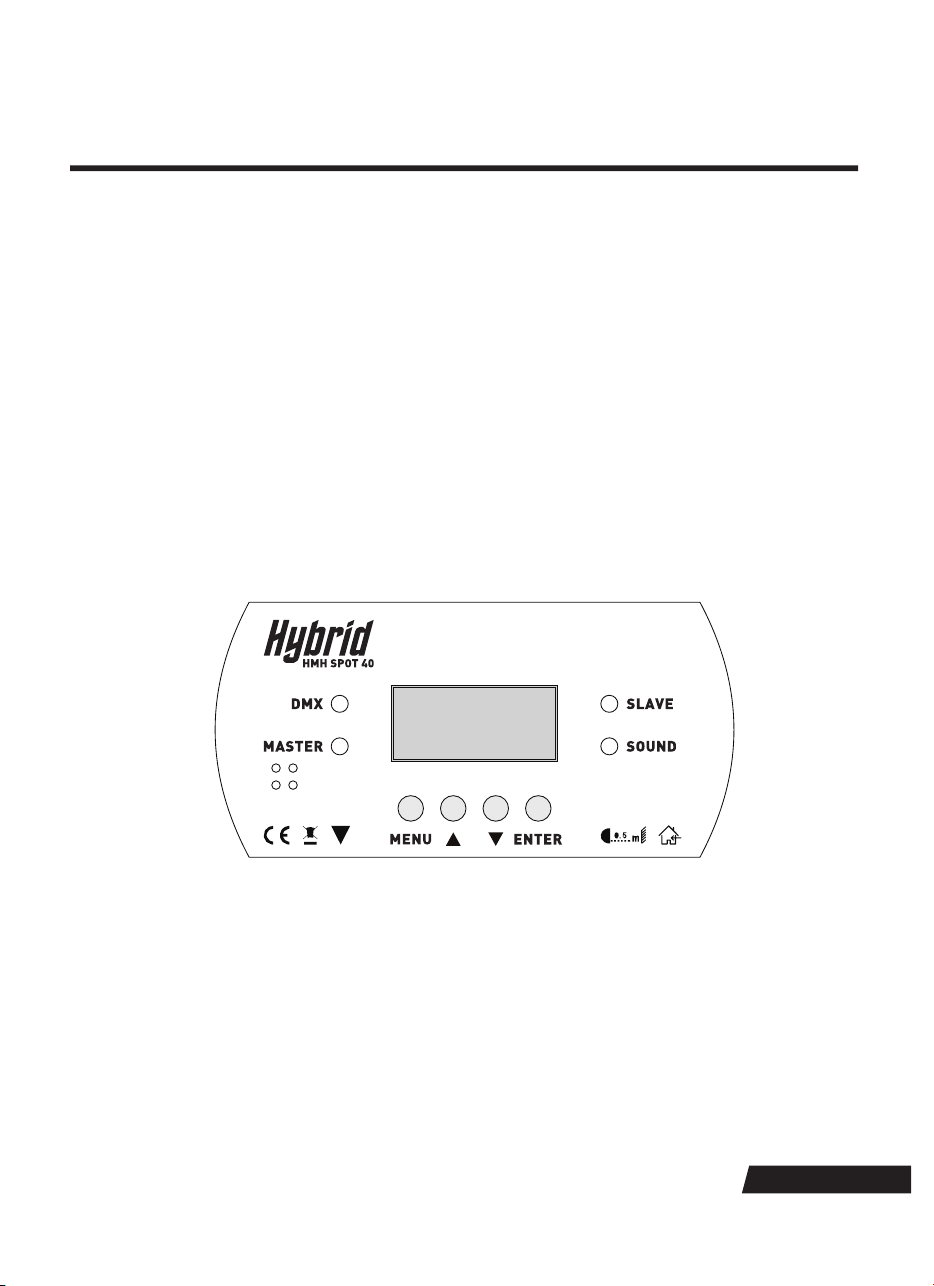

HOW TO SET THE UNIT
Display and buttons
1
7
5 6
8
2 3 4

PAGE 4
Display Value Noted
DMXAddr 001-512 DMX address select
WorkMod
DMX512 DMX Mode
AUTO Auto Mode
SOUD Sound Mode
ChNd
11Ch 11channels mode
13Ch 13 channels mode
Toot Display
ON LCD Display ON
60S LCD Display Off after 60s no operate
SundHig 0-16 Sound sensitive
MotorST
ColrREV 0-255
GoboREV 0-255
PrimREV 0-255
FousREV 0-255
PanREV 0-255
TiltREV 0-255
Xreverse
NO Pan Forward
YES Pan Reverse
Yreverse
NO Tilt Forward
YES Tilt Reverse
Xyfbstin
NO XYOptical Coupling Closed
YES XYOptical Coupling Open
Info
Version Software Version
Runtime Units:hours
Rest
NO
YES Reset
MAIN FUNCTION CHART

USER MANUAL - HMHSPOT40 PROFESSIONAL LED SPOT
PAGE 5
HOW TO CONTROL THE FIXTURE
There are two ways to control the fixture
A. Universal DMX controller
B. Master/Slave operation
A. Universal controller
The fixture can be set the DMX address remotely by universal DMX controller.
First, you need to programming two scenes into a chase, and then link the
fixtures to the universal DMX controller. When you run the chase, all the
fixtures of the chain will be set the series DMX address automatically.
The fixture uses four channels. Please refer to the following diagram to set
the address for the first four units.
B. Master/Slave operation
The fixture will allow you to link 16 fixtures together and operate without a
controller. In Master/Slave mode, the first fixture will control the others to
give an automatic, sound activated, synchronized light show. This function
is good when you want an instant show. The first fixture it’s DMX input cable
will have nothing connect it, and the other fixtures will be set in slave mode
automatically. Their DMX input cables connect the last fixture DMX output
cable (daisy chain). Any fixture can act as a Master or as a Slave
OR
001 012 023 034
001 014 027 040

PAGE 6
11CH 13CH Value Function
1 1 0-255 Pan
2 0-255 Pan fine
2 3 0-255 Tilt
4 0-255 Tilt fine
3 5 0-255 Pan/Tilt speed from fast to slow
4 6 0-4 No function
5-255 Mater Dimmer
5 7
0-3 No Strobe
4-59 Strobe effect from slow to fast
60-63 No Strobe
64-123 Random Strobe effect from slow to fast
124-127 No Strobe
128-191 Pulse Strobe effect from slow to fast
192-195 No Strobe
196-253 Random Pulse Strobe effect from slow to fast
254-255 No Strobe
6 8
0 -127 Continual positioning
128 -130 Colour half
131 -133 Color 1
134 -136 Colour half
137 -139 Color 2
140 -142 Colour half
143 -145 Colour 3
146 -148 Colour half
149 -151 Colour 4
152 -154 Colour half
155 -157 Color 5
CONFIGURATION

USER MANUAL - HMHSPOT40 PROFESSIONAL LED SPOT
PAGE 7
158 -160 Colour half
161 -163 Color 6
164 -166 Colour half
167 -169 Color 7
170 -172 Colour half
173 -175 Color 8
176 -178 Colour half
179 -181 Color 9
182 -184 Colour half
185 -187 Color 10
188 -194 Open
195 - 219 Forwards rainbow effect from fast to slow
220 -224 No rotation (White)
225 -249 Backwards rainbow effect from slow to fast
250 -255 Colour marcos
7 9
0 - 4 Open
5 - 9 Gobo 1
10 -14 Gobo 2
15 -19 Gobo 3
20 - 24 Gobo 4
25- 29 Gobo 5
30 -34 Gobo 6
35 -39 Gobo 7
40-44 Gobo 8
45-49 Gobo 9
50-54 Gobo 10
55-59 Gobo 11
60-64 Open
65-74 Gobo 1 Shake

PAGE 8
75-84 Gobo 2 Shake
85-94 Gobo 3 Shake
95-104 Gobo 4 Shake
105-114 Gobo 5 Shake
115 -124 Gobo 6 Shake
125 -134 Gobo 7 Shake
135 -144 Gobo 8 Shake
145 -154 Gobo 9 Shake
155 -164 Gobo 10 Shake
165 -174 Gobo 11 Shake
175 -179 No rotation (open)
180 -204 Forwards gobo wheel rotation from fast to slow
205 -214 No rotation (Stop)
215 -239 Backwards gobo wheel rotation from slow to fast
240 -255 Gobo Marcos
8 10
0 -15 Open
16 -127 Prism indexing
128 -255 Prism 2
9 11 0 -255 Focus Continuous adjustment from far to near
“10
Macro
function”
12 0 -19 Custom Control by CH1-CH9
20 -99 Auto (all of other CH invalid)
100-199 Sound (all of other CH invalid)
200-255 Custom Control by CH1-CH9
11 13 0 -199 Custom Control by CH1-CH9
200-255 Reset
CONNECTIONS
The HMHspot40 is widely used in intelligent lighting control, with a
maximum of 512 channels.

PAGE 11
1. If you using a controller with 5 pins DMX output, you need to use a 5 to 3
pin adapter-cable.

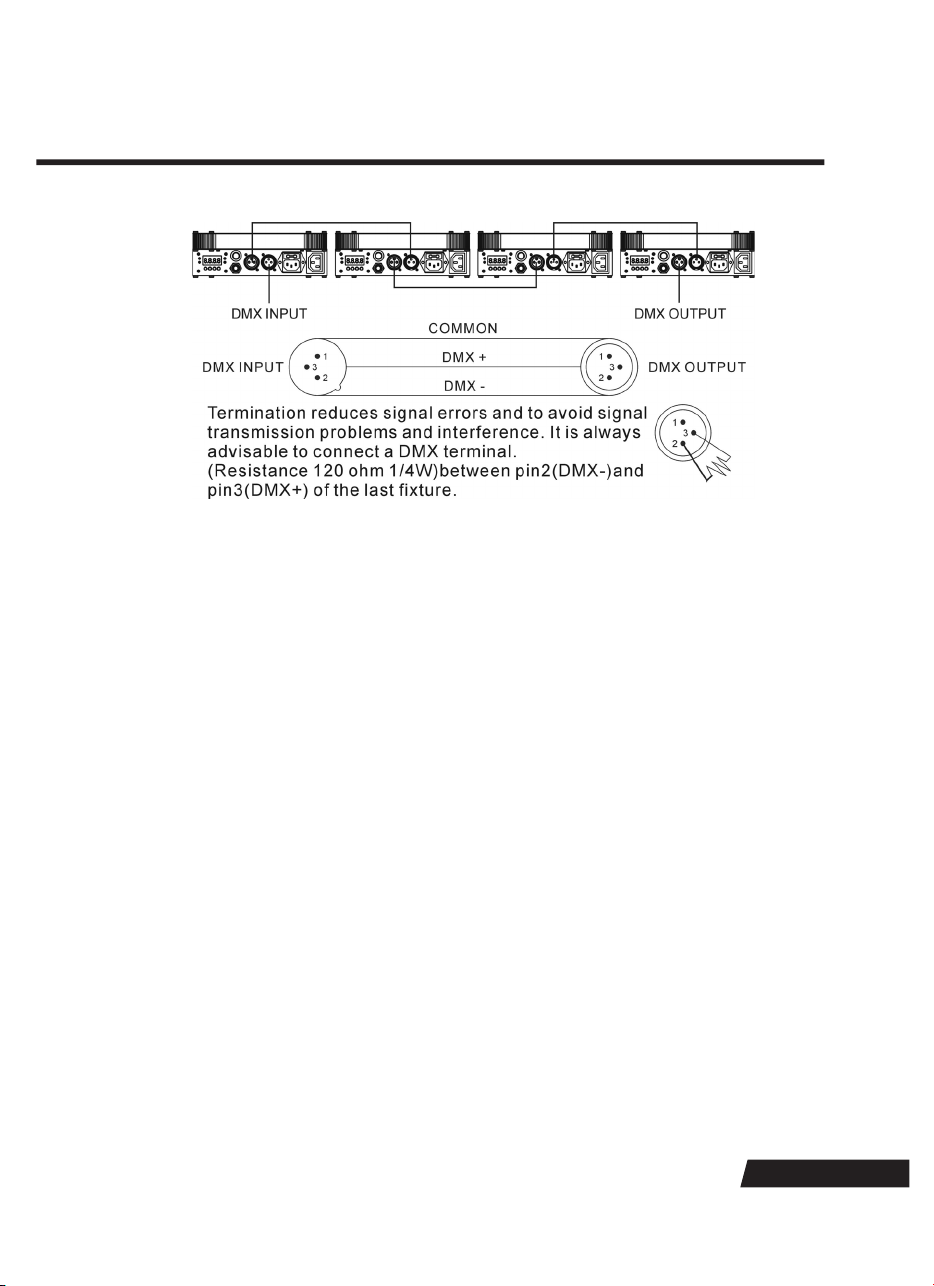

2. Connect the fixture together in a “daisy chain” by XLR plug cable from the
output of the fixture to the input of the next fixture. The cable cannot be
branched or split to a “Y” cable. Inadequate or damaged cables, soldered
joints or corroded connectors can easily distort the signal and shut down
the system
3. The DMX output and input connectors are pass-through to maintain the
DMX circuit when one of the units’ power is disconnected.
4. At last fixture, the DMX cable has to be terminated with a terminator to
reduce signal errors. Solder a 120-ohm 1/4W resistor between pin
2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the
DMX-output of the last fixture.
5. Each lighting fixture needs to have an address set to receive the data sent
by the controller. The address number is between 0-511 (usually 0 & 1 are
equal to 1).
6. 3 pin XLR connectors are more popular than 5 pin XLR.
3 pin XLR: Pin1: GND, Pin2: Negative signal (-), Pin3: Positive signal (+)
5 pin XLR: Pin1: GND, Pin2: Negative signal (-), Pin3: Positive signal (+)
Pin4/5: Not Used.
USER MANUAL - HMHSPOT40 PROFESSIONAL LED SPOT

PAGE 12
TROUBLESHOOTING
Following are a few common problems that may occur during operation.
Here are some suggestions for easy troubleshooting:
A. The fixture does not work, no light
1. Check the connection of power and main fuse.
2. Measure the mains voltage on the main connector
B. Not responding to DMX controller
1. DMX LED should be on. If not, check DMX connectors, cables to see if link properly.
2. If the DMX LED is on and no response to the channel, check the address settings
and DMX polarity.
3. If you have intermittent DMX signal problems, check the pins on connectors or on PCB of
the fixture or the previous one.
4. Try to use another DMX controller.
5. Check if the DMX cables run near or run alongside to high voltage cables that may cause
damage or interference to DMX interface circuit.
C. Some fixtures don’t respond to the easy controller
1. You may have a break in the DMX cabling. Check the LED for the response of the
master/ slave mode signal.
2. Wrong DMX address in the fixture. Set the proper address.
D. No response to the sound
1. Make sure the fixture does not receive DMX signal.
2. Check microphone to see if it is good by tapping the microphone.

PAGE 13
USER MANUAL - HMHSPOT40 PROFESSIONAL LED SPOT
FIXTURE CLEANING
The cleaning of internal must be carried out periodically to optimize light
output. Cleaning
frequency depends on the environment in which the fixture operates: damp,
smoky or
particularly dirty surrounding can cause greater accumulation of dirt on the
fixture’s optics.
Clean with soft cloth using normal glass cleaning fluid.
Always dry the parts carefully.
Clean the external optics at least every 20 days. Clean the internal optics
at least every 30/60 days.
