Hycontrol HYVENT User manual

HYVENT
Email: [e-mail] Web: www.hycontrol.com
Tel: [phone] fax. [phone]
SILO DUST COLLECTOR / FILTER UNIT
INSTALLATION AND OPERATION MANUAL
Hycontrol Limited, Larchwood House, Orchard Street, Redditch, Worcestershire
B98 7DP, UK
v1.3 MS0820
Hyvent Manual

11. STANDARD FEATURES ........................................................................10
10. TECHNICAL DRAWINGS ......................................................................12
Supply connection.......................................................................................4
4. OPERATION ...............................................................................................5
Explosion prevention...................................................................................2
Maintenance access ...................................................................................7
2. SUPPLY SERVICES REQUIRED...............................................................2
Routine inspection ......................................................................................7
Commissioning ...........................................................................................5
Set parameters in set mode......................................................................9
Duration ......................................................................................................6
Handling......................................................................................................3
Pressure differential ....................................................................................6
Safety..........................................................................................................7
Electrical supply ..........................................................................................3
1. INTRODUCTION. .......................................................................................1
Compressed air supply ...............................................................................2
Pressure system regulations.......................................................................2
Usage..........................................................................................................2
Health & Safety ...........................................................................................2
3. INSTALLATION ..........................................................................................3
Installation and assembly............................................................................3
Cartridge installation ...................................................................................4
General operating parameters ....................................................................5
Start up .......................................................................................................6
5. ADJUSTMENT OF THE CLEANING CYCLE ............................................6
Interval ........................................................................................................6
6. MAINTENANCE AND SERVICE ................................................................7
Inspection of compressed gas equipment ..................................................7
7. TROUBLESHOOTING ...............................................................................8
9. SPARE PARTS...........................................................................................9
10. CONTROLLER SET UP AND OPERATION ............................................9
8. TECHNICAL DATA.....................................................................................8
Operation ..................................................................................................9
Basic Sequence Controller codes...........................................................10
INDEX

The equipment should be maintained in accordance with this manual, in order to ensure the best
performance is achieved throughout the life of the filter unit.
In all dusty environments ‘good housekeeping’ is essential to creating and maintaining a safe,
healthy environment. With potentially explosive dusts it is essential that all areas, and in particular
areas around any explosion vents, are dust-free to minimise the risk of secondary explosion in the
event of primary explosion within the equipment.
Regulation 9 of CoSHH – “Maintenance, examination and testing of control measures” requires that
the equipment is maintained in an efficient state. Hycontrol strongly recommend that all equipment
supplied should be subject to a thorough examination and test at intervals not exceeding 12 months.
The user has a legal obligation to operate the unit within the limits specified.
Hycontrol offers comprehensive Service and Maintenance Support contracts to ensure that the
statutory requirements of inspection and testing are met, with appropriate records kept and optimum
functionality ensured. Please contact Hycontrol on [phone] for further details.
Care should be taken during the emptying of waste collection bins and final waste disposal to avoid
possible secondary dust emission or contamination. It is recommended that respiratory protective
equipment be used - for further information consult B.S.4275:1974 RECOMMENDATIONS FOR
THE SELECTION AND USE OF RESPIRATORY PROTECTIVE EQUIPMENT.
1. INTRODUCTION
Any changes to the process and/or the dust being handled should be assessed to ensure that no
hazard is introduced and control over the contaminant is not compromised. Please contact Hycontrol
if in doubt.
The Hycontrol Hyvent dust collector and filter unit has been designed to form an integral part of
Hycontrol's advanced SHIELD and SHIELD Lite silo protection system (SPS). Please refer to other
manuals for further information on the other equipment supplied as part of the SPS. Please read this
manual carefully before using the Hyvent unit.
Any work carried out on the equipment - for example lifting, electrical or pneumatic connections -
should be carried out by competent persons.
Prior to putting the unit into service it is IMPERATIVE that a risk assessment is carried out to
ensure that all hazards are identified and suitable control measures put in place to reduce the
risk to a safe level.
It is recommended that this risk assessment uses the latest techniques and refers to the latest
relevant guidelines and legislation.
The unit should only be put into service if the risk assessment confirms it is safe to do so.
PLEASE NOTE:
Dust collectors must be used in accordance with the CoSHH regulations. For further information refer
to current Health & Safety executive guidance note EH40 "Occupational exposure limits" and
guidance note EH 44 "Dust in the work place: general principles of protection".
Where the unit is handling an explosive atmosphere or is located in a potentially explosive
atmosphere this will be advised in the quotation and a statement of such included in the declaration of
conformity. Please ensure that any work on the filter unit does not create additional ignition sources.
www.hycontrol.com 1

Pressure system regulations
The compressed air manifold falls within the Pressure Equipment Regulations 1999 and the EC
Pressure Equipment Directive (97/23/EC). Manifolds supplied are in accordance with the above
legislation and relevant information for safe operation is included on the nameplate attached to the
manifold. Please ensure that these limits are not exceeded.
Explosion prevention
Atmospheres that are considered explosive are covered by the Dangerous Substances and
Explosive Atmospheres Regulations 2002 (DSEAR) which implement two European Directives: the
safety aspects of the Chemical Agents Directive(a) 98/24/EC9 (CAD) and the Explosive
Atmospheres Directive 99/92/EC10 (ATEX 137).
Where the unit is handling an explosive atmosphere or is located in a potentially explosive
atmosphere this will be advised in the quotation and a statement of such included in the declaration of
conformity. The user has a legal obligation to operate the unit within the limits specified.
A pressure relief valve (PRV) is required if the maximum operating pressure can be exceeded with
the supply, and forms an integral part of Hycontrol’s silo protection systems. Please refer to separate
documentation for further information.
Please maintain the pressure equipment, including any supply lines, in accordance with the above
legislation.
Any additional items of equipment supplied by the user (out of scope of Hycontrol supply) should be
risk assessed and confirmed suitable prior to putting into service. This is particularly important when
considering if the items have or can generate ignition sources. Consideration should be given to all
components of a system.
If the unit is supplied with an explosion panel or flameless venting device, the unit should be
positioned such that the products of the explosion, flame and pressure (in the case of a vent panel)
and pressure (in the case of the flameless venting device) are directed to a safe area. Where the unit
is mounted onto a vessel that contains explosion protection, the user must ensure that the strength of
the unit supplied is not exceeded during the venting process.
Usage
The Hyvent is specifically designed for the handling of dry dusts in air and must not be used for any
other purpose. Users should always consult with Hycontrol concerning the application of the
equipment and the product being handled. The responsibility for the accuracy of information
concerning product or application always lies with the user.
Health & Safety
Before putting into service it is important that the complete assembly is risk assessed and only put
into service if this assessment concludes it is safe to do so. Consideration should be given to all
components of a system.
2. SUPPLY SERVICES REQUIRED
The unit requires an adequate supply (see below) of clean, dry and oil-free compressed air.
Contaminated air will cause malfunction and reduce the life-span of the filter media. We recommend
the fitting of a suitable moisture separator and regulator immediately prior to the manifold, ideally this
should have a facility to relieve the stored pressure from the manifold to assist maintenance.
Compressed air supply
www.hycontrol.com 2

Apply a suitable sealant for the application and working conditions (silicon is recommended) using
two beads, either side of the bolt holes, ensuring this will form a continuous seal with no gaps. Secure
the unit in place using suitable fixings (not supplied).
The supply pipe should be 1/2" nominal bore as a minimum. 3/4" nominal bore is recommended for
long pipe runs, due to the movement of the manifold as the lid is opened and closed. The connection
should allow for this.
The maximum manifold operating pressure will be indicated on the nameplate attached to the
manifold. Please ensure that this is not exceeded.
DC units input supply: 24 V DC
Maximum pressure: 6.5 barg
Electrical supply
The figures given are free air delivered (F.A.D) based on a pulse interval of 15 seconds, with a pulse
duration of 100 msecs. To ensure optimum cleaning the following pressures are recommended:
Any work carried out on the equipment should be carried out by competent persons and in
accordance with current legislation.
Note: The connection into the manifold is a 1” parallel threaded female fitting.
Consumption (approx.): 11.7 m³/hr
Operating pressure: 5.0 - 6.0 barg
AC units input supply: 230 V or 115 V AC

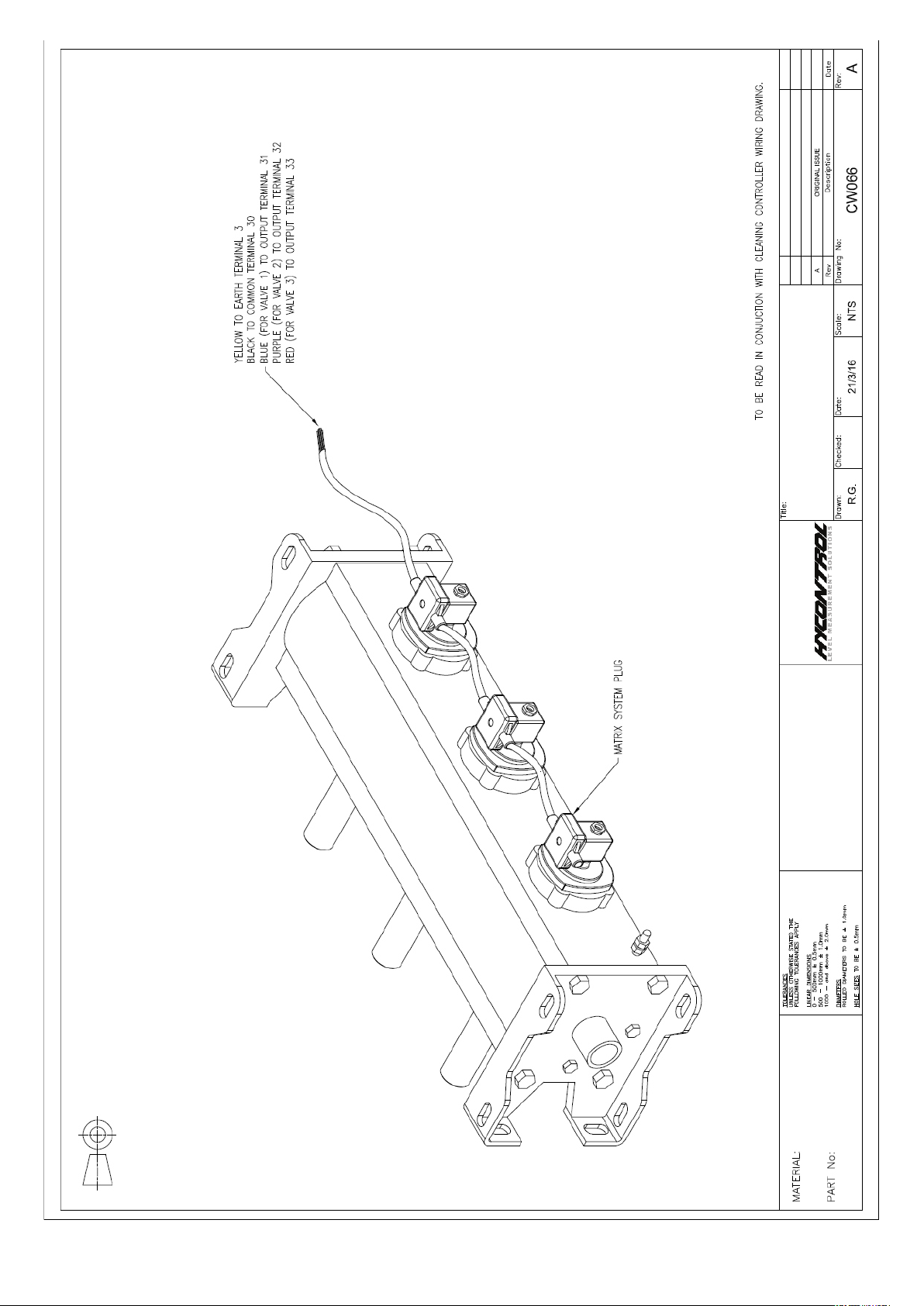

Note: See appendix for wiring diagram details. Please be advised that failure to use the correct
supply required can result in damage to the PCB and will invalidate the warranty.
3. INSTALLATION
Handling
All handling and lifting activities should be carried out by a competent person.
See handling document under appendix section for details of lifting points and lifting methods.
DO NOT lift the unit by means other than those recommended as this may result in a safety risk or
damage to the equipment. Lift using the lifting eyes on the unit ensuring that the two M12 bolts are in
position on the side of the cowl prior to the lift.
Installation and assembly
Please note: This unit must be installed in the vertical position. Do not install at an angle.
The unit is normally supplied fully assembled. Refer to Appendix for exploded diagram.
For units supplied with mounting spigots or flanges.
Remove the mounting spigot / flange from the assembled unit.
Weld the spigot / flange to the silo. After welding, degrease and paint the spigot with an appropriate
protective coating.
www.hycontrol.com 3

Prior to opening cowl, ensure that appropriate protective equipment is used. Minimum requirement is
a dust mask and gloves when the reusable metal core is present (3.5 m² cartridges).
Warning: Isolate the electrical and compressed air supplies and drain any stored compressed air
from the system prior to opening the cowl.
Supply connection
The compressed air supply should be suitable for the requirements – see compressed air supply
notes in Section 2 above and provide a means of isolating and discharging the stored pressure from
the manifold to assist maintenance.
All supply connections are to be made in accordance with the appropriate statutory requirements.
Refer to electrical supply notes in Section 2 above and the appendix for wiring diagrams. Failure to
make the connections correctly may result in damage to the controller and invalidate the warranty.
IMPORTANT: The controller complies with the Electro-Magnetic Compatibility (EMC) directive
as supplied. In order to retain compliance an electrical supply where the neutral is NOT earth
bonded is required. Failure to do this may result in the loss of compliance.
Cartridge installation
Any work carried out on the equipment should be carried out by competent persons and in
accordance with current legislation.
When removing and replacing elements, the following procedure must be adhered to:
Please ensure these bolts are refitted after the cowl has been lowered back into position.
Once the unit is secured in position, remove the temporary manifold protection bars.
Important Note: Before lifting the cowl assembly to gain access to the filter elements, first remove
the two M12 bolts positioned either side of the cowl near the front of the unit.
www.hycontrol.com 4
Ensure the sprung plunger is engaged fully through location hole in side
of cowl when in the open position.
Removal: Remove cowl securing bolts and tilt cowl backwards whilst
retaining hold of the cowl handle. Take care if the cowl is exposed to
high winds.
Tip - the plunger locates automatically if released and allowed to run on
the inside of the cowl during opening.
Loosen cartridge clamps and rotate to
allow cartridge removal. Pull out element
with metal core.
Note: 3.5 m² cartridges comprise 2 parts
- a metal core with top flange and a
pleated media cone with end caps.
Remove the metal core from the old
media cone and fit to a new media cone.
4.0 m² cartridges are one piece items for
complete replacement.

Check all control functions.
Check that all connections have been correctly made and that the appropriate power sources are
available.
It is IMPERATIVE that the unit is installed and adjusted to ensure that the stated airflow is not
exceeded - excessive air volumes can seriously affect filtration efficiency and element life.
Note: Unless otherwise specified, the cleaning control and manifold have been tested and confirmed
to be fully functional prior to despatch from Hycontrol. With the exception of power supply to the
controller and fan (if fitted) along with a compressed air supply to the manifold no other connections
are required.
4. OPERATION
General operating parameters
To complete installation, insert the complete element into the filter plate. Reposition the clamps and
tighten until the clamp bottoms on the spacer - DO NOT OVERTIGHTEN. Once the clamp is tight
against the spacer the cartridges are sealed and further tightening will only cause damage. Maximum
tightening torque is 22 Nm.
Whilst retaining hold of the cowl handle, release and secure plunger in withdrawn position and lower
the cowl. Please take care if the cowl is exposed to high winds. Fit the two M12 retaining bolts.
Commissioning
Any work carried out on the equipment should be carried out by competent persons.
Check that all packaging and protection materials are removed prior to start up. This can include
remote controls taped inside unit, protection around explosion relief panel, etc.
Ensure all cartridges are correctly fitted. Ensure access door is sealed.
We recommend commissioning of the unit is carried out by experienced and competent personnel.
Commissioning requires adjusting the system airflow to the design duty and taking static pressure
readings as a basis point for reference and future thorough examinations and tests.
DO NOT plug or make connections to the solenoid valve vent ports as this may inhibit the operation of
the valves.
It is important that the silo on which a filter unit is mounted is not overfilled, as this can cause blinding
and over-pressurisation. Transfer from lorry tanker to a silo must be correctly controlled to ensure that
excessive volumes of air are not introduced into the silo, this can cause premature deterioration of the
media.
The compressed air manifold has been designed and manufactured to the operating limits of
temperature and pressure as stated on the manifold data plate. The limits of temperature, in
particular the upper limit, are specific to the manifold fabrication and do not imply that all other
components associated with the manifold or dust collector are capable of operating at such
temperatures. If a unit is to be utilised in an operating temperature range other than that for which it
was originally intended. Please contact Hycontrol to ascertain suitability.
The cleaning controls are NOT preset at works to suit any specific application, although under
inspection these will normally be left set at approximately 100 millisecond duration and 15 second
interval. As no two applications are the same, filtering process must be monitored and the controls
adjusted to suit the particular application, as outlined in section 5.
www.hycontrol.com 5

The filter cleaning system should be adjusted to give an approximate average pressure differential
across the media of 100 mm w.g.
Use the following as a general indication:
Heavy dust load: short interval
Pressure differential
Interval is normally related to dust load.
Light dust load: long interval
Use the following as a general indication:
Heavy, free flowing dust: short duration
Ensure air and power supplies are connected as specified. Start the cleaning system prior to product
transfer / airflow into the silo. Allow the cleaning system to continue running for several minutes after
product transfer / airflow is complete (this will be operated automatically by the Hycontrol silo
protection system).
Duration is adjusted to suit the type and binding characteristics of the dust being handled,
generalised as Specific Gravity (SG) and stickiness.
Note: cleaning cycle adjustment requires access to an enclosure containing live terminals. Isolate
before opening and only return the power when needing to make the adjustments, taking
extreme care.
The cleaning cycle has two modes of adjustment: Duration and Interval.
Duration
Interval
Start up
Light, sticky dust: long duration
5. ADJUSTMENT OF THE CLEANING CYCLE
IT IS ESSENTIAL THAT THE CLEANING CYCLE IS MONITORED, PARTICULARLY DURING
THE FIRST WEEKS OF OPERATION, AND THAT ADJUSTMENT IS MADE TO ENSURE THAT
THE CLEANING CYCLE CONTINUES TO SUIT THE OPERATING CONDITIONS.
www.hycontrol.com 6
Note: The pressure test point is located
on the filter plate. In order to take test
readings open the cowl as described in
Section 3 above and insert a 1m length
of 6 mm O.D. tube into the test point.
Connect to a gauge after closing, secure
the cowl and resume operation.
Allow tube to drop over the front edge of
the filter plate.

6. MAINTENANCE AND SERVICE
- Measure and record pressure differential (if possible)
ALWAYS replace the locking device when the cowl is in the lowered position and fasten the lid with
two M12 bolts.
ALWAYS ensure that ALL sources of energy are isolated and locked off and that any retained
compressed air in the cleaning system is drained PRIOR to accessing the interior of the unit.
ALWAYS engage the locking plunger whenever cowl is in the raised position.
Routine inspection
- Check filter clamps and seals
Hycontrol offers comprehensive Service and Maintenance Support contracts which cover the
aforementioned requirements. Please contact Hycontrol for further information. Specific industries
and applications may require more frequent inspection. More information regarding such
applications can be obtained from the HSE or local authorities.
- Inspection of clean air compartment
- Test cleaning cycle of reverse air systems and mechanisms
Safety
The manifold should be inspected in line with the Pressure Equipment Regulations 1999 and the EC
Pressure Equipment Directive (97/23/EC) by a competent person.
- Measure and record static pressure (if possible)
- Record controller settings
Inspection and maintenance should be carried out by competent personnel. Appropriate dust mask,
respirator, and other personal protective equipment MUST be worn when accessing the dirty
(contaminated) section of a dust collector.
Maintenance access
If deliveries are infrequent i.e. less than 1 per week it is recommended that a cleaning cycle is run at
least once to operate the filter, thereby optimising the life of the filter cartridges and keeping fully
functional for when required. To ensure trouble-free operation and minimise the risk of unscheduled
stoppages it is advised that the following inspection be performed at least once every 6 months:
Should a manifold require pressure testing, this must be carried out hydrostatically in accordance
with the original specification. Manifolds MUST NEVER be tested with cleaning valves and other
equipment fitted. The manifold must be stripped and blanking plates fitted prior to testing.
- Check filter cartridges
- Measure and record system airflow volume (if possible)
Do not under any circumstances attempt to work in conditions where appropriate working
platforms and access have not been erected or where personal safety equipment appropriate
to the task in hand is not available.
Inspection of compressed gas equipment
Manifolds supplied are in accordance with the above legislation and relevant information for safe
operation and inspection is included on the nameplate attached to the manifold.
Venting filters may be fitted in positions without access walkways or ladders. It is imperative that no
effort is made to gain access to any part of a unit, or to carry out any maintenance operation, unless
correct and safe working conditions are established.
www.hycontrol.com 7

obstructed or plugged
FAULT POSSIBLE SOLUTION
Check filter element location
Filter elements not cleaning Check compressed air supply is turned on
Ensure pressure is as specified and contaminant free
Check controller is operating
7. TROUBLESHOOTING
Check that the solenoid valve vent ports have not been
Check all seals for damage
Low differential pressure Check filter media for damage
Check filter media for damage
Check that design air volume is not being exceeded
High differential pressure Check cleaning cycle (as above)
Check solenoid/diaphragm valve operation
Dust deposits on clean side Check all clamps are fully tightened down
Check cleaning cycle - possibly cleaning too frequently?
8. TECHNICAL DATA
Low air volume Check all doors, bin seals and explosion panels
Check filter elements blinding - change if necessary
Check for blocked ducts
** Please note that for special applications the above data may vary
Note: the stated duties are normal conveying rates. Allowances have been made for the surge
experienced at the end of a load when transfer is from a lorry tanker. For specific applications and
recommendations please contact Hycontrol. No responsibility is accepted for any application unless
specific recommendations have been made by Hycontrol in writing.
www.hycontrol.com 8
Filter Reference
Hyvent
No. filter cartridges 6 or 7
Filter area (m²) 21.0 (6 cartridges) or 24.5 (7 cartridges)
Filter media (standard version) Polyester
Nominal duty – normal dusts (m³/hr) 850 (6 cartridges) or 1000 (7 cartridges)
Maximum duty – short bursts (m³/hr) 1,700 (6 cartridges) or 2,000 (7 cartridges)
Filter velocity – at stated duty (m/min) 0.99
Electrical input options (standard AC) 230/110 V AC – 50 or 60 Hz
Solenoid coil voltage (standard DC) 24 V DC
Filter weight (incl. std packing) 102 kg
Filter weight (unpacked) 92 kg

2. Press key C again to select the desired function.
4. Press key A and C to change the data item.
** Please note: this is the standard polyester media – other media’s are available for specific
applications – if in doubt about media type please refer to Hycontrol quoting unit serial
number.
10. CONTROLLER SET UP AND OPERATION
9. SPARE PARTS
Set parameters in set mode
1. Press key C to access the function menu F01 ÷ F08
3. Press key A to modify data.
FO1 Inputs enable 0 = Include, 1 = Exclude
FO2 Pulse Time 0.05 ÷ 5.00 sec
FO3 Pulse time between ev.. 1 ÷ 999 sec (see B3x)
FO4 Outputs number sel. 0 ÷ 16 (see B1b)
FO7 Input 2 function 0 = C6, 1 = D6 (see C6, D6)
FO5 Cycles after fan Stop 0 ÷ 99 (see D1a)
6. Press key B to quit set up and go back to the operating mode.
FO6 Manual outputs activation C = selection / A = output activation
5. Press key B to go back to the function menu.
FO8 Output voltage 24V, 115V, 230V (see HV)
OFF Cycle stops for cleaning consent missing (D6 open)
‘P’ Cycle stops for low dP by external pressure switch (C6 Open)
-0- Cycle stops for fan OFF (D1a Open)
… Cycles after fan stops (Blinking dots)
NOTE 1: The device will automatically switch from Set Mode to Run Mode if no key is pressed for 5
minutes
A01 Number of activated electro valve
If the device is supplied, the cleaning cycle starts and the display shows the following messages:
--- Pause time between ev. Scroll bar
Key B = Alarm reset
Key C = Access Set Up
Operation
www.hycontrol.com 9
Description
Part No.
Quantity
Cartridge Media **HYVENTCART-01 6 (21.0) / 7 (24.5)
Diaphragm Kit HYVENT-DP00033 3
Solenoid Service Kit HYVENT-DP00030 3
Solenoid Coil 110 v HYVENT-DP00064 3
Controller PCB 110 V AC HYVENT-CC04010 1
Solenoid Coil 24 V DC HYVENT-DP00063 3
Controller PCB 24 V DC HYVENT-CC04012 1
Cartridge (Antistatic) HYVENT-VK09018 6 (21.0) / 7 (24.5)

www.hycontrol.com 10
Basic Sequence Controller codes
Display:
•OFF cleaning cycle has stopped due to remote start/stop (D6) contacts open (if
fitted).
• ‘P’ clean cycle stopped due to low dP reading from external dP monitor (if fitted) –
C6 contacts open
• -0- cleaning cycle stopped due to fan switched off (D1a open)
Press key A to select the output you wish to activate. Press key C to activate the output.
B1b OUTPUT NUMBER SELECTION MANUAL / AUTOSELECTION
• --- interval time between Pulse Valves firing
B3x SET PAUSE TIME BETWEEN TWO ACTIVATIONS FROM 1 TO 999SEC
Selection of the number of outputs connected by means of a keyboard in set mode. If you set 0
or AUTO in this function the Timer will automatically select the connected loads and skip those
not connected. If the load is below 5W, auto selection does not work, set the number of outputs
in set up.
The display alternatively shows code E1 and the number of the faulty output.
B10 MANUAL ACTIVATION OF EVERY SINGLE OUTPUT
If the pulse time is lower than 1 sec, it is possible to set any pulse time value in the range
indicated.
Minimum pause time = 5 times pulse time (B2x)
• E1/05 display flashing – indicates the number of the Pulse Valve with a fault due to
overload
Alarms:
Use a jumper for unused inputs if you enable them.
• … flashing dots - cleaning cycles in progress after fan has switched off (if selected
– see set-up F05)
B2x SET ACTIVATION TIME FOR EACH OUTPUT FROM 0.05 TO 5.00 SEC.
C6 ON/OFF CLEANING CYCLE BY EXTERNAL PRESSURE VOLT FREE SWITCH
If contact C6 is open, the cleaning stops at the end of the whole cleaning cycle, the display
shows ‘P’, which means stop for low dP.
If contact C6 is closed, the cleaning cycle restarts from the beginning.
11. STANDARD FEATURES
B8a SHORT CIRCUIT OUTPUT PROTECTION
If inputs are disabled, they are considered as always closed and no jumper is required on the
terminal board.
Press key B to reset the alarm.
• A01 number of the next Pulse Valve to fire
In case of short circuit, the output is automatically skipped, relay K1 – normally active – is
deactivated and the terminal board contact opens.
C0 INPUTS ENABLE FROM KEYBOARD
If the activation time is higher than 1 sec. the minimum settable interval time is:
From the keyboard you can manually and individually activate every single output for an
operation test.
In set up you can enable or disable the control of all the inputs of the device.
NOTE C6: Use a jumper for C6 if it is not used with active inputs (see F01)

www.hycontrol.com 11
The activation of post-cleaning cycles starts even if C6 contact is open.
During the cycles after the fan stop, the decimal points blink on the display.
By connecting an auxiliary volt-free contact of the fan circuit with the Timer, you can add a
well-defined number of cleaning cycles after the stop of the fan. Their number is selectable
from 0 to 99 from the keyboard.
D1a ADDITIONAL POST-CLEANING CYCLES AFTER THE STOP OF THE FAN
If contact D1a is open, the display shows ‘-0-‘ to indicate cycle stop for fan Off.
NOTE D1a: Use a jumper for D1a if it is not used with active inputs (see F01)
D6 ON/OFF CLEANING CYCLE BY EXTERNAL VOLT FREE CONTACT
By closing D6, the cleaning cycle can start from the first electro valve
HV INPUT AND OUTPUT VOLTAGE SELECTION BY JUMPERS JP1, JP2, JP3 ON THE
BOARD
Use the jumpers on the board to select the supply voltage and the output voltage for the
electro valves.
G1 MAXIMUM LOAD POWER FOR 25W OUTPUT FOR MAX 5 SEC
JP2: Output voltage selection between 24, 115, 230v (only with 115vAC or 230vAC power
supply)
JP3: Output voltage selection between AC and DC only with JP2 set to 24v.
ATTENTION: set F08 to the same output voltage that has been selected by means of the
jumpers to adjust the short-circuit trip threshold. Otherwise, this might cause a malfunction or
damage to the sequencer.
If contact D6 is open, the cleaning cycle is not enabled and the display shows ‘OFF’
NOTE D6: Use a jumper for D6 if it is not used with active inputs (see F01)
(see the plates on the sequencer).
JP1: Supply voltage selection between 115vAC and 230vAC

www.hycontrol.com 12
12. TECHNICAL DRAWINGS

www.hycontrol.com 13
Larchwood House, Orchard Street
B98 7DP, United Kingdom
Tel: [phone]
Redditch, Worcestershire
www.hycontrol.com
Hycontrol Ltd
Email: [email protected]
HYVENT
HYVENT

www.hycontrol.com 14
© 2020 Hycontrol Ltd. All rights reserved.
MATRIX SYSTEM WIRING TO
CLEANING CONTROLLER FOR
HYVENT FILTERS
Tel: [phone]
www.hycontrol.com
Redditch, Worcestershire
Email: [email protected]
B98 7DP, United Kingdom
Hycontrol Ltd
Larchwood House, Orchard Street
