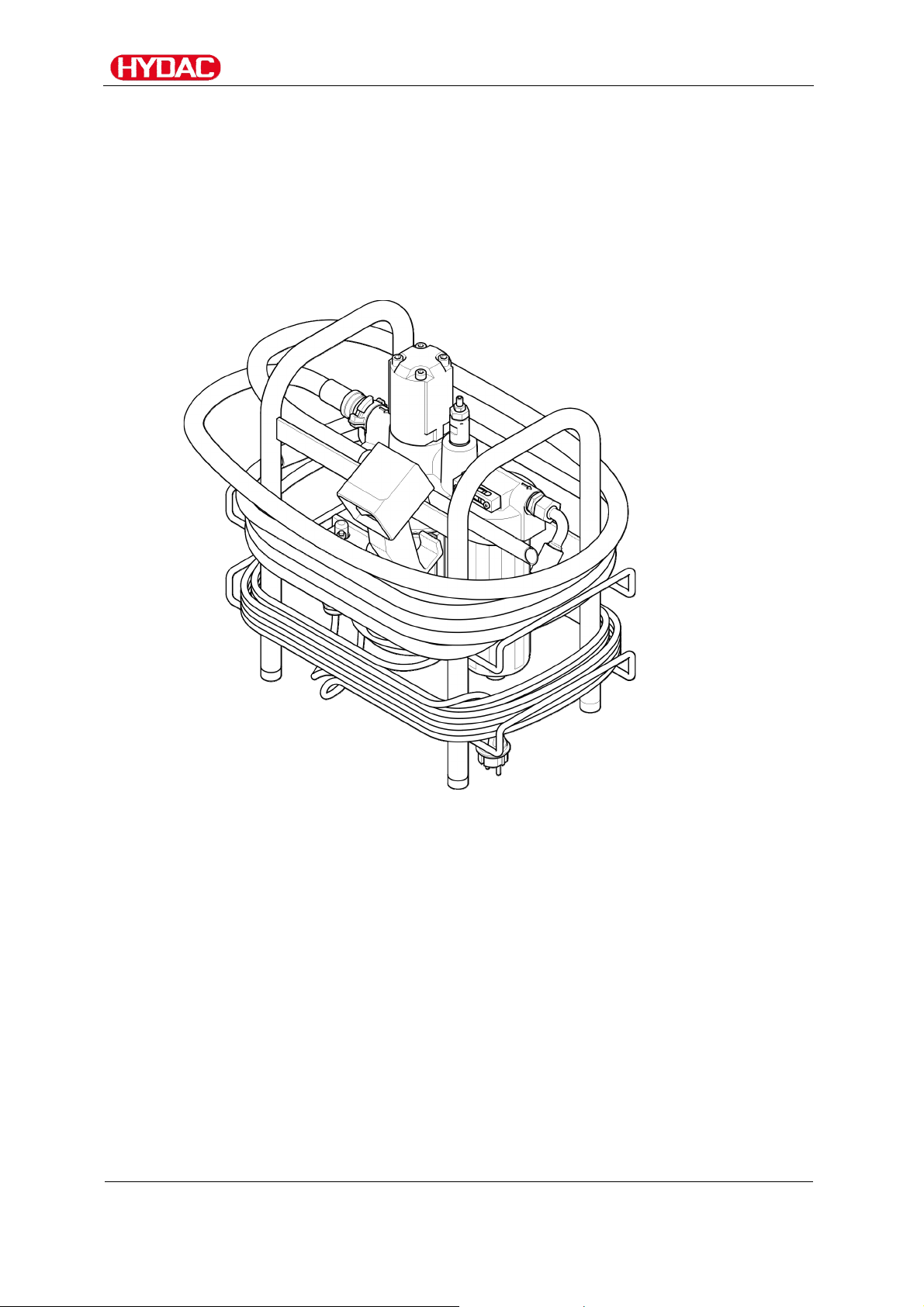

Hydac OFX Manual

OFX
Filtration unit
Operating and Maintenance Instructions
English (translation of original instructions)
Document No.: 3796731

Imprint
OFX en(us) Page 2 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31
Imprint
Publisher and responsible for the content:
HYDAC FILTER SYSTEMS GMBH
Postfach 1251
66273 Sulzbach / Saarland
Germany
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Homepage: www.hydac.com
Court of Registration: Saarbrücken, HRB 17216
Executive director: Mathias Dieter,
Dipl.Kfm. Wolfgang Haering
Documentation Representative
Mr. Günter Harge
c/o HYDAC International GmbH, Industriegebiet, 66280 Sulzbach / Saar
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
© HYDAC FILTER SYSTEMS GMBH
All rights reserved. No part of this work may be reproduced in any form (print,
photocopy or by other means) or processed, duplicated or distributed using
electronic systems without the written consent of the publisher.
These documents have been created and inspected with the greatest care.
However, errors cannot be ruled out completely.
Technical specifications are subject to change without notice.

Content
OFX en(us) Page 3 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31
Content
Imprint............................................................................................................2
Documentation Representative ...................................................................2
Content ..........................................................................................................3
Preface...........................................................................................................5
Technical Support........................................................................................5
Modifications to the Product ........................................................................5
Warranty ......................................................................................................5
Using the documentation .............................................................................6
Safety instructions........................................................................................7
Hazard symbols...........................................................................................7
Signal words and their meaning in the safety information and
instructions ..................................................................................................8
Structure of the safety information and instructions.....................................9
Observe regulatory information ...................................................................9
Proper/Designated Use .............................................................................10
Improper Use or Use Deviating from Intended Use ...................................11
Qualifications of personnel / target group ..................................................12
Wear suitable clothing ...............................................................................13
Stoppage in an emergency (EMERGENCY STOP)...................................13
Unpacking the unit......................................................................................13
Transporting the unit..................................................................................14
Storing the unit ...........................................................................................15
Decoding the model code label .................................................................16
Checking the scope of delivery .................................................................18
Characteristics of the unit..........................................................................19
Unit components.........................................................................................20
Working principle of the unit .....................................................................22
Hydraulic diagram.......................................................................................23
Dimensions..................................................................................................24
Preparing the unit for operation ................................................................25

Content
OFX en(us) Page 4 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31
Electrical connection..................................................................................26
Hanging the suction hose ..........................................................................27
Connecting pressure hose to high-pressure port.......................................27
Connecting pressure hose to depressurized tank......................................27
Selecting operating modes ........................................................................28
Filling depressurized tanks ........................................................................29
Filling of preloaded hydraulic systems .......................................................32
Observe the clogging indicator. ................................................................36
Performing Maintenance ............................................................................37
Changing the filter element........................................................................37
Cleaning/replacing the suction strainer......................................................39
Suction strainer cleaning interval............................................................39
Errors and troubleshooting........................................................................42
Resetting overload protection ....................................................................44
Customer service........................................................................................45
Taking the unit out of operation ................................................................45
Shutting down the unit ...............................................................................45
Disposing of the unit ..................................................................................45
Spare parts ..................................................................................................46
Overview of spare parts.............................................................................46
Spare parts list...........................................................................................47
Technical specifications ............................................................................48
Model Code..................................................................................................49
Filtration unit ..............................................................................................49
Filter element.............................................................................................49
EC declaration of conformity.....................................................................50
Index ............................................................................................................51

Preface
OFX en(us) Page 5 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31
Preface
This operating manual was made to the best of our knowledge. Nevertheless
and despite the greatest care, it cannot be excluded that mistakes could have
crept in. Therefore please understand that in the absence of any provisions
to the contrary hereinafter our warranty and liability – for any legal reasons
whatsoever – are excluded in respect of the information in this instruction
manual. In particular, we shall not be liable for lost profit or other financial
loss. This exclusion of liability does not apply in cases of intent and gross
negligence. Moreover, it does not apply to defects which have been
deceitfully concealed or whose absence has been guaranteed, nor in cases
of culpable harm to life, physical injury and damage to health. If we
negligently breach any material contractual obligation, our liability shall be
limited to foreseeable damage. Claims due to Product Liability shall remain
unaffected.
Technical Support
If you have any questions, suggestions, or encounter any problems of a
technical nature, please don't hesitate to contact us. When contacting us,
please always include the model/type designation and article no. of the
product:
Fax: [phone] / 509 - 9046
E-mail: [email protected]
Modifications to the Product
We would like to point out that changes to the product (e.g. purchasing
options, etc.) may result in the information in the operating instructions no
longer being completely accurate or sufficient.
When making modifications or performing repair work to components
affecting the safety of the product, the product may not be put back into
operation until it has been examined and released by a HYDAC
representative.
Please notify us immediately of any modifications made to the product
whether by you or a third party.
Warranty
For the warranty provided by us, please refer to the General Terms of Sale
and Delivery of HYDAC FILTER SYSTEMS GMBH.
You'll find this under www.hydac.com -> Legal information

Preface
OFX en(us) Page 6 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31

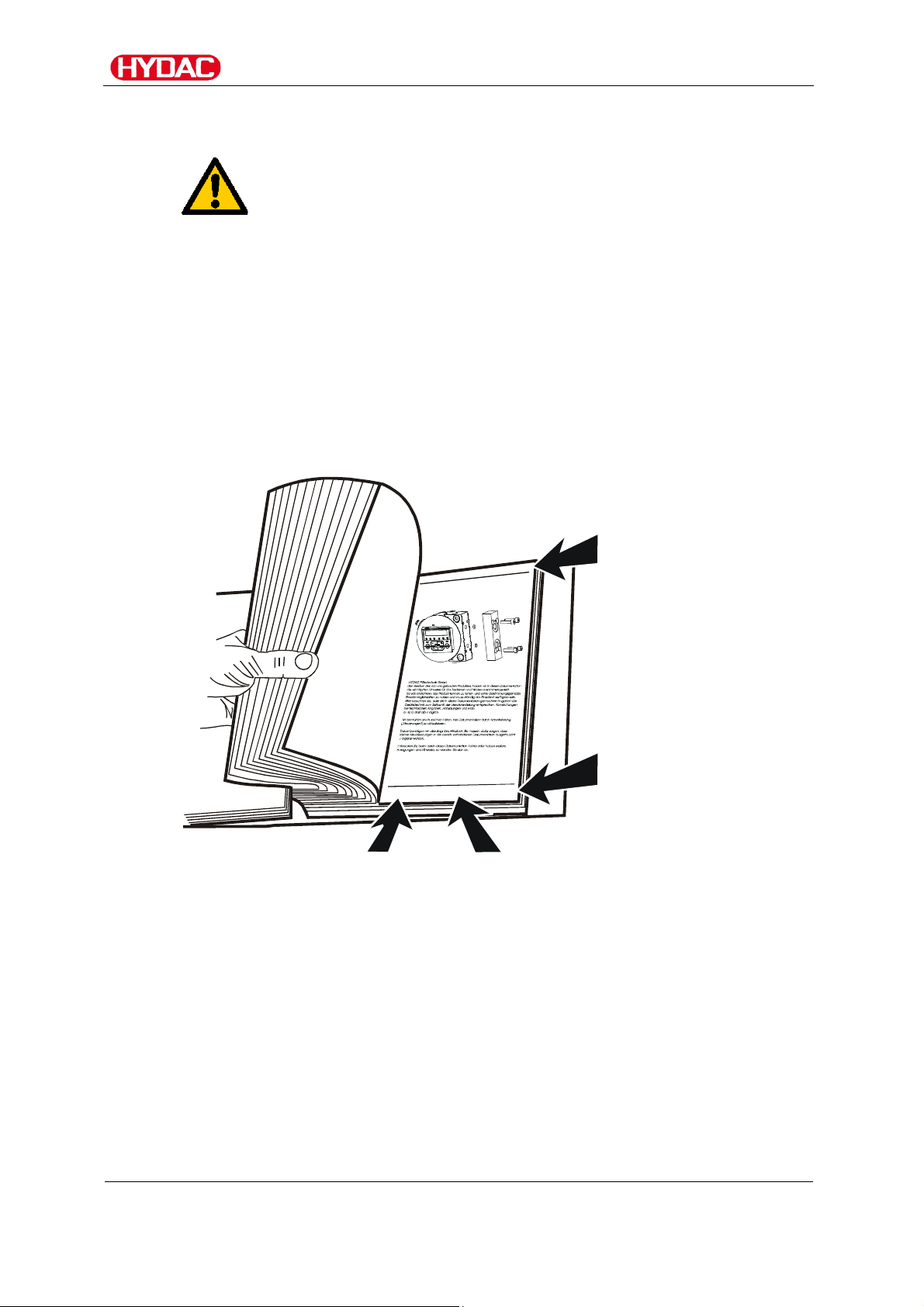

Using the documentation
Note that the method described for locating specific information
does not release you from your responsibility of carefully reading
these instructions prior to starting the unit up for the first time and
at regular intervals in the future.
WHAT do you want to know?
I determine which topic I am looking for.
WHERE can I find the information I’m looking for?
The document has a table of contents at the beginning. I select the chapter
I'm looking for and the corresponding page number.
de
HYDACFiltertechnikGmbH
Be
Wa12
3456a
d
e
Se ite x
Produkt/Kapitel
200x-xx-xx
The documentation number with its index enables you to order another copy
of the operating and maintenance instructions. The index is incremented by
one digit every time the manual is revised or changed.
Chapter description
Page number
Edition date
Document language
Documentation no.
with index/
file name

Safety instructions
OFX en(us) Page 7 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31
Safety instructions
The unit was built according to the statutory provisions valid at the time of
delivery and satisfies current safety requirements.
Any residual hazards are indicated by safety information and instructions and
are described in the operating instructions.
Observe all safety and warning instructions attached to the unit. They must
always be complete and legible.
Do not operate the unit unless all the safety devices are present.
Secure the hazardous areas which may arise between the unit and other
equipment.
Maintain the unit inspection intervals prescribed by law.
Document the results in an inspection certificate and keep it until the next
inspection.
Hazard symbols
These symbols are listed for all safety information and instructions in these
operating instructions which indicate particular hazards to persons, property
or the environment.
Observe these instructions and act with particular caution in such cases.
Pass all safety information and instructions on to other users.
General hazard
Danger due to electrical voltage / current
Exposed electrical components
Danger of electrical shock
Danger due to operating pressure

Safety instructions
OFX en(us) Page 8 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31
Risk of burns due to hot surfaces
Substances that are health hazards or irritants
Danger from explosive atmosphere
Signal words and their meaning in the safety information and
instructions
DANGER
DANGER indicates a danger with a high risk and which will lead to death or
serious injury if not avoided.
WARNING
WARNING indicates a danger with a medium risk and which can lead to
death or serious injury if not avoided.
CAUTION
CAUTION indicates a danger with a low risk and which can lead to minor
injury if not avoided.
NOTICE
NOTICE indicates a danger which will lead to damage to property if not
avoided.

Safety instructions
OFX en(us) Page 9 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31
Structure of the safety information and instructions
All warning instructions in this manual are highlighted with pictograms and
signal words. The pictogram and the signal word indicate the severity of the
danger.
Warning instructions listed before an activity are laid out as follows:
SIGNAL WORD
Type and source of danger
Consequence of the danger
HAZARD SYMBOL
►Measures to avert danger
Observe regulatory information
Observe the following regulatory information and guidelines:
Legal and local regulations for accident prevention
Legal and local regulations for environmental protection
Country-specific regulations, organization-specific regulations

Safety instructions
OFX en(us) Page 10 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31
Proper/Designated Use
Use the unit only for the application described in the following.
The Filtration Unit is a portable fluid service unit for filling hydraulic systems,
flushing small hydraulic systems, for offline filtration and recirculation with
simultaneous filtration.
Proper or designated use of the product extends to the following:
observing all instructions contained in the instruction manual.
performing inspection and maintenance work.
NOTICE
Impermissible operating media
The unit will be destroyed
►Operate the unit using only:
- the mineral oils specified in DIN 51524; DIN 51525 or
- mineral-oil-based fluids as specified in DIN 1524-1 to DIN 1524-3,
HLPD.
►Never pump:
- water
- aggressive fluids
- acids
- solvents
- oily sludge or sediment in the oil tank
►Never operate the unit without a suction strainer.

Safety instructions
OFX en(us) Page 11 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31
Improper Use or Use Deviating from Intended Use
DANGER
Danger due to unanticipated use of the unit
Bodily injury and damage to property will result
when operated improperly.
►Never operate the unit in potentially explosive
atmospheres.
►The unit is only to be used with permissible
media.
Any use extending beyond or deviating therefrom shall not be considered
intended use. HYDAC Filter Systems GmbH will assume no liability for any
damage resulting from such use. The user alone, shall assume any and all
associated risk
Improper use may result in hazards and/or will damage the unit. Examples of
improper use:
Operation in potentially explosive atmospheres.
Operation under impermissible operational conditions.
Operation when the safety devices are defective.
Modifications to the power unit made by the user or purchaser.
Inadequate monitoring of parts that are subject to wear and tear
Improperly performed repair work.
Operation with non-permitted media / fluids such as water, acids, solvents,
aggressive fluids, oily sludge or sediment.

Safety instructions
OFX en(us) Page 12 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31
Qualifications of personnel / target group
Persons who work on the power unit must be aware of the associated
hazards when using the power unit.
Operating and specialist personnel must have read and understood the
operating instructions, in particular the safety information and instructions,
and applicable regulations before beginning work.
The operating instructions and applicable regulations are to kept so they are
accessible for operating and specialist personnel.
These operating instructions is intended for:
Operating personnel: such persons have been instructed in power unit
operation and are aware of potential hazards due to improper use.
Specialist personnel: such persons with corresponding specialist training and
several years work experience. They are able to assess and perform the
work assigned to them, they are also able to recognize potential hazards.
Activity Person Knowledge
Transport / storage Auxiliary
personnel
No specialist knowledge
required
Startup operation
Operations control
Auxiliary
personnel
Product-specific knowledge
Knowledge about how to
handle operating media.
troubleshooting,
maintenance,
decommissioning,
Disassembly
Specialist
personnel
Safe handling/use of tools
Product-specific knowledge
Disposal Specialist
personnel
Proper and environmentally-
friendly disposal of materials
and substances
Decontamination of
contaminants
Knowledge about reuse

Unpacking the unit
OFX en(us) Page 13 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31
Wear suitable clothing
Loose-fitting clothing increases the risk of being caught or being drawn in on
rotating parts, and the risk of getting caught on protruding parts. You can be
severely injured or killed.
Wear close-fitting clothing.
Do not wear any rings, chains or any other jewelry.
Wear work safety shoes.
Stoppage in an emergency (EMERGENCY STOP)
In an emergency, switch the unit off at the main on/off switch or unplug the
power connector.
Unpacking the unit
Prior to delivery, the unit is function and leak-tested in the factory.
When unpacking the unit, check it for damage in transit.

Transporting the unit
OFX en(us) Page 14 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31
Transporting the unit
Unscrew the suction hose from the hose coupling and empty the contents of
the suction hose back into the tank. Dispose of the contents in an
environmentally friendly manner, as necessary.
Wind the connector cable, pressure and suction hose around the frame and
secure it..
Only transport the unit carrying by the frame or standing on its rubber feet.
When transporting the unit, never pick it up by its attachment parts or
components.

Storing the unit
OFX en(us) Page 15 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31
Storing the unit
Drain the unit completely, including the cartridge, before putting it into
storage. Pull out the power plug and securely fasten the hoses and power
cord to the unit.
Store the unit in an upright position in a clean, dry (non-condensing) space.
The storage temperature range is -20 … 60 °C.

Decoding the model code label
OFX en(us) Page 16 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31
Decoding the model code label
Details for identifying the filtration unit can be found on the name plates on
the unit and the components.
Item -> Description
(1) -> Name plate of filtration unit
(2) -> Name plate of electric motor
(3) -> Model code; for details, see page 49

Decoding the model code label
OFX en(us) Page 17 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31
The following information can be found on the name plate of the unit:
Row -> Description
Part No. -> Part number
S/N -> Serial number / year of production
Power -> Power consumption
Voltage/Grid -> Voltage / power supply
Frequency -> Frequency
Current -> Current consumption
Pressure max. -> Operating pressure, maximum
Weight -> Empty weight
Flow rate -> Flow rate
Temp. Oil -> Permissible oil temperature range
Temp. Amb. -> Permissible ambient temperature range
Volume -> Fluid volume in unit

Checking the scope of delivery
OFX en(us) Page 18 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31
Checking the scope of delivery
The filtration unit comes factory-assembled. Check that the filtration unit is
complete before starting up.
The following items are supplied:
Item Qty Designation
1.0 1 Filtration unit OFX including
connector cable 5 m (6.40),
operating switch with 5 m cable (6.10)
3.0 1 Suction hose with lance
4.1 1 Pressure hose
- 1 Operation and Maintenance Instructions (this document)

Characteristics of the unit
OFX en(us) Page 19 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31
Characteristics of the unit
The filtration unit OFX serves as a portable service unit for filling and draining
hydraulic systems. Due to the maximum permitted operating pressure of up
to 45 bar, also supply circuits of hydrostatic transmission drives and work
hydraulics in a closed circuit can be filled and vented.
The handy design and light weight make it ideal for service calls on mobile
machines (e.g. construction, agricultural and forestry machinery, municipal
vehicles).
Existing contamination and air pockets, for example after repairs, are
specifically removed before commissioning in a very short time.
The filtration unit is suitable for:
Flushing and bleeding of hydraulic systems
Filtered oil change during maintenance
For filling preloaded hydraulic systems with filtrated, cleaned fluid.
For filling hydrostatic drives after service or repairs.

Unit components
OFX en(us) Page 20 / 52
BeWa OFX 3796731 en-us 2014-03-31.doc 2014-03-31
Unit components
