Hydro-Force Olympus Series User manual

1
OLYMPUS
Portable Extractor(s) Owner’s Manual
For all currently manufactured Olympus models (2020 and newer)
Hydro-Force Manufacturing
4282 South 590 West
Salt Lake City, Utah, 84123
801-268-2673

2
INTRODUCTION
Congratulations on the purchase of your new Olympus Portable Extractor. The Olympus units are
designed to give maximum versatility, performance and reliability. Years of experience,
engineering, and planning have gone into the design and manufacturing of the Olympus portable.
We take a great deal of pride in the Olympus line and our goal is no less than your complete
satisfaction.
This manual will provide users with the knowledge required to operate the Olympus portable safely
and understand how to properly maintain the machine to ensure the maximum performance level.
All users must read and understand this manual completely before operating the machine. Any
questions on operating or servicing this unit should de directed to your nearest Hydro-Force
distributor.
This Manual is written for the Olympus portable extractor units manufactured by:
Hydro-Force Manufacturing
4282 South 590 West
Salt Lake City, Utah, 84123
801-268-2673
Information in this manual is subject to change without notice and does not represent a commitment
on the part of Hydro-Force or its parent or affiliated companies.

3
Technical Specifications
Olympus Dimensions
Solution Tank
Capacity
10 Gallons (approx.)
Recovery Tank
Capacity
10 Gallons (approx.)
Dimensions
(WxDxH)
19.5” W x 27.25” D x 39.25” H
Wheels 12” Diameter Rear Wheels
Casters 5” Diameter Front Casters
Units at a Glance
Model No. O100 O200H O3-200H O3-500 O500H O1200
Weight (lbs)
84 lbs 97 lbs 100 lbs 113 lbs 116 lbs 141 lbs
Vacuum Motors
5.7” Ametek Lamb
Mounted in Series
(2)
2 Stage
(2)
2 Stage
(2)
3 Stage
(2)
3 Stage
(2)
2 Stage
(2)
3 Stage
Vacuum Flow
Rate (CFM)
194 CFM 194 CFM 198 CFM 198 CFM 194 CFM 198 CFM
Vacuum Lift
(in H2O)
131
in H2O
131
in H2O
188
in H2O
188
in H2O
131
in H2O
188
in H2O
Solution Pump
100 psi
1.3 GPM
200 psi
2.0 GPM
200 psi
2.0 GPM
500 psi
2.5 GPM
500 psi
2.5 GPM
1200 psi
2.2 GPM
Heater
- 1750 W 1750 W - 1750 W -
Auto Fill / Pump
Out (APO)
- - - - - APO
Cord 1:
Required Breaker
115VAC 60Hz
15 A 15 A 20 A 20 A 20 A 20 A
Cord 1:
Components on
Cord
Vacuums,
Pump
Vacuums,
Pump Vacuums Vacuums Vacuums, Pump Vacuums
Cord 2:
Required Breaker
115VAC 60Hz
- 15 A 20 A 15 A 15 A 20 A
Cord 2:
Components on
Cord
- Heater Pump,
Heater Pump Heater Pump, APO

4
Electric Components at a Glance
Component Configuration Part # Amp Draw
115VAC, 60Hz
Vacuum
2 Stage AV010
8.6 A with 2” orifice
5.1 A with closed
orifice
3 Stage AV14
10.4 A with 2”
orifice
6.7 A with closed
orifice
Solution Pump
100 psi AP120 1.0 A
200 psi 1606-5563 1.6 A
500 psi NM5048A 5.2 A
1200 psi NM5057 14.3 A
Heater 1750 W 2672-0274 15 A
Auto Fill / Auto
Pump Out APO NM5053 5 A
Important Safety Information
Use common sense to protect yourself and others while using this equipment.
•Keep pets and children away from the machine when in use.
•Keep all body parts, hair, and loose clothing away from openings and moving parts. Always wear
appropriate work clothing and safety equipment when operating unit.
•Use extra care when cleaning on stairs. Wet carpet on stairs can be slippery.
•DO NOT move up or down stairs when tanks are full of water. Drain solution and recovery tanks, and
secure latches before moving unit up or down stairs. Lift using only the machine handles designed &
designated for moving and lifting.
•Water may be spilled, drip, or be exhausted from vacuums during operation. Place unit in area where
water will not cause damage or use drop cloth to protect surfaces.
THIS MACHINE IS AN ELECTRICAL APPLIANCE. CARE MUST BE TAKEN TO REDUCE THE
RISK OF ELECTRICAL SHOCK.

5
READ AND UNDERSTAND ALL INSTRUCTIONS BEFORE OPERATING.
•To reduce the risk of property damage or injury, repairs to electrical systems should only be
performed by experienced technicians. Contact your distributor for assistance. Unplug machine
power cord from outlet before performing any repairs on the extractor.
•This machine shall be grounded while in use to protect the operator from electric shock and is
provided with a three-conductor cord and a three-contact grounding type attachment plug to fit
the proper grounding type receptacle. The green (or green and yellow) conductor in the cord is
the grounding wire. Never connect this wire to other than the grounding pin of the attachment
plug.
•DO NOT use a plug adapter with this machine.
•The power cords supplied with this machine are properly sized to handle the electrical load of this
machine and properly grounded as described above. Any extension cords used with this machine
must be similarly sized with an equal or greater load rating and grounded to assure safe operation. A
properly sized or rated GFCI protected cord can be used for additional protection.
•DO NOT use Olympus outdoors, in standing water or on wet surfaces. Do not store in wet conditions.
If extractor is leaking, unplug machine power cords from outlets before approaching or touching
machine.
•DO NOT unplug power cord by pulling on the cord. Grasp the plug end when unplugging the cord.
Do not pull the extractor by the cord. If cord or plug is damaged, do not use cord. Replace with new
cord or repair as needed before use.
•An overloaded circuit may not always trip circuit breaker. Reduced voltage to a machine on an
overloaded circuit will prevent components from operating properly.
THIS MACHINE MUST BE PROTECTED FROM CONDITIONS WHICH MAY DAMAGE
THE PUMP, TANK, HOSES AND OTHER COMPONENTS.
•Freezing of water in this machine will cause serious damage. The Olympus, solution hoses, and
tools must be protected from freezing temperature. Store, transport, and use this equipment only in
temperatures well above freezing. (32ºF or 0ºC). If you suspect the unit has been frozen, do not plug
in or turn on machine until you are sure it has thawed completely.
•If the equipment cannot be stored or transported in a warm environment, it can be guarded from
freezing by running an anti-freeze solution through the incoming water lines, solution pump, solution
lines, and tools.
•The anti-freeze solution must be completely flushed from the machine before it is returned to service
•DO NOT use Olympus to pick up flammable or combustible materials or use in areas where these
materials may be present.
•Solvent-based or water-based solutions containing solvents may damage the pump, hoses, and other
components. Do not assume chemical compatibility. Contact your distributor or Hydro-Force if you
have questions regarding the compatibility of your chemicals with the machine.
•DO NOT clean with solutions that are at temperatures above 130ºF.
•Rinse the solution tank, chemical system, and pump with fresh water after each day’s use.
•DO NOT allow pump to run dry. Always maintain adequate solution level to supply solution pump.

6
•High pressure hoses may rupture if worn or damaged. Do not use HP solution hoses if hose covering
is cut, bulging, or otherwise damaged. Examine HP solution hoses daily and replace or repair hoses as
needed.
•Use defoamer to eliminate foam build-up during cleaning and prevent foam/moisture from entering
vacuums.

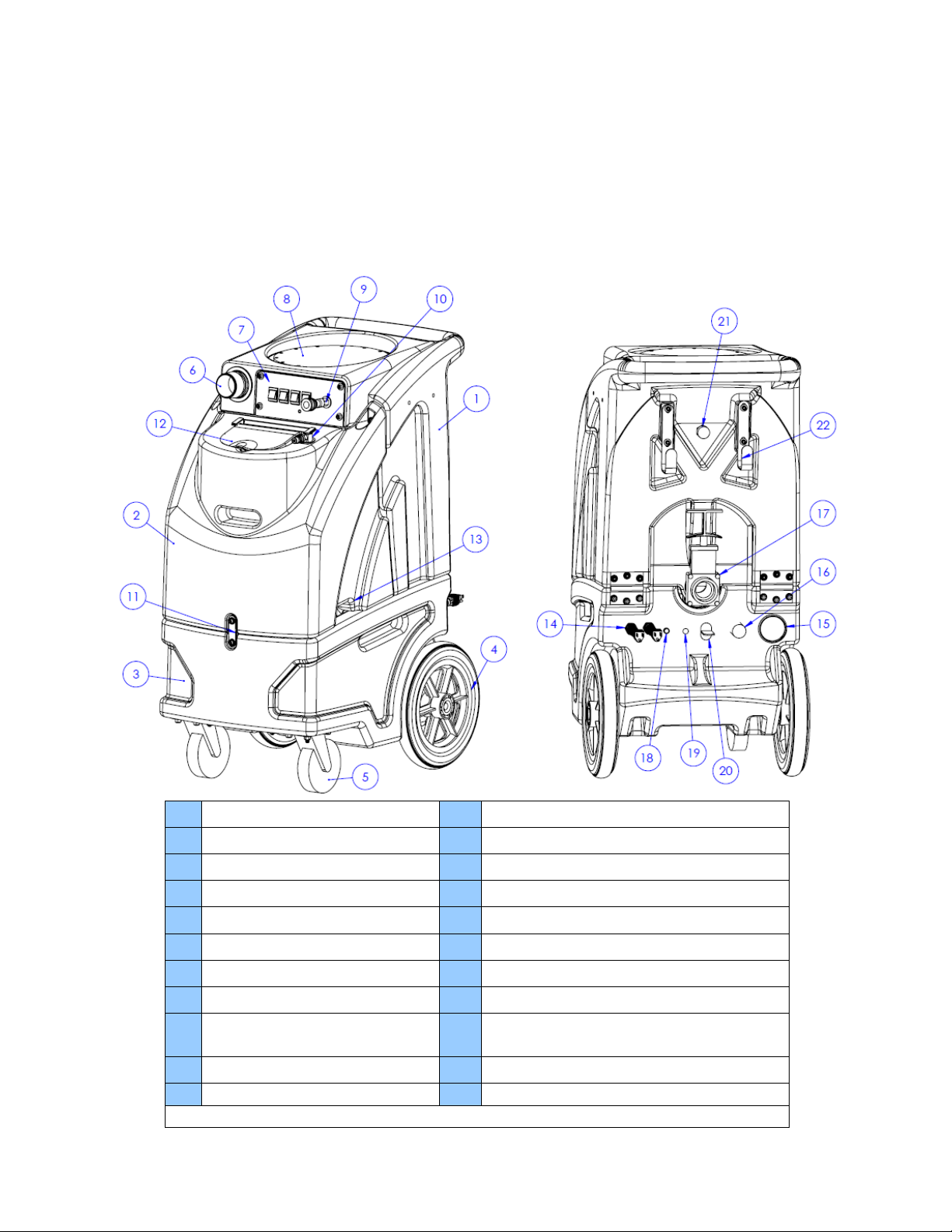

Olympus Features
1 Waste Tank 12 Solution Tank Lid
2 Solution Tank 13 Base Vacuum Air Intake
3 Base 14 Power Cords
4 12” Rear Wheels 15 Pressure Gauge *
5 5” Front Casters 16 Pressure Regulator *
6 Vacuum Hose Attachment 17 Waste Tank Drain Gate Valve
7 Switch Plate 18 Dual Circuit Indicator
8 Waste Tank Lid 19 Circuit Breaker *
9 Solution Line Quick
Connect 20 Pump Primp Lever *
10 Auto Fill Quick Connect 21 Pump-Out Hose Connection *
11 Base Access Bracket 22 Cord Wrap Bracket
*Feature availability varies by model

7
SET UP AND OPERATION:
Electrical Specifications
The Olympus is equipped with power cords and is designed to work with a 115VAC, 60hz, 15 or 20 amp
circuits. These outlets are commonly found in homes and commercial buildings.
Plug the two power cords into two outlets from different circuit breakers. Check that the Dual Circuit
Indicator green light comes on, showing the two cords are on separate breakers.
Water Supply
Use either the manual fill or the auto fill method (if equipped) to fill the solution tank with water. Hot
water can be used as long as the temperature does not exceed 130ºF. DO NOT run out of water while
using this machine, this can damage the pump,
Manual Fill
Pour up to 10 gallons of water into the solution tank, lift the lid and pour in the manual fill opening.
Auto Fill (if equipped)
Connect the unit to the water source using a Water Supply Hose. The garden hose connection
attaches to the water source, connect the hose to the Olympus using Male Quick Connect on the
front of the unit.
Auto Pump-Out (if equipped)
Remove the cap from the pump-out outlet fitting on the back of the machine. Connect the pump-out hose
to the outlet fitting. Place the other end of the hose in a commode or drain connected to the sanitary sewer
system. Secure hose end to prevent movement during pumping. Use defoamer to prevent foam build-up
in recovery tank during cleaning and to keep foam/moisture from entering vacuums.

8
Connect Solution Hose
Connect the high pressure solution hose to the Olympus using the female quick connect on the front
of the switch plate. The solution hose is then attached to the cleaning tool.
Connect Vacuum Hose
Connect the vacuum hose to the unit using the 2” Flash Cuff connecter included on the vacuum hose
supplied with the Olympus. The vacuum hose is then attached to the cleaning tool.
Switching on the Olympus
1. Switch on the Pump. Open the valve or trigger on your tool to open the solution line, wait for
the pump to prime and for pressure in the solution line. If pump fails to prime see methods
below to manually prime the pump.
2. Turn on the Heater (if Equipped). It will take a few minutes for the heater to reach working
temperature.
3. Turn on Vacuums
4. Begin Cleaning.
Pump Prime
Pump Prime Lever (if equipped)
Push down and hold the pump prime lever on the back of the unit. Release the lever when water has
filled the pump and wait for the pressure to build in the solution line.
Manual Pump Prime
If the pump does not prime quickly, the vacuum may be used to aid priming:
• Direct the end of a short prime hose (NM5080 sold separately) into the vacuum barb on the front of the
machine. The prime hose, NM5080, has a quick connect into the machine on one end and is open on the
other.
• Turn on one or both of the vacuum motors.
• Turn on the solution pump.
• Cup a hand around the hose & barb to increase the vacuum suction on the hose.
• When water is flowing out of the hose, direct the hose to the solution tank and turn off the vacuum
motors to ensure the flow continues when the vacuum is removed.
• When the flow is steady, turn off the solution pump, remove the hose, and proceed with machine set-up
procedures. If the pump still does not prime, or if flow is low or unsteady, check the hose from the
solution tank to the pump (as well as the inline filter) for clogging, kinks, or restrictions. Clean or replace
hose and/or filter and repeat the priming procedure.
If you are having trouble with the pump, refer to the trouble shooting guide or contact your distributor for
advice or assistance.

9
Pressure adjustment (if equipped)
When the pump is on and primed, pressure will show on the gauge on the back of the Olympus. The
pressure reading on the gauge will drop from its static state when the solution line is open and the tool is
spraying. Re-adjust as need for desired running pressure.
• To decrease the pressure, turn the pressure regulator counter-clockwise.
• To increase the pressure, turn the pressure regulator clockwise.
The maximum pressure setting varies by Olympus model and is offered in 100, 200, 500 and 1200 PSI
configurations. Working pressures seen in real world environments are generally lower then labeled on
the pump.
The pressures labeled on the pumps are a maximum possible pressure they can output at a set flow rate.
Jet size and water flow rate on the cleaning tool effects the highest possible pressure rate the pump can
output. Smaller jets and lower flow will allow for higher pressure at the tool. Larger jets and higher flow
will lower the maximum pressure attained at the tool
Empty Waste Tank
The Waste Tank will automatically shut off the vacuum air flow to the tank when it fills with waste water.
When the waste tank is full the vacuum float will rise and block the inlet air flow to the tank and loss of
vacuum at the tool. When this happens;
• Turn off the Vacuum switches.
• Turn off the Pump switch.
• Drain the waste tank by lifting the Dump valve on the back of the Olympus.
• Close the dump valve, turn on the Olympus and resume cleaning.
If the Pump-Out or Vacuum shutoff is not working properly, refer to the trouble shooting guide or contact
your distributor for advice or assistance.

10
Heater
The solution tank needs to be filled with the pump running and primed before the heater is switched on.
Running the heater without water will damage the heater core. Allow the heater to heat up for about 5
minutes before starting to spray the tool.
The heat delivered to the tool is dependent on two factors:
• Starting temperature of the water in the tank. Hotter water will require a smaller temperature increase
from the heater to reach the maximum temperature. The water temperature in the solution tank cannot
exceed 130°F.
• Flow rate at the tool head. The lower the flow rate of the water through the heater, the more time the
water will be inside the heater. High water usage and flow rate will not allow the water enough time to be
heated and the temperature of the water delivered to the tool will be much lower. The flow rate can be
lowered by putting smaller jets in the cleaning tool and by reducing the amount of time the wand is
sprayed.
Shutdown procedures
• Turn off all switches.
• If using Auto fill, disconnect the water inlet hose from the quick-connect on the front of the machine.
• Remove any remaining water from the solution tank. Use the vacuum hose and extract water from the
solution tank through the manual fill opening.
• Disconnect the vacuum hose from the Olympus. Pull valve trigger to release pressure from the solution
hose then disconnect the solution hose from Olympus.
• Empty out waste tank and dispose in sanitary drain. Do not use the same bucket to drain the tank that
you use to fill the tank.
• Disconnect the power cords from the outlets and from the machine.
• Remove the waste tank lid and clean off float, cage and cap as needed. Spray out waste tank with fresh
water. Replace lid and empty tank.
Maintenance
Maintenance Item Daily Weekly As
needed
Procedure
Clean waste and
solution tanks
x
1. Remove the waste tank lid.
2. Use a hose to rinse the dirt and debris out of the waste
tank.
3. (Optional) Spray the waste tank with a deodorizer or
disinfectant.
4. Flush solution tank and pump with fresh water, if any
fluid other than water was used in the solution tank
during cleaning.

11
Clean and inspect
hoses
x
Check tanks,
hoses, filters and
power cables for
any signs of
damage or wear
x
Clean waste tank
gate valve
x x
Clean Pump inlet
filter
x x
1. Remove the filter screen from inside the solution tank
and clean as needed.
2. Do not operate the machine without the pump inlet
filter in place.
3. Replace filter, hose & barb as needed.
Storage Freeze
Protection
x
1. In a separate container mix 1 pint of water with 1 pint
of automotive radiator anti-freeze. (Ethylene glycol
type).
2. Mix well and pour into the solution tank.
3. Connect the solution hose to the solution outlet female
quick connect and hold the tool over a bucket.
4. Turn the solution pump switch to the ON position.
Spray the tool into the bucket until you see the
antifreeze solution coming out of the jet into the
bucket.
5. Turn the solution pump off.
6. Drain the remaining anti-freeze solution from the
solution tank and the machine is ready for storage.
To Return to Service:
Repeat steps above using clean water ONLY until anti-
freeze has been cleaned from the unit.

12

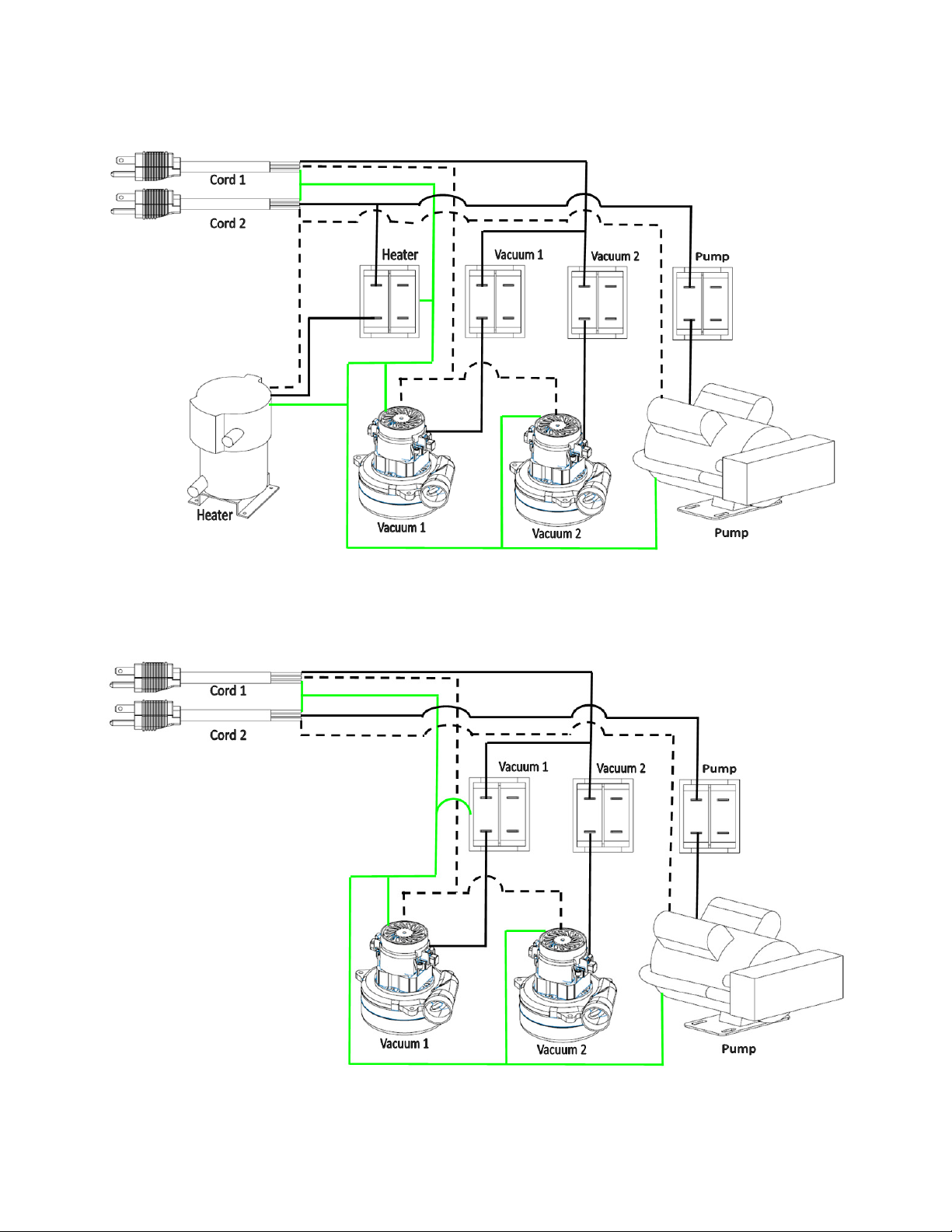

Wiring Diagrams
O200H, O500H
O1200

13
O3-200H
O3-500

14
O100

- 15 -
Troubleshooting
Problem Cause Solution
Machine
not
turning on -
No power
Building circuit breaker tripped. Reset breakers or move cords to other outlets
Faulty power cord Replace cord
Faulty switches or internal wiring Check wiring & test switches - Repair as
needed *
Solution
Pump
not running
Building circuit breaker tripped. Reset breakers or move cords to other outlets
Faulty power cord Replace cord
Faulty switches or internal wiring Check wiring & test switches - Repair as
needed *
Pump faulty Replace pump
Low
Solution
Pressure
and/or
Pulsation
Jets too large for pressure desired Check jets size & flow rates / use smaller jets
Jets worn allowing too much flow Replace jets
Hose from solution tank restricted Repair or replace hose
Pump intake hose or fittings leaking Repair or replace hose. Tighten clamps or
replace fittings
Solution tank empty Add water to tank
Pump faulty Repair or replace pump
Tool valve faulty Repair or replace valve
Quick connects or hoses restricted Clean out or replace quick connects and/or
hoses
Heater Restricted with scale De-scale or replace the heater
Can't
connect
solution
hose
to machine
Pressure in lines Release pressure
Quick connects faulty Replace quick connects (AH101B, AH102B)
Wrong style/size quick connects Replace quick connects to match connects on
machine
Heater Not
Heating
(Heated
Units Only)
Faulty switches or internal wiring Check wiring & test switches - Repair as
needed *
Temperature Switch tripped Reset manual reset temperature switch.
Faulty temperature switches Replace temperature switches on heater
Faulty Heater Core Replace heater core
Flow too high for proper heating Use smaller jet or slow use of water
Water Starting out too cold Heat water before filling tank – Maximum
130°F

- 16 -
Troubleshooting Continued
Problem Cause Solution
Vacuum
Motor Not
Running
Building circuit breaker
tripped. Reset breaker or move
cord to other outlet
Building circuit breaker tripped. Reset breaker or
move cord to other outlet
Faulty power cord Replace cord
Faulty switch or internal
wiring Check wiring & test
switch
Repair as needed *
Vacuum motor faulty Replace vacuum motor
Loss of
Vacuum
Vacuum motor faulty Replace vacuum motor
Vacuum motor gasket
damaged Replace gasket
Recovery tank lid gasket
damaged Replace lid assembly or gasket
Vacuum hose or tool clogged Clean out vacuum hoses and tool
Vacuum hoses or cuffs leaking Replace vacuum hoses, cuffs & connectors as
needed
Recovery tank full Drain tank
Float shutoff filter clogged Clean float shutoff filter
Float shutoff stuck Repair or replace float shutoff
Recovery tank damaged Replace recovery tank
Tool won't
spray - slow or
uneven spray
Jet clogged Clean out or replace jet
Inline filter clogged Clean out or replace filter if so equipped
Jet worn Replace jet
Jet not aligned properly Re-align jet
Tool valve faulty Repair or replace valve
Quick connects or hoses
restricted Clean out or replace quick connects and/or hoses
Pump not pumping See Troubleshooting sections relating to solution
pump

- 17 -
Parts List and Breakdown
Olympus Sub-Assemblies

- 18 -
Solution Tank Assembly

- 19 -
Solution Tank Assembly
Balloon Part Number Description Qty Configuration
1
2617-0922
Olympus
Solution Tank
1 All
2
BR030 Barb, 1/2" x 3/8"
MPT
2 All
3
BR284 Elbow, 90, 3/8"
Street
2 All
4
NM5098 Fitting Bulkhead
3/8”
2 All
5
PP14-
806504
Strainer Acorn
3/4"
1 All
6
NM5740 Kit Float Valve
Assembly
1 Pump Out
7
BR286 Elbow 90 1/2"
NPT
1 Pump Out
8
BR138 Nipple, 1/2" x
1/4" NPT
1 Pump Out
9
NM5751 Washer 1/2" Flat
2 Pump Out
10
BR282A Elbow 90 Street
1/4"
1 Pump Out
11
AH102B Quick Connect
1/4" Male
1 Pump Out
12
2620-0028 Screw, 1/4" x 1-
5/8"
2 All
13
NM5014 Washer, Split
Lock, 1/4"
8
All
14
NM5066 Washer, 1/4"
Flat
8 All
15
NM5027 Bracket
3 All
16
NM5028 Screw, 1/4-20 x
1/2"
6 All

- 20 -
Waste Tank Assembly
