Hydro Tek Active Aqua Chiller, 1/10 HP User manual

INSTRUCTIONS
WATER CHILLERS
Active Aqua Chiller, 1/10 HP Active Aqua Chiller, 1/4 HP
DISTRIBUTED BY
www.hydrotek.ca
®

INSTRUCTIONS
www.hydrotek.ca
Nut Handle Switch
Socket
Tank (with evaporator)
Base
Fan motor
Water temperature sensor
Filter (front cover)
Front cover
Condenser
Compressor
Circuit board
Control box
Back cover of circuit board
Top cover
Water inlet & outlet
adaptor

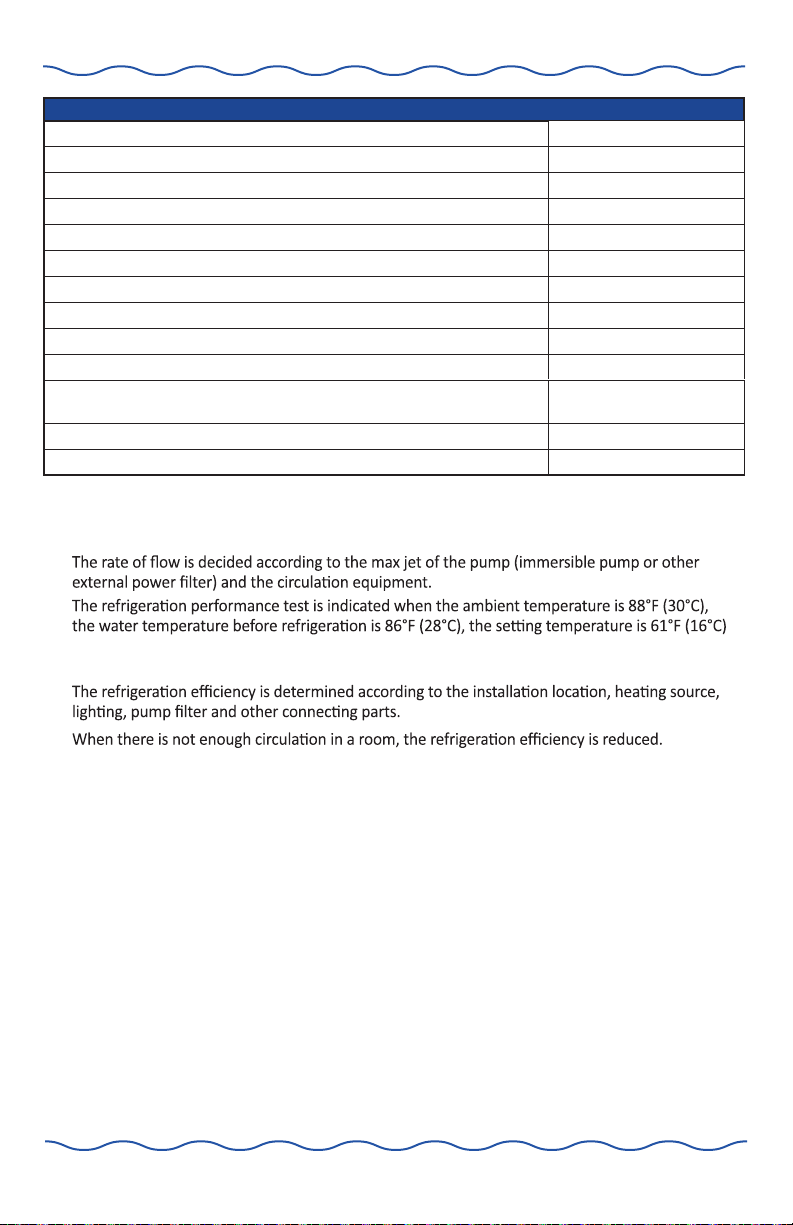

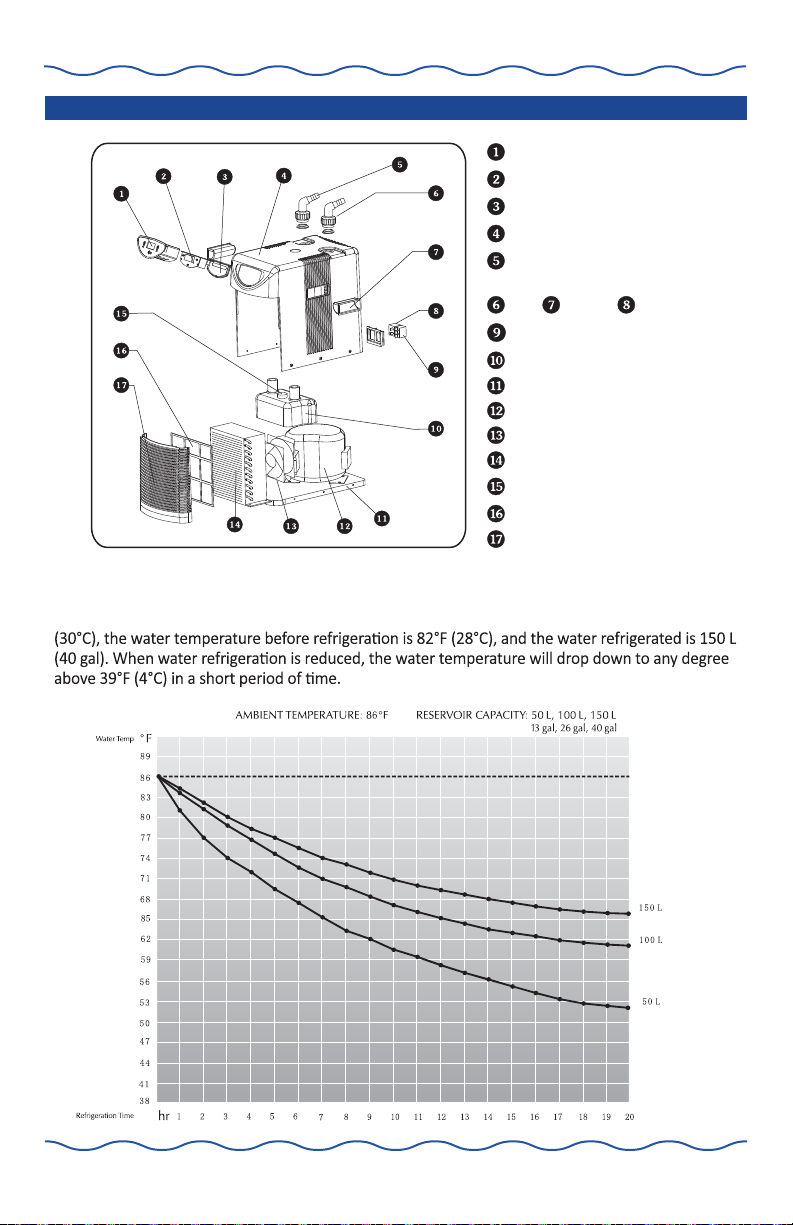

PERFORMANCE CURVE
THE REFRIGERATION PERFORMANCE TEST IS INDICATED WHEN THE AMBIENT TEMPERATURE IS 86°F
CHILLER 1/10 HP (13-50 GALLON)
1/10 HP

INSTRUCTIONS
www.hydrotek.ca
SPECIFICATIONS
Model 1/10 HP
Rated Voltage 110-120V
Rated Frequency 60Hz
Working Current 2.2A
Power 1/10HP
*BTU 12010 BTU/H
Water Temperature Before Refrigeration 82.4°F (28°C)
Refrigeration Time 20h
Water Temperature After Refrigeration (Water Refrigerated 50L) 52°F ± 1°F
Water Temperature After Refrigeration (Water Refrigerated 100L) 61°F ± 1°F
Water Temperature After Refrigeration (Water Refrigerated 150L) 66°F ± 1°F
Refrigerant R134a
Refrigerant Weight 180 - 200g
Rate of Flow 70 - 320 GPH (250 - 1200 L/H)
Reservoir Capacity 13 - 50 GAL (50-190 L)
Weight 34 lbs
Size 16.5 " x 10 " x 14.5 "
* The BTU is measured at an ambient temperature of 97°F (36°C) and the Chiller is working
at 1100W/9.6A power.
Recommended Pump: 160 or 250 GPH

INSTRUCTIONS
1/4 HP
www.hydrotek.ca
CHILLER 1/4 HP (26-80 GALLON)
Back cover of circuit board
Seal sleeve
Nut
Condenser
Handle
Compressor
Base
Tank (with evaporator)
Fan
Back cover
Filter (front cover)
Front cover
Control panel
Front trim cover
Circuit board
Top cover
PERFORMANCE CURVE
THE REFRIGERATION PERFORMANCE TEST IS INDICATED WHEN THE AMBIENT TEMPERATURE IS 86°F

SPECIFICATIONS
Model 1/4 HP
Rated Voltage 110-120V
Rated Frequency 60Hz
Working Current 4.7A
Power 1/4HP
*BTU 12010 BTU/H
Water Temperature Before Refrigeration 82°F (28°C)
Water Temperature After Refrigeration (Water Refrigerated 150L) 60°F
Refrigerant R134a
Refrigerant Weight 210 - 240g
Rate of Flow 1000 - 2500L/h
264 - 660gal/h
Weight 41 lbs
Size 17.6” x 13” x 17.3”
1.
2.
and the aquarium capacity is 52 GAL to 132 GAL. When reservoir capacity falls, the water
temperature will drop faster.
3.
4.
* The BTU is measured at an ambient temperature of 97°F (36°C) and the Chiller is working
at 1100W/9.6A power.
Recommended Pump: 250 or 550 GPH
INSTRUCTIONS
www.hydrotek.ca

INSTRUCTIONS
www.hydrotek.ca
COMPLETE PARTS LIST (SAME FOR ALL MODELS)
Chiller Unit 1 ea.
1 ea.
2 ea.
b. Worm drive hose clamps 2 ea.
c. Rubber replacement collars (extras) 2 ea.
d. Replacement Fuse 1 ea.
• Convenient microcomputer control system
• The high quality condenser is manufactured by American OAK production line
• Anti-corrosive pure titanium evaporator for fresh and salt water
• The compressor protection device system is built to shut off the circuit automatically
to prevent the motor from burning out when the motor is overheating
• Temperature memory system that allows the chiller to refrigerate continuously according to the
previous temperature setting
CIRCUIT DIAGRAM
FEATURES

INSTRUCTIONS
www.hydrotek.ca

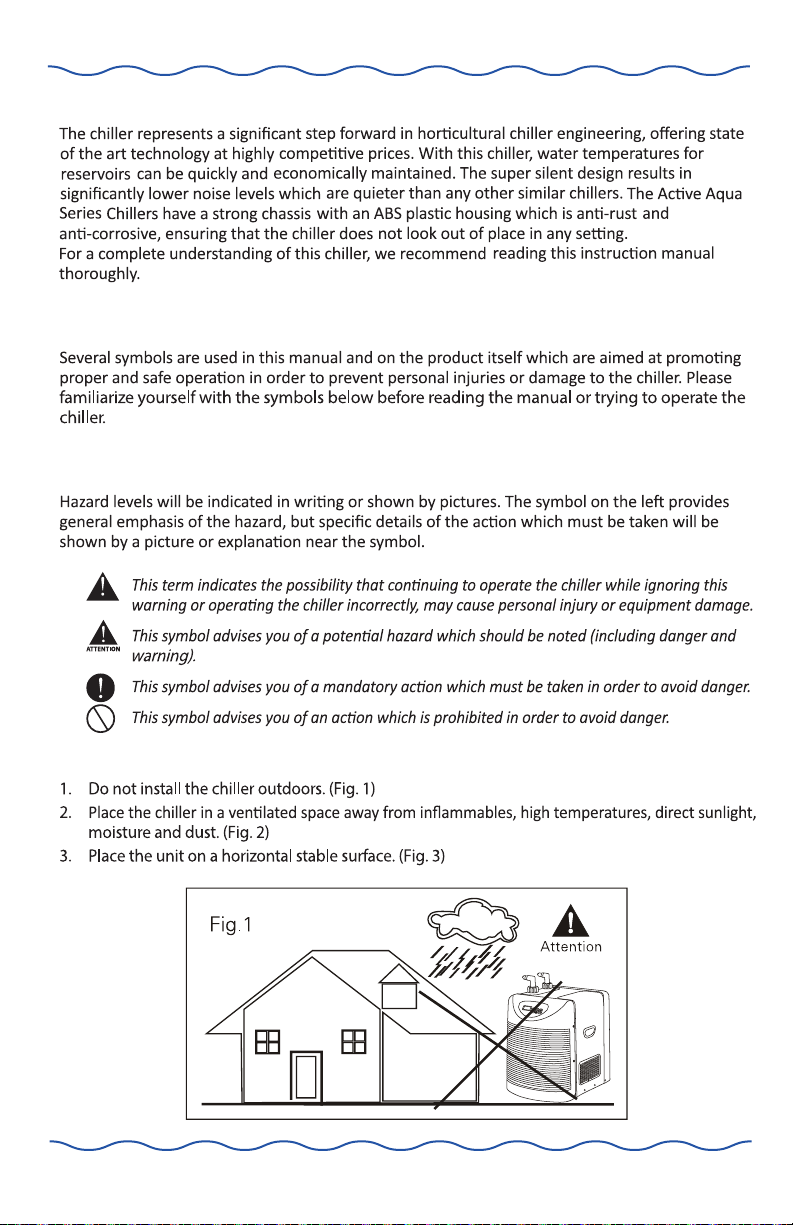

INTRODUCTION
SUGGESTIONS FOR SAFE OPERATION
TERMS AND SYMBOLS
WHERE TO INSTALL

INSTRUCTIONS
www.hydrotek.ca
ASSEMBLY INSTRUCTIONS

INSTRUCTIONS
www.hydrotek.ca
OPERATION

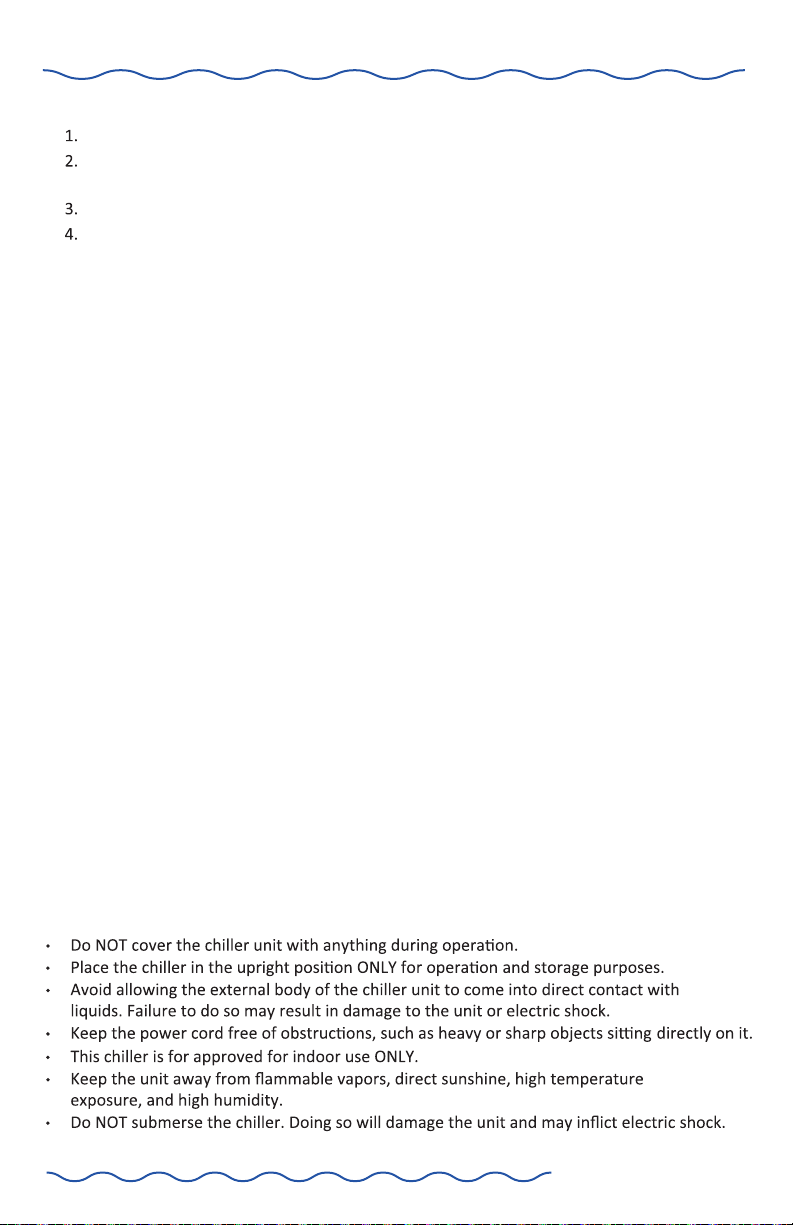

WARNINGS:
SETTING THE TEMPERATURE:
TEMPERATURE DISPLAY:
TEMPERATURE ERROR ADJUSTMENT:

INSTRUCTIONS
www.hydrotek.ca
COMPRESSOR OPERATION:
ERROR CODE:
CLEANING AND MAINTENANCE

INSTRUCTIONS
www.hydrotek.ca

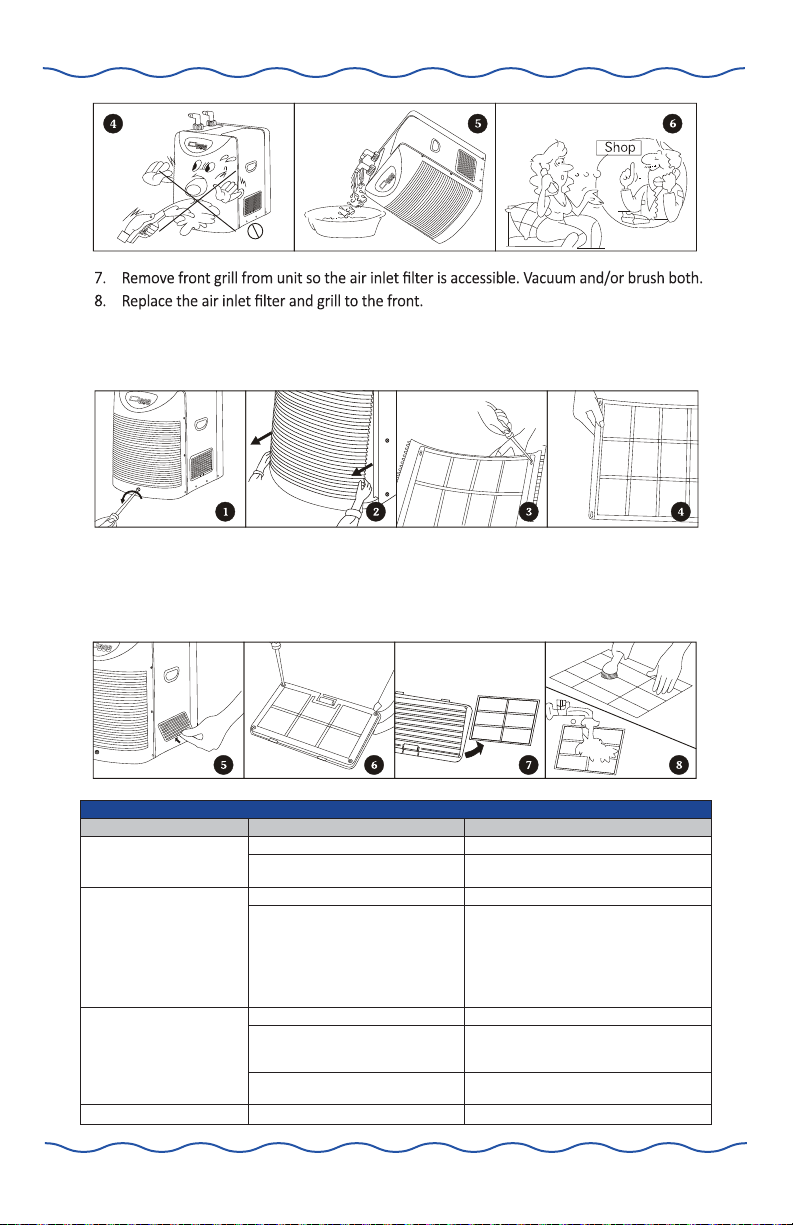

WE RECOMMEND THE FOLLOWING AIR FILTER MAINTENANCE
PROCEDURE ON A REGULAR BASIS
1. LOOSEN SCREW ON FRONT PANEL
2. GENTLY REMOVE FRONT PANEL
3-4. LOOSEN FILTER SCREWS AND REMOVE FILTER
5. LIFT AND REMOVE SIDE PANEL
6-7. LOOSEN SCREW ON SIDE PANEL AND REMOVE
FILTER
8. REMOVE DUST WITH BRUSH, VACUUM, OR RINSE
WELL WITH WATER. DRY THOROUGHLY BEFORE
REINSTALLING THE PARTS IN REVERSE ORDER.
TROUBLESHOOTING
SYMPTOM CAUSE SOLUTION
The unit doesn’t run and
the display is blank
Power is not turned on Turn on the power
Plugged in incorrectly Be sure the power cord is fully plugged
in
The unit cycles on and off
Wrong voltage and/or frequency Apply to correct power source
Chiller is in protection mode
A. Check if the water circulation is
normal
B. If the fan and the Chiller dissipate
heat normally, wait for 3 minutes and
the unit will automatically turn on
again
Performance is
decreased or there is no
refrigeration
Fan is not working Return to place of purchase
The set temperature is higher
than the aquarium water
temperature
Reset temperature
The air inlet or outlet are clogged Clean the air inlet/outlet with a brush
or a vacuum cleaner
Loud Operation Not installed on a flat surface Reinstall correctly

www.hydrotek.ca
WARRANTY
LIMITED WARRANTY
GARANTIE LIMITÉE
GARANTÍA LIMITADA

www.hydrotek.ca
ACTIVE AQUA CHILLER 1 / 10 HP
Features
• Recommended reservoir capacity (13-50 gal/50-190 L)
• Anti-corrosive pure titanium evaporator for both fresh
and salt water
• Rate of flow: 1/10 HP (70–320 GPH, 250-1200 L/hour)
• Recommended pumps: 160 or 250 GPH
• Tubing size: 1/2" (HGTB50), 3/4" (HGTB75)
(comes with 2 sets of fittings)
• Unit Dimensions: 16.5"L x 9.6"W x 14.4"H
Specifications
Shipping weight: 37.0 lbs
Package dimensions: 20.0L x 12.7W x 19.5H
Voltage: 120
Rated amperage: 2.2
Rated wattage: 190
ACTIVE AQUA CHILLER 1 / 4 HP
Features
• Large refrigeration capacity
(recommended volume 26-80 gal/100-300 L)
• Anti-corrosive pure titanium evaporator for both
fresh and salt water
• Rate of flow: 1/4 HP (264–660 GPH, 1000-2500 L/hour)
• Recommended pumps: 250 or 550 GPH
• Tubing size: 1/2" (HGTB50), 3/4" (HGTB75)
• Unit Dimensions: 17.6"L x 13"W x 17.3"H
Specifications
Shipping weight: 38.4 lbs
Package dimensions: 20.7L x 19.9W x 20.3H
Voltage: 120
Rated amperage: 4.7
Rated wattage: 460
Parts:
Chiller unit x 1 ea.
Inflow/oulow fing kit: x 1 ea.
a. Inlet/outlet fings x 2 ea.
b. Worm drive hose clamps x 2 ea.
c. Rubber replacement collars (extras) x 2 ea.
d. Replacement fuse x 1 ea.
Assembly Instructions:
Remove the chiller unit and all of the contained hardware from the box and packing
material.
Set the chiller unit upright in the desired area on a stable surface ensuring there is at
least 1 of clearance around the body (sides, top, and back) of the unit.
Install the inlet/outlet fings onto the inflow and oulow threaded sites.
SETUP AND TROUBLESHOOTING GUIDE SUMMARY

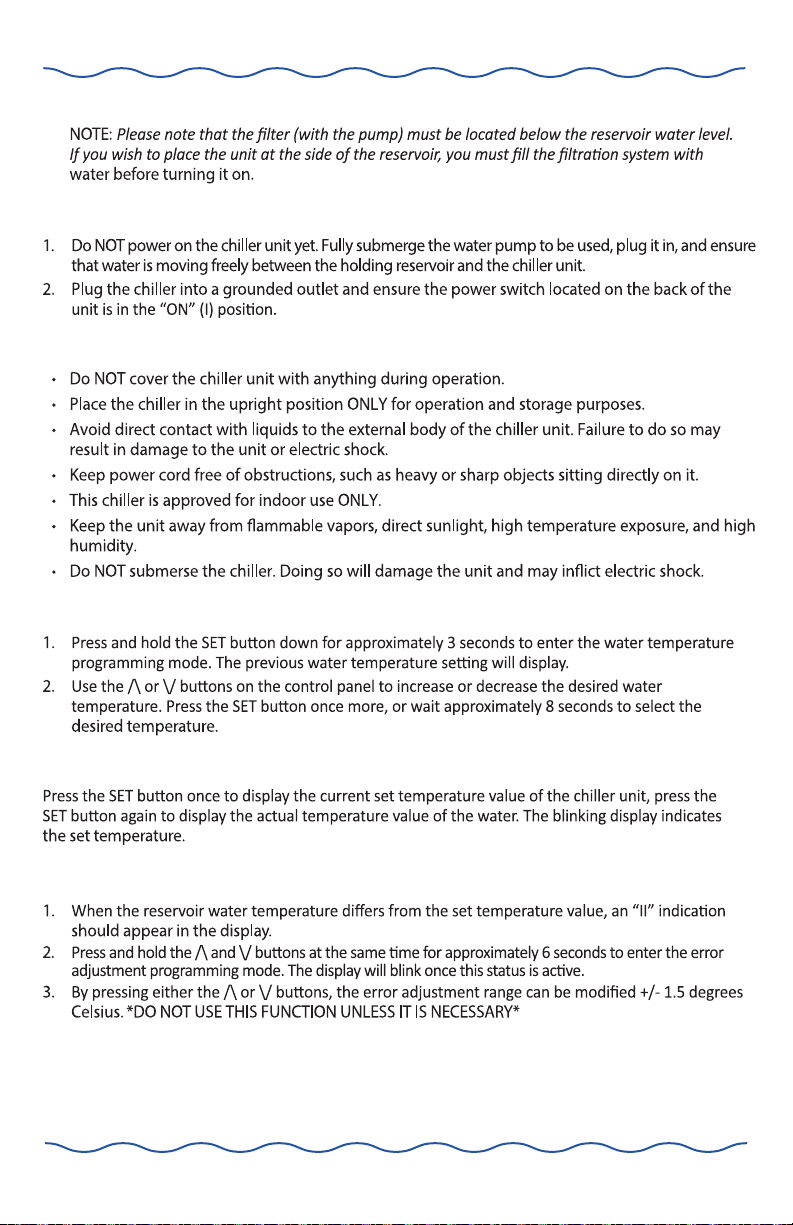

Operation:
1. Do NOT power on the chiller unit yet. Fully submerge the water pump to be used, plug it
in, and ensure that water is moving freely between the holding reservoir and the chiller unit.
2. Plug the chiller into a grounded outlet and ensure the power switch located on the back
of the unit is in the “ON” (I) posion.
Note: If the inflow and oulow fings are of different sizes, typically the larger one is used
on the inflow and the smaller one on the oulow.
4. Aach the desired length of tubing onto each inflow and oulow fing adapter with
the worm drive hose clamps. The inflow should connect the chiller to the appropriate
sized submersible water pump,
in the proper sized reservoir see aƩached performance
chart The oulow tube should hang freely in the reservoir to reintroduce the chilled
water back into the holding tank.

www.hydrotek.ca
SETUP AND TROUBLESHOOTING GUIDE SUMMARY
Setting The Temperature:
1. Press and hold the SET buon down for approximately 3 seconds to enter the water
temperature programming mode. The previous water temperature seng will display.
2. Use the /\ or \/ buons on the control panel to increase or decrease the desired water
temperature. Press the SET buon once more, or wait approximately 8 seconds to
select the desired temperature.
Temperature Display:
•Press the SET buon once to display the current set temperature value of the chiller
unit; press it again to display the actual temperature value of the water. The blinking
display indicates the set temperature.
Temperature Error Adjustment:
1. When the reservoir water temperature differs from the set temperature value, an “II”
indicaon should appear in the display.
Press and hold the /\ and \/ buons at the same me for approximately 6 seconds to
enter the error adjustment programming. The display will blink once this status is acve.
By pressing either the /\ or \/ buons, the error adjustment range can be modified
+/-1.5 degrees Celsius. DO NOT USE THIS FUNCTION IF IT IS NOT NECESSARY

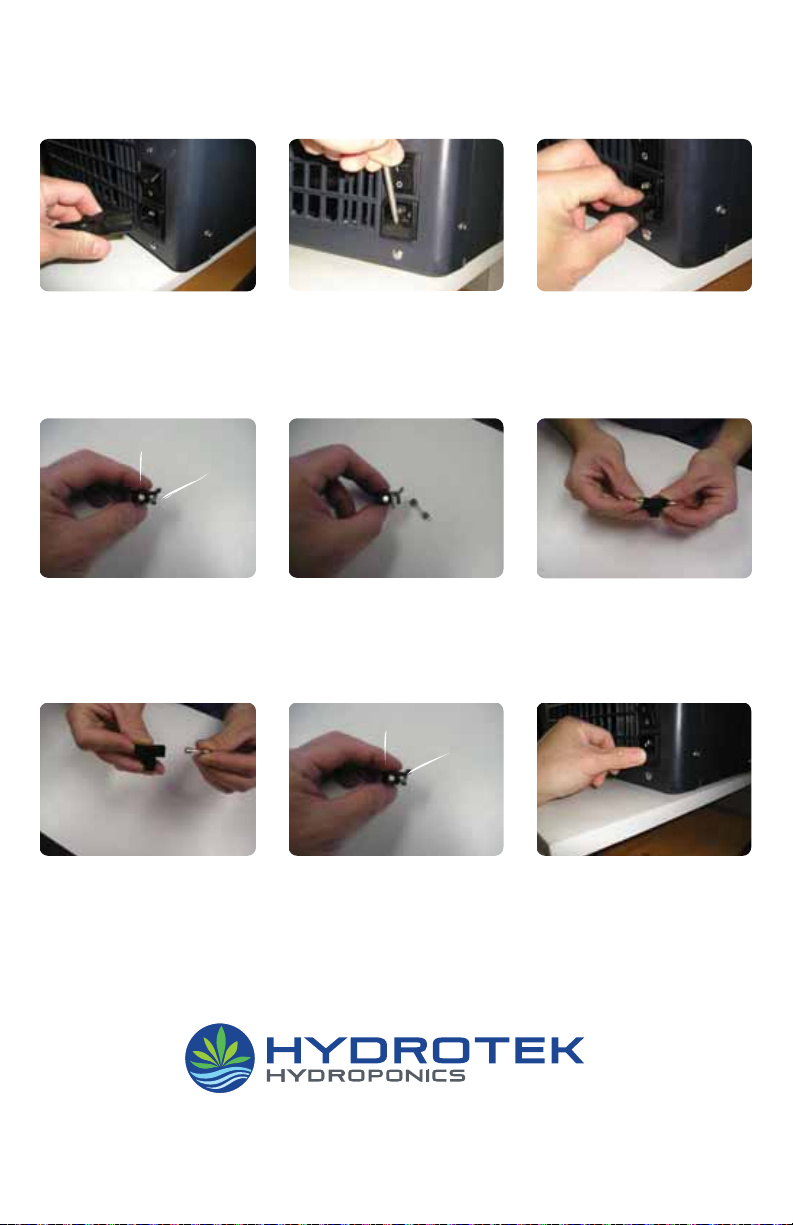

Fuse Replacement:
1. Detach the power cord from the chiller. The fuse compartment is underneath the power
cord socket located on the back of the unit.
Remove the notched fuse slide from the compartment by pulling it straight out. A small
screwdriver or pointed tool may be needed to remove the slide.
Check the fuse and internal compartment for damage (e.g. blown fuse, melted terminals, etc.).
Replace the fuse if necessary and retry the operation.

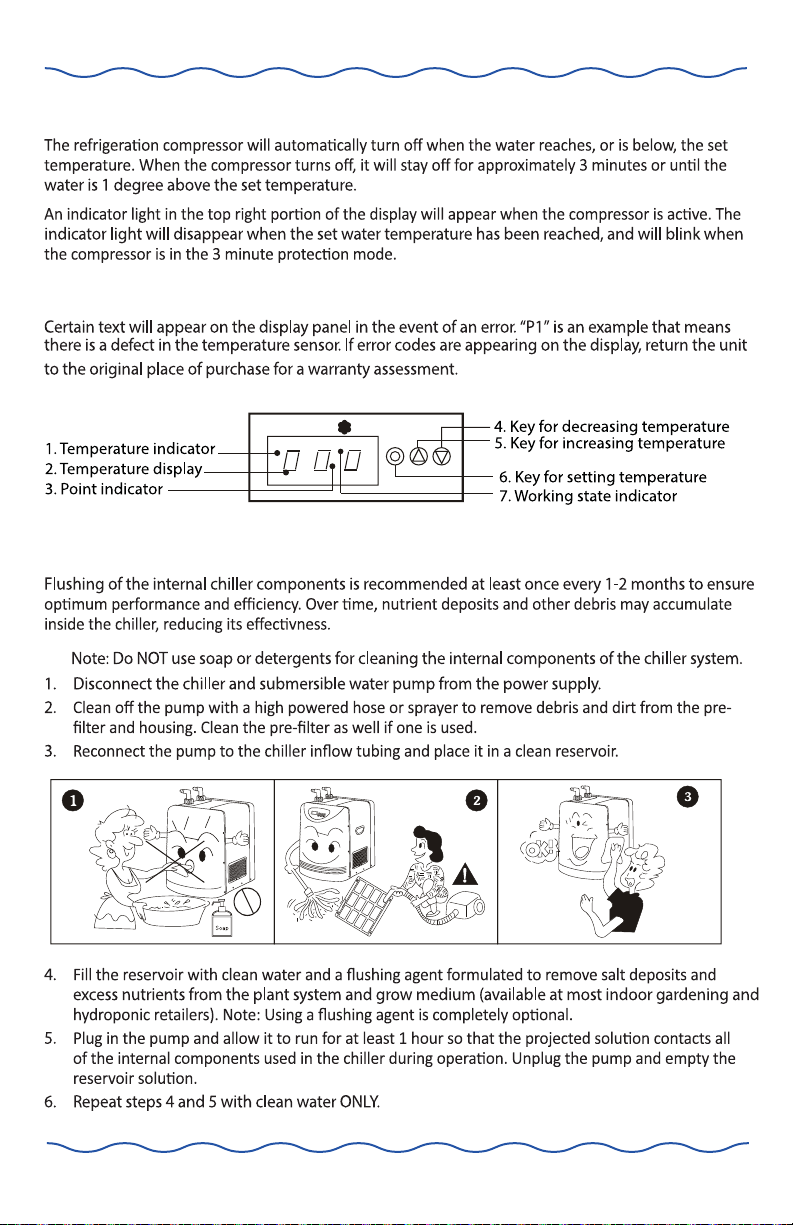

Compressor Operation:
The refrigeraon compressor will automacally turn offwhen the water reaches, or is below,
the set temperature. When the compressor turns off, it will stay offfor approximately 3
minutes or unl the water is one degree above the set temperature.
An indicator light in the top right poron of the display will appear when the compressor is
acve, disappear when the water temperature has been reached, and blink when the
compressor is in the 3 minute protecon mode.
Error Code:
Certain text will appear on the display panel in the event of an error. “P1” is an example that
means there is a defect in the temperature sensor. If error codes are appearing on the display,
return the unit to the original place of purchase for a warranty assessment.
Cleaning and Maintenance:
Flushing of the internal chiller components is recommended at least once every 1-2 months to
ensure opmum performance and efficiency. Over me, nutrient deposits and other debris
may accumulate inside the chiller, impeding the operability.
To prevent clogging and minimize maintenance, we recommend use of our 6" or 10" filter bag
with your submersible pump.

www.hydrotek.ca
SETUP AND TROUBLESHOOTING GUIDE SUMMARY
Note: Do NOT use soap or detergents for cleaning the internal components of the chiller system.
Disconnect the chiller and submersible water pump from the power supply.
Clean offthe pump with a high powered hose or sprayer to remove debris and dirt from
the pre-filter and housing. Clean the pre-filter as well if one is used.
Reconnect the pump to the chiller inflow tubing and place it in a clean reservoir.
Fill the reservoir with clean water and a flushing agent formulated to remove salt
deposits and excess nutrients from the plant system and grow medium (available at
most indoor gardening and hydroponic retailers).
Note: Using a flushing agent is completely oponal as stated in step 4.
5. Plug in the pump and allow it to run for at least 1 hour so that the projected soluon
contacts all of the internal components used in the chiller during operaon. Unplug the
pump and empty the reservoir soluon.
6. Repeat step 4 and 5 with plain water ONLY.
7. Remove the front grill from the unit so the air inlet filter is accessible. Clean both with a
vacuum and/or brush.
8. Replace the air inlet filter and grill to the front.
Special Notes and Instructions:
•The cooling efficiency of this unit is relave to the surrounding environment i.e. install
locaon, ambient air temperature, addional heat sources (grow lights, pumps, CO2
generators, air condioners, dehumidifiers, etc.), and any other connecng parts that
may impede the chiller’s operaon. Insufficient air exchange of the room the chiller is
occupying will reduce the operaonal efficiency if the ambient air temperature rises
due to heat output from the chiller and/or other equipment.
•Follow the GPH (gallon per hour) recommendaons so that the appropriate size pump
may be implemented. A pump that is either too weak or too powerful may impede the
operaon. Vercal distance between the pump and the chiller will affect the size of
pump that is needed. For example, if the pump only needs to project water 2' to get the
chiller unit as opposed to 10', a smaller one can be used.
•We recommend that the power source support ONLY the chiller unit and no addional
appliances in order to prevent a power surge or circuit overload.
•Remote operation of the chiller unit outside of the grow space will reduce the amount
of heat generated within the garden.
Warnings:

www.hydrotek.ca
®
How to Change the Chiller Fuse
STEP 1
Unplug powercord from rear of
chiller to gain access to fuse
comparment.
The "Spare Fuse" is shown on the
left and the "Fuse in Use" is on the
right.
Pull out fuse cover that contains
the spare fuse.
STEP 2
Insert (flat head) screwdriver and
pull forward to remove fuse cover.
STEP 4
STEP 7 STEP 8
STEP 3
STEP 5
Remove the "Fuse in Use" as
aboshown ve.
STEP 6
Insert the "Fuse in Use" into the
side compartment to push out the
"Spare Fuse".
STEP 9
A B
"Spare Fuse""Fuse in Use"
Remove "Spare Fuse" from side
compartment.
"Fuse in Use"
"Spare Fuse"
Insert the "spare fuse" into the
"fuse in use" slot.
Insert fuse cover and push in.
