Hydropool 17fX AquaTrainer User manual

20,830 lbs / 9,451 Kg
2182 US gallons /
8259 Litres
210” x 93” /
533.40 cm x 236.22 cm
48.75” / 123.83 cm
2,627 lbs / 1,192 Kg

210”/ 533.44 cm*
Length of 17fX AquaTrainer Swim Spa
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each
Swim Spa installation has it own set of challenges and variations due to materials used and location of the install.
Exploded Side View of 2017 17fX AquaTrainer
Swim Spa Install Above Ground
Sono Tube** with re-bar and poured concrete in cavity space
Sono Tube** with
re-bar and
poured concrete
in cavity space
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10”* of crushed stone (.75 to1” stone size)
Ground level
Ground level
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
48.75in ±1/2in (123.83 cm±1.27 cm)*
Height of Swim Spa
46 1/4in ±3/4in (117.48cm ±1.91cm)
Height of Swim Spa Acrylic Lip

Hollow concrete block with re-bar and
poured concrete in cavity space
Sump Pump
with Float
French Drain or
Gravel Drain
Pit access
or Service Area
3ft.*
(91.44 cm)
Wide Service Area
3ft.*
(91.44 cm)
Wide Service Area
2ft.*
(60.96 cm)
Wide Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide Crawl Way
93”(236.22cm)*
Width of 12fX AquaSport Swim Spa
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each Swim Spa installation has it own set of challenges and variations due to materials used and location of the install.
150”/ 123.83*
Length of 12fX AquaSport Swim Spa
Exploded Topview of 2017 12fX AquaSport
Swim Spa Install Inground
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10” *of crushed stone (.75 to1” stone size)
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10” *of crushed stone (.75 to1” stone size)
Hollow concrete block reinforced with steel re-bar and poured concrete
Hollow concrete block reinforced with steel re-bar and poured concrete
Hollow concrete block reinforced with steel re-bar and poured concrete
Hollow concrete block reinforced with steel re-bar and poured concrete
Sump Pump
with Float
French Drain or
Gravel Drain
Sump Pump
with Float
French Drain or
Gravel Drain
Ground
level
Wood
or Stone
Facia can
be applied
Ground
level
Raised
Deck
with Step
Ground
level
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
1) Exploded Endview of 2017 12fX AquaSport
Swim Spa Install Inground
2) Exploded Endview of 2017 12fX AquaSport
Swim Spa Semi Recessed Install with Decking
93”(236.22cm)*
Width of 12fX AquaSport Swim Spa
93”(236.22cm)*
Width of 12fX AquaSport Swim Spa
49”(124.46cm)*
Height of Swim Spa
49”(124.46cm)*
Height of Swim Spa
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each Swim Spa installation has it own set of challenges and variations due to materials used and location of the install.
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each Swim Spa installation has it own set of challenges and variations due to materials used and location of the install.
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
Steel Bracing
Tub Support Leg
Steel Bracing
Tub Support Leg
93”(236.22cm)*
Width of 17fX AquaTrainer Swim Spa
* Hydropool Inc., can not be held liable for the accuracy of this drawing, it is purely provided as a guide only. As each Swim Spa installation has it own set of challenges and variations due to materials used and location of the install.
210”/ 533.40 cm*
Length of 17fX AquaTrainer Swim Spa
Exploded Topview of 2018 17fX AquaTrainer
Swim Spa Install Inground
Electrical Conduit
Concrete Pad

Hollow concrete block with re-bar and
poured concrete in cavity space
Sump Pump
with Float
French Drain or
Gravel Drain
Pit access
or Service Area
3ft.*
(91.44 cm)
Wide Service Area
3ft.*
(91.44 cm)
Wide Service Area
2ft.*
(60.96 cm)
Wide Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide Crawl Way
93”(236.22cm)*
Width of 17fX AquaTrainer Swim Spa
* Hydropool Inc., can not be held liable for the accuracy of this drawing, it is purely provided as a guide only. As each Swim Spa installation has it own set of challenges and variations due to materials used and location of the install.
210”/ 533.40 cm*
Length of 17fX AquaTrainer Swim Spa
Exploded Topview of 2017 17fX AquaTrainer
Swim Spa Install Inground
Hollow concrete block with re-bar and
poured concrete in cavity space
Sump Pump
with Float
French Drain or
Gravel Drain
Pit access
or Service Area
3ft.*
(91.44 cm)
Wide Service Area
3ft.*
(91.44 cm)
Wide Service Area
2ft.*
(60.96 cm)
Wide Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide Crawl Way
93”(236.22cm)*
Width of 12fX AquaSport Swim Spa
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each Swim Spa installation has it own set of challenges and variations due to materials used and location of the install.
150”/ 123.83*
Length of 12fX AquaSport Swim Spa
Exploded Topview of 2017 12fX AquaSport
Swim Spa Install Inground
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10” *of crushed stone (.75 to1” stone size)
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10” *of crushed stone (.75 to1” stone size)
Hollow concrete block reinforced with steel re-bar and poured concrete
Hollow concrete block reinforced with steel re-bar and poured concrete
Hollow concrete block reinforced with steel re-bar and poured concrete
Hollow concrete block reinforced with steel re-bar and poured concrete
Sump Pump
with Float
French Drain or
Gravel Drain
Sump Pump
with Float
French Drain or
Gravel Drain
Ground
level
Wood
or Stone
Facia can
be applied
Ground
level
Raised
Deck
with Step
Ground
level
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
1) Exploded Endview of 2017 12fX AquaSport
Swim Spa Install Inground
2) Exploded Endview of 2017 12fX AquaSport
Swim Spa Semi Recessed Install with Decking
93”(236.22cm)*
Width of 12fX AquaSport Swim Spa
93”(236.22cm)*
Width of 12fX AquaSport Swim Spa
49”(124.46cm)*
Height of Swim Spa
49”(124.46cm)*
Height of Swim Spa
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each Swim Spa installation has it own set of challenges and variations due to materials used and location of the install.
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each Swim Spa installation has it own set of challenges and variations due to materials used and location of the install.
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
Steel Bracing
Tub Support Leg
Steel Bracing
Tub Support Leg

Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10” *of crushed stone (.75 to1” stone size)
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10” *of crushed stone (.75 to1” stone size)
Hollow concrete block
reinforced with steel re-bar
and poured concrete
Hollow concreteblock reinforced with steel re-bar and poured concrete
Hollow concreteblock reinforced with steel re-bar and poured concrete
Hollow concreteblock reinforced with steel re-bar and poured concrete
Sump Pump
with Float
French Drain or
Gravel Drain
Sump Pump
with Float
French Drain or
Gravel Drain
Ground level
Wood
or Stone
Facia can
be applied
Ground
level
Raised
Deck
with Step
Ground
level
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way

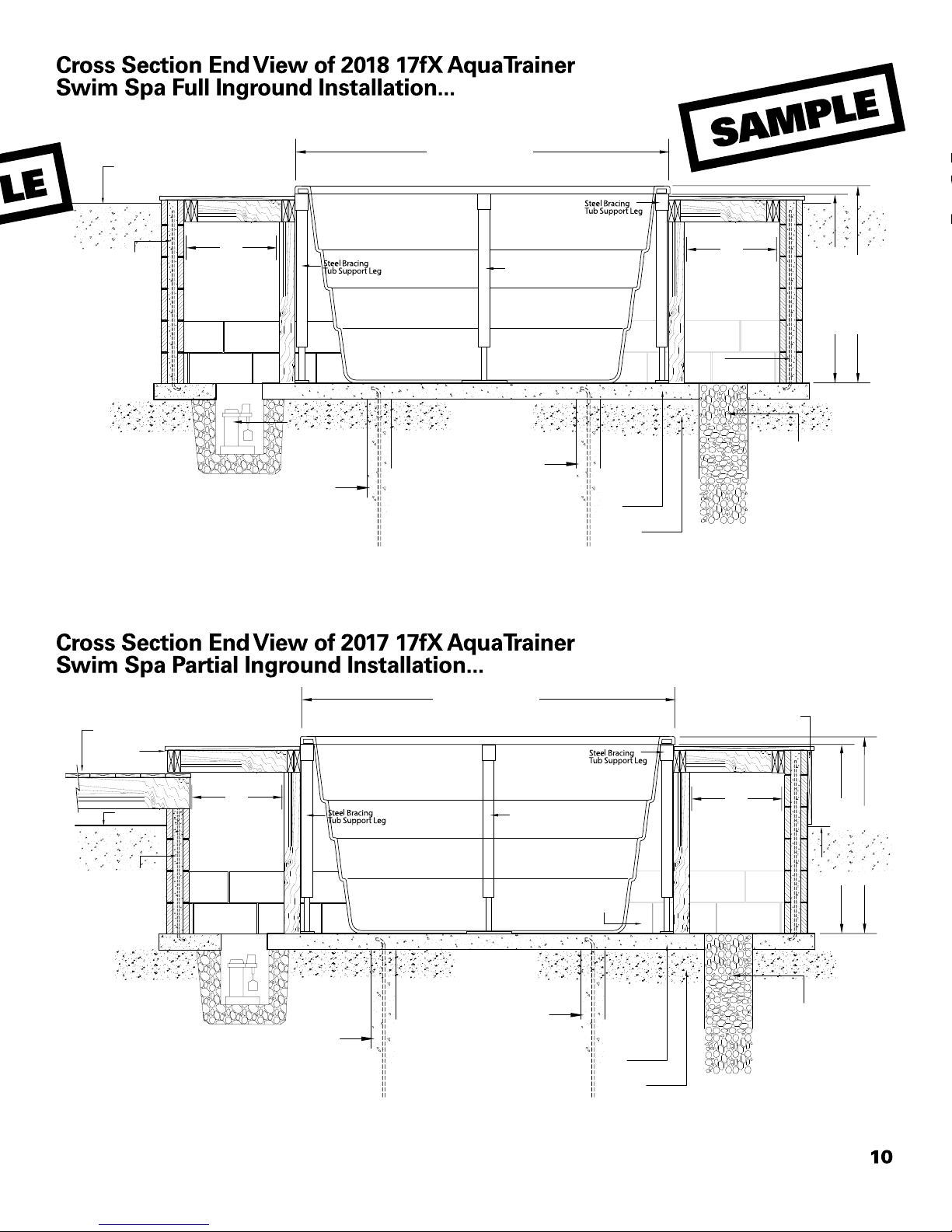

1) Exploded Endview of 2017 17fX AquaTrainer
Swim Spa Install Inground
2) Exploded Endview of 2017 17fX AquaTrainer
Swim Spa Semi Recessed Install with Decking
93”(236.22cm)*
Width of 17fX AquaTrainer Swim Spa
93”(236.22cm)*
Width of 17fX AquaTrainer Swim Spa
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each Swim Spa installation has its own set of challenges and variations due to materials used and location of the install.
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each Swim Spa installation has its own set of challenges and variations due to materials used and location of the install.
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
Steel Bracing
Tub Support Leg
Steel Bracing
Tub Support Leg
46 1/4in ±3/4in (117.48cm ±1.91cm)
Height of Swim Spa Acrylic Lip
46 1/4in ±3/4in (117.48cm ±1.91cm)
Height of Swim Spa Acrylic Lip
48.75in ±1/2in (123.83 cm±1.27 cm)*
Height of Swim Spa
48.75in ±1/2in (123.83 cm±1.27 cm)*
Height of Swim Spa
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10” *of crushed stone (.75 to1” stone size)
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10” *of crushed stone (.75 to1” stone size)
Hollow concrete block
reinforced with steel re-bar
and poured concrete
Hollow concreteblock reinforced with steel re-bar and poured concrete
Hollow concreteblock reinforced with steel re-bar and poured concrete
Hollow concreteblock reinforced with steel re-bar and poured concrete
Sump Pump
with Float
French Drain or
Gravel Drain
Sump Pump
with Float
French Drain or
Gravel Drain
Ground level
Wood
or Stone
Facia can
be applied
Ground
level
Raised
Deck
with Step
Ground
level
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
1) Exploded Endview of 2017 17fX AquaTrainer
Swim Spa Install Inground
2) Exploded Endview of 2017 17fX AquaTrainer
Swim Spa Semi Recessed Install with Decking
93”(236.22cm)*
Width of 17fX AquaTrainer Swim Spa
93”(236.22cm)*
Width of 17fX AquaTrainer Swim Spa
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each Swim Spa installation has its own set of challenges and variations due to materials used and location of the install.
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each Swim Spa installation has its own set of challenges and variations due to materials used and location of the install.
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
Steel Bracing
Tub Support Leg
Steel Bracing
Tub Support Leg
46 1/4in ±3/4in (117.48cm ±1.91cm)
Height of Swim Spa Acrylic Lip
46 1/4in ±3/4in (117.48cm ±1.91cm)
Height of Swim Spa Acrylic Lip
48.75in ±1/2in (123.83 cm±1.27 cm)*
Height of Swim Spa
48.75in ±1/2in (123.83 cm±1.27 cm)*
Height of Swim Spa

210”/ 533.40 cm*
Length of 17fX AquaTrainer Swim Spa
2ft.*
(60.96 cm)
Wide
Crawl Way
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each
Swim Spa installation has it own set of challenges and variations due to materials used and location of the install.
Exploded Side View of 2017 17fX AquaTrainer
Swim Spa Install Inground
3ft.*
(91.44 cm)
Wide Service Area
French Drain
or Gravel Drain
Sono Tube** with re-bar
andpoured concrete
in cavity space
Sono Tube** with re-bar and
poured concrete in cavity space
Hollow concrete block with re-bar and
poured concrete in cavity space
Hollow concrete block with re-bar
and poured concrete in cavity space
Steel Bracing Tub Support
Leg Under End Edge
Steel Bracing Tub Support
Leg Under End Edge
Steel Bracing
Tub Support Leg
Steel Bracing
Tub Support Leg
Raised Equipment
Platform
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10”* of crushed stone (.75 to1” stone size)
Ground
level
Ground level
Sump Pump with Float
behind French Drain
NOTE:
Support posts for the
Access Hatch sit between
the French Drain and
Sump Pump
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
Steel Bracing
Tub Support Leg
46 1/4in ±3/4in (117.48cm ±1.91cm)
Height of Swim Spa Acrylic Lip
48.75in ±1/2in (123.83 cm±1.27 cm)*
Height of Swim Spa

210”/ 533.40 cm*
Length of 17fX AquaTrainer Swim Spa
2ft.*
(60.96 cm)
Wide
Crawl Way
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each
Swim Spa installation has it own set of challenges and variations due to materials used and location of the install.
Exploded Side View of 2017 17fX AquaTrainer
Swim Spa Install Inground
3ft.*
(91.44 cm)
Wide Service Area
French Drain
or Gravel Drain
Sono Tube** with re-bar
andpoured concrete
in cavity space
Sono Tube** with re-bar and
poured concrete in cavity space
Hollow concrete block with re-bar and
poured concrete in cavity space
Hollow concrete block with re-bar
and poured concrete in cavity space
Steel Bracing Tub Support
Leg Under End Edge
Steel Bracing Tub Support
Leg Under End Edge
Steel Bracing
Tub Support Leg
Steel Bracing
Tub Support Leg
Raised Equipment
Platform
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10”* of crushed stone (.75 to1” stone size)
Ground
level
Ground level
Sump Pump with Float
behind French Drain
NOTE:
Support posts for the
Access Hatch sit between
the French Drain and
Sump Pump
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
Steel Bracing
Tub Support Leg
46 1/4in ±3/4in (117.48cm ±1.91cm)
Height of Swim Spa Acrylic Lip
48.75in ±1/2in (123.83 cm±1.27 cm)*
Height of Swim Spa
