Hydropool 19DTfX AquaSport User manual

21,317 lbs /
9672 Kg
2076 US gallons /
7857 L
52.75” / 133.99 cm
226” / 93” /
574” / 236 cm
4000 lbs / 1815 Kg

226”/ 574.04 cm*
Length of 19DTfX AquaSport Gold Swim Spa
*
Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each
Swim Spa installation has it own set of challenges and variations due to materials used and location of the install.
Exploded Side View of 2017 19DTfX AquaSport Gold
Swim Spa Install Above Ground
Sono Tube** with re-bar and poured concrete in cavity space
Sono Tube** with
re-bar and
poured concrete
in cavity space
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10”* of crushed stone (.75 to1” stone size)
Ground level
Ground level
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
52 3/4 in ±1/2 in
(133.99 cm ±1.27 cm)
Height of Swim Spa
50in ±3/4 in (127.00 cm ±1.91cm)
Height of Swim Spa Acrylic Lip

93”(236.22cm)*
Width of 19DTfX AquaSport Swim Spa
* Hydropool Inc., can not be held liable for the accuracy of this drawing, it is purely provided as a guide only. As each Swim Spa installation has it own set of challenges and variations due to materials used and location of the install.
226”/ 574.04 cm*
Length of 19DTfX AquaSport Swim Spa
Exploded Topview of 2019 19DTfX AquaSport GOLD
Swim Spa Install Inground
Electrical Conduit Electrical Conduit
Electrical Conduit
Concrete Pad
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10” *of crushed stone (.75 to1”stone size)
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10” *of crushed stone (.75 to1” stone size)
Hollow concreteblock
reinforced with steel re-bar
and poured concrete
Hollow concreteblock reinforced with steel re-bar and poured concrete
Hollow concreteblock reinforced with steel re-bar and poured concrete
Hollow concreteblock reinforced with steel re-bar and poured concrete
Sump Pump
with Float
French Drain or
Gravel Drain
Sump Pump
with Float
French Drain or
Gravel Drain
Ground level
Wood
or Stone
Facia can
be applied
Ground
level
Raised
Deck
with Step
Ground
level
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way

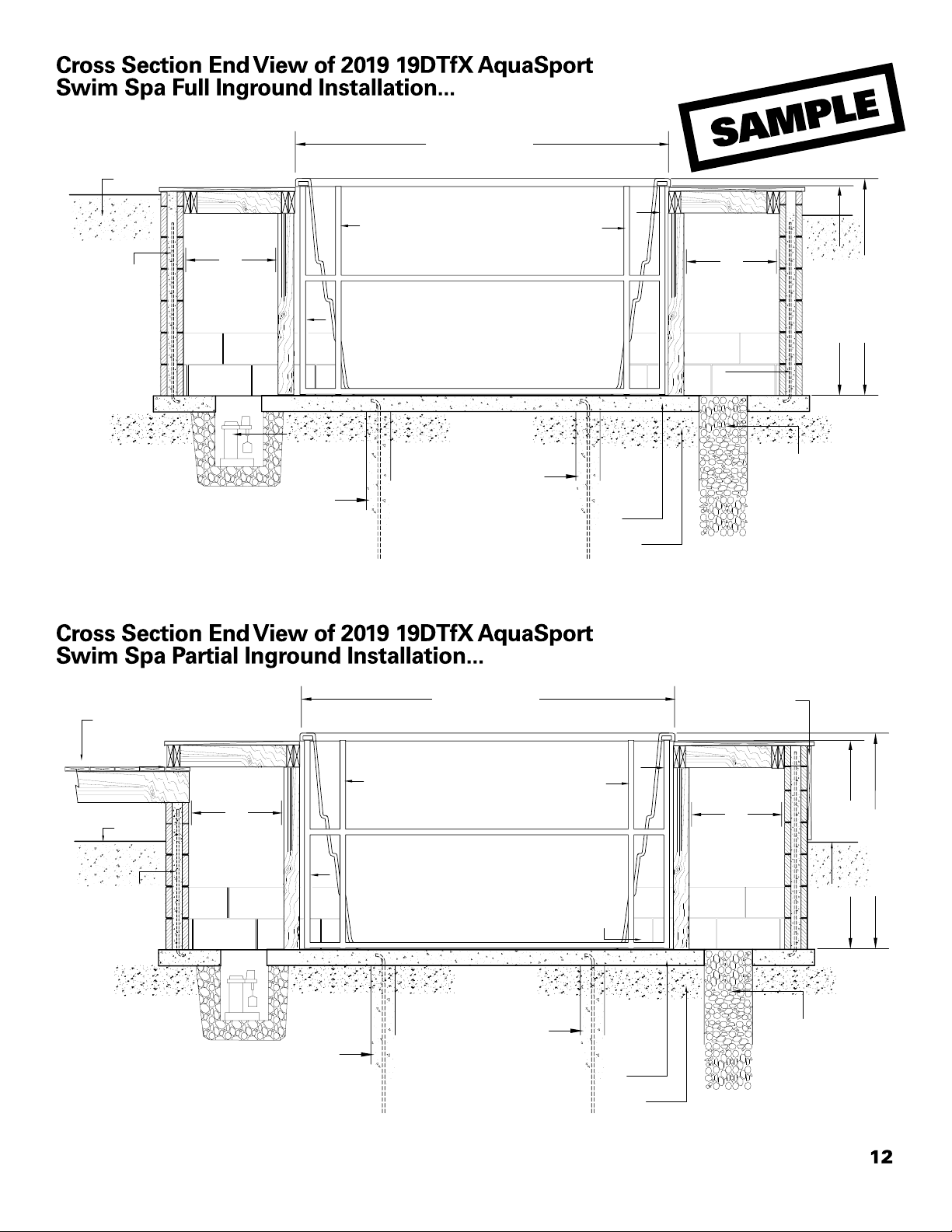

1) Exploded Endview of 2018 19DTfX AquaSport Gold
Swim Spa Install Inground
2) Exploded Endview of 2018 19DTfX AquaSport Gold
Swim Spa Semi Recessed Install with Decking
93”(236.22cm)*
Width of 19DTfX AquaSport Swim Spa
93”(236.22cm)*
Width of 19DTfX AquaSport Swim Spa
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each Swim Spa installation has its own set of challenges and variations due to materials used and location of the install.
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each Swim Spa installation has its own set of challenges and variations due to materials used and location of the install.
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
52 3/4 in ±1/2 in
(133.99 cm ±1.27 cm)
Height of Swim Spa
50in ±3/4 in (127.00 cm ±1.91cm)
Height of Swim Spa Acrylic Lip
52 3/4 in ±1/2 in
(133.99 cm ±1.27 cm)
Height of Swim Spa
50in ±3/4 in (127.00 cm ±1.91cm)
Height of Swim Spa Acrylic Lip
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space

Hollow concrete block with re-bar and
poured concrete in cavity space
Sump Pump
with Float
French Drain or
Gravel Drain
Pit access
or Service Area
3ft.*
(91.44 cm)
Wide Service Area
3ft.*
(91.44 cm)
Wide Service Area
2ft.*
(60.96 cm)
Wide Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide Crawl Way
93”(236.22cm)*
Width of 19DTfX AquaSport Swim Spa
* Hydropool Inc., can not be held liable for the accuracy of this drawing, it is purely provided as a guide only. As each Swim Spa installation has it own set of challenges and variations due to materials used and location of the install.
226”/ 574.04 cm*
Length of 19DTfX AquaSport Swim Spa
Exploded Topview of 2019 19DTfX AquaSport GOLD
Swim Spa Install Inground
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10” *of crushed stone (.75 to1” stone size)
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10” *of crushed stone (.75 to1” stone size)
Hollow concreteblock reinforced with steel re-bar and poured concrete
Hollow concreteblock
reinforced with steel re-bar
and poured concrete
Hollow concreteblock
reinforced with steel re-bar
and poured concrete
Hollow concreteblock
reinforced with steel re-bar
and poured concrete
Sump Pump with Float
French Drain or Gravel Drain
Sump Pump with Float
French Drain or Gravel Drain
Ground level
Wood
or Stone
Facia can
be applied
Ground level
Raised Deck with Step
Ground level
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
1) Exploded Endview of 2018 19DTfX AquaSport Gold
Swim Spa Install Inground
2) Exploded Endview of 2018 19DTfX AquaSport Gold
Swim Spa Semi Recessed Install with Decking
93”(236.22cm)*
Width of 19DTfX AquaSport Swim Spa
93”(236.22cm)*
Width of 19DTfX AquaSport Swim Spa
*
Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each Swim Spa installation has its own set of challenges and variations due to materials used and location of the install.
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each Swim Spa installation has its own set of challenges and variations due to materials used and location of the install.
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
**
Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
52 3/4 in ±1/2 in
(133.99 cm ±1.27 cm)
Height of Swim Spa
50in ±3/4 in (127.00 cm ±1.91cm)
Height of Swim Spa Acrylic Lip
52 3/4 in ±1/2 in
(133.99 cm ±1.27 cm)
Height of Swim Spa
50in ±3/4 in (127.00 cm ±1.91cm)
Height of Swim Spa Acrylic Lip
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space

Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10” *of crushed stone (.75 to1” stone size)
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10” *of crushed stone (.75 to1” stone size)
Hollow concreteblock
reinforced with steel re-bar
and poured concrete
Hollow concreteblock reinforced with steel re-bar and poured concrete
Hollow concreteblock reinforced with steel re-bar and poured concrete
Hollow concreteblock reinforced with steel re-bar and poured concrete
Sump Pump
with Float
French Drain or
Gravel Drain
Sump Pump
with Float
French Drain or
Gravel Drain
Ground level
Wood
or Stone
Facia can
be applied
Ground
level
Raised
Deck
with Step
Ground
level
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
1) Exploded Endview of 2018 19DTfX AquaSport Gold
Swim Spa Install Inground
2) Exploded Endview of 2018 19DTfX AquaSport Gold
Swim Spa Semi Recessed Install with Decking
93”(236.22cm)*
Width of 19DTfX AquaSport Swim Spa
93”(236.22cm)*
Width of 19DTfX AquaSport Swim Spa
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each Swim Spa installation has its own set of challenges and variations due to materials used and location of the install.
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each Swim Spa installation has its own set of challenges and variations due to materials used and location of the install.
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
52 3/4 in ±1/2 in
(133.99 cm ±1.27 cm)
Height of Swim Spa
50in ±3/4 in (127.00 cm ±1.91cm)
Height of Swim Spa Acrylic Lip
52 3/4 in ±1/2 in
(133.99 cm ±1.27 cm)
Height of Swim Spa
50in ±3/4 in (127.00 cm ±1.91cm)
Height of Swim Spa Acrylic Lip
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10” *of crushed stone (.75 to1” stone size)
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10” *of crushed stone (.75 to1” stone size)
Hollow concreteblock
reinforced with steel re-bar
and poured concrete
Hollow concreteblock reinforced with steel re-bar and poured concrete
Hollow concreteblock reinforced with steel re-bar and poured concrete
Hollow concreteblock reinforced with steel re-bar and poured concrete
Sump Pump
with Float
French Drain or
Gravel Drain
Sump Pump
with Float
French Drain or
Gravel Drain
Ground level
Wood
or Stone
Facia can
be applied
Ground
level
Raised
Deck
with Step
Ground
level
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
2ft.*
(60.96 cm)
Wide
Crawl Way
1) Exploded Endview of 2018 19DTfX AquaSport Gold
Swim Spa Install Inground
2) Exploded Endview of 2018 19DTfX AquaSport Gold
Swim Spa Semi Recessed Install with Decking
93”(236.22cm)*
Width of 19DTfX AquaSport Swim Spa
93”(236.22cm)*
Width of 19DTfX AquaSport Swim Spa
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each Swim Spa installation has its own set of challenges and variations due to materials used and location of the install.
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each Swim Spa installation has its own set of challenges and variations due to materials used and location of the install.
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
**
Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
52 3/4 in ±1/2 in
(133.99 cm ±1.27 cm)
Height of Swim Spa
50in ±3/4 in (127.00 cm ±1.91cm)
Height of Swim Spa Acrylic Lip
52 3/4 in ±1/2 in
(133.99 cm ±1.27 cm)
Height of Swim Spa
50in ±3/4 in (127.00 cm ±1.91cm)
Height of Swim Spa Acrylic Lip
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space
Sono Tube** with re-bar
and poured concrete
in cavity space

226”/ 574.04 cm*
Length of 19DTfX AquaSport Swim Spa
2ft.*
(60.96 cm)
Wide
Crawl Way
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each
Swim Spa installation has it own set of challenges and variations due to materials used and location of the install.
Exploded Side View of 2018 19DTfX AquaSport Gold
Swim Spa Install Inground
3ft.*
(91.44 cm)
Wide Service Area
French Drain
or Gravel Drain
Sono Tube** with re-bar
andpoured concrete
in cavity space
Sono Tube** with re-bar and
poured concrete in cavity space
Hollow concrete block with re-bar and
poured concrete in cavity space
Hollow concrete block with re-bar
and poured concrete in cavity space
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
Raised Equipment
Platform
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10”* of crushed stone (.75 to1” stone size)
Ground
level
Ground level
Sump Pump with Float
behind French Drain
NOTE:
Support posts for the
Access Hatch sit between
the French Drain and
Sump Pump
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
Steel Frame Support
52 3/4 in ±1/2 in
(133.99 cm ±1.27 cm)
Height of Swim Spa
50in ±3/4 in (127.00 cm ±1.91cm)
Height of Swim Spa Acrylic Lip

226”/ 574.04 cm*
Length of 19DTfX AquaSport Swim Spa
2ft.*
(60.96 cm)
Wide
Crawl Way
* Hydropool Inc., can not be held liable for the accuracy of this drawing, its purely provided as a guide only. As each
Swim Spa installation has it own set of challenges and variations due to materials used and location of the install.
Exploded Side View of 2018 19DTfX AquaSport Gold
Swim Spa Install Inground
3ft.*
(91.44 cm)
Wide Service Area
French Drain
or Gravel Drain
Sono Tube** with re-bar
andpoured concrete
in cavity space
Sono Tube** with re-bar and
poured concrete in cavity space
Hollow concrete block with re-bar and
poured concrete in cavity space
Hollow concrete block with re-bar
and poured concrete in cavity space
Steel Frame Support
Steel Frame Support
Steel Frame Support
Steel Frame Support
Raised Equipment
Platform
Minimum 4”* thick concrete slab
with reinforced wire mesh
Minimum 8-10”* of crushed stone (.75 to1” stone size)
Ground
level
Ground level
Sump Pump with Float
behind French Drain
NOTE:
Support posts for the
Access Hatch sit between
the French Drain and
Sump Pump
** Sono Tubes only required in installtions that are in regions that experience freezing and thawing.
Steel Frame Support
52 3/4 in ±1/2 in
(133.99 cm ±1.27 cm)
Height of Swim Spa
50in ±3/4 in (127.00 cm ±1.91cm)
Height of Swim Spa Acrylic Lip
