HydroPro Inverter 14 Troubleshooting guide

Swimming Pool Heat Pump
User and Service manual
English ●French ●Dutch ●German ●Polish ●Danish

INDEX
ENGLISH P1~P28
FRENCH P29~P56
DUTCH P57~P84
GERMAN P85~P113
POLISH P114~P142
DANISH P143~P170

-1-
hydro‐pro inverter
Swimming Pool Heat Pump
User and Service manual
INDEX
1. Specifications
2. Dimension
3. Installation and connection
4. Accessories
5. Electrical Wiring
6. Display Controller Operation
7. Troubleshooting
8. Exploded Diagram
9. Maintenance
10. Warranty and returns
Thank you for using hydro‐pro inverter swimming pool heat pump for your pool heating, it will heat your pool water
and keep the constant temperature when the air ambient temperature is at ‐10 to 40℃
ATTENTION: This manual includes all the necessary information with the use and the installation of your
heat pump.
The installer must read the manual and attentively follow the instructions in implementation and maintenance.
The installer is responsible for the installation of the product and should follow all the instructions of the
manufacturer and the regulations in application. Incorrect installation against the manual implies the exclusion of
the entire guarantee.
The manufacturer declines any responsibility for the damage caused with the people, objects and of the errors due
to the installation that disobey the manual guideline. Any use that is without conformity at the origin of its
manufacturing will be regarded as dangerous.
WARNING: Please always empty the water in heat pump during winter time or when the ambient temperature
drops below 0℃, or else the Titanium exchanger will be damaged because of being frozen, in such case, your
warranty will be lost.
WARNING: Please always cut the power supply if you want to open the cabinet to reach inside the heat pump,
because there is high voltage electricity inside.
WARNING: Please well keep the display controller in a dry area, or well close the insulation cover to protect the
display controller from being damaged by humidity.

-2-
1. Specifications
1.1 Technical data hydro‐pro inverter pool heat pumps
Model Inverter 07 Inverter 10 Inverter 14 Inverter 17
Part No. 7016598 7016599 7016600 7016601
*PerformanceatAir27
℃,Water27 ℃, Humidity 80%
Heating (Max./Std./Min.) kW 7/5.3/3.5 10/7.5/5 13.5/9.3/6.3 17/12.8/8.5
Power consumption (Std.) kW 0.76 0.99 1.23 1.69
C.O.P. (Std.) 7 7.6 7.6 7.6
*PerformanceatAir15
℃,Water26 ℃, Humidity 70%
Heating (Max./Std./Min.) kW 5.5/4.2/2.8 7.2/5.4/3.6 11.5/7.2/4.5 13/9/6
Power consumption (Std.) kW 0.84 0.99 1.21 1.61
C.O.P. (Std.) 5 5.6 5.6 5.6
*PerformanceatAir35
℃,Water27 ℃, Humidity 40%
Cooling (Max./Std./Min.) kW 3.4/2.5/1.7 4.8/3.6/2.4 9.9/6.2/3.9 11/7.6/5.1
Power consumption (Std.) kW 0.84 1.06 1.81 2.25
E.E.R. (Std.) 3 3.4 3.4 3.4
Voltage 220~240V/50Hz/1PH
Std. Current Input A 3.1 4.3 5.4 7.2
Maximum Current A 6.6 8.7 13.9 15.7
Fuse Current A 15 20 30 35
Controller Electronic
Condenser Titanium exchanger
Refrigerant R410A
Fan quantity 1
Ventilation type Horizontal
Fan power input W 80 80 150 150
Air flow m3/h 2000 2000 3000 3000
Ventilator speed Rpm 870 870 650/450 650/450
Compressor brand HITACHI
Noise level at 10m (Min.) dB(A) 39 39 41 42
Noise level at 1m (Min.) dB(A) 48 48 50 50
Water in‐out connection mm 50
Nominal water flow m3/h 2.5 2.8 4 4.6
Max pressure loss Kpa 12 12 13 13
Net dimension mm 930*350*550 1045*410*695 1045*410*850
Net weight Kg 47 49 78 88
Packing dimension mm 1060*380*590 1140*435*835 1140*435*1000
Gross weight Kg 50 52 83 96
* Above data are subjects to modification without notice.

-3-
1.2 Technical data hydro‐pro inverter pool heat pumps
Model Inverter 21 Inverter 26 Inverter 26T Inverter 35 Inverter 35T
Part No. 7016602 7016603 7016604 7016605 7016606
*PerformanceatAir27
℃,Water27 ℃, Humidity 80%
Heating (Max./Std./Min.) kW 21/15.8/10.5 26/19.5/13 26/19.5/13 33/24.8/16.5 33/24.8/16.5
Power consumption (Std.) kW 2.08 2.56 2.56 3.26 3.26
C.O.P. (Std.) 7.6 7.6 7.6 7.6 7.6
*PerformanceatAir15
℃,Water26 ℃, Humidity 70%
Heating (Max./Std./Min.) kW 15/11/7.3 20/15/10 20/15/10 25/18.7/12.5 25/18.7/12.5
Power consumption (Std.) kW 2.02 2.67 2.67 3.34 3.34
C.O.P. (Std.) 5.6 5.6 5.6 5.6 5.6
*PerformanceatAir35
℃,Water27 ℃, Humidity 40%
Cooling (Max./Std./Min.) kW 11.2/8.2/5.4 13.9/10.4/7 13.9/10.4/7 20.5/15.3/10.3 20.5/15.3/10.3
Power consumption (Std.) kW 2.41 3.05 3.05 4.50 4.50
E.E.R. (Std.) 3.4 3.4 3.4 3.4 3.4
Voltage 220~240V/50Hz/1PH 380V/50Hz/3PH 220~240V/50Hz/1PH 380V/50Hz/3PH
Std. Current Input A 9 11.9 5.1 14.9 6.4
Maximum Current A 18.2 23.5 15.1 30.3 18.3
Fuse Current A 40 50 35 70 40
Controller Electronic
Condenser Titanium exchanger
Refrigerant R410A
Fan quantity 2
Ventilation type Horizontal
Fan power input W 300 300 300 300 300
Air flow m3/h 6000 6000 6000 6000 6000
Ventilator speed Rpm 650/450 650/450 650/450 650/450 650/450
Compressor brand PANASONIC
Noise level at 10m (Min.) dB(A) 46 47 47 47 47
Noise level at 1m (Min.) dB(A) 50 52 52 52 52
Water in‐out connection mm 50
Nominal water flow m3/h 6.2 9 9 9 9
Max pressure loss Kpa 16 18 18 18 18
Net dimension mm 1045*475*1190
Net weight Kg 91 133 141 138 141
Packing dimension mm 1140*500*1340
Gross weight Kg 101 143 151 148 151
* Above data are subjects to modification without notice.

-4-
2. Dimension (mm)
Model Inverter 7/10

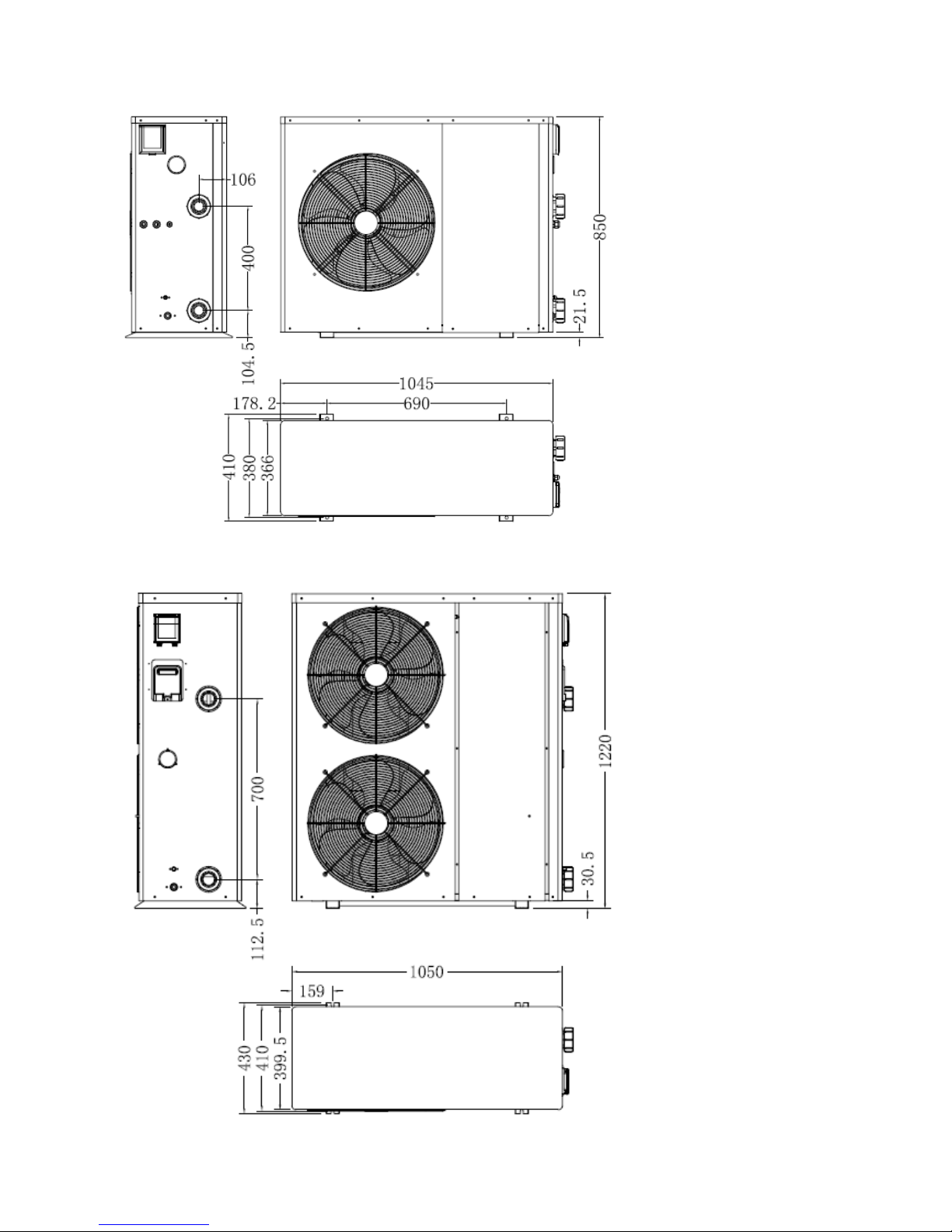

Model Inverter 14

-5-
Model Inverter 17
Model Inverter 21/26/26T/35/35T

-6-
3. Installation and connection
3.1 Notes
The factory supplies only the heat pump. All other components, including a bypass i
f
necessary, must be provided
by the user or the installer.
Attention:
Please observe the following rules when installing the heat pump:
1. Any addition o
f
chemicals must take place in the piping located downstream from the heat pump.
2. Install a bypass i
f
the water flow from the swimming pool pump is more than 20% greater than the
allowable flow through the heat exchanger o
f
the heat pump.
3. Always place the heat pump on a solid foundation and use the included rubber mounts to avoid vibration
and noise.
4. Always hold the heat pump upright. If the unit has been held at an angle, wait at least 24 hours before
starting the heat pump.
3.2 Heat pump location
The unit will work properly in any desired location as long as the following three items are present:
1. Fresh air – 2. Electricity – 3. Swimming pool filters
The unit may be installed in virtually any outdoor location as long as the specified minimum distances to other
objects are maintained (see drawing below). Please consult your installer for installation with an indoor pool.
Installation in a windy location does not present any problem at all, unlike the situation with a gas heater (including
pilot flame problems).
ATTENTION: Never install the unit in a closed room with a limited air volume in which the air expelled from the unit
will be reused, or close to shrubbery that could block the air inlet. Such locations impair the continuous supply o
f
fresh air, resulting in reduced efficiency and possibly preventing sufficient heat output.
See the drawing below for minimum dimensions.

-7-
3.3 Distance from your swimming pool
The heat pump is normally installed within a perimeter area extending 7.5 m from the swimming pool. The greater
the distance from the pool, the greater the heat loss in the pipes. As the pipes are mostly underground, the heat
loss is low for distances up to 30 m (15 m from and to the pump; 30 m in total) unless the ground is wet or the
groundwater level is high. A rough estimate of the heat loss per 30 m is 0.6 kWh (2,000 BTU) for every 5 ºC
difference between the water temperature in the pool and the temperature of the soil surrounding the pipe. This
increases the operating time by 3% to 5%.
3.4 Check‐valve installation
Note: If automatic dosing equipment for chlorine and acidity (pH) is used, it is essential to protect the heat pump
against excessively high chemical concentrations which may corrode the heat exchanger. For this reason, equipment
of this sort must always be fitted in the piping on the downstream side of the heat pump, and it is recommended to
install a check‐valve to prevent reverse flow in the absence of water circulation.
Damage to the heat pump caused by failure to observe this instruction is not covered by the warranty.

-8-
3.5 Typical arrangement
Note: This arrangement is only an illustrative example.
3.6 Adjusting the bypass
Optimal operation of the heat pump occurs when the cooling gas pressure is 22 2bar.
This pressure can be read on the pressure gauge next to the control heat pump panel. Under these conditions the
water flow through the unit is also optimal.
Note: Operation without a bypass or with improper bypass adjustment may result in sub‐optimal heat pump
operation and possibly damage to the heat pump, which renders the warranty null and void.
Out In
Heat Pump
Use the following procedure to adjust
the bypass:
fully open all three valves
slowly close valve 1 until the
water pressure is increased by
approximately 100 to 200 g
Close valve 3 approximately
half-way to adjust the gas
pressure in the cooling system
If the display shows "ON" or
error code EE3, close step by
step the valve 2, to increase
water flow and stop when the
code disappear.
To pool From pool

-9-
3.7 Electrical connection
Note: Although the heat pump is electrically isolated from the rest of the swimming pool system, this only
prevents the flow of electrical current to or from the water in the pool. Earthing is still required for protection
against short‐circuits inside the unit. Always provide a good earth connection.
Before connecting the unit, verify that the supply voltage matches the operating voltage o
f
the heat pump.
It is recommended to connect the heat pump to a circuit with its own fuse or circuit breaker (slow type; curve D)
and to use adequate wiring.
Connect the electrical wires to the terminal block marked ‘ POWER SUPPLY ’.
A second terminal block marked ‘WATER PUMP ’ is located next to the first one. The filter pump (max. 5 A / 240 V)
can be connected to the second terminal block here. This allows the filter pump operation to be controlled by the
heat pump.
Note: In the case of three‐phase models, swapping two phases may cause the electric motors to run in the reverse
direction, which can lead to damage. For this reason, the unit has a built‐in protective device that breaks the circuit
if the connection is not correct. If the red LED above this safety device lights up, you must swap the connections of
two of the phase wires.

-10-
3.8 Initial operation
Note: In order to heat the water in the pool (or hot tub), the filter pump must be running to cause the water to
circulate through the heat pump. The heat pump will not start up if the water is not circulating.
After all connections have been made and checked, carry out the following procedure:
1. Switch on the filter pump. Check for leaks and verify that water is flowing from and to the swimming pool.
2. Connect power to the heat pump and press the On/Off button on the electronic control panel. The unit will
startupafterthetimedelayexpires.
3. After a few minutes, check whether the air blowing out of the unit is cooler.
4. When turn off the filter pump , the unit should also turn off automatically , if not, then adjust the flow switch.
Depending on the initial temperature of the water in the swimming pool and the air temperature, it may take
several days to heat the water to the desired temperature. A good swimming pool cover can dramatically reduce
the required length of time.
Water Flow Switch:
It is equipped with a flow switch for protecting the HP unit running with adequate water flow rate .It will turn on wh
en the pool pump runs and shut it off when the pump shuts off. If the pool water level higher than 1 m above or b
elow the heat pump’s automatic adjustment knob, your dealer may need to adjust its initial startup.
Time delay ‐The heat pump has a built‐in 3‐minute start‐up delay to protect the circuitry and avoid excessive
contact wear. The unit will restart automatically after this time delay expires. Even a brief power interruption will
trigger this time delay and prevent the unit from restarting immediately. Additional power interruptions during this
delay period do not affect the 3‐minute duration of the delay.
3.9 Condensation
The air drawn into the heat pump is strongly cooled by the operation of the heat pump for heating the pool water,
which may cause condensation on the fins of the evaporator. The amount of condensation may be as much as
several litres per hour at high relative humidity. This is sometimes mistakenly regarded as a water leak.

-11-
4. Accessories

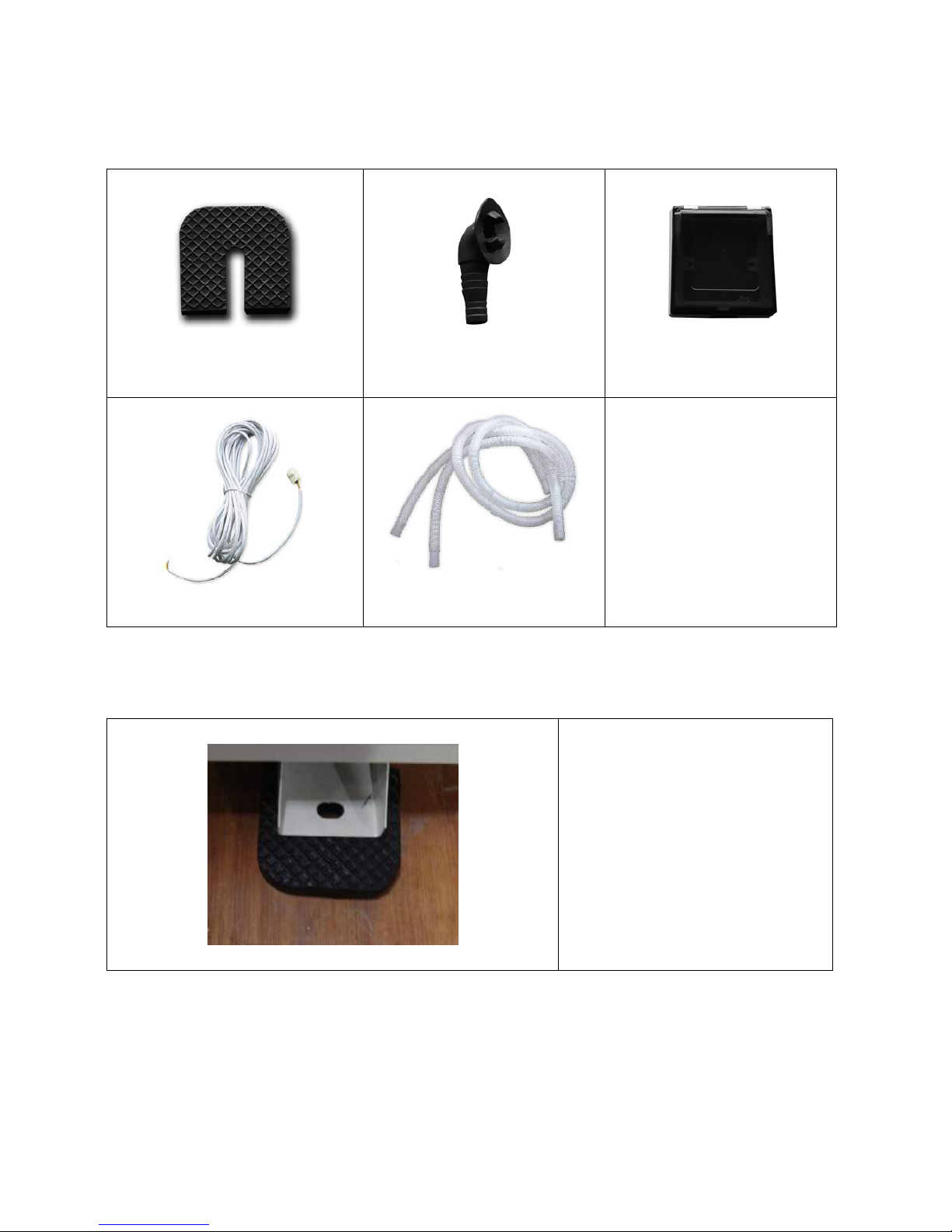

4.1 Accessories list
Anti‐vibration base, 4 pcs Draining jet, 2 pcs Waterproof box, 1 pc
10M Signal wire, 1 pc Water drainage pipes, 2 pcs
4.2 Accessories Installation
Anti‐vibration bases
1. Take out 4 Anti‐vibration bases
2. Put them one by one on the bottom of
machine like the picture.

-12-
Draining jet
1. Install the draining jet under the
bottom panel
2. Connect with a water pipe to drain out
the water.
Note: Lift the heat pump to install the
jet. Never overturn the heat pump, it
could damage the compressor.
Water Inlet & outlet junction
1. Use the pipe tape to connect the
water Inlet & outlet junction onto the
heat pump
2. Install the two joints like the picture
shows
3. Screw them onto the water Inlet &
outlet junction
Cable wiring
1. Connect the power supply wire
through the white hole like the picture
shows.
2. Fix the other side on joints inside the
electric box.
Water pump wiring
1. Connect the water pump wire through
the white hole marked
2. Fix the other side on joints inside the
electric box.

-13-
5. Electrical Wiring
5.1 SWIMMING POOL HEAT PUMP WIRING DIADRAM
Inverter 7/10/14/17/21

-14-
5.2 SWIMMING POOL HEAT PUMP WIRING DIADRAM
Inverter 26/35

-15-
5.3 SWIMMING POOL HEAT PUMP WIRING DIADRAM
Inverter 26T/35T

-16-
NOTE:
(1)Above electrical wiring diagram only for your reference, please subject machine posted the wiring diagram.
(2)The swimming pool heat pump must be connected ground wire well, although the unit heat exchanger is
electrically isolated from the rest of the unit .Grounding the unit is still required to protect you against short circuits
inside the unit .Bonding is also required.
Disconnect: A disconnect means (circuit breaker, fused or un‐fused switch) should be located within sight of and
readily accessible from the unit .This is common practice on commercial and residential heat pumps. It prevents
remotely‐energizing unattended equipment and permits turning off power at the unit while the unit is being
serviced.
5.4 Installation of the display deportee
Photo(1) Photo(2) Photo(3) Photo(4) Photo(5)
‐The side with plug connects with the control panel (photo1)
‐The other side of the signal wire. (photo2)
‐Open the wiring panel and put the side without plug through the electrical box. (photo3,4)
‐Insert the wiring into the disignated position (upper right corner) on the PC board. (photo5)
6. Display Controller Operation
6.1 The buttons of LED wire controller
