Hygieneprofi M212 Breeze User manual

M212 Breeze High Chair
Assembly Instructions
LIST OF COMPONENTS Qty
A Main Side Support Legs x2
B Safety ‘T’ Bar x1
C Seat & Safety Strap x1
D Back Support x1
E M6 x 20 Allen Bolts x8
F 4mm Allen Key (Supplied) x1
Insert ‘T’ Bar into Seat
Note: Leave Safety Strap Taped to Seat
Lay x1 Side Support Leg on a flat surface
Insert ‘T’ Bar & Seat into Side Support Leg
Push firmly to ensure a good fit
A
A
C
BD
E
E
F
12
Magrini Limited
Unit 5, Maybrook Industrial Estate, Brownhills, Walsall WS8 7DG
Tel: [phone] Fax: [phone] www.magrini.co.uk
Magrini Limited
Unit 5, Maybrook Industrial Estate, Brownhills, Walsall WS8 7DG
Tel: [phone] Fax: [phone] www.magrini.co.uk

3 4
5
7
6
8

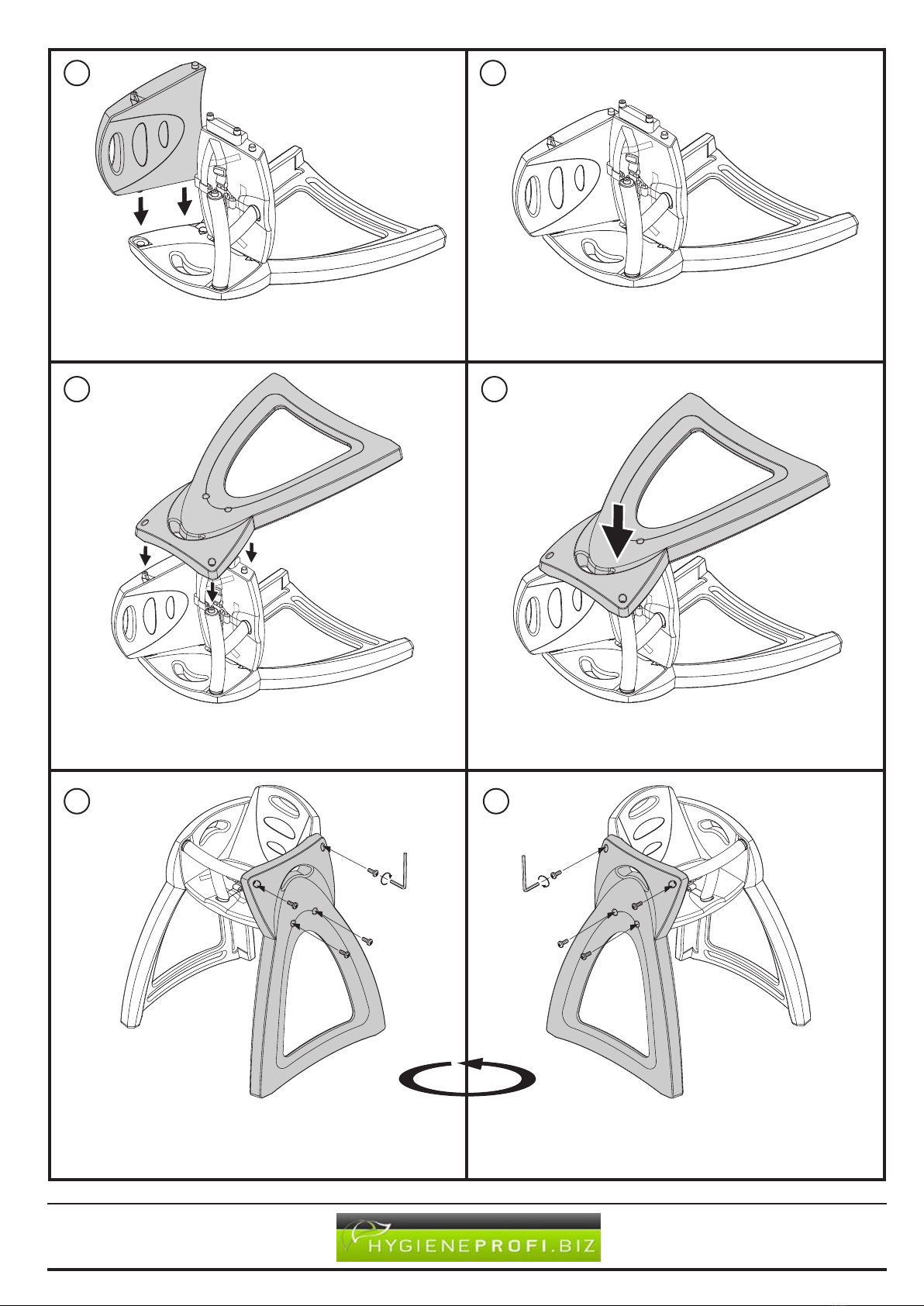

Insert Back Support. Push firmly to ensure a good fit
Note: Ensure Safety Strap is still taped to Seat Pad
Make sure all components are located properly and
pushed firmly together
Locate other x1 Side Support Leg onto rest of
already assembled components
Push Side Support Leg firmly down to ensure a
good fit
Stand chair upright and insert x4 Allen Bolts
Tighten securely using Allen Key provided
Rotate chair and insert other x4 Allen Bolts and tighten
securely using Allen Key. Remove Tape from Strap
- Your chair is ready to use.
