hymer 6472 User manual

Ű Ballast 10 kg, order no. 0050879
Ű Ballast 15 kg, order no. 0050985
Ű Wall connector, order no. 607141
Additional parts required:
96
MOBILE TOWERS MADE FROM ALUMINIUM
6472 Mobile tower complying with EN 1004
* With the use of two wall connectors 607141 no ballasting necessary.
Ű Short, very compact design.
Ű Economical in assembly, operation and purchase.
Ű Long service life through solid construction and light aluminium components.
Ű Space saving for storage and transport.
Ű Set-up in stairways possible.
Ű Permissible load: 200 kg (2,0 kN) distributed load, corresponds to 200 kg/m²
(2,0kN/m²), according to tower group 3, DINEN1004.
Frame section width 0.80 m
Platform length 1.90 m
Reach height 3.25 – 9.25 m
Tower height 2.30 – 8.30 m
Standing height 1.25 – 7.25 m
Ballasting6472
Orderno. kg kg kg kg
647203 0000
647204 040* 040*
647205 060* 060*
647206 080* 080*
647207 0100* 0120*
647208 0140* 0140*
647209 0160* 60 200*
Note:
Every tower is accompanied by instruction manual for assembly and use.
The required number of additional parts for fastening to the wall or ballasting
may be found in the ballasting tables in the catalogue.

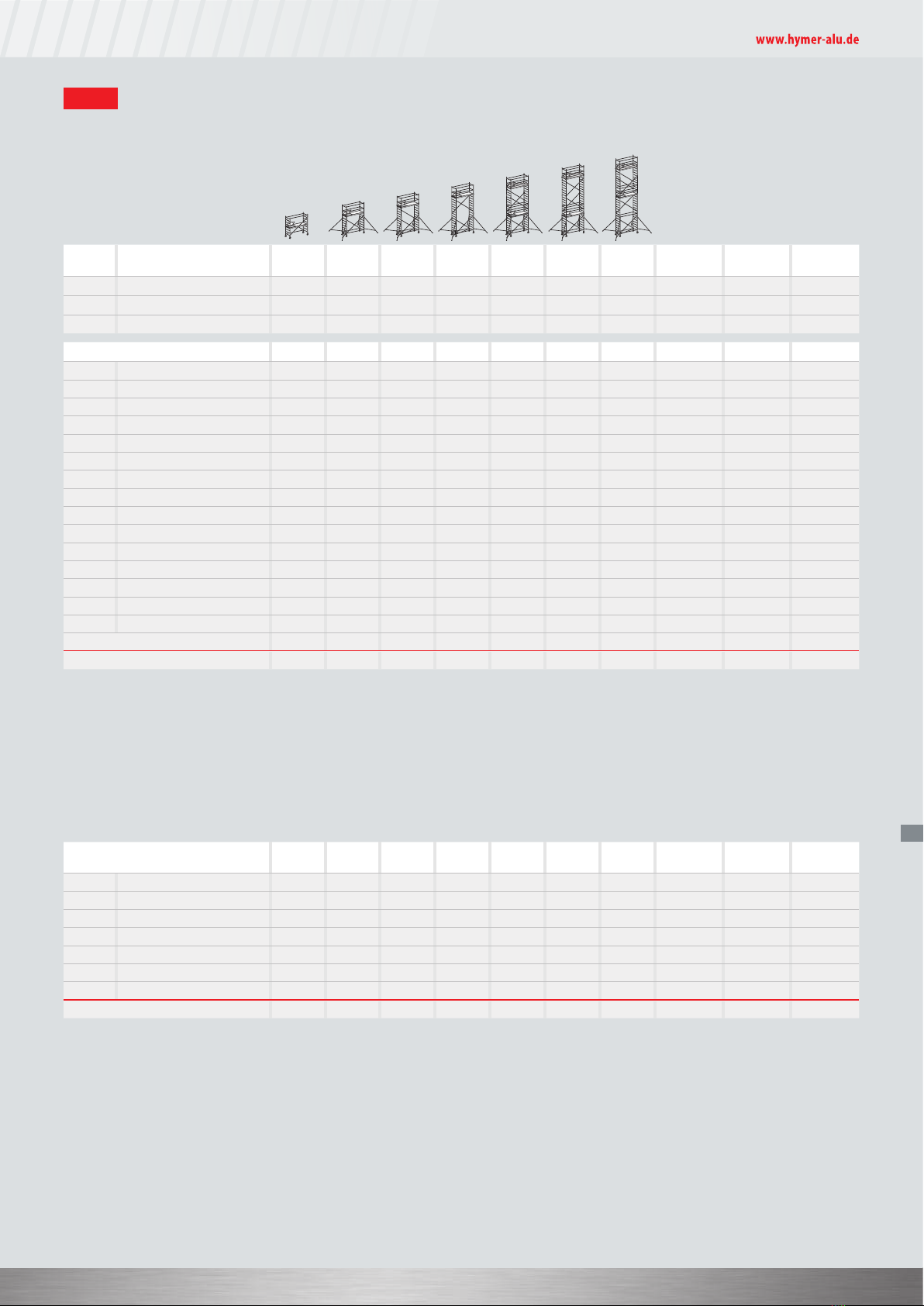

Individualelements/listofcomponents 03 04 05 06 07 08 09 Length
approx.m Width approx.m Weight approx.kg
607122 8rungframesection – – 2 – 2 – 2 2.15 0.80 8.5
607123 4rungframesection – 2 – 2 – 2 – 1.15 0.80 4.5
617824 Platformwithtrapdoor – – 1 1 1 1 2 1.90 0.65 13.5
617828 Brace ––444461.90 2.1
635136 Bayonetstabiliser –4444443.40 0.15 6.5
605199 HYMER-Lifter 11111111.80 0.8
0095640 Assemblyinstructions 1111111
³⁾ Alternatively: Castor Ø 200 mm with spindle, order no. 637150, see on page 133.
Individualelements/listofcomponents
607122 8rungframesection 2 2 2 4 4 6 6 2.15 0.80 8.5
607123 4rungframesection – – 2 – 2 – 2 1.15 0.80 4.5
607823 2rungguardrailsection – 2 2 2 2 2 2 1.00 0.80 2.8
617824 Platformwithtrapdoor 1 1 1 1 2 2 2 1.90 0.65 13.5
0079632 Toeboardlongside – 2 2 2 2 2 2 1.65 0.15 2.7
0079634 Toeboardfrontside – 2 2 2 2 2 2 0.60 0.15 0.9
0077268 Toeboardclip –444444 0.2
637827 Diagonalbrace 2 2 3 4 5 6 7 2.45 2.5
617828 Brace 366610 10 12 1.90 2.1
617142 Horizontaldiagonalbrace – – 1 1 – – 1 1.95 2.7
637136 Stabiliser –4444442.70 0.15 5.5
007503 CastorØ150mmwithspindle³⁾ 4 4 4 4 4 4 4 4.0
637144 Entrancebracketshort – 1 1 1 1 1 1 0.60 0.47 1.5
007760 Safetyplug – 4 8 8 12 12 16 0.1
0095532 Assemblyinstructions 1111111
Totalweight approx.kg 57.8 101.6 116.2 126.7 157.8 168.3 187.1
Order
no. Description 647203 647204 647205 647206 647207 647208 647209 Length approx.m Width approx.m Weight approx.kg
Reachheight approx.m 3.25 4.25 5.25 6.25 7.25 8.25 9.25
Towerheight approx.m 2.30 3.30 4.30 5.30 6.30 7.30 8.30
Standingheight approx.m 1.25 2. 25 3. 25 4. 25 5. 25 6. 25 7. 25
97
MOBILE TOWERS MADE FROM ALUMINIUM
6472 Assembling combinations with stabilisers
Additional parts required for Comfort Assembly 6472 up to 8472
Ű Frame section width 0.80 m
Ű Platform length 1.90 m
