Hyper Tough ABW-HP-1600 User manual

OPERATOR’S MANUAL
TOLL-FREE HELPLINE :1-XXX-XXX-XXXX
http://www.walmart.com/
SAVE THIS MANUAL
Read all safety rules and instructions carefully before operating this tool.
1600PSI/1.2GPM
ELECTRIC PRESSURE WASHER
OPERATOR
’
S MANUA
L
1600PSI/1
.
2GPM
E
LECTRIC PRESSURE WASHER

Read and understand all instructions. Failure to follow all instructions listed below may
result in electric shock,fire, and or serious personal injury. Keep this manual and refer to
it for Safety instruction and Operating procedures.

Spray gun
Pressure washer
High pressure hose
Nozzle cleaning needle Water inlet
connect coupler
15°spray nozzle 25°spray nozzle Soap bottle
Do not operate this pressure washer if damaged during shipment, handling or miuse. Damage may
result in bursting, which can cause seriours injury or property damage. All damaged parts must be
repaired or replaced by a qualified repair personnel/service techinician prior to operating this pressure
washer.

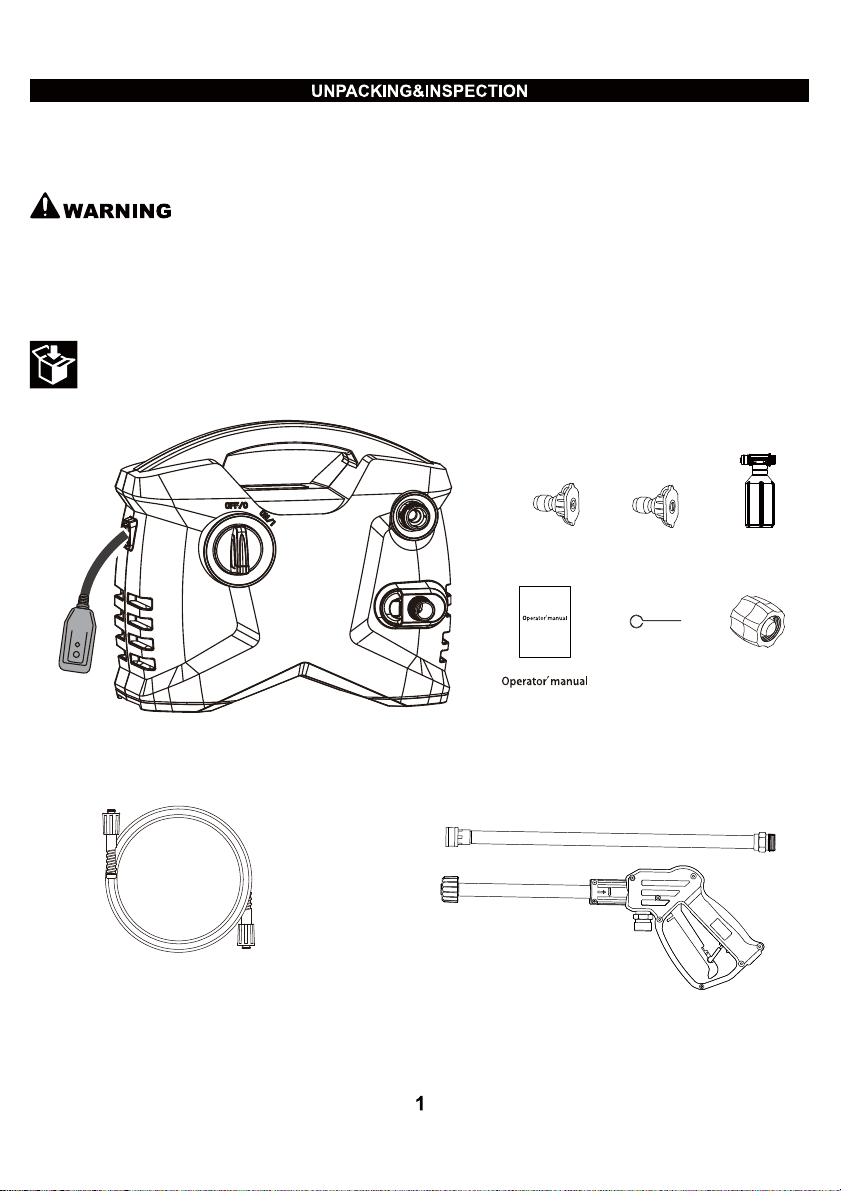

After opening the carton, unpack your new pressure washer and related parts
&accessories. Please inspect it carefully for any damage that may have occured
during transit. Please call customer service for assistance .

When using this product, basic precaution should always be followed, including the following ones.
To reduce the risk of injury, close super vsion is necessary when a product is used near children.
Be thoroughly familiar with controls. Know how to stop the product and release pressure quickly.
Stay alert and watch what you are doing.
Do not operate the product when fatigued or under the influence of alcohol, drugs or any medication.
Keep operation area clear of all persons and pets.
Do not overreach or stand on unstable supports. Keep good footing and balance at all times.
Follow the maintenance instructions specified in the manual.
People with electronic devices, such as pacemakers, should consult their physician(s) before using
this product. Operation of electrical equipment in close proximity to a heart pacemaker could cause
interference or failure of the pacemaker.
:Drilling, sawing, sanding, blasting, grinding, or machining wood products or
masonry products and other construction activities can expose you to wood dust or masonry particles
including formaldehyde and lead, substances known to the State of California to cause cancer, and
birth defects or other reproductive harm. Avoid inhaling wood dust or masonry dust or use a dust mask
or other safeguards for personal protection. This product can expose you to chemicals including lead
and phthalates which are known to the State of California to cause cancer, and birth defects or other
reproductive harm. Wash hands after handling. For more information go to www.P65Warnings.ca.gov-
/wood.
READ ALL INSTRUCTIONS BEFORE USING THIS PRODUCT
This Product is provided with a ground fault circuit interrupter(GFCI) built into the power cord plug. If
replacement of the plug or cord is needed, use only identical replacement parts that include GFCI
protection.
If product is provided with a GFCI, be sure to inspect cord and GFCI prior to use. Any repair or
replacement of the power cord must be performed by a qualified (licensed or certified) electric techni-
cian.
In a double-insulated product, two Systems of insulation are provided instead of grounding. No
grounding means are provided for a double-insulated product, nor should grounding means be added
to the product. Servicing a double-insulated product requires extreme care and knowledge of the
system, and should be done only by qualified service personnel. Replacement parts for a double-insu-
lated product must be identical to the original parts. A double-insulated product is marked with the
words “Double Insulation "or “Double Insulated.” The symbol may also be marked on the product.
Risk of injection or injury-Do not direct discharge stream at people or animals.

Keep clear of nozzle. NEVER direct high pressure spray at any person, animal or self.
Always wear approved safety glasses or goggles and protective clothing when operating or perform-
ing maintenance.
Never put hand or fingers over the spray tip while operating the unit.
Never try to stop or deflect leaks with any body part.
Always engage the trigger safety latch in the safe position when spraying is stopped even if only for a
few moments.
Always follow detergent manufacturer’s label recommendations for proper use of detergents.Always
protect eyes, skin, and respiratory system from detergent use.
Do not use pressure that exceeds the operating pressure of any of the parts (hoses, fittings, etc.) in
the pressurized system. Ensure all equipment and accessories are rated to withstand the maximum
working pressure of the unit.
NEVER spray flammable liquids or use pressure washer in areas containing combustible dust,liquids
or vapors.
Never operate the machine in a closed building or in or near an explosive environment.
Never disconnect the high pressure discharge hose from the machine while the system is
pressurized. To depressurize machine, turn power and water supply off, then press gun trigger 2~3
times.
Never permanently engage the trigger mechanism on the gun, for example, by taping or other
means.
Never operate the machine without all components properly connected to the machine (handle,
gun/wand assembly, nozzle, etc.).
ALWAYS turn water supply “ON” before turning pressure washer “ON.” Running pump dry causes
serious damage.
Do not operate the pressure washer with the inlet water filter removed. Keep screen clear of debris
and sediment.
NEVER operate pressure washer with broken or missing parts. Check equipment regularly and repair
or replace worn ordamaged parts immediately.
Use only the nozzle supplied with this machine.
Never leave the wand unattended while the machine is running.
Never attempt to alter factory settings. Altering factory settings could damage the unit and will void
the warranty.
Always hold gun and wand firmly when starting and operating the machine.
NEVER allow the unit to run with the trigger released (off) for more than one (1) minute. Resulting
heat buildup will damage pump.
Pressure washer is not meant to pump hot water. NEVER connect it to a hot water supply as it will
significantly reduce the life of the pump.

NEVER store the pressure washer outdoors or where it could freeze. The pump will be seriously
damaged.
Release trigger when changing from high to low pressure modes. Failure to do so could result in
damage.
CAUTION: Keep hose away from sharp objects. Bursting hoses may cause injury. Examine hose
regularly and replace if damaged.
Do not attempt to mend a damaged hose.
DANGER！Use of an extension cord is not recommended. If an extension cord is used, use only those
intended for outdoor use，These are identified by the marking “Acceptable for use with outdoor
appliances; store indoors while not in use.” Use only extension cords having an electrical rating equal
to or more than the rating of the product. Do not use damaged extension cords, Examine extension
cord before using and replace if damaged. Do not abuse extension cord and do not yank on any cord to
disconnect. Keep cord away from heat and sharp edges.Always disconnect the extension cord from the
receptacle before disconnecting product from extension cord.
NOTE: To maintain optimum performance, extension cords are not recommended for use with this
product.
DANGER! Failure to follow these instructions can result in serious injury, including death.
WARNING! Connect only to properly grounded outlet. Do not move ground pin. Inspect cord before
using. Do not use if the cord is damaged. Keep all connections dry and off the ground. Connect to
individual branch circuit only.
WARNING! To reduce the risk of electrocution, keep all connections dry and off the ground. Do not
touch plug with wet hands.
The work area should have adequate drainge to reduce the possibility of a fall or electric shock due to
wet surfaces.
Automatic ON/OFF:
The motor on this pressure washer does not run continuously. It only runs when the trigger of the
spray gun is squeezed. After following the start up procedures in this manual, turn the pressure washer
ON and squeeze the trigger for activation. See the section of this manual entitled “Operation” for
further details on this feature.
WARNING! The appliance is intended to be used at a temperature above 0 degree.
WARNING! The motor of this pressure washer will NOT run until the trigger is squeezed.
Read the entire important safety information before set up or use of this pressure washer.

Some of the following symbols may be used on this product. Please study them and learn their meaning.
Proper interpretation of these symbols will allow you to operate the product better and safer.

UNIVERSAL MOTOR.................................................................................................120V,60Hz,13Amps
MAXIMUM PRESURE..................................................................................................................1600 PSI
MAXIMUM FLOW RATE...............................................................................................................1.2 GPM
MAXIMUM WATER TEMPERATURE.......................................................................................120°F/49℃
MAXIMUM PRESSURE INLET WATER...........................................................................................58 PSI
ITEM:
1. Spray gun
2. Power switch
3. Water outlet
4. Power cable
5. Spray nozzles
6. Soap bottle
7. Water inlet

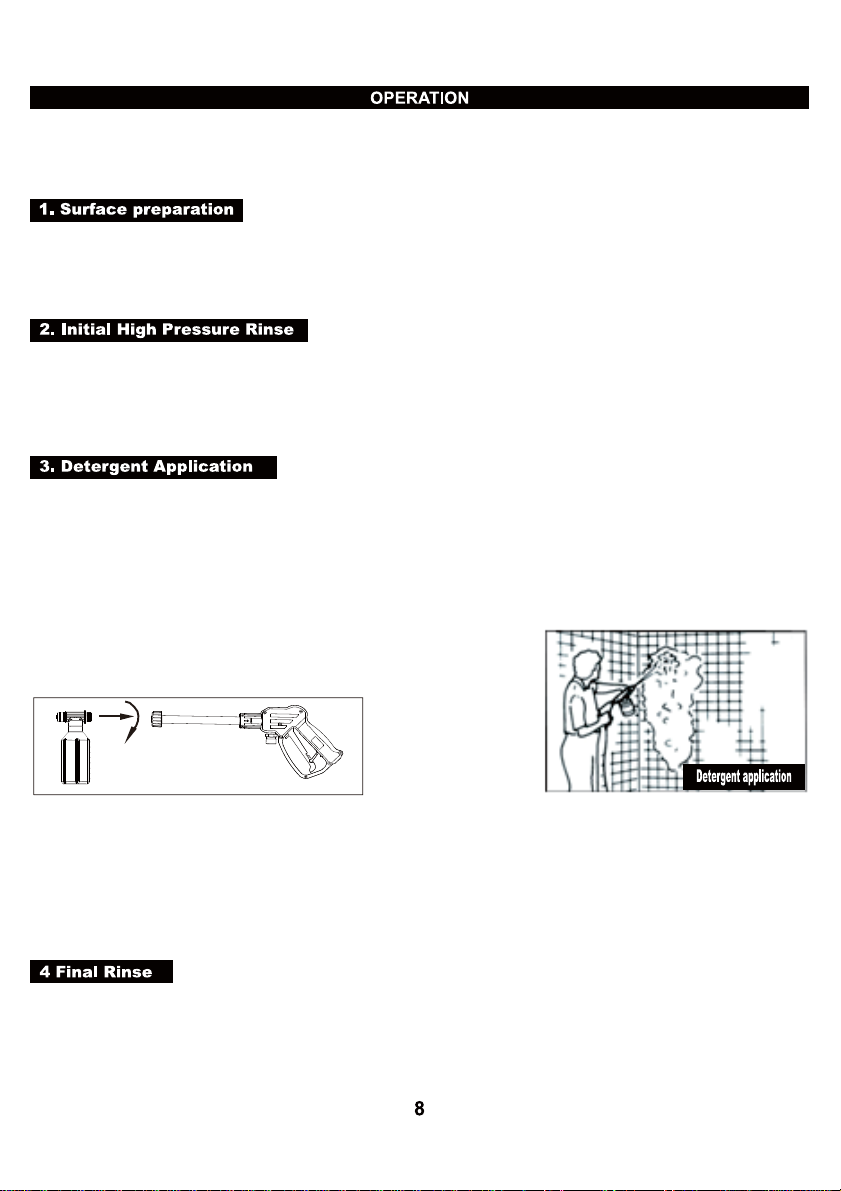

Before starting a pressure wash cleaning job, it is important to prepare the surface that is to be
cleaned. This is done by clearing the area of furniture, and making sure that all windows and doors are
closed tight. In addition, you should make sure that all plants and trees adjacent to the cleaning area
are protected by a drop cloth. This will ensure that your plants won’t be sprayed by the detergents.
The following cleaning procedure will help you to organize your cleaning task,
and ensure that you achieve the most beneficial results in the shortest amount of
time. Remember to use the spraying/cleaning techniques previously listed.
The next step is to spray the cleaning surface with water to clear off any dirt or grime that may have
collected on the surface. This will allow your detergent to attack the deep down dirt that has worked its
way into the cleaning surface. Before triggering the gun, adjust the nozzle to a wide fan pattern and
slowly adjust to the desired spray pattern. This will help you avoid applying too much concentrated
spray to the surface which could cause damage.
Start final rinse at bottom and work upward. Make sure you thoroughly rinse the surface and that all
detergent has been removed.
USE THE INSTRUCTIONS APPROPRIATE FOR MODEL PURCHASED
NOTE: Use only detergents formulated for pressure washers.
NOTE: Test detergent in an inconspicuous area before use.
Units with Detergent Applicator Included
Follow manufacturer’s label directions for mixed correct concentrations of detergent to water ratio
through the pressure washer is approximately 5.4% (1 to 19).
1. Unscrew the top of detergent applicator and fill applicator with detergent.
2. Replace top on applicator.
3. Remove lance from gun.
4. Attach detergent applicator to gun ( See Figure ).
5. Apply detergent so it thoroughly covers cleaning surface. Apply from bottom to top to prevent
detergent from sliding down and streaking.
6. Allow detergent to remain on the surface for a few minutes. This is a good time to use a brush to
lightly scrub heavily soiled areas. Never allow detergent to dry on the cleaning surface.
7. Remove detergent applicator from gun and replace with the lance, or remove applicator from end of
lance.
8. Rinse detergent from surface.

1. Be sure all detergent is flushed from system.
2. Turn off motor.
3. Turn off water supply.
4. After motor and water supply are turned off, trigger gun to depressurize system.
CAUTION: NEVER turn water supply off before turning motor off. Serious damage could occur to the
pump and / or motor.
WARNING! NEVER disconnect high pressure discharge hose from machine while system is pressur-
ized. To depressurize, turn motor off, turn water supply off and squeeze gun trigger 2-3 times.
5. After each use, wipe all surfaces of the pressure washer with a clean, damp cloth.
Regular maintenance will improve performance and extend life of Pressure Washer. Pressure
Washer’s warranty does not cover items that have been subjected to operator abuse or negli-
gence. Only by maintaining Pressure Washer in accordance with instructions in this manual will
the full value of the warranty be honored.
Some adjustments will need to be made periodically to properly maintain the Pressure Washer.
All service and adjustments should be made at least one time each season. It is important that
the maintenance chart below be followed.
MOVING AND STORAGE
After each application or winter storage follow these instructions:
1. When finished using the Pressure Washer, you must first drain and rinse the detergent tank.
2. Run the Pressure Washer in low pressure until all of the soap is drained from the detergent tank.
3. Pour clear water into the tank and run it through on low pressure as though it were detergent.
4. Turn the machine OFF and squeeze the trigger to release the trapped pressure inside of the
machine.
5. Remove both the garden hose and pressure hose from the unit.
6. Turn ON the machine and allow it to run for 5 seconds. (This will clear out most of the water trapped
in the pump).
7. Unplug the machine and store in a dry, climate controlled environment.
NOTE: Do not store the machine or accessories in a place where the temperature could drop below
40°F.
Do not store pressure washer outdoors.
Do not store pressure washer where it might freeze.
AFTER EXTENDED STORAGE
Scale deposits may form in the pump when it is not used for some time. This causes the motor to
hesitate or not start up at all.
1. Do not plug the unit into electrical outlet or connect the pressure hose to the unit.
2. Connect garden hose to the unit and allow the water to exit from high pressure outlet for a few
seconds to rinse the system.
3. Shut off the water.
4. Connect pressure hose to the gun and then lock hose safety device.
TIPS FOR EXTENDING THE LIFE OF YOUR PRESSURE WASHER
1. Never operate unit without water.
2. Pressure washer is not meant to pump hot water. Never connect to hot water supply – this will
significantly reduce life of the pump.

3. Using detergent other than those formulated for pressure washers may cause damage to pump
components (o-rings, etc.).This also applies to chemicals such as bleach, dish soap, etc.
4. Never operate unit for more than one (1) minute without spraying water. Resulting heat buildup will
damage pump.
5. Before adjusting nozzle for pressure (high-to-low or low-to-high) release trigger. Failure to do so will
reduce life of o-rings in lance.
LUBRICATION
This pressure washer does not require any maintenance on the pump or motor. Both assemblies are
pre-lubricated and sealed, requiring no additional lubrication.
NOTE
A small amount of oil leakage is normal. If oil leakage persisits or becomes worse, the unit may need to
be serviced by qualified repair personnel.
WATER INLET SCREEN(FILTER )
The pressure washer is equipped with a water inlet screen to protect the pump from foreign debris.
Carefully remove decris from the dull (finger or Q-Tip). Make sure screen is not torn or broken.
WARNING
Do not operate pressure washer without screen filter in place. Impurities entering pressure pump can
cause internal damage.
COOLING SYSTEM
The air louvers,located in and around the pressure washer housing must be kept clean and free of any
obstructions to ensure proper air cooling of the motor and pump during operation.
WATER INLET SCREEN
The water inlet filter must be checked regularly to prevent blockage.( See Figure 1 )
CLEANING PIN MAINTENANCE ( See Figure 1 )
Using included tip cleaner, or an unfolded paper clip, insert wire into the nozzle hole and move back
and forth until debris is dislodged.
Remove additional debris by back-flushing water through the nozzle. To do this, place end of a
garden hose ( with water running ) to the end of nozzle for 30-60 seconds.
Figure 1
Figure 2

15-degree nozzle is typically used for surface prepa-ration such as
removing dirt, mildew or paint, and can be used on most sur-faces.
This nozzle should only be used on areas that can withstand
pressure from this nozzle.
15° Nozzle
Yellow
This nozzle delivers a 25 degree spray pattern for intense cleaning
of larger areas. Best used to sweep away dirt and mud. Use it to
sweep away leaves from decks, driveways and sidewalks. This
nozzle should only be used on areas that can withstand pressure
from this nozzle.
25° Nozzle
Green
make sure the appropriate spray nozzle size is selected for your application,
andalways start from the lowest pressure spray nozzle to the higher pressure
spray nozzle until your desired work result is achieved.
the pressure washer comes with 3 spray nozzles. Each spray nozzle is designed
to deliver a specific water pressure for a particular cleaning job.

PROBLEM POSSIBLE CAUSE SOLUTION
Motor will not start.
On/Off switch is in the "Off" (O)
position. Press switch to the "ON" (I) position.
Power cord is not plugged in. Plug in power cord.
Electrical outlet does not supply
adequate power. Try a different outlet.
Power switch is ON however gun
trigger is not squeezed ON.
With power switch ON push in on the gun
trigger which will engage the AUTO ON
switch.
Unit does not reach
high pressure.
Diameter of garden hose is too small. Replace with a 1"(25 mm) or 5/8"(16 mm)
garden hose.
Water supply is restricted. Check garden hose for kinks, leaks and
blockage.
Not enough water supply. Open water source fully.
Spray tip has not been installed on
wand assembly. Add desired pressure tip to end of wand.
Water inlet filter is clogged. Remove filter and rinse in warm water.
Output pressure varies
high and low.
Not enough inlet water supply. Turn water on fully. Check garden hose for
kinks, leaks or blockage.
Pump is sucking air.
Check that hoses and fittings are airtight. Turn
"OFF" machine, and purge pump by
squeezing trigger gun until a steady flow of
water emerge through the spray tip.
Water inlet filter clogged. Remove filter and rinse in warm water.
Supply voltage below minimum. Verify that only the pressure washer is running
on this circuit.
Calcified gun, hose or power spray
tip, Run distilled vinegar through detergent tank.

PROBLEM POSSIBLE CAUSE SOLUTION
Detergent is not
coming out.
Detergent is too thick. Dilute detergent.
Filter on detergent suction tube is
clogged. Run warm water through filter to remove buildup.
Damaged or clogged detergent
suction tube. Remove obstruction or replace detergent suction tube.
Spray tip is obstructed. Blow out or remove debris with a fine needle.
Garden hose
connection leaks.
Loose connection. Tighten connection.
Missing/worn rubber washer. Insert new washer.
Spray wand,
extension, or spray tip
leaks. Broken o-ring or plastic insert. Call the Toll-free Helpline.
Pump is noisy.
Pump is sucking air.
Check that hoses and fittings are airtight. Turn
off machine and purge pump by squeezing
trigger gun until a steady flow of water
emerges through the spray tip.
Water seals are damaged or worn. Remove water filter and rinse in warm water.
Water leaks from
pump.
Loose fittings. Check that all fittings are right.
Water seals are damaged or worn. Call the Toll-Free Helpline
Oil is dripping. Oil seals are damaged or worn. Call the Toll-Free Helpline
Soap does not come
out or comes out at low
pressure.
75 degree tip / Soap Tip (Black) is not
installed in wand. Install 75 degree, black, soap tip in wand.
Soap tank may be plugged with
debris or thick soap. Empty soap from tank, clean out using vinegar and water.

PROBLEM POSSIBLE CAUSE SOLUTION
Motor buzzes but fails
to run.
Supply voltage below minimum. Verify that only the pressure washer is running
on this circuit.
System has residual pressure. Turn unit "OFF", squeeze trigger on spray
wand to release pressure, then turn unit "ON".
Voltage loss due to extension cord. Unplug any extension cords attached and
plug the unit directly into the outlet.
Pressure washer not used for long
periods. Call the Toll-Free Helpline
Residual friction among components.
Unit might hum.
Disconnect water supply and power ON for 2
to 3 seconds, repeat couple times or until the
motor starts.
No water.
Water supply is OFF. Turn ON water supply.
Kink in the garden hose. Remove kink in garden hose.
NOTE:AUTO ON/OFF SWITCH: This Pressure washer is equipped with an Auto Start/Stop feature. To operate: press the
power switch to the On(I) position. Pump will pressurize and shut down immediately. Once the trigger of the gun is
depressed the unit will turnon. Unit will shut off and bein standby mode whentrigger is released.

HYPERTOUGH™ hereby warranties this product, to the original purchaser with proof of purchase, for a
period of one (1) years against defects in materials, parts or workmanship. through normal use, free of
charge to the customer. This warranty is valid only for units which have been used for personal use that
have not been hired or rented for industrial/ commercial use, and that have been maintained in accordance
with the instructions in the owners' manual supplied with the product from new.
ITEMS NOT COVERED BY WARRANTY:
1.Any part that has become inoperative due to misuse, commercial use, abuse, neglect, accident, improper
maintenance, or alteration;
2.The unit, if it has not been operated and/or maintained in accordance with owner's manual὚
3.Normal wear, except as noted below;
4.Routine maintenance items such as draining the water to avoid freezing/ice damage to pump and
components.
5.Normal deterioration of the exterior finish due to use or exposure.
HYPERTOUGH HELPLINE (X-XXX-XXX-XXXX);
Warranty service is available by calling our toll-free helpline at X-XXX-XXX-XXXX.
Order Replacement parts online @http://www.walmart.com/
TRANSPORTATION CHARGES:
Transportation charges for the movement of any power equipment unit or attachment are the responsibility
of the purchaser. It is the purchaser's responsibility to pay transportation charges for any part submitted for
replacement under this warranty unless return is requested in writing by HYPETOUGH.

TOLL-FREE HELPLINE: X-XXX-XXX-XXXX
3021528
