Hyper Tough HT19-401-003-03 User manual

Operator’s Manual
Model No. HT19-401-003-03
WARNING: Read, understand and follow all safety Rules and Operating
Instructions in this Manual before using this product.
Wal-Mart Stores, Inc., Bentonville, AR 72716
For questions / comments, technical assistance or repair parts.
Please Call Toll Free at: 1-888-997-8875 (M-F 8am-6pm)
2-in-1 Cordless Grass Trimmer/Edger
TM
3026035

2
TABLE OF CONTENTS
Product Safety.........................................................................................................................................................................Pages 3-5
Symbols..........................................................................................................................................................................................Page 6
Component List...........................................................................................................................................................................Page 7
Technical Data..............................................................................................................................................................................Page 8
Accessories....................................................................................................................................................................................Page 8
Operation Instructions......................................................................................................................................................Pages 9-12
For charger HT19-401-003-14 .......................................................................................................................................Pages 9-12
For charger ACG318W1U..................................................................................................................................................Pages 9-12
For charger HT19-401-003-13 ........................................................................................................................................Pages 9-12
Charging Indicator....................................................................................................................................................................Page 10
For Battery Tools.........................................................................................................................................................................Page18
Cleaning The Tool......................................................................................................................................................................Page 18
SAVE THESE INSTRUCTIONS!
READ ALL INSTRUCTIONS!
WARNING: This product can expose you to chemicals including lead, phthalate or bisphenol A which
are known to the State of California to cause cancer, birth defects or other reproductive harm. Wash
your hands after use. For more information go to www.P65Warnings.ca.gov.

3
Important Safety Instructions
WARNING: Read all safety warnings and instructions. Failure to follow the warnings and instructions
may result in electric shock, re and/or serious injury.
WARNING: Read all instructions
FOR ALL APPLIANCES:
1) Avoid Dangerous Environment - Don’t use appliances in damp or wet locations.
2) Don’t Use In Rain.
3) Keep Children Away - All visitors should be kept at a distance from work area.
4) Dress Properly - Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of rubber
gloves and substantial footwear is recommended when working outdoors. Wear protective hair covering
to contain long hair.
5) Use Safety Glasses - Always use face or dust mask if operation is dusty.
6) Use Right Appliance - Do not use appliance for any job except that for which it is intended.
7) Don’t Force Appliance - It will do the job better and with less likelihood of a risk of injury at the rate for
which it was designed.
8) Don’t Overreach - Keep proper footing and balance at all times.
9) Stay Alert - Watch what you are doing. Use common sense. Do not operate appliance when you are tired.
10) Store Idle Appliances Indoors - When not in use, appliances should be stored indoors in dry, and high or
locked-up place - out of reach of children.
11) Maintain Appliance With Care - Keep cutting edge sharp and clean for best performance and to reduce the
risk of injury. Follow instructions for lubricating and changing accessories. Keep handles dry, clean, and
free from oil and grease.
12) Check Damaged Parts - Before further use of the appliance, a guard or other part that is damaged should
be carefully checked to determine that it will operate properly and perform its intended function. Check
for alignment of moving parts, binding of moving parts, breakage of parts, mounting, and any other
condition that may aect its operation. A guard or other part that is damaged should be properly repaired
or replaced by an authorized service center unless indicated elsewhere in this manual.
FOR ALL BATTERY – OPERATED GARDENING APPLIANCES:
1. Prevent unintentional starting. Ensure the switch is in the o-position before connecting to battery pack,
picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing
appliance that have the switch on invites accidents.
2. Disconnect the battery pack from the appliance before making any adjustments, changing accessories, or
storing appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally.
3. Recharge only with the charger specied by the manufacturer .A charger that is suitable for one type of
battery pack may create a risk of re when used with another battery pack.
4. Use appliances only with specically designated battery packs. Use of any other battery packs may create a
risk of injury and re.
5. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects, that can make a connection from one terminal to another. Shorting
the battery terminals together may cause burns or a re.
6. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally
occurs, ush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the
battery may cause irritation or burns.
7. Do not use a battery pack or appliance that is damaged or modied. Damaged or modied batteries may
exhibit unpredictable behavior resulting in re, explosion or risk of injury.
PRODUCT SAFETY

4
8. Do not expose a battery pack or appliance to re or excessive temperature. Exposure to re or temperature
above 130°C may cause explosion.
9. Follow all charging instructions and do not charge the battery pack or appliance outside of the
temperature range specied in the instructions. Charging improperly or at temperatures outside of the
specied range may damage the battery and increase the risk of re.
10. Have servicing performed by a qualied repair person using only identical replacement parts. This will
ensure that the safety of the product is maintained.
11. Do not modify or attempt to repair the appliance or the battery pack (as applicable) except as indicated in
the instructions for use and care.
ADDITIONAL SAFETY RULES FOR LAWN TRIMMER AND EDGE TRIMMER
1. Keep guards in place and in good working order.
2. Keep hands and feet away from cutting area.
3. Do not use heavier lines than recommended in this manual.
4. Do not use line materials of other types – for example, metal wire, rope, and the like.
SAVE THESE INSTRUCTIONS
Safety Warnings for battery charger
Information for radiated emission
This device complies with Canadian ICES-001.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Warning: Changes or modications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
- NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment o and on, the user is encouraged to try to correct the interference by one or more of the following
measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Safety Warnings for battery pack
a) Do not dismantle, open or shred battery pack.
b) Do not expose battery pack to heat or re. Avoid storage in direct sunlight.
c) Do not short-circuit a battery pack. Do not store battery packs haphazardly in a box or drawer
where they may short-circuit each other or be short-circuited by other metal objects. When battery
pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or
other small metal objects, that can make a connection from one terminal to another. Shorting the battery
terminals together may cause burns or re.
d) Do not remove battery pack from its original packaging until required for use.

5
e) Do not subject battery pack to mechanical shock.
f) In the event of battery leaking, do not allow the liquid to come in contact with the skin or eyes. If
contact has been made, wash the aected area with copious amounts of water and seek medical
advice.
g) Observe the plus (+) and minus (–) marks on the battery back and equipment and ensure correct
use.
h) Do not use any battery pack which is not designed for use with the equipment.
i) Keep battery pack out of the reach of children.
j) Seek medical advice immediately if a cell or battery has been swallowed.
k) Always purchase the battery pack recommended by the device manufacturer for the equipment.
l) Keep battery pack clean and dry.
m) Wipe the battery pack terminals with a clean dry cloth if they become dirty.
n) Battery pack needs to be charged before use. Always use the correct charger and refer to the
manufacturer’s instructions or equipment manual for proper charging instructions.
o) Do not leave battery pack on prolonged charge when not in use.
p) After extended periods of storage, it may be necessary to charge and discharge the battery pack
several times to obtain maximum performance.
q) Battery pack gives its best performance when it is operated at normal room temperature
(20 °C ± 5 °C).
r) When disposing of battery packs, keep battery packs of dierent electrochemical systems
separate from each other.
s) Recharge only with the charger specied by manufacturer. Do not use any charger other than that
specically provided for use with the equipment. A charger that is suitable for one type of battery
pack may create a risk of re when used with another battery pack.
t) Retain the original product literature for future reference.
u) Use only the battery pack in the application for which it was intended.
v) Remove the battery pack from the equipment when not in use.
w) Dispose of properly.

6
SYMBOLS
To reduce the risk of injury, user must read instruction manual
WARNING
Wear ear protection
Li-Ion battery, battery must be recycled
Do not burn
Do not expose to rain or water
POSITEC Inc. has established a partnership with the RBRC Corporation to recycle any Positec batteries with the RBRC-
call2recycle seal. For environmental protection, please do not discard batteries in the trash. After the batteries’life cycle is
ended, then please call 1-800-822-8837 for a free service that will properly dispose of the battery.
Make sure the battery is removed prior to changing accessories.
Trimming
Edging
Lock
Unlock
Correct
Incorrect

7
COMPONENT LIST
1. Handle adjustment knob 9. Lower shaft
2. Auxiliary handle 10. Safety guard
3. Command feed button 11. Line cutter
4. Battery pack 12. Edger wheel
5. On/O Switch 13. Flower guard
6. Lock o switch 14. Line feed button
7. Upper shaft 15. Spool cap (See Fig. O)
8. Locking button 16. Spool (See Fig. O)
Not all the accessories illustrated or described are included in standard delivery.
1
2
3
4
5
6
8
9
10
14
11
12
13

8
TECHNICAL DATA
Voltage 40V Max
No Load Speed 8000/min
Cutting Diameter 13"
Line Diameter 0.08"
Battery capacity
ABP118T 2.5Ah
ABP118T7 2.0Ah
HT19-401-003-17 2.5Ah
Charger rating
HT19-401-003-14 120V~60Hz, 50W 20V , 2.0A
HT19-401-003-13 120V~60Hz, 75W 20V , 3.0A
ACG318W1U 120V~60Hz, 18W 20V , 0.7A
Charging time 150mins for 2 batteries
Machine weight 5.1 lbs
The accessories of battery charger (HT19-401-003-13 /ACG318W1U) and battery pack (ABP118T7/
HT19-401-003-17 ) illustrated or described are not included in HT19-401-003-03 delivery.
Battery pack (ABP118T) 2
Charger ( HT19-401-003-14 ) 1
Auxiliary handle 1
Edger wheel 1
Flower guard 1
Safety guard 1
Extra spool 1
Spool holder 1
We recommend that you purchase your accessories from the same store that sold you the tool. Refer to the
accessory packaging for further details. Store personnel can assist you and oer advice.
ACCESSORIES

9
ASSEMBLY AND OPERATION
ACTION FIGURE
Assembly
Assembling the Main Handle See Fig. A
Assembling the Auxiliary Handle See Fig. B1, B2
Assembling the Safety Guard See Fig. C
Assembling the Flower Guard See Fig. D
Removing the Blade Protect Label See Fig. E

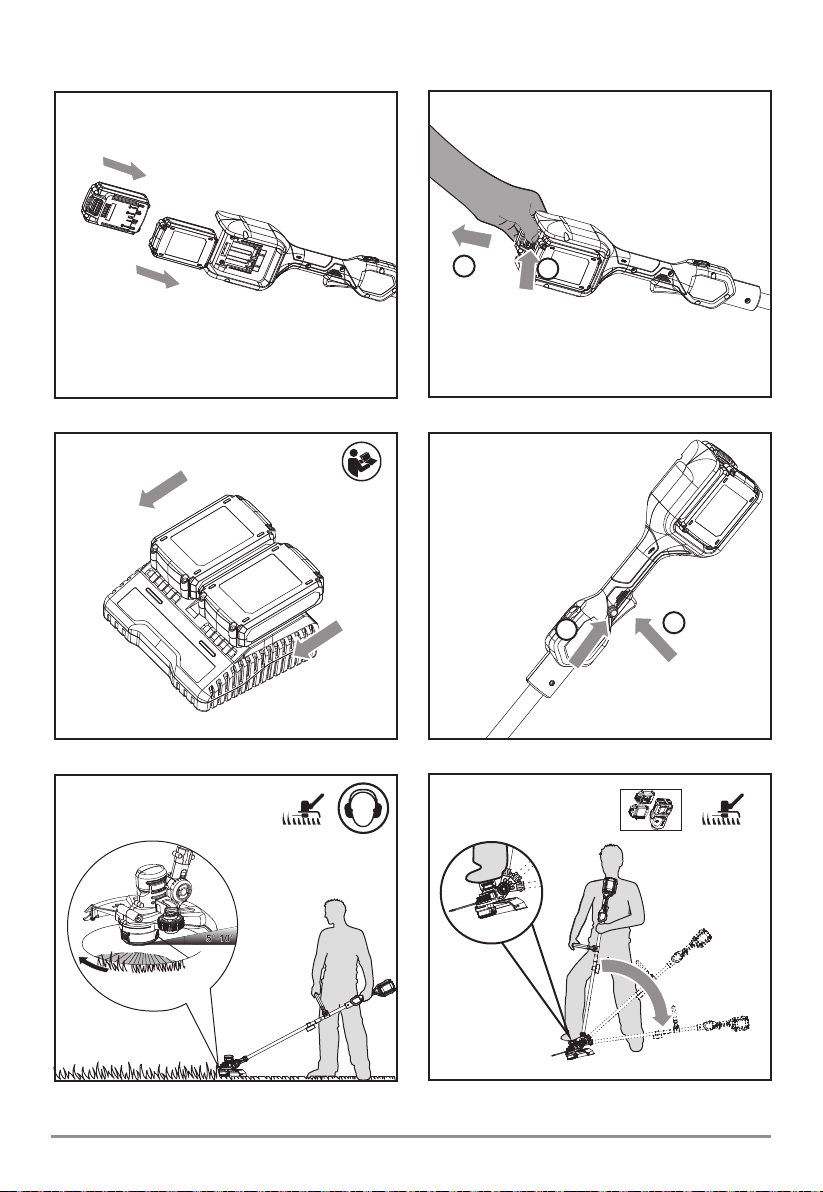

Installing and Removing the Battery Pack
NOTE:
• This machine will only run when 2 batteries are installed. It is recommended
to use the same two batteries and charge the two batteries at the same time.
• When you use two batteries with dierent power, the machine will only run to
the lower common denominator.
See Fig. F1, F2
Charging the battery pack
NOTE:
• The batteries are shipped uncharged. Each battery must be fully charged before the
rst use.
• Always fully charge the two batteries at same time. More details can be found in
charger’s manual.
See Fig. F3
OPERATION
On/O Switch
WARNING! The cutting head continues to rotate after the trimmer has been switched
o; wait until it has completely stopped then lay down the tool.
See Fig. E
Trimming See Fig. H
Adjusting the Trimmer Head/Auxiliary Handle See Fig. I1, I2, J3
Edging See Fig. J1 - J4
Command feeding the line See Fig. K
Manually feeding the line See Fig. L
Replacing the trimmer line and spool See Fig. M, N, O
Manually winding the line See Fig. P, Q, R, S
FOR CHARGER HT19-401-003-14
IMPORTANT NOTES FOR CHARGING BATTERY
The battery in your new tool is not charged when it leaves the plant. Therefore it must be full charged before using the rst
time.
NOTE: If the battery pack is very hot you must remove your battery pack from the charger and allow your battery pack to cool
rst to ambient temperature and then recharging can be started.
To prevent damage to the Battery Pack, when charge runs out, please charge the battery to reach full or no less than half
charge before storage.
If the tool will not be used for long periods of time, charge the battery every 3-6 months.
OPERATION INSTRUCTIONS

10
CHARGING PROCEDURE (SEE FIG. F3)
1) Plug the charger into an appropriate outlet.The light will be green.
2) Slide the battery pack into the charger, the light will turn to red to indicate the charging process has started.
3) When charging is completed, the light will turn to green.The pack is now fully charged, unplug the charger
and remove the battery pack.
WARNING:
When battery charge runs out after continuously use or exposure to direct sunlight or heat,
allow time for the tool to cool down before re-charging to achieve the full charge.
CHARGING INDICATOR
Light Status
Red on Charging
Green on Fully Charged
FOR CHARGER ACG318W1U
CHARGING PROCEDURES (SEE FIG. T)
Connect the battery charger to the power supply and the indicator light should turn to green. Then, slide the
charger base on the battery pack to make connections and the indicator light will turn red to show that the
charging has started. It will remain red until the battery is fully charged.When charging is completed, unplug
the charger and remove the battery pack.
CHARGING INDICATOR
Light Status
Red on Charging
Green on Fully Charged
FOR CHARGER HT19-401-003-13
IMPORTANT NOTES FOR CHARGING BATTERY
The battery charger supplied is matched to the Li-ion battery installed in the machine. Do not use another
battery charger.
The Li-ion battery is protected against deep discharging. When the battery is empty, the machine is
switched o by means of a protective circuit: The tool holder no longer rotates.
In a warm environment or after heavy use, the battery pack may become too hot to permit charging. Allow
time for the battery to cool down before recharging.
When the battery pack is charged for the rst time and after prolonged storage, the battery pack will accept
a 100% charge after several charge and discharge cycles.
CHARGING PROCEDURE (SEE FIG. U)
1) Plug the charger into an appropriate outlet. The light will be green.
2) Slide the battery pack into the charger, the light will turn to red to indicate the charging process has
started.
3) When charging is completed, the light will turn to green. The pack is now fully charged, unplug the
charger and remove the battery pack.
WARNING: When battery charge runs out after continuously use or exposure to direct sunlight or heat, allow
time for the tool to cool down before re-charging to achieve the full charge.
CHARGING INDICATOR
Light ON/OFF ash Status
Red on Charging
Green on Fully Charged

11
NOTE: The accessories of battery charger (HT19-401-003-13 /ACG318W1U) and battery pack (ABP118T7/
HT19-401-003-17 ) illustrated or described are not included in HT19-401-003-03 delivery.
OPERATION INSTRUCTIONS
Warning! The charger and battery pack are specially designed to work together so do not attempt
to use any other devices. Never insert or allow metallic objects into your charger or battery pack con-
nections because of an electrical failure and hazard will occur.
1. Command feeding the line (See Fig. K)
Your trimmer is equipped with a Command Feed System. For eciently feeding the line, just press the
command feed button while the machine is running until you hear the ‘clattering’noise of the line cutting.
The motor will shut o when pressing the Command Feed button and will restart when releasing the
button. During that process the line will automatically feed additional line for cutting.
2. Manually feeding the line (See Fig. L)
Turn o the trimmer and remove the battery. If required, line can be fed out manually. To operate, press and
release manual Line Feed Button, while gently pulling out the line until it is long enough to reach the Line
Cutter. If the line extends past the Line Cutter, too much line has been fed out. If too much line is fed out,
remove the Spool Cap and turn Spool counter-clockwise until the line is at the desired length.
3. Manually winding the line (See Fig. P, Q, R, S)
Take approximately 6m of line. Insert 2mm of line into the Spool holes and wind line in the direction of
the arrows on the top of the Spool. Leave approximately 100mm of line unwound and place into the cleat.
Ensure that the line is neatly coiled on the Spool. Failure to do so will impair the eciency of the automatic
line feed. Then t the Spool as described above in“Replacing the trimmer line and Spool”.
MAINTENANCE
Always remove the battery pack from your trimmer after use.
Always check the product prior to being used for any damage.
After use, disconnect the battery from the tool and check for damage.
Your power tool requires no additional lubrication or maintenance. There are no user serviceable parts in
your power tool. Never use water or chemical cleaners to clean your power tool. Wipe clean with a dry cloth.
Always store your power tool in a dry room temperature location. Keep the motor ventilation slots clean.
Keep all working controls free of dust.
Troubleshooting
The following table gives problems and actions that you can perform if your machine does not operate
correctly.
Warning: Switch the machine o and remove the battery prior to any troubleshooting.

12
Problems Possible Causes Corrective Action
Trimmer fails to operate.
Battery discharged.
Battery too hot/cold.
Motor is broken.
Internal wiring of machine damaged.
Recharge battery; also see
the content in charger manual.
Allow to cool/warm.
Contact Service Agent.
Contact Service Agent.
Trimmer runs intermittently.
Motor is broken.
Battery not fully charged.
On/O switch defective.
Contact Service Agent.
Recharge battery.
Contact Service Agent.
Excessive vibrations/noise. Machine defective.
Line spool is not wound well.
Contact Service Agent.
Rewind the line. See ’’To t spool
and line assembly.’’
Cutting time per battery charge too
short.
Battery has not been used for long
period or only charged for short term.
Grass too high.
Battery defective.
Fully charge battery; also see the
content in charger manual.
Cut in stages.
Replace the battery.
Machine does not cut.
Line broken.
Battery not fully charged.
Motor is broken (speed is too low).
Grass entangled around cutting head.
Replace the line.
Recharge battery; also see the
content in charger manual
Contact Service Agent.
Remove grass.
Continuous lighting of the battery
charge indicator.
No charging procedure possible.
Battery not (properly) inserted.
Battery contacts contaminated.
Battery defective.
Properly insert battery into battery
charger.
Clean the battery contacts or
replace the battery.
Replace the battery.
Command feed does not work
Cutting line is not wound well.
The line is tangled.
Line is used up.
Manually feed the line, if still can
not feed out, remove the Spool out
and rewind the line.
Replace with a new spool of line.

13
3
21
2
2
1
1
D E
F1 F2
F3 G
H I1
A B1
B2 C

14
3
21
2
2
1
1
D E
F1 F2
F3 G
H I1
A B1
B2 C

15
0o
1
2
3
I2 J1
J2 J3
J4 K

16
15
16
2
2
1
1
L M
N O
P Q
R S

17
15
16
2
2
1
1
L M
N O
P Q
R S

18
The ambient temperature range for the use and storage of tool and battery is 0°C-45°C.
The recommended ambient temperature range for the charging system during charging is 0°C-40°C.
Clean the tool regu‘larly.
WARNING! Keep your product dry. Under no circumstances spray with water.
- To clean the tool, use only mild soap and a damp cloth.
- Do not use any type of detergent, cleaner or solvent which may contain chemicals that could seriously
damage the plastic.
- Self lubricating bearings are used in your product, therefore lubrication is not required.
FCC Part 15
Supplier’s Declaration of Conformity
Product Description : Charger
Model Number : HT19-401-003-14
Trade Name :
This device complies with part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired
operation.
Responsible Party :
Positec USA, Inc.
10130 Perimeter Parkway, Charlotte, NC 28216 USA
Tel.: (704) 599-3711
Fax: (704) 599-6390
Positec Machinery (China) Co., Ltd
461,East Ganjiang Road, Suzhou, Jiangsu 215006, P.R.China
‘
FOR BATTERY TOOLS
CLEANING THE TOOL

Manual del operador
Modelo No. HT19-401-003-03
ADVERTENCIA: Lea, entienda y siga todas las Reglas de seguridad y las
Instrucciones de operación en este Manual antes de usar el producto.
Wal-Mart Stores, Inc., Bentonville, AR 72716
Para preguntas / comentarios, asistencia técnica o partes de reparación.
Por favor llámenos de forma gratuita al: 1-888-997-8875 (M-F 8am-6pm)
Rebordeador/ribeteador de césped
2 en 1 inalámbrico
TM
3026035

20
TABLA DE CONTENIDOS
CONSERVE ESTAS INSTRUCCIONES!
LEA Y COMPRENDA TODAS LAS INSTRUCCIONES!
ADVERTENCIA: Este producto puede exponerlo a químicos que incluyen plomo, ftalato, o bisfenol
A que se sabe en el Estado de California que causan cáncer, defectos de nacimiento u otros daños
reproductivos. Lave sus manos después de usarlo. Para más información visite www.P65Warnings.ca.gov.
Seguridad Del Producto.................................................................................................................................................Pages 21-23
Símbolos......................................................................................................................................................................................Page 24
Lista De Partes............................................................................................................................................................................Page 25
Datos Técnicos............................................................................................................................................................................Page 26
Accesorios....................................................................................................................................................................................Page 26
Instrucciones De Uso.......................................................................................................................................................Pages 27-30
Para cargador HT19-401-003-14 ...............................................................................................................................Pages 27-30
Para cargador ACG318W1U..........................................................................................................................................Pages 27-30
Para cargador HT19-401-003-13 ................................................................................................................................Pages 27-30
Indicador De Carga...................................................................................................................................................................Page 28
Para herramientas de batería...............................................................................................................................................Page 36
Limpiar La Herramienta..........................................................................................................................................................Page 36
Other manuals for HT19-401-003-03
1
Table of contents
Languages:
Other Hyper Tough Trimmer manuals
