HYPERAX Iridium L User manual
ASSEMBLY INSTRUCTION 2021 - V2.0
Specification:
Exterior dimension : SRCCL 61 x 43.3 x 6.7 in ( 155 x 110 x 17 cm )
SRCCM 50 x 37.5 x 6.7 in ( 126.5 x 95 x 17 cm )
Inner dimension : SRCCL 50.4 x 41.7 x 4.7 in ( 128 x 106 x 12 cm )
SRCCM 39 x 35.4 x 4.7 in ( 99 x 90 x 12 cm )
Weight : SRCCL 54.5 lbs ( 24.7kg ) / SRCCM 45 lbs ( 20.4kg )
Max. loading : SRCCL 200 lbs ( 90.7kg ) / SRCCM 200 lbs ( 90.7kg )
Distance between roof bars : SRCCL 28 ~43 in( 70 ~ 110 cm )
SRCCM 22 ~ 37 in( 55 ~ 95 cm )
Universal mounts fit round bar, rectangular bar, aero bar, and wing bar (up to
3.5 in / 90 mm in width and 1.75 in / 45 mm in thickness)
Please enter your key number and serial number below
for future reference
HYPERAX SPORT ROOF CARGO CARRIER PATENT PENDING THE MAX LOADING CAPACITY FOR THE
ROOF CARGO CARRIER IS 200 LBS / 90.7 KGS AND IT SHALL NOT EXCEED THE MAX CAPACITY OF THE
ROOF CROSS BARS OR THE CAR ROOF. PLEASE NOTE SOMETIMES ROOF CROSS BARS OR CAR ROOF
HAVE LESS LOADING CAPACITY THAN ROOF CARGO CARRIER. REGULARALY CHECK ATTACHEMENT
BETWEEN ROOF BARS AND CARGO CARRIER AND MAKE SURE THE LOAD IS FULLY SECURED. ADDITIONAL
STRAPS (SOLD SEPERATELY) MAYBE NEEDED. READ MANUAL AND WARNING BEFORE EACH USE.
Instructions
This manual was shipped with the
product and might not be the latest
version. Please scan the QR code
to ensure updates.
Caution
Pay attention to the height limit
01

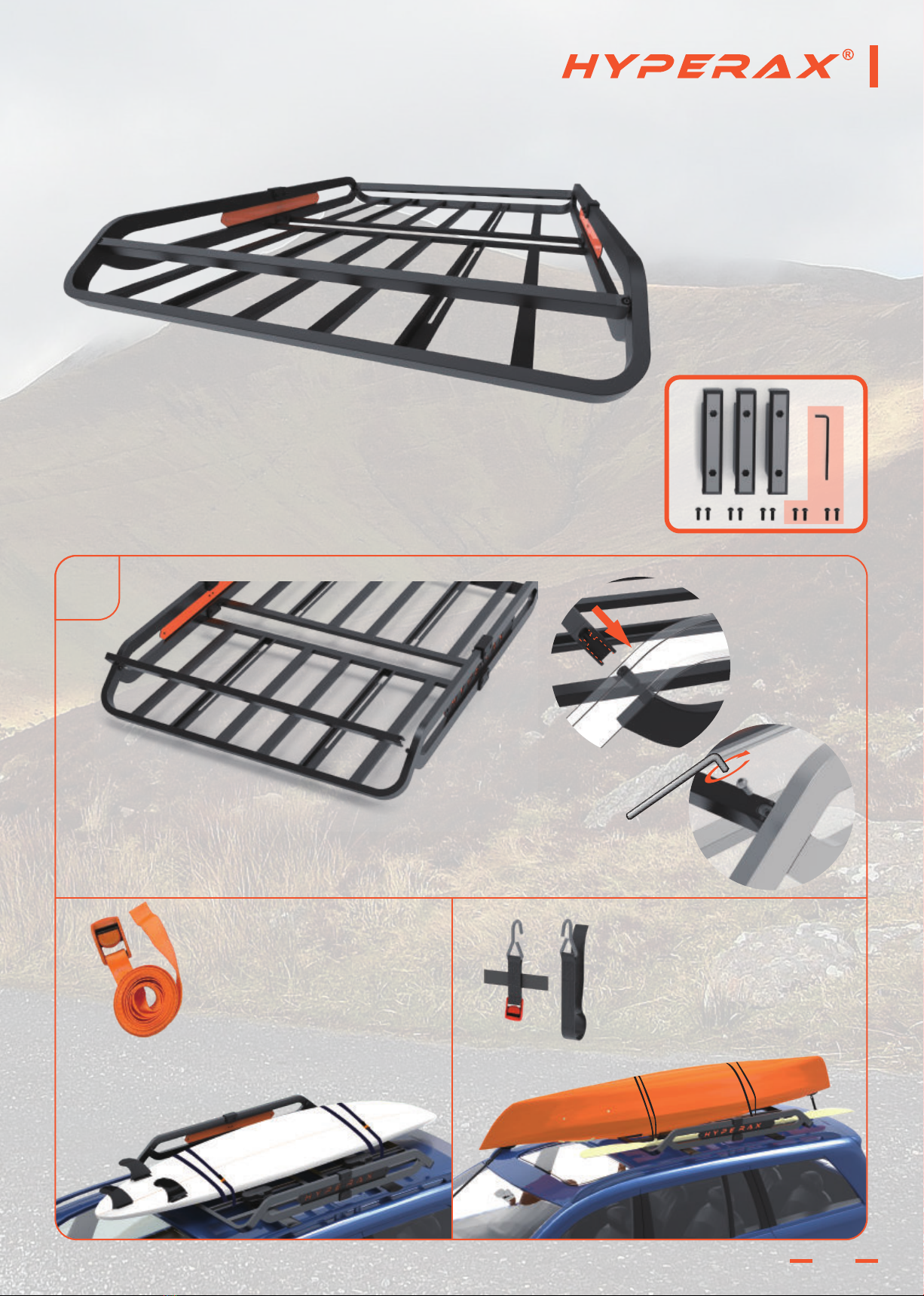

Part kit 3Part kit 1
M10
M13
Part kit 2
SRCCL Stretch net 36 x 44 in ( 92 x 112 cm)
SRCCM Stretch net 32 x 40 in ( 81 x 100 cm)
U bolt A U bolt B U bolt C
02
1
2

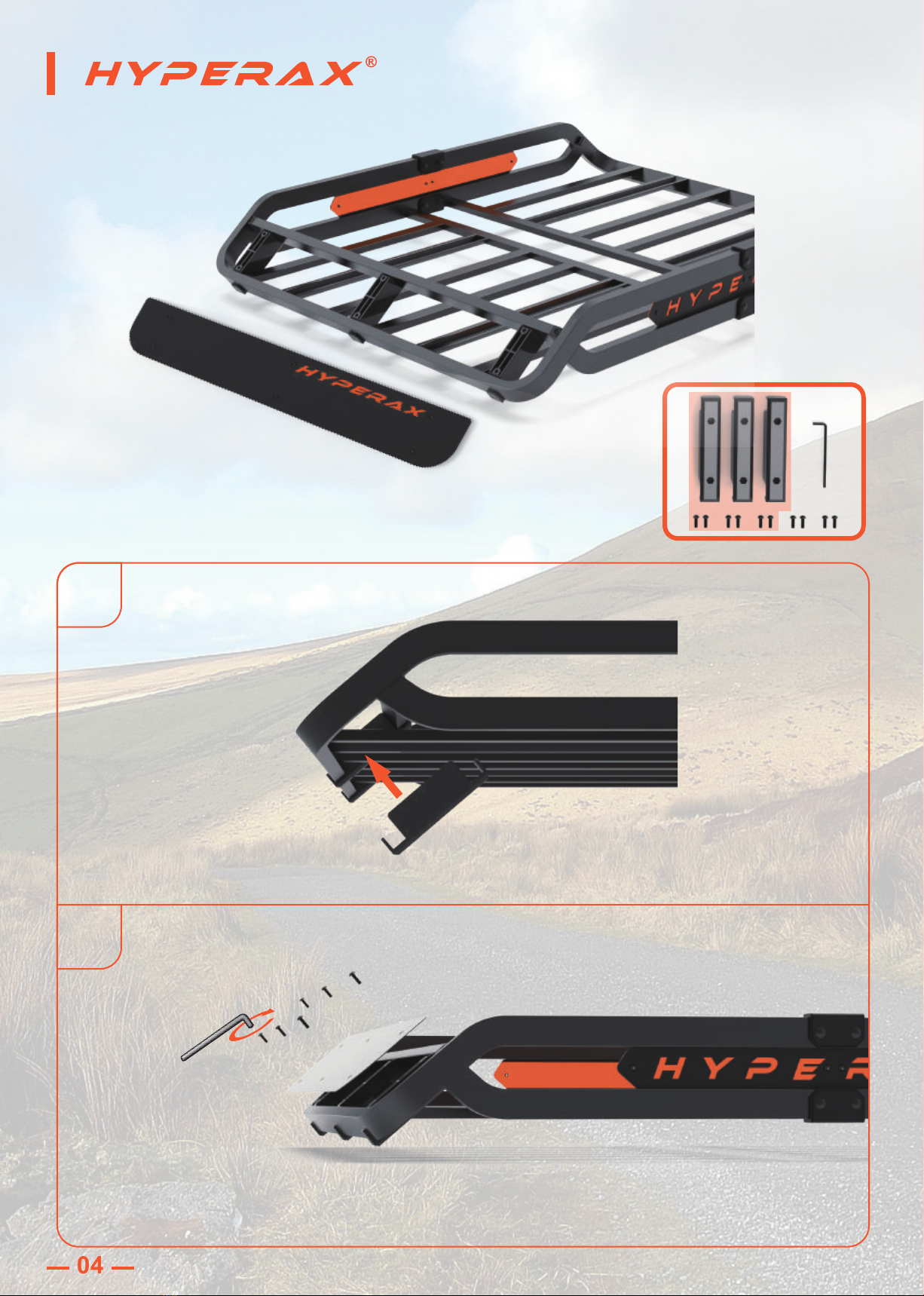

Part kit 2
MIN Torque : 5 Nm / 44.3 in-lb
03
3
Part kit 3
MIN Torque : 5 Nm / 44.3 in-lb
Sold separately Sold separately
Warning
Long boards must be secured by
straps ( sold separately )
Warning
Boats kayaks and canoes must
be secured with bow and stern
tie downs ( sold separately )
04
4
5
Part kit 3
MIN Torque : 3 Nm / 26.6 in-lb

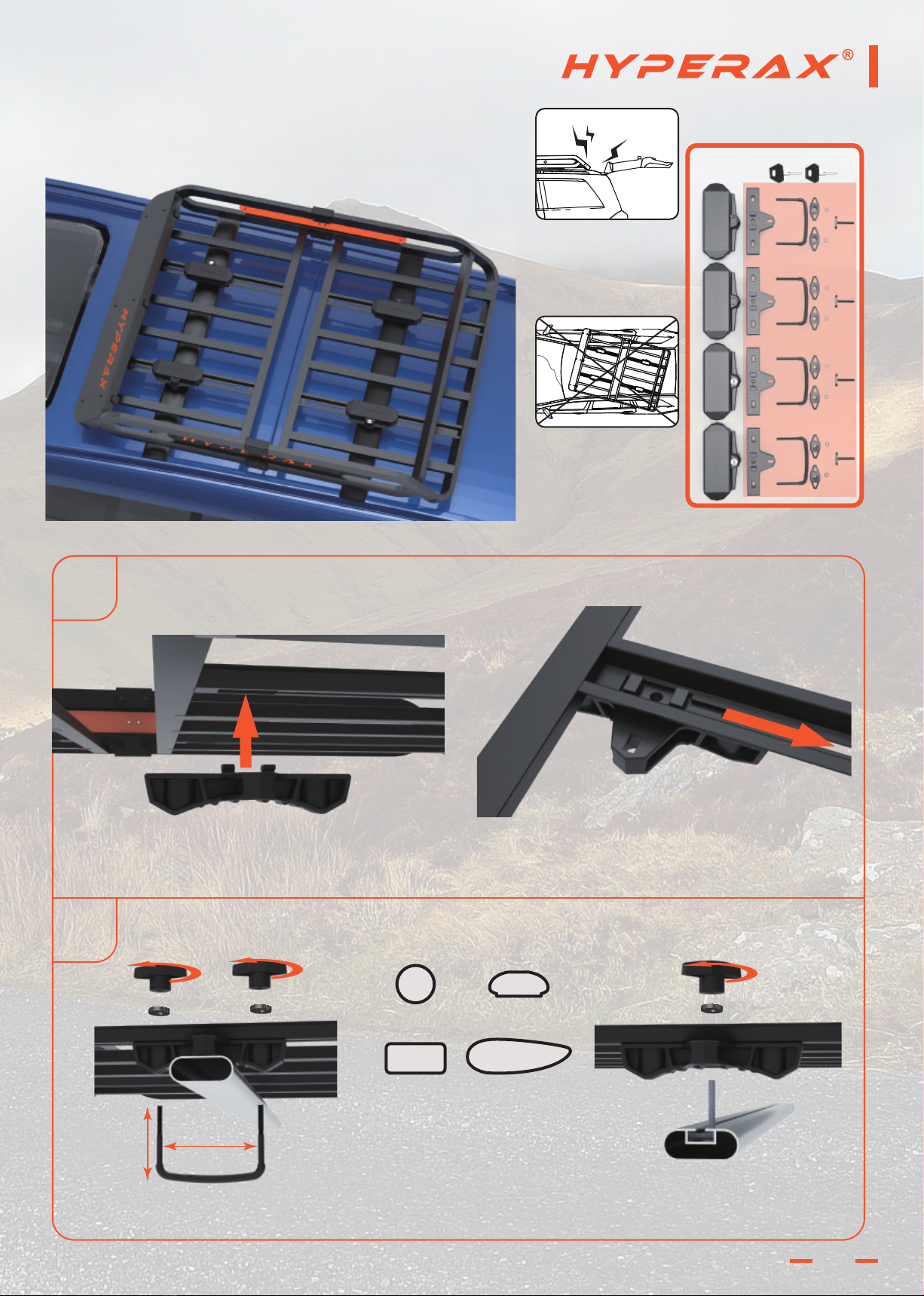

05
6
7
W
H
U Bolt T Bolt
Part kit 1
Round Bar
Rectangular Bar Wing Bar
Aero Bar
Caution
The basket must be level
Caution
Pay attention to
the tailgate and
antenna
Caution
Basket position
must be parallel
to the car
W≦3.5”(90 mm)
1-3/8”(35mm)≦H≦1-3/4”(45mm), use U bolt A
1”(25mm)≦H≦1-3/8”(35mm), use U bolt B
5/8”(15mm)≦H≦1”(25mm), use U bolt C
If
MIN Torque : 5 Nm / 44.3 in-lb
06
LOCK
UNLOCK
8
9
Part kit 1
07
1.1 Hyperax assumes no liability for injury to persons, damage to movable or immovable proper-
ty, loss of profit, or any other loss or damage caused by the improper mounting or use of the
carrier, including but not limited to mounting or use in conflict with the assembly instructions,
mounting instructions or any other instructions given, in writing or verbally, by Hyperax or a
Hyperax dealer.
1.2 The carrier and its parts must not be modified in any way.
1.3 Read all of the instructions and warranty information carefully before mounting and using the
carrier.
1.4 For your own safety, you should only use roof racks that are authorized for use with your
vehicle. For roof racks that do not specify the distance between the front and rear crossbars, the
distance shall be at least (21.7 inch / 55 cm) or as large as possible.
1.5 Please note that changes to the rack attachment system are not permissible. Check attach-
ment hardware and load for tight fit and function.
1.6 Do not exceed the maximum load specified for the car roof and roof rack or the maximum
load recommended by the vehicle manufacturer.
1.7 Load shall be uniformly distributed with the lowest possible center of gravity. Load should not
substantially extend beyond the loading surface of the roof rack.
1.8 Boat loading and longer Loads must be secured with bow and stern tie downs which are sold
separately.
1.9 The speed driven must be suited to the load transported and to official speed limits. In the
absence of any speed limits, we recommend a maximum speed of 80 mph (130 km/h).
1.10 When transporting any load, the speed of the vehicle must take into account all conditions
such as the state of the road, the surface of the road, traffic conditions, wind, etc. Off-road driving
is not permitted and could result in damage to your vehicle or your load.
1.11 The cargo carrier should be carefully cleaned and maintained, particularly during the winter
months. Periodically inspect cargo carrier for damage. Replace lost, damaged or worn parts. Use
only original spare parts obtained from authorized dealers or manufacturer. Any changes made to
the cargo carriers as well as the use of spare parts or accessories other than those supplied by
the manufacturer will void the manufacturer’s warranty and liability for any material damage or
ensure that you receive the spare parts quickly, please provide the relevant product details and
the serial number when making an inquiry.
1.12 Do not attempt to fit the carrier in any other way than the way shown in the mounting instruc-
tion.
1.13 Check tightness of all bolts and knobs periodically.
1.14 When extra gears are mounted on the cargo carriers, additional straps maybe needed.
General warning for cargo carriers
Please be noted that this warranty is based on the purchaser with original retail price on a receipt
or invoice (named “original purchaser”). Should this product transfer and/or sell to other person,
warranty terminates. This product is solely available with personal, family and household use. It
cannot be used for business or commercial purpose. We only warrant Hyperax-branded products
against defects in manufacturer or delivery for the original purchaser during warranty time period
specified below. If defects are believed to be caused by manufacturer or delivery after inspection
by our technicians, Hyperax will remedy defects with repair or replacement, at Hyperax’s option,
without any charge subject to this warranty. In some cases, Hyperax may not repair or replace a
defective product, at Hyperax’s option, and instead issue either a refund equal to the purchase
price paid for the product, or a credit to be used toward the purchase of new Hyperax products or
components.
This warranty does not cover:
1. Problems result from normal wear and tear (including, but not limited to, scratches, dents,
tears, or materials oxidation of surfaces, or natural breakdown of colors over extended time and
use)
2. Commercial use, accidents, unlawful vehicle operation, or modifications or repairs not
performed or authorized by Hyperax.
3. Products are not used properly with Hyperax instructions or warnings.
4. Circumstances go beyond Hyperax’s expectation including, but not limited to, extreme weather
events, theft, misuse, overloading, or failure to assemble, mount or use the product.
5. Any damage to non-Hyperax products transported using Hyperax products or used to connect
Hyperax products.
Limitation of Liability:
Repair or replacement of a defective product or the issuance of a refund or credit
(as determined by Hyperax) is the original purchaser’s exclusive remedy according to this
warranty. Damage or injury to the original purchaser, to his or her vehicle, cargo, or property,
and/or to any other person or property is not covered by this warranty. This warranty is clearly
made in lieu of any and all other express warranties, no matter oral or written. Hyperax’s sole
liability to any purchaser is limited to the remedy set forth above. In no event will Hyperax be
liable for any lost profits, lost sales, or for any consequential, direct, indirect, incidental, special,
exemplary, or punitive damages or for any other damages which were not directly and clearly
caused by a defective product.
File A Claim:
We are sorry to hear that you are having difficulty in your product. Before contacting us, please
facebook page.
(For purchase made at a Hyperax dealer, please contact the dealer where you purchased your
product for support.)
1. Proof of purchase, as a receipt with original price and purchase date
2. Issue description like how it happened and what caused it
3. Close-up photos of the issue
4. Photos of the entire product (front, rear and sides)
5. A photo of product serial number
We will reply to you for immediate help soon.
Hyperax Limited Lifetime Warranty
Thank you for purchasing products from Hyperax.
Please visit our Facebook page for customer service
and to get your limited lifetime warranty registration.
We will also post all our future events and products
on Facebook page and Instagram!
Sport Roof Cargo Carrier
Model : SRCCL 61.5 x 43.5 x 6.5 in
( 155 x 110 x 17 cm )
SRCCM 50 x 37.5 x 6.5 in
( 126.5 x 95 x 17 cm )
This manual suits for next models
1
