Hyundai Telecom HA-200 User manual

Video Door Phone
Operating Instruction
For your protection, Please read these instructions completely and keep it for future reference
HA-200 / HAC-200
Hanmi Building 45, Pang-E Dong, Songpa-Ku
Seoul 138-724, Korea
Tel 82.2.2240.9234/9271/9273
Web site : www.hyundaitel.com
6320000026H
Hyundai Telecom Printed in Korea

WARNING
To prevent injury, the following safety precaution should be observed during
installation, use and servicing of the unit.
This symbol is intended to alert the user to the presence of uninsulated
“dangerous voltage”within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric shock to persons.
This symbol is intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in the literature
accompanying the appliance.
For the customers
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communication.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning equipment on and off, the user is
encourage to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected
- Consult the dealer or an experience radio/TV technician for help
Note : Change or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment
CAUTION : TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE, REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL
CAUTION
RISK OF ELECTRIC SHOCKS
DO NOT OPEN

HYUNDAI Video Door Phone | HA-200 / HAC-200 02|03
IMPORTANT SAFEGUARDS
1. Read Instructions
All the safety and operating instructions should be read before the unit is
operated.
2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3. Follow Instructions
All operating instructions, maintenance and all warnings should be followed.
4. Cleaning
Turn off the power of unit before cleaning. Do not use liquid or aerosol cleaners.
Use a dry cloth for the body of unit.
5. Attachments
Do not use attachments not recommended by the unit product manufacturer,
as they may be hazardous or cause damage.
6. Heat and Moisture
Do not expose this unit direct sunlight and rain for reliable operation.
7. Installation
Do not install this unit on an unstable place (hot, cold, humid or excessive dust).
Use only with a mounting accessory recommended by the manufacturer or
sold with the unit. Installing this unit should follow instructions of manufacturer
and qualified service personnel.
8. Ventilation
Slot and opening in the cabinet are provided for ventilation to ensure reliable
operation of the unit and to protect it from overheating. These openings must
not be blocked or covered. Never place your unit on a bed, sofa, rug, or similar
surface ;or on or near a radiator or heat register. This unit should not be placed
in a built-in installation such as a bookcase or rack unless proper ventilation is
provided.
9. Power Sources
This unit should be operated only from the type of power source indicated on
the label. If you are not sure of the type of power supply to your home, consult
your appliance dealer or local power company. To operate the unit by battery
or other power source, consult the operating instructions.
10. Grounding and Polarization
This unit may be equipped with either a polarized 2-wire AC line plug
(a plug having one blade wider than the other) or a 3-wire grounding type
plug, a plug having a third (grounding) pin. The 2-wire polarized plug will fit into
the power outlet only one way. This is a safety feature. If you are unable to insert
the plug fully into the outlet, try reversing the plug. If the plug still fails to fit,
contact your electrician to replace your outlet. Do not defeat the safety
purpose of the polarized plug.
11. Overloading
When using this product, do not overload the power outlets or extension cords
ad this could cause fire or electric shock.
12. Accessories
Do not place this unit on an unstable cart, stand, tripod, bracket, or table. If the
unit falls, it could cause injury or damage to the system.
13. Object and Liquids
Never push objects of any kind into this unit through the openings. Never spill
liquid of any kind on the unit.
14. Servicing
Do not attempt to service this unit yourself as opening or removing covers may
expose you to dangerous voltage or other hazards. Refer all servicing to
qualified service personnel.
15. Power Line
The system should not be located near power lines or electric light or power
circuits.
16. Damage Requiring Service
Unplug this unit from the wall outlet and refer to servicing to a qualified service
technician if any of the following occur.
a. If the power supply cord or plug is damaged
b. If any liquid has been spilled int or objects have fallen in the unit
c. If the unit has been exposed to rain or water
d. If the unit has been dropped or otherwise damaged
e. If the equipment exhibits a distinct change in performance
17. Replacement Part
When replacement parts are required, use replacement parts specified by the
manufacturer.

TABLE OF CONTENTS
UNIT & COMPONENTS
Front/Side/Bottom panel 6
Parts Enclosed 8
INSTALLATION & WIRING
Installation 10
Wiring 11
OPERATIONS
How to use Buttons and adjustment on the unit 14
Communication function 14
ADDITIONAL INFORMATION
Troubleshooting Guide 16
Specifications 17
Warranty Condition 19
UNIT & COMPONENTS

HYUNDAI Video Door Phone | HA-200 / HAC-200 06|07
UNIT & COMPONENTS

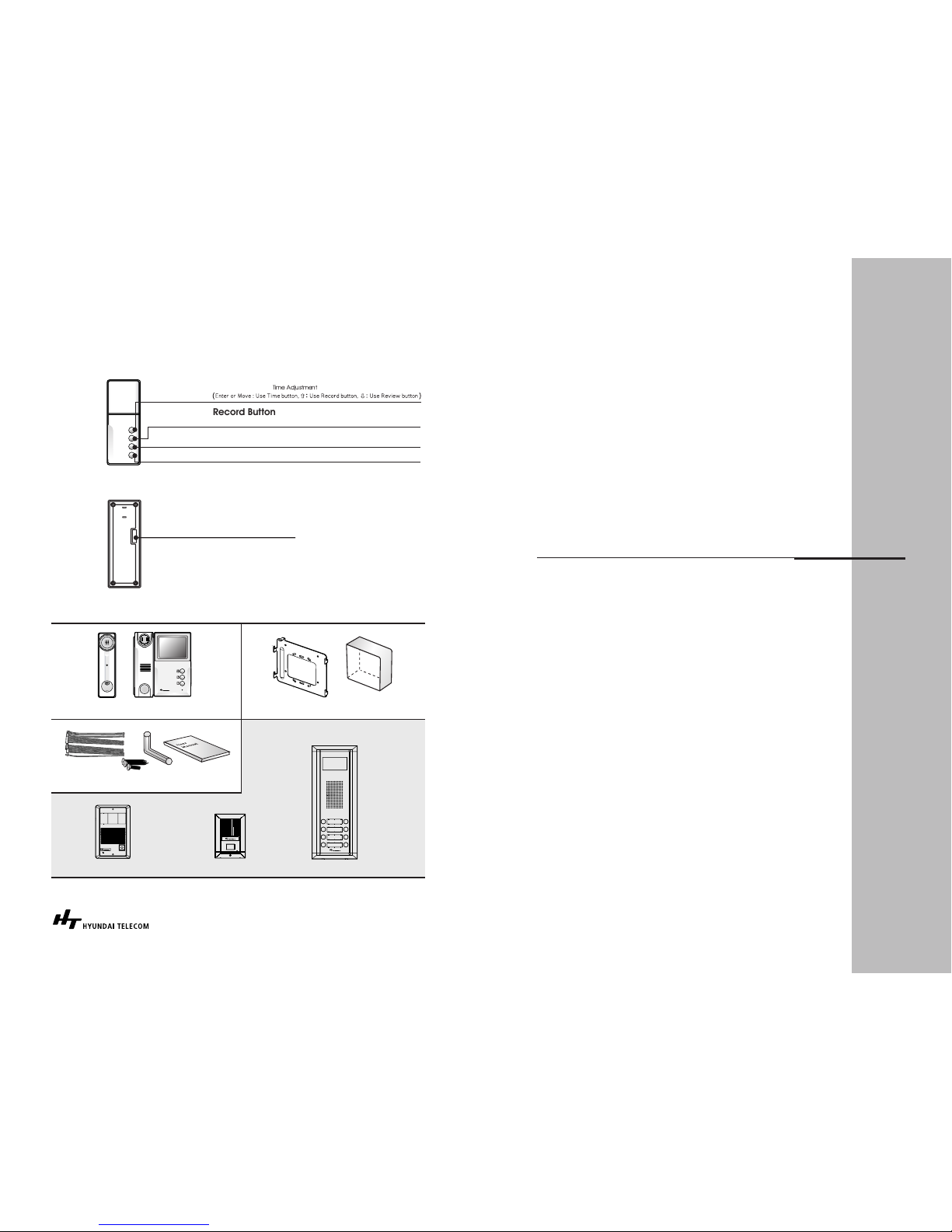

Main unit Front panel
Main unit Side & Bottom panel
Optional Cameras Front panel
Optional Cameras Side & Bottom panel
HCB/HCC-300 HCB/HCC-500 HCB/HCC-600

HVM-200B/C Image Memory Front panel (Option)
HVM-200B/C Bottom panel
Parts Enclosed
The parts shown below are provided by the manufacture and are enclosed in the box
Handset
Cable / Screw / Wrench / Manual
HCB/HCC-300 HCB/HCC-500 HCB/HCC-600
Main Mounting Bracket / Flush Box
(Optional Cameras)
Time Button :
Time Adjustment
Record Button :
Record manually. Automatic recording in case of the "Absence" mode
Review Button : Review recorded pictures
Away Button : Set or Reset "Absence" mode, quit the review
Time
Record
Review
Away
Connecting Part
OPERATIONS

HYUNDAI Video Door Phone | HA-200 / HAC-200 10|11
INSTALLATION & WIRING
Installation

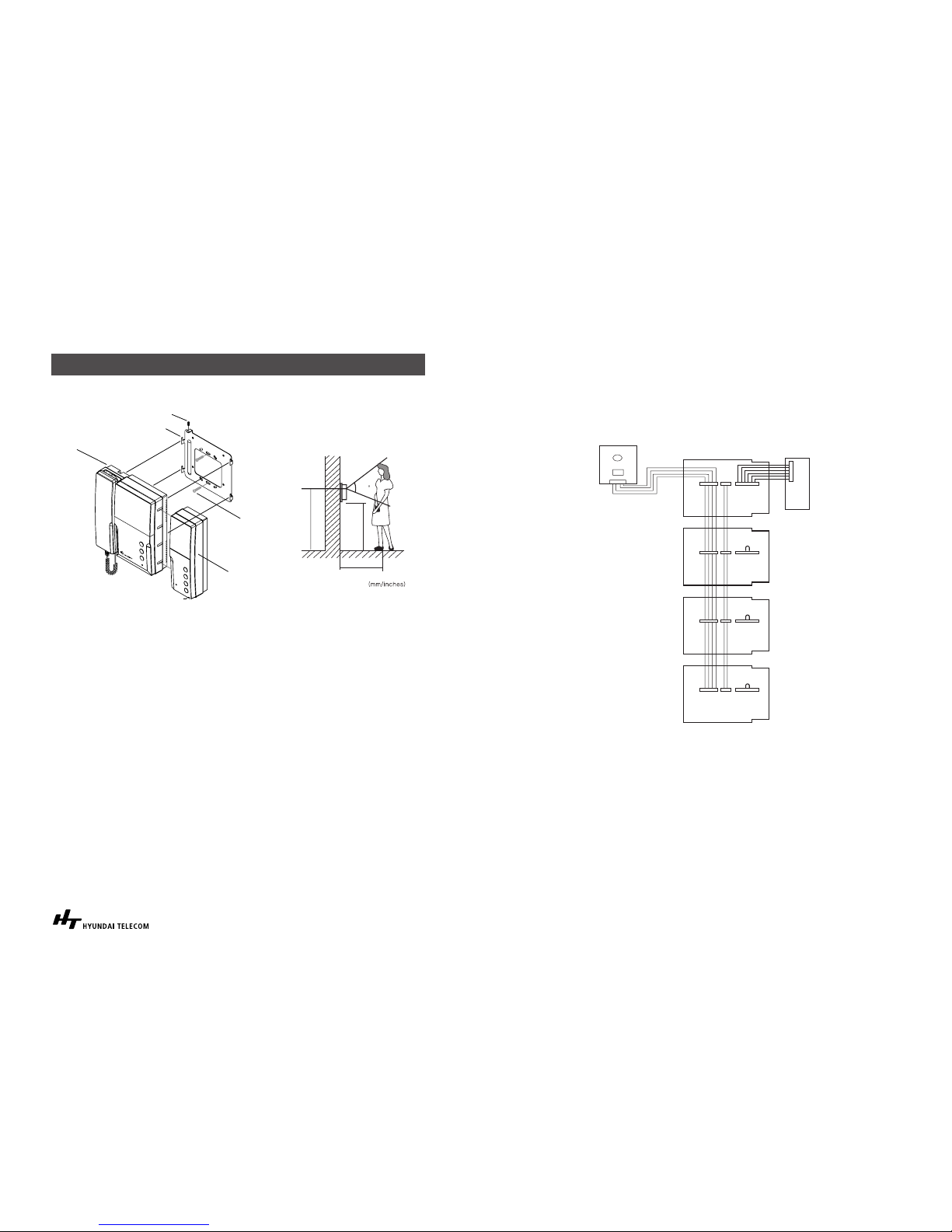

1.After determining the mounting locations for both the outside camera and
inside monitor
2. At the selected monitor mounting location, attached the mounting bracket
securely to the wall.
Drill a hole in the center area of the bracket just large enough for the electrical
wiring to pull through the hole. Connect the electrical wires from the camera
unit to the monitor wiring terminal
3. Connect the handset cord to the monitor unit.
4. Attach the wired monitor unit to the wall mounting bracket by setting the monitor
over the four bracket hooks and sliding in down, Insert the tiny machine screw into
the hole in the tab at the top of the bracket to hold the monitor in place.
5. Plug the AC power cord into a standard household outlet.
6. Place the Power “On/Off”switch in the “On”position.
Important Mounting Notes:
Do not install the monitor and camera units where they will be exposed to dirt,
direct sunlight(or other strong light), direct moisture, high temperature(over 40°C)
or high humidity conditions. Do not select an installation location subjected to
vibration or pounding.
Select a mounting location close to an AC outlet where it is easy to view the CRT
screen and operate the monitor.
INSTALL & WIRING
Wiring
Connect 3,4 shut pin(Main) when you are not using image memory

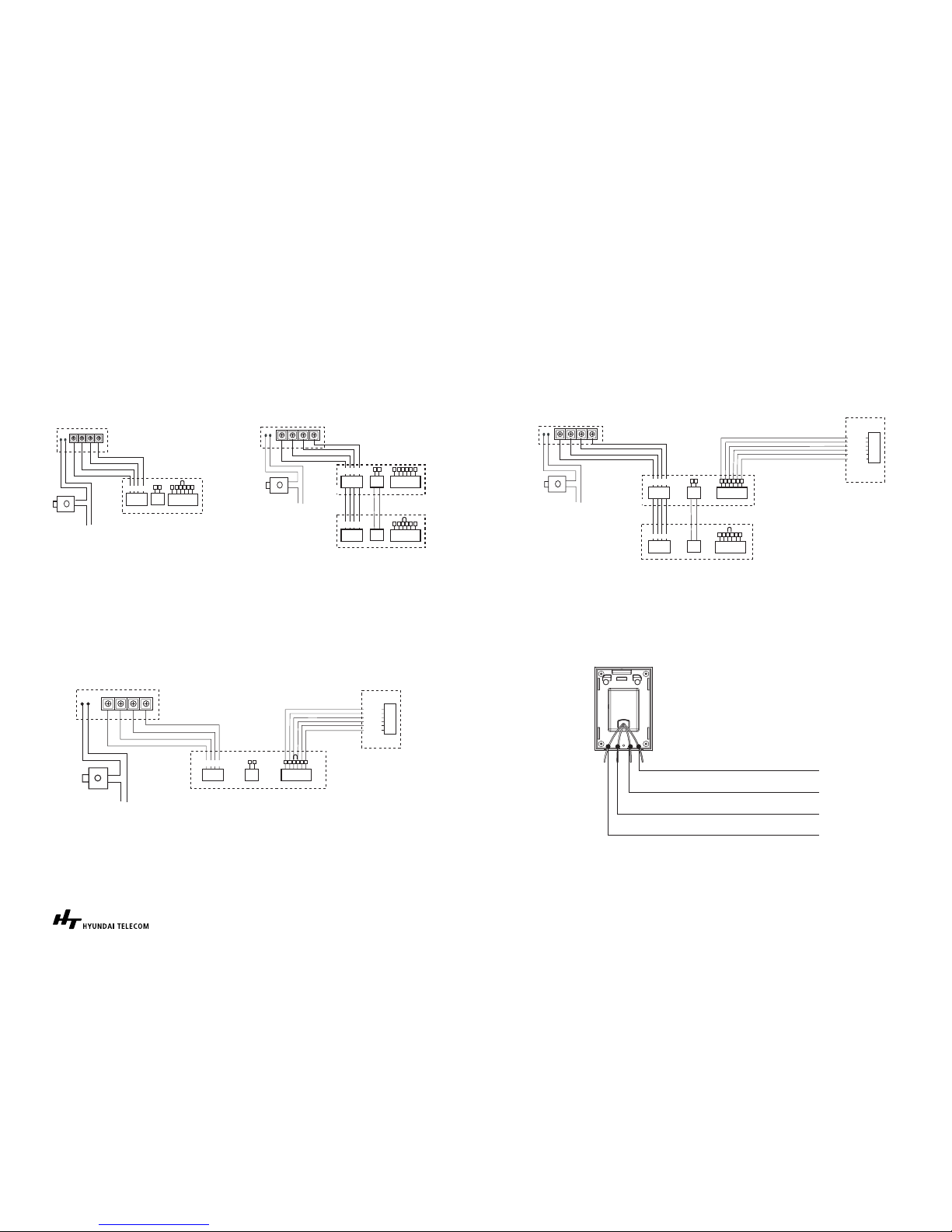

Wiring is not supplied with your Video Doorphone System. Use only AWG #22 wire
(0.65mm) and follow the appropriate wiring diagrams exactly for optimum system
performance and safety.
When planning the initial HA/HAC-200 System wiring installation, consider future
system expansion. The total wire length for a single camera and monitor system (or
any combination of additional cameras or monitors) must not exceed 50m total
wiring for optimum performance.
MAIN UNIT
WALL MOUNT BRACKET
SCREW 3x8 (1EA)
SCREW 4x25(2EA)
1500 / 59
1400 / 55-1/8
HVM-200B/C
(Option)
500 / 19-2/3
(MAIN) (CAMERA)
110
MAIN1
MAIN2
MAIN3
MAIN4
CAMERA
HVM-200B/C
(Option)

Option 3(Single Camera/Two Main/Image Memory)
Option 4(HCB/HCC-500 Pinhole Camera)
HYUNDAI Video Door Phone | HA-200 / HAC-200 12|13
Basic
(Single Camera/Single Main)
Option 1
(Single Camera/Two Main)
Option 2
(Single Camera/Single Main/Image Memory)
CAMERA CAMERA
MAIN1
MAIN2
MAIN
1 2 3 4 5 61 2 3 4 1 2
MONITOR
Door Release
Power
Power
Door Release
INTERCOM HVM-200B/C
V0 V-V+DP
V0 V-V+DP
V0 V-V+DP
1 2 3 4 5 61 2 3 4 1 2
HVM-200C/B
1 2 3 4 5 61 2 3 4 1 2
MONITOR INTERCOM HVM-200B/C
INT V-
INT V-
V0 V- V+ DP V0 V- V+ DP
MONITOR
HVM-200B/C
1
2
3
4
5
6
V+
V-
VIN
VOUT
MON-
CALLD
CAMERA
MAIN1
MAIN2
Power
Door Release 1 2 3 4 5 61 2 3 4 1 2
HVM-200C/B
1 2 3 4 5 61 2 3 4 1 2
MONITOR INTERCOM HVM-200B/C
V0V-V+DP
V0V-V+DP
V0 V- V+ DP
INT V-
INT V-
MONITOR
DP : White
V+: Black
V - : Red
V0 : Green
CAMERA HVM-200B/C
MAIN 1
Power 1
Door Release
MONITOR INTERCOM HVM-200B/C
1 2 3 4 5 6
1
2
3
4
5
6
V+
V-
VIN
VOUT
MON-
CALLD
1 2 3 4 1 2
INT V-
V0 V- V+ DP
V0 V-V+DP

ADDITIONAL INFORMATION
OPERATIONS
How to use buttons & adjustment on the unit
Communicating Function
Turn power switch ON. Use the slide switch for volume and brightness controls.
1. Visitor presses the “Call” button on the outside camera unit.
The monitor’s speaker will sound a “chime”tone to announce that a visitor is at
the door.
2. Upon viewing the monitor’s CRT screen and the visitor’s image, you have two choice ;
A. You can choose to “not respond”(by not lifting the handset) The visitor’s
image will disappear from the monitor’s CRT screen within 30 seconds
B. You can choose to “respond”by lifting the handset and talking to the visitor as if
using a telephone. The visitor’s image will remain on the CRT screen for 180
seconds, or until the handset is replaced back into the cradle.
3. After speaking with the visitor, and if you have installed an electronic door locking
system, you can push the “Open” button( ) to electronically unlock the door.
4. Press the call button( ) to call the additional monitor as an intercom.
BUTTON DESCRIPTION
Monitor ON/OFF of screen, talk through door camera
Intercom Activate an talk with the intercom
Door Door release
Time Time Adjustment (Enter or Move: Use Time button, ⇧:Use Record
button, ⇩:Use Review button)
Rec Record manually. Automatic recording in case of the “Absence”
mode
Review Review recorded pictures
Away Set or Reset “Absence”mode or quit the review
ADJUSTMENT DESCRIPTION
Brightness adjustment. (In the hook) After pick up the handset,
user can adjust the brightness of screen (Mode: Normal/ Brighter)
Volume adjustment. (In on hook) After placing the handset, user
can adjust the volume of sound (Mode: Normal/ Louder)

ADDITIONAL INFORMATION
Trouble Shooting Guide
After trying the methods below, if the problem persists, contact your nearest local
dealer
Unit totally dead (Power Lamp OFF)
-The power cord is not properly inserted in the AC outlet, or the AC is not supplied
-The power ON/OFF switch is in the OFF position
Cannot gain enough volume when talking to other units
-Adjust VOLUME with volume selector
Poor picture appears on the screen
-Make sure if lens of outdoor camera is clean
Can call and communicate, however, there is no audio signal
-Defective Camera
HYUNDAI Video Door Phone | HA-200 / HAC-200 16|17

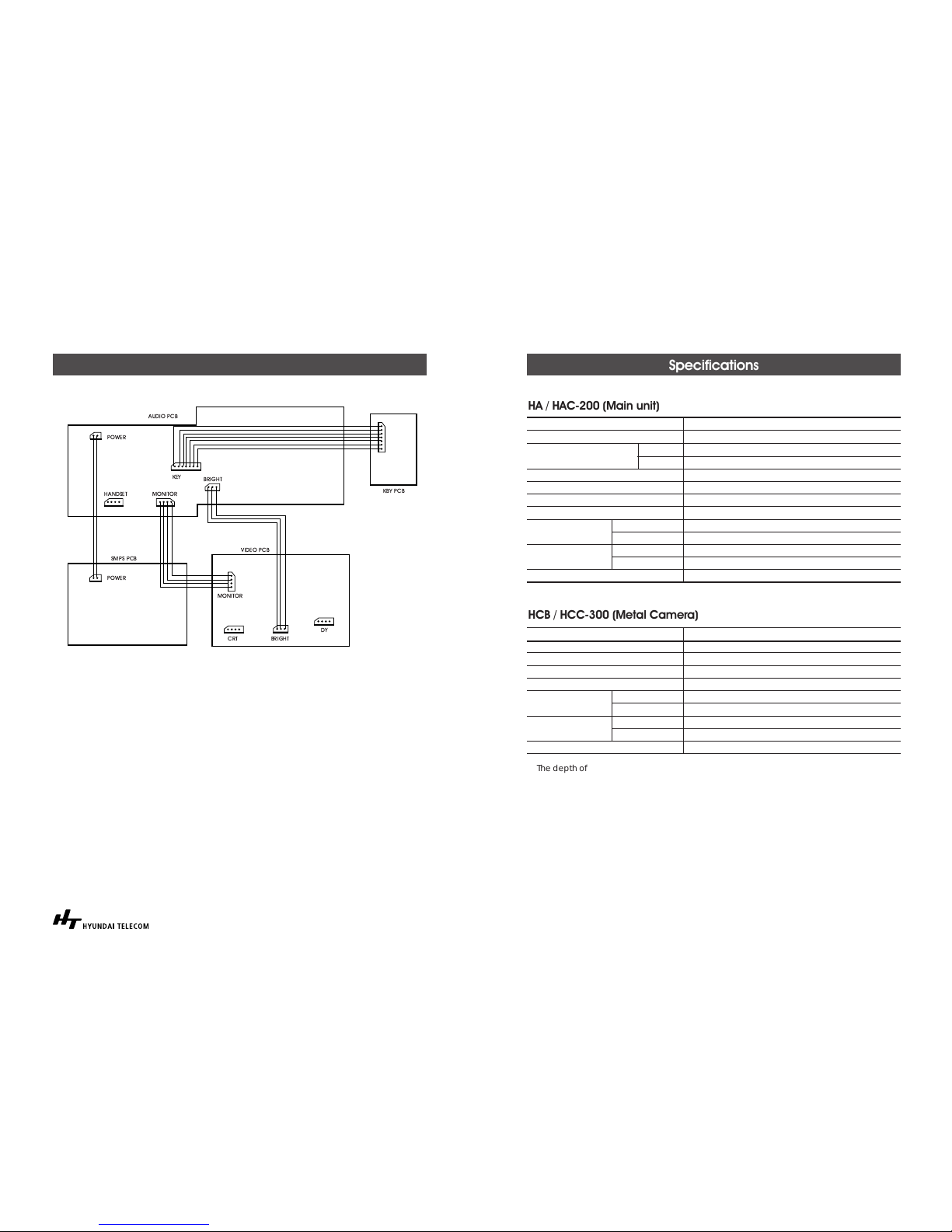

POWER
POWER
KEY
HANDSET
SMPS PCB
MONITOR
MONITOR
BRIGHT
AUDIO PCB
KBY PCB
VIDEO PCB
CRT BRIGHT
DY
Specifications
HA / HAC-200 (Main unit)
HCB / HCC-300 (Metal Camera)
※The depth of camera on the table indicates from wall surface after installation
Remark Specification
Voltage Requirements 90~250V AC, 50/60 Hz(Smps)
Power Consumption B/W Maximum 30VA, Stand by 5VA
Color Maximum 28VA, Stand by 5VA
Monitor Screen B&W Flat 4″Flat type / Color 4″TFT-LCD
Maximum Wiring Distance 50m/165 feet (22 AWG, 0.65mm 4wire)
Audio Communication Duplex handset
Extensions Monitor or Image memory
Environment Temperature -10°C to +40°C
Humidity Below 90% (relative)
Size Dimension
188W×208H×60D(mm) / 7-2/5W×8-1/5H×2-1/3D(Inches)
Weight 1.3 kg (2.86 Ibs) / 1.0 kg (2.20 Ibs)
Installation Surface Mount Type
Remark Specification
Power Source DC 13V (supplied from HA/HAC-200)
Power Consumption DC 13V, 0.25A
Display Input 1Vp-p/75, Composite CCIR/EIA, PAL/NTSC
Minimum Illuminance 0.1 Lux(B/W) / 3 Lux(Color)
Environment Temperature -10°C ~ 40°C
Humidity Below 90% (relative)
Size Dimension
120W×184H×16D(mm) / 4-3/4W×7-1/4H×3/5D(Inches)
Weight 0.5kg / 1.10 Ibs
Installation Flush Mount Type

HCB / HCC-500 (Pinhole Camera)
※The depth of camera on the table indicates from wall surface after installation
HCB / HCC-600 (Multi Camera)
※The depth of camera on the table indicates from wall surface after installation
Remark Specification
Power Source DC 13V (supplied from HA-200)
Power Consumption DC 13V, 0.17A
Display Input 1Vp-p/75, Composite CCIR/EIA, PAL/NTSC
Minimum Illuminance 0.1 Lux (B/W) / 3 Lux(Color)
Environment Temperature -10°C ~ 40°C
Humidity Below 90% (relative)
Size Dimension
91.5W×132.5H×18D(mm) / 3-3/5W×5-1/5H×5/7D(Inches)
Weight 0.2kg / 0.44 Ibs
Installation Flush Mount Type
Remark Specification
Power Source DC 12V
Power Consumption DC 12V, 0.2A
Display Input 1Vp-p/75, Composite CCIR/EIA, PAL/NTSC
Minimum Illuminance 0.1 Lux (B/W) / 3 Lux(Color)
Environment Temperature -10°C to +40°C
Humidity Below 90% (relative)
Size Dimension
123W×308H×18D(mm) / 4-5/6W×12-1/8H×5/7D(Inches)
Weight 1kg / 2.2 Ibs
Installation Flush Mount Type
HYUNDAI Video Door Phone | HA-200 / HAC-200 18|19
Warranty Conditions
Products are supplied with one(1) year return to base warranty
From the date of purchase. We will repair or replace the defective item with a
new or factory rebuilt replacement.
Condition
1. This warranty applies to the original purchaser only.
2. All warranty will be invalid if unauthorized repair or modification are made to the
unit or in any case of accident, misuse, damage cause by improper installation
and altered serial numbers.
3. The liability of is limited to the cost of repair/replacement ofthe
unit under warranty.
4. If you need a warranty service, you should send the product to our customer
service Dep’t or dealer office. The product in all cases must be accompanied
by the following items:
Your name, address, telephone number, the serial number, copy of your sales
receipt showing the purchase date.
The Model Number is on the box and front of the manual. The Serial Number is on
the bottom of the unit. Record the Model and Serial Numbers in the spaces
provided below. Refer to these numbers for warranty service.
Model No. Serial No.

Memo
This manual suits for next models
1
Table of contents
Other Hyundai Telecom Intercom System manuals
Popular Intercom System manuals by other brands

GEZE
GEZE GCVR 800 Assembly and installation instructions

Entrya
Entrya FACILA FP135 Installation and user manual

Somogyi
Somogyi home DB 118 instruction manual

Kwikset
Kwikset Powerbolt 2 quick start guide

Alcorn Mcbride
Alcorn Mcbride V-Com VC12X user guide

urmet domus
urmet domus iPercom VOG 5+ 1761/15 User booklet
