Thank you for purchasing Home Network System of HYUNDAI TELECOM.
Since this system is developed and produced by a R&D center of HYUNDAI TELECOM and has various convenient functions,
please read this Instruction Manual carefully before use so you can fully understand the use of the equipment. The functions of this
product or the content of the Instruction Manual can be modied without a prior notice for the purpose of quality improvement.
Security
3 modes - Away, Home/Sleep, At Home – monitors trespassing from outside.
Once an alarm goes off, abnormal situations sensed will be notied to a wall pad, door phone and guard (security)
ofce automatically.
In case of an agreement is made with a specialized security agency, the system will notied the control center and
emergency dispatch service can be implemented.
Call
Phone calls, door phone calls, guard (security) ofce calls, neighbor calls, lobby calls and video calls (optional) can
be implemented.
Options
Multiple extra functions such as equipment control features are provided as options which can be selected to
improve convenience.
Options are selected during initial ordering, and they cannot be modied after installation.
HNT-4105 SMART HOME SYSTEM

Table of Contents
01 Precautions Precautions on use 6
External structure and description 8
02 How to use Screen construction 10
Calling option 12
Control option 20
Additional option 26
Information option 35
Security option 41
About failure diagnosis and corrective measures 52
03 Size and specication Specication 54
Product warranty 59

HNT-4105
01 Precautions
If a power plug or an equipment connector applies as a blocking device,
such device has to be in a location where it can be manipulated easily.
Precautions on use 6
External structure and description 8

6
Instruction Manual
Precautions on use
This part contains matters that can result in a serious injury or even death. Please read and be fully aware of the
contents for the correct use of the equipment.
!
Any attempts of disassembly, repair,
remodeling are prohibited.
Do not have the product exposed to a
physical impact, smoke, oil, or water.
If there is any abnormal noise, smell, or
smoke coming out of the product, stop using
it immediately and call the Service Center.
Do not use water or chemicals, such as
alcohol, to wipe the outside of the product
with but use only a piece of dry cloth.
For the prevention of an injury, the product
has to be xed on the ground or wall safely
according to the installation manual.
Do not install the product in a place that is
either hot or humid due to a heating equipment
or such or is exposed to direct sunlight.

Instruction Manual 7
Precautions on use
This part contains matters that can result in an injury or a property damage. Please read and be fully
aware of the contents for the correct use of the equipment.
!
Do not place any equipments that generate
strong magnetism (a large TV or speaker)
near the product.
Be careful not to have water get into a
camera of a doorphone while cleaning the
entrance.
This product does not operate if a circuit
breaker is shut down or in case of a blackout.
Do not press buttons with a sharp object,
such as an awl or a pin, or put such into the
hole.
Do not leave the equipment in a place where
water drops or splashes.
Please keep the Instruction Manual safely
and, if moving to a new house, hand over the
manual to the new owner of your house.
* When connected to the mains power, a protective earth must be connected.
* Electrical installation of building needs to be equipped with a bipolar main power switch where both poles have a contact separation of at least 3 mm or bigger and
it acts as a mains disconnect device.
* When installed, it shall be provided with terminals in which connection is made by means of screws, nuts or equally effective devices.

8
Instruction Manual
External structure and description

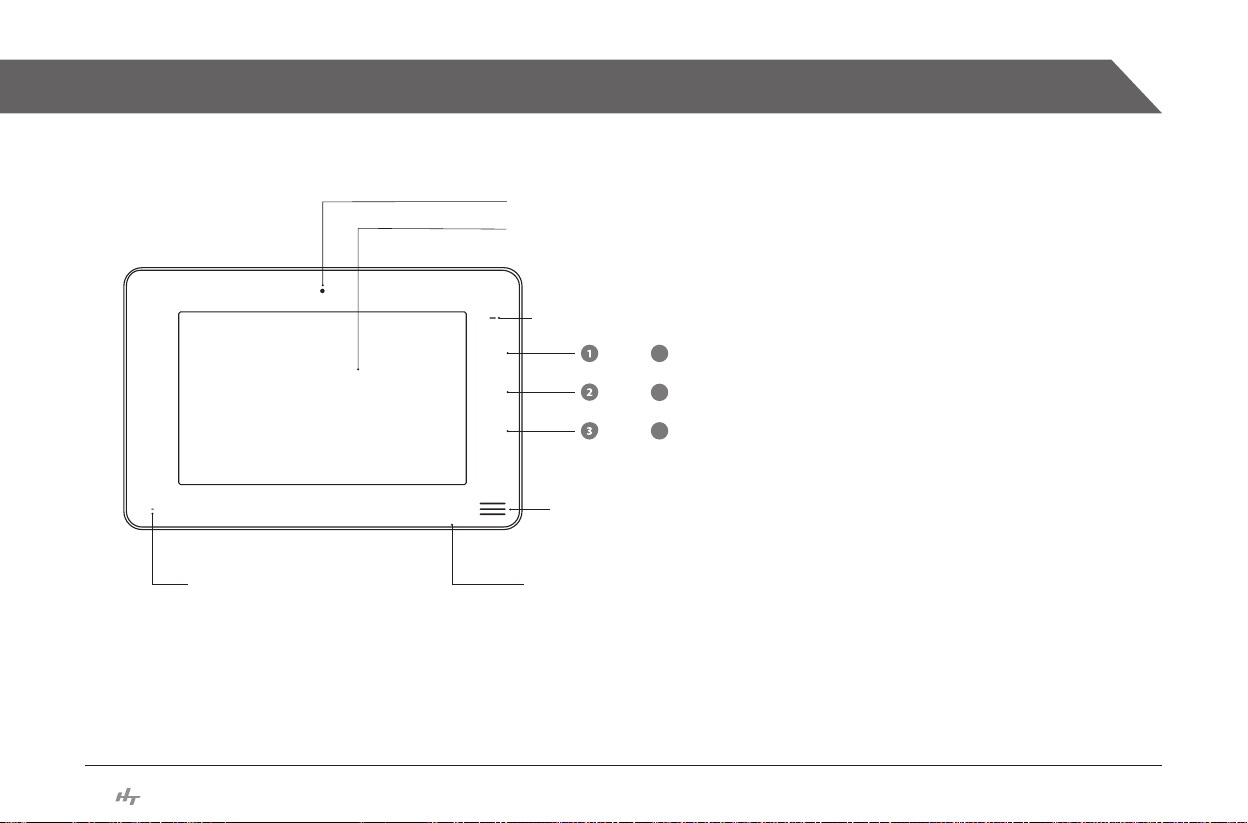

Camera (Optional)
LCD (GUI) Screen
Power (LED)
Mic.
Speaker
Power Switch
※
Product image may differ by model and optional specication is included.
1Emergency It is used in case of emergency.
2
Call It starts and ends a call when answering a call.
3
Open Door The button opens the door during door phone,
lobby phone or phone calls.
Touch Compensation (5 seconds)
Emergency
Open Door
Call

HNT-4105
02 How to use
Screen construction 10
Calling option 12
Control option 20
Additional option 26
Information option 35
Security option 41
About failure diagnosis and corrective measures 52

10
Instruction Manual
Screen construction
1. Initial screen
Main menu
The main screen consists of call, control, additional, information and security. Click the icon to move to that
category.
Main Menu consists of Call, Control,
Additional, Information and Security.
Pressing the icon moves to the
corresponding category.
Functions of each menu
Function
Displays the number of new notications. Pressing it moves to Notications screen.
Displays the number of unchecked visitors. Pressing it moves to the Save List screen.
Displays the number of unchecked couriers. Pressing it moves the Courier Information screen.
Pressing it displays the Elevator Call screen.
Menu

Instruction Manual 11
1. Initial screen Time Information
Displays current time. If the system is connected to a network, it will automatically maintain
the latest time information.
Screen construction

12
Instruction Manual

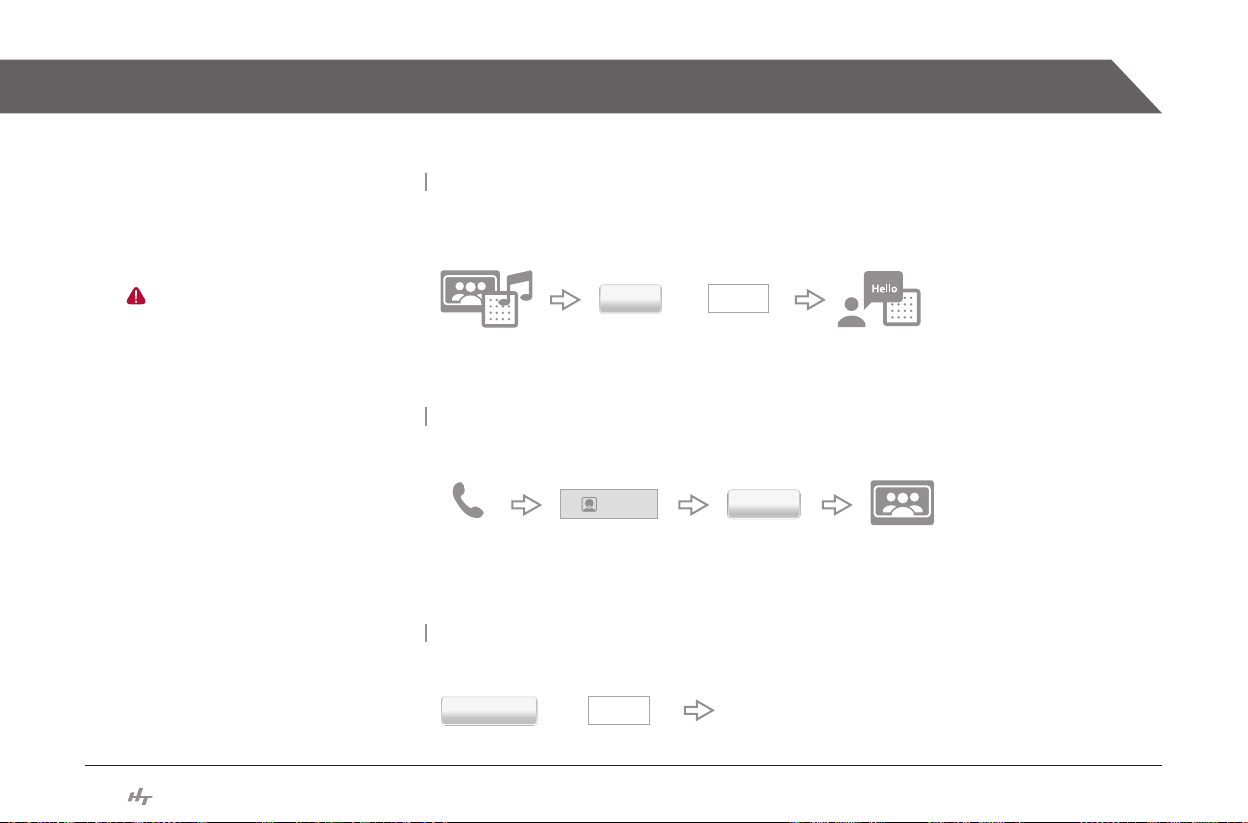

Calling option
1. Call through door phone
It is for making a call through a door phone
installed at the main entrance of housing.
Be careful while using Open Door option as
there is a risk of a security problem due to
user's mistake.
Disconnect or
Call
End Call
Call
Door
Monitoring
If a call is made to a door phone
Press the button as below to start the call.
If you do not receive the call for 30 seconds, it will automatically end.
Call
or
Call
When you want to see images outside the door (door monitoring function)
Press the button as below to see images.
When you end the door phone call (automatically ends in 3 minutes)
Press the button as below to end the call.

Instruction Manual 13
Calling option
1. Call through door phone
It is for making a call through a door phone
installed at the main entrance of housing.
Be careful while using Open Door option as
there is a risk of a security problem due to
user's mistake.
*Optional features are available only when such
features are installed during construction.
The feature may change or not be available
depending on connection methods or if
connection is not possible.
Open Door function (optional)
Press the button as below to end the call and open the door.
Open or
Open
End Call
When you want to save visitor images
When a call is made from the door, visitor image is automatically saved.
Press the button below to save images of the visitor calling or in call.
Capture
Saved images can be viewed at [Information] - [Memo].

14
Instruction Manual

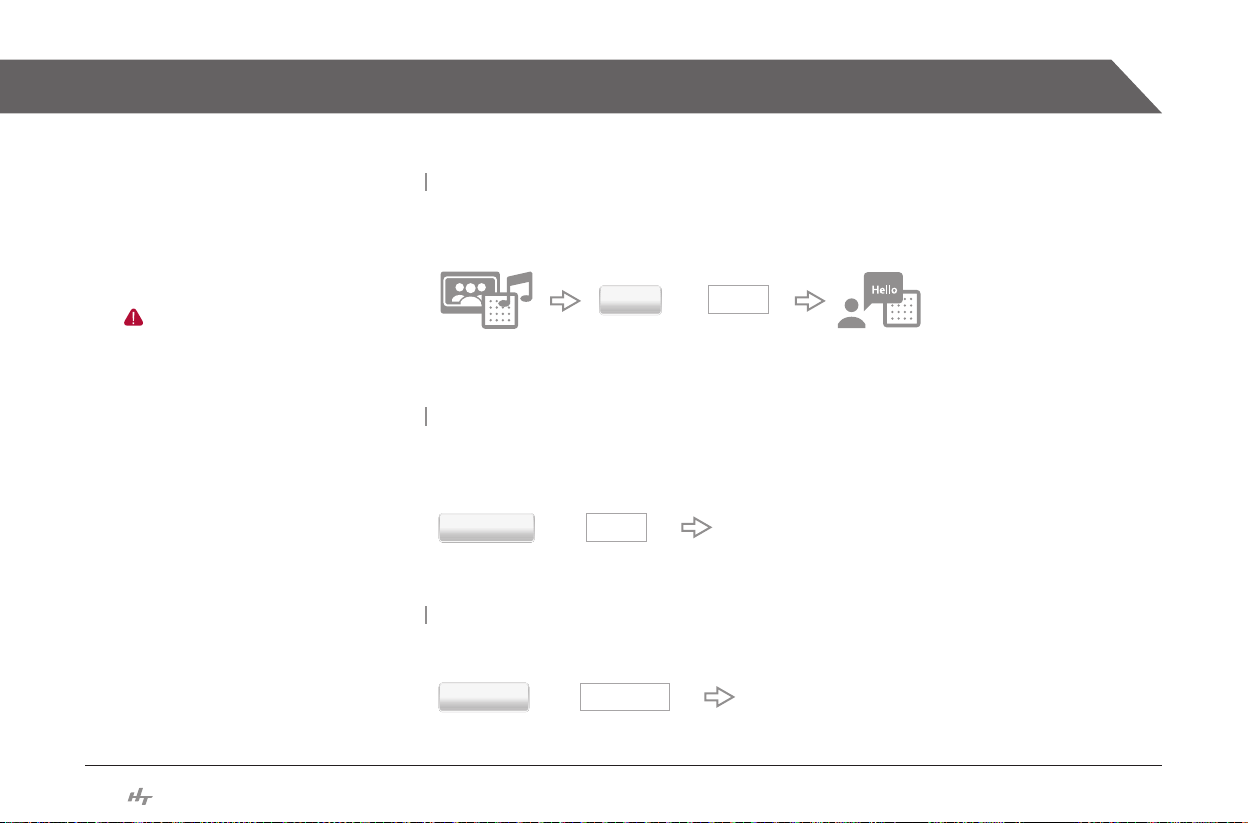

Calling option
2. Call through the lobby
phone
It is for a call with the lobby phone and only
receiving calls are available.
Be careful while using Open Door option as
there is a risk of a security problem due to
user's mistake.
When you receive a call from the lobby
The screen displays an image of the lobby, the Call Button on the screen ashes and the phone rings.
Press the button below to start the call, and if the call is not answered for 30 seconds, the call will end.
Call
or
Call
When you end the call from the lobby (automatically ends the call in
1 minute)
Press the button as below to end the call.
Disconnect or
Call
End Call
Auto lobby door open
Press the button as below to open the door and end the call.
Open or
Open
End Call

Instruction Manual 15
Calling option
2. Call through the lobby
phone
It is for a call with the lobby phone and only
answering calls are available.
Be careful while using Open Door option as
there is a risk of a security problem due to
user's mistake.
When you want to save visitor images
When a call is made from the lobby, visitor image is automatically saved.
Press the button below to save images of the visitor calling or in call.
Capture
Saved images can be viewed at [Information] - [Memo].

16
Instruction Manual
Calling option
3. Call through the guard
(security) phone
It is for making a call at the controller
installed in the security ofce.
Disconnect or
Call
End Call
Call
Guard
MGT
When you receive a call from the guard phone
The Call Button on the screen ashes and the phone rings.
Press the button below to start the call, and if the call is not answered for 30 seconds, the call will end.
Call
or
Call
When you want to make a call at the guard(security) ofce
Press the button as below to start the call.
When you end the call with the guard phone (automatically ends in 3 minutes)
Press the button as below to end the call.

Instruction Manual 17
Calling option
4. Call to Neighbor
It is for making a call to neighbor.
Disconnect or
Call
End Call
Call
Neighbor
Call
When you receive a call from neighbor
The Call Button on the screen ashes and the phone rings.
Press the button below to start the call, and if the call is not answered for 30 seconds, the call will end.
Call
or
Call
When want to make a call to neighbor
In order to make a call to neighbor, press Call Neighbor button, enter the number
(apartment and room number; 0000-0000) and then press Call button to generate a calling sound.
When you end the call to neighbor (automatically ends in 3 minutes)
You can end a call by pressing the following buttons.

18
Instruction Manual
Calling option
5. Video Call (Optional)
It is the video call between neighbors.
*Optional features are available only
when such features are installed during
construction.
The feature may change or not be available
depending on connection methods or if
connection is not possible.
Disconnect or
Call
End Call
Call
Video Call
Call
Blocking
When you receive a call from neighbor
The Call Button on the screen ashes and the phone rings.
Press the button below to start the call, and if the call is not answered for 30 seconds, the call will end.
Call
or
Call
When want to make a call to neighbor
To call a neighbor, press the Neighbor Call button, enter neighbors house number (0000B.0000#), and then press the
Call button. When the neighbor receives the call, the call begins. You will only be able to see the video of your neighbor
if your neighbor shows a video by pressing the Video Blocked button.
When you end the call to neighbor (automatically ends in 3 minutes)
You can end a call by pressing the following buttons.

Instruction Manual 19
Calling option
6.
Other information
It is a common feature for all kinds of calls.
Volume control
You can adjust the volume of the bell while making a call.
You can adjust the volume of the voice while speaking for the call.
You can congure those settings in [Additional] – [Setup] – [Volume] screen.
Redial
Redial is available in Neighbor Call and Phone Call screens.
You can make a call to the number (neighbor) that you made a call for the last time.
Redial

20
Instruction Manual
Control option
1. Before use
Optional features for device control are
determined when initial contracts are made
and therefore they cannot be installed or
changed while using the product. Types,
number and locations of the control devices
may vary by house .
*Optional features are available only when
such features are installed during construction.
The feature may change or not be available
depending on connection methods or if
connection is not possible.
Control
Move to screens
Press [Control] button on the main screen. Selecting a menu will move to the corresponding control screen.
Functions of each menu
Function
You can shut down the gas valve.
You can turn the light on or off.
You can control the heating temperature of each room or power On/Off.
You can control the cooling temperature or power On/Off.
Menu
Gas
Lamp
Heating
Air con
